Solar Inverter MPPT 5000W Pure Sine Wave Inverter 110V/120V DC 48V 50HZ/60HZ With Charge Controller PV 500VDC 80A

Solar Inverter MPPT 5000W Pure Sine Wave Inverter 110V/120V DC 48V 50HZ/60HZ With Charge Controller PV 500VDC 80A

Regular price $1,190.95
Regular price Sale price $1,190.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Ships From
Input Voltage
Output Voltage

SPECIFICATIONS

  • Is_customized: Yes
  • Weight: 13KG
  • Wave form: Pure sine wave
  • Voltage: 110VAC/120VAC
  • Type: DC/AC Inverters
  • The rated power: 5000VA /5000W
  • Size: 98mm*410mm*201mm
  • Power factor: PF1.0
  • Peak power: 10000VA
  • Output Type: Single
  • Output Power: 1 - 200KW
  • Output Frequency: 50Hz 60HZ
  • Output Current: 27A
  • Model Number: MLV 5KW-U
  • Maxmum AC Charge Current: 80A
  • Maximum PV Array Power: 5000W
  • Maximum PV Array Open Circuit Voltage: 500VDC
  • Loaded motor capability: 4HP
  • Communication interface: USB/RS485/Dry node control
  • Battery voltage: 48VDC
Overview:
The is a new all-in-one hybrid solar charge inverter, which integrates solar energy storage &means charging energy storage and AC sine wave output. Thanks to DSP control and advanced controlal gorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging;and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.The solar charging module applies the latest optimized MPPT technology to quickly track the maximum power point of the PV array in any environment and obtain the maximum energy of the solar panel in real time.
Feature
1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
2. Two output modes: mains bypass and inverter output; uninterrupted power supply
3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging
4. Advanced MPPT technology with an efficiency of 99.9%.

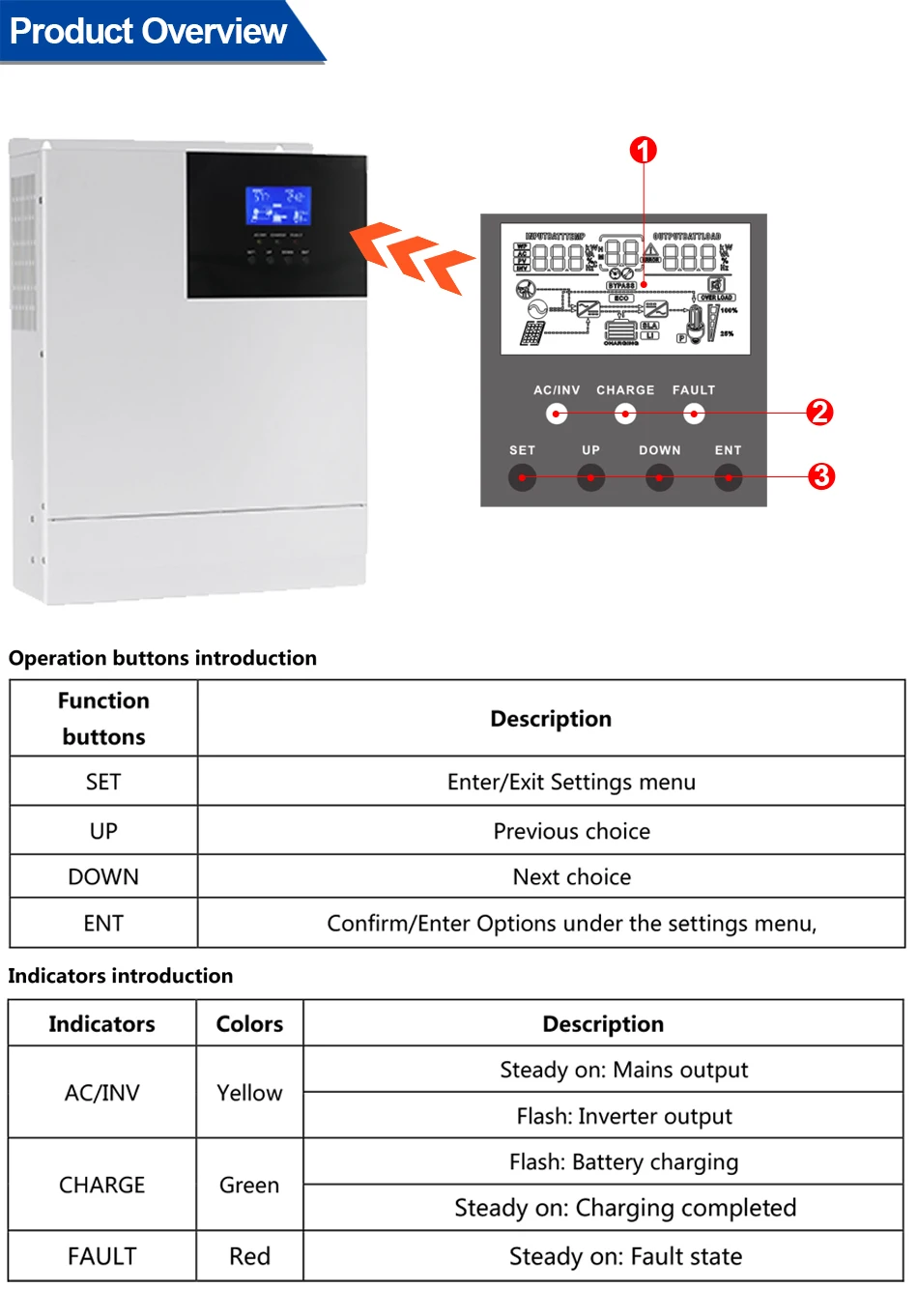

5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.
6. ON/OFF rocker switch for AC output control.
7. Power saving mode available to reduce no load loss
8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.
9. Lithium battery activation by PV solar or mains, allowing access of lead acid battery and lithium battery
10. 360 all round protection with a number of protection functions.
11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.
Basic System Architecture:

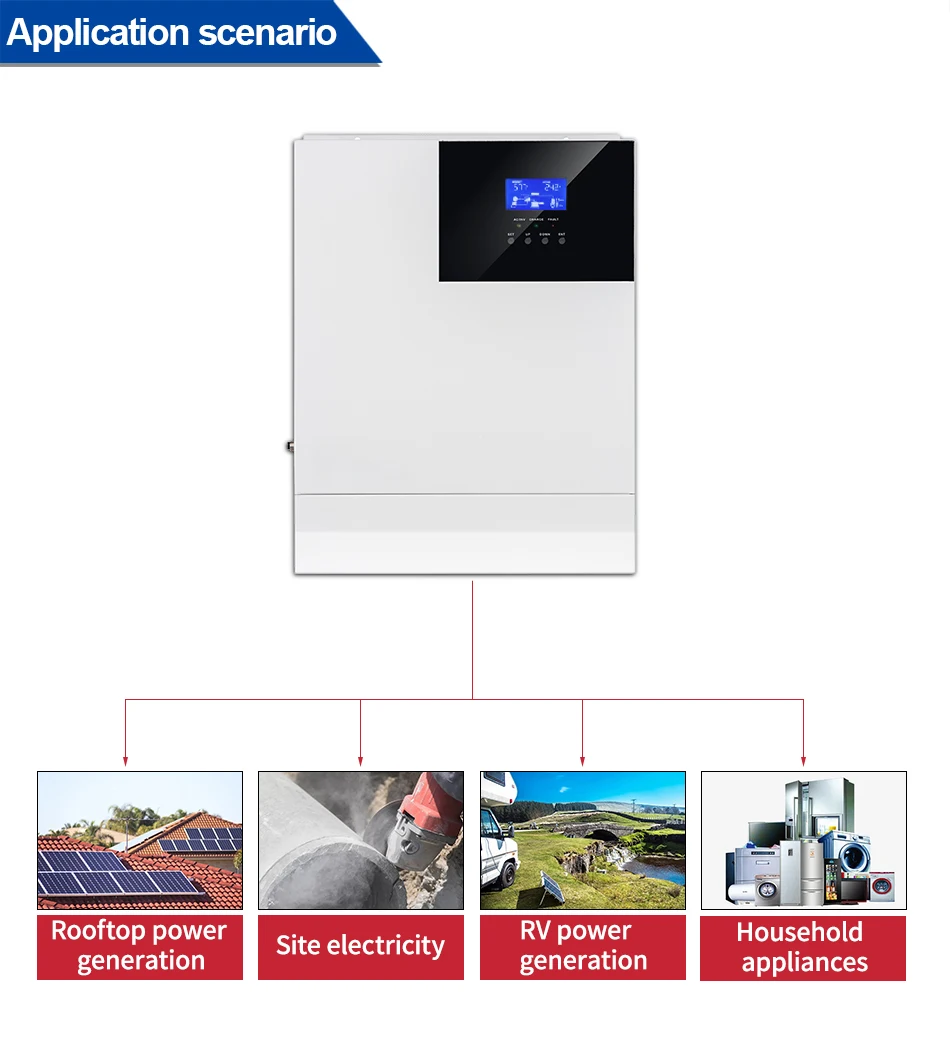

The figure below shows the system application scenario of this product. A complete system consists of the following parts:
1. PV module: Convert light energy into DC power, and charge the battery through the all-in-one solar charge inverter, or directly invert into AC power to drive the load.
2. Mains or generator: Connected at the AC input, to power the load while charging the battery. If the mains or generator is not connected, the system can also operate normally, and the load is powered by the battery and PV module.
3. Battery: Provided to ensure normal power supply to the system loads when solar energy is insufficient and the Mains is not connected.
4. Household load: Allow connection of various household and office loads, including refrigerators, lamps, TVs, fans and air conditioners.
5. All-in-one solar charge inverter: The energy conversion unit of the whole system.
Specific system wiring method depends on the actual application scenario.

Model

MLV5KW-U

ACmode

Ratedinputvoltage

110/120Vac

Inputvoltagerange

(90Vac-140Vac)±2%

Frequency

50Hz/60Hz(auto-sensing)

FrequencyRange

47±0.3Hz~55±0.3Hz(50Hz)/57±0.3Hz~65±0.3Hz(60Hz);

Overload/shortcircuitprotection

Breaker

Efficiency

>95%

Conversiontime(bypassandinverter)

10ms (Typicalvalue)

ACreverseprotection

yes

Maximum bypassoverloadcurrent

63A

Invertingmode

Outputvoltagewaveform

Puresinewave

Ratedoutputpower(VA)

5000W

Ratedoutputpower(W)

5000W

Powerfactor

1

Ratedoutputvoltage(Vac)

120VAC

Outputvoltageerror

±5%

Outputfrequencyrange(Hz)

50Hz±0.3Hz/60Hz±0.3Hz

Efficiency

>90%

Overloadprotection

(102%125%±10%:reportingerrorandturnoff

theoutputafter5seconds;

Peakpower

10000VA

Loadedmotorcapacity

4HP

Outputshort-circuitprotection

Breaker

Specificationofbypassbreaker

63A

Ratedbatteryinputvoltage

48V(minimumstartvoltage44V)

Batteryvoltagerange

40.0Vdc~60Vdc±0.6Vdc(undervoltagealarm/turnoffvoltage/overvoltage

alarm/overvoltagerestoration…settableLCDscreen)

Powersavingmode

Load≤25W

ACcharge

Batterytype

Leadacidorlithiumbattery

Maximumchargecurrent

40A

Chargecurrenterror

±5Adc

Chargevoltagerange

40~60Vdc

Short-circuitprotection

Breakerandblownfuse

Breakerspecification

63A

Overchargeprotection

Turnoffchargeafter1minalarm

Solarcharge

MaximumPVopencircuitvoltage

500Vdc

PVoperationvoltagerange

120-500Vdc

MPPTvoltagerange

120-450Vdc

Batteryvoltagerange

40-60Vdc

Maximumoutputpower

5000W

Chargecurrentrangeof

solarenergy(settable)

0-80A

Chargeshort-circuitprotection

Blownfuse

Wiringprotection

Inversewiringprotection

Authenticationspecification

Specificationauthentication

CE(IEC62109)RoHs

EMCauthenticationgrade

EN61000

Operationtemperaturerange

-15°Cto55°C

Storagetemperaturerange

-25°C~60°C

Humidityrange

5%to95%(Conformalcoatingprotection)

Noise

≤60dB

Thermaldissipation

Forcedcoolingwithadjustableairspeed

Communicationinterface

USB/RS485(WiFi/GPRS)/drynodecontrol

Dimension(L*W*D)

426mm*322mm*126mm

Weight(kg)

10.9
