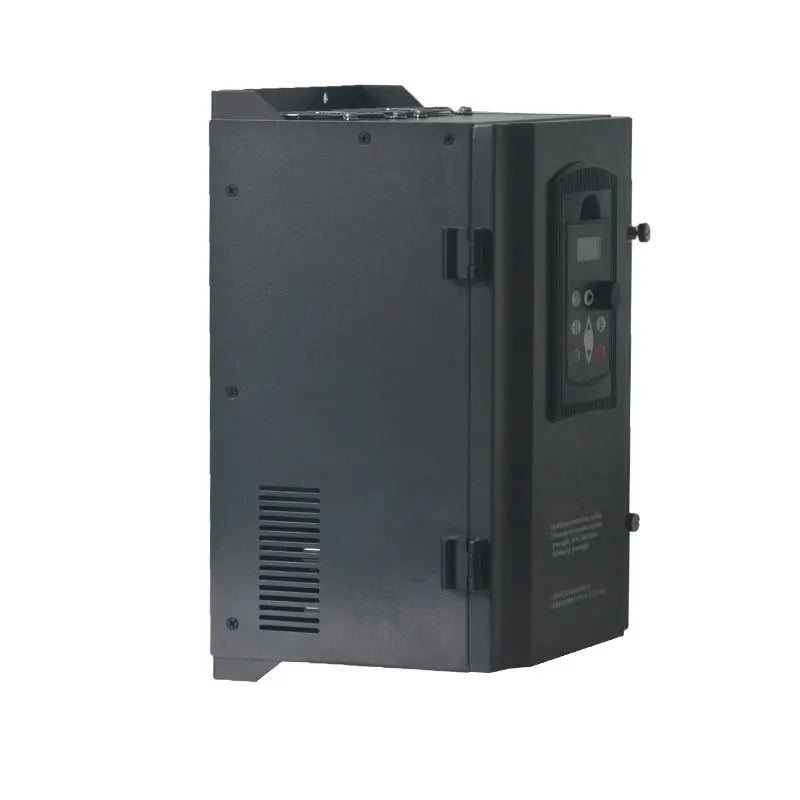

15KW 380V 3Phase Input 32A Frequency Inverter Triphase 3 Phase Output VFD Frequency Converter Motor Speed Controller 50/60Hz

Increase the efficiency and functionality of your motor with our 15KW 380V 3Phase Input 32A Frequency Inverter. Designed with a triphase 3 phase output and VFD frequency converter, this motor speed controller operates at 50/60Hz for optimal performance. Trust in our industry-leading technology for robust and accurate results.

Specifications

• Brand Name: NFLIXIN
• Type: DC/AC Inverters
• Size: 85mm*125mm*150mm
• Model Number: 9600
• Output Frequency: 0-400HZ
• Output Type: triple
• Weight: 3.5KG
• Output Current: 32A
• Input Voltage: 3 phase 380V
• output Voltage: 3 phase 380V
• Applications: Universal
• Level of portection: Ip20
• Control method: V/F
• Power: 15KW

Output Power:15kw 2.Rated current:32A 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~650Hz 4.Input Voltage Range:3 phase 380V±15% 5.Output Voltage Range:3 phase 380V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Starting Torque: G type machine:0.5Hz/150%( SVC) 8.Main function: Control and adjust the speed of the ac motor
