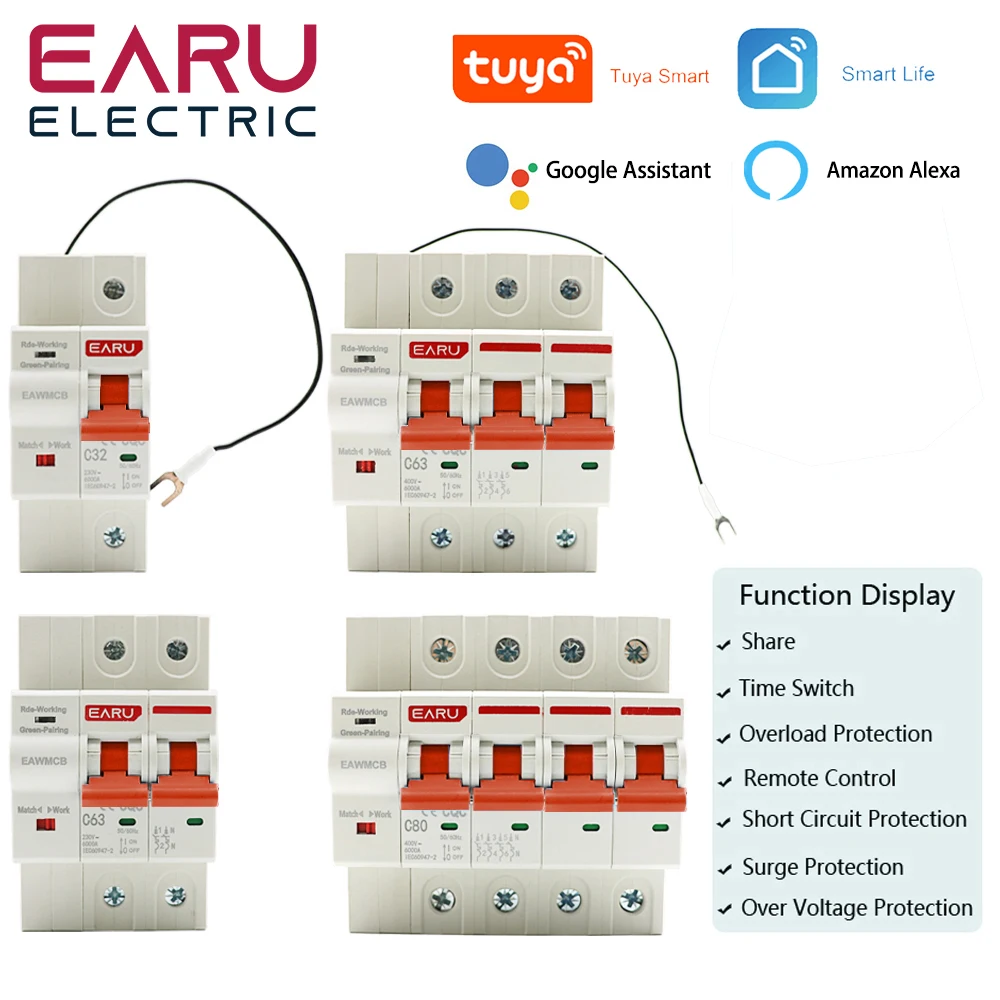

1P 2P 3P 4P TUYA APP WIFI Circuit Breaker Timer Voice Remote Control Smart Life Automatic Intelligent Interruptor WIFI Switch
1P 2P 3P 4P TUYA APP WIFI Circuit Breaker Timer Voice Remote Control Smart Life Automatic Intelligent Interruptor WIFI Switch
No se pudo cargar la disponibilidad de retiro
Efficiently control your home's electricity usage with our 1P 2P 3P 4P TUYA APP WIFI Circuit Breaker Timer. With voice remote control, easily manage multiple electronics through the Smart Life app. Save time and energy with automatic scheduling and intelligent interruptor technology. Switch to a smarter way of living with our WIFI Switch.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Type: AIR
- Rated Voltage: 220/380V
- Type: Circuit breaker
- Model Number: EAWMCB-TY
- Is Smart Device: YES
- Brand Name: EARUELETRIC
- Type: Mini
- Is Smart Device: YES
- Model Number: EAWMCB-TY
100% Brand New and High Quality!
APP:Tuya Smart
Built-in -jamming chip to enhance the stable transmission and reception of WiFi signals, to prevent clutter interference.
Professional EMC test
Professional EMC comprehensive testing to ensure safe and reliable communication process.
Impact withstand voltage 6000V
Guaranteed to increase the service life of equipment even under overpressure conditions
EMC electromagnetic interference performance
Experienced rapid transient burst immunity test, surge test, electrostatic discharge test, etc.The product remains intact.
High mechanical life

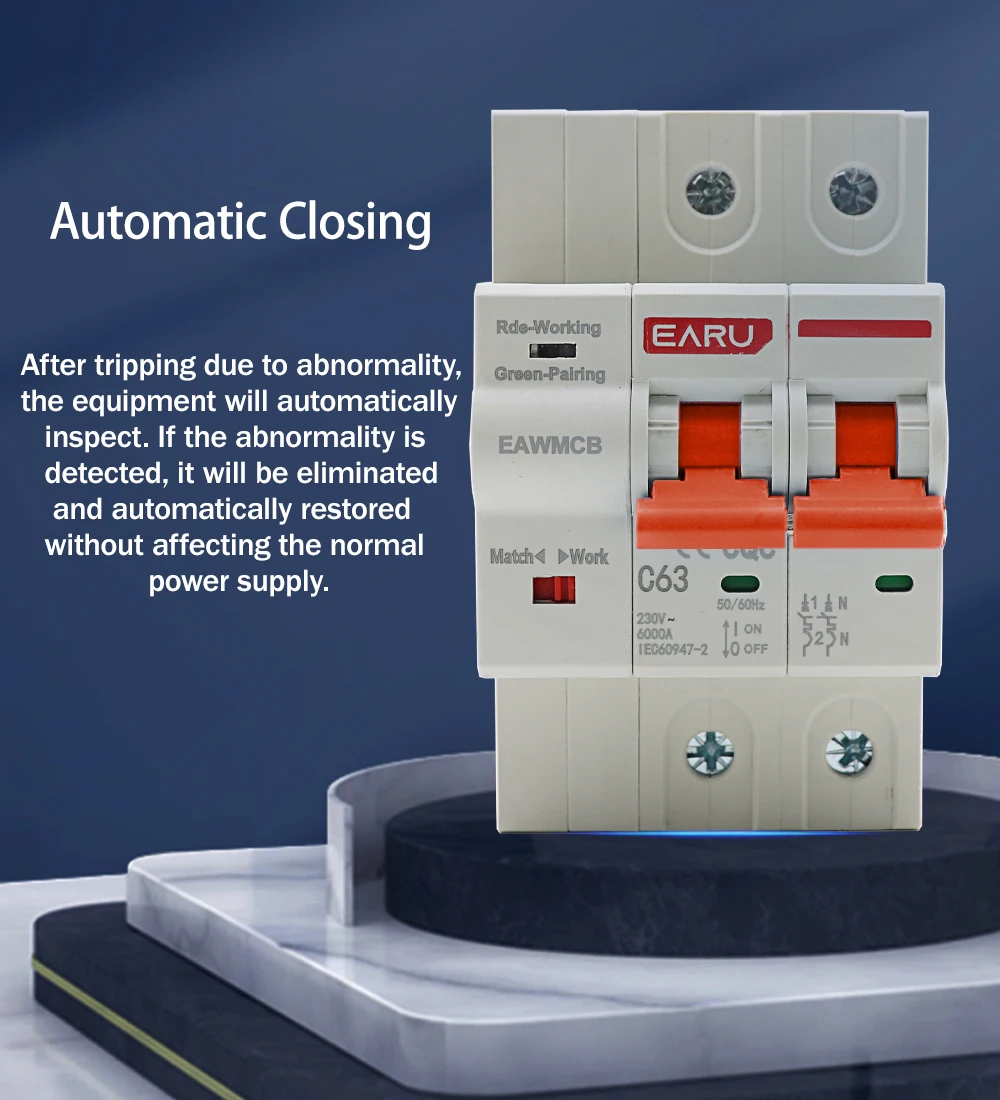

- The product organization still maintains good operation after experiencing 10,000 operations per hour of 120 closing cycles. Quick closing function
- Improve the performance of opening and closing, prevent overheating and aging, and prolong service life
- One mobile phone can control all electrical appliances with one APP
Island power supply, tower equipment, outdoor lighting, house power supply, field engineering, mountain facilities, street lighting control
WiFi : 2.4 GHz
- Remote control : By smartphone application from anyway (the smartphone must connect to the internet in WiFi or 3g/4g)
- Application : Tuya APP (free download in IOS and Andorid)
- Function : switch on / switch off / timer schedual / smart scene
- Work with : Alexa , Google Home , IFTTT .
- Function: overload , short-circuit , isolating .
Specifications:
- Rated voltage: AC230V (1P, 2P) / AC400V (3P, 4P)
- Rated frequency: 50/60Hz
- Number of poles: 1P/2P/3P/4P
- Pollution level: level 2
- level: IP20
- Rack rated current: 100A
- Rated current: 16A,25A,32A,40A,50A,63A,100A
- Instantaneous tripping form: C
- Rated impulse withstand voltage: 6000V
- Control level voltage: AC220V
- Implementation standards: GB10963.1, IEC60898-1, GB/T21706
- Control mode: working mode, pairing mode
- Phase line leakage current: steady state current consumed per phase line ≤ 0.2mA
- Drop test: in line with GB/T4857.18
- EMC test: in line with GB/T18499-2008
- Rated short-circuit breaking capacity: Icn=6kA Ics=6kA
- Operating temperature: -25 ° C ~ +65 ° C
- Mechanical life: in line with GB10963.1≥10000 times
- Electrical life: in line with GB10963.1 ≥ 6000 times
- Installation category: 1, ll
- Temperature rise test: ≤60k
- Salt spray test: in line with GB/T 2423.1724h
Package Included:
- 1*Circuit Breaker
- 1*Instruction manual
Notes: Check if the WIFI router is 5G or 2.4G. This product supports 2.4G (if it is a dual-band router, please change to 2.4G)
