⚡ 1P 2P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter Circuit Breaker Time Relay Switch Leakage Voltage Protection
Upgrade your system with our high-performance 1P 2P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter Circuit Breaker Time Relay Switch Leakage Voltage Protection. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
Introducing the 1P 2P TUYA APP Zigbee WIFI Smart Energy Power Consumption kWh Meter, designed for accurate measurement and monitoring of energy usage. With TUYA APP and Zigbee WIFI connectivity, easily control and track power consumption. Circuit Breaker, Time Relay Switch, and Leakage Voltage Protection features ensure safety and efficiency.
SPECIFICATIONS
- Brand Name: EARUELETRIC
- Type: Moulded Case
- Rated Voltage: 220V
- is_customized: Yes
- Type: Circuit breaker
- Model Number: EAYCBM-T-1P/2P
- Fuction 1: On/off Switch
- Fuction 8: Remote control at anytime from anywhere
- Share: Share with All Family Mebmer
- Working Voltage: AC110-230V
- Fuction 2: Time Relay Switch
- Fuction 3: Voltmeter
- Fuction 4: Ammeter
- Fuction 5: Power Meter
- Fuction 6: Leakage Protection(Only 2P)
- Fuction 7: Current Limit
- Frequency: 50/60Hz
- Working Current: 10-63A(adjustable)
- Rated residual operating current(mA): 30mA
- APP: Tuya
- Control: Remote control Connection 2.4G WIFI
- Poles: 1P/2P
- Fuction 9: Voltage protection
- Fuction 10: Overcurrent protection
- WiFi Frequency: 2.4GHZ
We can offer OEM service to print your logo on the circuit breaker, if you get any need, feel free to contact the seller!
Function:
- On/off Switch
- Time Relay Switch
- Voltmeter
- Ammeter
- Power Meter
- Over current protection 10A-63A (adjustable) (default: 35A)
- Over voltage proteciton 1V-400V (adjustable) (default: 265V)
- Under voltage protection 50V-300V (adjustable) (default: 180V)
- Leakage Protection 30mA(Non adjustable) 【Only 2P has this function】
- Current Limit
Features

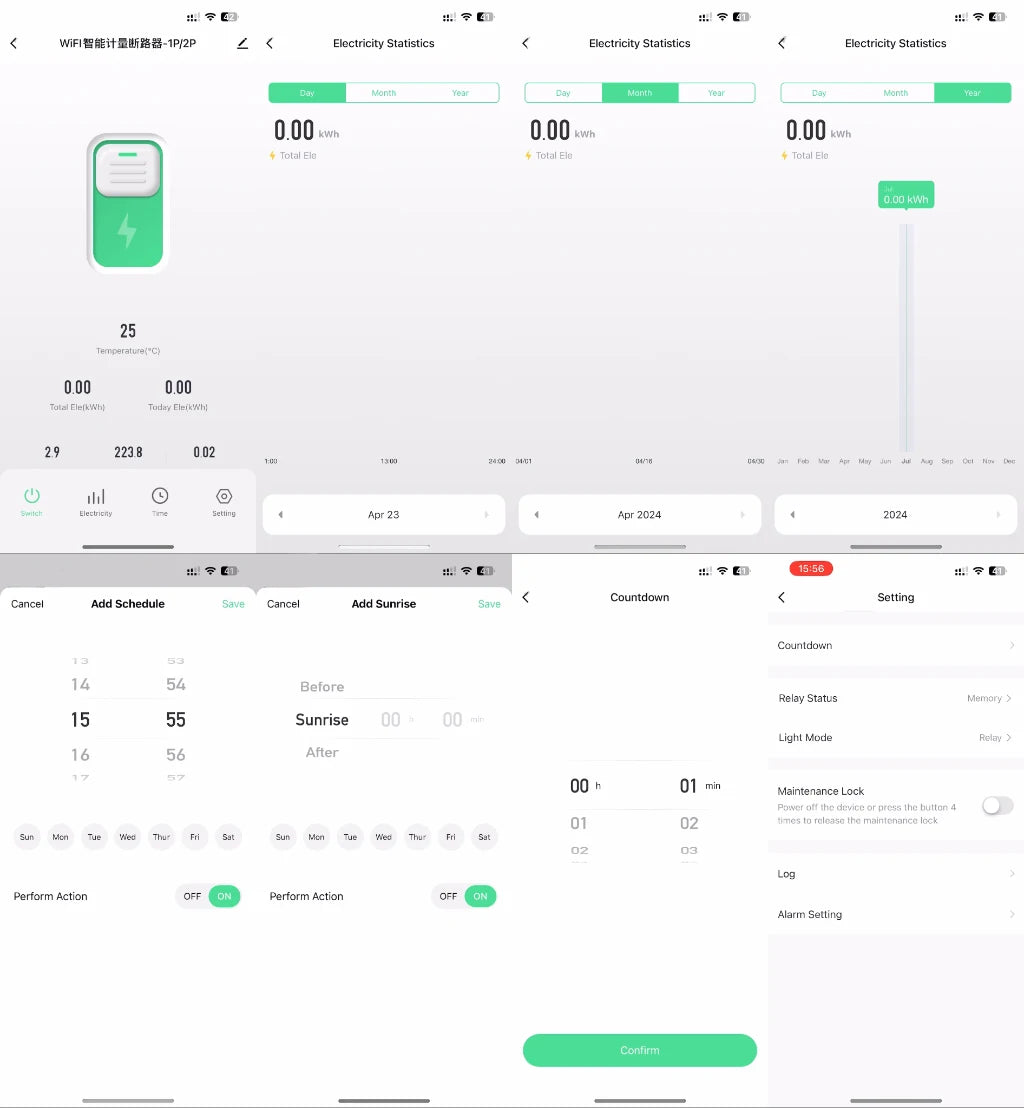

- Remote control at anytime from anywhere
- Schedule/Timer/loop timer
- Energy monitoring,Set power unit price ,can caculate house device power consumption，Download data to sheet
- Preset power/current/voltage threshold values by app, Once the real-time power/current/voltage reaches the threshold values, The connected electrical appliances will be automatically turned off
- Working Voltage: AC110-230V
- Mechanical Life: Over 100000 Times
- Working Temperature: -25℃-70℃
Note: If the user's voltage is 110V, please change the setting of undervoltage first, because this setting is set at 180V by default, if not, the device cannot be turned on.
