⚡ 1 Pair DC Solar Connectors With Spanner PV Plug Cable Connectors

Upgrade your system with our high-performance 1 Pair DC Solar Connectors With Spanner PV Plug Cable Connectors. Built for reliability, efficiency and seamless integration with modern setups.

📌 Key Benefits

• ✅ High-efficiency design for superior performance
• ✅ Optimized heat dissipation and durability
• ✅ Plug-and-play compatibility for easy integration
• ✅ Ideal for industrial and residential use

📄 Technical Specifications

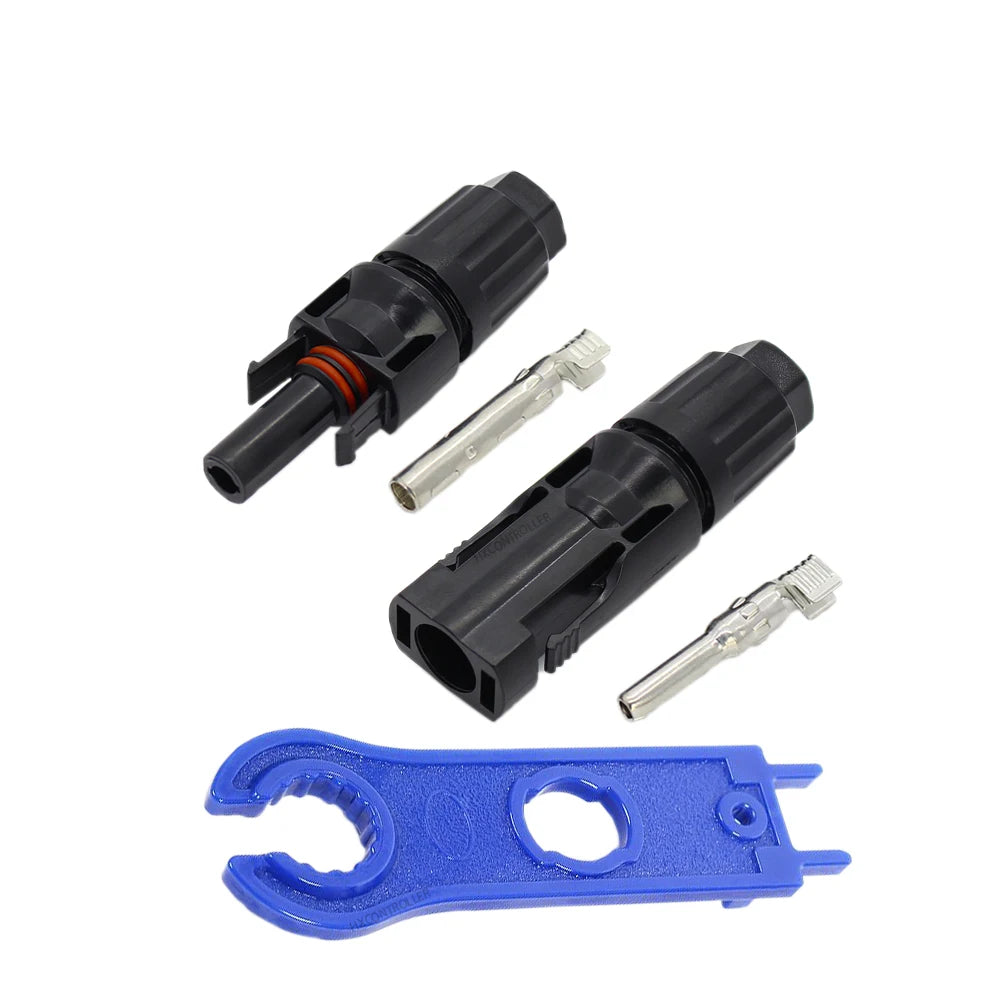

1pair DC Solar Connector + Solar Spanner PV Plug Cable Connectors (Male and Female) for Solar Panels Photovoltaic

Enhance your solar panel setup with our 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors (male and female) for Solar Panels Photovoltaic. Designed for maximum efficiency, these connectors ensure a reliable connection, essential for optimizing your photovoltaic systems.

Key Features:

• High Voltage & Current Rating: Rated voltage of 1000V and current of 30A, making it suitable for robust solar applications.

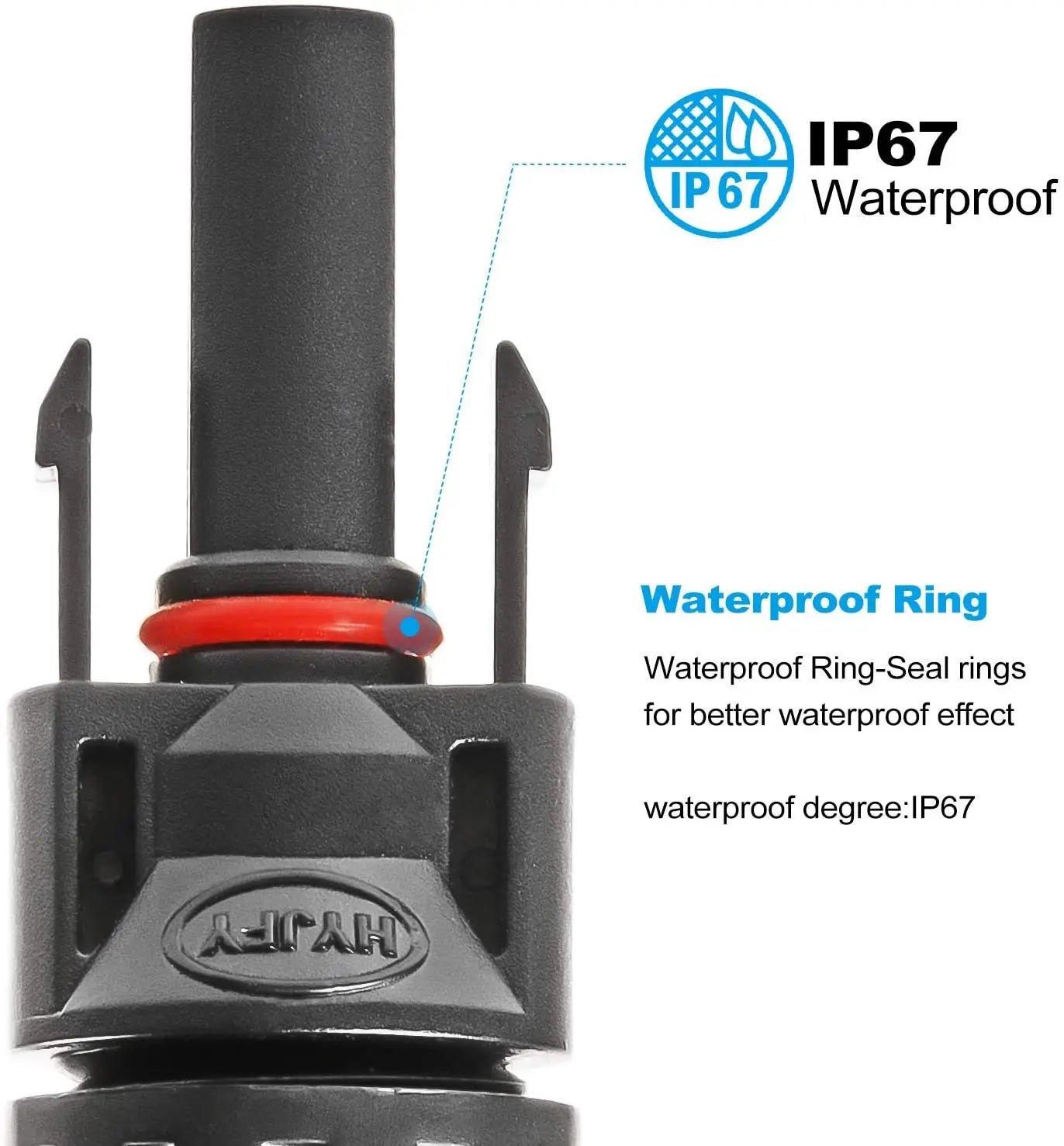

• Waterproof & Corrosion Resistant: With an IP67 rating, these connectors withstand harsh weather conditions.

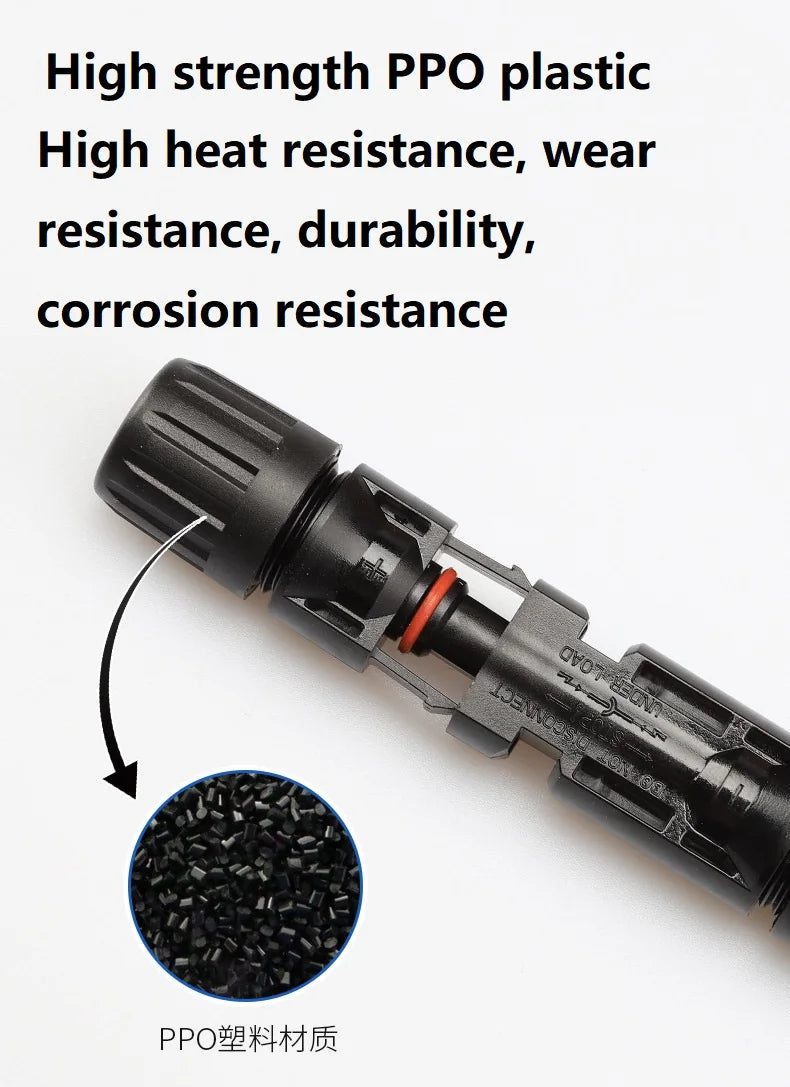

• Durability: Constructed from PPO+PA materials that provide excellent aging resistance and UV protection.

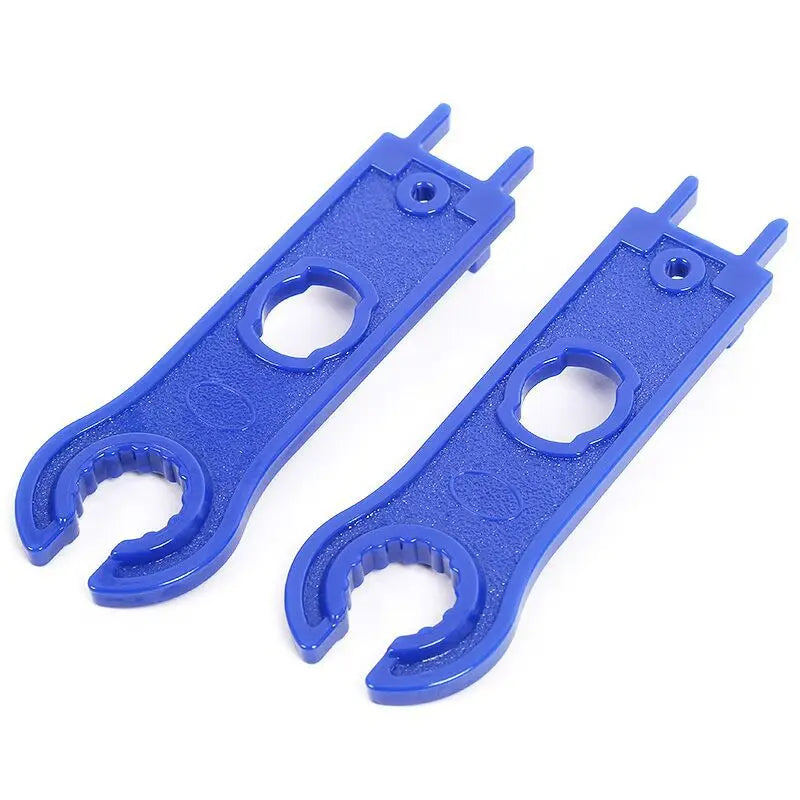

• Easy to Install: Comes with a free assembly tool for hassle-free connection.
• Compatibility: Ideal for cables of sizes 2.5mm², 4mm², and 6mm² (AWG14, AWG12, AWG10).

Equipped with a double sealing ring, the 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors offer superior reliability under extreme weather conditions, ensuring your solar energy production remains uninterrupted.

Technical Specifications:

• Rated Current: 30A
• Rated Voltage: 1000V DC
• Waterproof Degree: IP67
• Flame Class: UL94-VO
• Temperature Range: -40 °C to +90 °C
• Contact Resistance: ≤0.2mΩ

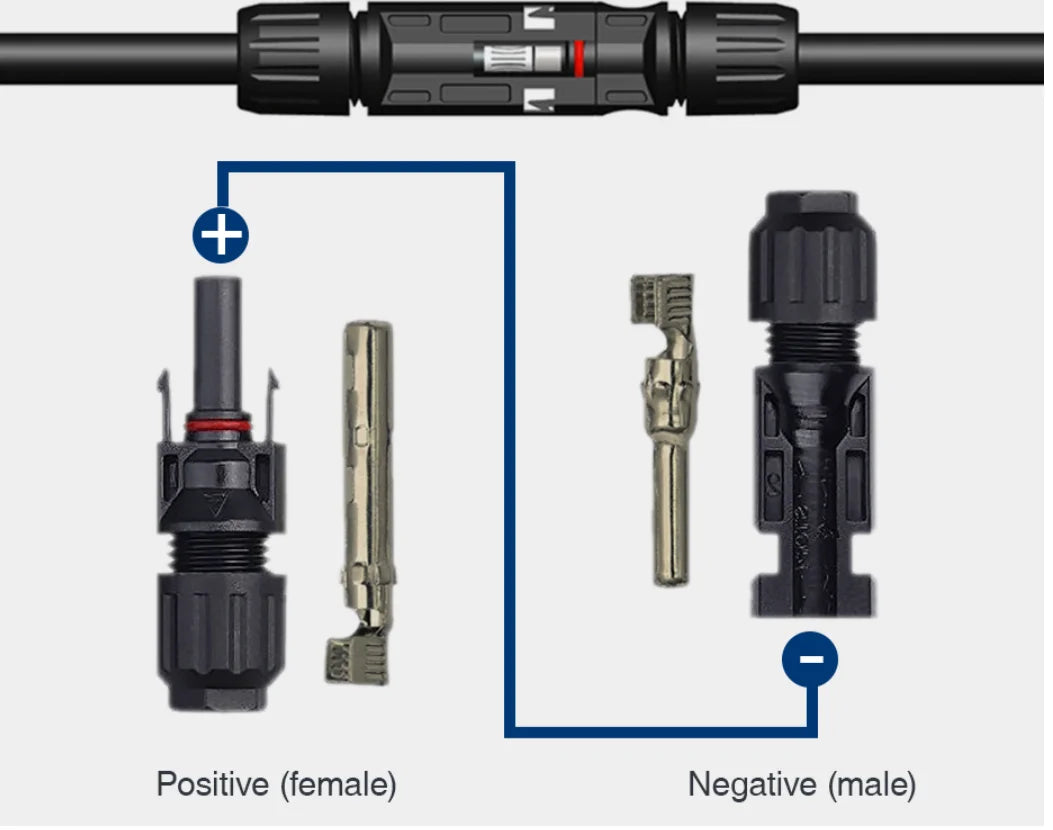

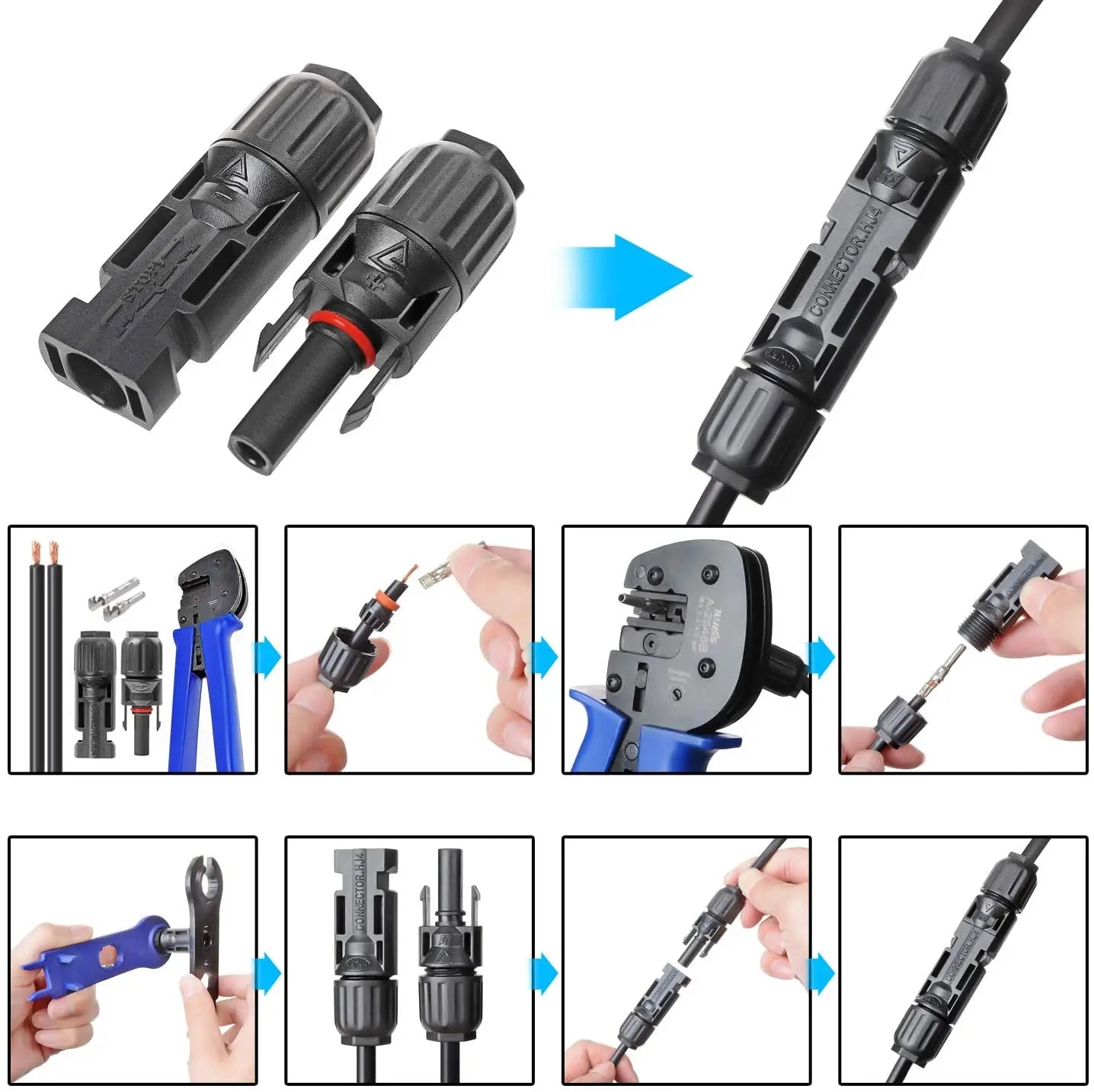

Installation is straightforward: insert the male connector into the female connector until you hear a “pop” indicating a secure fit. To separate, simply use the included spanner or your fingers.

Equip your solar panels with the best connectors on the market. The 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors are here to enhance your solar power efficiency!

❓ Frequently Asked Questions

❓ 1 - Do you provide installation services?
❌ No, we do not. Please note that we do not provide personalized technical consulting or installation services, as customer needs vary greatly across different regions.

🌍 2 - Do you ship to my country?
Yes, we deliver worldwide. Products are shipped from suppliers located in North America, Europe, and Asia, with delivery times between 5 to 15 business days.

⏳ 3 - What is the delivery time?
Delivery time is 5 to 15 business days.

💳 4 - How can I pay?
Payments accepted via Stripe: credit card, debit card, and Apple Pay — all directly on our website.

📄 5 - Where can I find technical information?
All technical information is available on the product sales page.

❓ 6 - Can I request a quote or estimate?
🚫 No quote is necessary. You can purchase all products directly through our website with transparent pricing.

🖼 Product Images
