2023 New Arrival 400W Wind Turbine Generator + Wind/Solar Hybrid Controller (Max 600W Wind Turbine, Max 300W Solar Panel)
2023 New Arrival 400W Wind Turbine Generator + Wind/Solar Hybrid Controller (Max 600W Wind Turbine, Max 300W Solar Panel)
No se pudo cargar la disponibilidad de retiro
Specifications:
- is_customized: Yes
- Type: Wind Power Generator
2023 New Arrival 400W Wind Turbine Generator, Combine with Wind/Solar Hybrid Controller (Max 600W Wind Turbine, Max 300W Solar Panel)
Technical Parameter:
|
Model |
FT400 |
|
Name |
Butterfly |
|
Rated Power |
400W |
|
Rated Voltage |
12V/24VAC |
|
Numbers of Blades |
3/5 |
|
Rated Rotating Rate |
950r/m |
|
Length of Blades |
60CM |
|
Start-up Wind Speed |
2.5m/s |
|
Cut-in Wind Speed |
3.5m/s |
|
Cut-out Wind Speed |
17m/s |
|
Security Wind Speed |
40m/s |
|
Rated Wind Speed |
12m/s |
|
Engine |
Permanent Magnet Generator |
|
Rotor Diameter |
1300mm |
|
Blade Material |
Carbon fiber reinforced plastics |
|
Output Line Anti-winding Device |
Overall three-phase commutator |
|
Over-speed Wind Protection |
Tip stall protection + turned protection + Electromagnetic brake |
|
Life Span |
15 years |
|
Equipment Surface Protection |
Aluminum oxide + plastic coating |
|
Working Temperature |
-45°C~70°C |
|
N. Weight |
6.5KG |
|
G. Weight |
9.0KG |
|
Packing Material |
Carton box and foam material |
|
Packing Dimension |
690*370*230MM |
Detailed Photos of Wind Turbine:

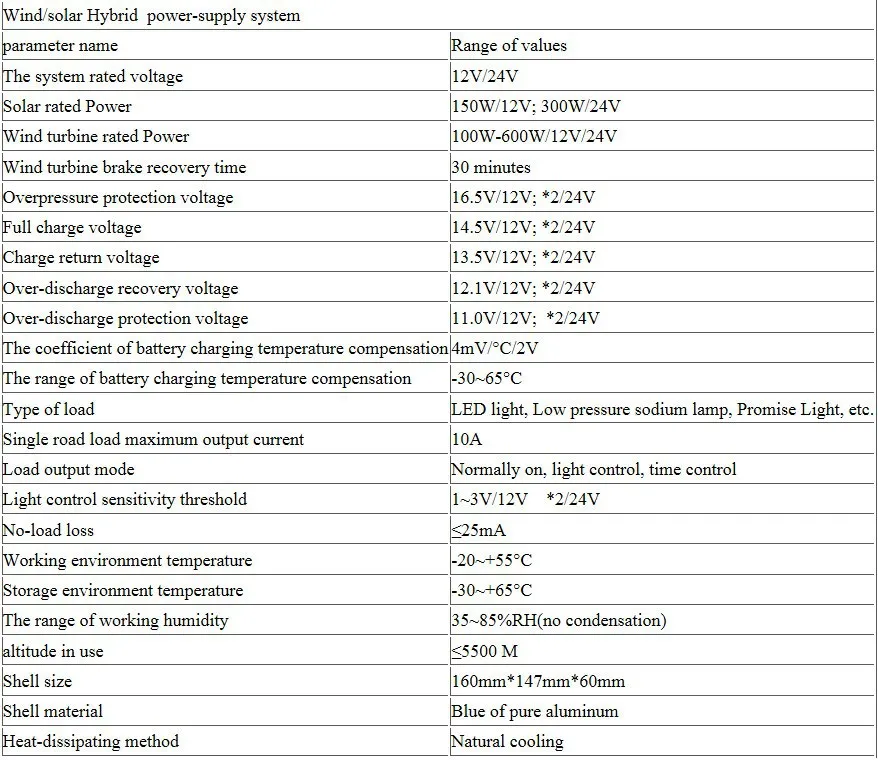

Technical Parameter of Wind Solar Hybrid Controller:

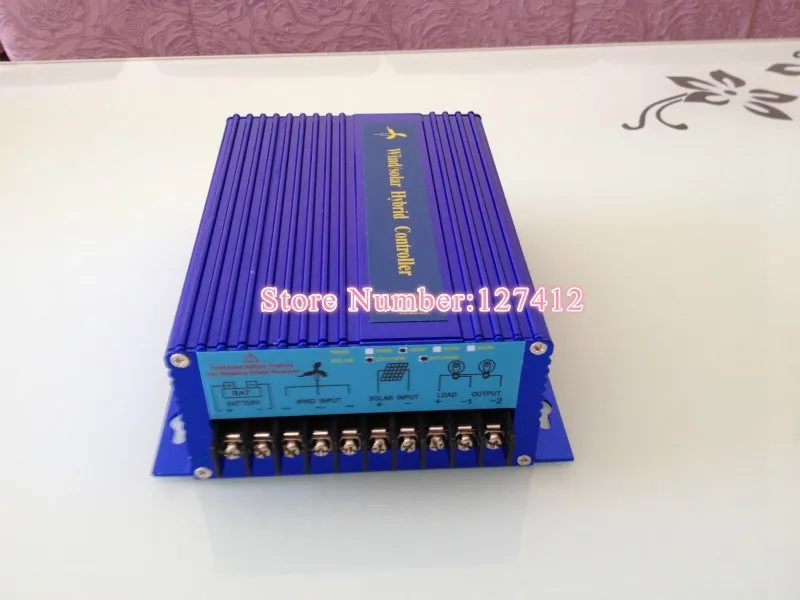

Detailed Photos of Wind Solar Hybrid Controller:
