2P/4P 10/30/100/300mA Electric Vehicle EV Charging Pile Residual Current Breaker DC RCCB RCD Type B 6KA Din Rail Earth Leakage

2P/4P 10/30/100/300mA Electric Vehicle EV Charging Pile Residual Current Breaker DC RCCB RCD Type B 6KA Din Rail Earth Leakage

Precio habitual $93.90 USD
Precio habitual $0.00 USD Precio de oferta $93.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Rated Current
Poles Number

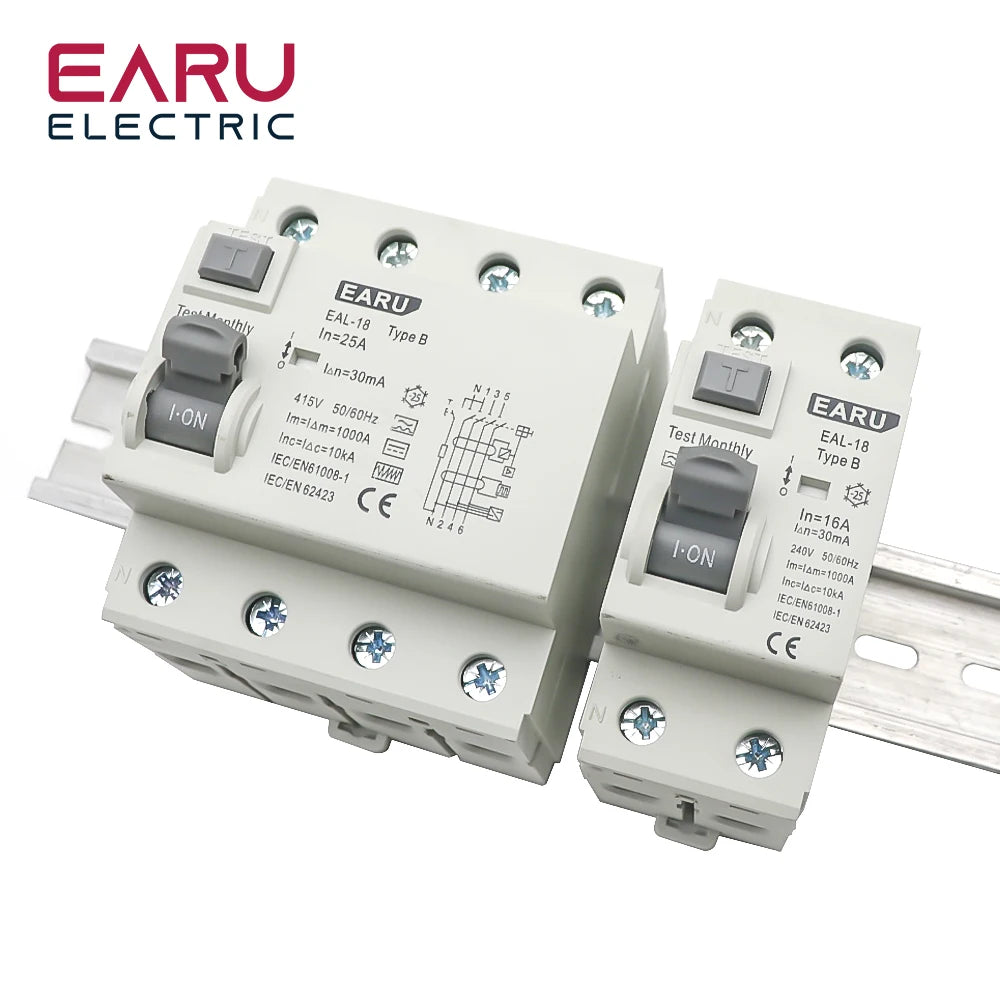

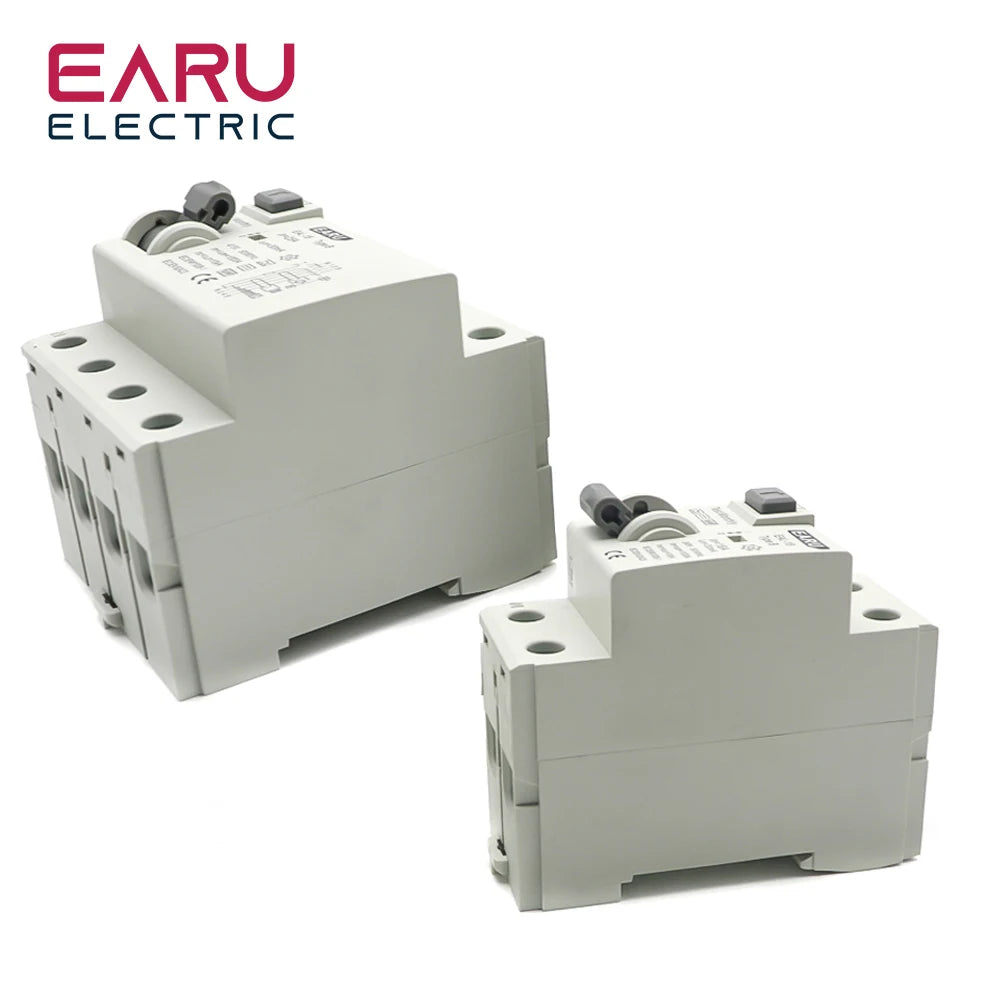

This Electric Vehicle EV Charging Pile Residual Current Breaker is designed for high-performance charging with a 6KA Din Rail Earth Leakage. The RCCB RCD Type B quickly detects and stops current leakage, ensuring safe and efficient charging at 2P/4P 10/30/100/300mA.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Type: Residual Current
  • Rated Voltage: 220V
  • Type: RCD
  • Model Number: RCCB
  • Breaking Capacity: 10KA
  • Rated Sensitivity: 10mA 30mA 100mA 300mA
  • Standard: IEC61008-1
  • Mounting: Din Rail
  • Rated Frequency: 50/60Hz
  • Rated Current: 6A.10A.16A.20A.25A.32A.40A.50A.63A
  • Poles: 2P 4P
  • Type of leakage: B Type
  • Type: Electromagnetic
  • Material: Flame Retardant Material
  • Function: Leakage Protection
  • Rated voltage: 2P 240V/ 4P 415V
  • Insulation voltage: 500v
  • Rated sensitivity: 0.03A 0.1A 0.3A 0.01A
  • Break time under: ≤0.1s
  • Storage temperature: -25-+70℃
  • Dielectric test voltage at and ind.Freq.for.1min: 2.5kV
  • Electrical life and Mechanical life: 4000
  • Faule current indicator: No
  • Model Number 1: RCD
  • Model Number 2: ELCB
  • Rated residual making and breaking capacity: 1000A
  • Usage1: EV & PV installations
  • Usage2: Frequency converters
  • Usage3: UPS installations
  • Usage4: Building site power supply cabinets
  • Usage5: High-frequency power converters

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

Type B RCCBs, in addition to normal AC, can detect high frequency AC and pure DC earth leakage currents. Reducing the risk of fire and/or electrocution throug4h automatic disconnection of the electrical supply relies on the selection of the correct type of RCCB.

Application Example:

EV & PV installations, Frequency converters, UPS installations, High-frequency power converters, Building site power supply cabinets

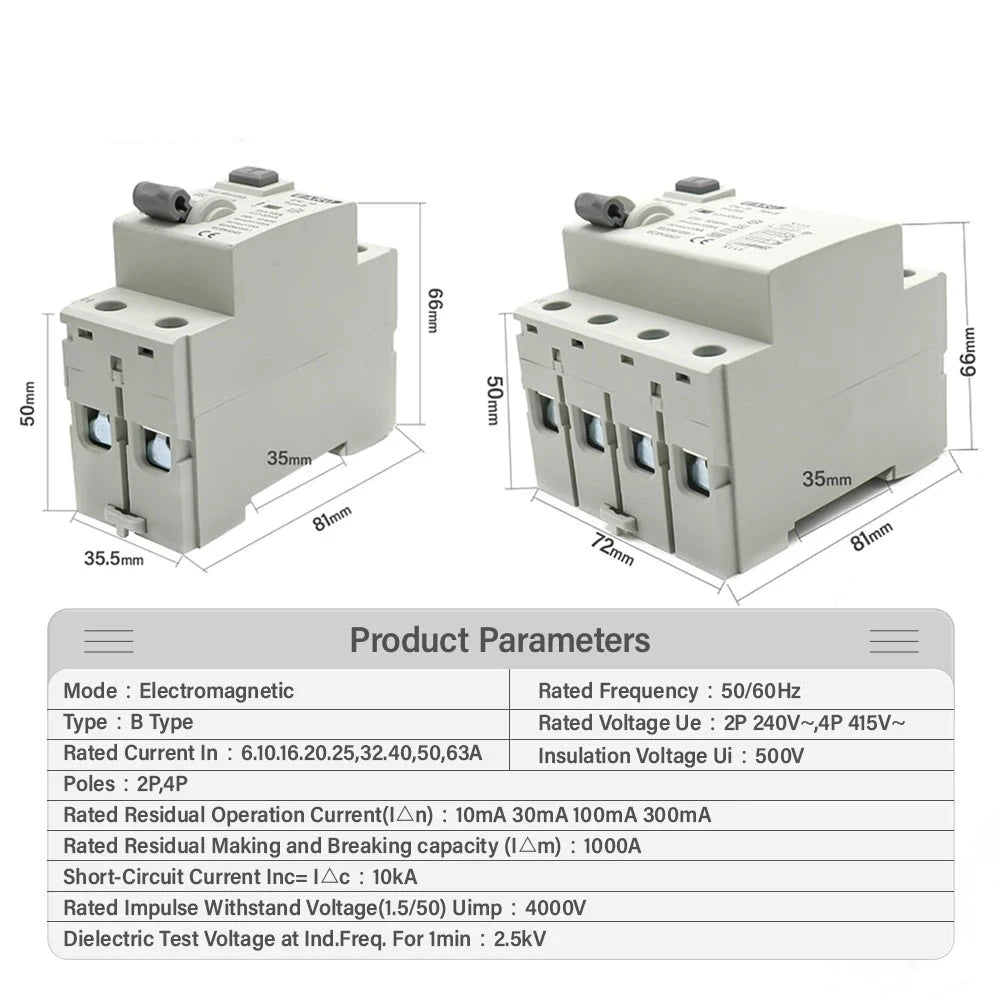

  • Mode : Electromagnetic
  • Type(wave form of the earth leakage sensed): B Type
  • Rated current In :6A.10A.16A.20A.25A.32A.40A.50A.63A
  • Poles:2P/4P
  • Rated voltage Ue :2P 240V~,4P 415V~
  • Insulation voltage Ui :500V
  • Rated frequency :50/60Hz
  • Rated residual operation current(I△n) :10mA 30mA 100mA 300mA
  • Rated residual making and breaking capacity (I△m):1000A(In≤40A),10In(In>40A)
  • Short-circuit current Inc= I△c:10,000A
  • Break time under I△n :≤0.1s
  • Rated impulse withstand voltage(1.5/50) Uimp : 4000V
  • Dielectric test voltage at ind.Freq. for 1min :2.5kV
  • Electrical life : 2,000Cycles
  • Mechanical life : 4,000Cycles

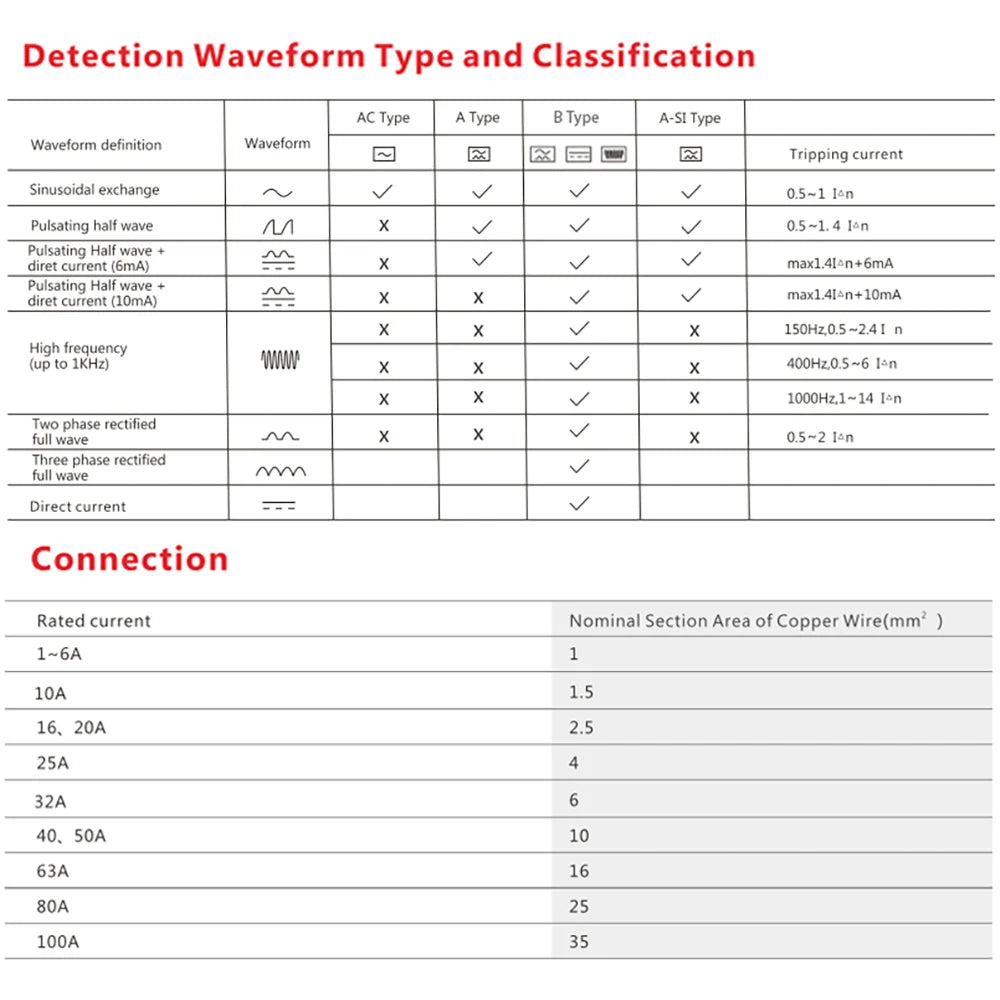

B Class leakage circuit breaker : B class leakage circuit breaker can protect sinusoidal AC signal, pulsating DC signal and smooth signal reliably, which has higher design requirements than type A leakage circuit breaker.It ensures that under the following conditions.

  • is identical to Type A
  • Remaining sinusoidal ALTERNATING current up to 1000Hz
  • The remaining AC current superimposed with a smooth DC current of 04 times the rated remaining current
  • Residual pulsating dc current plus 04 times rated residual current or smooth dc current of 10mA (larger value for both)
  • Residual DC current generated by the following rectifier circuits: for 2-pole, 3-pole and 4-pole leakage breakers, wire to wire half-wave bridge connections
