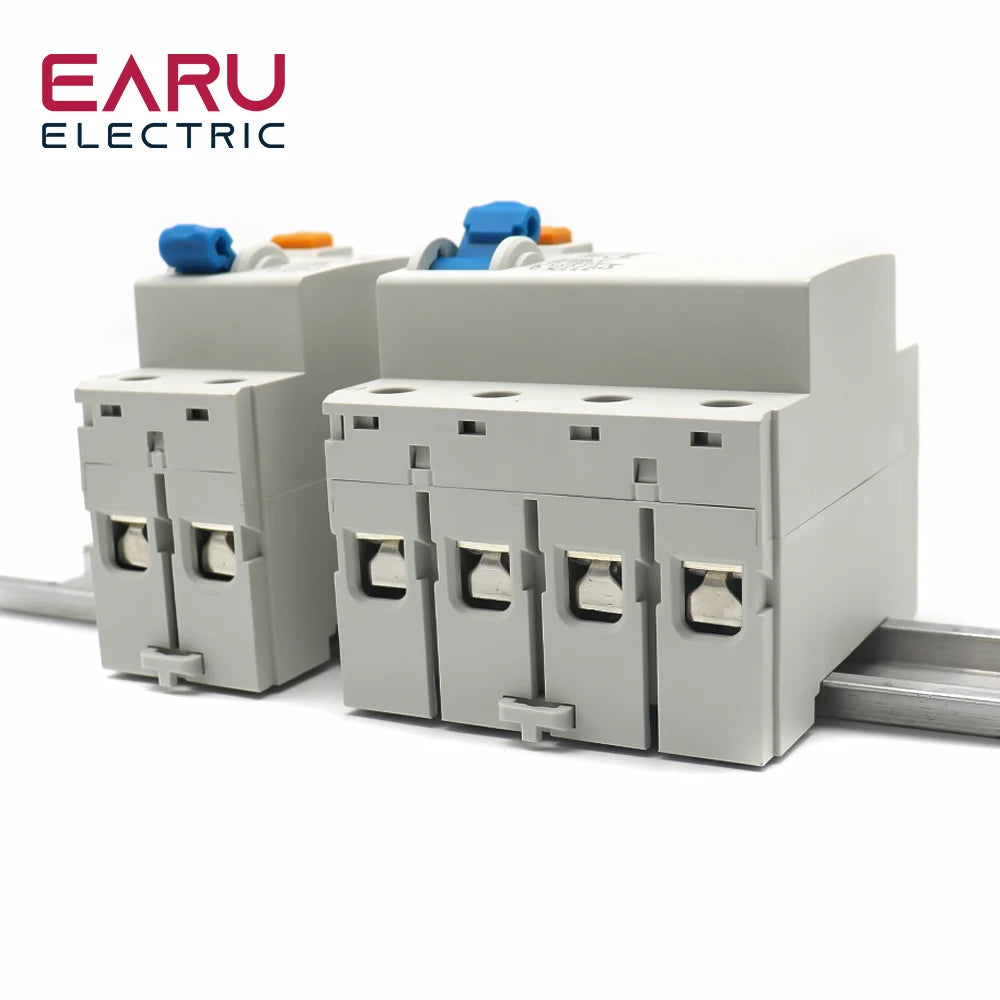

2P 4P 10/30/100/300mA Type AC RCCB RCD ELCB Electromagnetic Residual Current Circuit Breaker Differential Breaker Safety Switch

2P 4P 10/30/100/300mA Type AC RCCB RCD ELCB Electromagnetic Residual Current Circuit Breaker Differential Breaker Safety Switch

$19.98 USD
$0.00 USD $19.98 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Rated Current
Poles Number

Upgrade your circuit breaker system with our 2P 4P Electromagnetic Residual Current Circuit Breaker. This Type AC RCCB RCD ELCB model offers 10/30/100/300mA options for ultimate safety. Trust our industry expert-approved design for reliable protection against electrical hazards.

SPECIFICATIONS

  • Breaking Capacity: 6KA
  • Rated Sensitivity: 10mA 30mA 100mA 300mA
  • Standard: IEC61008-1
  • Mounting: Din Rail
  • Rated Frequency: 50/60Hz
  • Rated Current: 6A.10A.16A.20A.25A.32A.40A.50A.63A
  • Poles: 2P 4P
  • Type of leakage: AC Type
  • Type: Electromagnetic
  • Material: Flame Retardant Material
  • Function: Leakage Protection
  • Rated voltage: 2P 230V/ 4P 400V
  • Insulation voltage: 500v
  • Rated sensitivity: 0.03A 0.1A 0.3A 0.01A
  • Break time under: ≤0.1s
  • Storage temperature: -25-+70℃
  • Dielectric test voltage at and ind.Freq.for.1min: 2.5kV
  • Electrical life and Mechanical life: 4000
  • Faule current indicator: No
  • Model Number 1: RCD
  • Model Number 2: ELCB
  • Brand Name: EARUELETRIC
  • Model Number: RCCB
  • Type: Residual Current
  • Rated Voltage: 220V
  • Type: RCD



Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

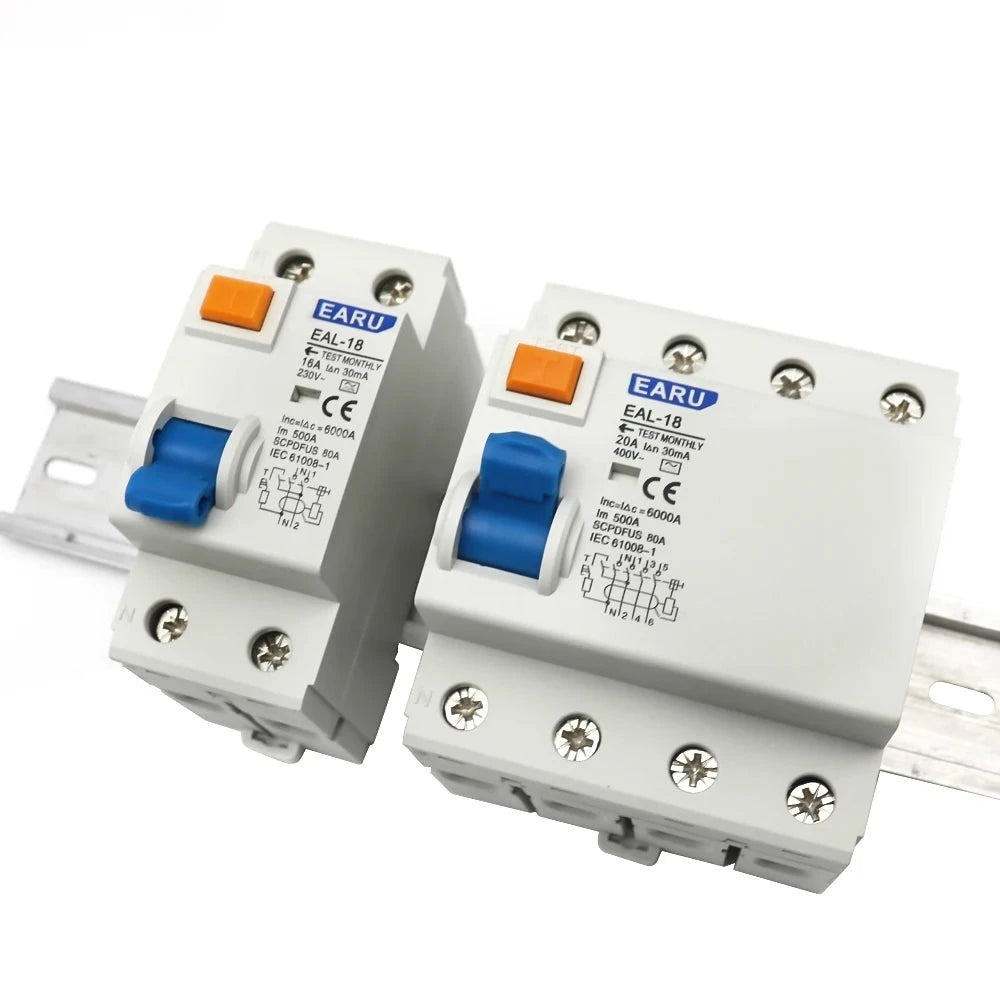

EAL-18 Residual current operated circuit breaker (NO Overcurrent Protection) is suitable for AC 50HZ, rated voltage 2P 240V, 4P 400V,rated current 1-63A line. When a person gets an electric shock or the grid leakage current exceeds the specified value, the residual current will actuate the circuit breaker to quickly cut off the faulty power supply in a short period of time to protect the safety of personnel and electrical equipment. It can also be used as the infrequent switching and starting function of the line

***It is AC type RCCB 2P 25A 40A 63A 80A 100A 30mA/100mA/300mA***

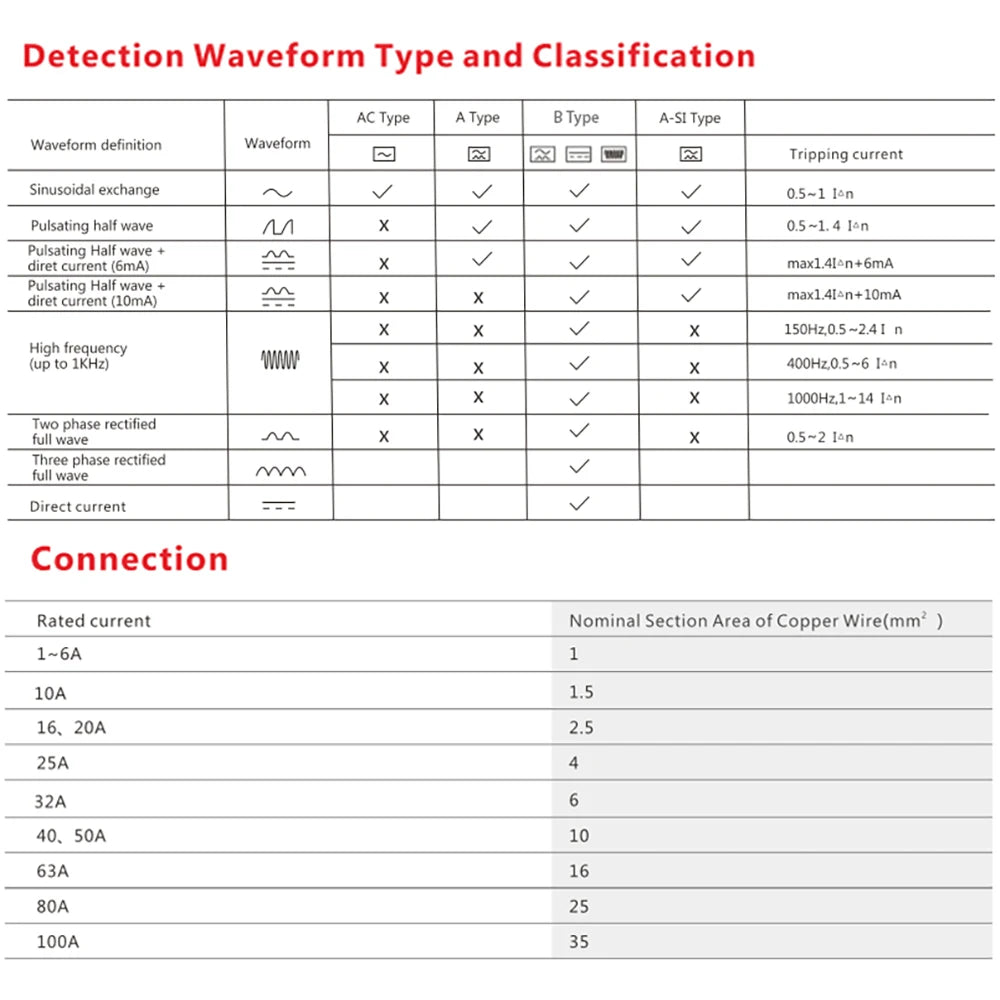

AC Class leakage circuit breaker: AC class leakage circuit breaker is designed for power frequency sinusoidal leakage current. It can protect the sinusoidal leakage current suddenly applied and slowly rising.

  •  In compliance with IEC/EN61008-1.
  • Bilateral busbar wiring capabilities to adapt to the wider use of premises.
  •  Maximum connecting ability of 35mm , wiring torque 3.5N*m, applicable to a variety of installing equipment.
