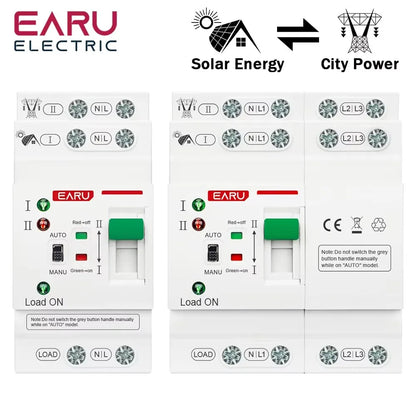

SPECIFICATIONS

Brand Name: EARU

Certification: CE

Choice: yes

Frequency: 50/60hz

High-concerned chemical: None

Impact-Resistant Voltage: 8kV

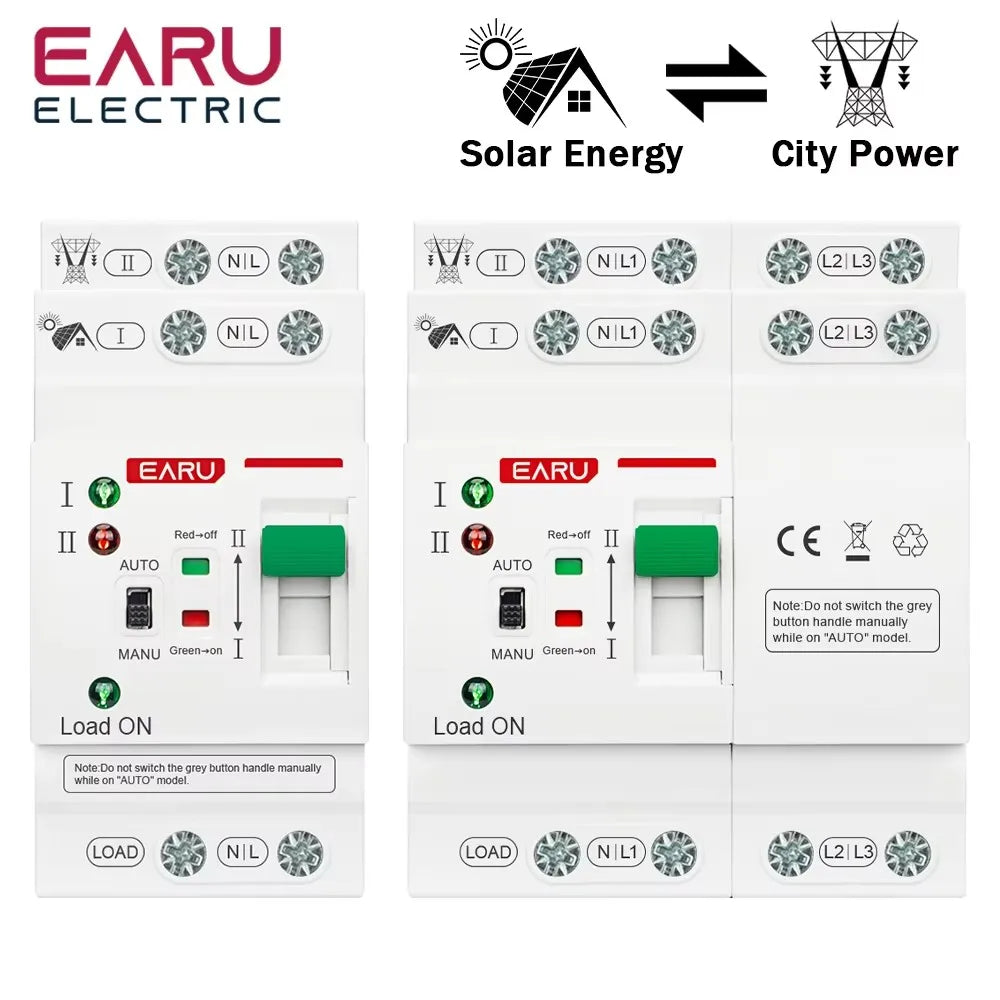

Input Power 1: City Power

Input Power 2: Solar Energy

Installation: 35MM Din Rail

Insulation Voltage: 690V

Is Smart Device: No

Model Number: ATS

Origin: Mainland China

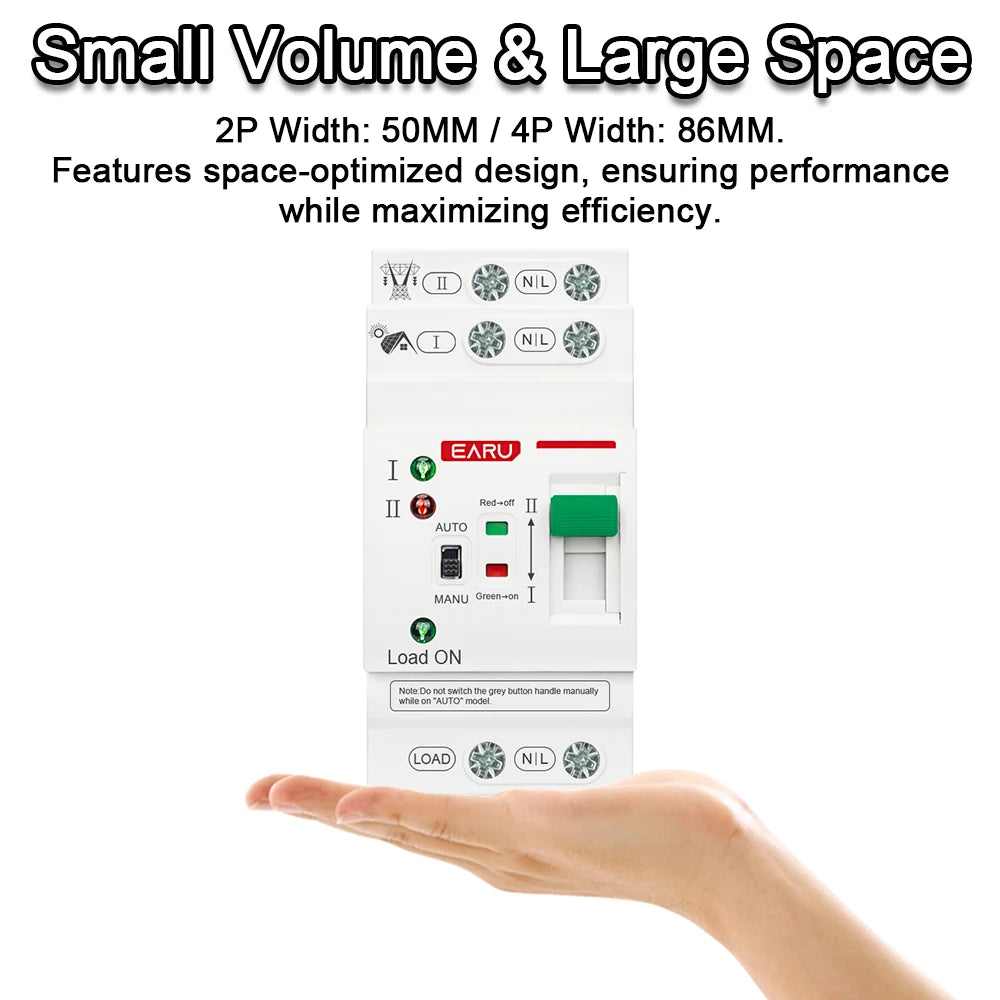

Poles: 2P/4P

Rated Voltage: 220V

Rated Working Current: 80A

Transfer Action Time: 20ms

Tse Class: PC

Type: Mini,Circuit breaker

Working Voltage (L+N) 1: AC220V/230V

Working Voltage (L+N) 2: AC110V

is_customized: Yes

semi_Choice: yes

We are factory, we can provide OEM service, if you need product with your logo, please contact us!

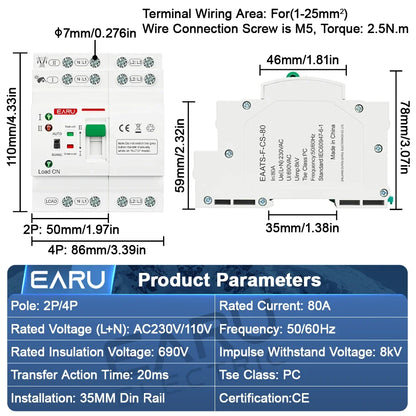

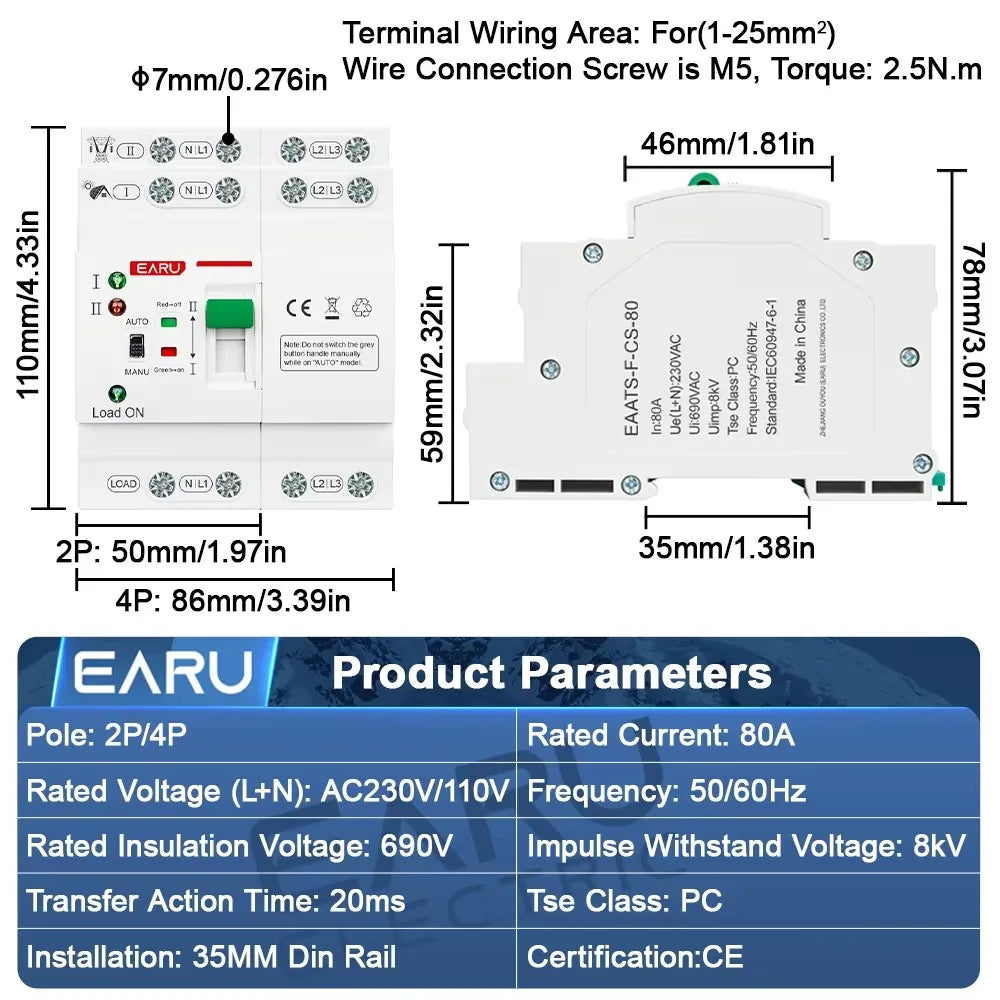

Specificaions

Pole: 2P/4P

Work Voltage(L+N): AC230V/110V

Frequency: 50/60Hz

Working Current: 80A

Insulation Voltage: 690V

Impulse Withstand Voltage: 8kV

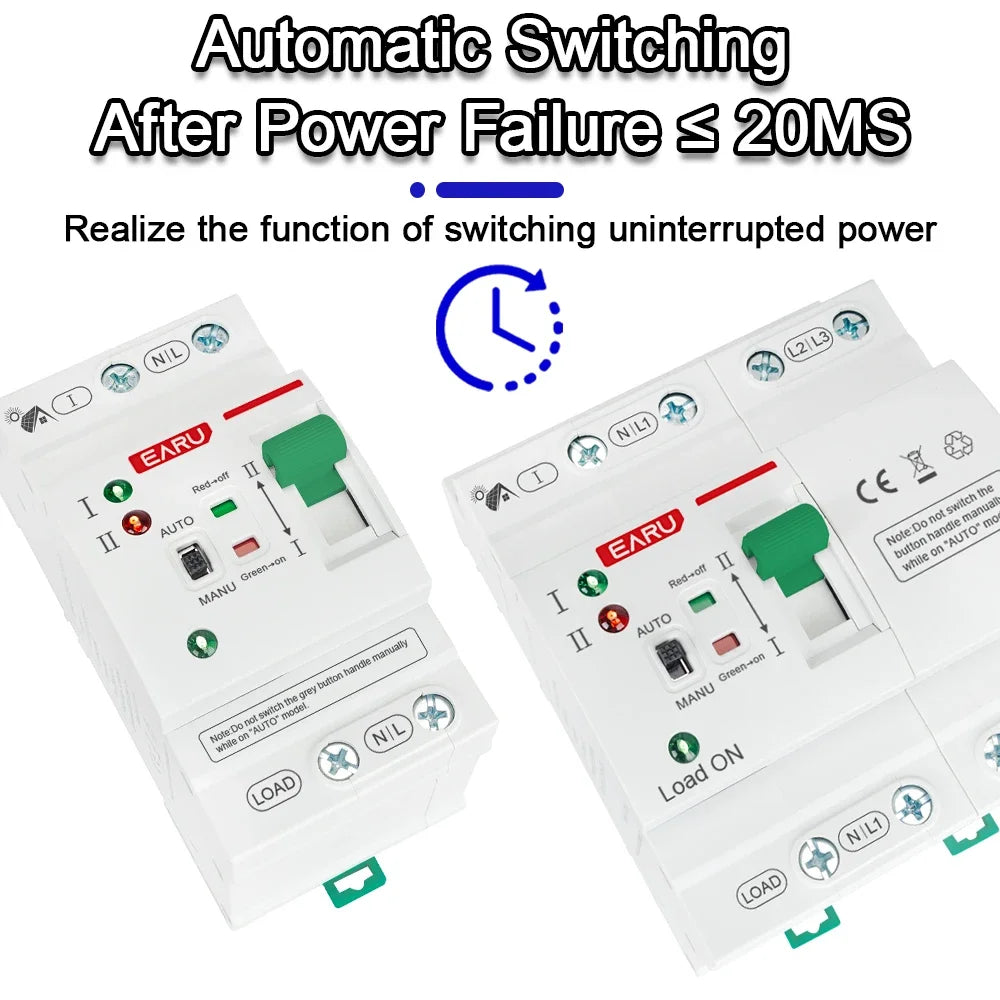

Transfer Action Time: 20ms

Mechanical Durability: ≥6000 Times

Electrical Endurance: ≥1500 Times

Case Grade: 80

Utilization Category: AC-31B

Tse Class: PC

Certification: CE

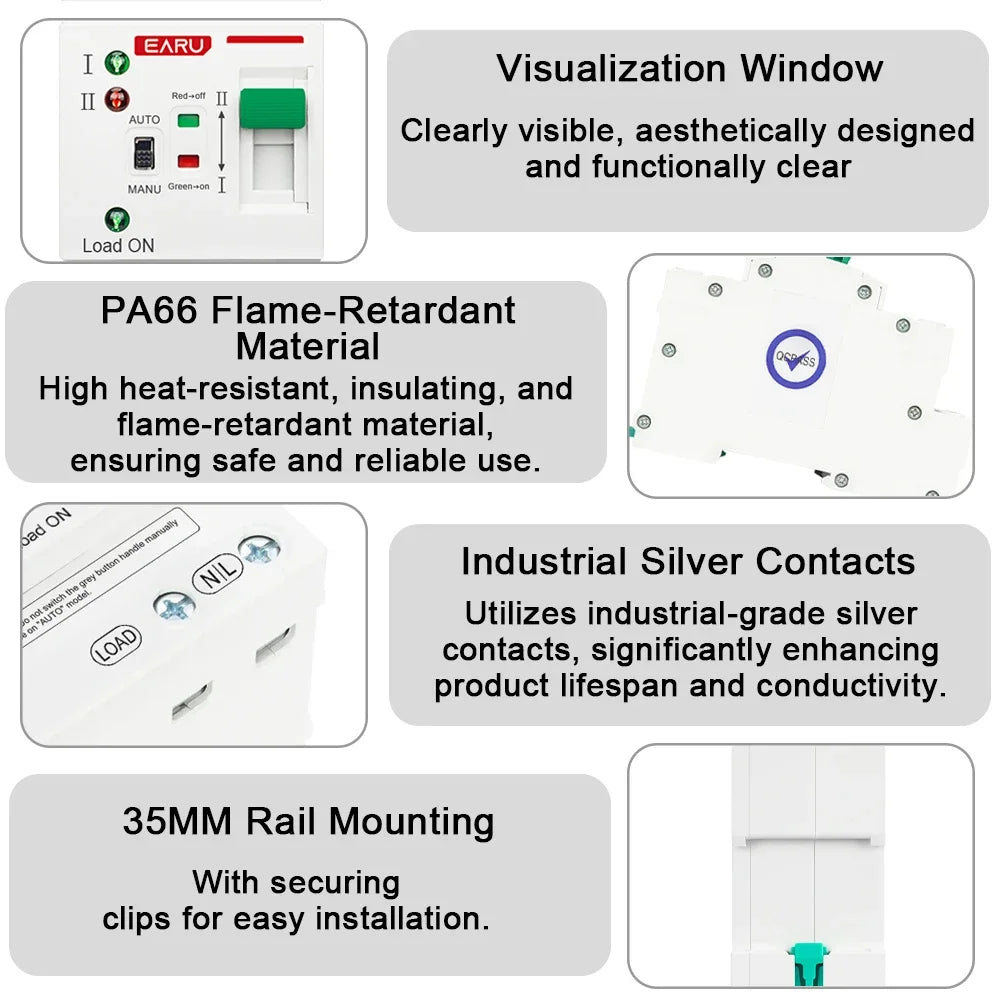

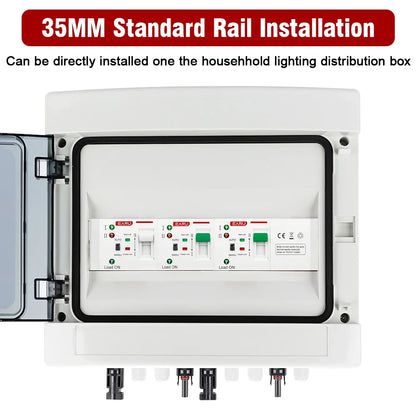

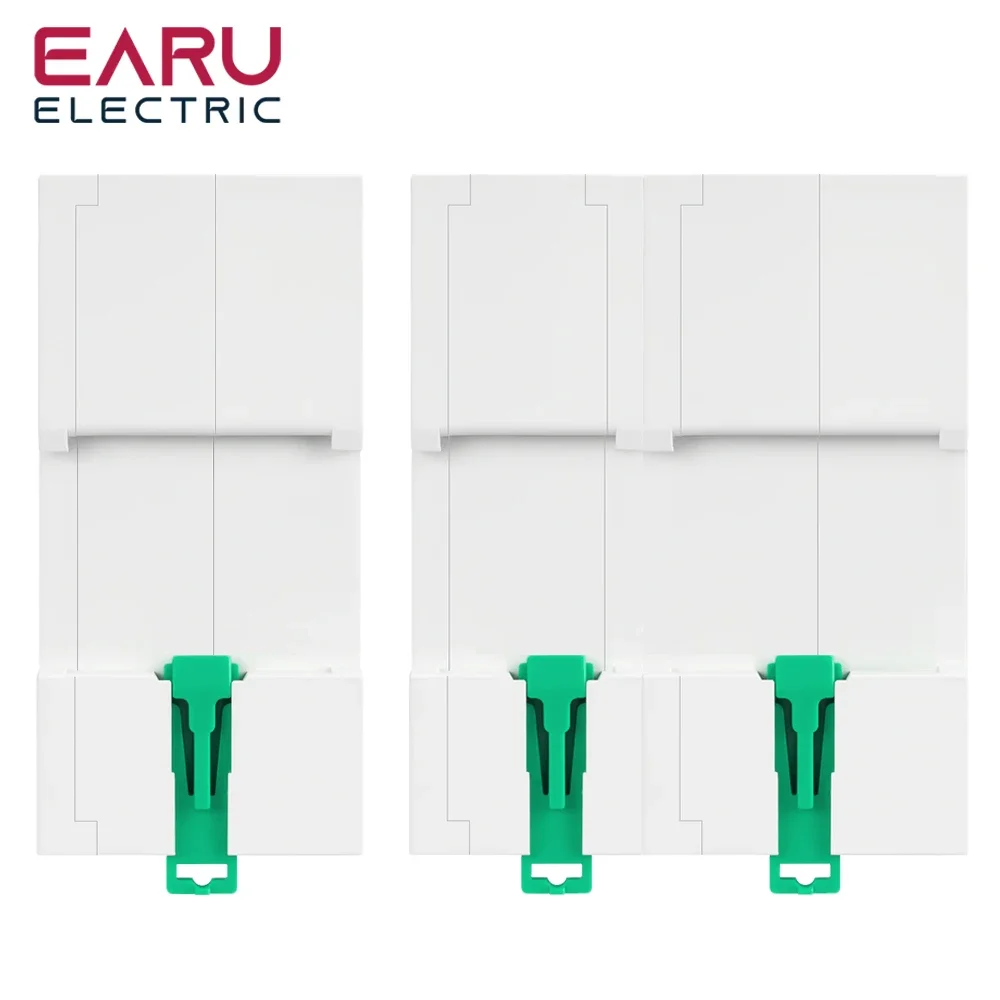

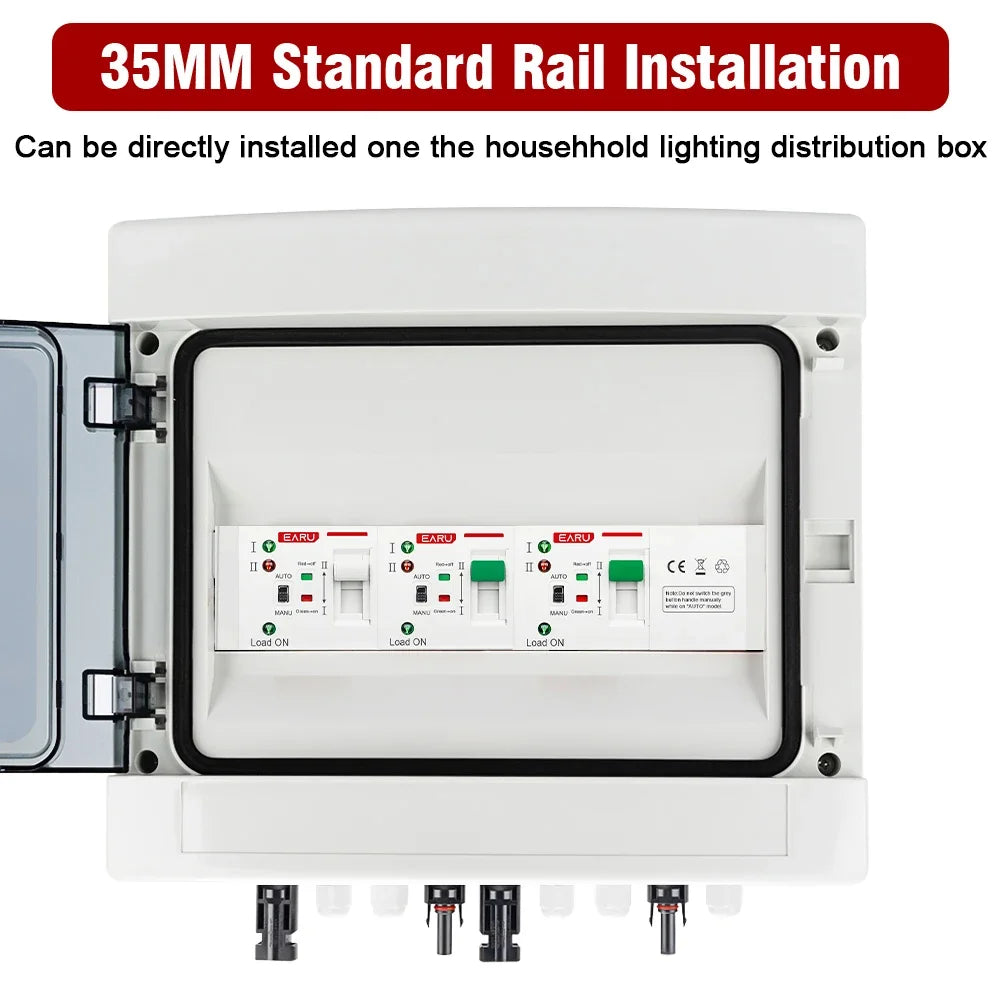

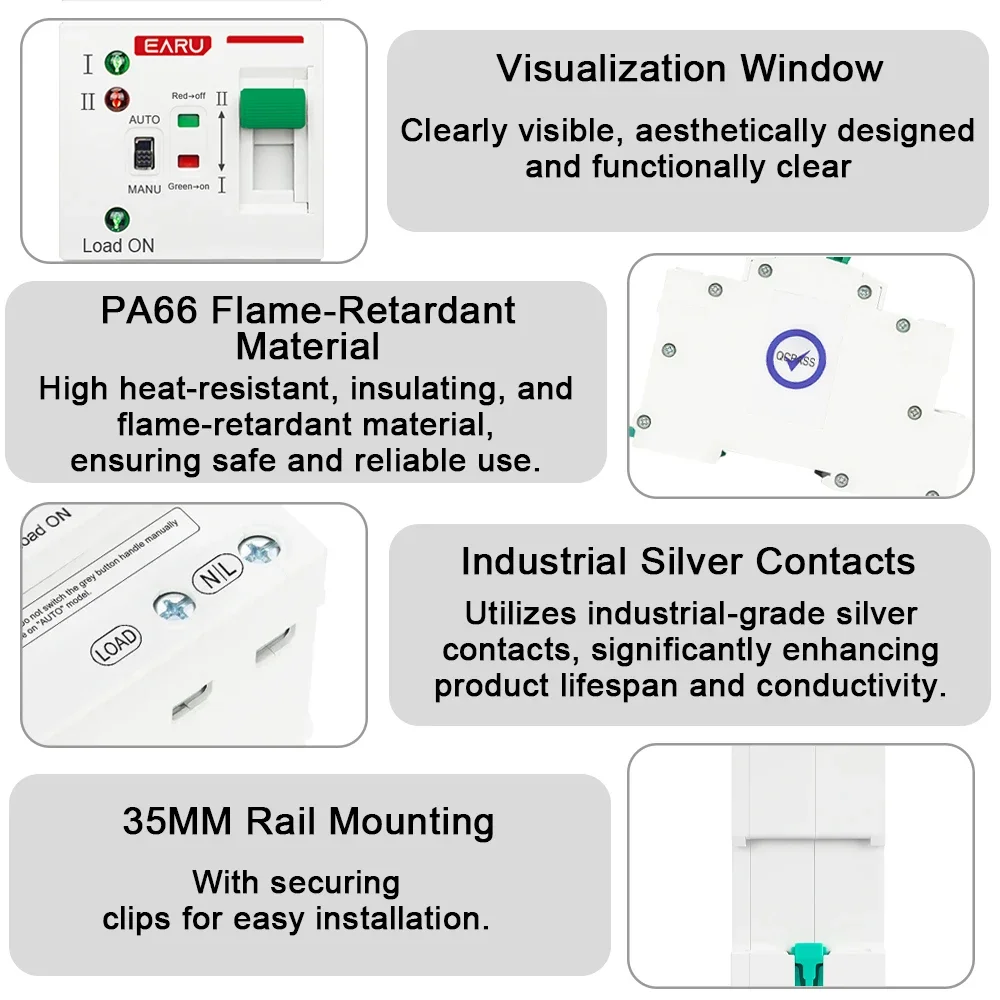

Installation: 35MM Din Rail

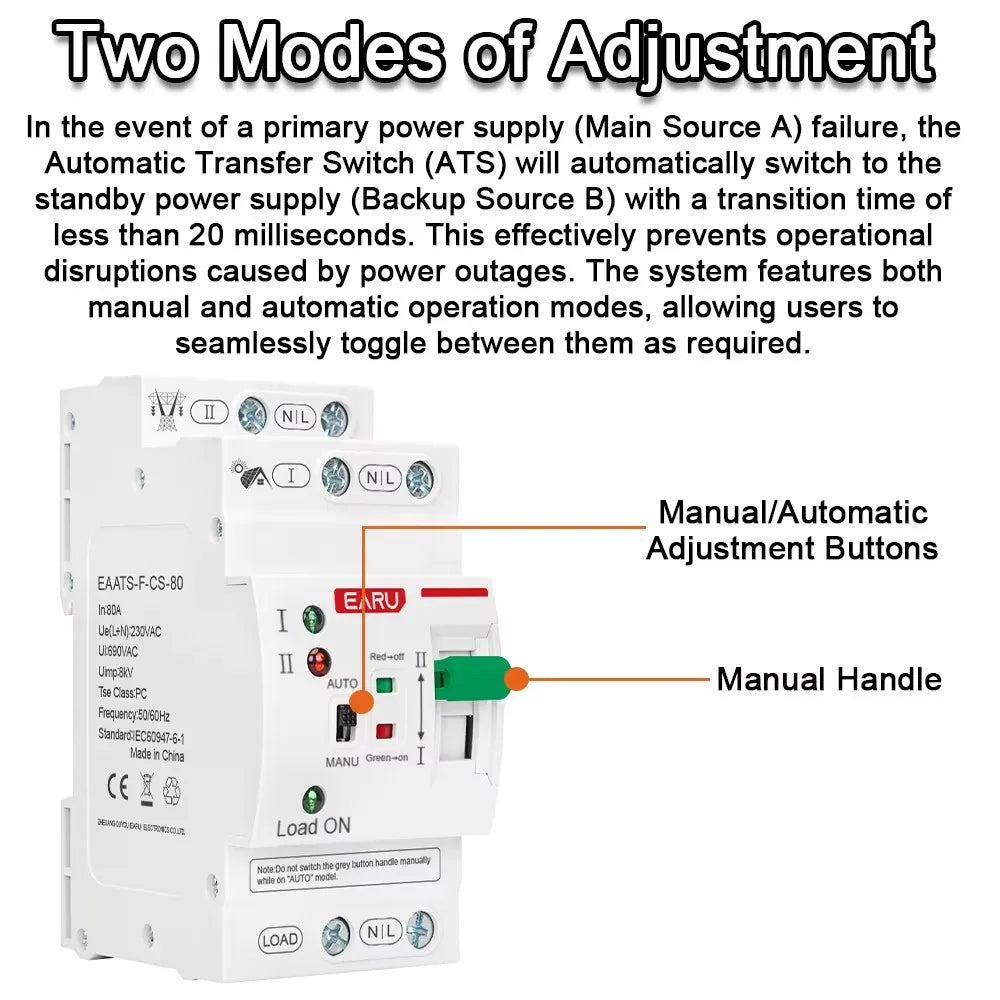

Note:

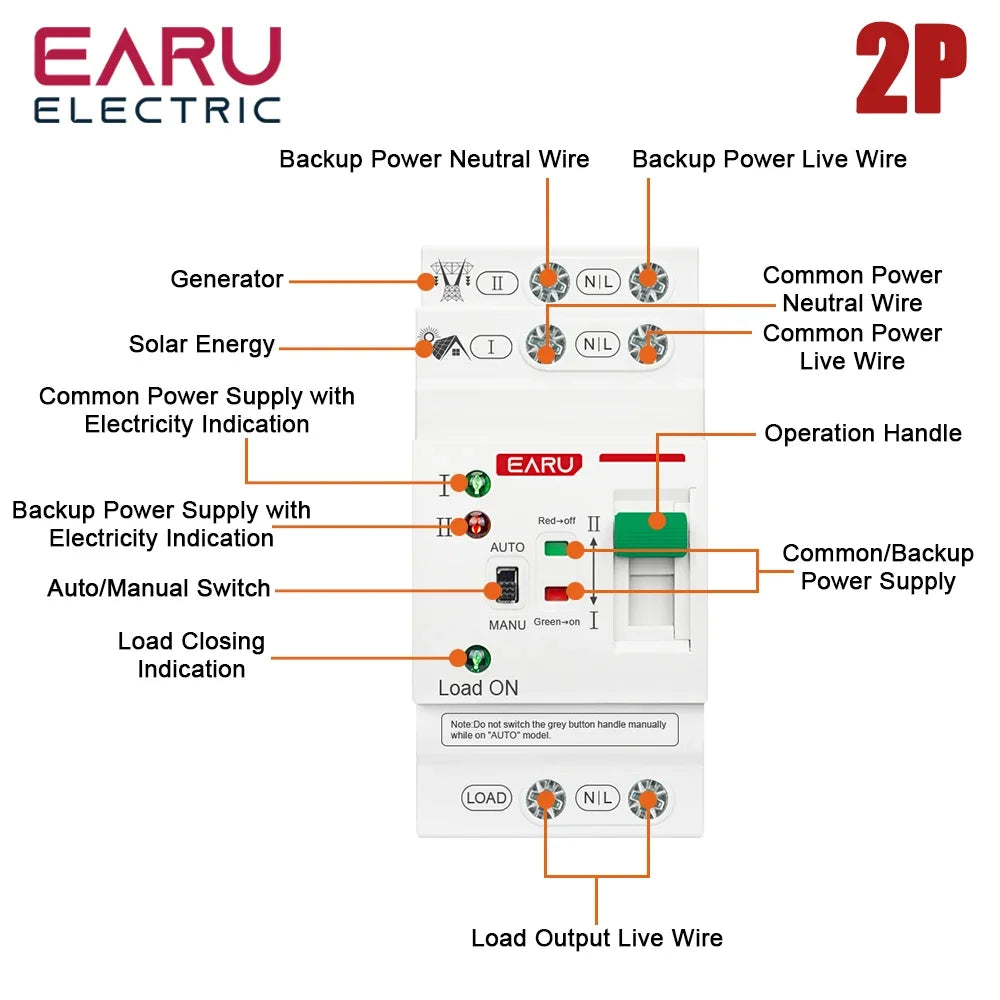

1.When manual operation the mode selection switch must be in 'Manual' position.

2.The switch cannotbe manually switched when in automatic mode, otherwise the coil may burn out.
