2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter

2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter

$33.02 USD
$0.00 USD $33.02 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

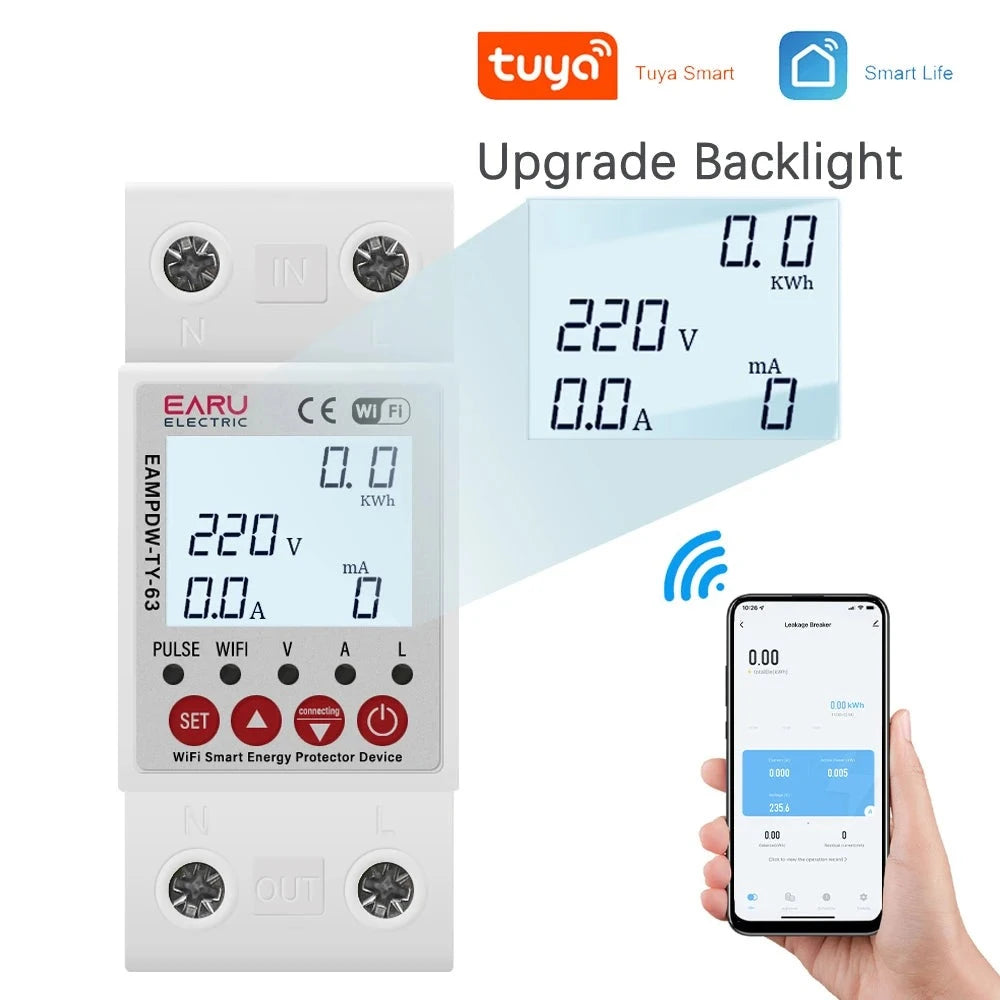

Protect your home or office with our 2P 63A TUYA APP WiFi Smart Circuit Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker Energy Power kWh Meter. Monitor energy usage, prevent over or under voltage, and detect earth leakage with this efficient and convenient protector. Stay connected with TUYA's app for easy control and management.

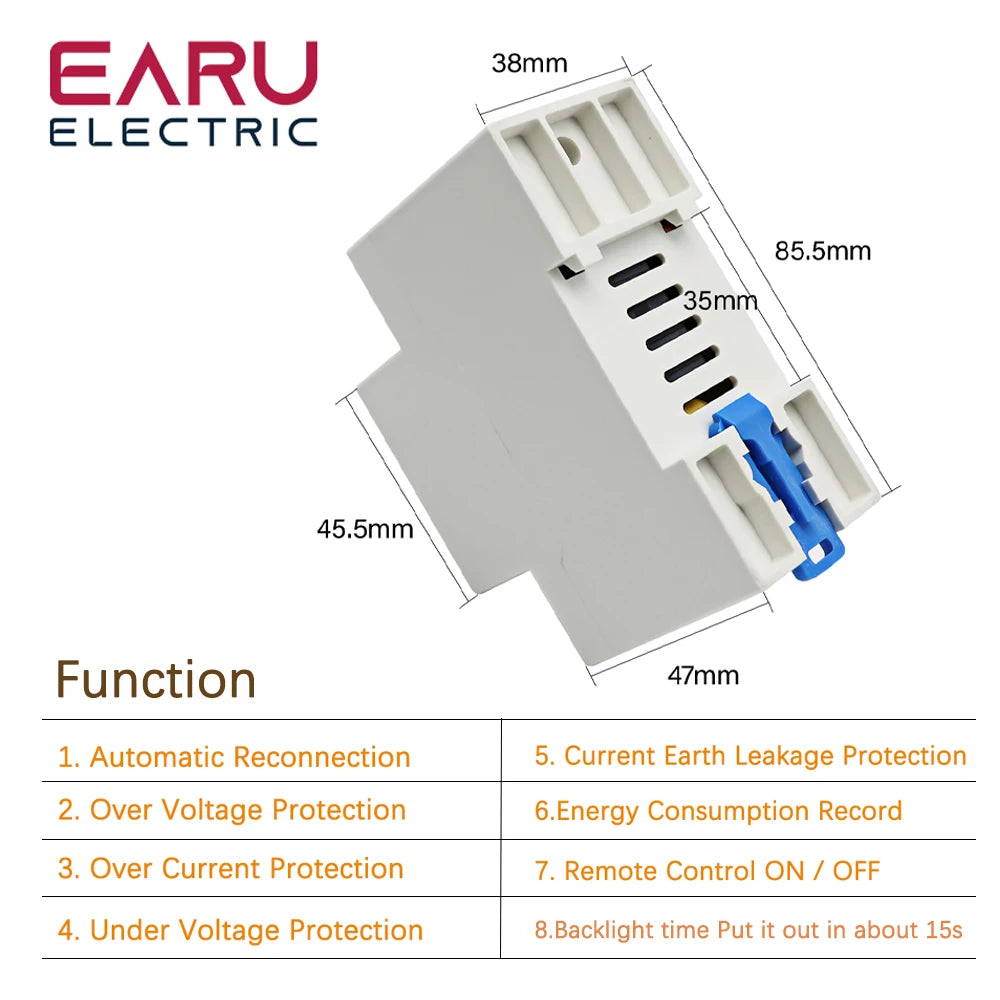

SPECIFICATIONS

  • Function 1: Over Voltage Protection
  • Function 2: Under Voltage Protection
  • Function 3: Current Limiter
  • Function 4: Earth Current Leakage Protection
  • Function 5: Energy Consumption Record
  • Function 6: Remote Control ON / OFF
  • Over Voltage Adjustable Range: 100V-300V (adjustable)
  • Under Voltage Adjustable Range: 90-190V (adjustable)
  • Current Adjustable Range: 10-80A (adjustable)
  • Earth Leakage Adjustable Range: 10-99mA
  • Energy Consumption Record Range: 10-500kWh
  • Model 1: RCCB
  • Model 2: RCBO
  • Model 3: RCD

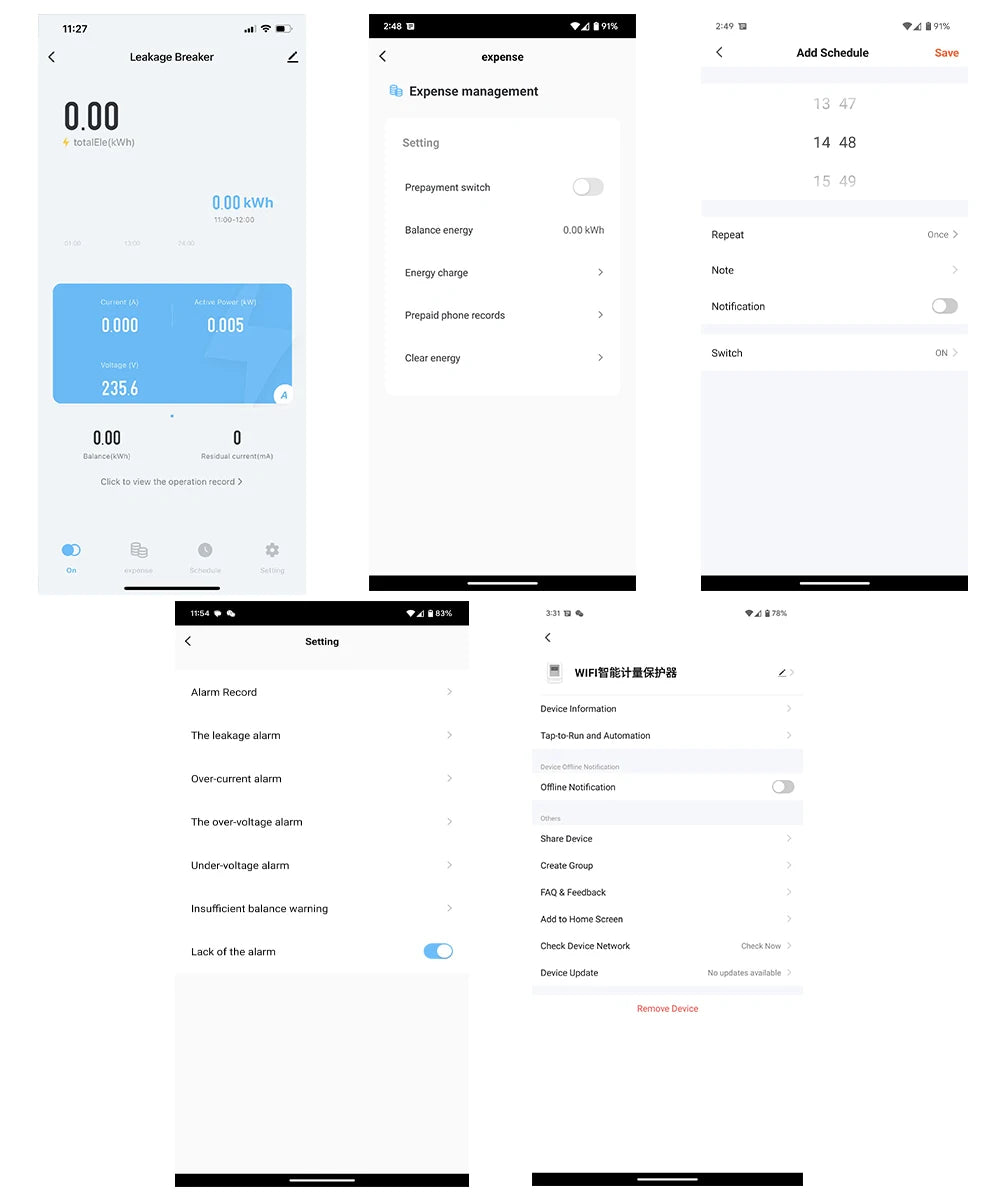

  • App: Tuya
  • screen: backlight
  • Backlight time: Put it out in about 15s
  • Delay time of APP setting program and device: max 20s (It depends on the network speed)
  • Brand Name: EARUELETRIC
  • Model Number: EAMPDW-TY-63-B
  • Type: Moulded Case
  • Rated Voltage: 220V

Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!

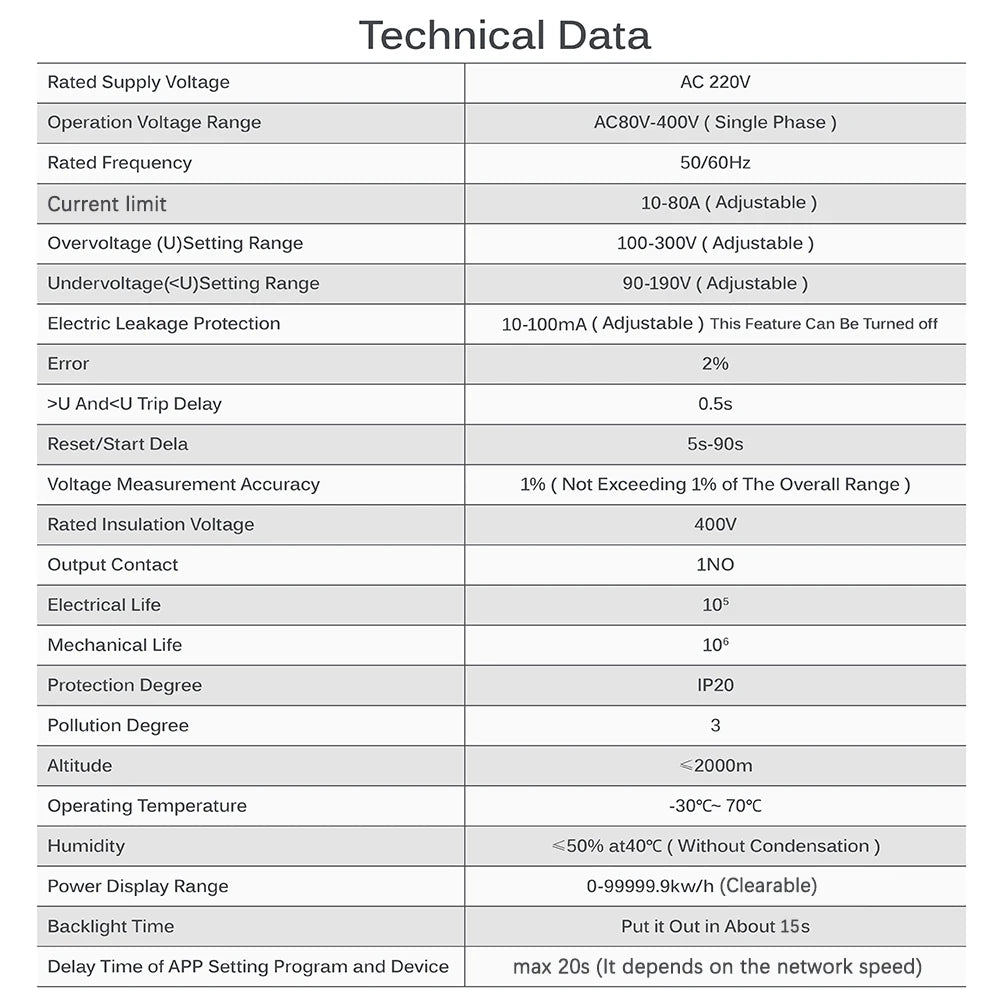

Product specification

Rated voltage: 230V; Frequency: 50Hz/60HZ

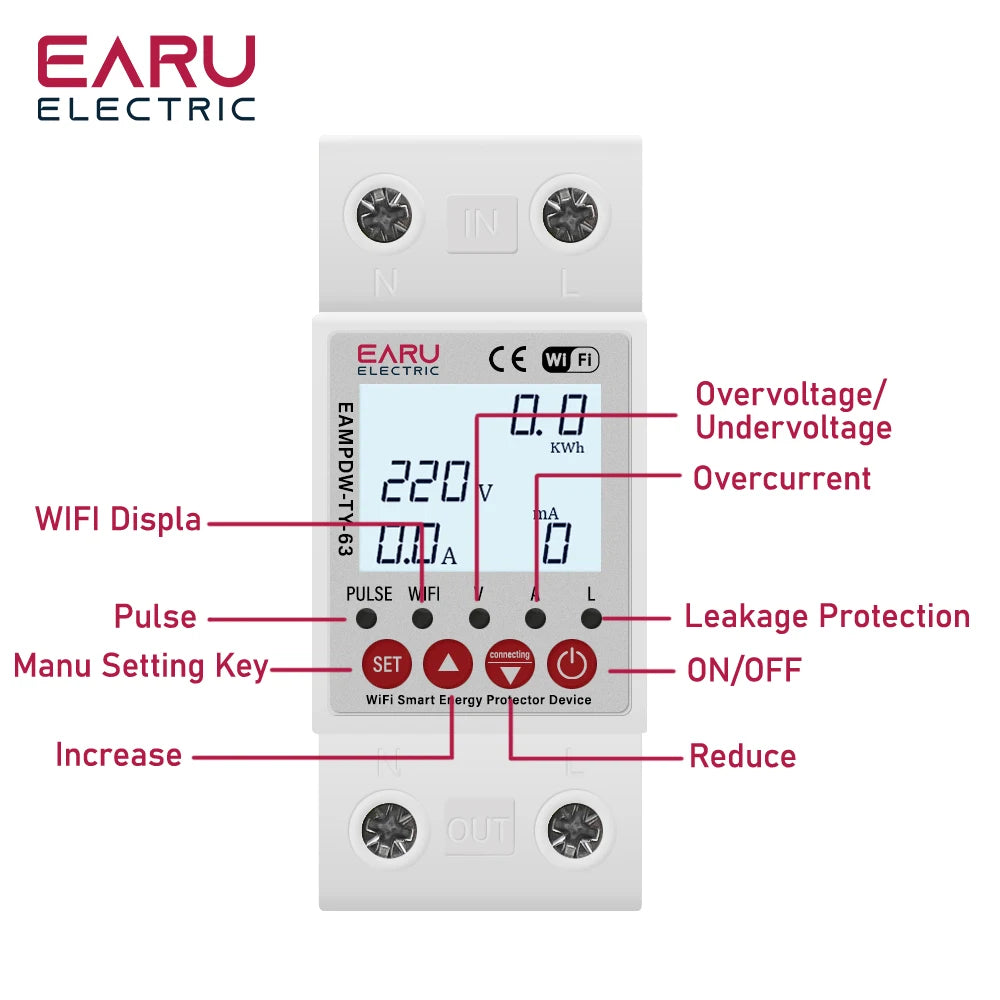

Function:

  • Under voltage protection 90V-190V (adjustable) (default: 170V)
  • Over voltage proteciton 100V-300V (adjustable) (default: 270)
  • Over current protection 10A-80A (adjustable) (default: 50A)
  • Reconnect time (delay on time): 5s-90s (default: 30s)
  • Electric leakage protection:10-99mA
  • Backlight time: Put it out in about 15s
  • Power display range：0-99999.9kWh
  • Energy Consumption Record Range:10-500kWh（default: 30kWh)
  • Voltage meter
  • Ammeter
  • Energy meter
  • Delay time of APP setting program and device: max 20s (It depends on the network speed)

NOTE :If the protector trips three times due to leakage  protection, the device will no longer be reconnected automatically again until the user has checked where is the power failure and fixed it to make sure the people safety! Other protection and reconnecting can cycle for over 99999 times.

PS: This device has memory function, when the power is cut off, the device can memory the Kwh, over voltage, under voltage and over current value.
