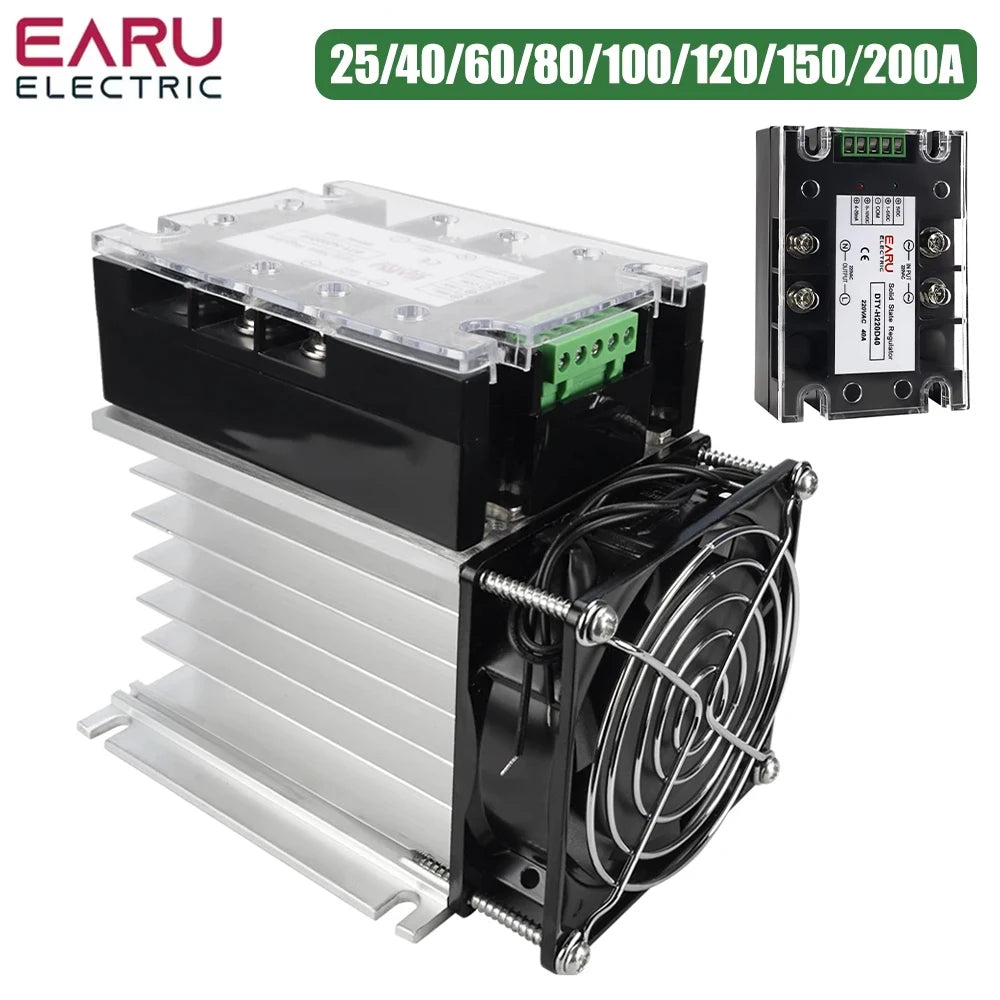

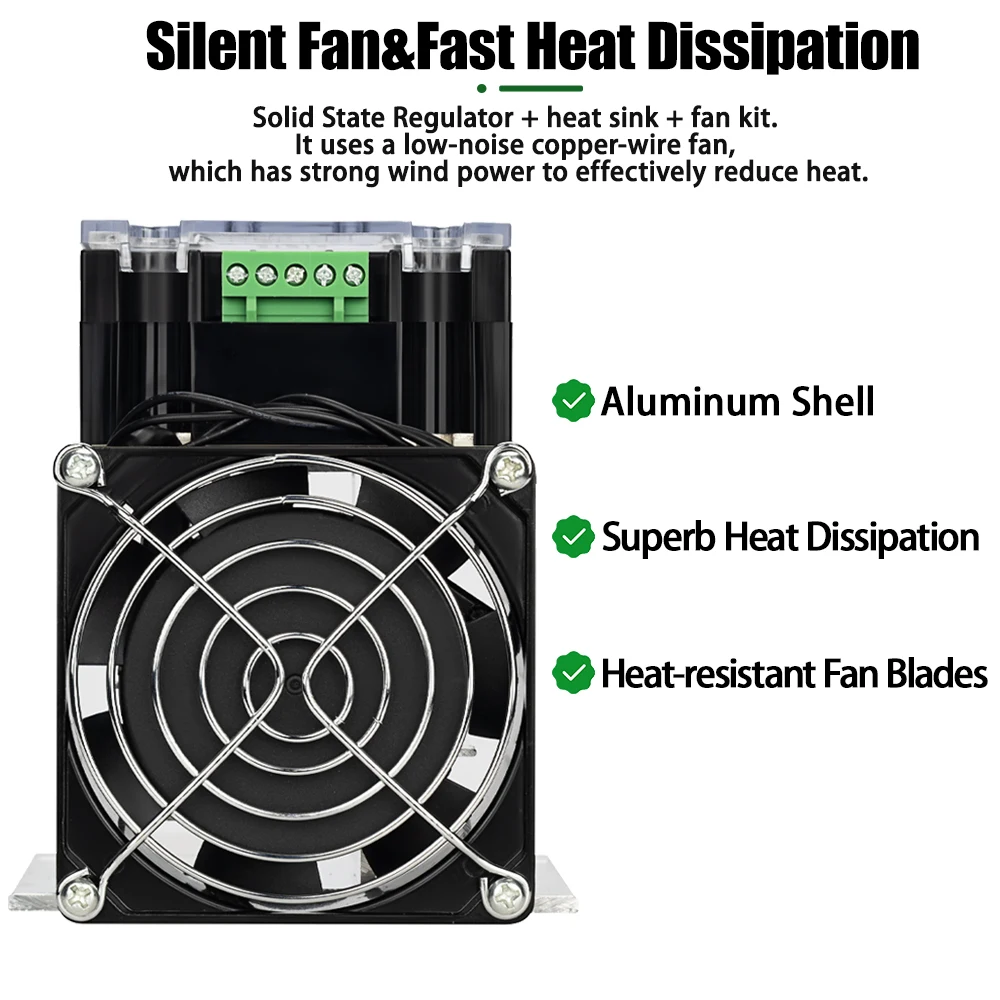

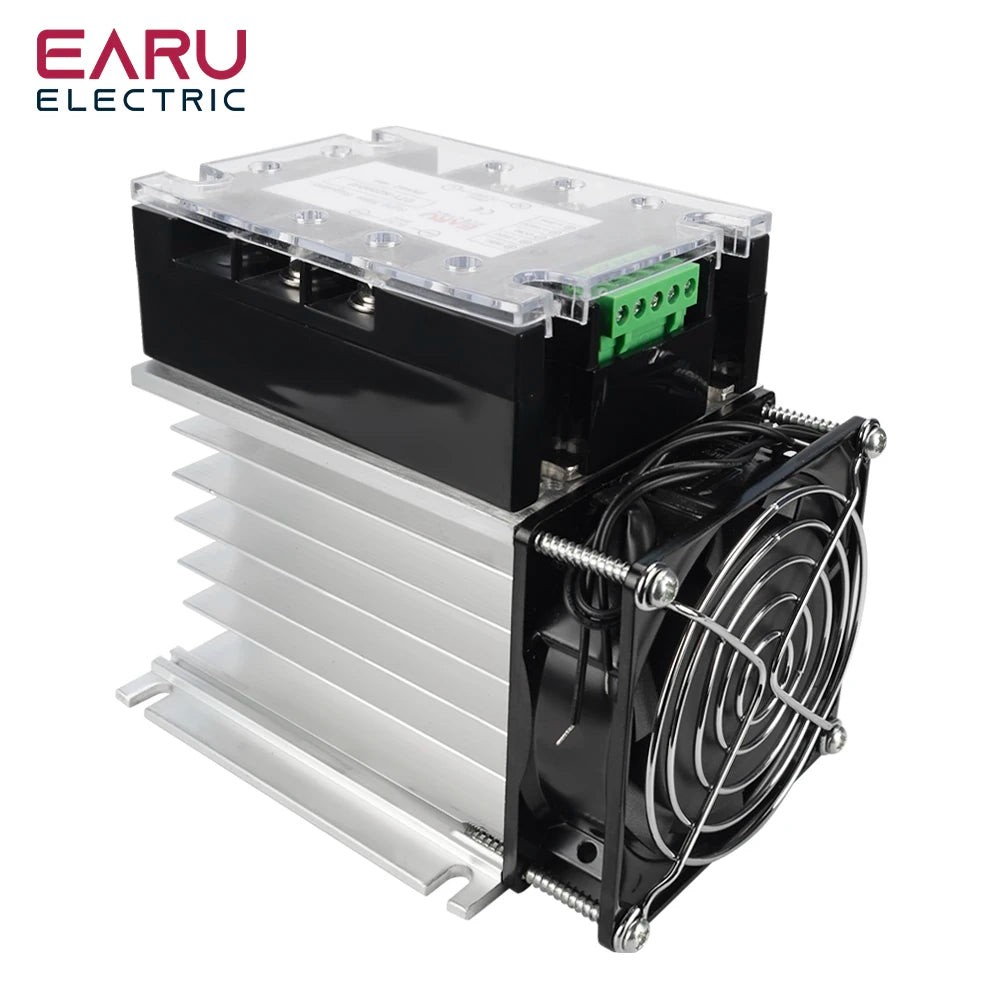

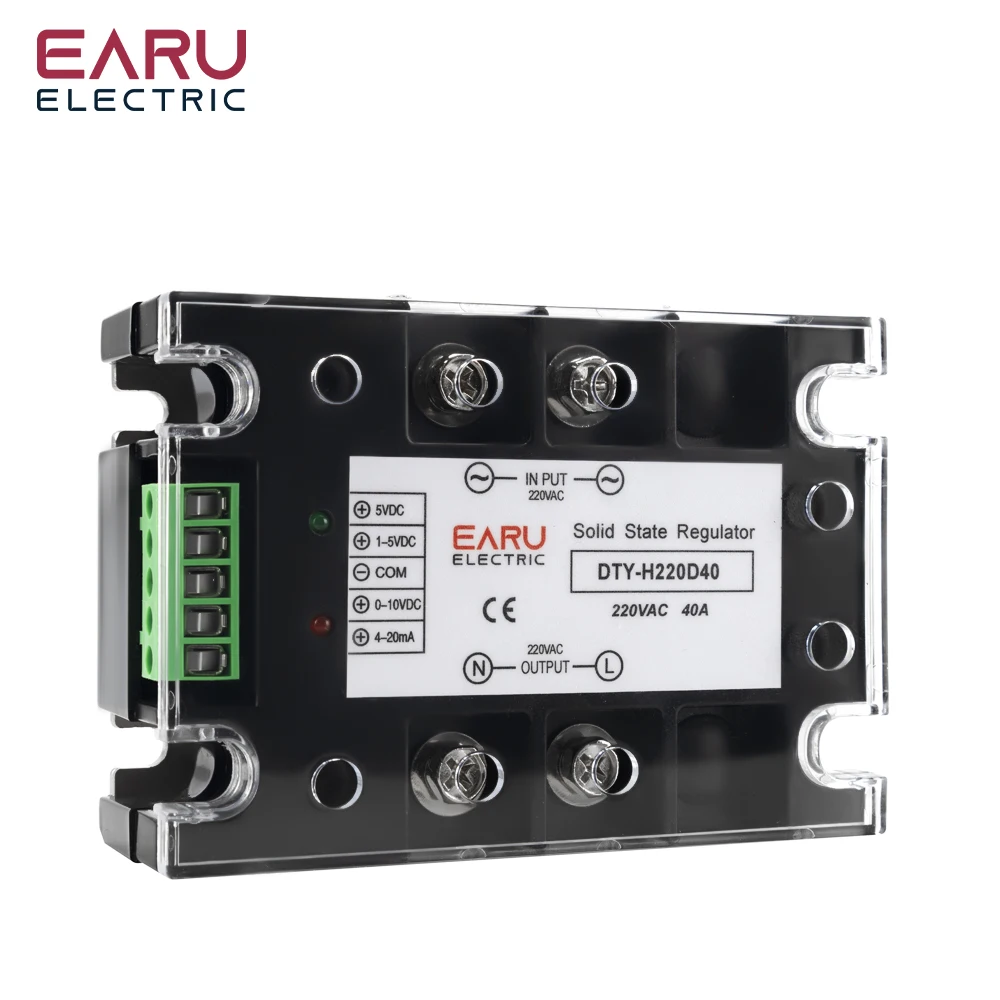

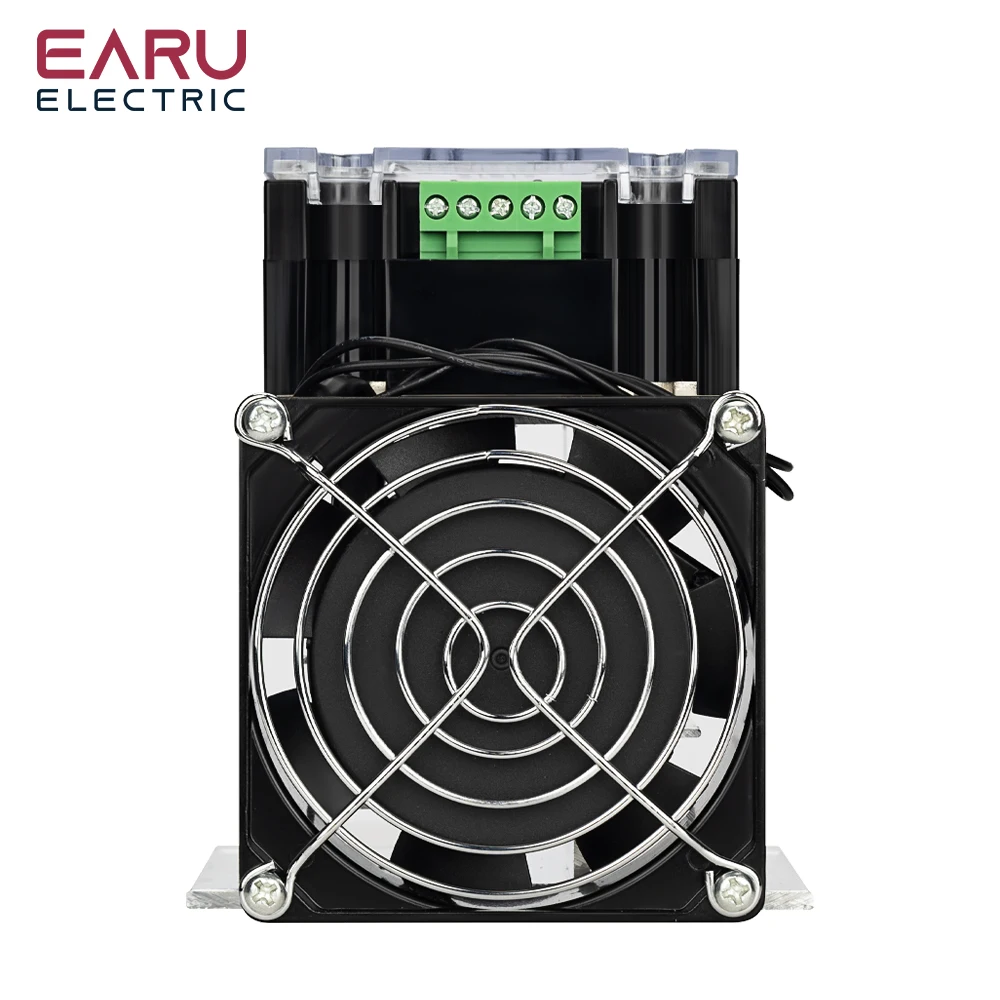

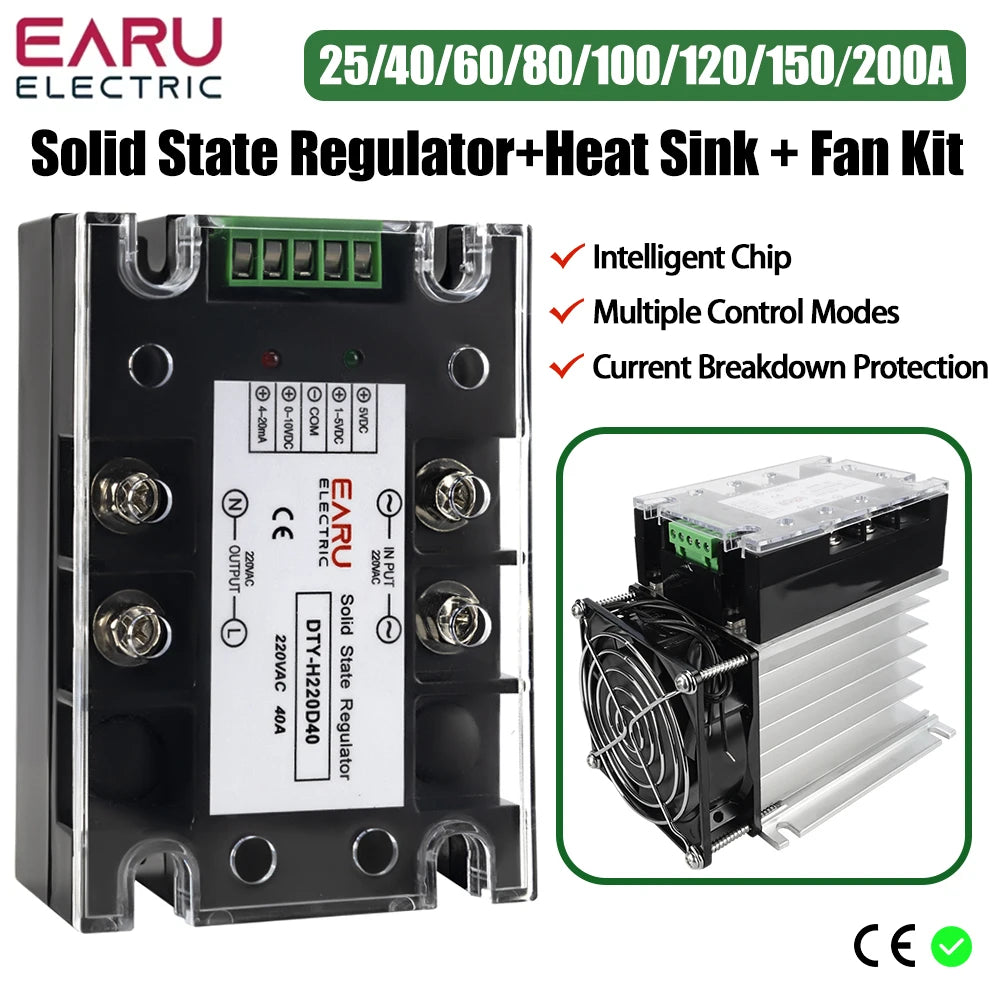

AC 220V Single Phase Full Isolation Voltage Regulator Module 25-200A With Heat Sink Fan Kit - SMT DCB High Precision Industrial

Description

1.The single-phase fully isolated voltage regulation module is a high-precision product independently developed by our factory. It adopts imported integrated circuit design, integrating phase-shifting trigger circuits, unidirectional or bidirectional thyristors, and power supply circuits. It enables automatic or manual adjustment to change the voltage on the load, thereby regulating output power. Widely applied in industries like electric furnaces, plastic molding equipment, textile machinery, injection molding machines, industrial lighting, stage lighting, infrared heating, power distribution systems, and drying systems. The module offers single-phase 220V and 380V options, with current ratings:25A, 40A, 60A, 80A, 100A, 120A, 150A, 200A. For larger currents, use the intelligent single-phase AC phase-shifting trigger module.

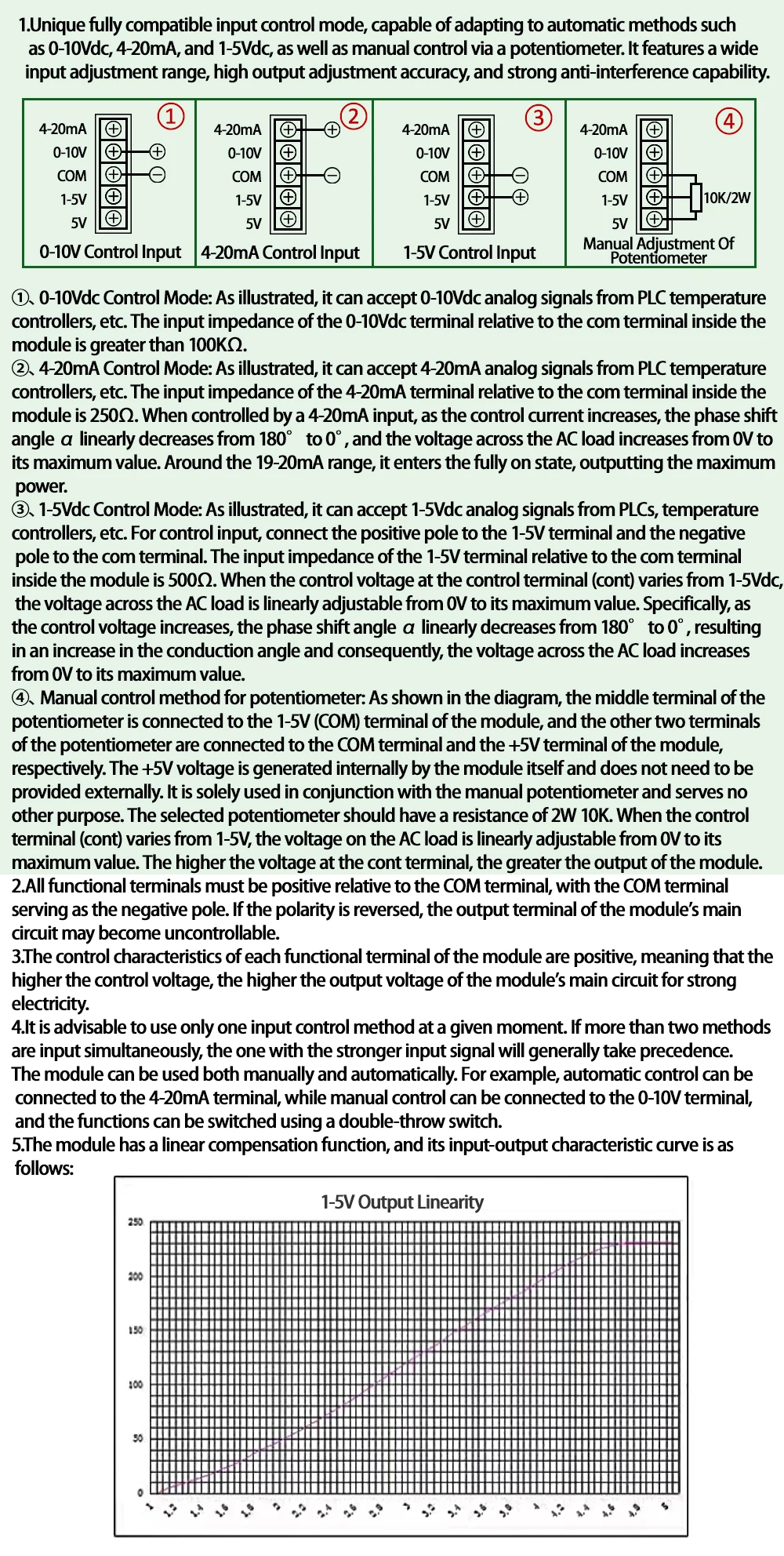

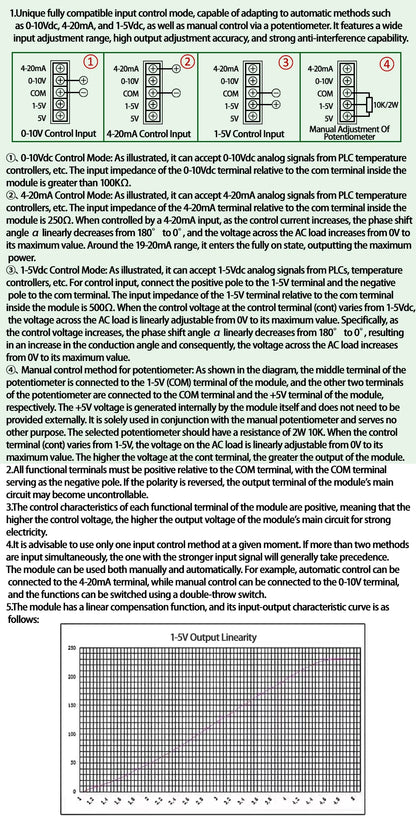

2.Supports fully compatible input automatic control modes (0-5Vdc, 0-10Vdc, 4-20mA) and manual control. Output voltage is linearly adjustable from 0V to the maximum value.

3.The module integrates a power transformer into a unified structure, ensuring simple wiring, user-friendly operation, and high cost-effectiveness.

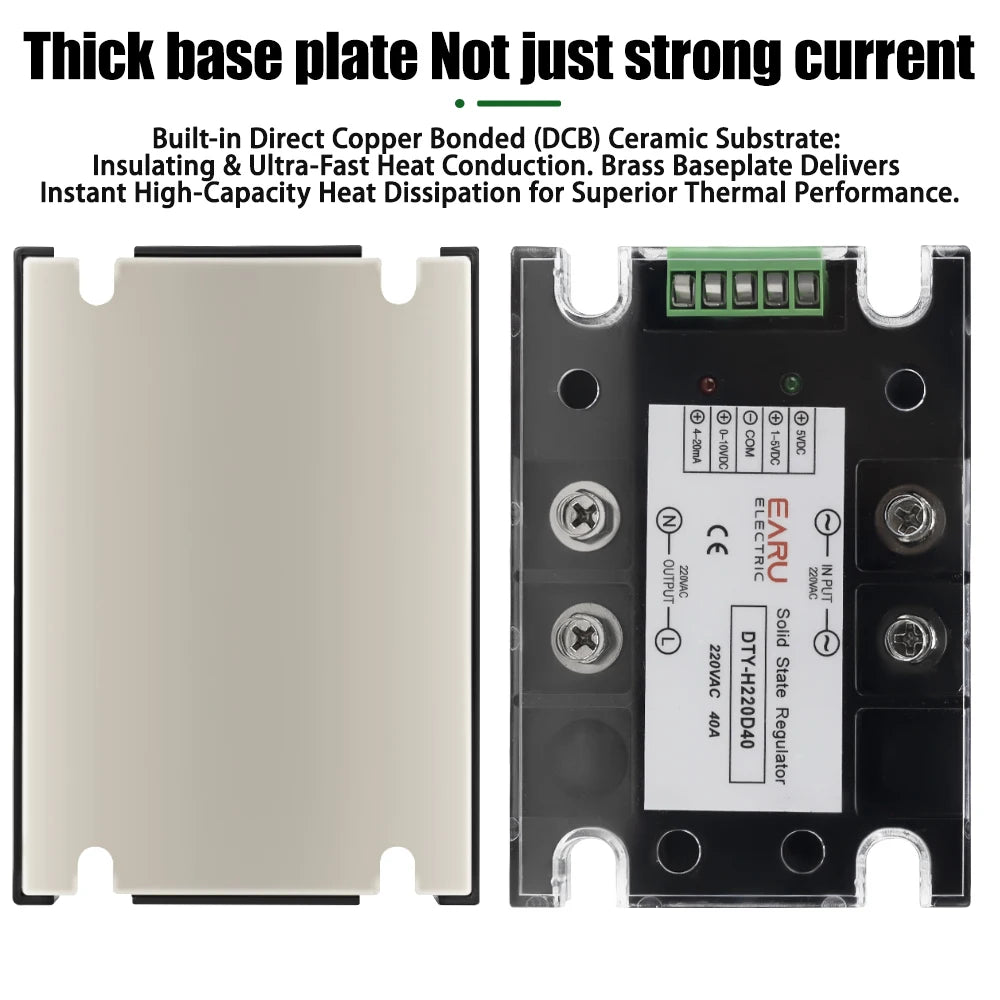

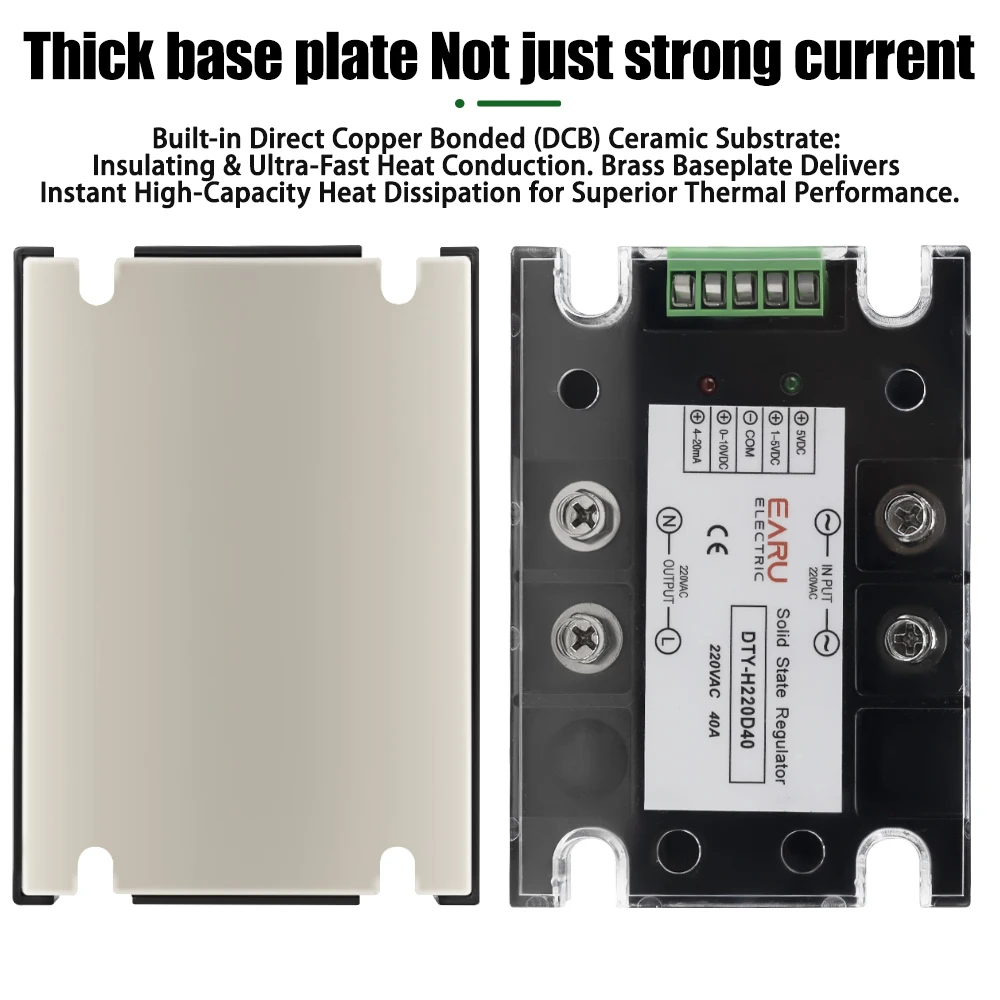

4.Adopts SMT (Surface Mount Technology) and a DCB (Direct Copper Bonded) ceramic substrate, ensuring stable performance, high reliability, and suitability for resistive loads.

5.Equipped with LED power indication and LED output indication.

6.Features full isolation between input control terminals and the high-power main circuit, with insulation medium withstand voltage exceeding 2000 Vac.

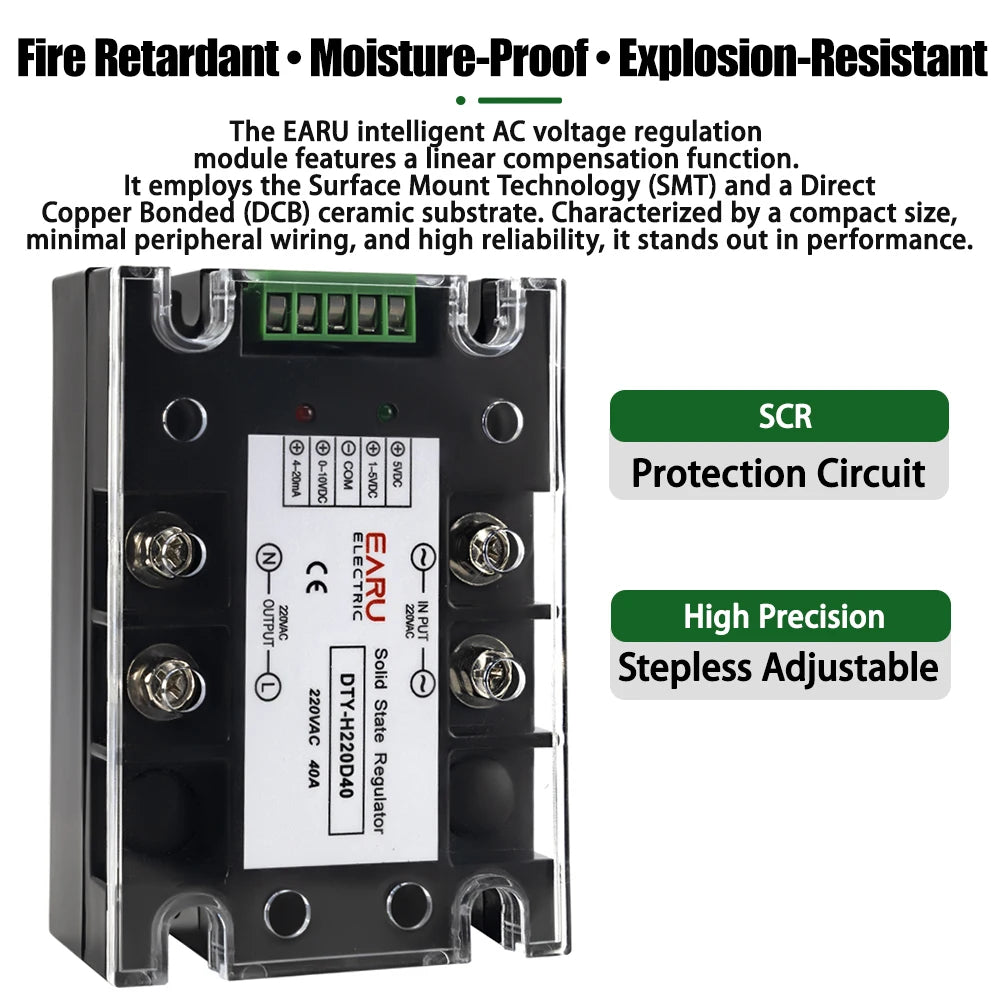

7.Includes a linear compensation function, delivering linear output characteristics.

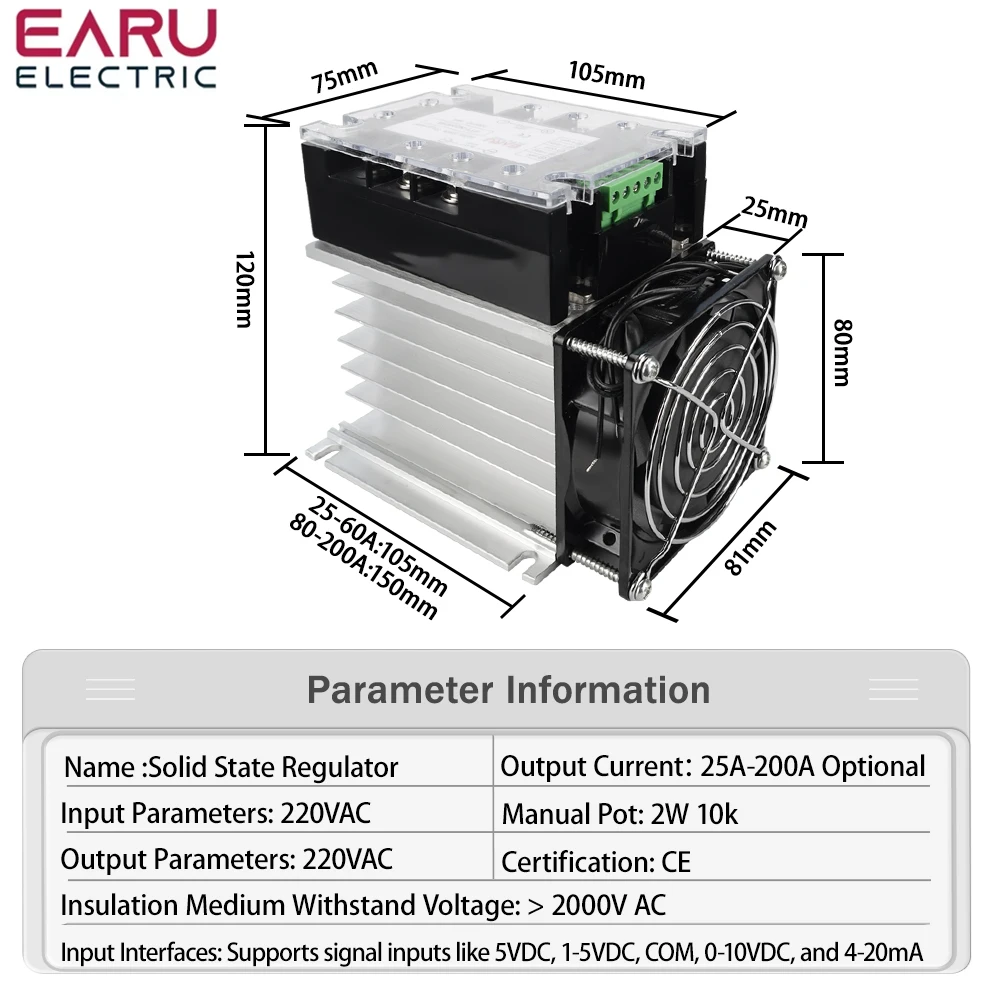

Technical Parameters

• Name :Solid State Regulator


• Input Parameters: 220VAC

• Output Parameters: 220VAC

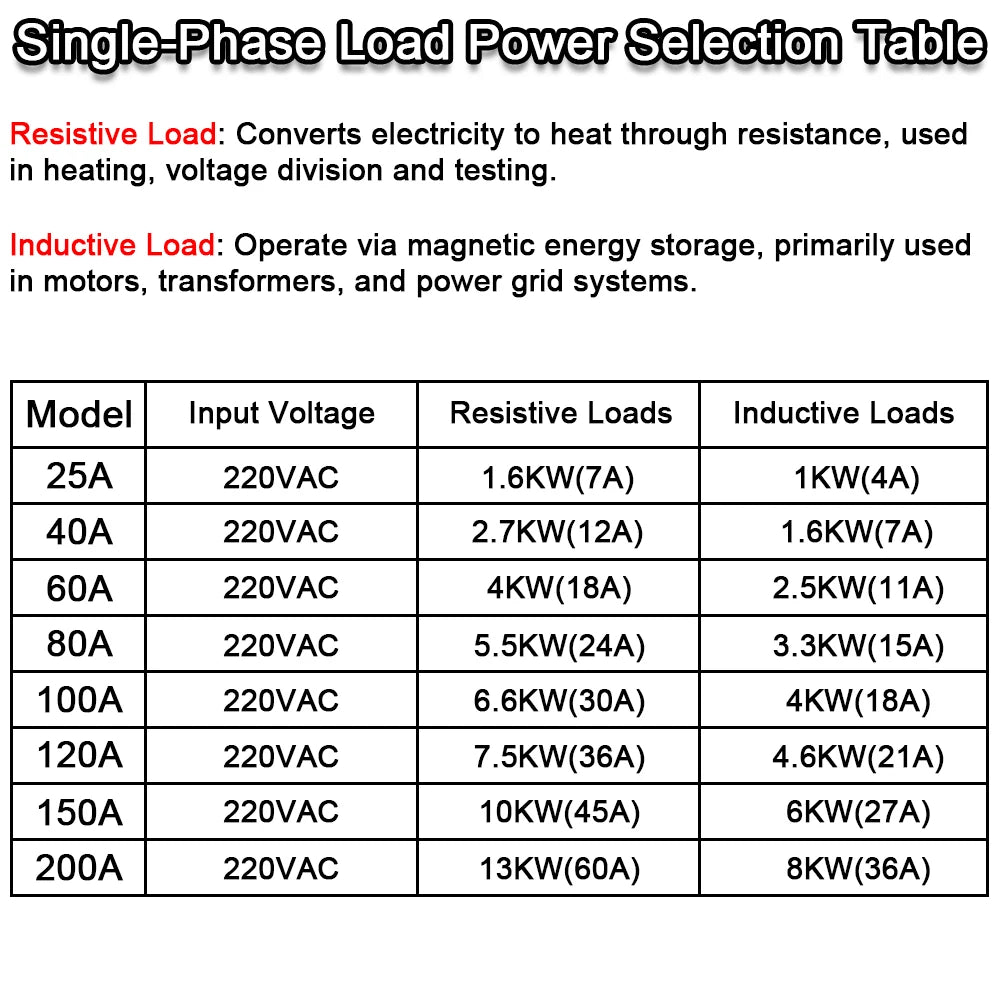

• Output Current: 25A-200A Optional

• OptionaManual Pot: 2W 10k

• Insulation Medium Withstand Voltage: > 2000V AC

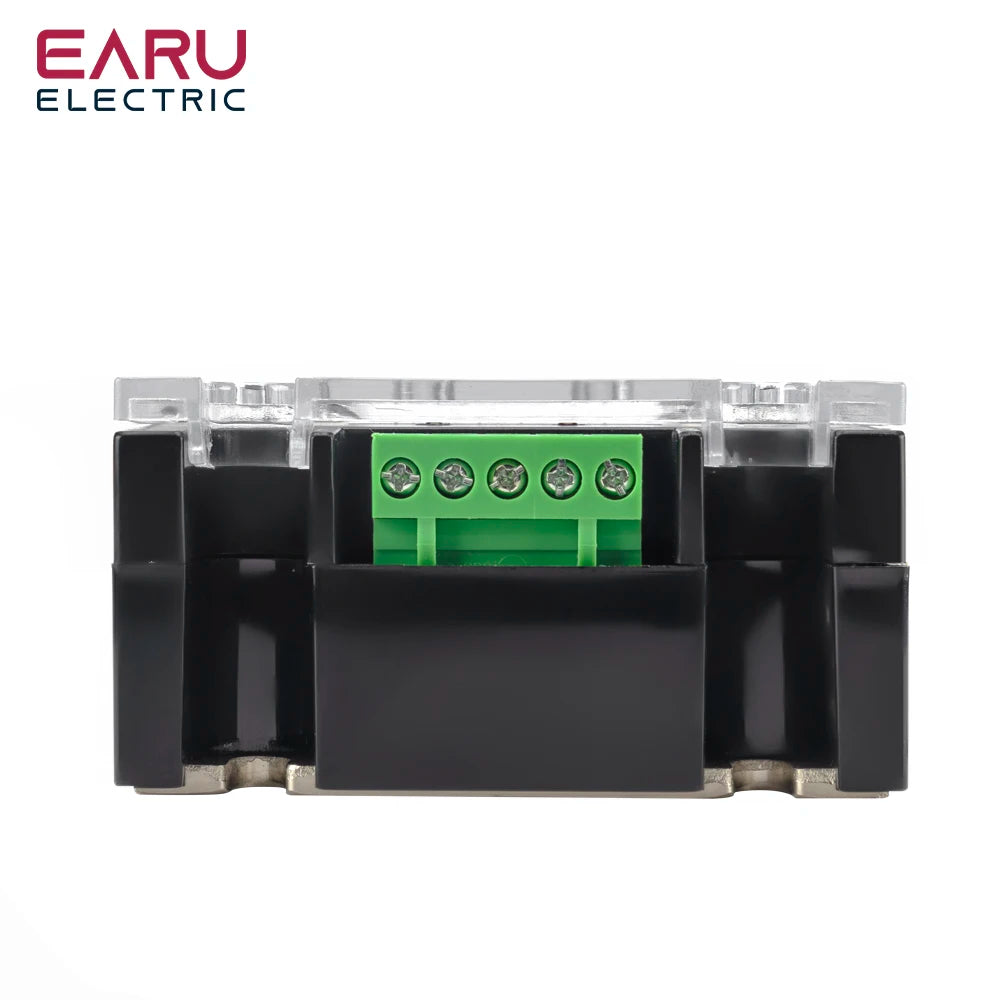

• Input Interfaces: Supports signal inputs like 5VDC, 1-5VDC, COM, 0-10VDC, and 4-20mA




Note: This Solid tate egulator supports customization services. If you have customization needs, feel free to contact us at any time to discuss the docking details.
