AC 40A 63A 230V Din Rail Adjustable Over Voltage Under Voltage Protective Device Protector Relay Over Current Protection Limit
AC 40A 63A 230V Din Rail Adjustable Over Voltage Under Voltage Protective Device Protector Relay Over Current Protection Limit
Precio habitual
$12.10 USD
Precio habitual
$0.00 USD
Precio de oferta
$12.10 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Our AC 40A 63A 230V Din Rail Protective Device provides adjustable over voltage and under voltage protection, with relay and over current protection limit capabilities. Keep your equipment safe and secure with this industry-leading device.
SPECIFICATIONS
- Under voltage protection: 140V-200V (adjustable)
- Over voltage proteciton: 240V-300V (adjustable)
- Over current protection: 1A-40A/63A/80A (adjustable)
- Reconnect time: 1s-300s
- Modelo 1: EAPDX-40RG/63RG

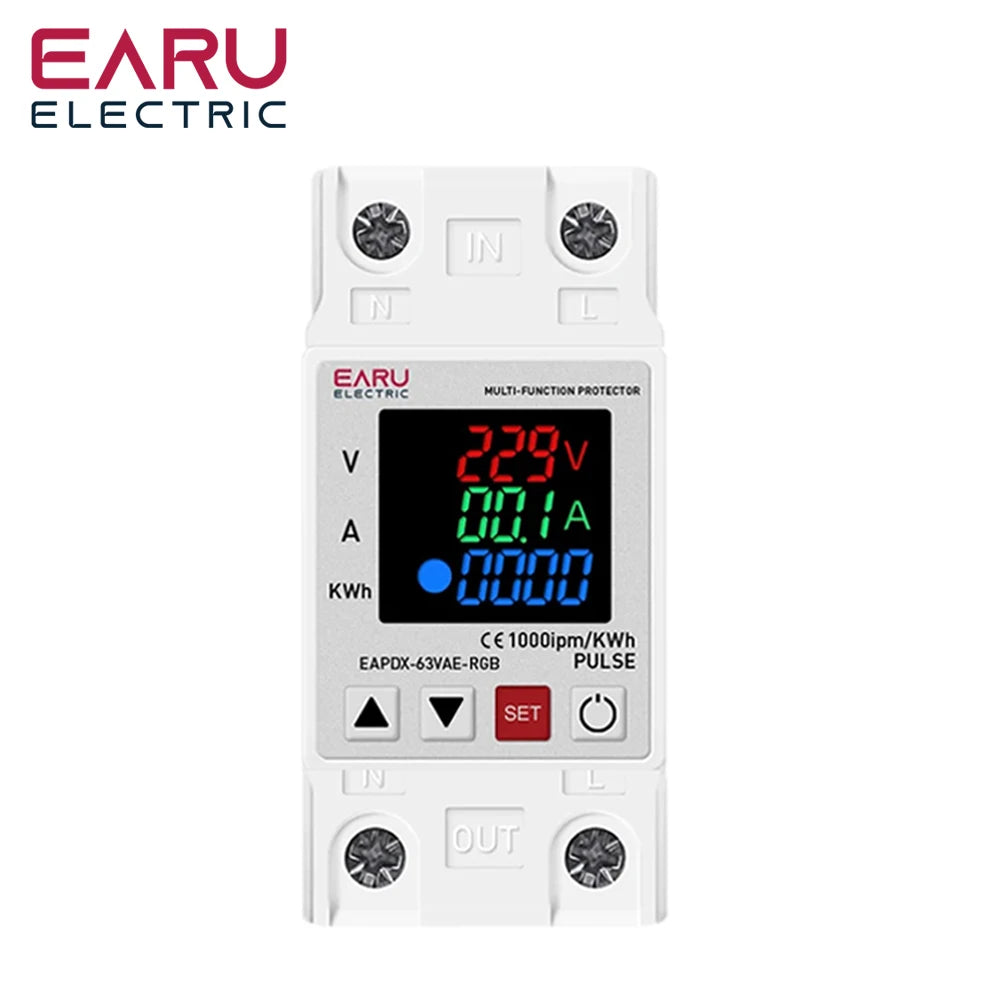

- Modelo 2: EAPDX-63VAE-RGB
- Brand Name: EARUELETRIC
- Model Number: EAPDX-40/63
- Display Type: Analog and Digital
- Accuracy Class: ±1
- Operating Temperature: -50℃-55℃
- DIY Supplies: ELECTRICAL
Functions:
- Over-voltage protection
- Under-voltage protection
- Over-current protection
- Automatic recovery
- Voltage display(voltage measurement)
- Current display (current measurement)
Product Parameters:
- Under voltage protection 140V-200V (adjustable)
- Over voltage proteciton 240V-300V (adjustable)
- Over current protection 1A-63A (adjustable)
- Reconnect time (delay on time): 1s-300s (adjustable)
- Voltage meter
- Ammeter
Rated voltage: 220V; Frequency: 50Hz/60HZ
Error in real-time current, voltage : ≤5%
