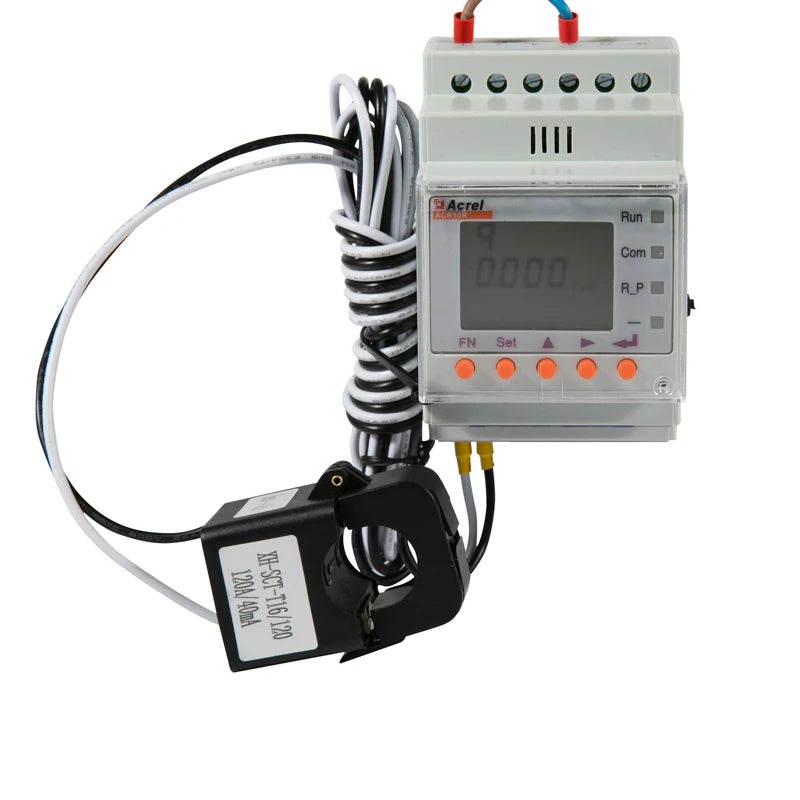

Acrel ACR10R-D16 Bidirectional Single Phase Energy Meter with 120A Split Core Ct RS485 Modbus-RTU for Solar Solis Inverter
Acrel ACR10R-D16 Bidirectional Single Phase Energy Meter with 120A Split Core Ct RS485 Modbus-RTU for Solar Solis Inverter
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Accuracy Class: 1
Battery Included: Yes
Brand Name: ACREL
Certification: CE
Communication: RS485 interface
DIY Supplies: Electrical
Dimensions: 85*64*54mm
Display: LCD
Display Type: LCD
Hign-concerned Chemical: None
Input: Single-phase
Installation: 35MM Din Rail
Measurement: U,I,P,Q,S,PF,F
Measuring Energy Range: 0-99999.9kwh
Model Number: ACR10R
Operating Temperature: -10℃~55℃
Origin: Mainland China
Output Voltage: 220V~264V
Phase: single phase
Power Supply: AC
Power consumption: less then 0.2VA
Rated Voltage: 230V,AC 100V, 400V
Standard&Certificate: CE
frequency: 45~60Hz
protocol: MODBUS-RTU

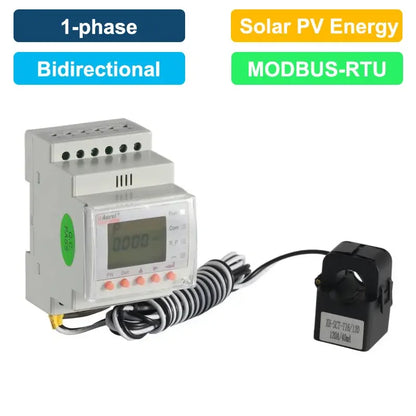

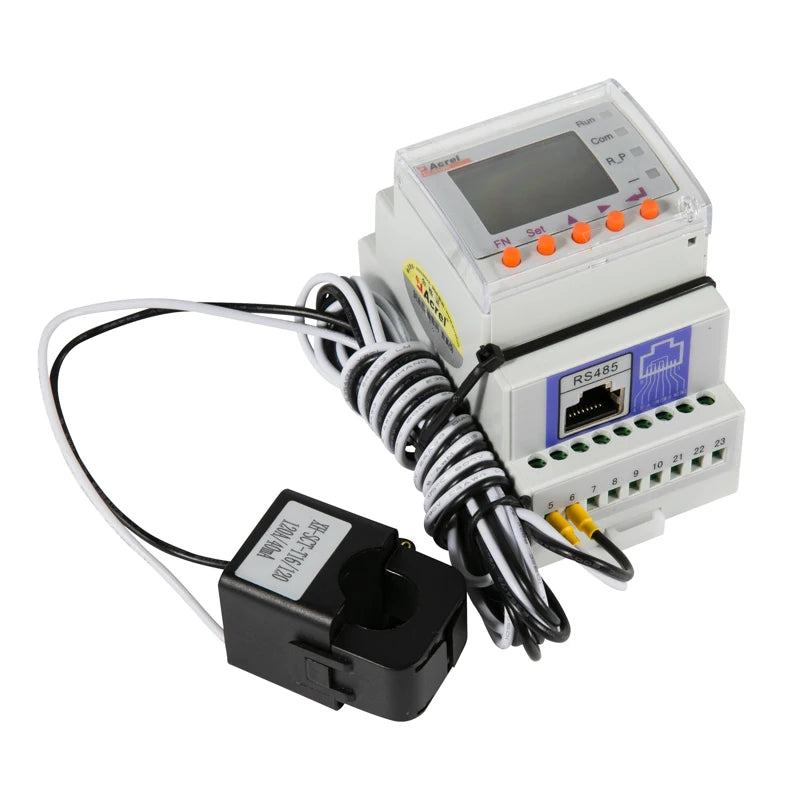

ACR10R Bidirectional Single-phase Solar Pv Energy Meter with External CT
(Note: The meter can match to Solis Inverter to solar power zero export, if it is used for the Solis Inverter, please remark your Solis inverter model, otherwise we will produce as normal RS485 type, and can't ensure zero export.)
|

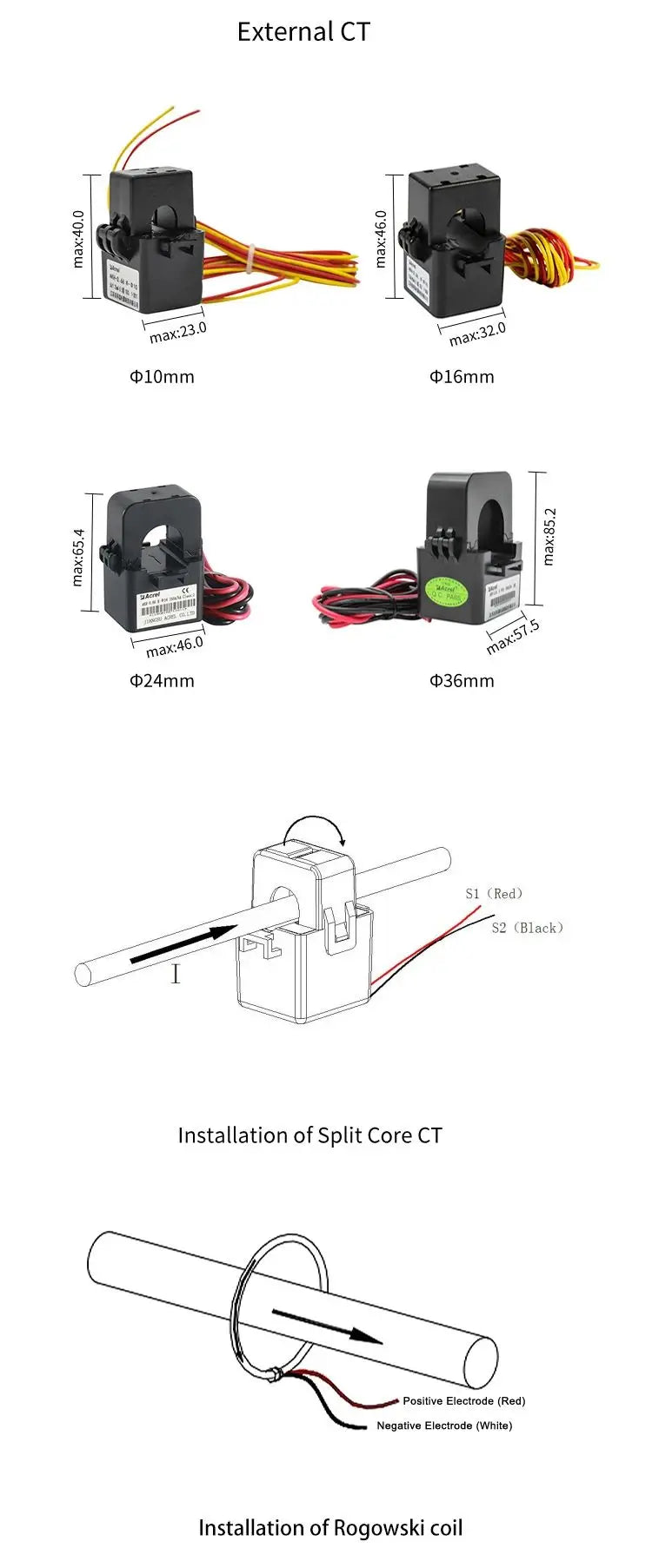

●Measurement: 1-phase Active Power, Reactive Power, Current, Voltage and etc ●15 Kwp available ●Current Rating: Diameter 10mm,80A (paired with external CTs) Diameter 16mm,120A (paired with external CTs) Diameter 24mm,200A (paired with external CTs) Diameter 36mm,300A (paired with external CTs) ● Communication: RS485 (MODBUS-RTU) ● Application: Using distributed Solar PV and Anti-reflux Inverter ● Display: LCD Display ● Installation: 35mm DIN Rail ● Power Supply: 85~265V AC or 100~350V DC ● Standard&Certificate: CE |
|
|

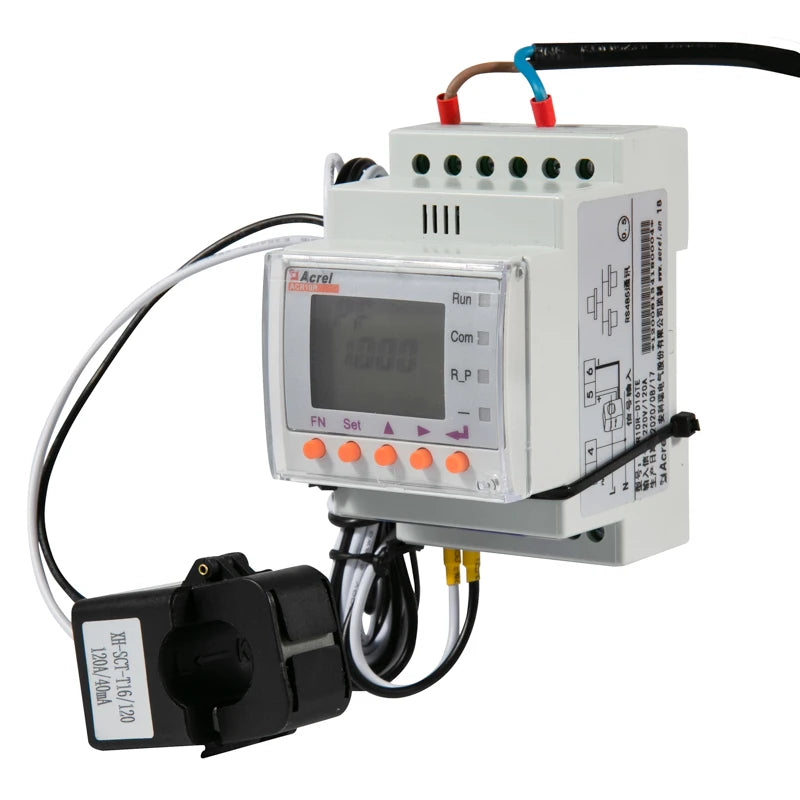

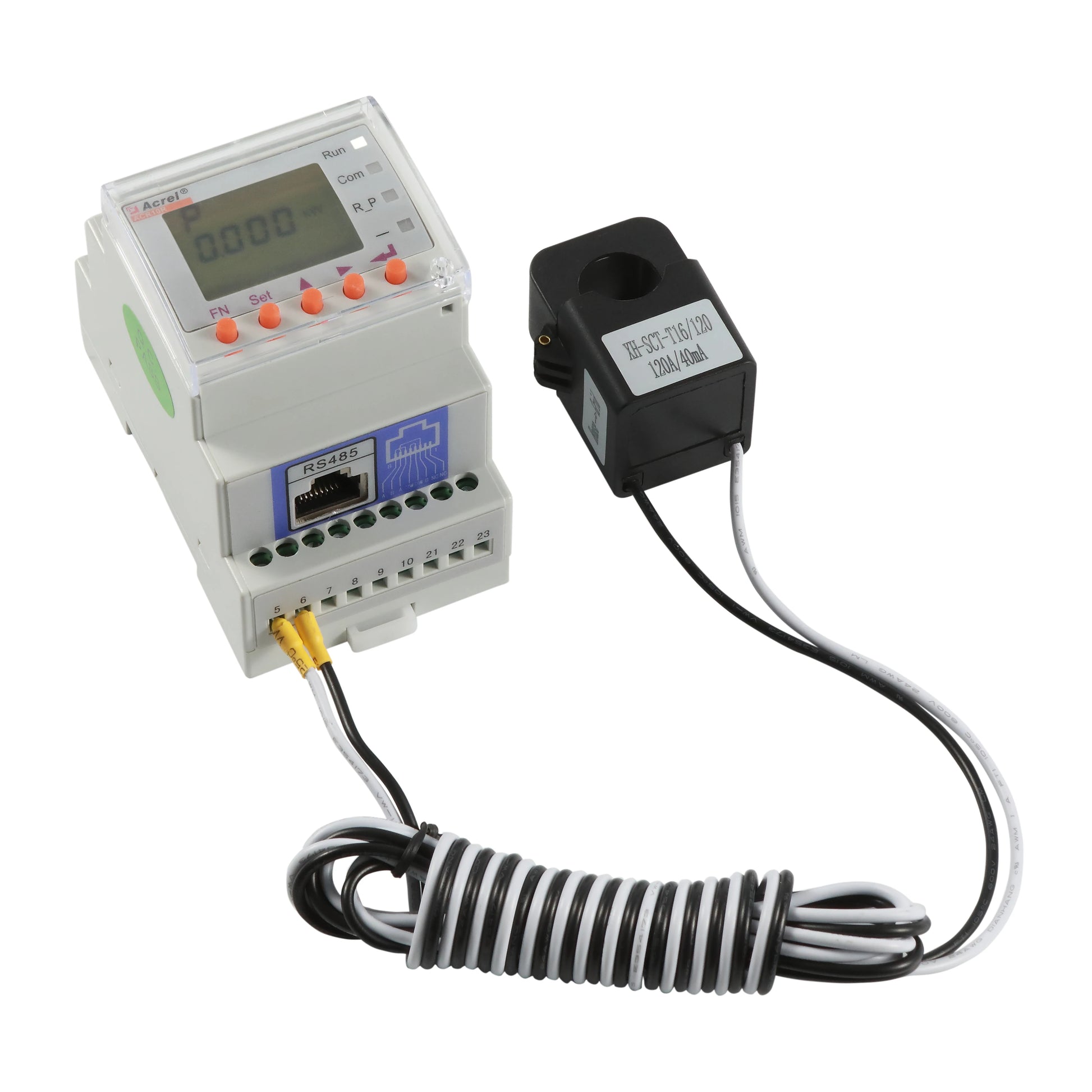

Single phase LCD din rail energy meter with 36mm split CT enabled cable 300A input. It is suitable for power monitoring of grid-connected PV power stations, power management, and so on. It is easy to install without removing the primary bus bar and is cost-effective. It can measure current, voltage, active power, reactive power, frequency, power factor, and so on. It supports multi-tariff energy metering, 4-quadrant energy metering, and so on.
|

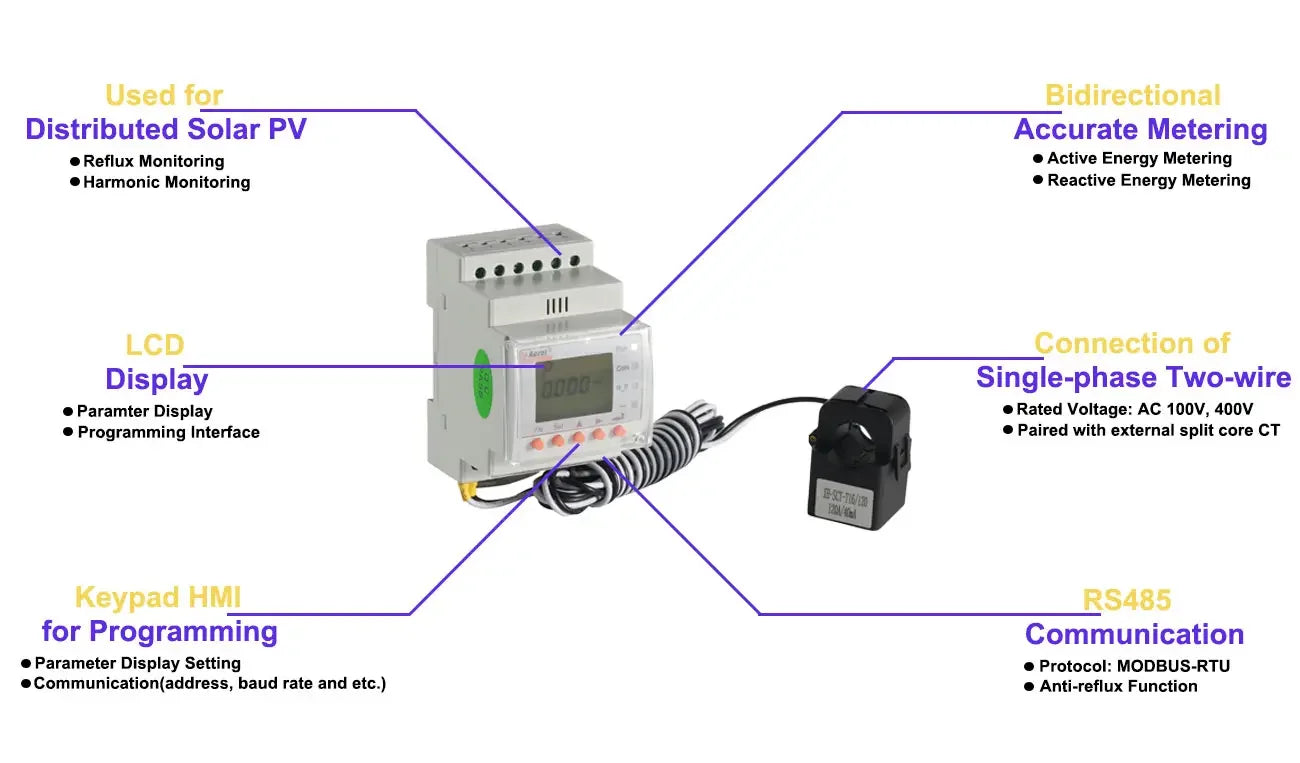

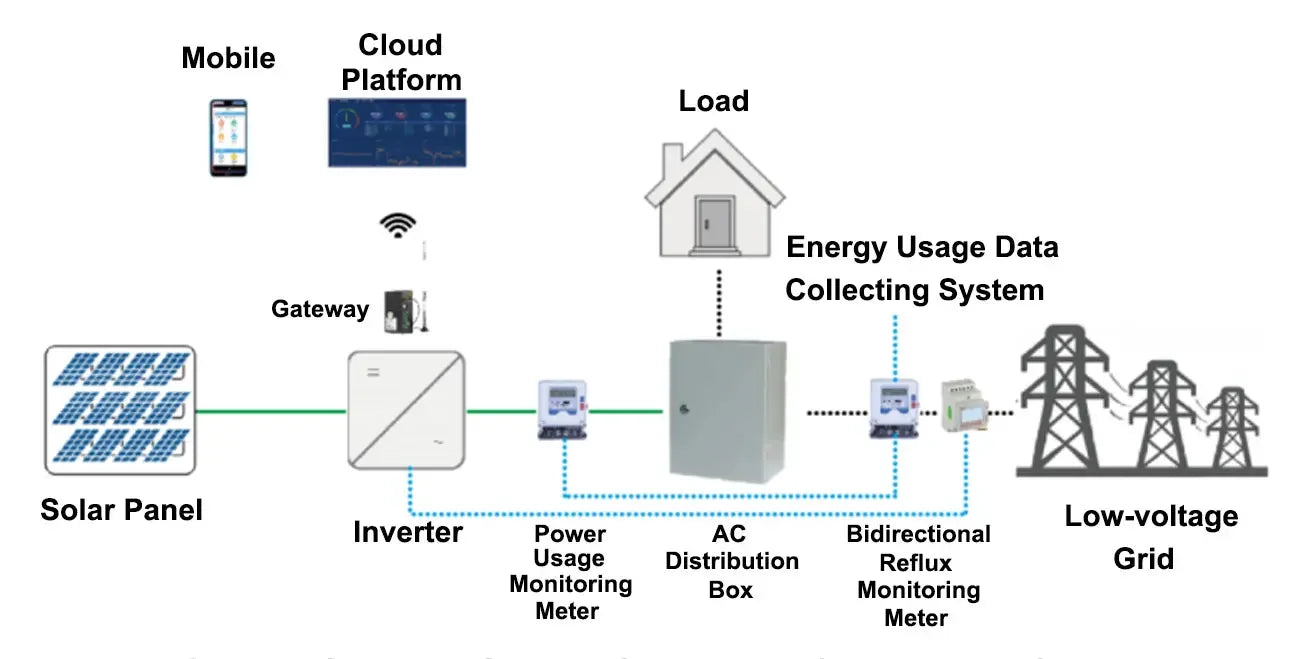

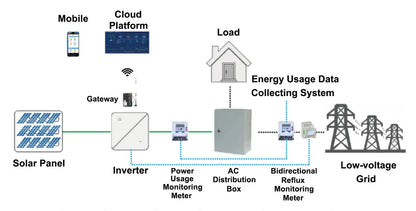

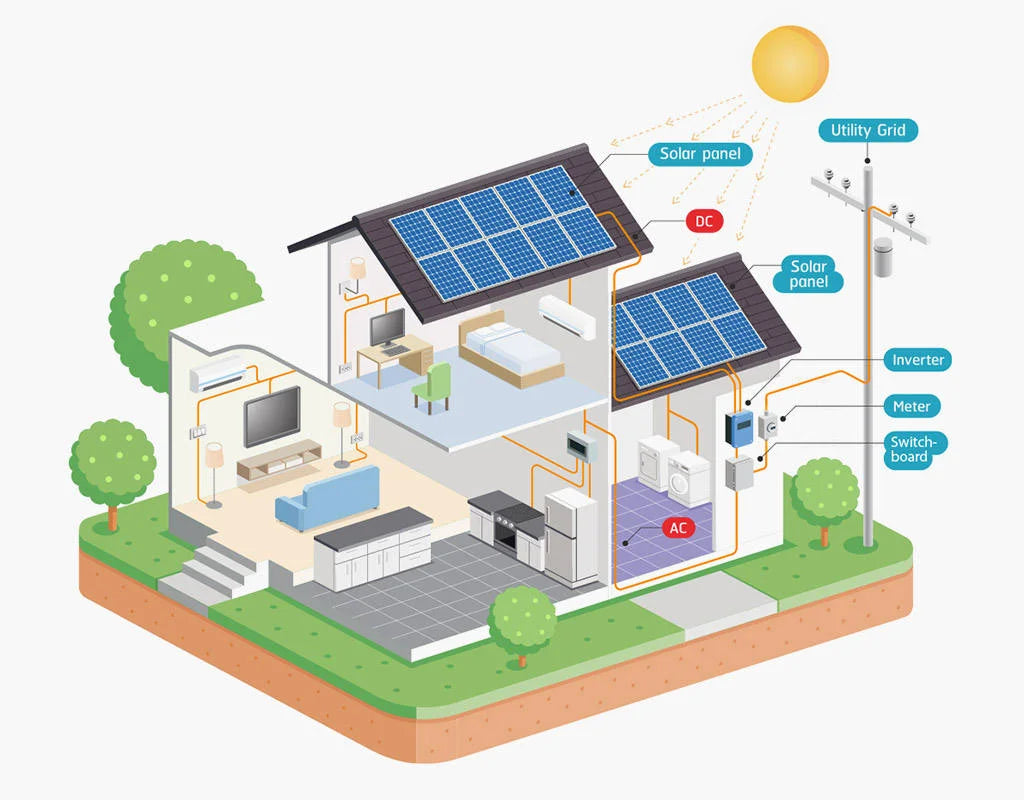

Used for distributed Solar PV ●Reflux Monitoring |
|

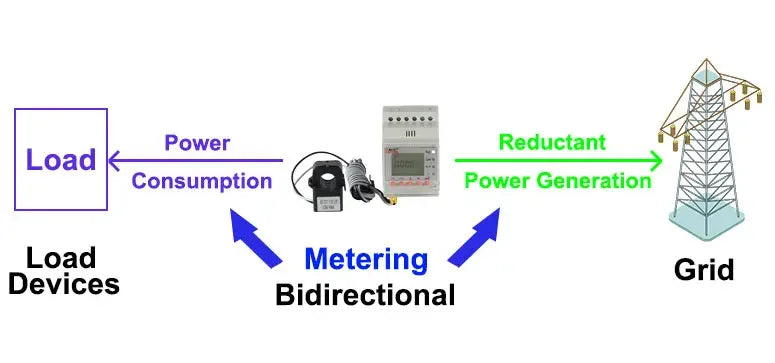

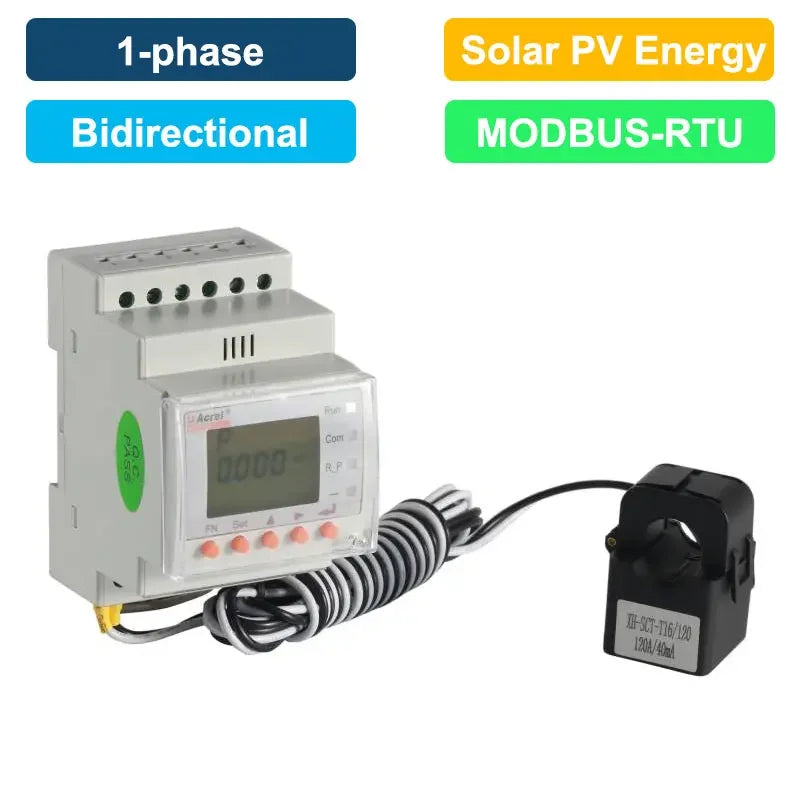

Bidirectional Metering ● Active Energy Metering ● Reactive Energy Metering |
|

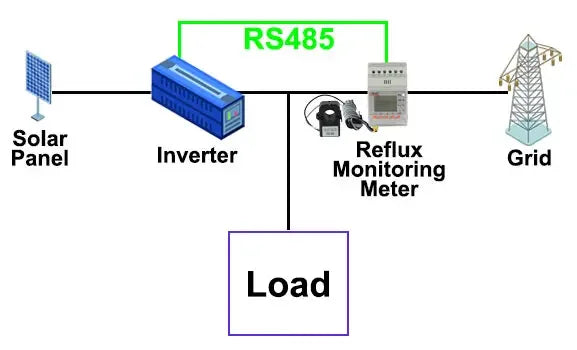

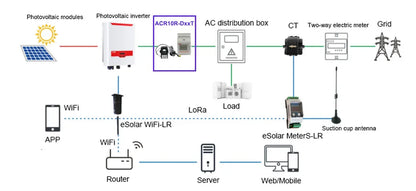

RS485 Communication ● MODBUS-RTU Protocol ● Communicate with Inverter to realize anti-reflux Function |
|

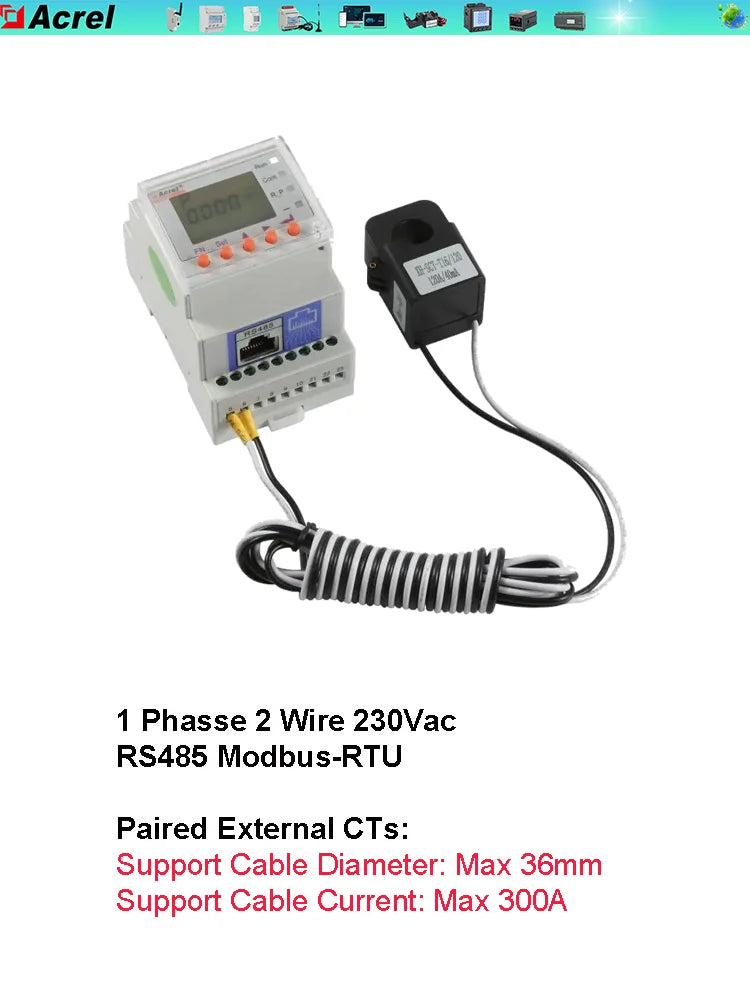

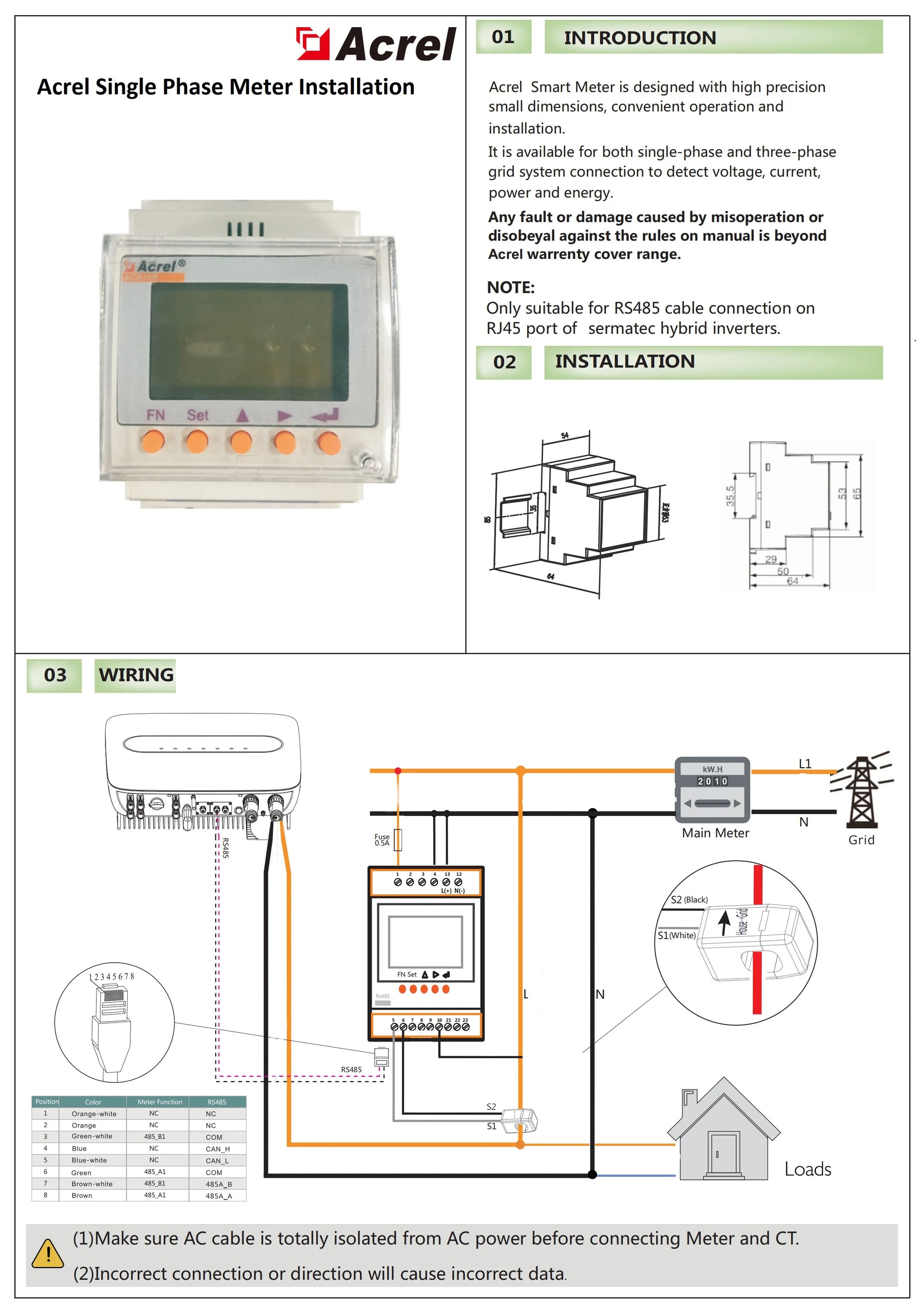

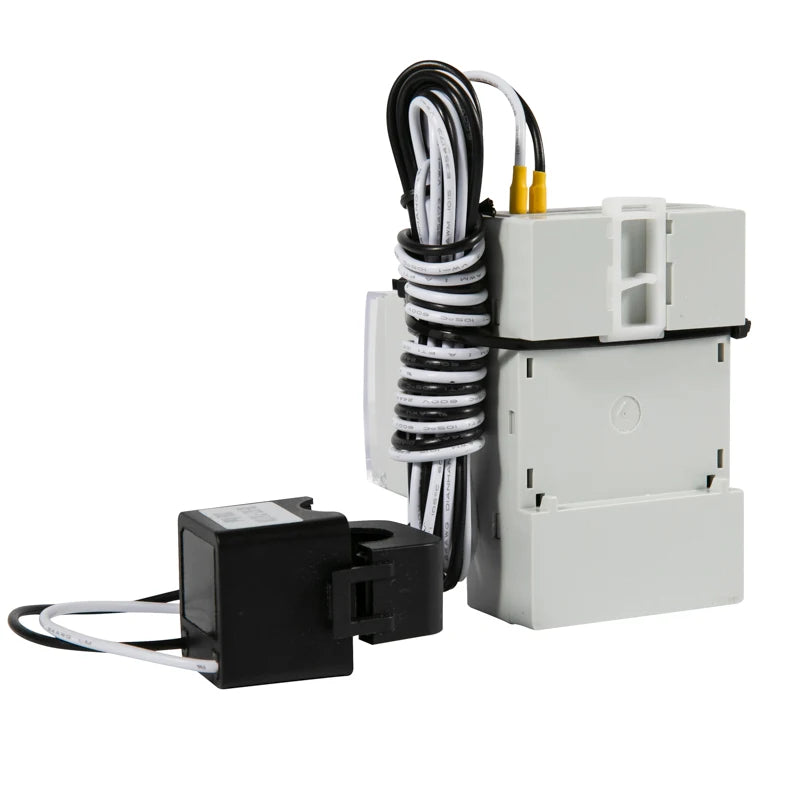

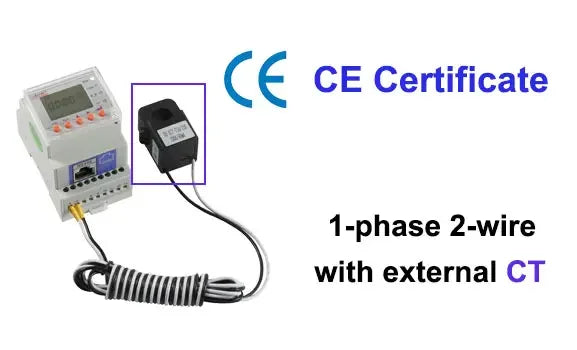

Single-phase Two-Wire Connection ● Paired with external split core CT ● Rated Voltage: AC 100V, 400V |
|

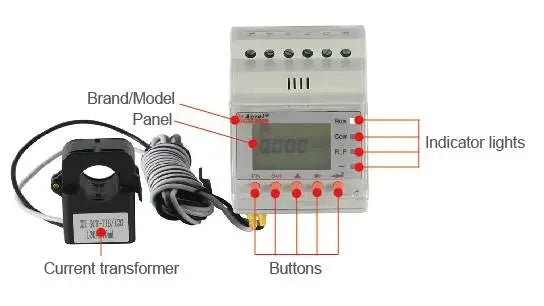

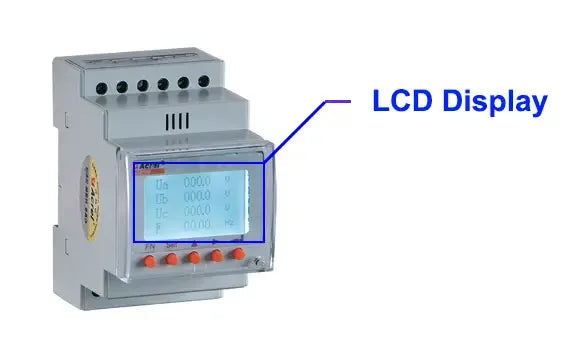

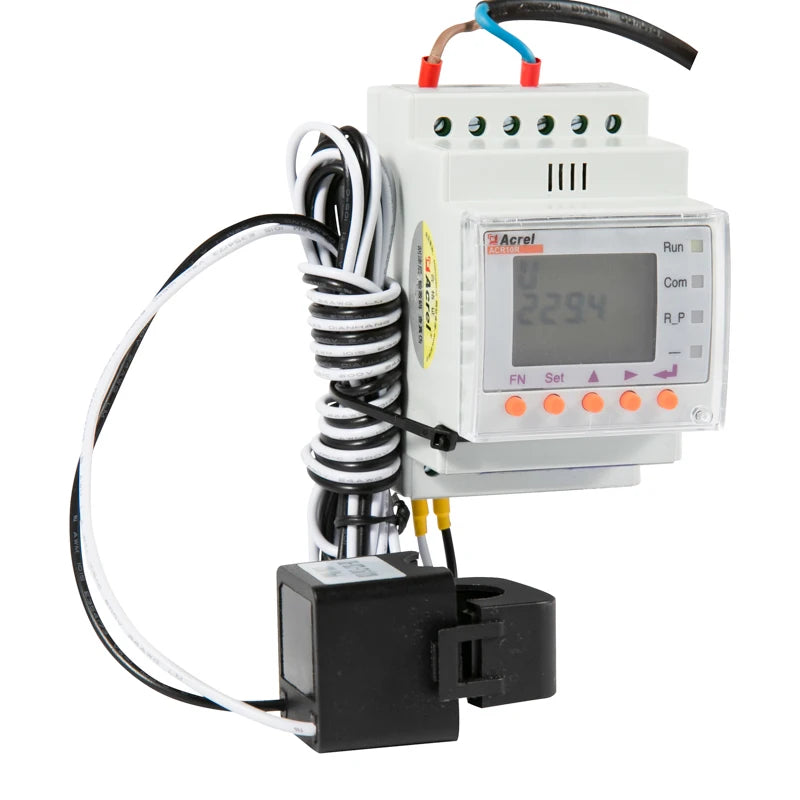

LCD Display ● Parameter Display ● Programming Interface |
|

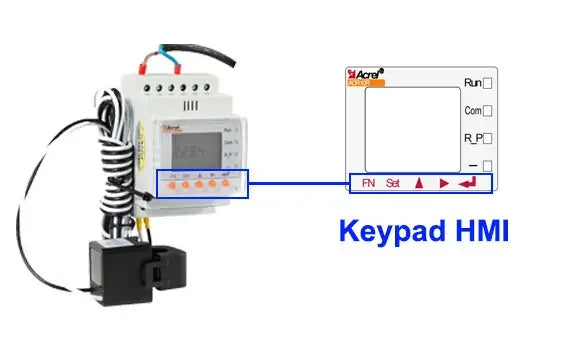

Keypads HMI for Programming ● Parameter Display Setting ● Communication(address, baud rate and etc.) |
Technical parameters |
Indicators |
|||
Input
|
Grid |
Single-phase |
||
Frequency |
45~65Hz |
|||
Voltage
|
Rated voltage: AC 100V, 400V |
|||
Overload: 1.2 times the rated voltage(continuous); 2 times the rated voltage lasting for 1 second | ||||
Power consumption: less than 0.2VA | ||||
Current
|
Rated current: 10A,20A,40A,80A,120A,200A etc. (for details see product specifications) |
|||
Overload: 1.2 times the rated current(continuous);10 times the rated current lasting for 1 second | ||||
Power consumption: less than 0.2VA | ||||
Output
|
Communication |
RS485 interface, Modbus-RTU |
||
Display |
LCD |
|||
Measurement precision |
Voltage: 0.2 level, current, power Active energy: 0.5 level,0.01Hz frequency, Reactive energy: 1 level |
|||
Power supply |
AC85~265V or DC100~350V; power consumption ≤10VA |
|||
Safety
|
Power frequency withstands voltage |
AC2kV 1 min between power supply // current input//voltage input and communication AC2kV 1 min between each pair of combinations
among power supply, current input, and voltage input.
|
||
Insulating resistor |
Input, output terminal to housing >100MΩ |
|||
Environment |
Working temperature: -10℃~+55℃;storage temperature: -20℃~+70℃
Relative humidity:5%~95%,non-condensing; altitude:≤2500m
|
|||
|

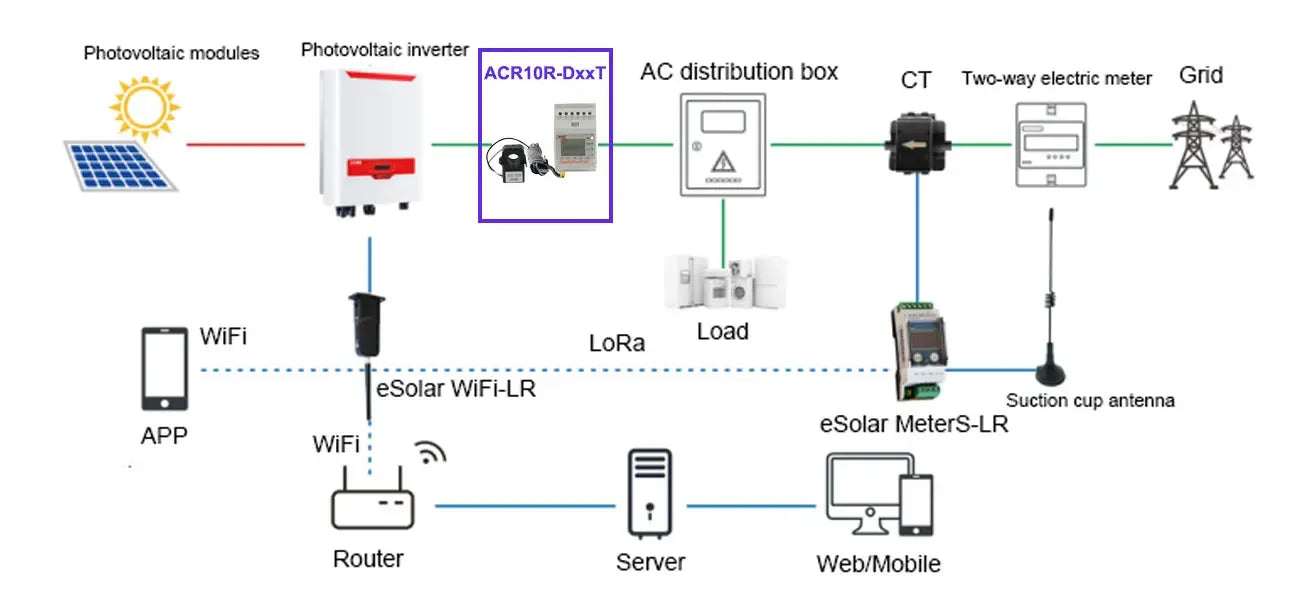

Practical Utility In Distributed Solar PV |
