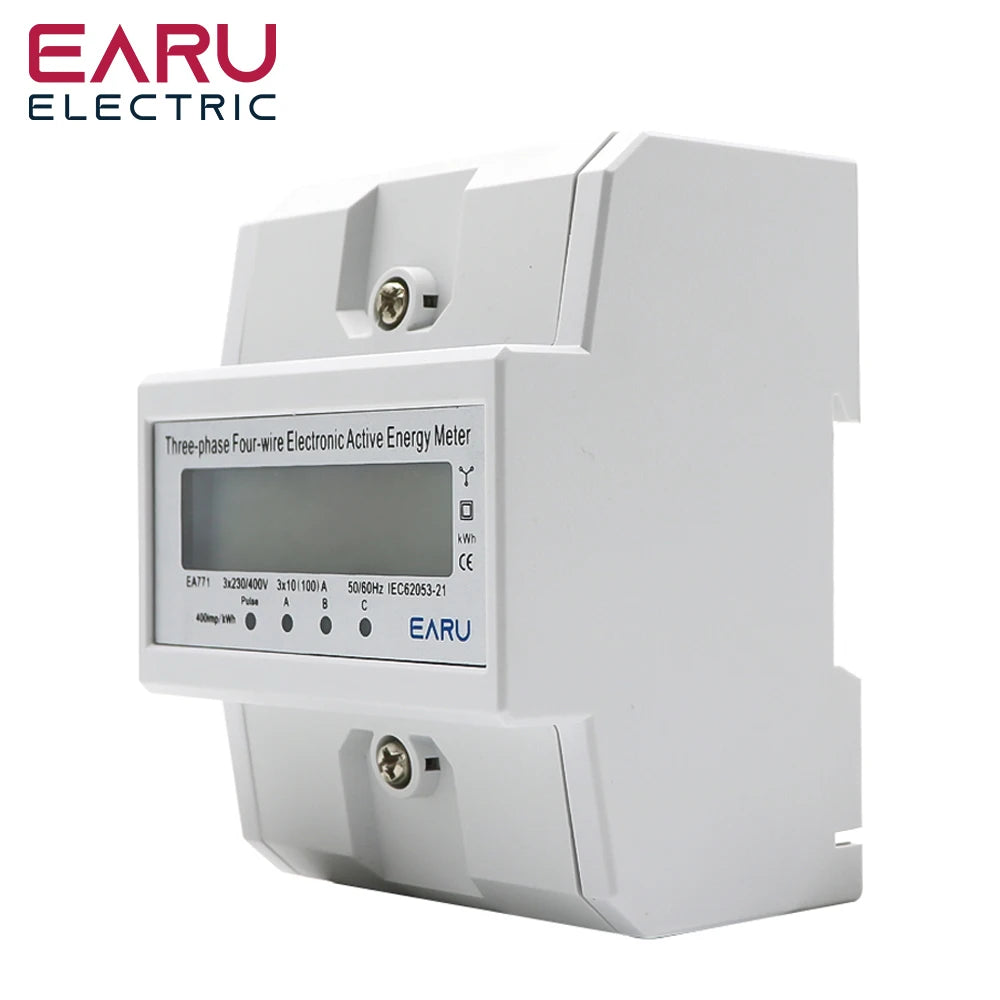

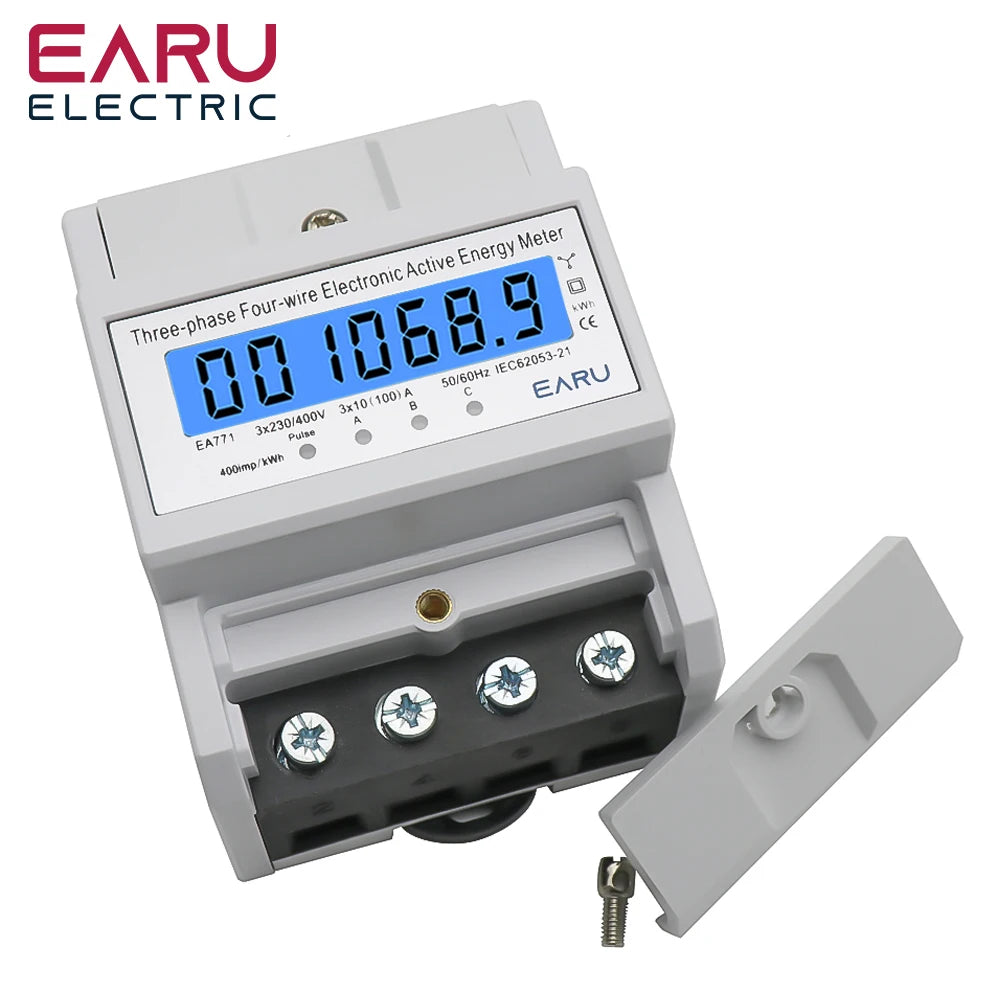

Din Rail AC 230 380V 3 Phase 4 Wire Energy Meter Power Consumption Monitor kWh Meter Wattmeter Bivolt 100A 50/60Hz LCD Backlight

Din Rail AC 230 380V 3 Phase 4 Wire Energy Meter Power Consumption Monitor kWh Meter Wattmeter Bivolt 100A 50/60Hz LCD Backlight

Precio habitual $34.08 USD
Precio habitual $0.00 USD Precio de oferta $34.08 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color

Efficiently monitor your power consumption with the Din Rail AC 230 380V 3 Phase 4 Wire Energy Meter! This Bivolt meter accurately measures kWh usage and has a large LCD backlight for easy reading. With a 100A capacity and 50/60Hz frequency, keep track of your energy usage with confidence.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • DIY Supplies: ELECTRICAL
  • Measuring Energy Range: 999999.9
  • Display Type: LCD
  • Output Voltage: AC 3X230/400V 50HZ/60HZ
  • Model Number: Three Phase
  • Power Supply: AC
  • Phase: Three Phase
  • Rated Voltage: 380V
  • Dimensions: 100*76*65mm
  • Operating Temperature: -20~55 C
  • Accuracy Class: 1

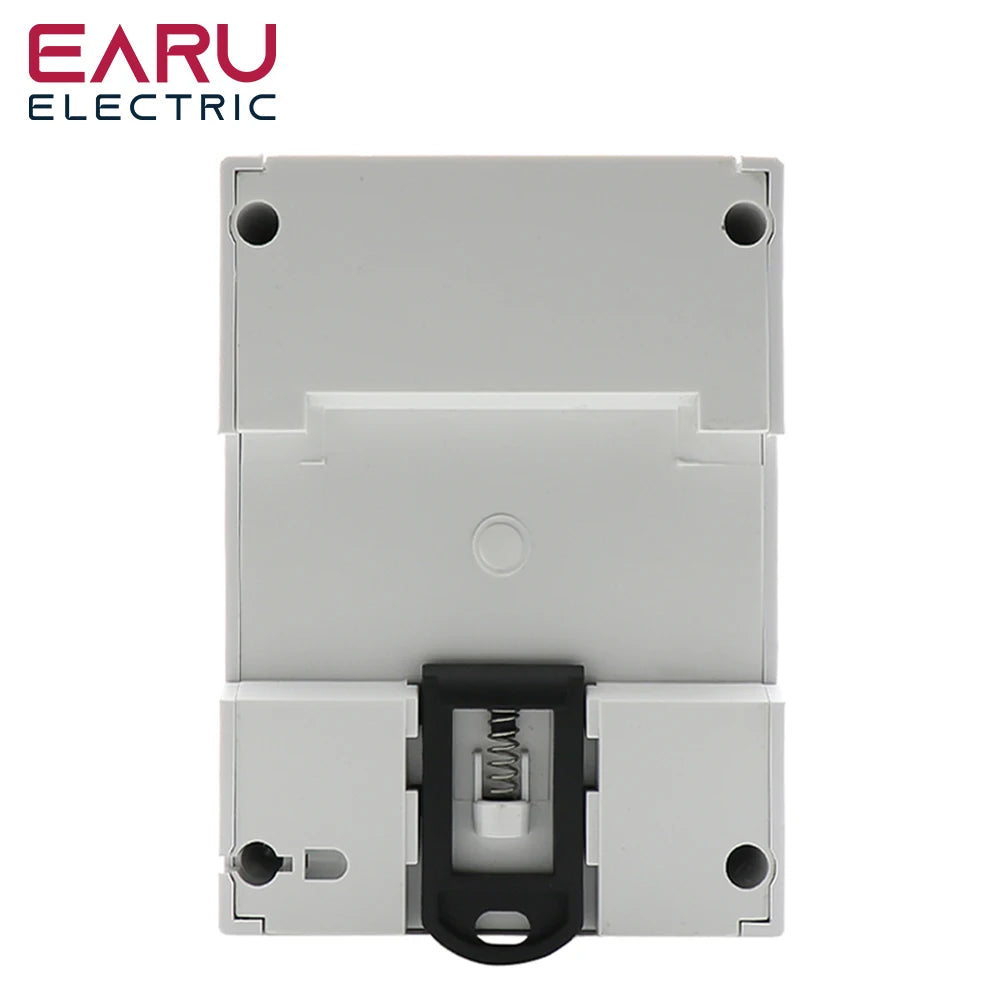

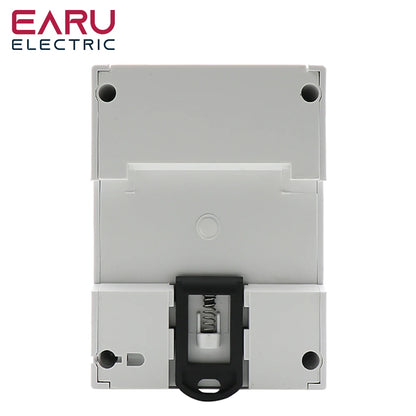

  • Installation: 35mm DIN Rail
  • Digital Wattmeter 1: Wattmeter in Energy Meters
  • Digital Wattmeter 2: Power Meter in Energy Meters
  • Electric Meter kwh 1: Smart Electric Meter 3 Phase
  • Electric Energy Meter 2: kwh Meter Digital 3 Phase
  • Electric Energy Meter 3: Digital Watt Meter
  • Output Voltage: AC 3X127/220V 50HZ/60HZ

New EA771 Din Rail 380V 3 Phase 4 Wire Energy Meter Power Consumption Monitor kWh Meter Wattmeter Bivolt 100A AC 50Hz 60Hz LCD Backlight

Features:

  • The meter is fully in conformity with the relevant technical requirements of GB/T17215.321-2008 national standard and the IEC62053-21 international standard of grade 1 or level 2 3-phase energy meter, which can directly and accurately measure active energy of the energy consumption.

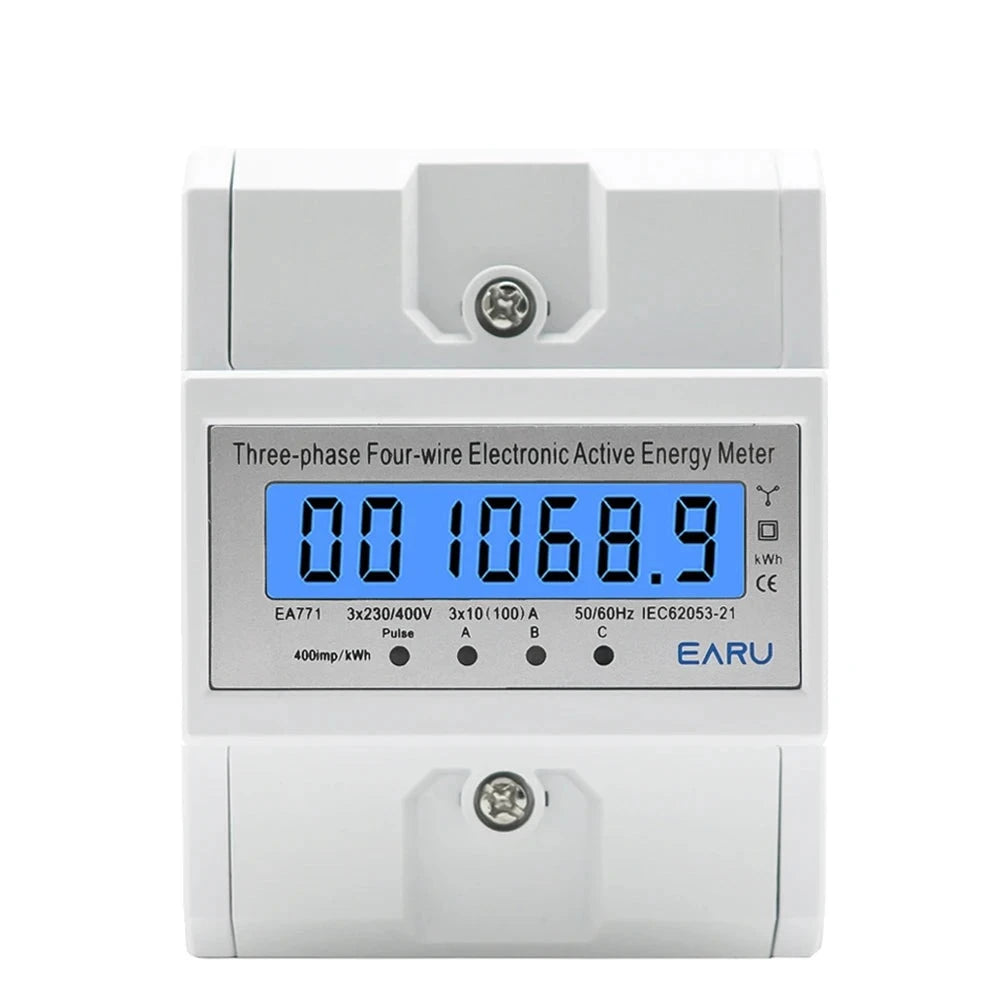

  • 6+1 Digits LCD display shows the total power consumption.
  • It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mm DIN standard guide rail installation, etc.
  • It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.
  • This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 °C ~ 55 °C, relative humidity is ≤ 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.

Parameters:

  • Model Number:EA771
  • Materiel: Metal + ABS

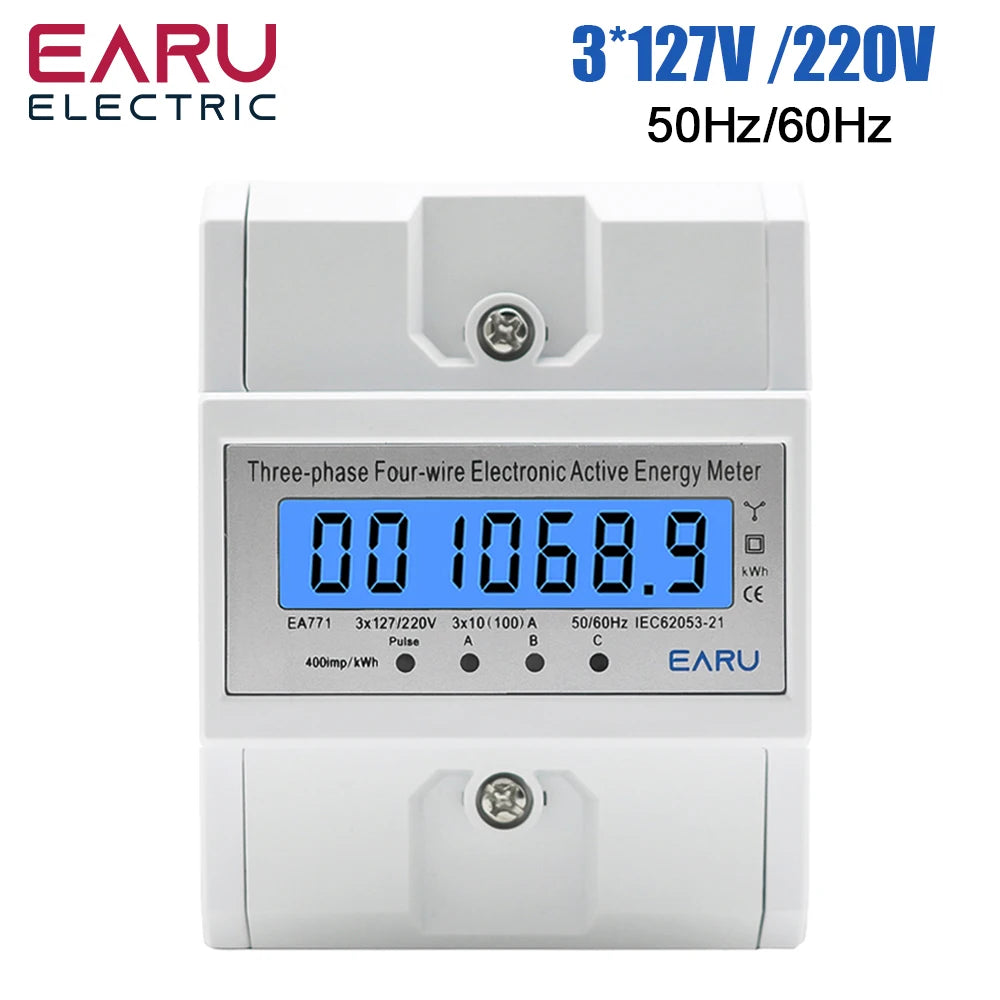

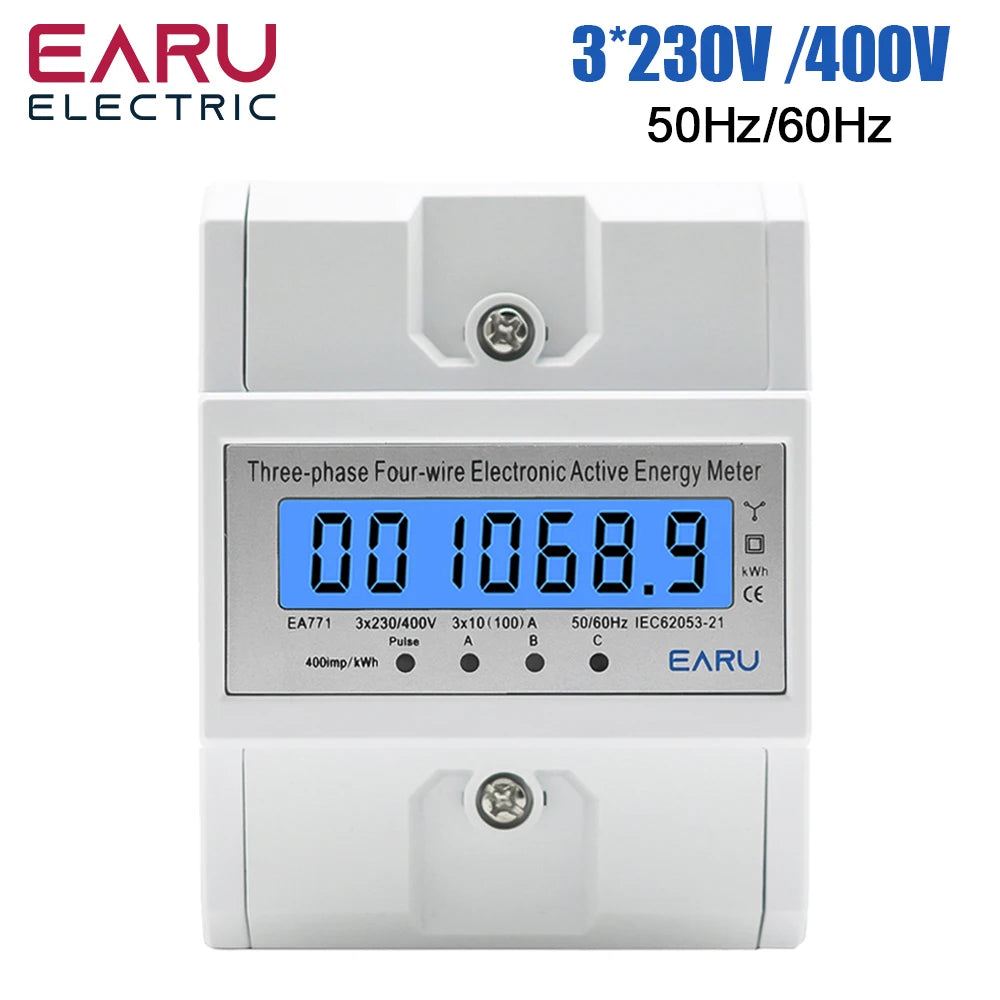

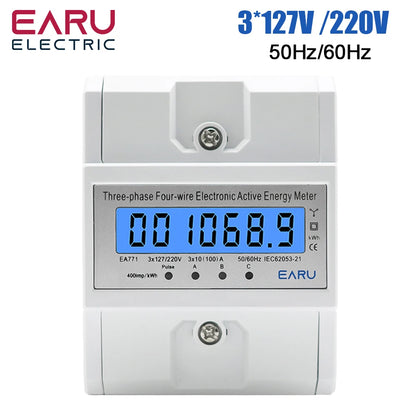

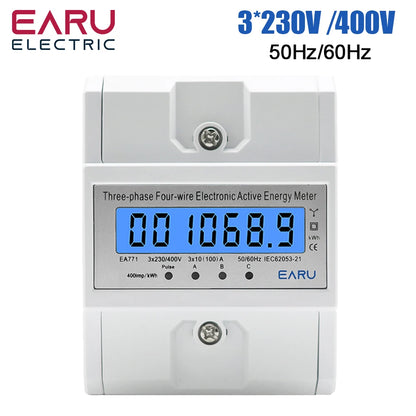

  • Reference Voltage: 3 X 127/220(V),3 X 220/380(V), 3 X 230/400(V)
  • Reference Current: 3 X 10(100A)
  • Accuracy Level: 1.0
  • Rated Frequency: 50/60 Hz
  • Constant Pulse: 400imp / kWh
  • Display: LCD 6 +1(999999,9kWh)
  • Power Consumption: ≤2W, 10VA
  • Starting Current: 0.004Ib
  • Operating Temperature: -20 ~ 55°
  • Storage Temperature: -25 ~ 70°
  • Operating Voltage: 0.9-1.1 Rated Voltage
  • Utmost Voltage: 0.7-1.2 Rated Voltage
  • Average Humidity Value of Year: ≤75%

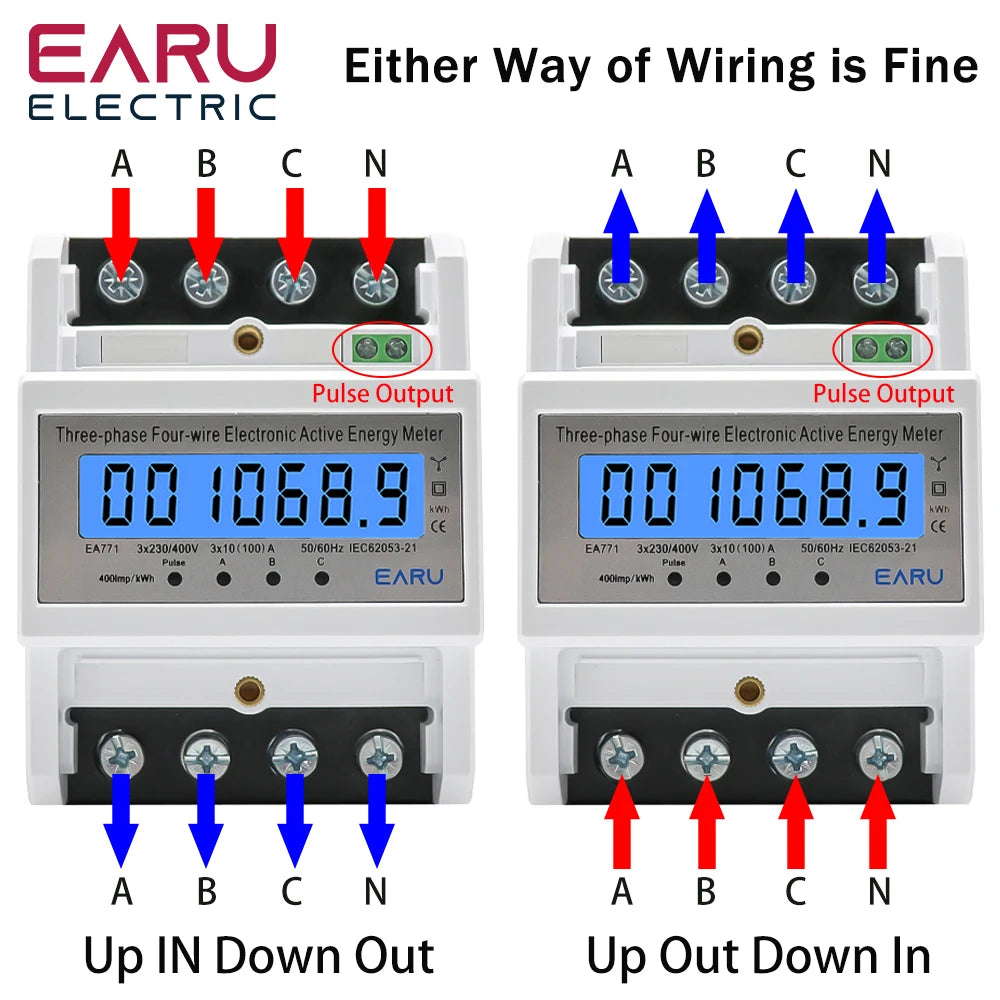

  • Type: Three Phase Four Wire Electronic Type
  • Degree of Protection:IP20
  • Weight: 400g

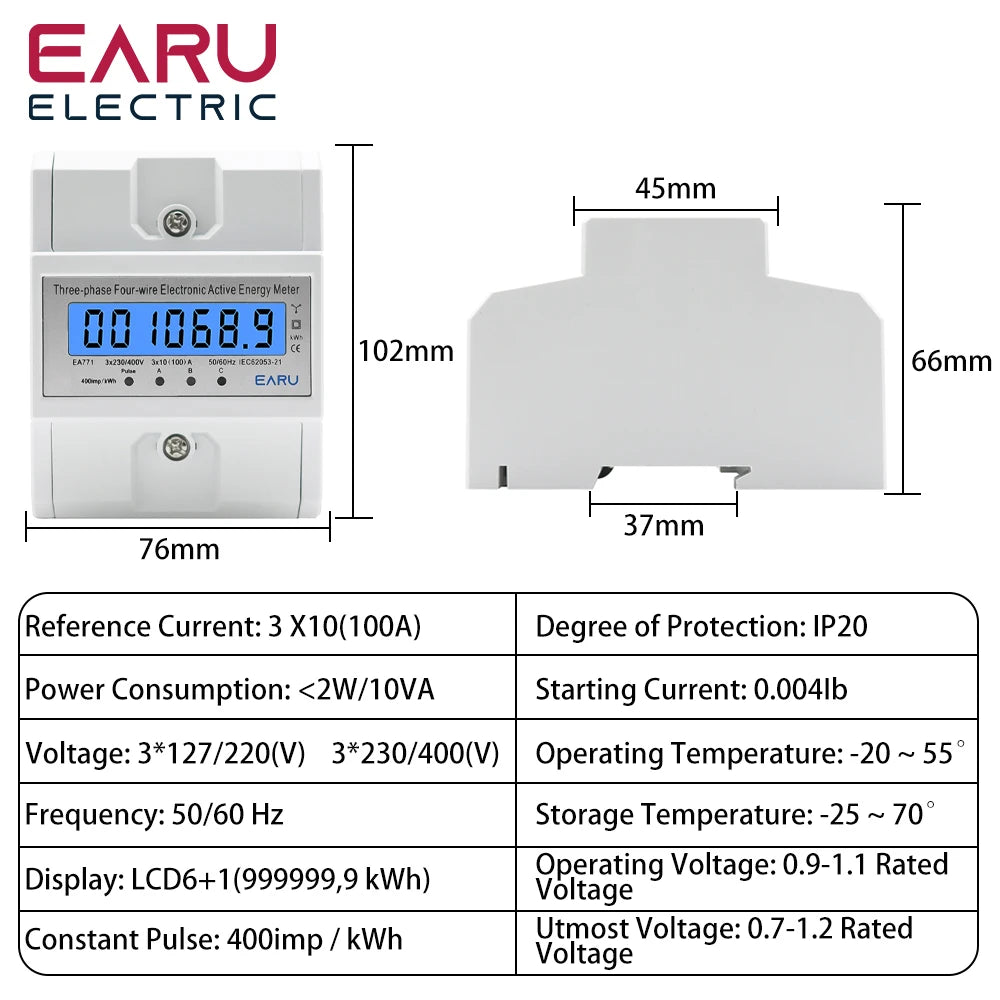

  • Dimensions:100mm*76*65mm
