Din Rail Mounted Household Modular AC Contactor 2P 16A 20A 25A 2NO 2NC 1NO 1NC AC220V AC230V 50/60Hz For Smart Home House Hotel

Din Rail Mounted Household Modular AC Contactor 2P 16A 20A 25A 2NO 2NC 1NO 1NC AC220V AC230V 50/60Hz For Smart Home House Hotel

Precio habitual $10.76 USD
Precio habitual $0.00 USD Precio de oferta $10.76 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color

This Din Rail Mounted Household Modular AC Contactor is designed for smart homes, houses, and hotels. With 2P 16A 20A 25A options and AC220V AC230V 50/60Hz compatibility, it provides efficient and reliable control over your home's electrical systems. Its 2NO 2NC 1NO 1NC configuration ensures versatile usage and easy installation with its Din Rail mounting. Bring intelligence to your home with this AC Contactor.

SPECIFICATIONS

  • Main Circuit Rating Current: 25A: Main Circuit Rating Current: 25A
  • Phase: 2
  • Model Number 2: EACT-2P-1NO1NC-16A 20A 25A
  • Model Number 3: EACT-2P-2NC-16A 20A 25A
  • Model: Auxiliary
  • Brand Name: EARUELETRIC
  • Model Number: EACT-2P-2NO-16A 20A 25A
  • Electricity Type: AC
  • Main Circuit Rating Current: 16-25A
  • Main Circuit Rating Voltage: 220V

EACT25A House hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V .Rated operating voltage in AC7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC7b usage , rated current to 10A.  Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.

Application :for home, apartment, hotel, automatic cut off or connect the power.

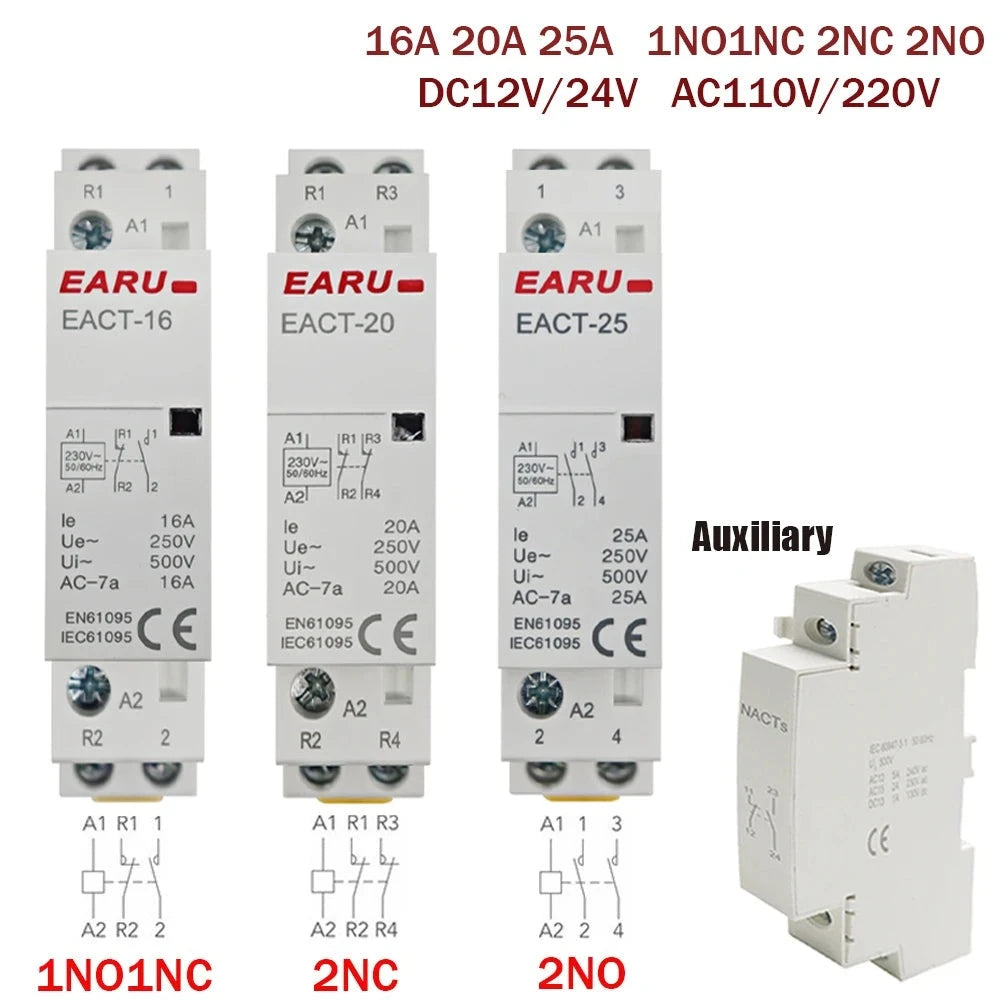

  • 2NO: 2 Normally Open Contact
  • 1NO1NC: 1 Normally Open + 1 Normally Close Contact
  • 2NC: 2 Normally Close Contact

Normal working and installation conditions

  •  Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours.
  • Altitude:no more than 2000m.
  • Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.
  •  Class of pollution: class 2.
  • Installation condition: class II.

Application instruction

  • Check whether the contactor agrees with the scope of application and the working condition before installation.

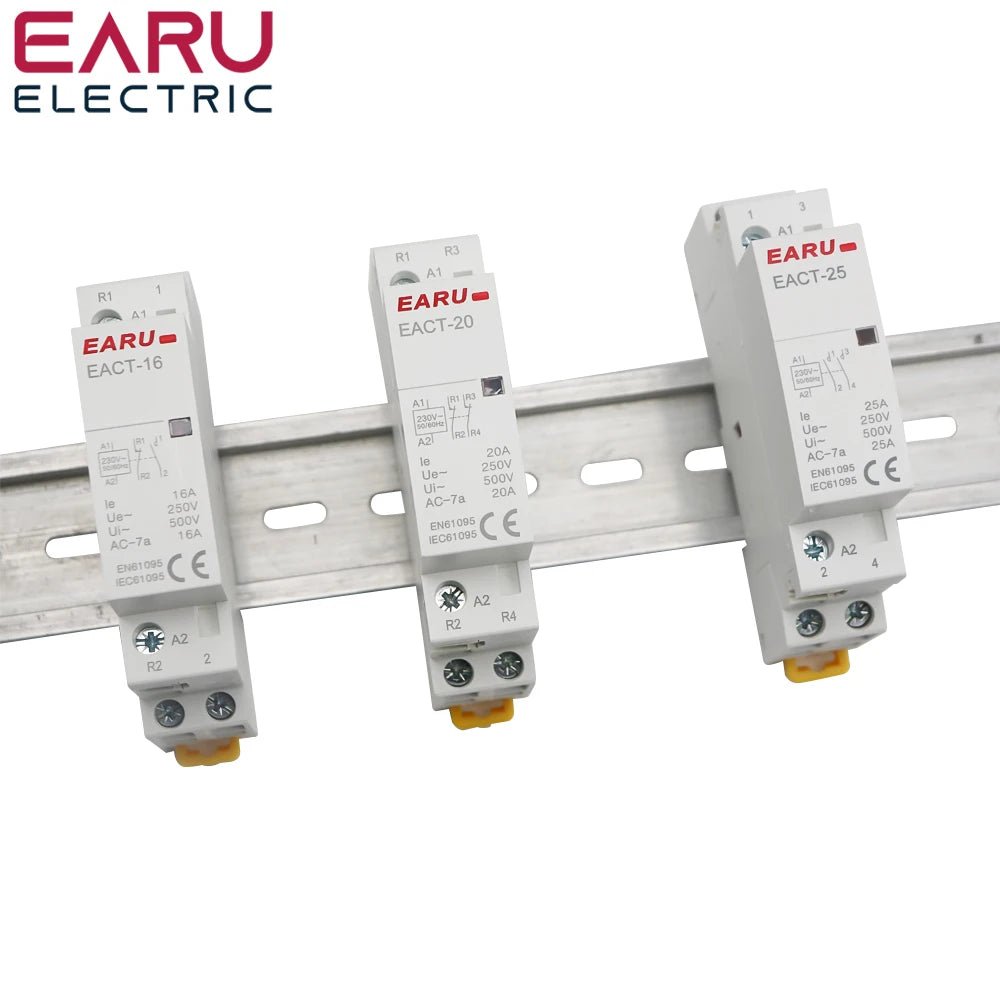

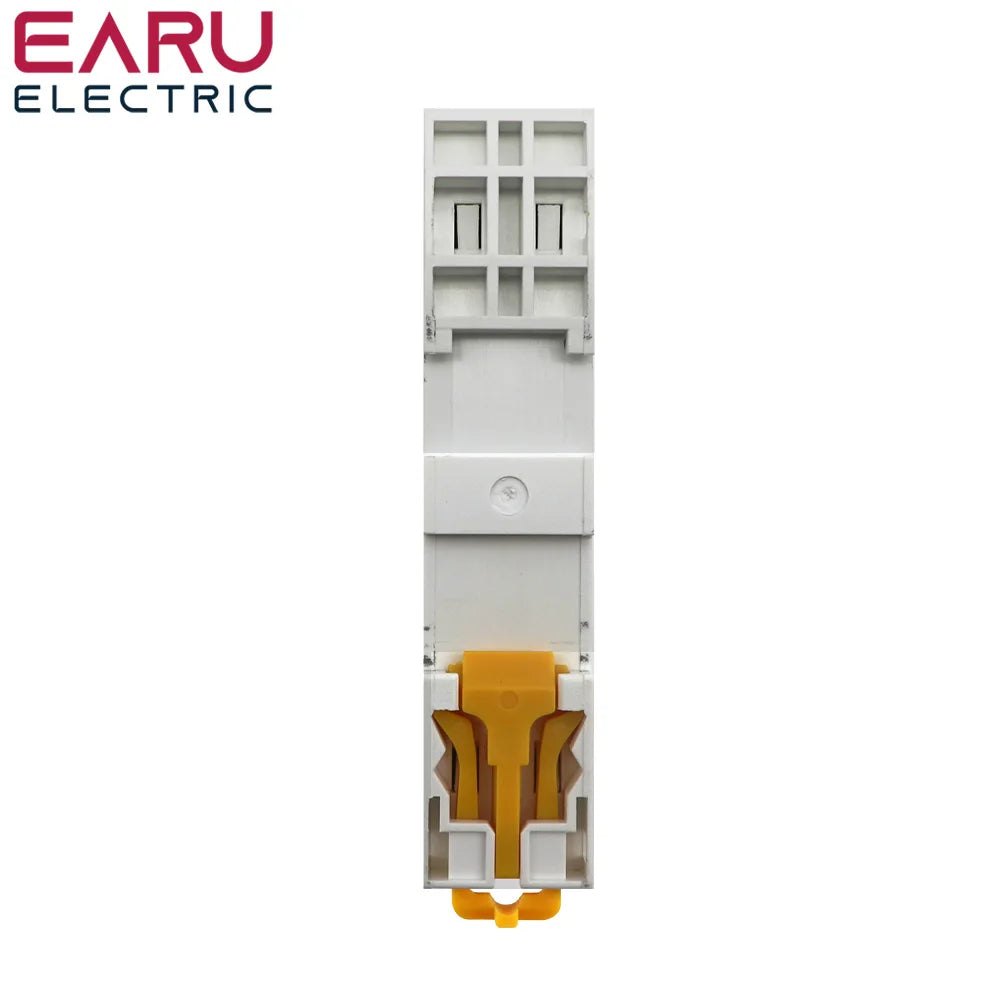

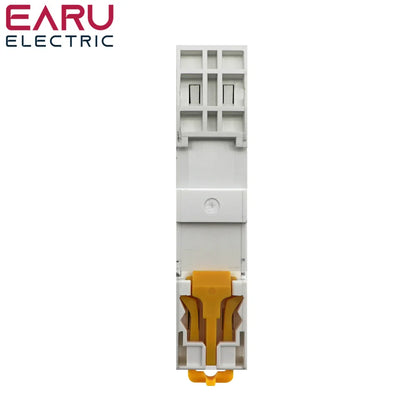

  • During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion,stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the motion,stopping component if you want to remove the contactor.

Caution

  • Make sure the correct mode of connection
  • Screw down the binding screw during the connection
