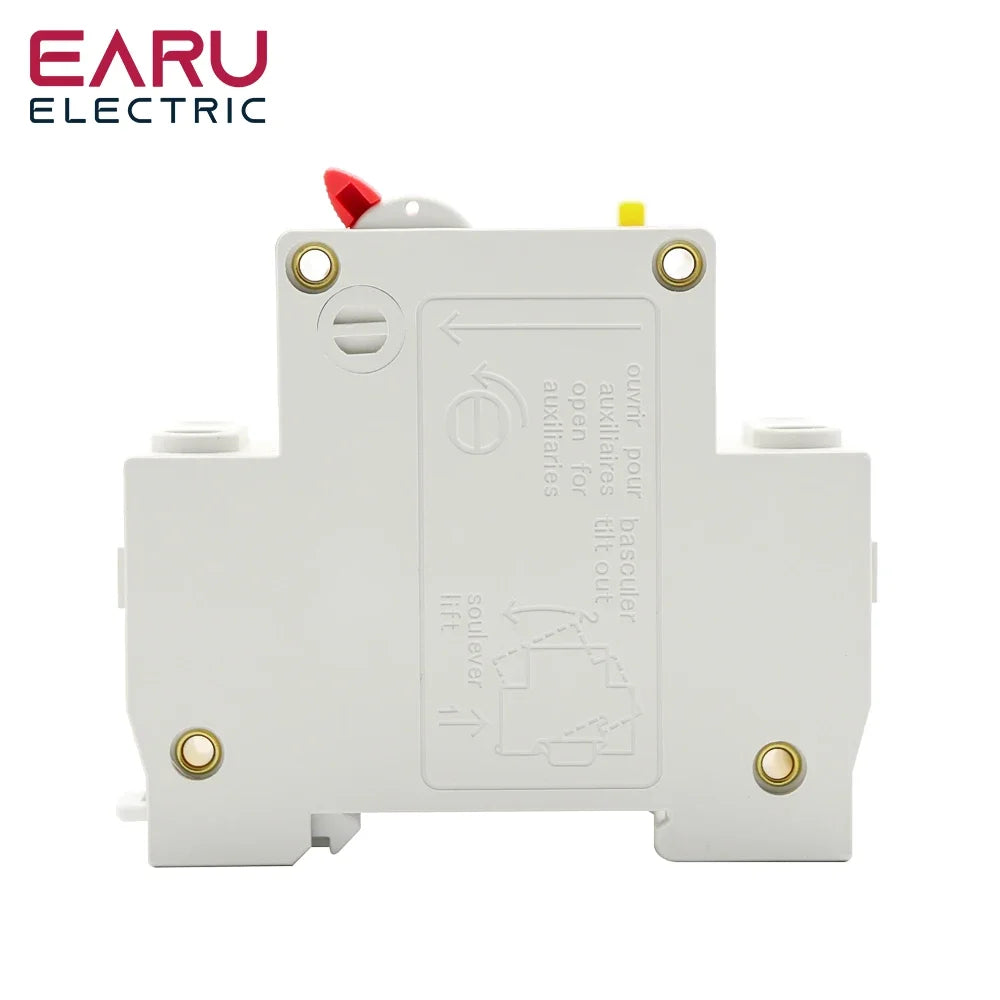

DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A

DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB 6-63A

Precio habitual $9.52 USD
Precio habitual $0.00 USD Precio de oferta $9.52 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Rated Current

This DZ30L DZ40LE EPNL DPNL Residual Current Circuit Breaker is a reliable 230V 1P+N breaker that provides both over and short current leakage protection. With a range of 6-63A, it offers strong protection and peace of mind. Protect your electrical system and enjoy uninterrupted power with this efficient RCBO MCB.

SPECIFICATIONS

  • Standard: IEC61009 GB6829
  • Rated Voltage: 230V~
  • Rated current: 230V6A 10A 16A 25A 32A 40A 50A 63A
  • Mounting: 35mm din rail
  • Breaking Capacity: 6KA
  • Charcteristic Curve: C Type
  • Type: electronic
  • Brand Name: EARUELETRIC
  • Model Number: DPNL-32/DZ30L-32/DZ30LE-32/DCZ40L-63/DZ40LE-63
  • Type: Residual Current
  • Rated Voltage: 220V
  • Type: Circuit breaker
DZ30L DZ40LE EPNL DPNL 230V 1P+N Residual Current Circuit Breaker With Over And Short Current  Leakage Protection RCBO MCB 6-63A

Construction and Feature

1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.

2)Contact position indication.

3)Provides protection against indirect contact by human body.

4)Provides complementary protection against direct contact by human body.

5)Effectively protects electric equipment against insulating failure.

6)Equipped with switched neutral and phase pole .

7)Provides protection against over-voltage.

8)Provides comprehensive protection to household and commercial distribution systems.

Technical Data

9)Type: Electronic type

10)Residual current characteristics: AC

11)Pole No.: 1P+N

12)Tripping curve: C

13)Rated short-circuit capacity: 6KA

14)Rated Current(A): 6,10,16,20,25,32,63

15)Rated Voltage:230V AC

16)Rated Frequency:50/60Hz

17)Rated residual operating current(mA): 30     (63A is 15mA)

18)Tripping duration:instantaneous under or equal 0.1s

19)Electro-mechanical: pillar terminal with clamp.

20)Terminal Connection Height: H1=16mm ,H2=21mm

21)Over-votage tripping: 280V±5%

22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 .

23)Installation: On symmetrical DIN rail 35mm, Panel mounting

Accessories

24) S2 Shunt Tripper

25) U2+O2 Over-voltage and under-votage tripper.


Product's advantage

  • Our products have the guarantee period of 36 calendar months.
  • Our Products have an excellent ratio between price and quality , you can possess them by competitive price and high quality .
  • The fast and flexible production form aim at the customer require.
  • The deliveries exactly in accordance with customer orders.
  • The fast transportation.
