feyree GB/T EV Charger 7.6kw 32A Dynamic Load Blancing Wallbox 4.3inch LCD Wifi APP Charging Log 11KW 22KW 3P Charging Station
feyree GB/T EV Charger 7.6kw 32A Dynamic Load Blancing Wallbox 4.3inch LCD Wifi APP Charging Log 11KW 22KW 3P Charging Station
No se pudo cargar la disponibilidad de retiro
Introducing the feyree GB/TEV Charger, the ultimate solution for electric vehicle charging. With dynamic load balancing and a 4.3 inch LCD display, this charger provides precise and efficient charging while the wifi-enabled app and charging log keep you connected and informed. Compatible with 11KW and 22KW charging, it's the perfect charging station for all your needs.

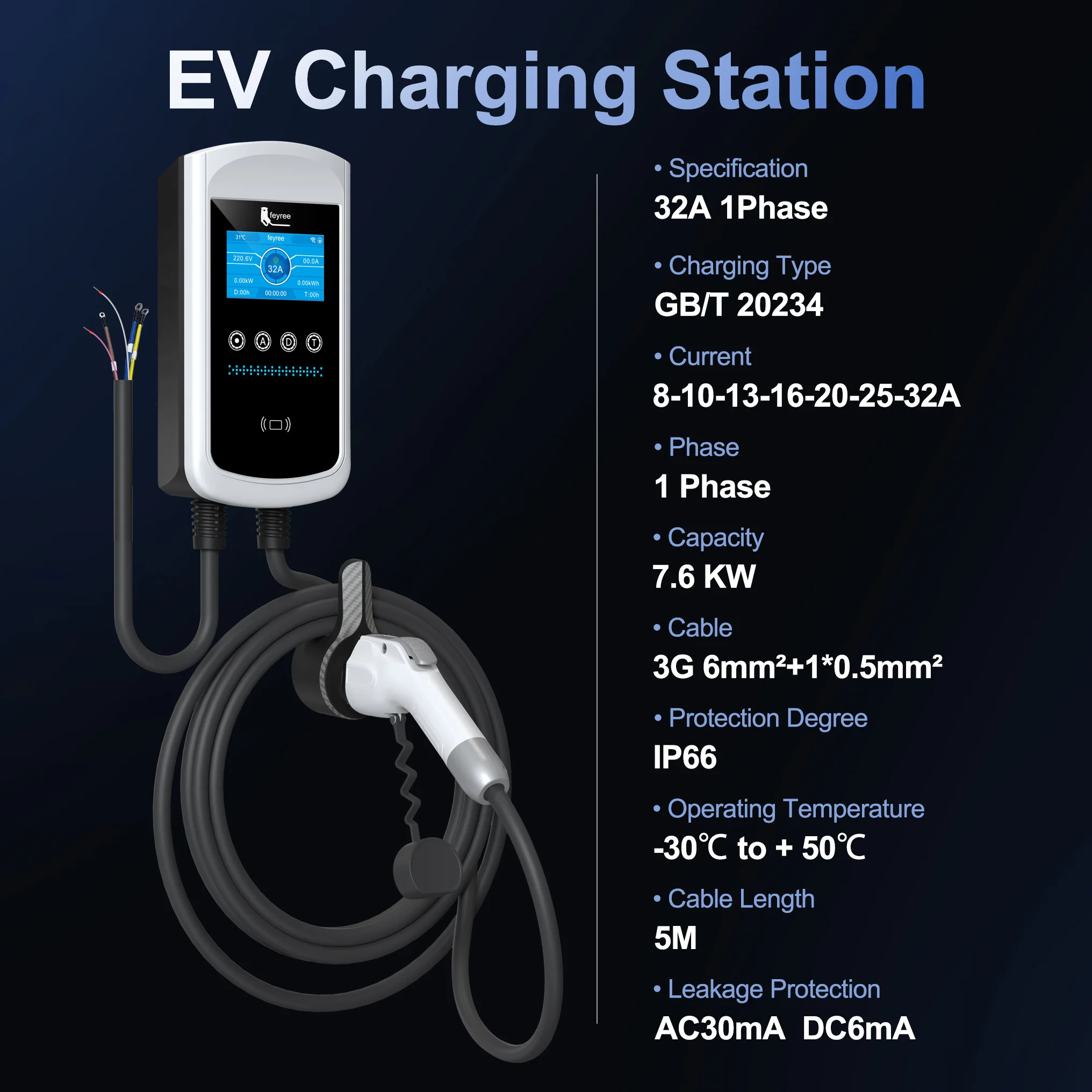

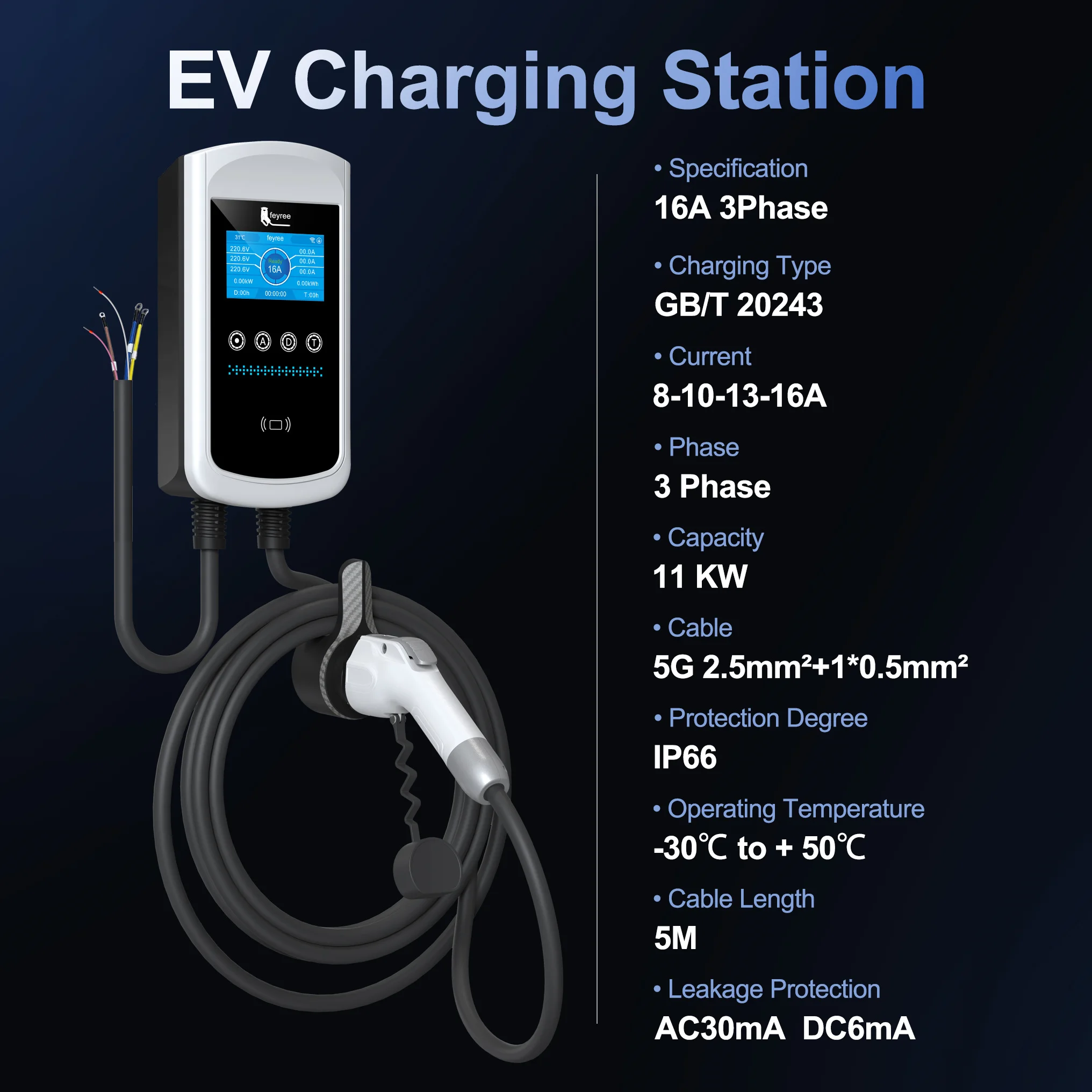

Specifications
- Brand Name: feyree
- Cable Length: 5m
- Charger Type: Charging Station

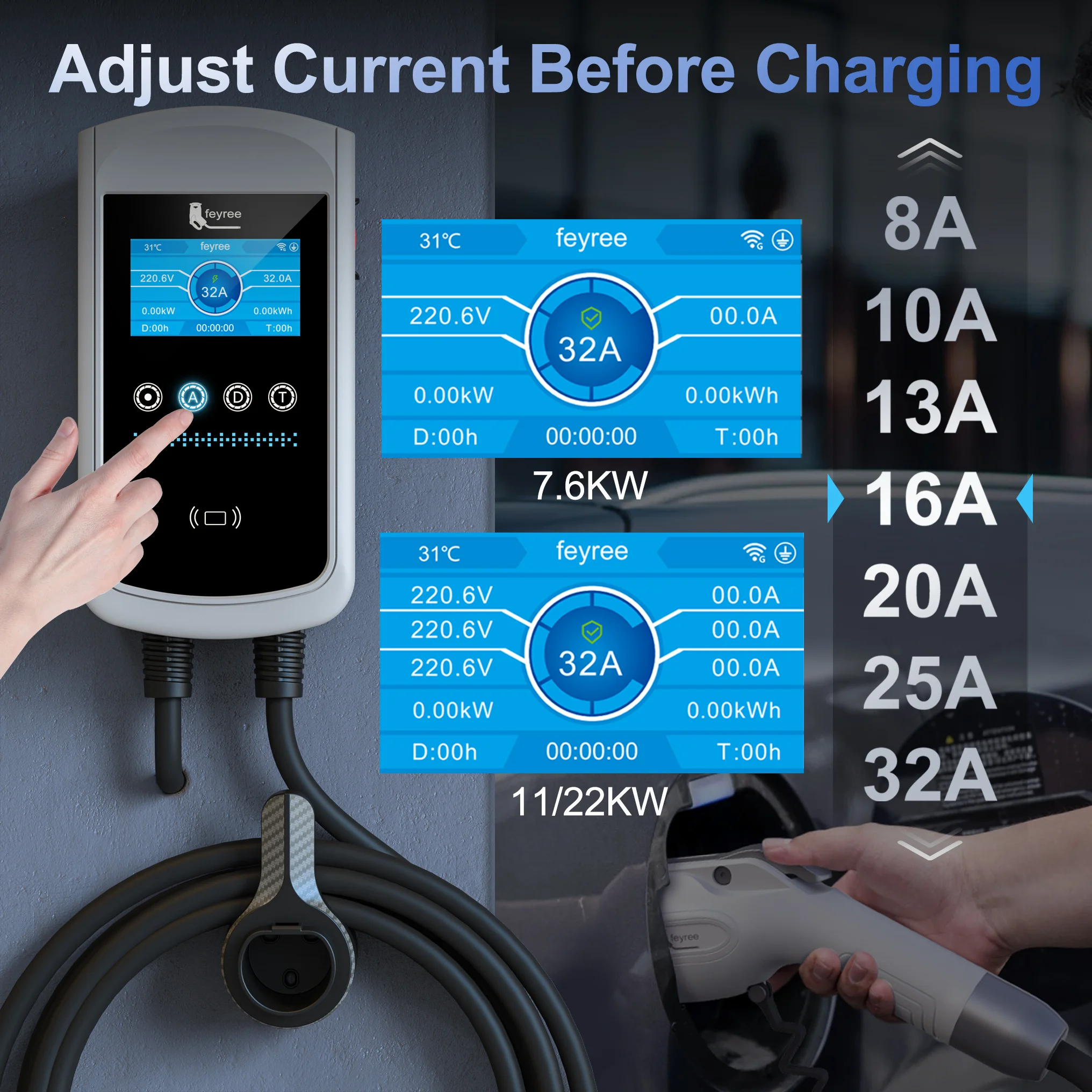

- Current: 8A-32A,8A-10A-13A-16A-20A-25A-32A Adjustable
- Height: 13cm
- Input Frequency: 50Hz-60Hz
- Material: copper alloy, silver plating
- Operating Temperature: -30 ~ +50
- Phase: Single phase/Three phase
- Power: 7.6KW/11KW/22KW
- RCD: TypeB AC30mA+ DC 6mA
- Screen Size: 4.3inch
- Type: GB/T type
- Voltage: 85V-264V-380V
- Width: 32cm
- length: 41cm
- weight: 4.13kg

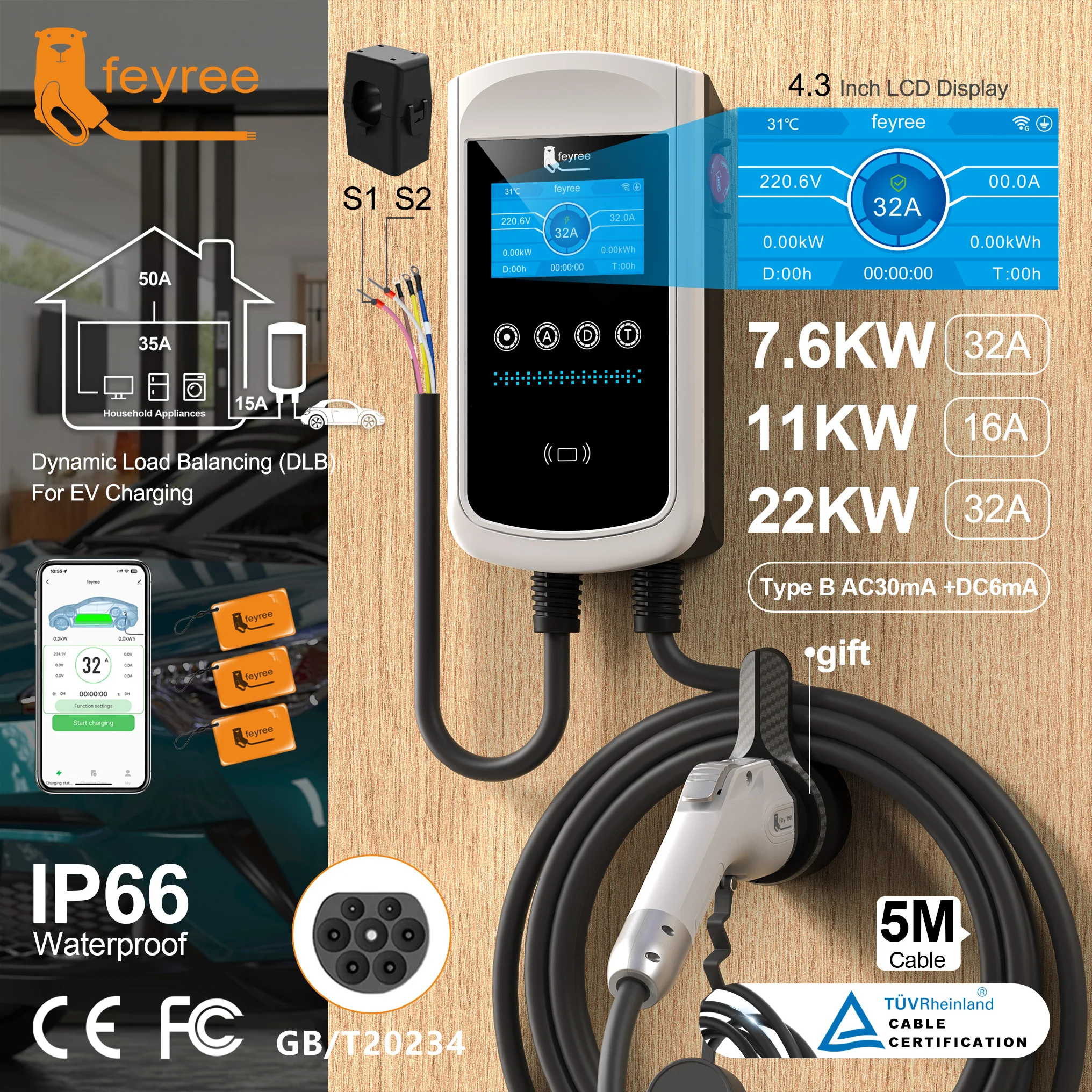

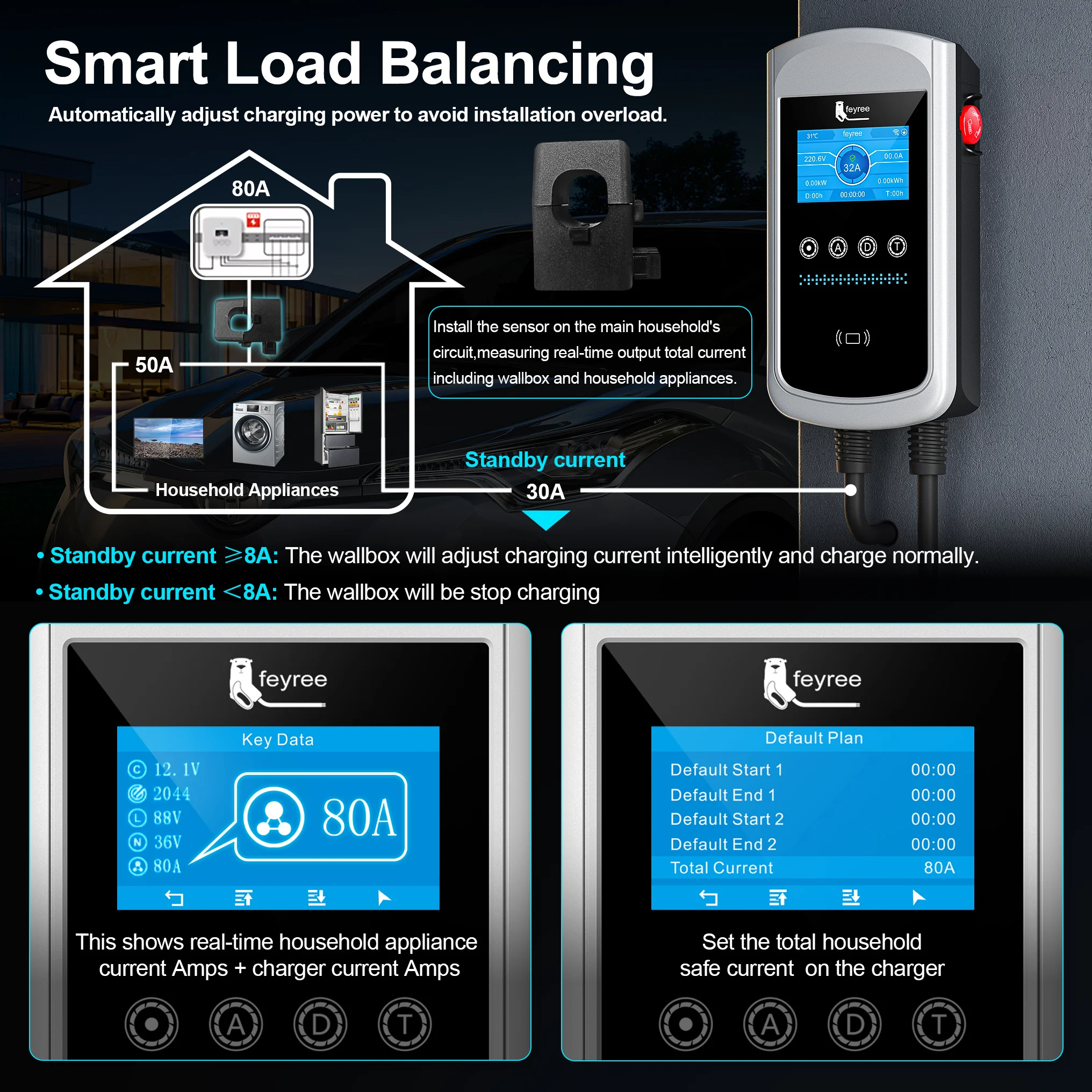

- 【Dynamic Load Balancing Function (DLB)】Utilizing the latest EV technology, the feyree AC Home Charger supports dynamic load balancing, which integrates into your home electrical system and reduces peaks in your energy usage by intelligently adjusting power output depending on your household's energy consumption. Thus, energy usage is optimised, and you can save money on your energy bills
- Dynamic Load Balancing EV Charging Working Principle: Total current set on wallbox - household appliances's current≥8A,The Wallbox will adjust charging current intelligently and charges normally. Total current set on wallbox - household appliances's current＜8A,stop charging.
- Total current set on wallbox: User set the total safety current at the wallbox based on the actual input household total safety current

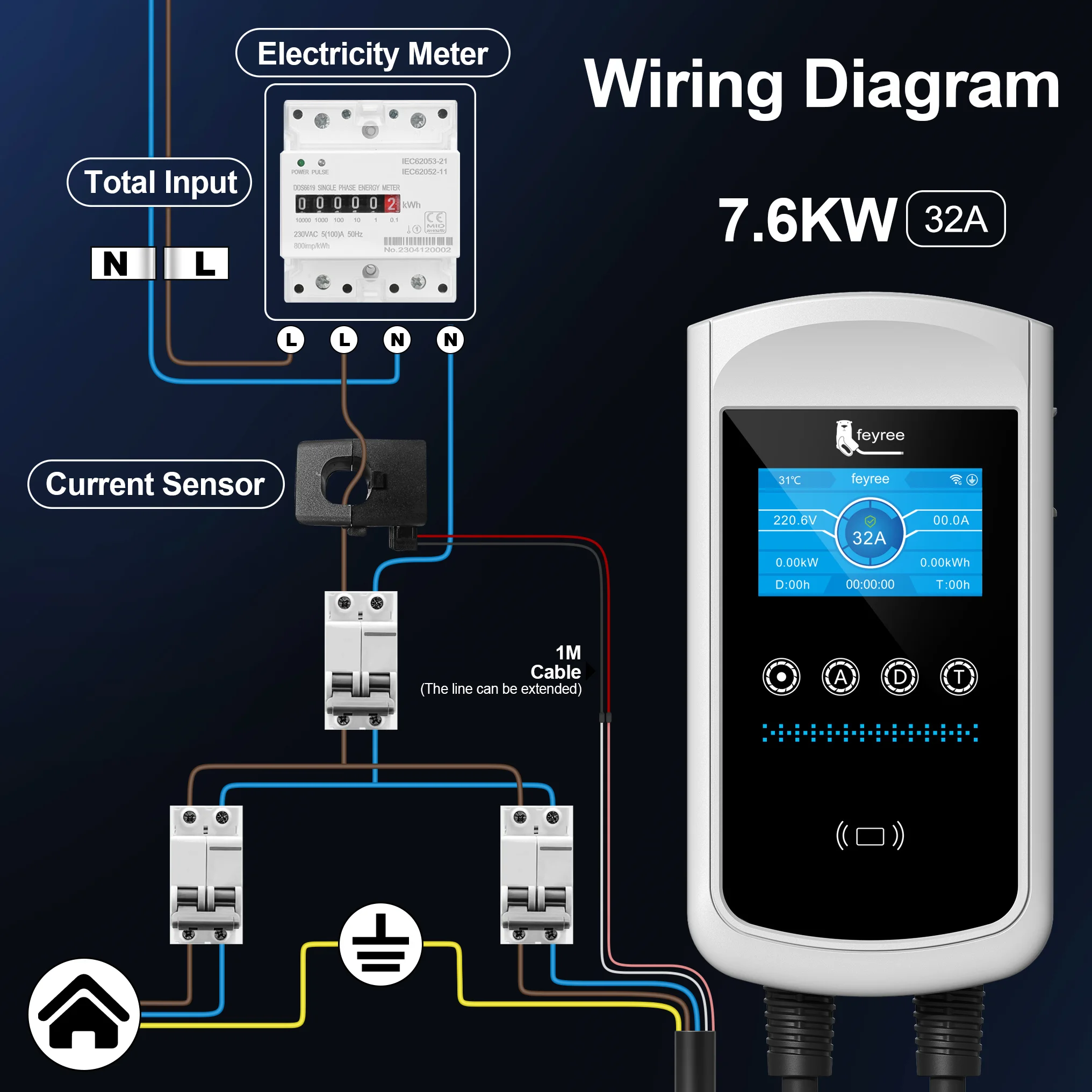

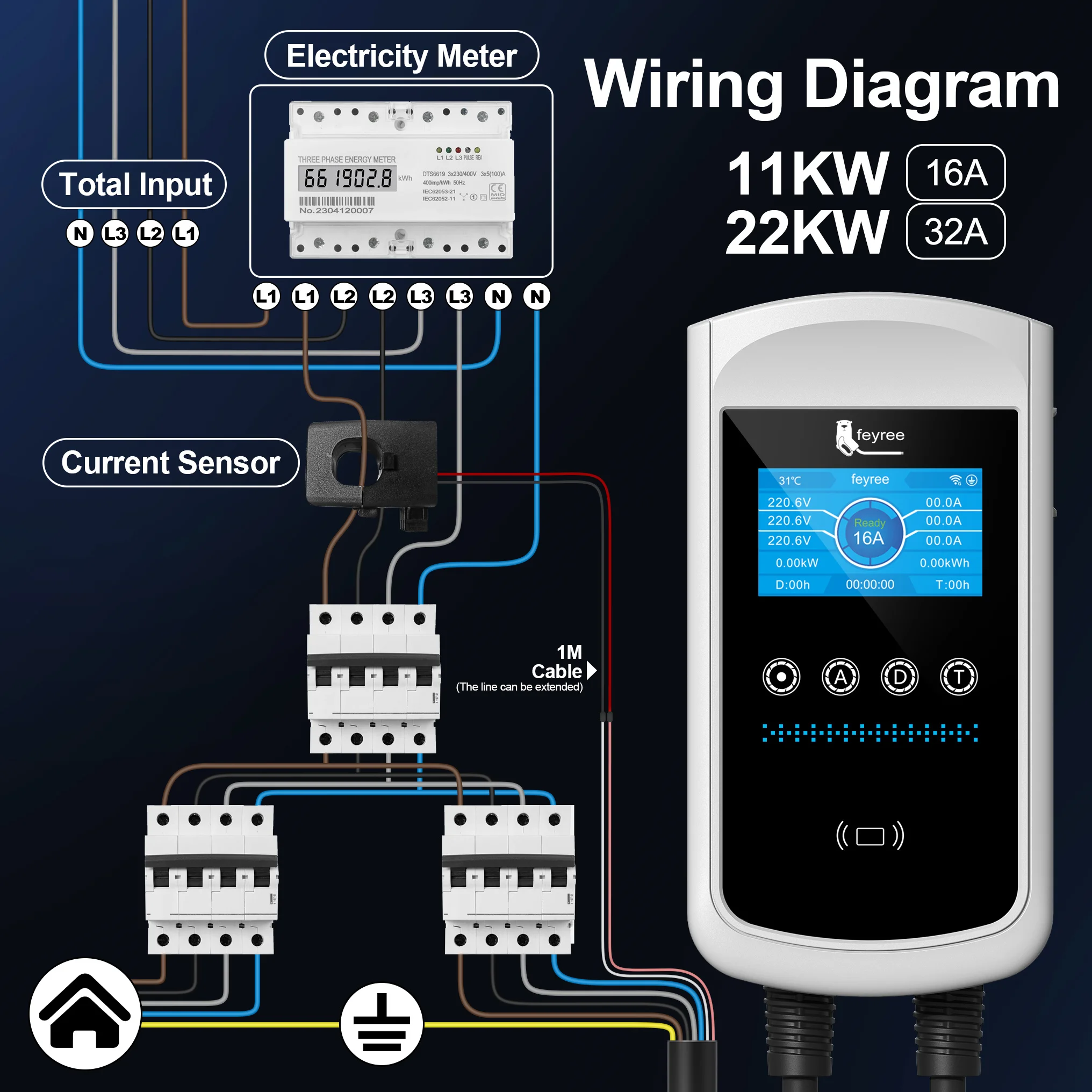

Household real-time total output current (including wallbox and household appliances): the sensor is installed on the household's main circuit to get the household's real-time total output current.

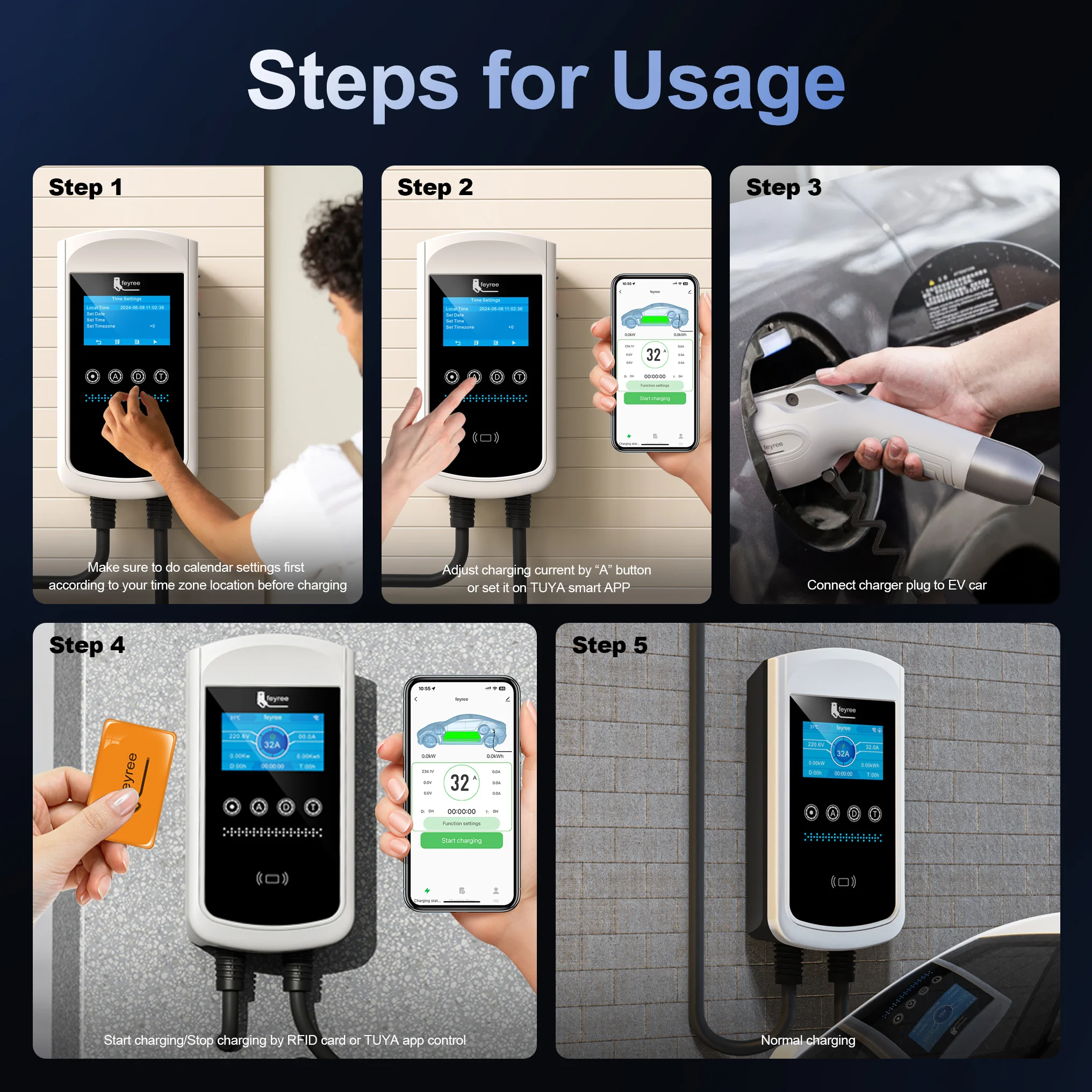

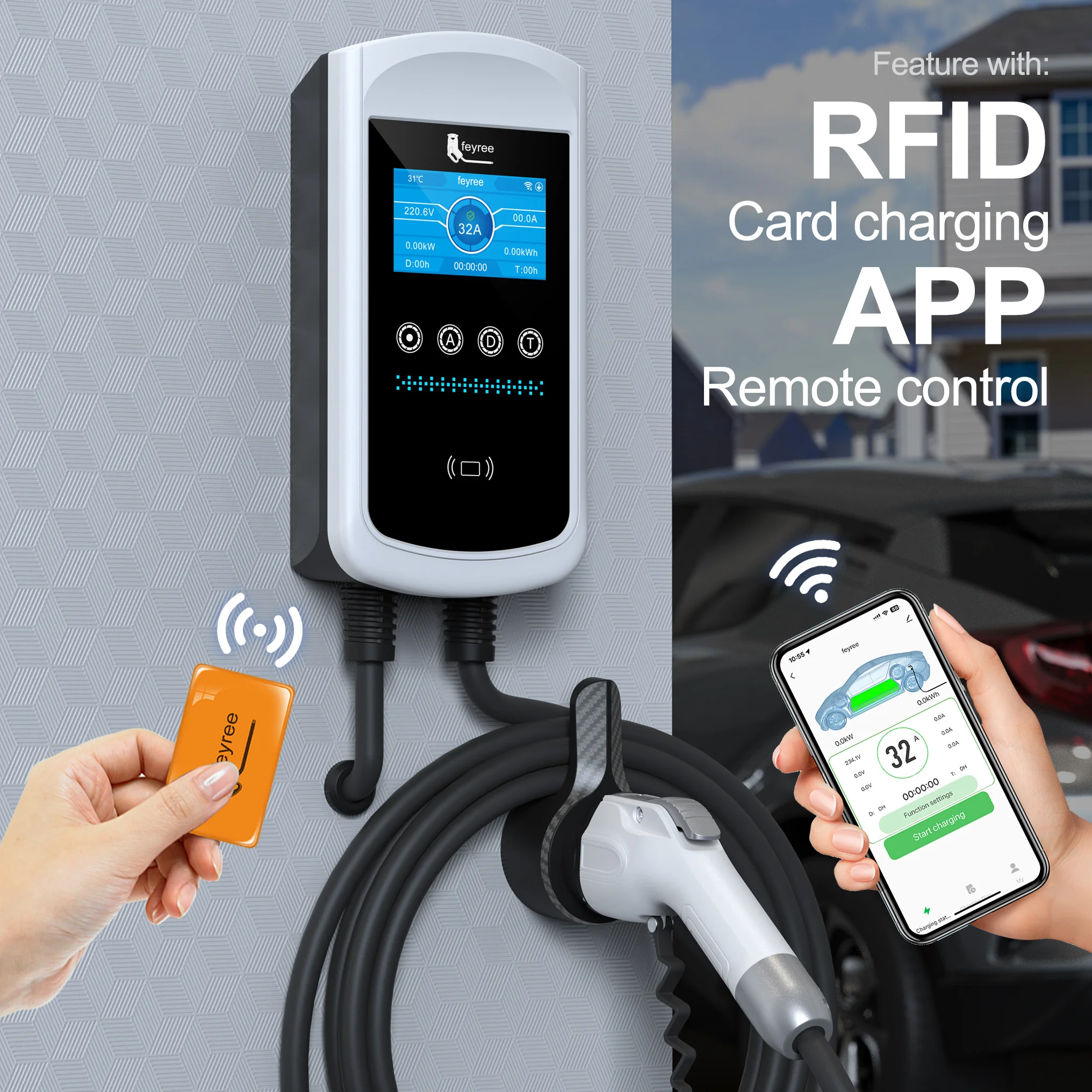

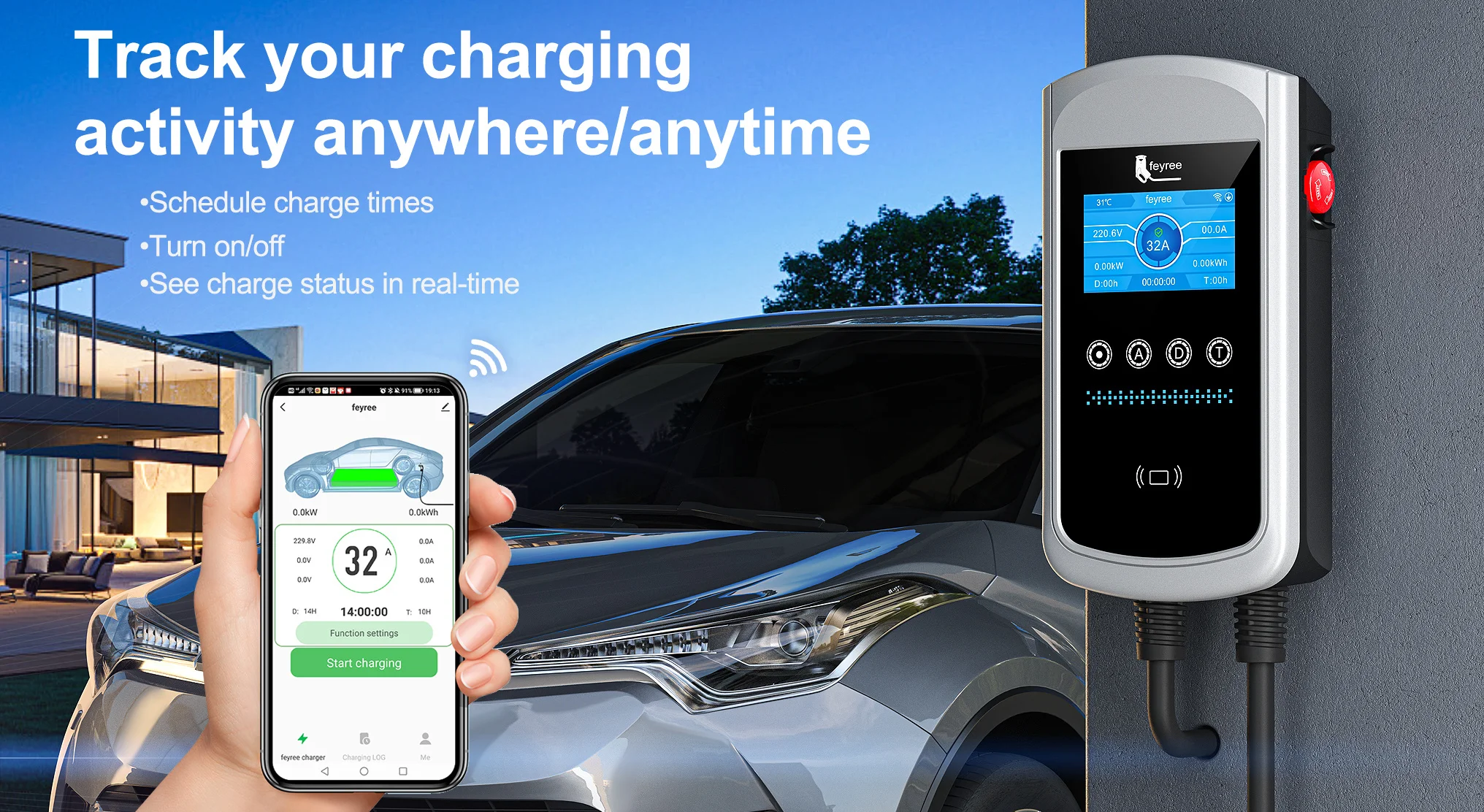

2. Charge Smart:With Tuya smart APP, you can follow up the real-time charging status, adjust the current, charging time and set delay charging etc. It also supports RFID card swipe to start charging, guaranteeing the privacy and security of charging.

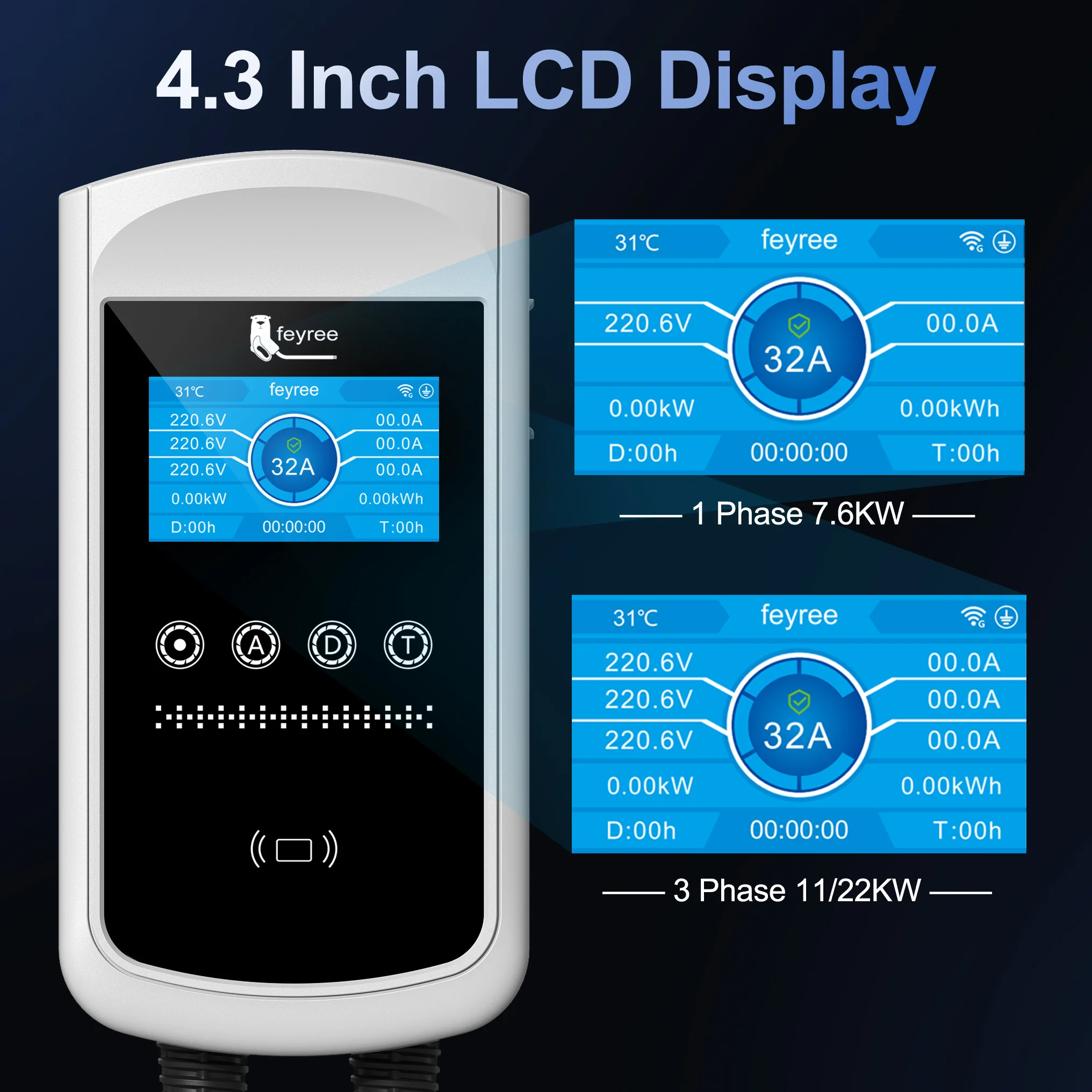

3. 4.3 inch Large screen display:Ultral-large screen displays current charging current, voltage, temperature and other information in real time,providing the better visual and operating experience
4. Calendar Settings: Time and Date can be synchronized by Zone Time selected under WIFI network condition. Or you can set the year, month, day time and Time Zone manually without WIFI network enviroment. (Please set your local calendar and time before charging, otherwise time display will be incorrect).

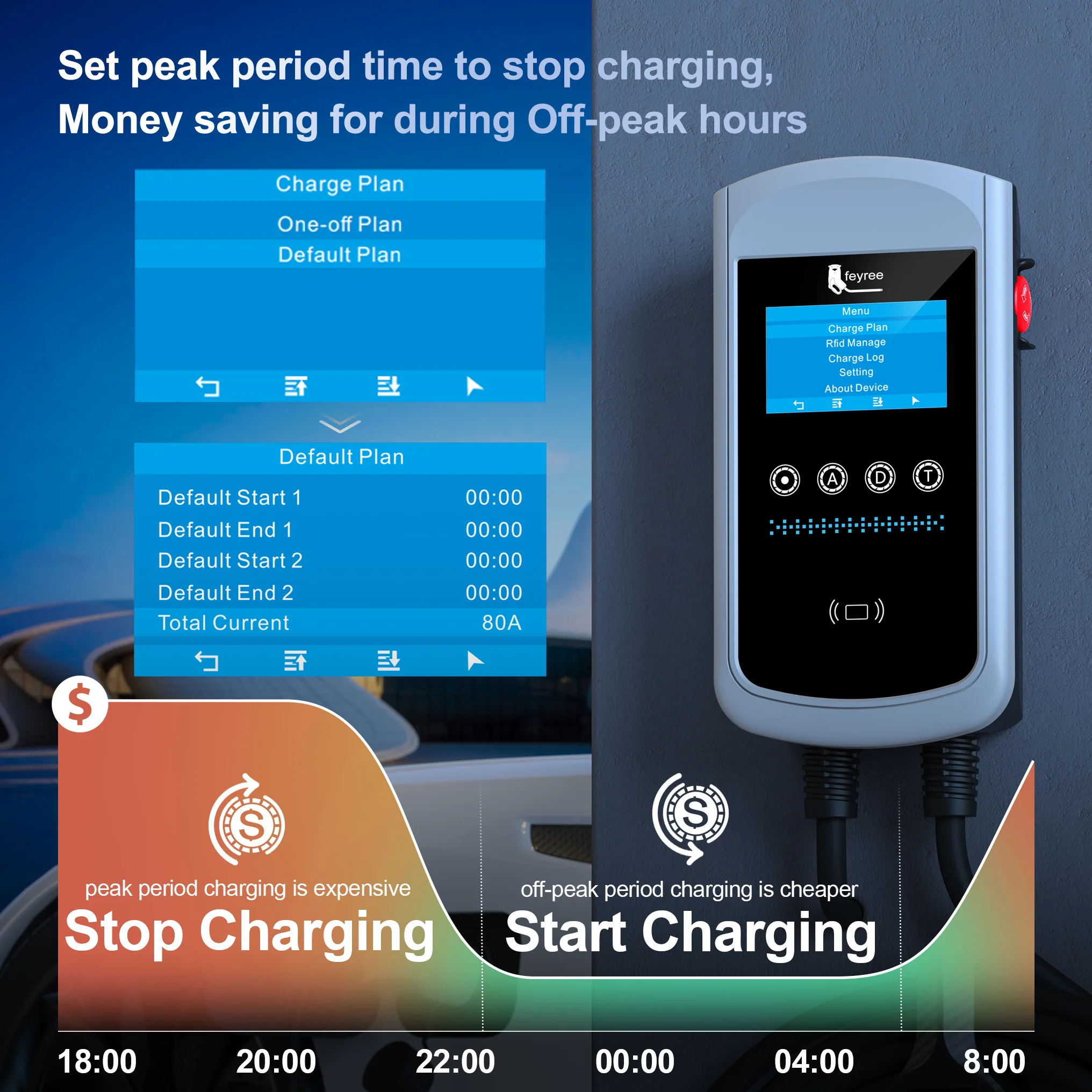

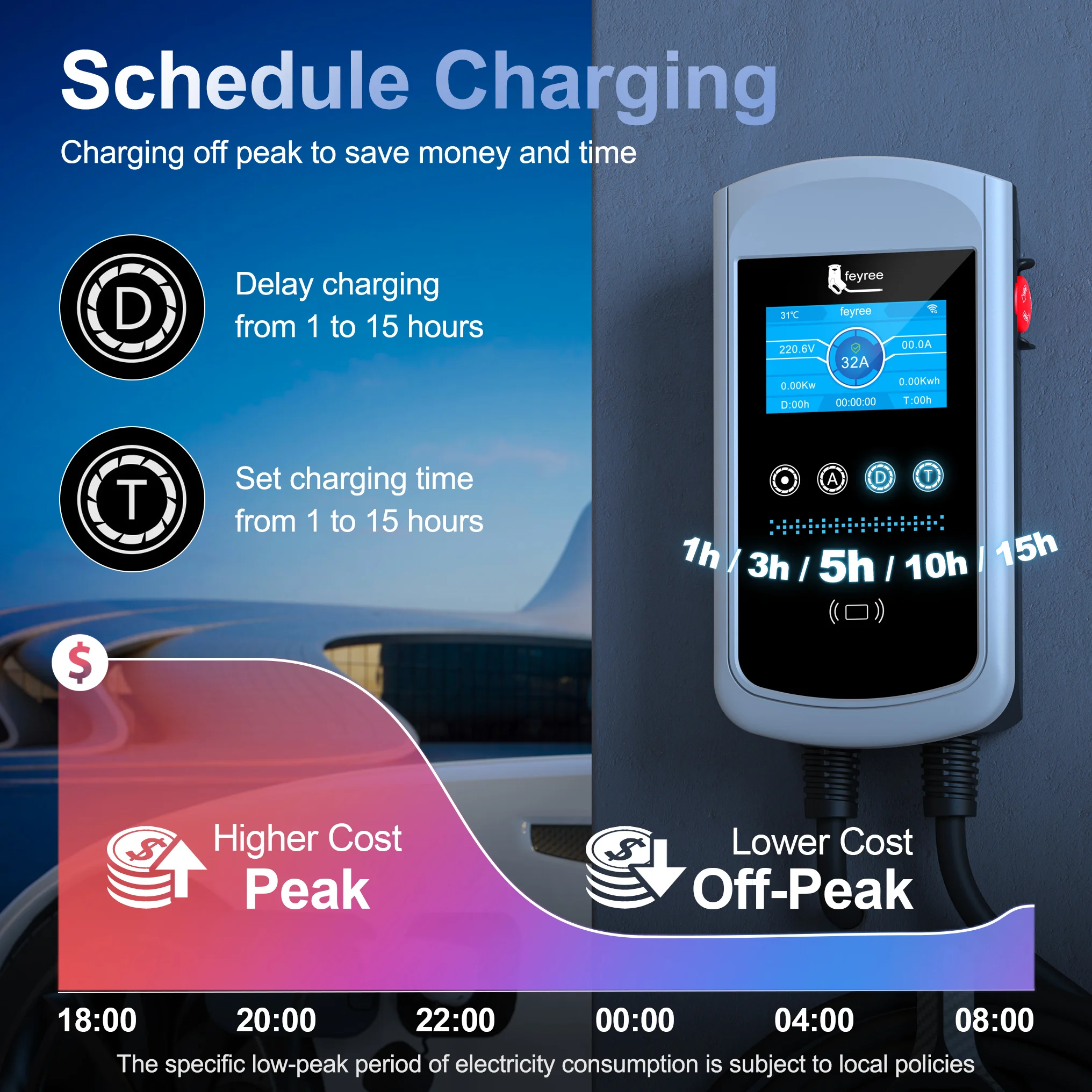

5. Money Saving Mode: Support to set Schedule Charging Times During Off-Peak Hours.

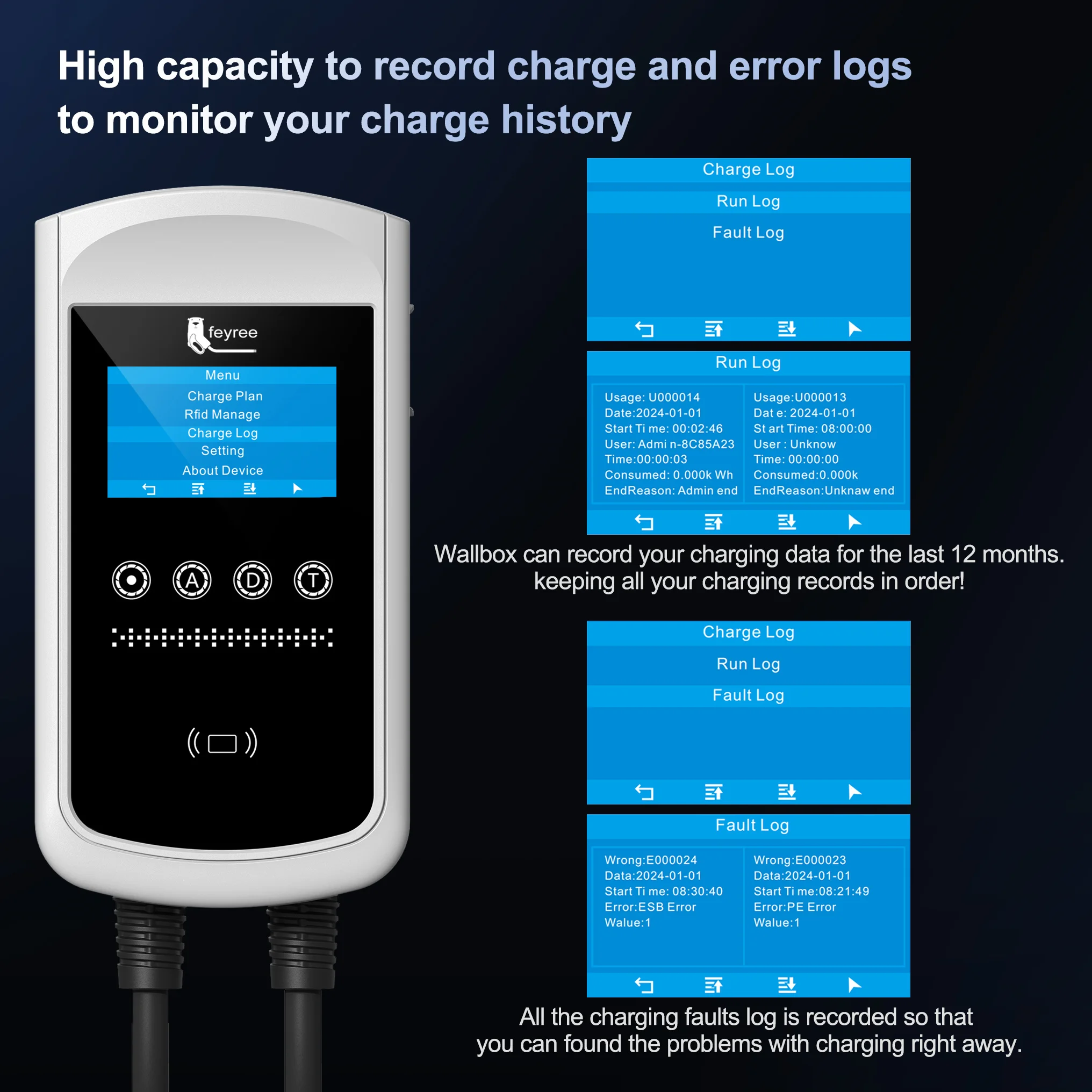

6. Charging Log Intelligent Management: Support to check recent 500 items charging log detail including charging duration, charging power consumption, charging date and so on.
7. Charging Fault Log Records: Recently 100 items charging faults like charging time, error codes etc. can be recorded. It will quickly help to find the problem and troubleshoot the fault that may occur during charging.

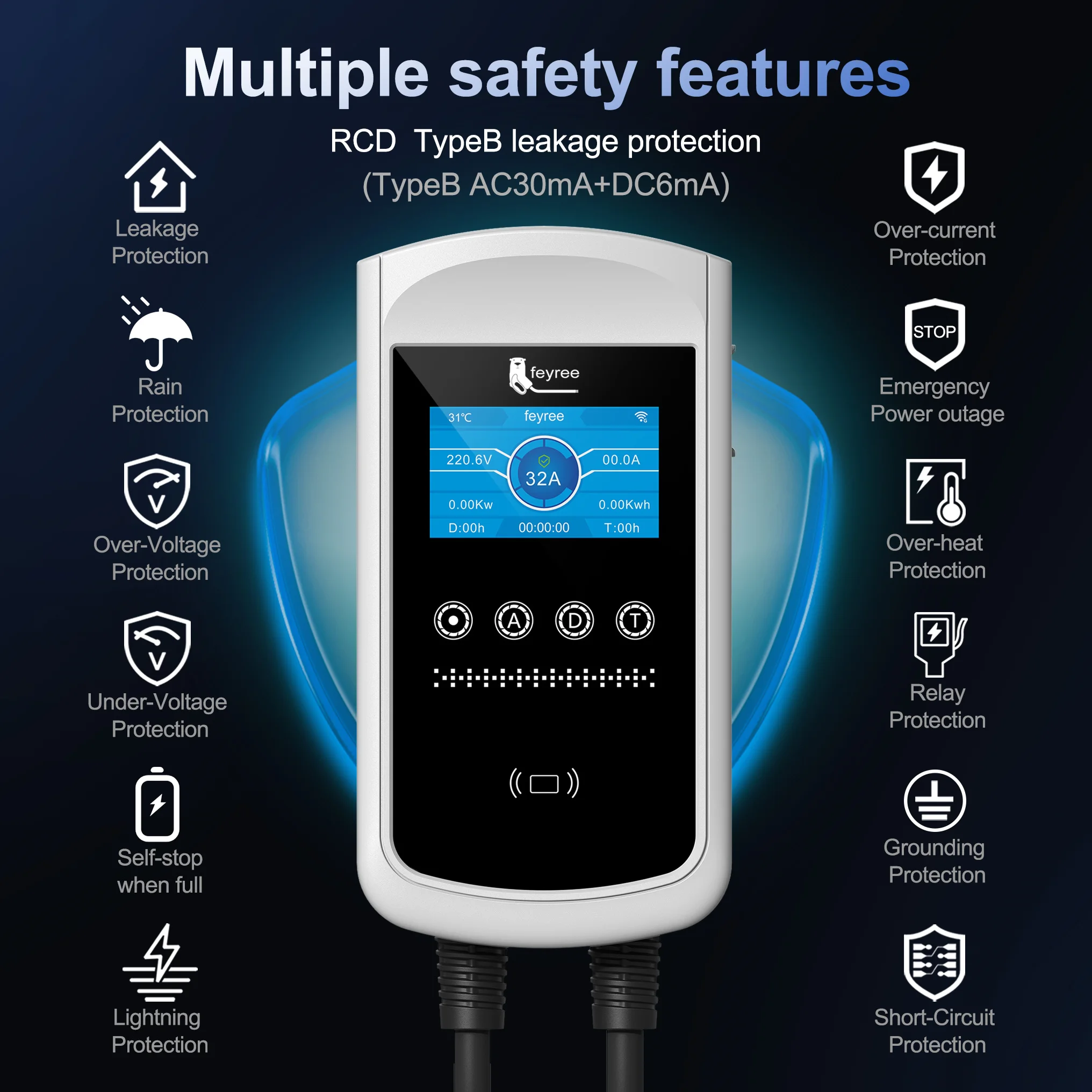

8. Multi-safety protection for safe charging:Support Leakage protection ( TypeB AC30mA + DC6mA ) ; Over-voltage and under-voltage protection ; Lightning Protection ; Over-current Protection ; Overheat Protection ; Ground Protection ; Overload protection.

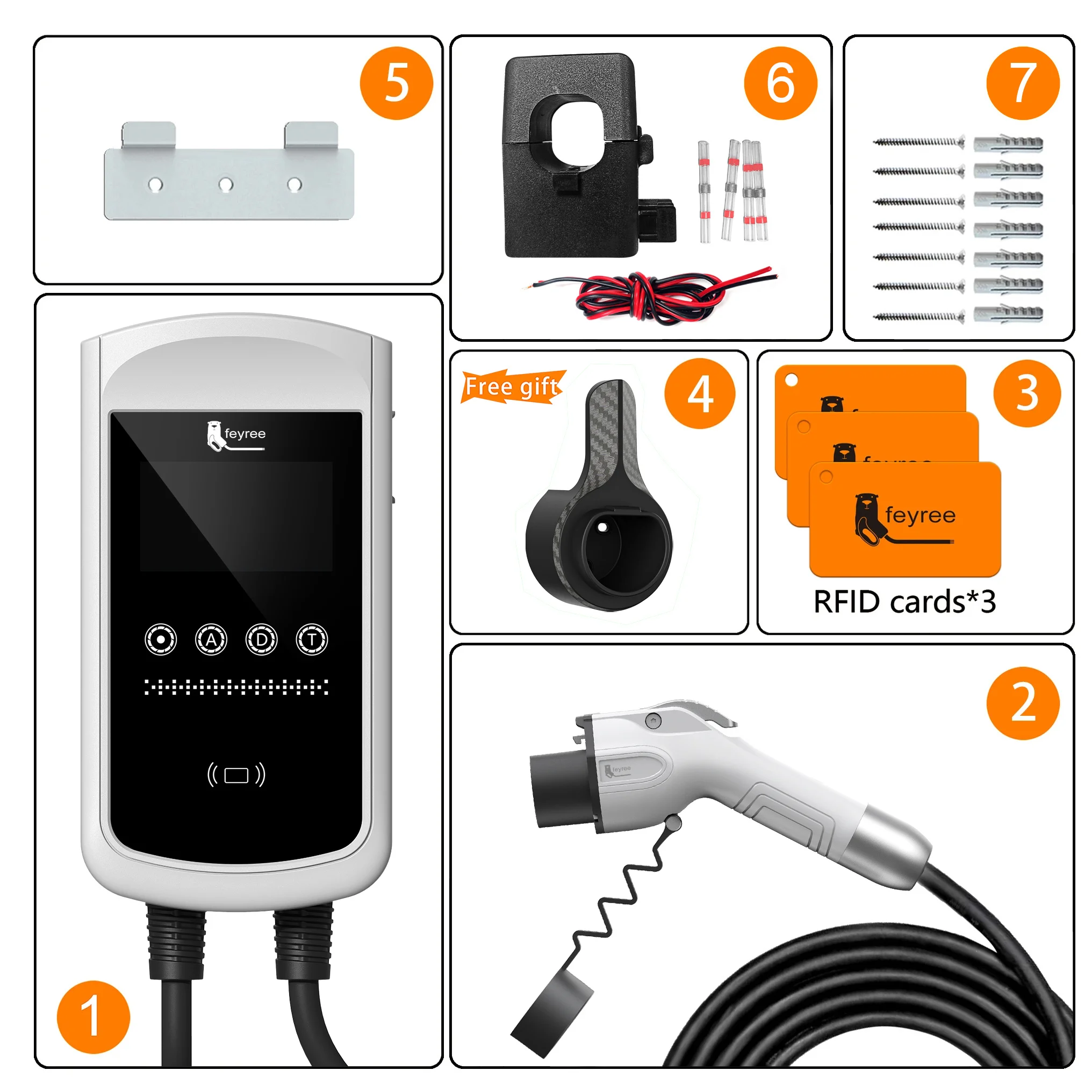

9. Easy RFID Operation: Don't worry if you accidentally lose your RFID card, or not enough to use.You can add any 10 blank RFID card as needed in addition to the 3 factory-configured RFID cards.
10. Easy Installation: Practical and intuitive wallbox/charging station for electric vehicles and plug-in hybrid, suitable for indoor and outdoor use.

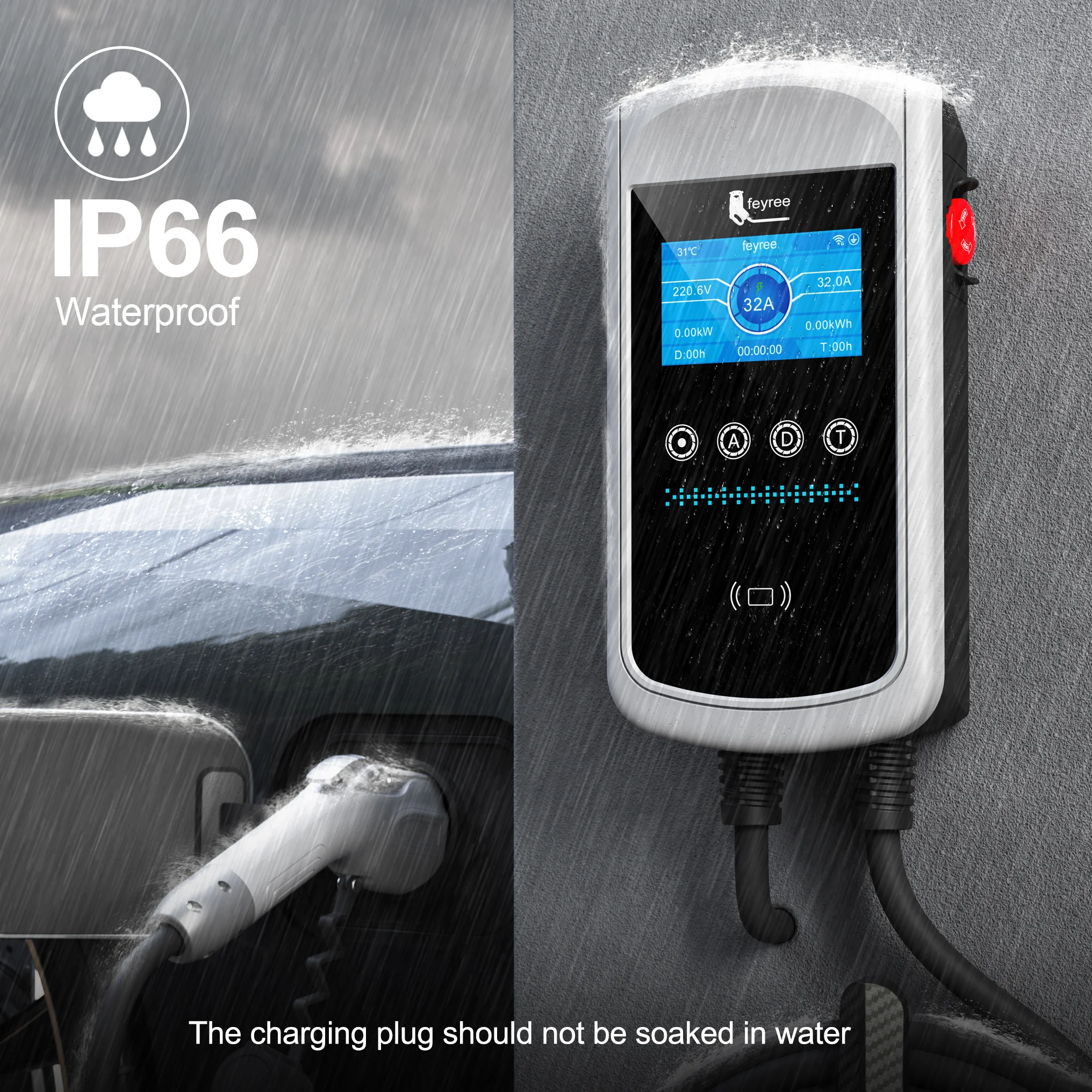

11. Weather and Heat Resistant: The connectors on both ends of the cable has achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed, avoiding safety risk. The protection class IP66 protects against dust, rain and wind, thus guarantees safe long-term outdoor charging.
12. High compatibility: Equipped with an GB/T outlet, it is suitable for all Chinese brand EVs.
13. Quality Guarantee: Provide two-year warranty. If there are any issues with the charger during this period, you can consult us at any time. We have a professional after-sales team to help you solve any problems and ensure your long-term normal use.
Support Tuya APP wireless connection, mobile phone remote control1.Charging plug meet GB/T type.2.Excellent protection performance,protection grade IP66-Working condition.3.Operating temperature:-30℃ to +50℃.4. Protection level: IP66 (working state)5. Number of phases: single phase/ three phase6. Contact bush: copper alloy, silver platingControl Box Function:1.Leakage protection (TypeB AC30mA + DC6mA).2.Over voltage under-voltage protection (self-checking recover).3.Lightning protection.4.Over current protection.5.Overheat protection.6.Ground protection.7.Change the current:7.6kw:8A-10A-13A-16A-20A-25A-32A adjustable
11kw:8A-10A-13A-16A adjustable
22kw:8A-10A-13A-16A-20A-25A-32A adjustable8.RFID card function9.Charging time to make an appointment10.APP WIFI version
