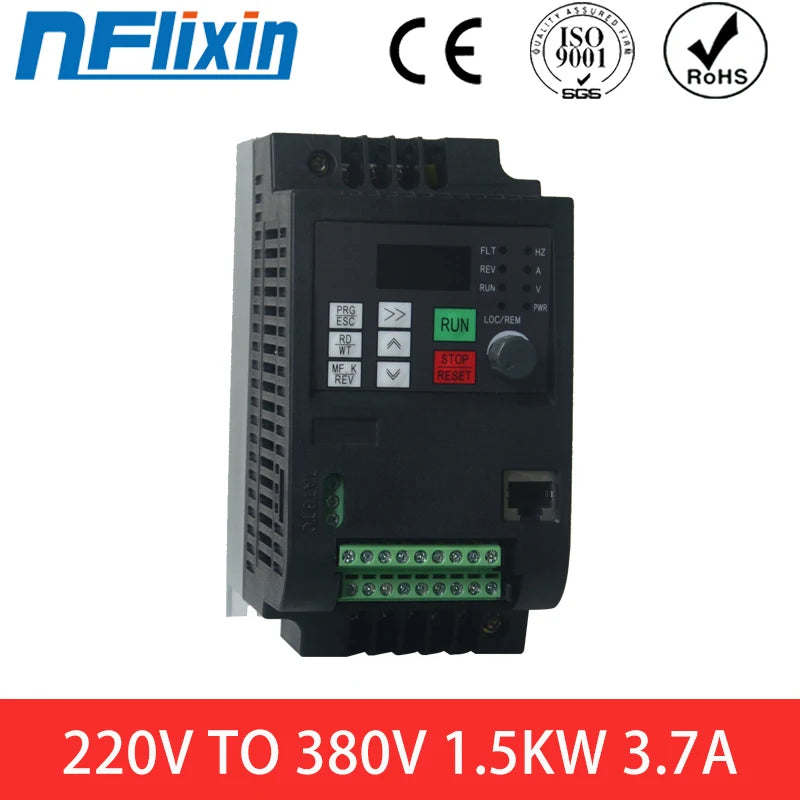

Frequency Inverter with VFD Technology, Converts 1-Phase 220V to 3-Phase 380V, Powers Motors 750W to 11KW
Frequency Inverter with VFD Technology, Converts 1-Phase 220V to 3-Phase 380V, Powers Motors 750W to 11KW
No se pudo cargar la disponibilidad de retiro
Maximize efficiency with our 3-phase RS485 Communication VFD Inverter. With 0.75KW to 7.5KW motor pump drive capabilities, this inverter is suitable for both 220V and 380V inputs, making it versatile for various industries. Harness the power of communication and precision control for your motor pump systems.
Specifications
- Brand Name: NFLIXIN
- Type: DC/AC Inverters
- Size: 155mm*82mm*135mm / 172mm*125mm*165mm / 220mm*152mm*179mm
- Output Frequency: 0-400HZ
- Output Type: triple
- Output Current: 2.5A/3.7A/5A/8.5A/13A/16A/25A
- Output Power: 1 - 200KW
- Weight: 1KG / 2.2KG / 3.5KG
- Input Voltage: single phase 220V
- output Voltage: 3 phase 380V
- Applications: Universal
- Level of portection: Ip20
- Control method: V/F
- Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/ inerter
NFLIXIN Variable Frequency Drive Single Phase 220V Input 3-Phase 380V Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW Frequency Converter Motor Drive VFD
- Promotion: This product is changed to a black model
- Output Power: 0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw/11kw
- Rated Frequency :50hz/60hz
- Output Frequency Range:0~400Hz
- Input Voltage Range:1 phase 220V±15%
- Output Voltage Range:3 phase 380V±15%
- Control way: Open loop vector control(SVC) V/F control
- Main function: Control and adjust the speed of the ac motor
Feature:
- Humanized keyboard design, convenient operation and clear display
- The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable
- Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
- Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
- Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation
- Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.
Specification:
- IteItem Type: Variable Frequency Drive
- Brand: NFLIXIN
- Model: 1T3-00075G / 1T3-00150G / 1T3-00220G / 1T3-00400G / 1T3-00550G / 1T3-00750G / 1T3-01100G
- Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz
- Output Voltage: AC 3PH 0V-380V 0Hz-650Hz
- Matching Motor Power: 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW/11KW
- Rated Current: 2.5A / 3.7A / 5A / 8.5A / 13A / 16A / 25A
- Voltage Type: AC220V to AC380V
- Output Voltage Adjustment Mode: PWM control
- Control Method: Current vector
- Filter: Built-in filter
- Protection Level: IP20
Product Function:
- Low frequency and large torsion
- Sensorless vector control
- Standard V / F control
- Multi-speed adjustable
- Built-in RS485 communication
- Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower
|
Type |
220V TO 380V 0.75KW VFD |
220V TO 380V 1.5KW VFD |
220V TO 380V 2.2KW VFD |
220V TO 380V 4KW VFD |
220V TO 380V 5.5KW VFD |
220V TO 380V 7.5KW VFD |
220V TO 380V 11KW VFD |
|
Input Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
Output Voltage |
380V |
380V |
380V |
380V |
380V |
380V |
380V |
|
Input Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Output Frequency |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
|
Rated current |
2.5A |
3.7A |
5A |
8.5A |
13A |
16A |
25A |
|
Input Phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
|
Output Phase |
3 phase |
3 phase |
3 phase |
3 phase |
3phase |
3 phase |
3 phase |
220V to 380V 0.75KW / 1.5KW / 2.2KW Frequency inverter
Size: 85mm*125mm*150mm
220V to 380V 4KW/5.5KW Frequency inverter
Size: 172mm*125mm*165mm
220V to 380V 7.5KW / 11KW Frequency inverter
Size: 220mm*152mm*179mm
