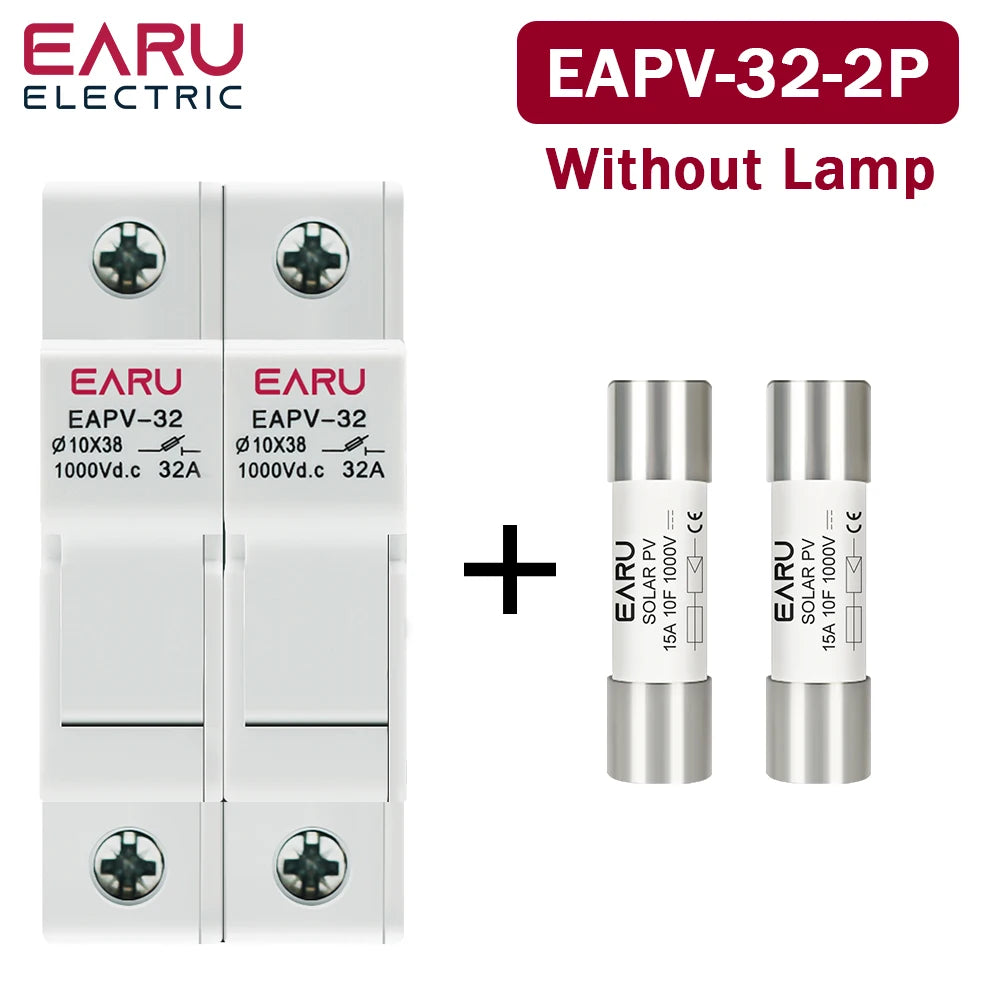

One Set 1P 2P DC Fuses Holder Solar 10*38mm PV 1000V 6A 15A 32A Base for Solar Photovoltaic System Short Circuit Protector gpV
One Set 1P 2P DC Fuses Holder Solar 10*38mm PV 1000V 6A 15A 32A Base for Solar Photovoltaic System Short Circuit Protector gpV
Precio habitual
$9.36 USD
Precio habitual
$0.00 USD
Precio de oferta
$9.36 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: EARU
Breaking Capacity: High
Certification: CE
Choice: yes
High-concerned chemical: None
Material: CERAMICS
Model Number: EAPV-32L
Origin: Mainland China
Rated voltage: DC 1000V
Safety Standards: IEC
Use: High Voltage
is_customized: Yes
model number: EAPV-32
semi_Choice: yes

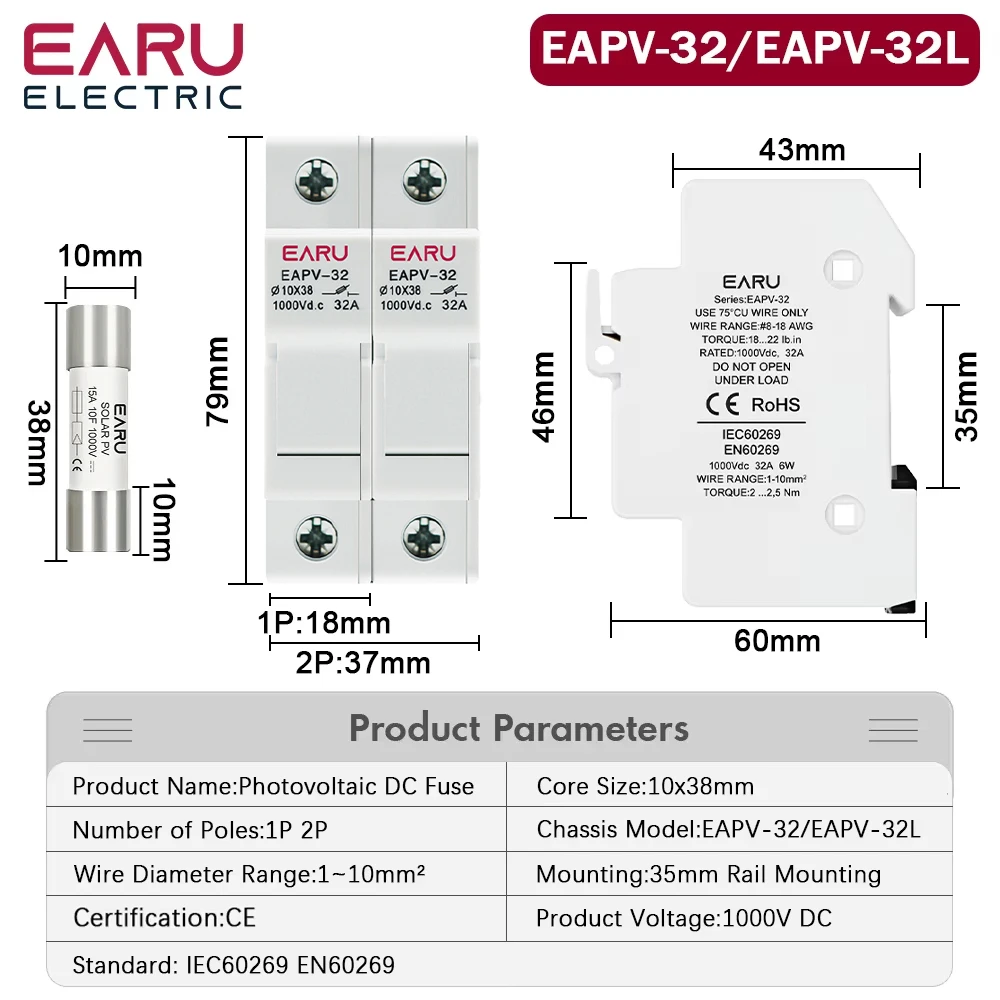

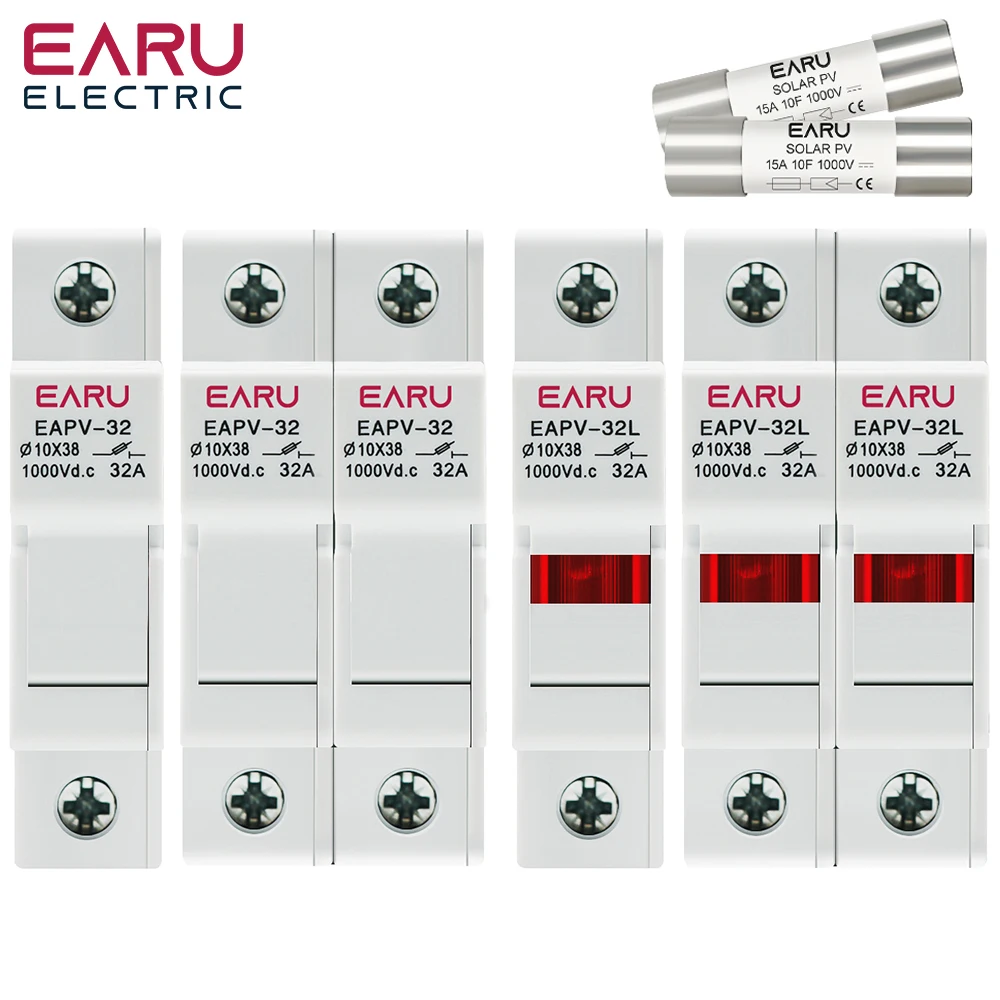

Fuse Holder for PV String Fuses
This holder is suitable for PV fuses rated 6A, 10A, 15A, 20A, 25A 30A.32A. The maximum voltage is 1000V. The fuse holder can be combined with the following PV String Fuses which is essential protection for solar panels.
- 1000V DC-20B
- Modular 45mm cut out - 1 module (17,5mm) X pole
- Mounting 35mm DIN rail
- High temperature resistant plastics
- Elevated insulation characteristi
