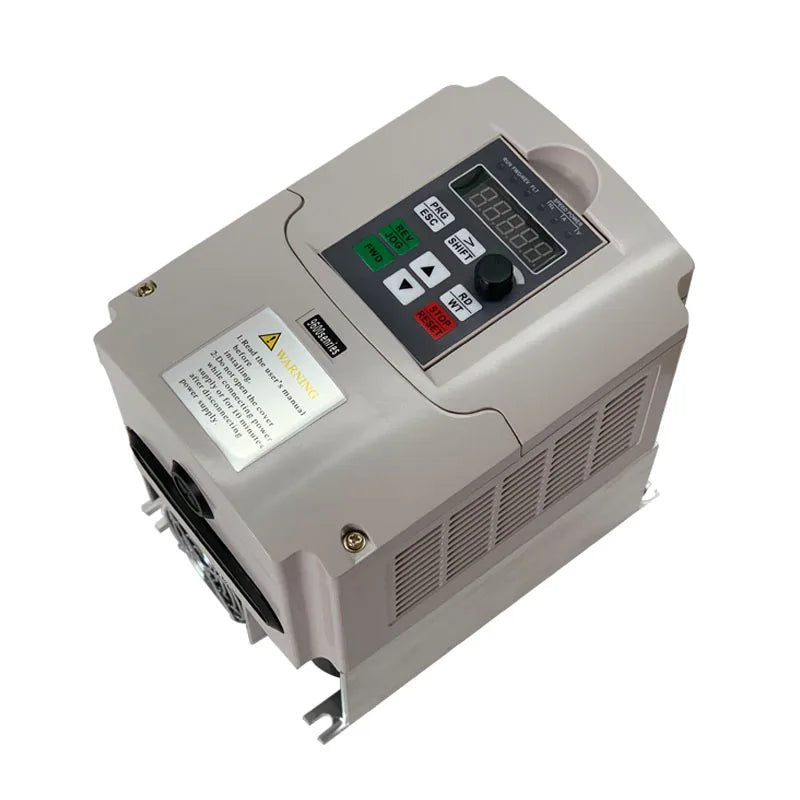

Sako SKI670 0.75KW Input 220V 1ph to Output 380V 3ph VFD Variable Frequency Inverter High Performance for Motor Speed

Promotion: This product is changed to a black model 1.Output Power:2.2kw/4kw 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~400Hz 4.Input Voltage Range:1 phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 380V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Main function: Control and adjust the speed of the ac motor 8.Size: 85mm*125mm*150mm

Specifications

• Brand Name: NFLIXIN
• Type: DC/AC Inverters
• Size: 126mm*170mm*160mm
• Model Number: 9100
• Output Frequency: 0-400HZ
• Output Type: triple
• Weight: 13KG

• Output Current: 8.5A
• output Voltage: 3 phase 380V
• Input Voltage: Single phase 220V
• Level of portection: Ip20
• Control method: V/F
• Applications: Universal
• Power: 4KW
