SPECIFICATIONS

Brand Name: SCU

Cable length: 5M(Customizable)

Color: Customized Color

Compliance and safety: CE EN61851 EN62196 DIN70121 ISO15118

Condition: New

Connector Type: CCS1 CCS2 CHAdeMO GB/T

Display: 15 21 34 43inch touch screen

Input Voltage: 380V/400V

Interface Standard: CCS2

Logo: Customized

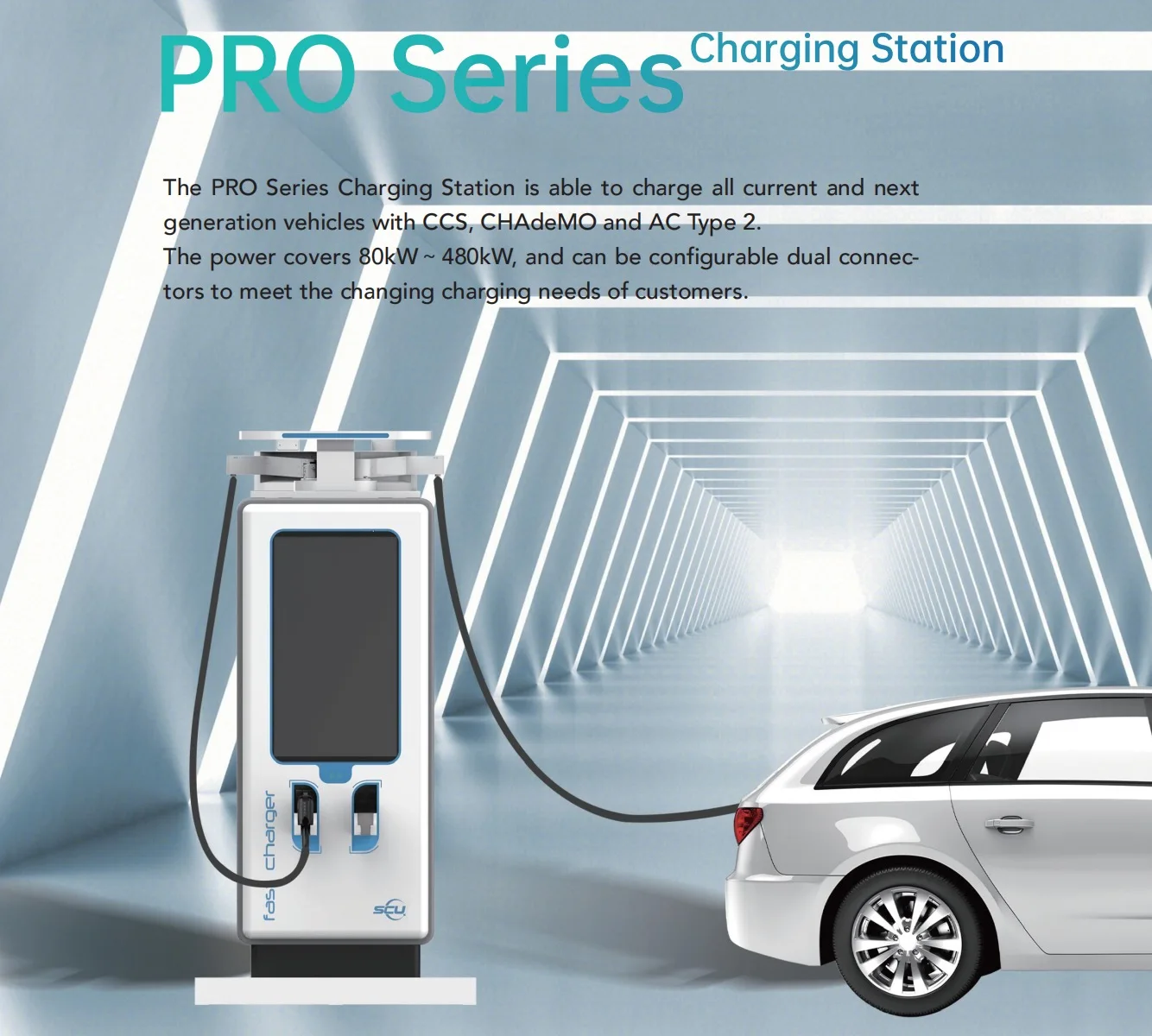

Model Number: EVMS PRO

OCPP: OCPP1.6 Json(OCPP 2.0 Upgradable)

OEM: Supported

Output Current: DC

Output Power: ＞100kW

Place of Origin: Hebei, China

Power: 40KW 80KW 120KW 160KW 200KW 240KW 360KW 480KW

Product name: SCU

Purpose: for charging

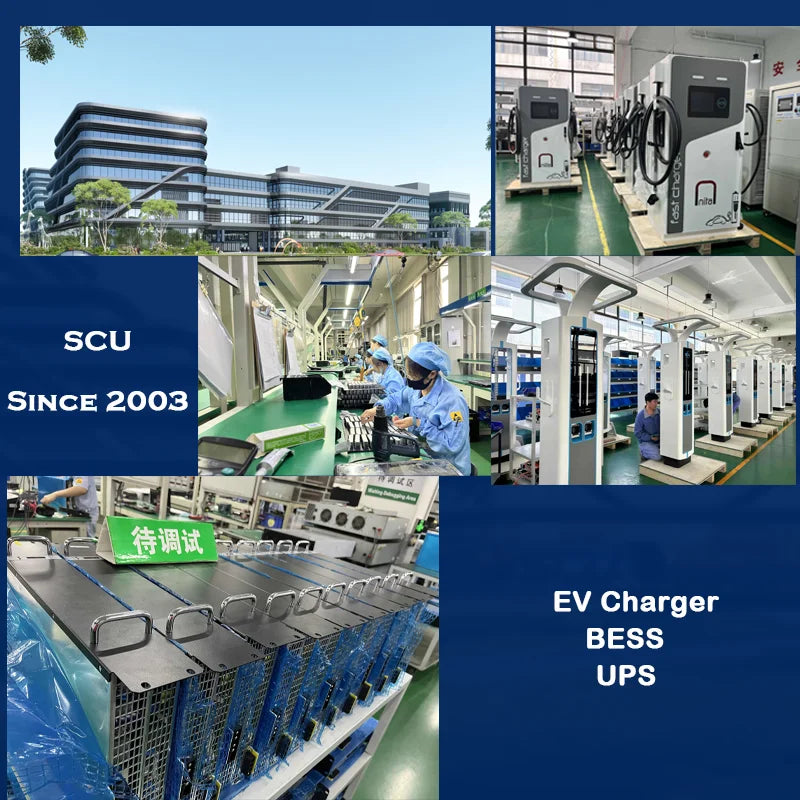

SCU Company Profile

Sicon Chat Union Electric Co., Ltd (SCU) focuses on energy, power electronics and control technology, providing complete solutions for three major business areas: data center infastructure, new energy vehicle charging, and green energy storage, offering sustainable energy and power management systems for global customers.

Specification

Model	EVMS-80P	EVMS-240P
AC Input
Power connection	3P+N+PE
Voltage rang	380/400V
Frequency	50/60Hz
Nominal input current	115A	364A
Power	80KW	240KW
Power factor	＞0.997
Overall efficiency	≥97%
DC Output
Voltage	50-1000VDC
Constant power voltage	300-1000VDC
Max current	200A	250A (300/400A optional)

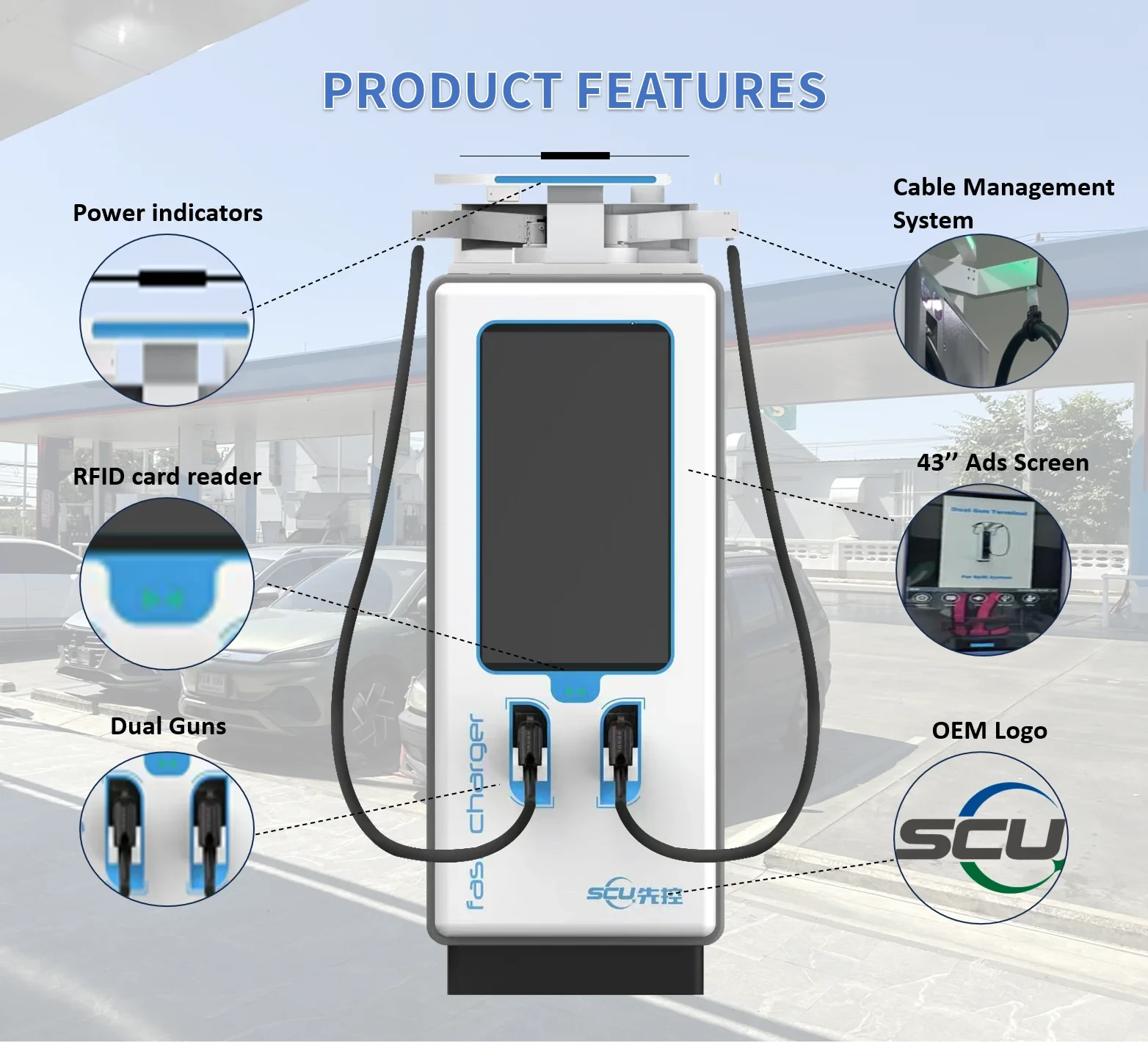

General Specifications
Output mode	multi-standard DC output (mode 4) with AC (mode 3)
Connector	CCS2 CCS1 CHAdeMO GB/T AC type2
Display	15/43 inch
RFID system	ISO/IEC 14443A, Mifare
Network connection	4G LAN WIFI (AUTO Switching from LAN to 4G)
Communication protocol	OCPP1.6J (OCPP 2.0 upgradable)
Certification and compliance	CE, EN61851, EN62619, DIN70121, ISO 15118 OCPP 1.6 full certificates, OCPP 1.6 security certificates

Certifications

Compatible EV

BMW Volkswagen Porsche

Audi Nissan Mitsubishi

Peugeot Citroen Kia

Renault OPEL Fiat

Tesla Smart Mercedes Benz

BYD Mazda HONDA

Skoda VOLVO hyunori

Jaguar MorrisGarages TataMotors

Citroen Mitsubishi etc……
