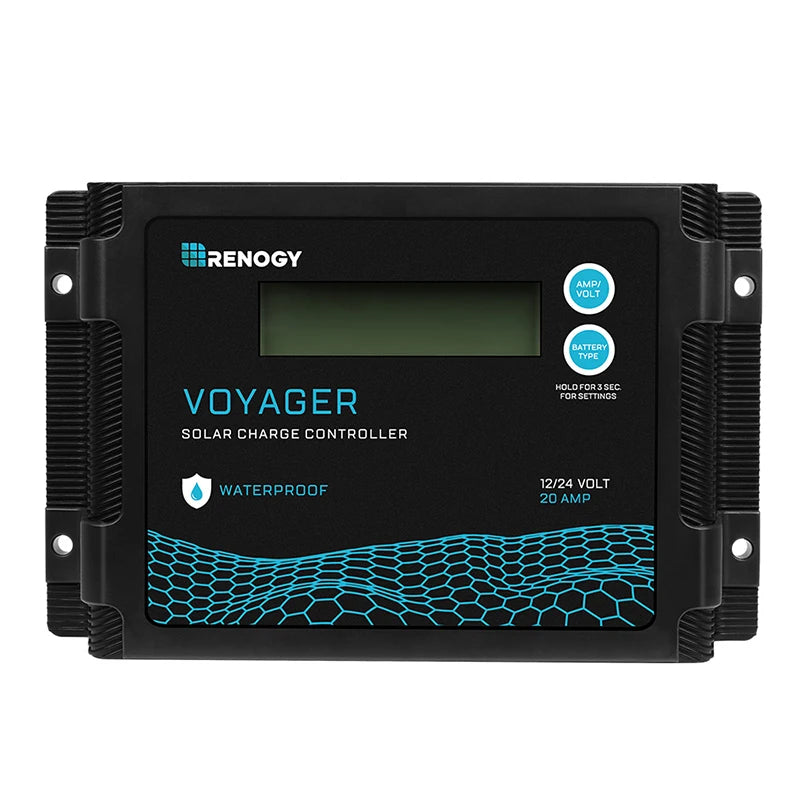

Solar Charge Controller 12V/24V PWM 20A w/ LCD Display Waterproof

Solar Charge Controller 12V/24V PWM 20A w/ LCD Display Waterproof

Precio habitual $112.82 USD
Precio habitual Precio de oferta $112.82 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Color
Current

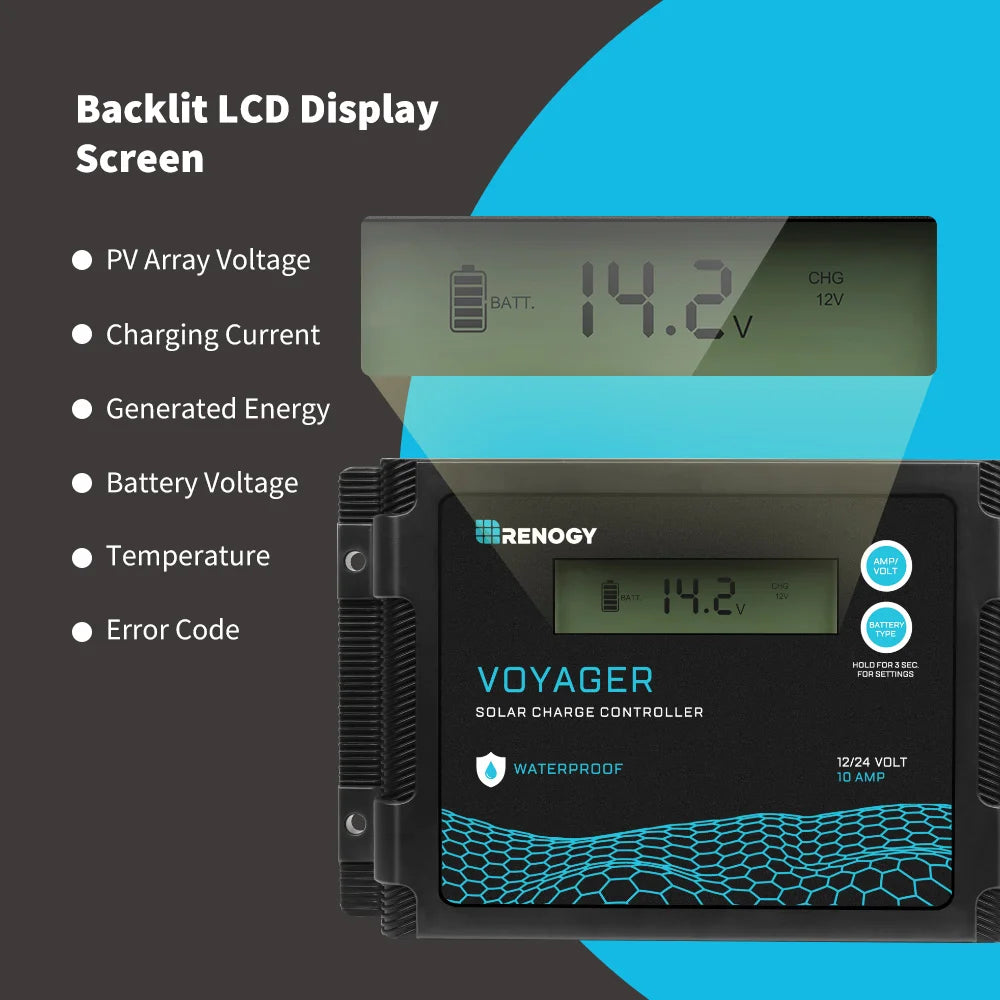

Efficiently control your solar charging system with our Solar Charge Controller. With its 12V/24V PWM technology and 20A capacity, it ensures optimal charging for your battery. The LCD display allows for easy monitoring and its waterproof design ensures durability. Upgrade your solar system now.

Specifications

  • Nominal System Voltage: 12/24V Auto-Detection (For Non-Lithium Batteries)
  • Rated Charge Current: 20A
  • PV Input Voltage Range: 15V-55V
  • Max. Pv Open Circuit Voltage: 12V@25V 24V@55V
  • Max. PV Input Power: 12V @ 260W / 24V@520W

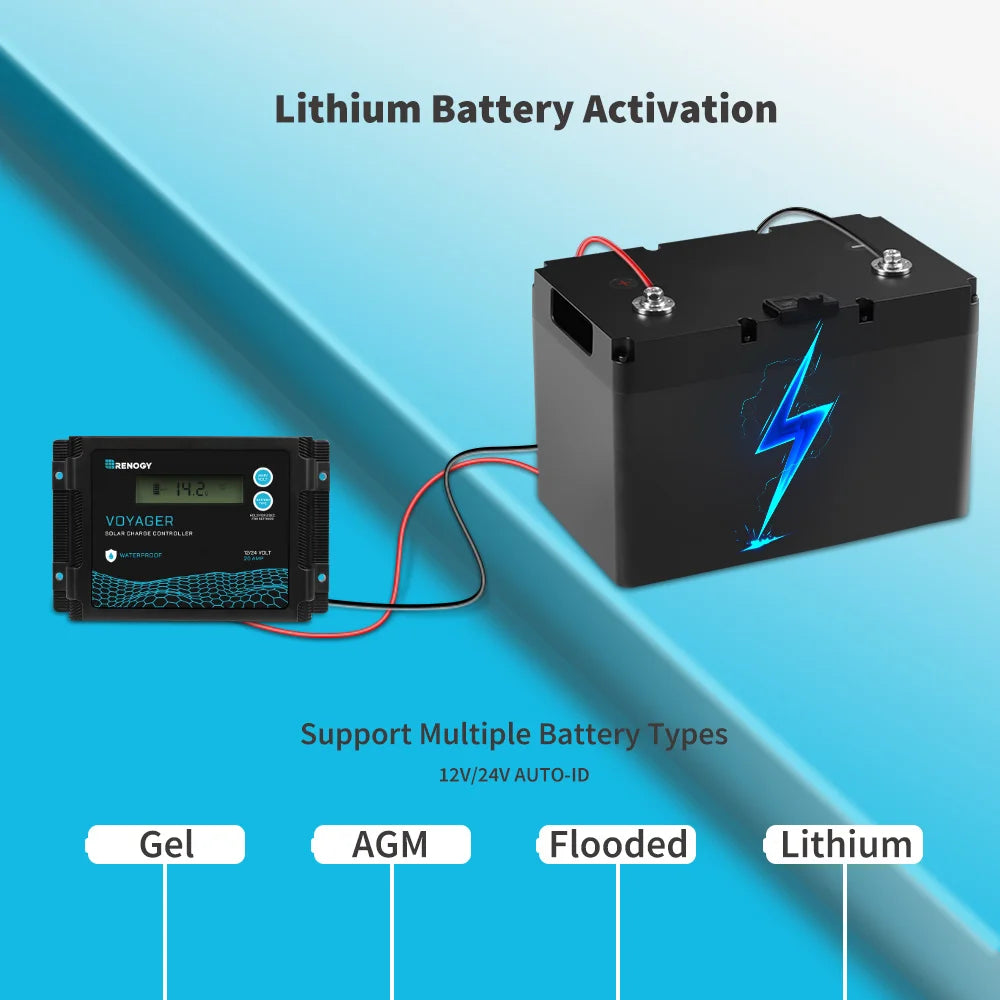

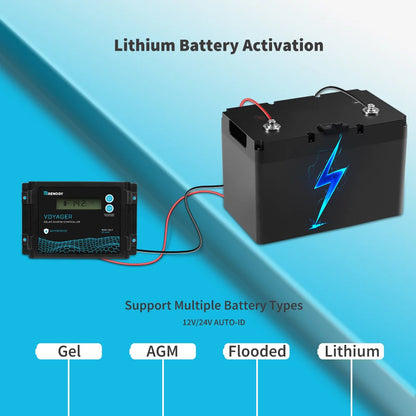

  • Battery Types: SLD/AGM, GEL, FLD. LI
  • Power Consumption: 12V @ 0.24W / 24V@0.74W
  • Max Battery Voltage: 32V
  • Ground Type: Positive

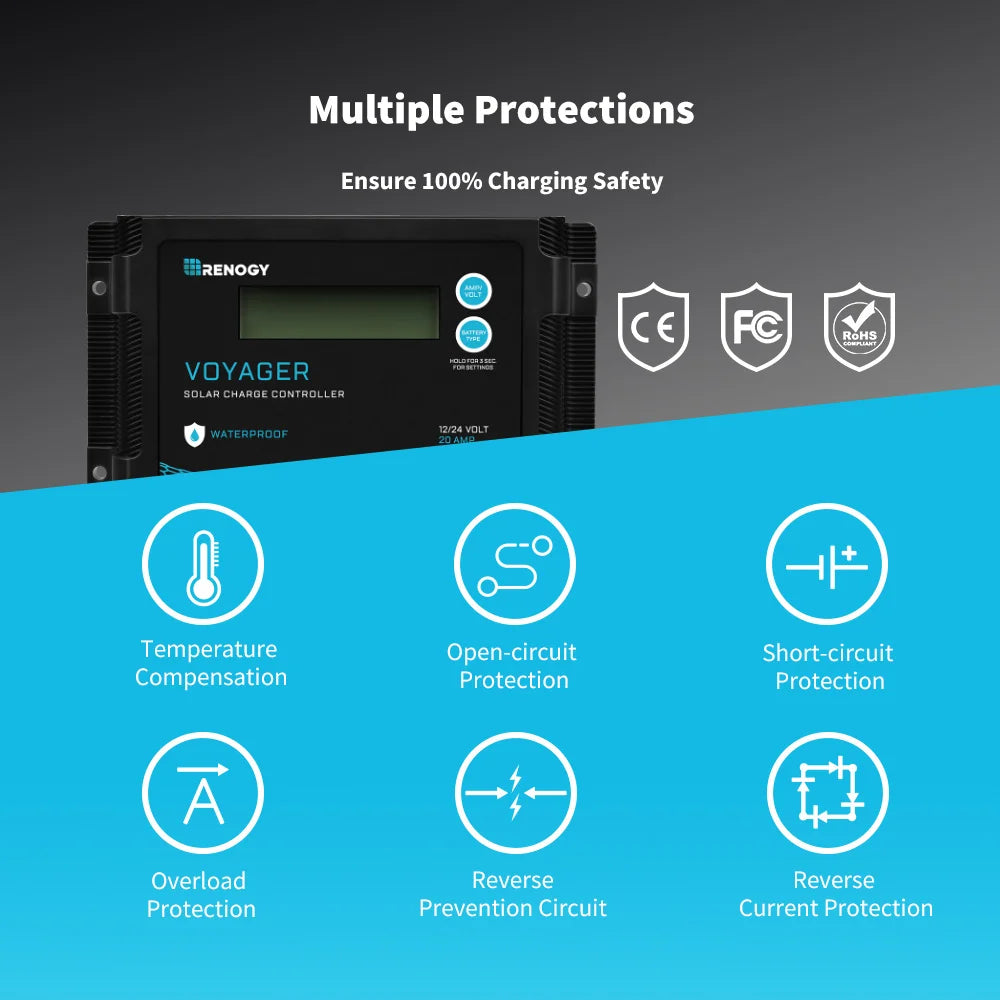

  • Electrical Protection: Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection
  • Communication Port: N/A

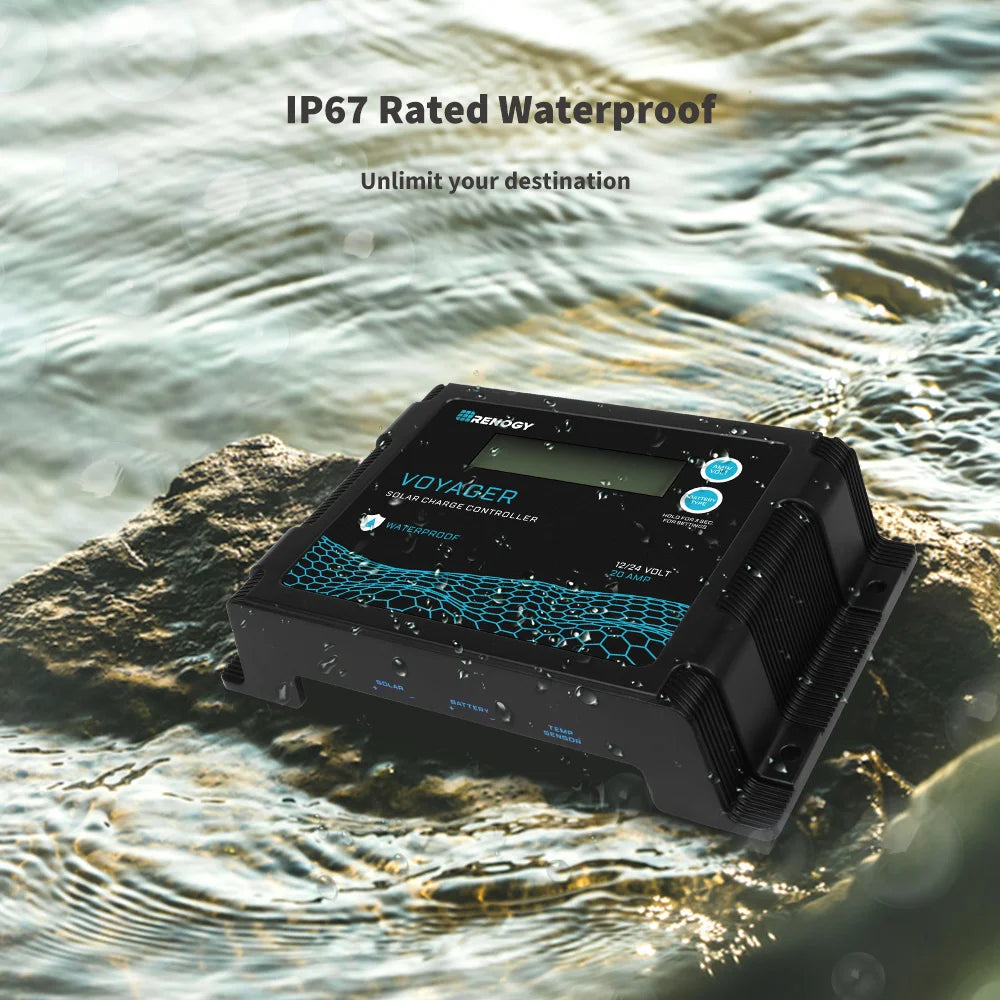

  • Protection Level: IP67
  • Operating Temperature Range: -31°F - 113°F
  • Storage Temperature Range: -31°F - 167°F
  • Operating / Storage Humidity: 10%-90%, No Condensation
  • Temperature Compensation: '-3mV/C/2V excludes LI
  • Dimensions: 6.08*3.83*1.40 in
  • Weight: 0.55Ibs
  • Max. Cable Size: 6 AWG
  • Controller Terminals: 20 - 6 AWG, 2-pin terminals
  • Temperature Sensor RTSVOY-US: 22AWG 10FT
