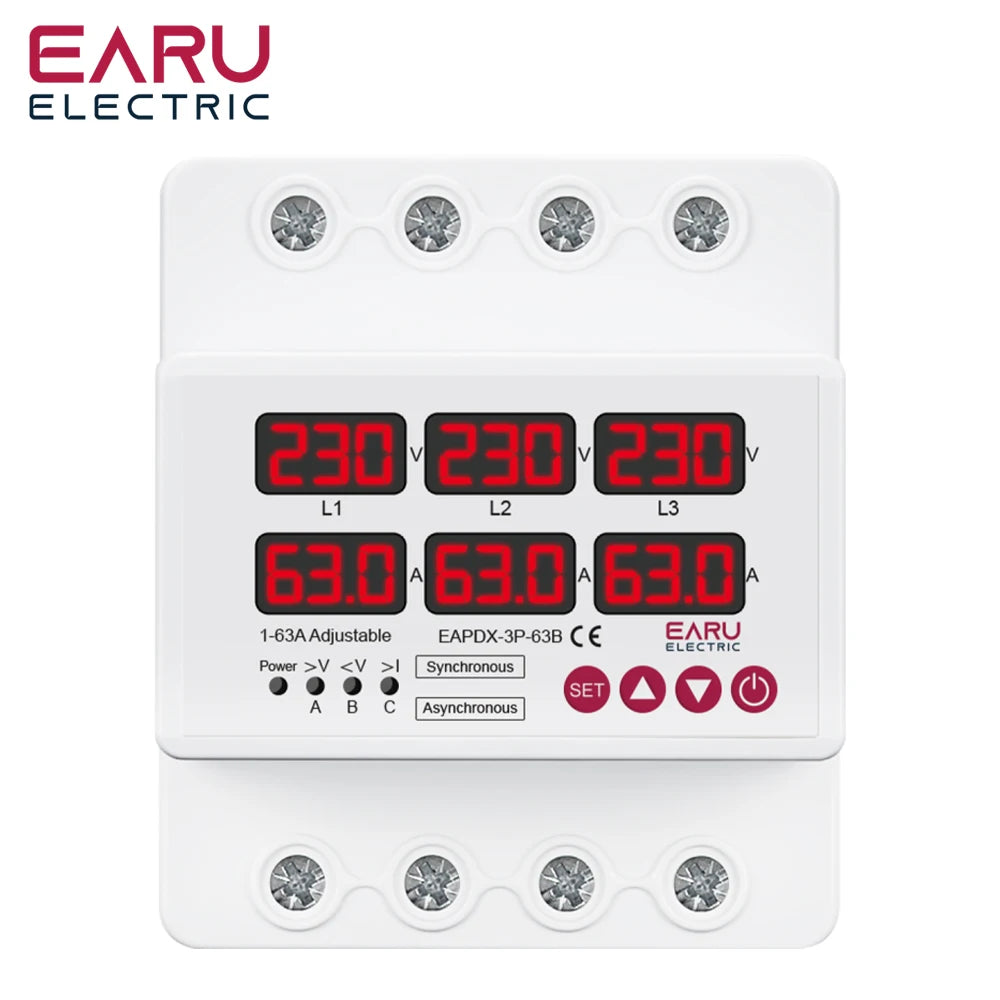

Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset
Three Phase Voltage Current Adjustable Over Under Voltage Current Limit Protection Relay Protector 63A 100A with Automatic Reset
No se pudo cargar la disponibilidad de retiro

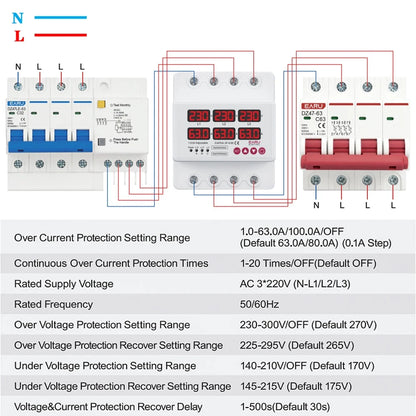

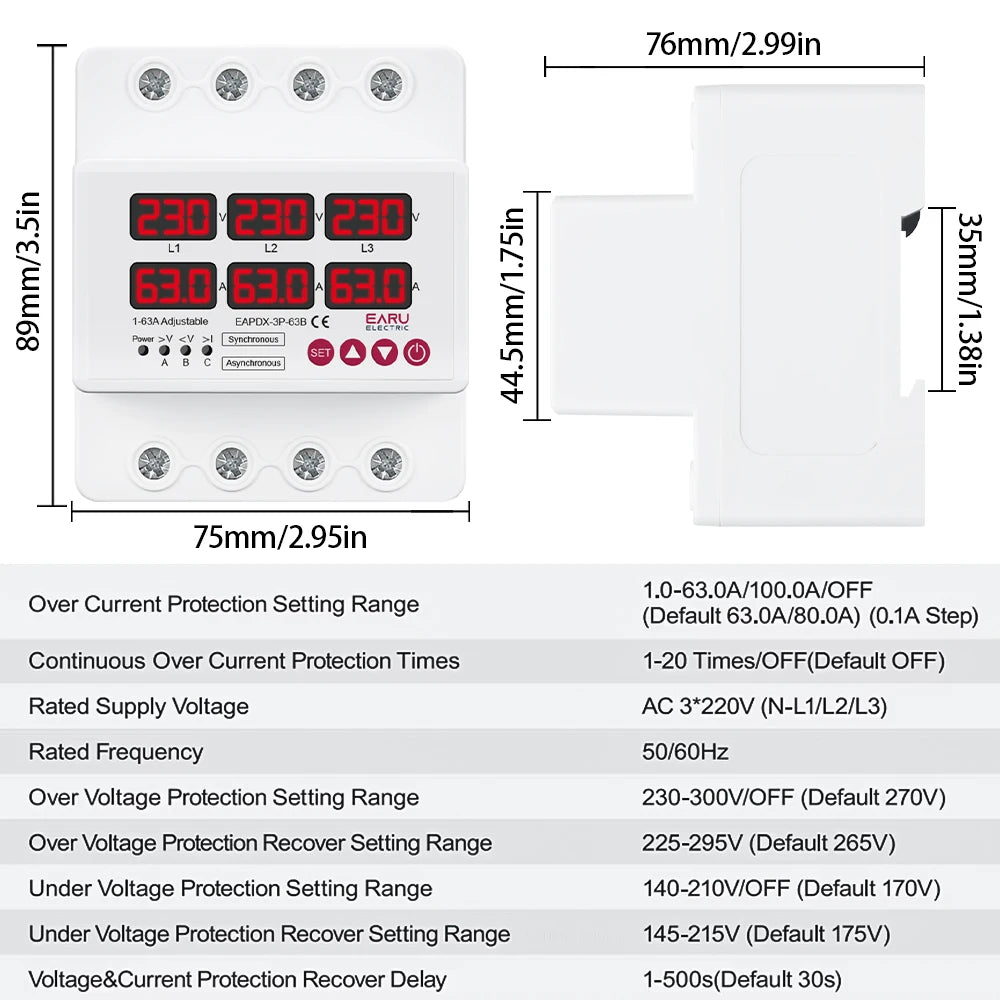

SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Continuous Over Current Protection Times: 0-20 Times(Default OFF)
High-concerned chemical: None

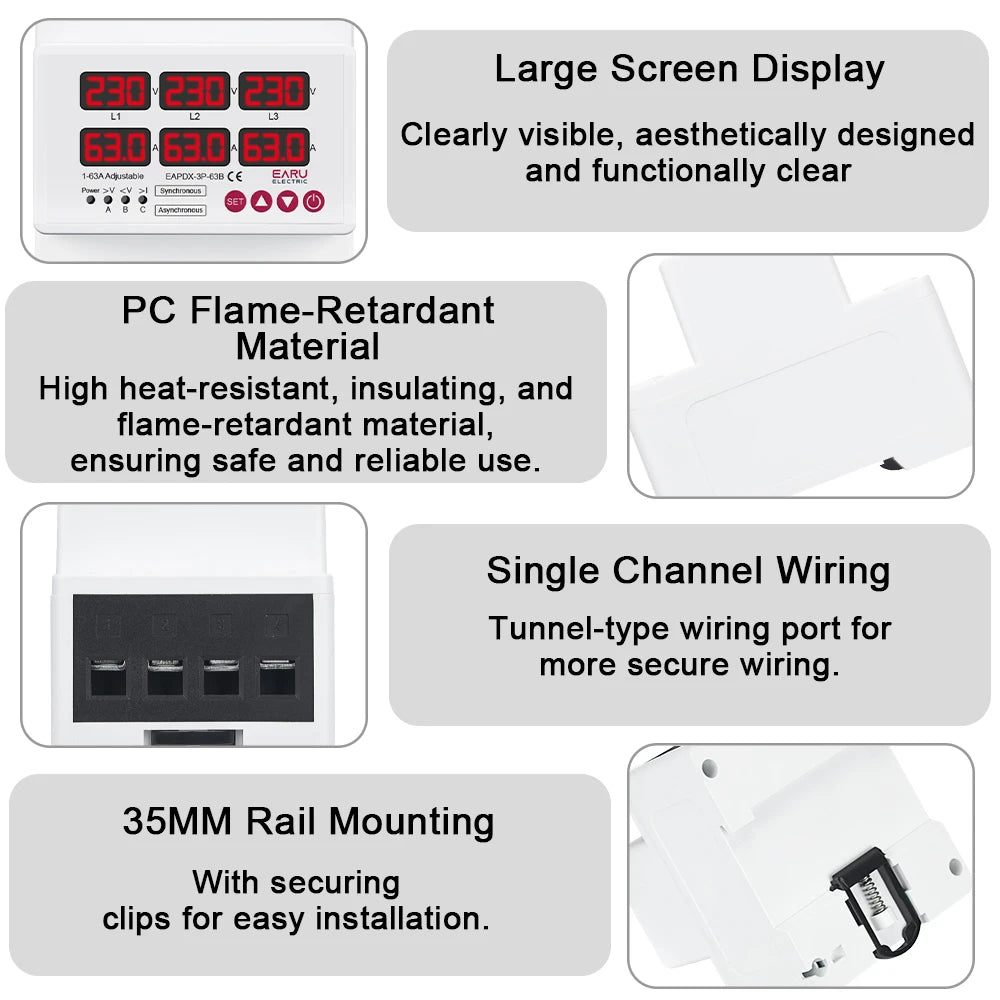

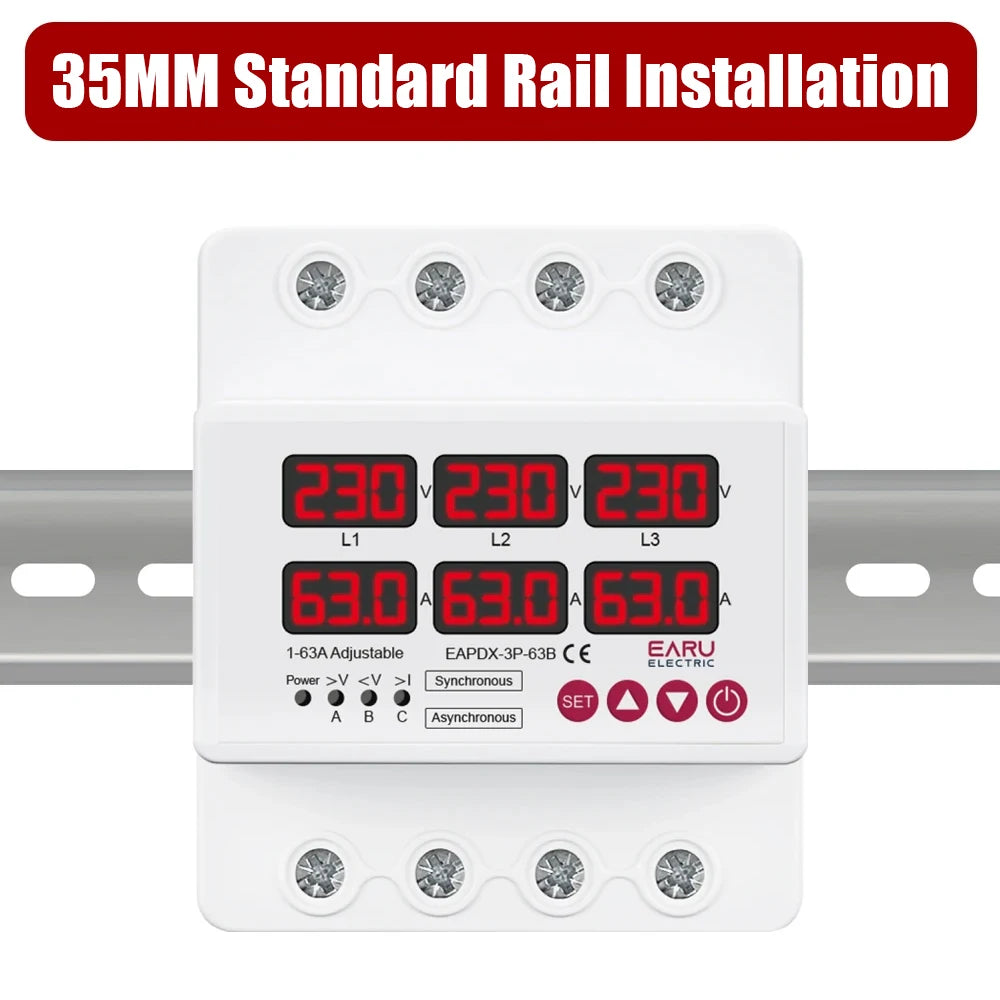

Installation: 35MM Din Rail
Is Smart Device: No
Model Number: EAPDX-3P
Origin: Mainland China
Over Voltage Protection Recover Setting Range: 225-295V (Default 265V)
Over Voltage Protection Setting Range: 230-300V (Default 270V)
Rated Current 1: 1-63A (Adjustable)
Rated Current 2: 1-100A (Adjustable)
Rated Frequency: 50/60Hz
Rated Supply Voltage: AC 3* 220V(N-L1/L2/L3)
Rated Voltage: 220V

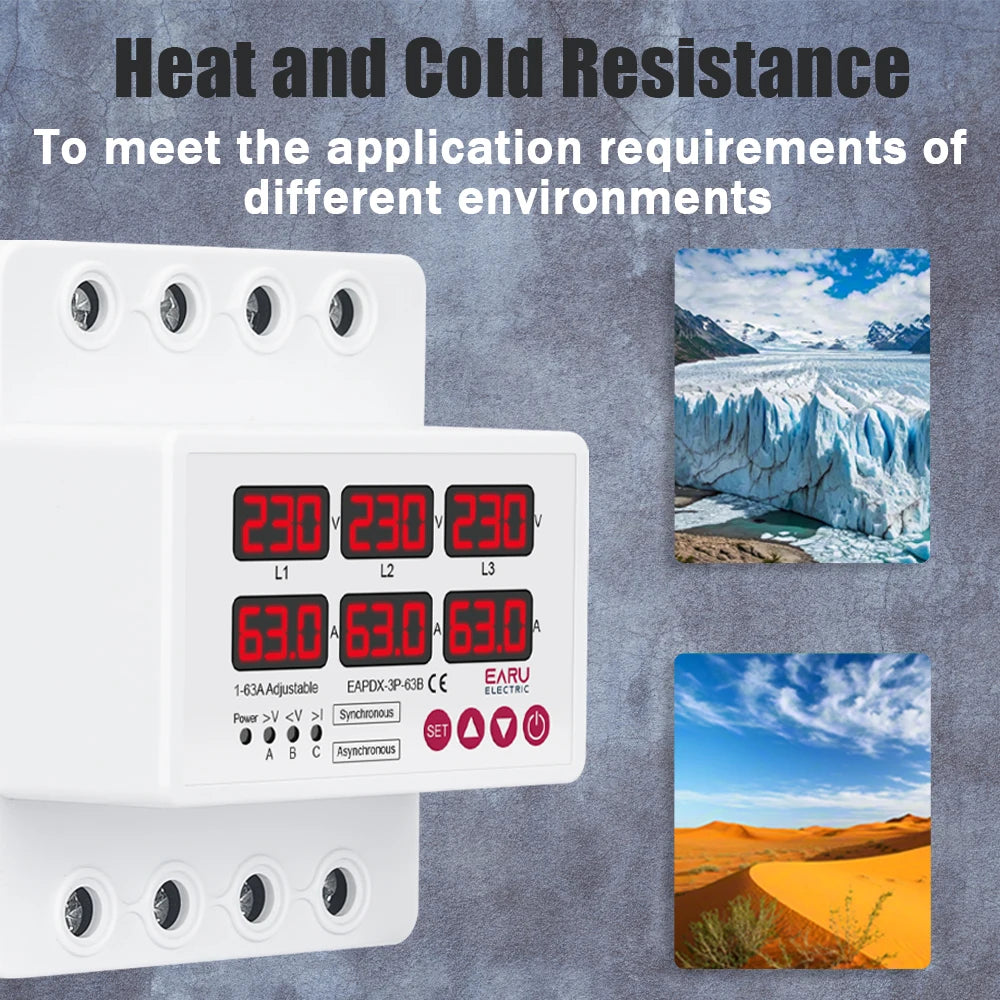

Storage Temperature: -25℃~+50℃

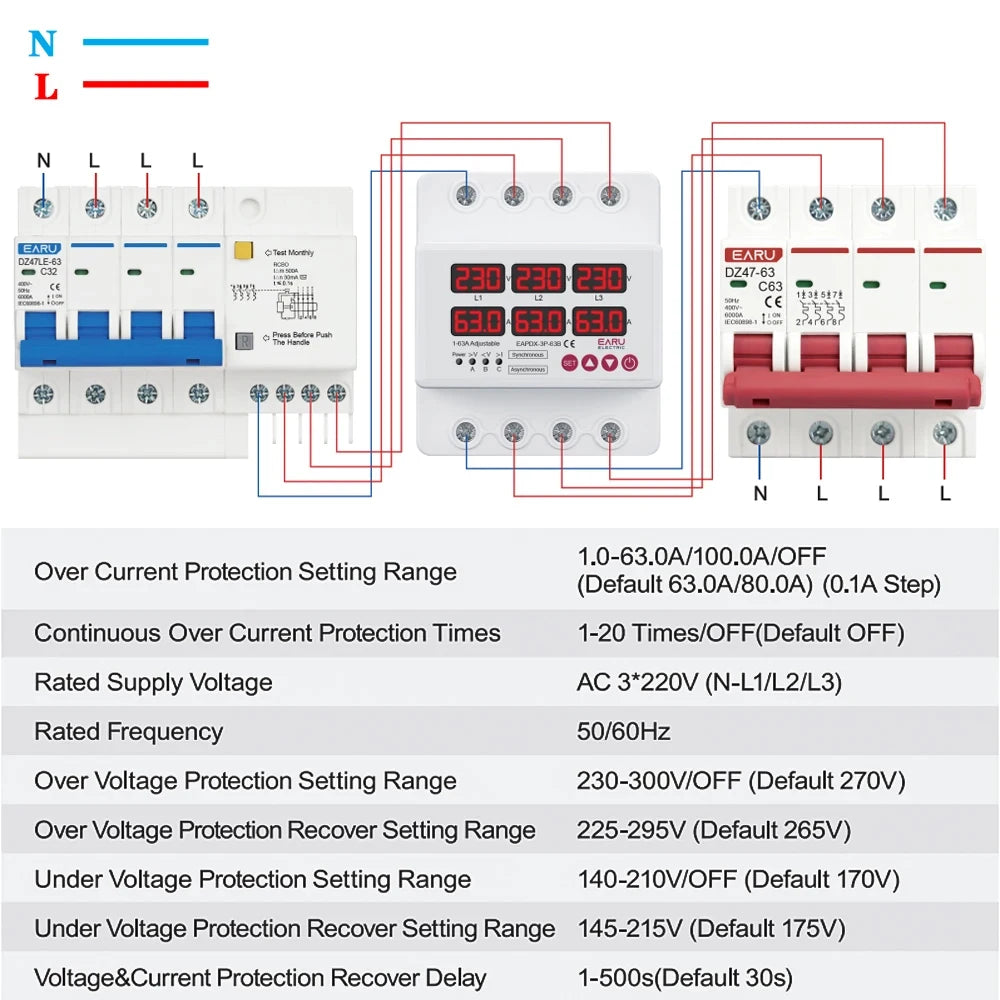

Supply Terminals: N,L1,L2,L3
Type: Mini,Voltage relay
Under Voltage Protection Recover Setting Range: 145-215V (Default 175V)
Under Voltage Protection Setting Range: 140-210V (Default 170V)

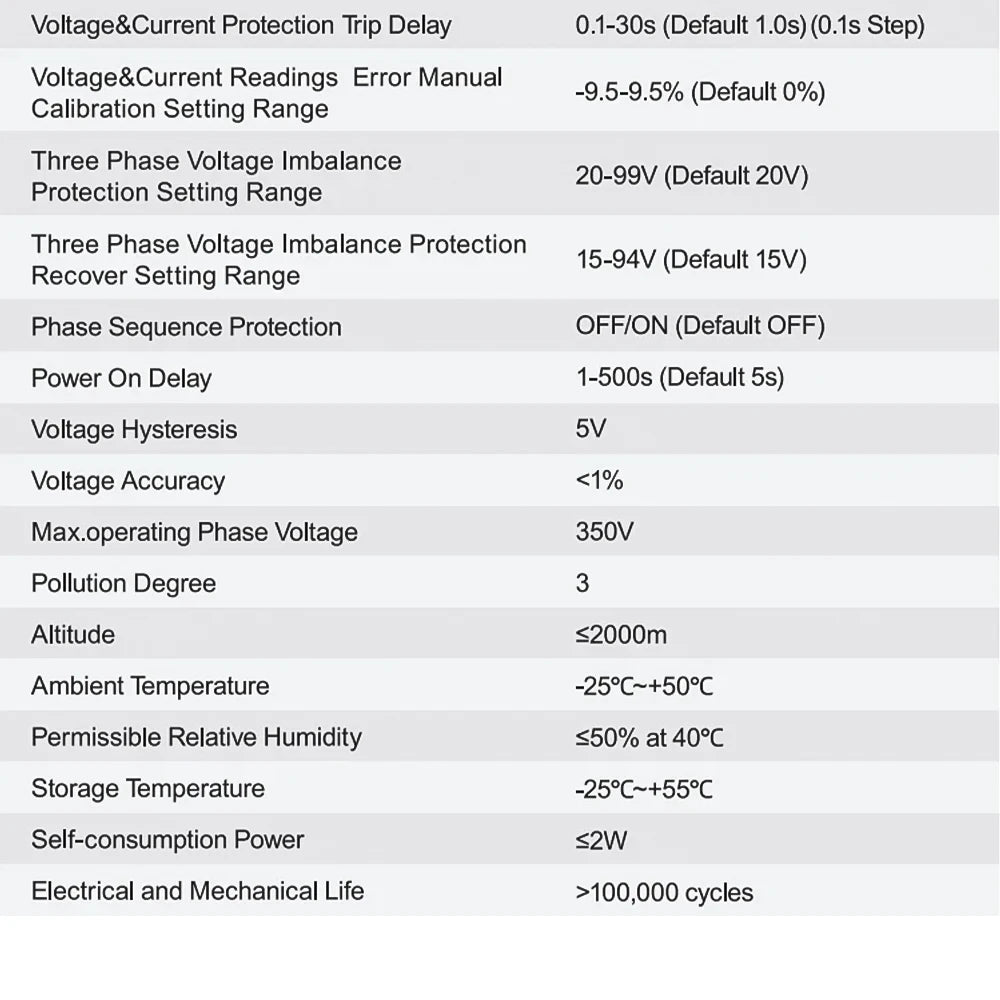

Voltage&Current Protection Recover Delay: 1-500s(Default 30s)
is_customized: Yes
semi_Choice: yes

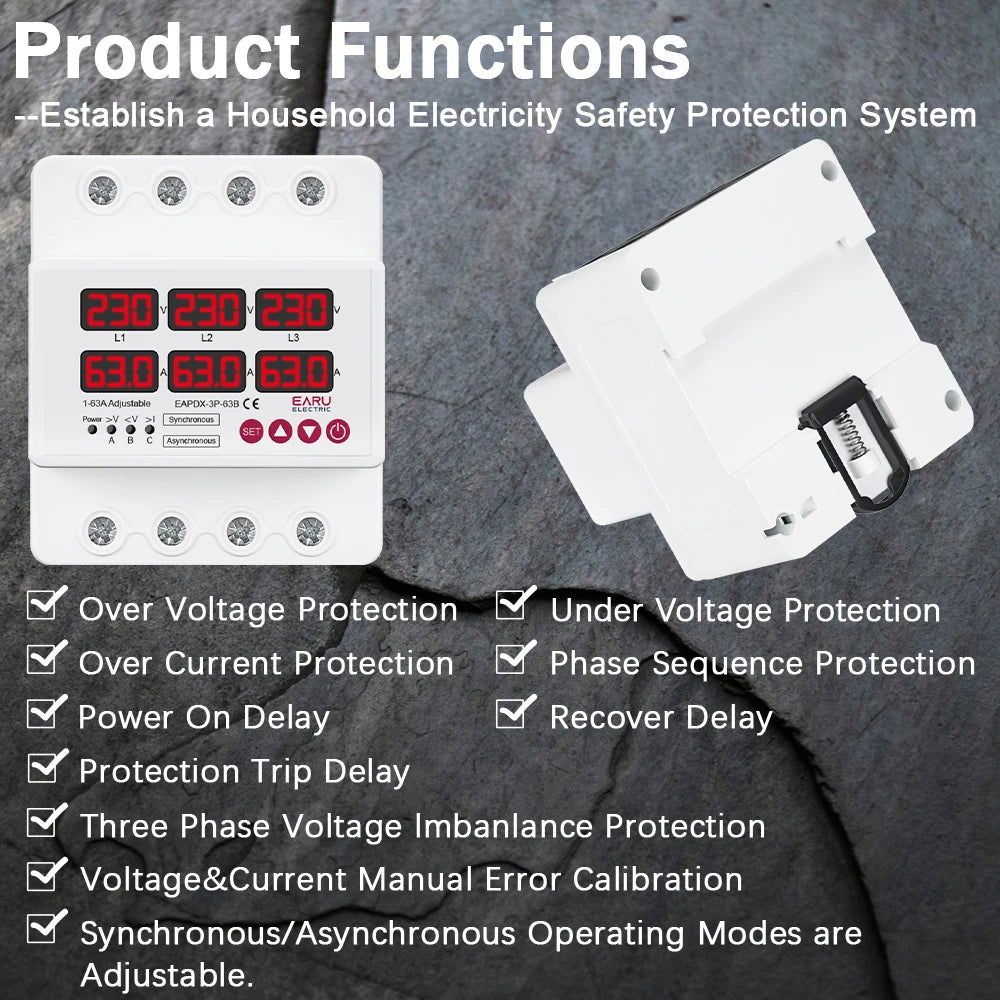

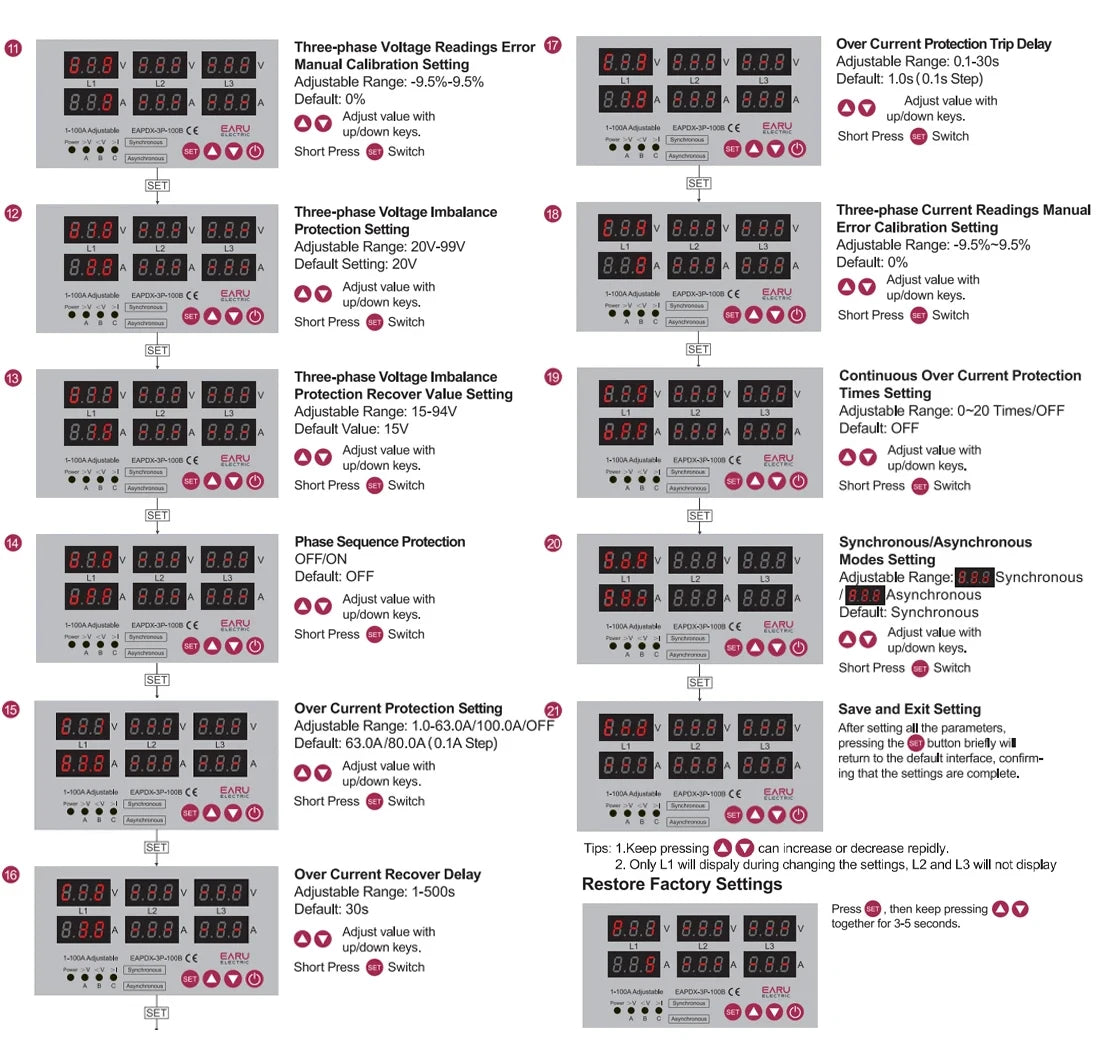

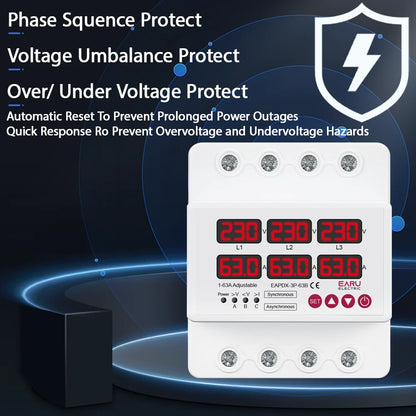

1. Over Voltage Protection
2. Under Voltage Protection

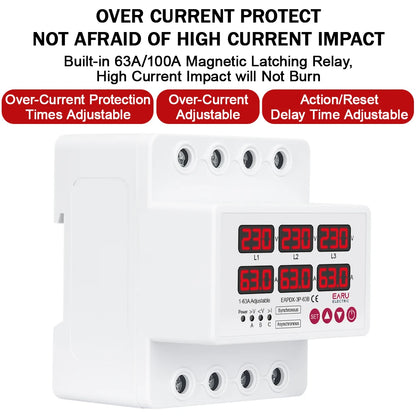

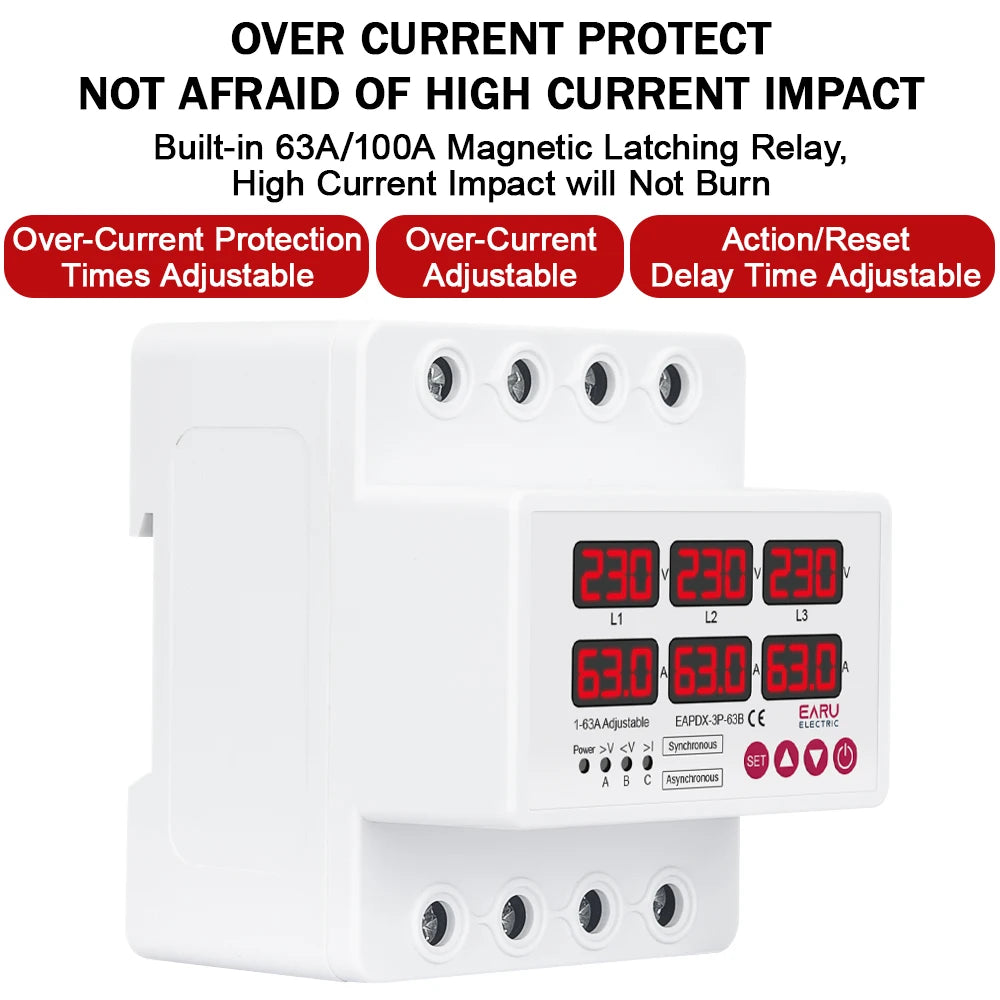

3. Over Current Protection

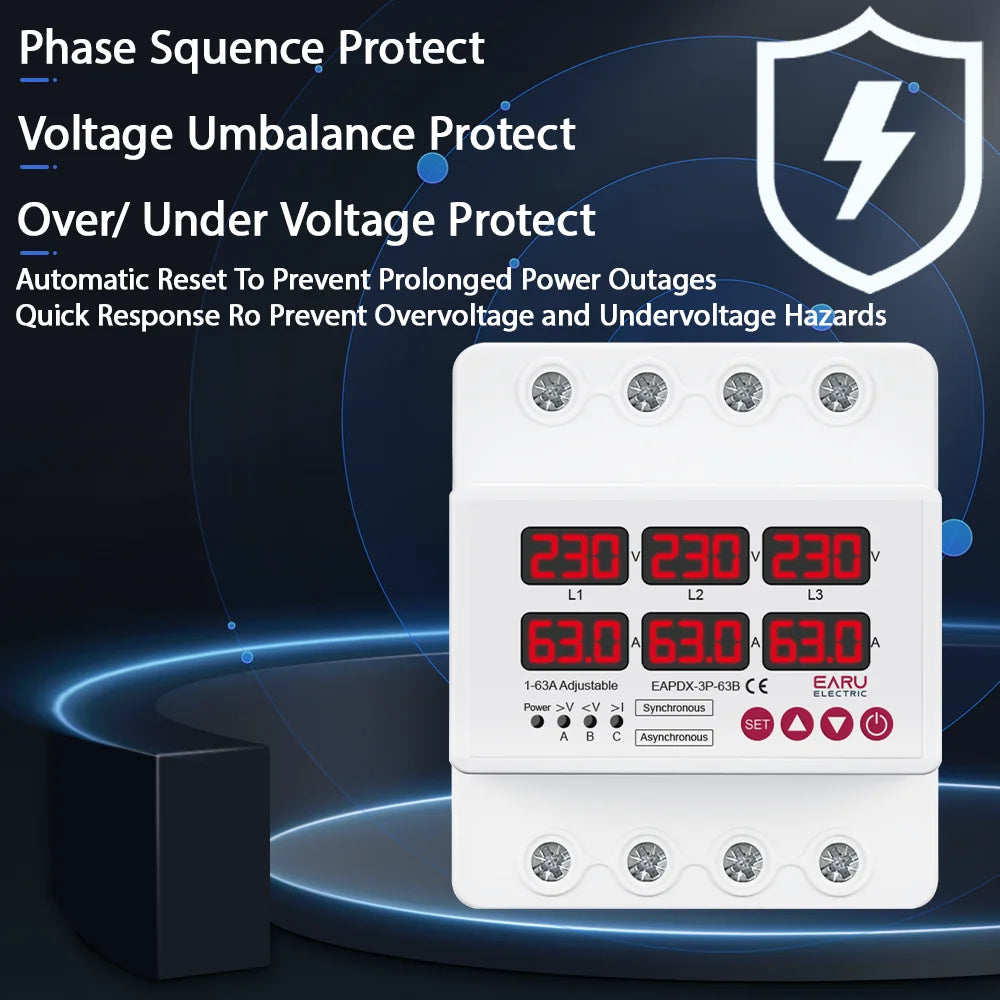

4. Three Phase Voltage lmbanlance Protection
5. Phase Sequence Protection

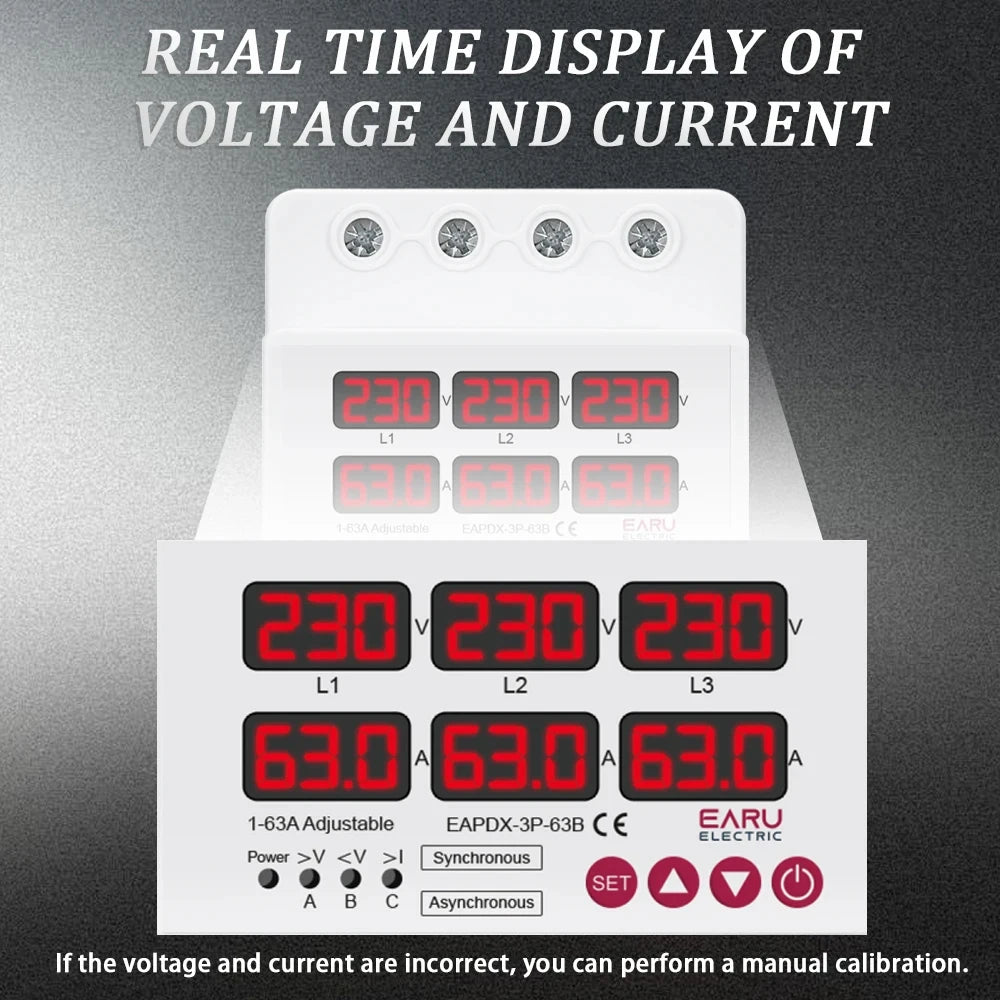

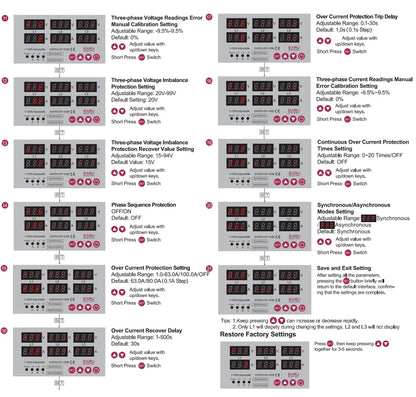

6. Voltage & Current Manual Error Calibration

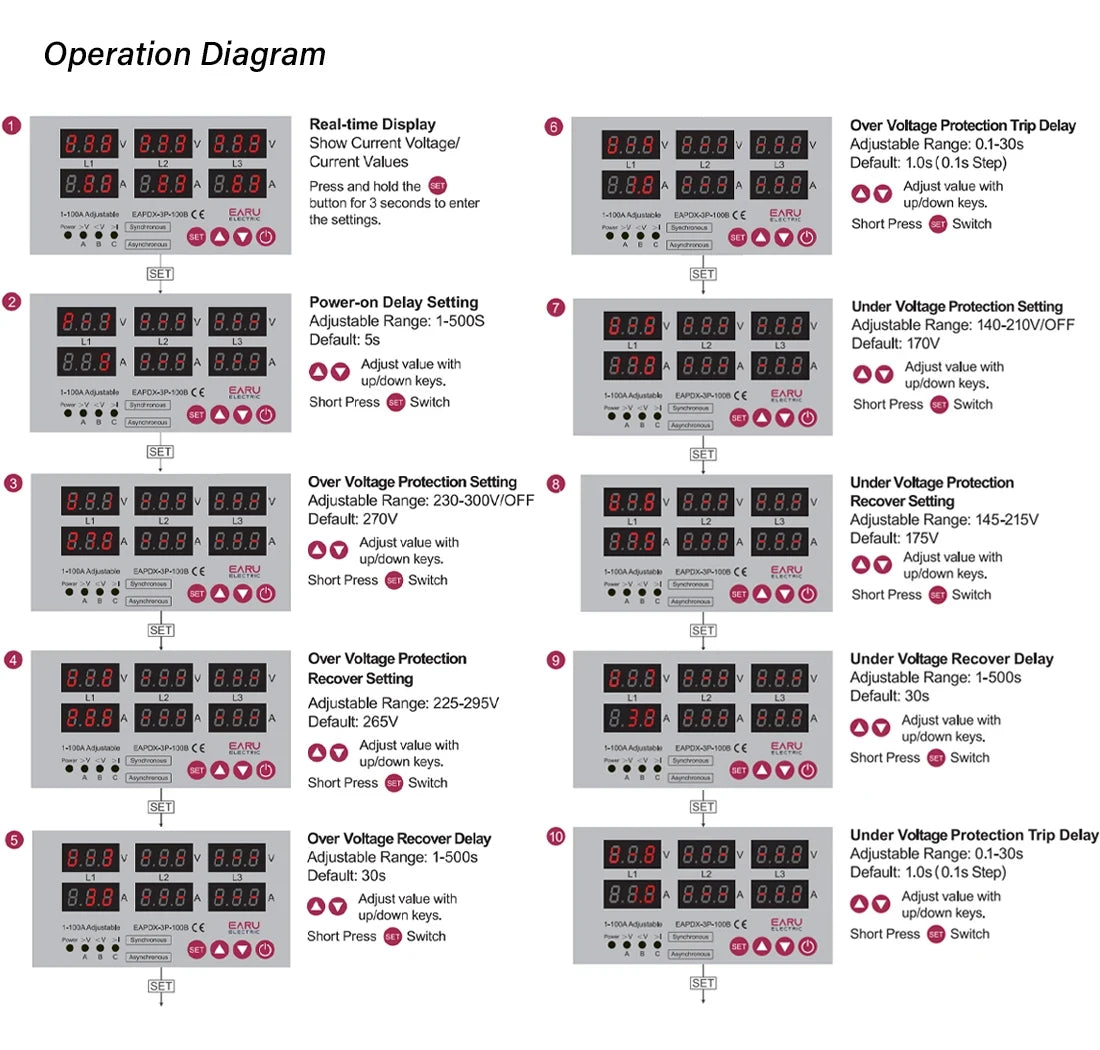

7. Power On Delay
8. Protection Trip Delay
9. Recover Delay

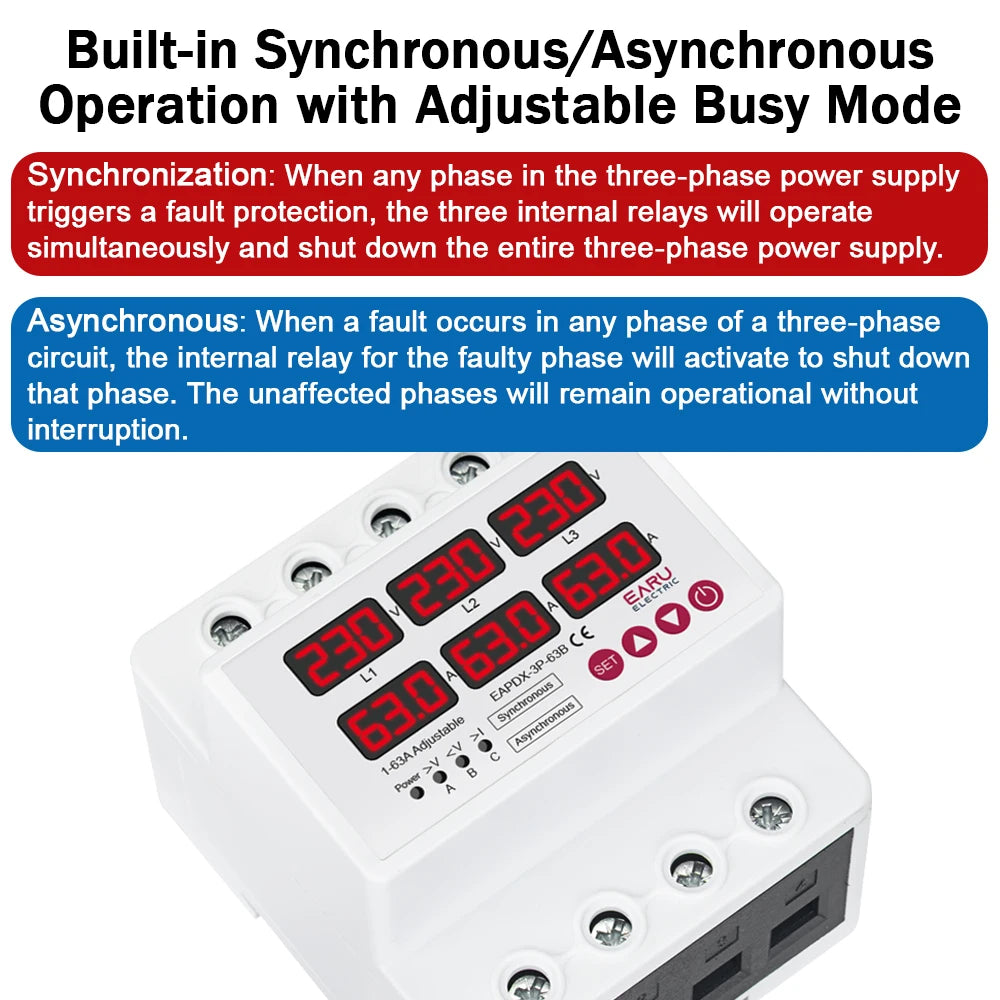

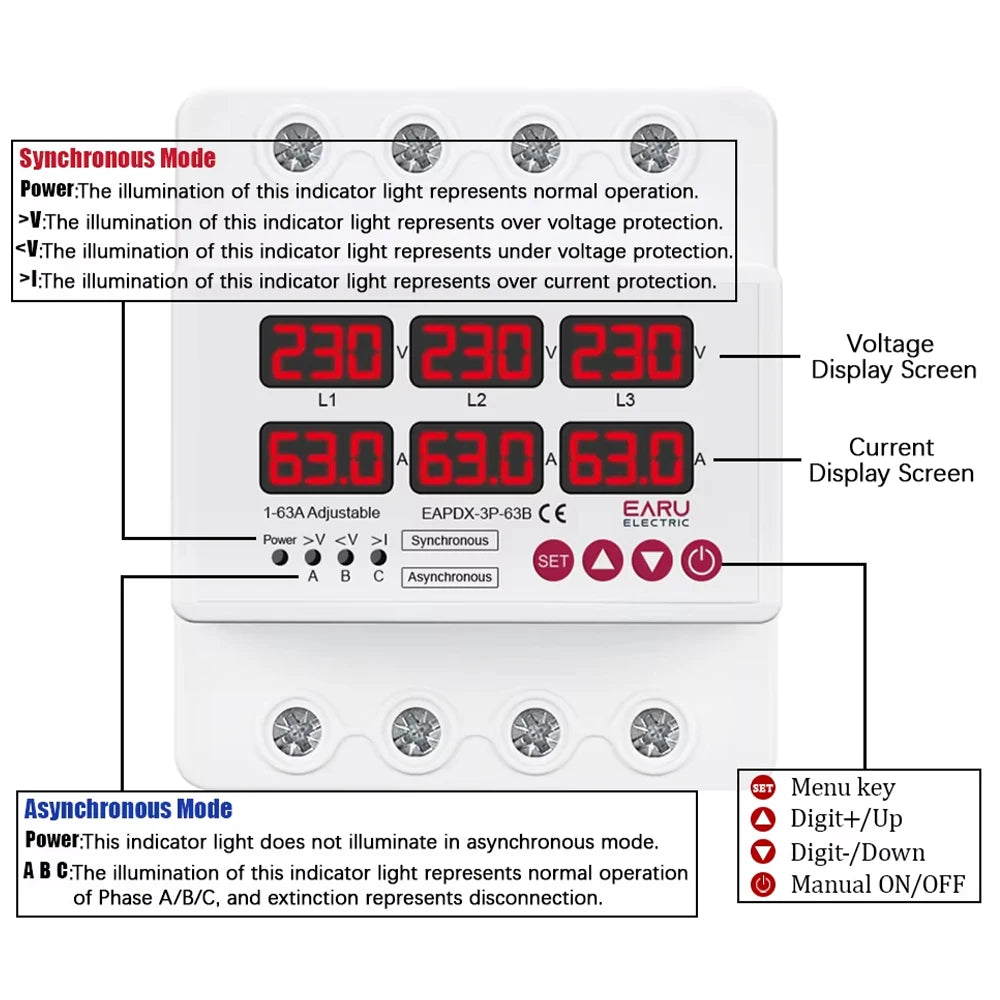

10.Synchronous/Asynchronous Operation
