SPECIFICATIONS

App 1: Tuya&Smart Life

App 2: eWeLink

Brand Name: EARU

Certification: CE,FCC

Choice: yes

Frequency: 50/60Hz

Fuction 1: On/Off Switch

Fuction 10: Temperature Protection

Fuction 2: Timer Relay Switch

Fuction 3: Voltmeter

Fuction 4: Ammeter

Fuction 5: Power Meter

Fuction 6: Current Limit

Fuction 7: Share

Fuction 8: Voice Control

Fuction 9: Power Failure Memory

High-concerned chemical: None

Installation: 35MM Din Rail

Is Smart Device: Yes

Mechanical Life: Over 100000 Times

Model 1: EAWCBT/EAWCBE

Model 2: EAKCB-EWE-M

Model Number: EAKCB-T-M

Origin: Mainland China

Protocol: WiFi 2.4GHz Only

Rated Current: 1-63A (Adjustable)

Rated Voltage: 220V

Tuya Over-Under Protection: 220-265V(Adjustable)

Tuya Power Protection: 1-26KW(Adjustable)

Tuya Temperature Protection: 40℃-150℃(Adjustable)

Tuya Under-Voltage Protection: 76-240V(Adjustable)

Type: Mini,Circuit breaker

Working Temperature: -40℃~85℃

Working Voltage: AC80-300V

eWeLink Max.Power: 1~15000W (Adjustable)

eWeLink Max.Voltage: 220-300V (Adjustable)

eWeLink Min.Power: 1~5000W (Adjustable)

eWeLink Min.Voltage: 76-220V(Adjustable)

is_customized: Yes

semi_Choice: yes

Note：

Wiring : Power must enter from the top and must be a live line + neutral (L+N)

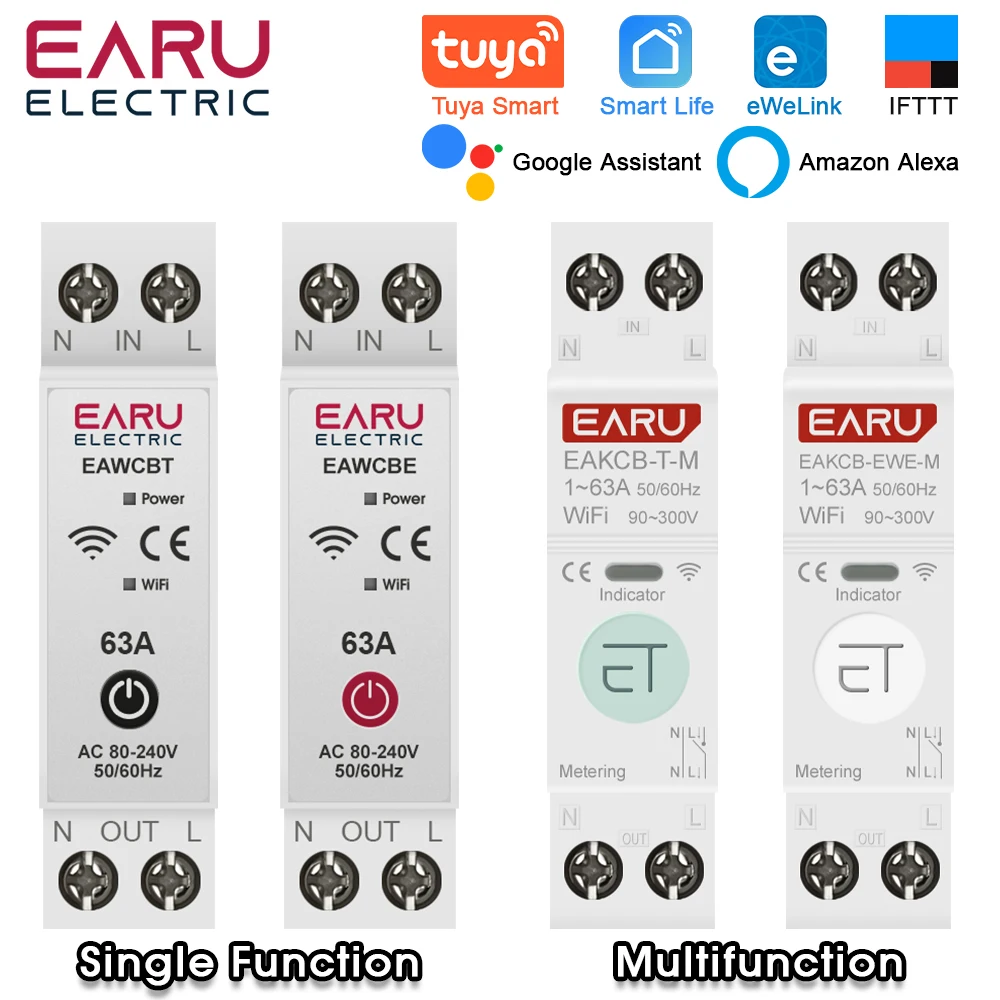

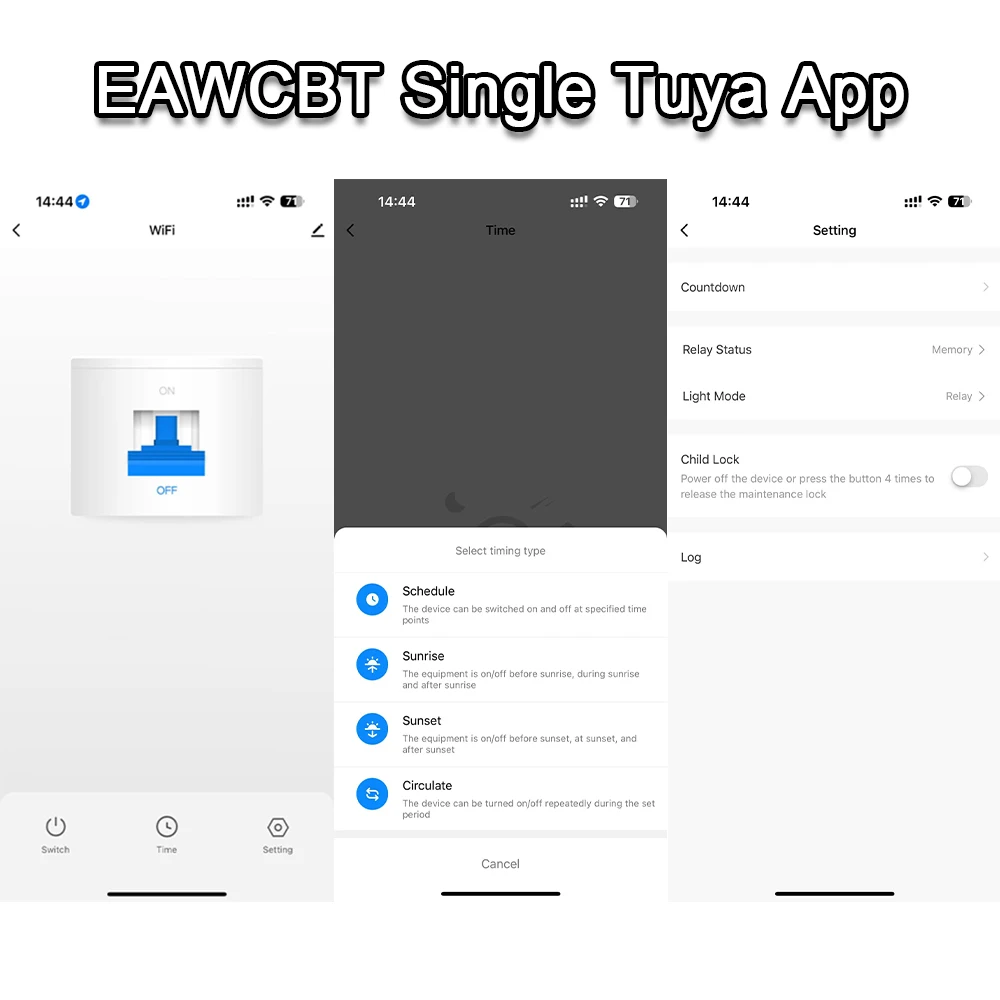

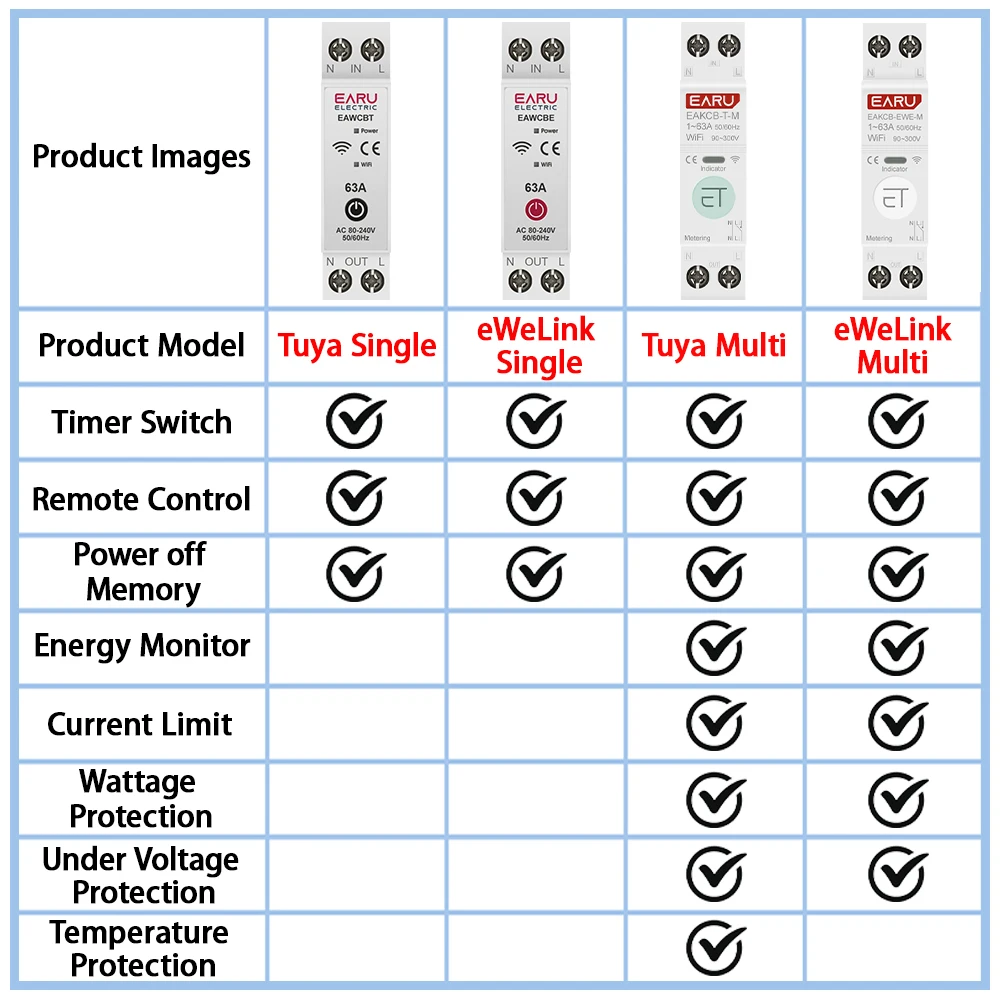

Tuya Single/eWeLink Single Functions:

1.Timer Switch

2.Remote Control ON/OFF

3.Power Failure Memory

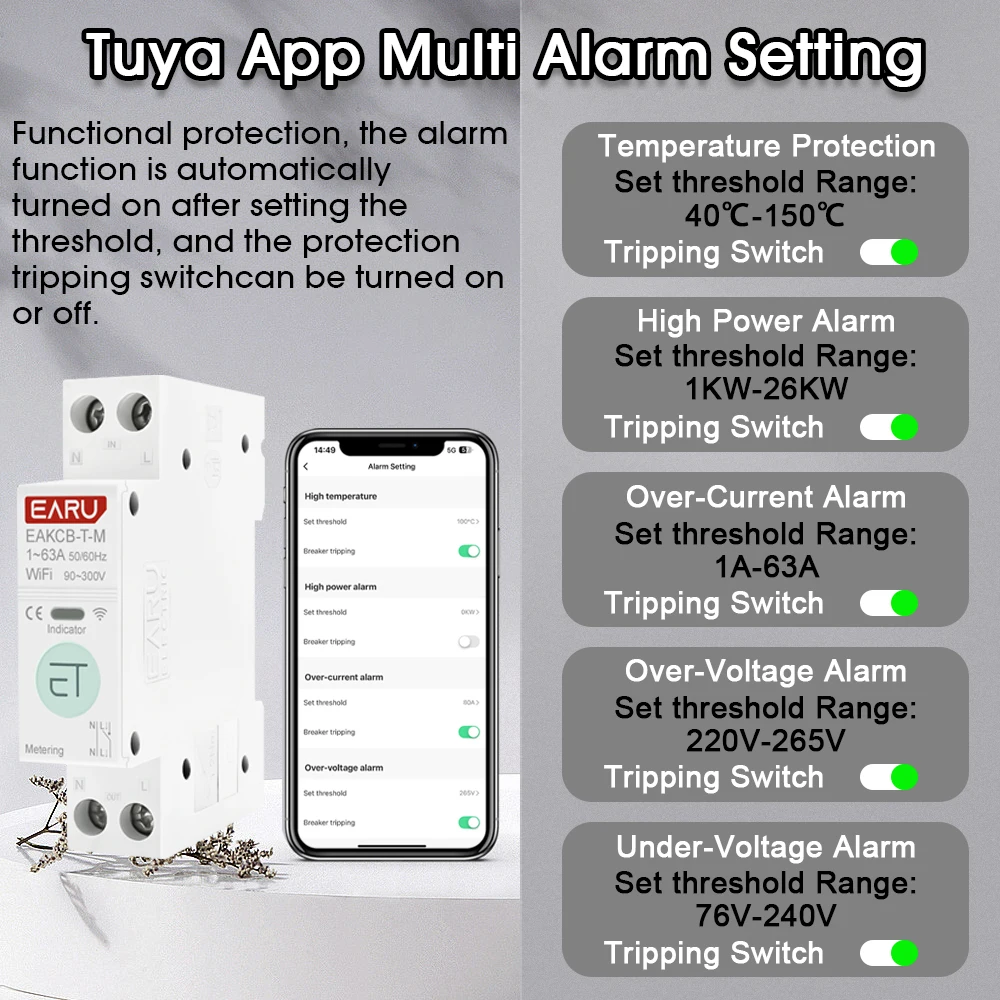

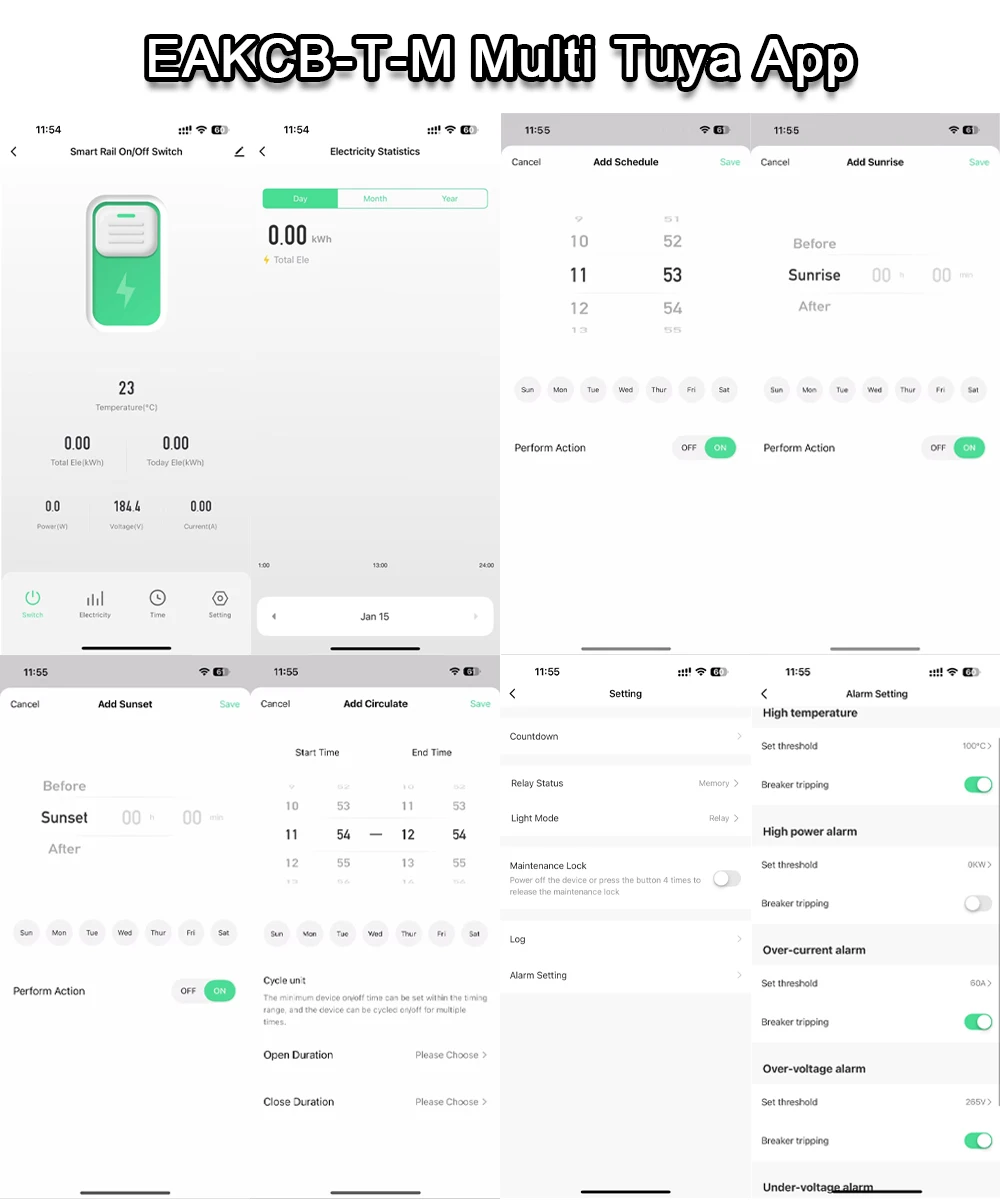

Tuya Multi Functions:

1.Current Limit(1A-63A Adjustable)

2.Power Limit(1KW-26KW Adjustable)

3.Over-Voltage Protection(220V-265V Adjustable)

4.Under-Voltage Protection(76V-240V Adjustable)

5.Temperature Protection(40℃-150℃ Adjustable)

6.Energy Monitor

7.Timer Switch

8.Remote Control ON/OFF

9.Power Failure Memory

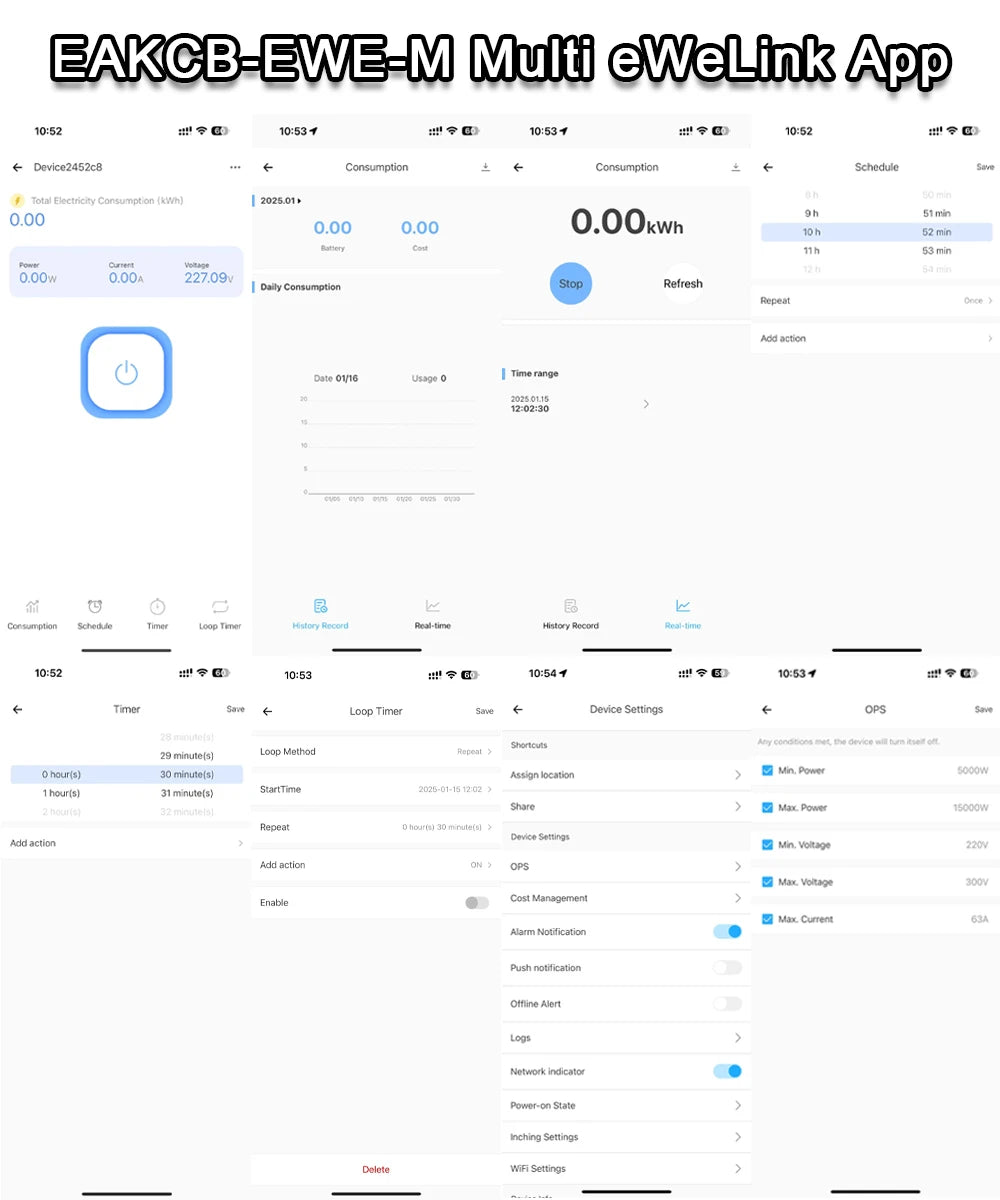

eWeLink Multi Functions:

1.Current Limit(0.1A-63A Adjustable)

2.Min.Power(1W-5000W Adjustable)

3.Max.Power(1W-15000W Adjustable)

4.Min.Voltage(76V-220V Adjustable)

5.Max.Voltage(220V-300V Adjustable)

6.Energy Monitor

7.Timer Switch

8.Remote Control ON/OFF

9.Power Failure Memory

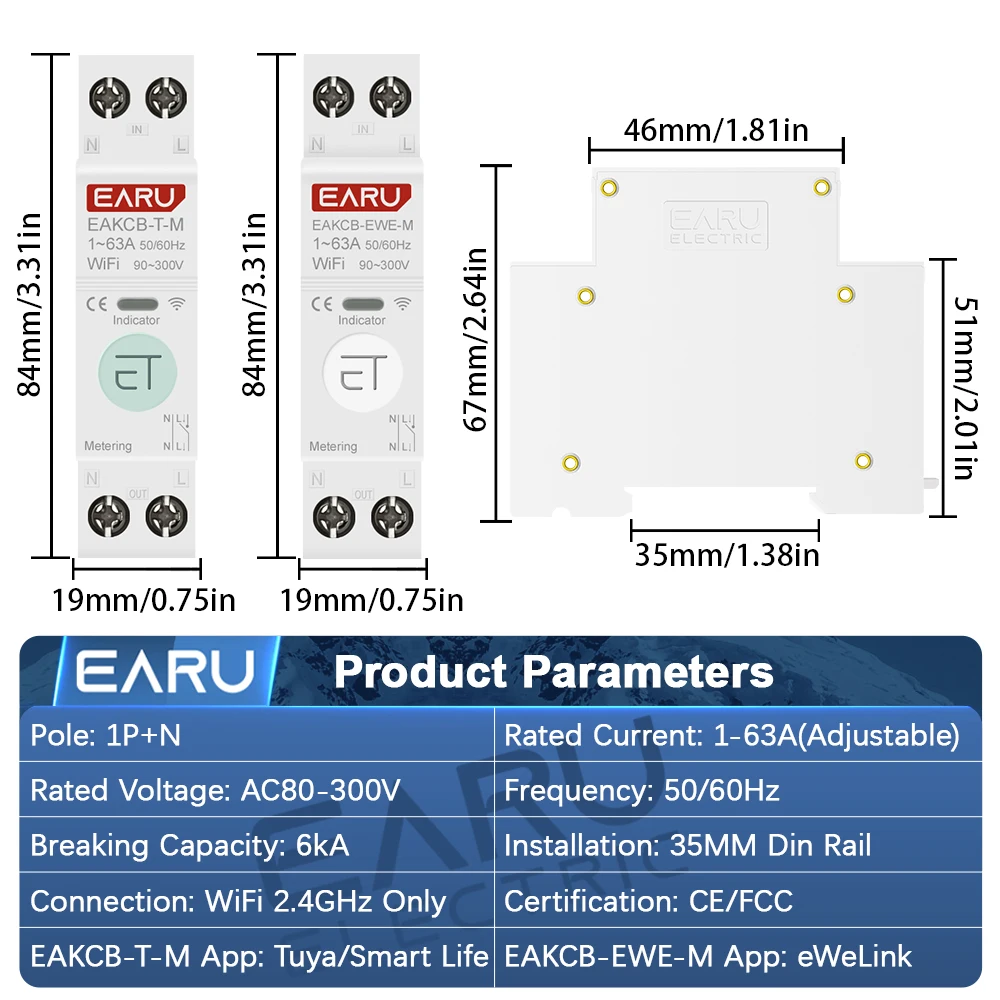

Specificaions:

Tuya/eWeLink Single Working Voltage: AC80V-240V, 50/60Hz

Tuya/eWeLink Multi Working Voltage: AC80V-300V, 50/60Hz

Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support

Support System: Android/IOS

Installation: 35MM Din Rail

Mechanical Life: Over 100000Times ON/OFF Switch

Voice Control by Amazon Alexa Echo/Google Assistant
