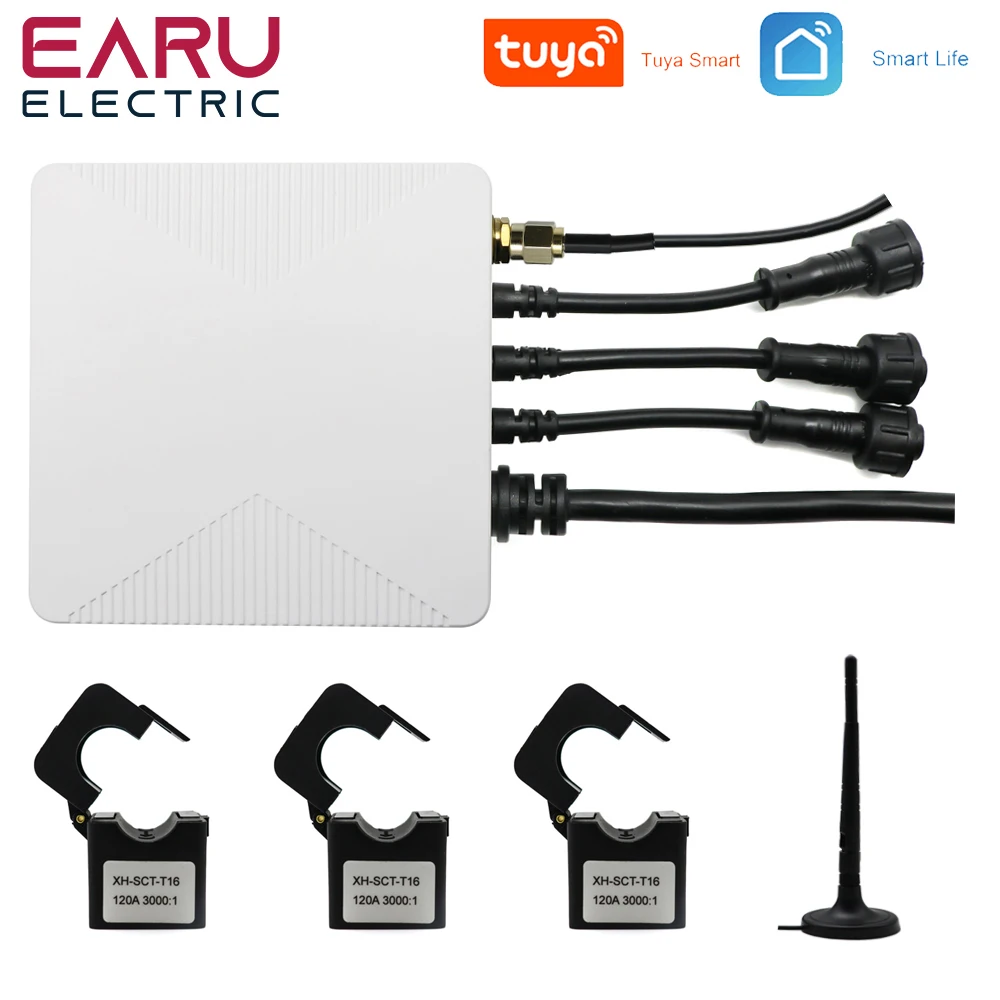

⚡ Tuya Smart Life 3 Phase WiFi Energy KWH Meter 80A 300A Power Clamp Current Transformer App Monitor and Record Power Consumption
Upgrade your system with our high-performance Tuya Smart Life 3 Phase WiFi Energy KWH Meter 80A 300A Power Clamp Current Transformer App Monitor and Record Power Consumption. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
Effortlessly monitor and record your energy consumption with the Tuya Smart Life 3 Phase WiFi Energy KWH Meter. This innovative device features a 80A-300A power clamp current transformer and a user-friendly app, providing accurate data on your power usage. Stay informed and save money on your energy bills.
SPECIFICATIONS
- Operating Voltage: 100-240V AC 50/60 Hz
- State of Assembly: Ready-to-Go
- Operating Humidity: 90% non-condensing
- Report Cycle: 5 seconds
- Wireless Frequency: 2.4GHz
- Brand Name: EARUELETRIC
- Model Number: PC321-TY
- Accuracy Class: 1%
- Dimensions: 86*86*37mm
- Operating Temperature: -20 ℃ - +55 ℃
- Power Supply: AC
- DIY Supplies: ELECTRICAL
When you install the CT , please note the CT's direction, make sure all 3 CT with the same direction.
Please follow the arrow's direction
Clamp Diameter
- 80A: 10.2mm
- 120A: 16mm
- 200A: 20mm
- 300A: 24.8mm
- 500A:37.5mm
- 750A:51mm
- 1000A:51mm
Note before Order
- It's high Amp item, and the device needs certified and professional electrician for wiring.
- The frequency of the wireless router is 2.4GHz.
We guarantee good quality, every product will be tested before delivery.
With External Antenna for Strong and Stable Signal
3 phase wiring diagram and single phase wiring diagram
You can choose the wiring connection according to your need, please refer to below.
Please make sure the main power is off when you make the connection
Principais características:
- Single eletricidade monofásica/3-fase compatível
- Transtrês transformadores atuais para a aplicação da fase monofásica
- Measures mede tensão em tempo real, corrente, powerfactor, activepower e
Consumo total de energia
- Display exibir a temperatura do dispositivo no aplicativo
- Suitable adequado para aplicações residenciais e comerciais
- Informações de segurança importantes:
- Clamp the a braçadeira de alimentação deve ser instalada e servida apenas por um qualificado Pessoal elétrico.
- During não toque nos terminais do dispositivo durante o teste.
- Turn turn desligue toda a fonte de alimentação para este equipamento antes de instalar.
- Use use sempre um dispositivo de detecção de tensão devidamente avaliado para confirmar que a energia está desligada.
- Replace replace substitua todos os dispositivos, portas e tampas antes de aplicar energia ao
- Equipamento de construção.
- Não seguir estas instruções resultará em morte ou grave Uma lesão.
