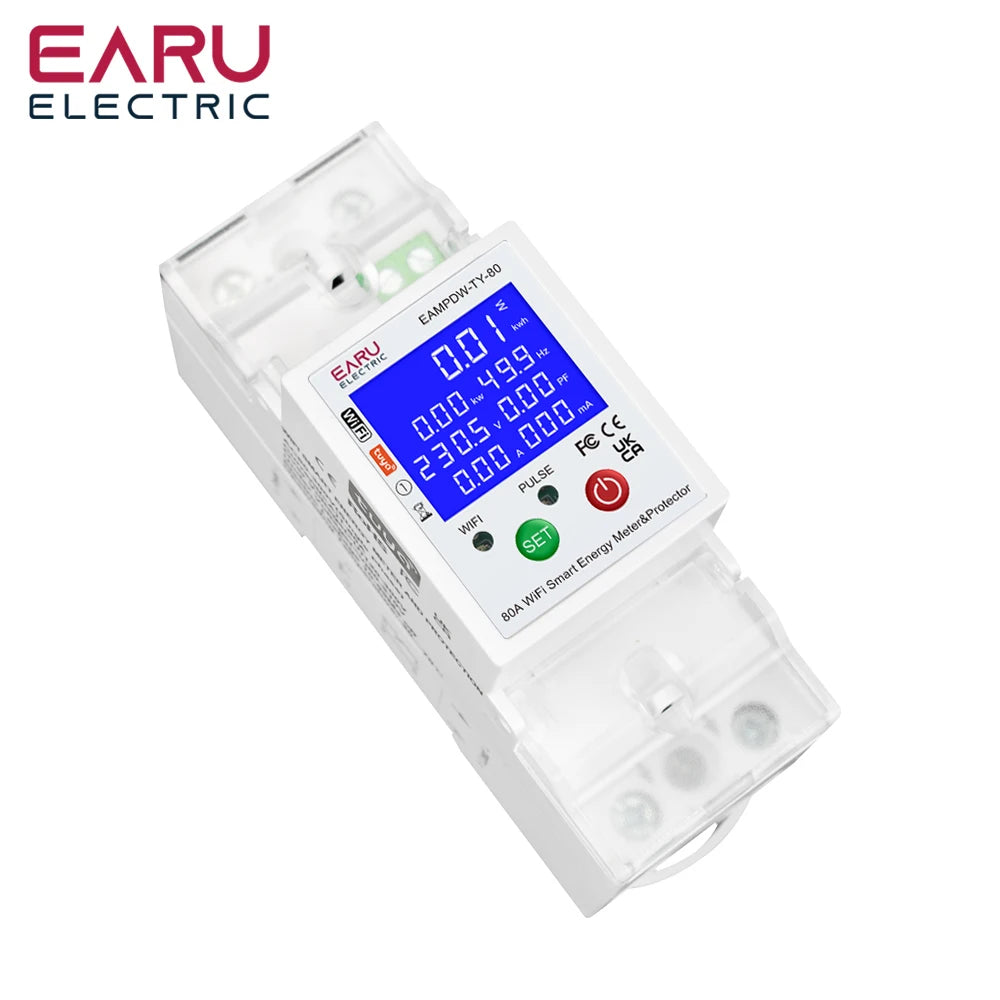

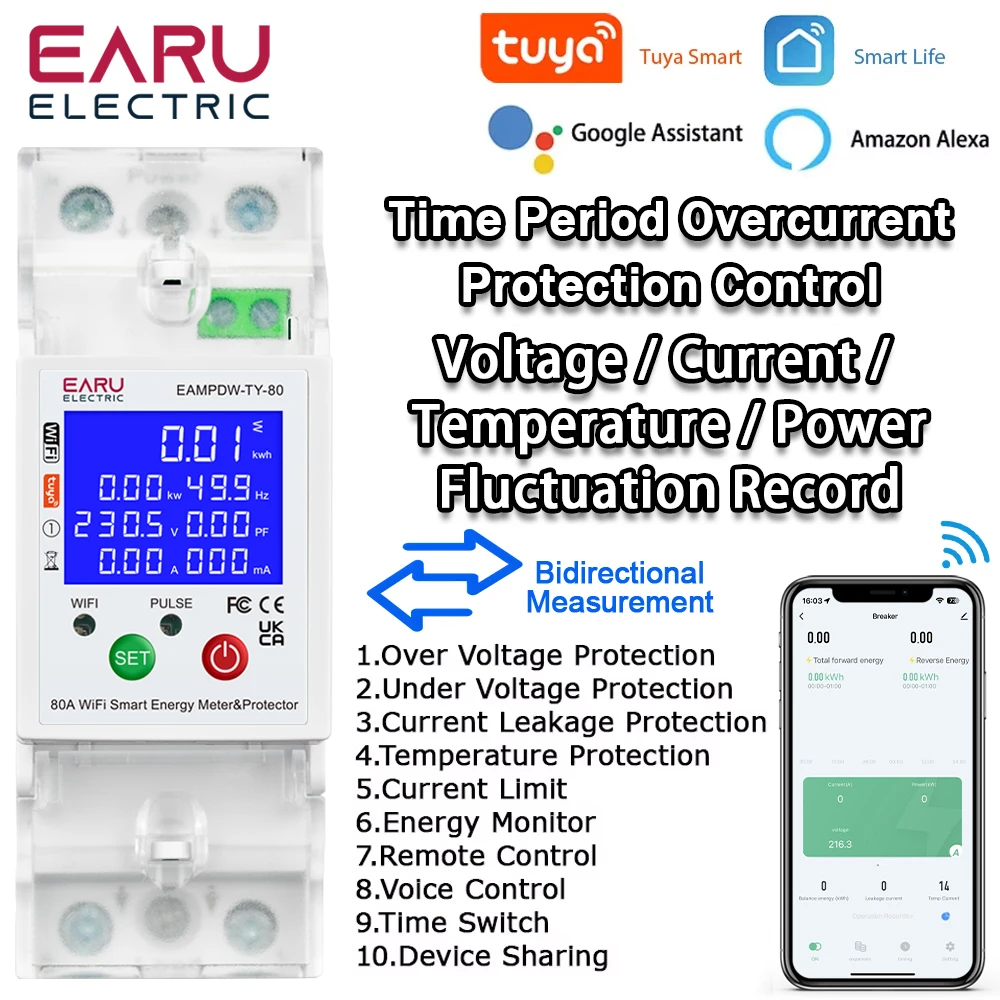

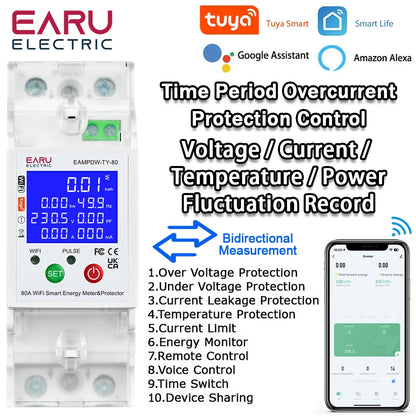

Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector
Tuya Smart WiFi Circuit Breaker Switch PV Bi-Directional Energy Meter Timer Measuring Earth Leakage Over Under Voltage Protector
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Accuracy Class: ±1%
Battery Included: No
Brand Name: EARU
Certification: CE
Choice: yes
DIY Supplies: Electrical

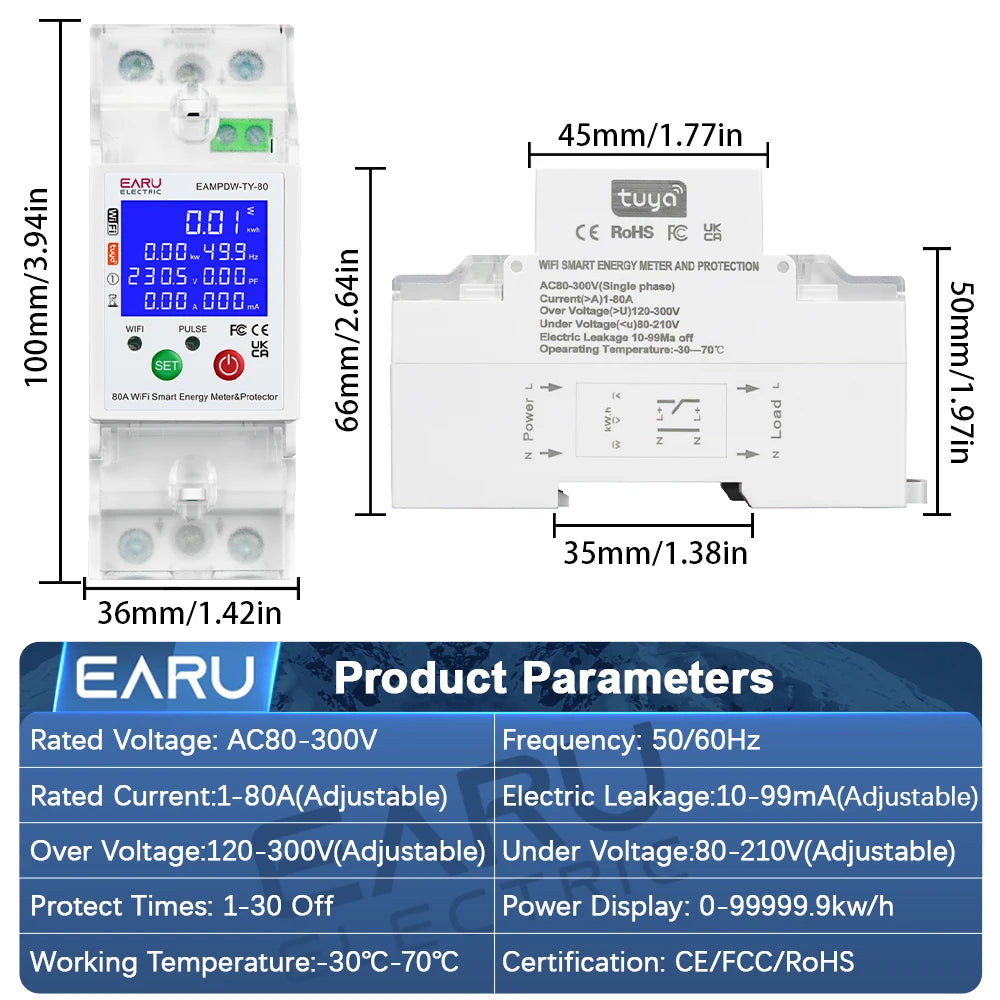

Dimensions: 100*36*66mm
Display Type: LCD
Function 1: Under Current Protection
Function 10: Time period overcurrent protec
Function 11: Circuit Breaker
Function 2: Over Voltage Protection
Function 3: Under Voltage Protection
Function 4: Leakage Protection
Function 5: Electricity Metering
Function 6: Temperature Protection
Function 7: Voltage Meter
Function 8: Ammeter
Function 9: BI-Direction Measuring
High-concerned chemical: None

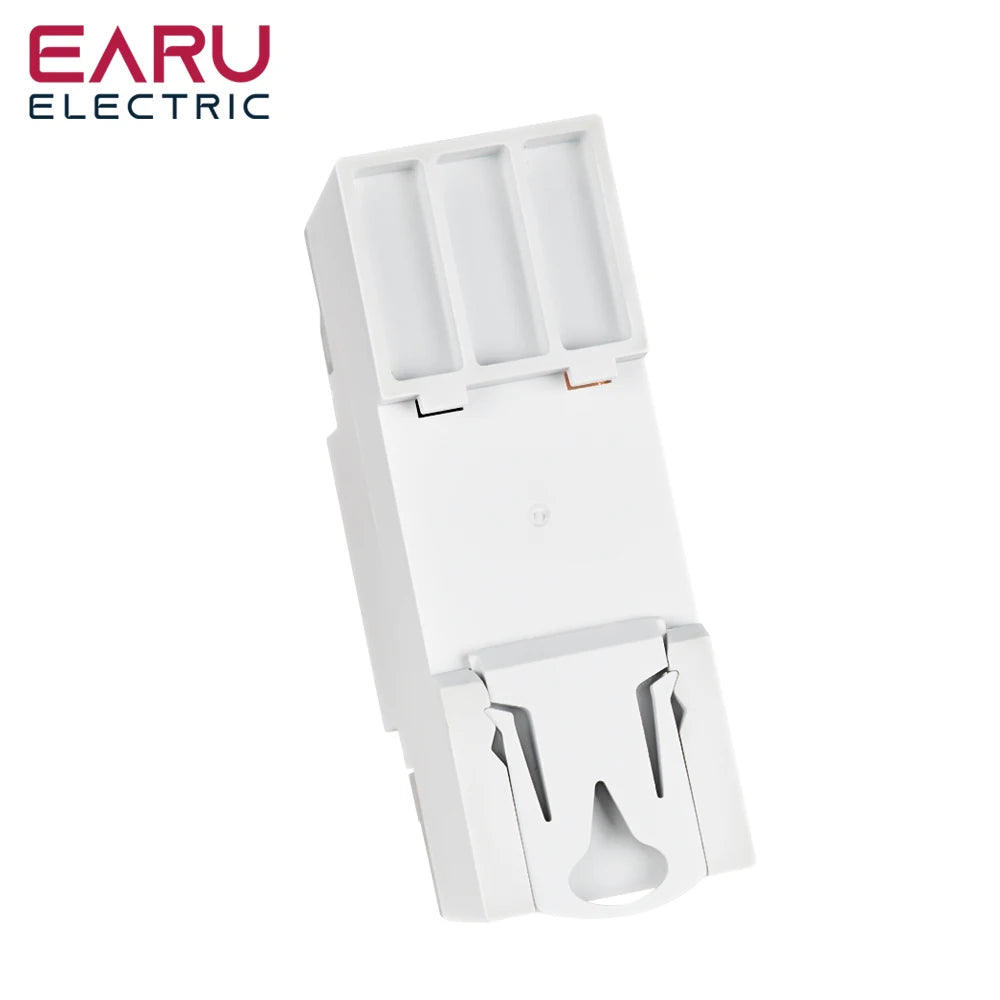

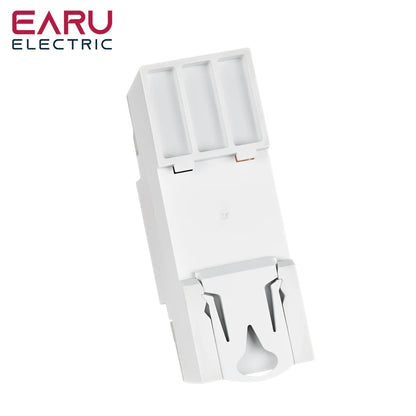

Installation: 35MM Din Rail
Leakage Protector Setting Range: 10-99mA (Adjustable)
Max Operating Current: 80A - 99A
Measuring Energy Range: 0-99999.9kw/h
Model Number: EAMPDW-TY-80
Operating Temperature: -30~70°C
Operation Voltage Range: AC80V-300V(Single Phase)
Origin: Mainland China
Output Contact: 1NO
Over Voltage(>U): 120V-300V (Adjustable)
Phase: single phase
Power Display Range: 0-99999.9kw/h
Power Source: DC
Power Supply: AC
Protection Degree: IP20
Rated Current: 1-80A(adjustable)
Rated Frequency: 50/60Hz
Rated Supply Voltage: AC110V/230V
Rated Voltage: 220V
Reset/start Delay: 10s-99s(Adjustable)
Temperature Measurement: 10-85°C(Adjustable)
Under Voltage(: 80V-210V (Adjustable)
semi_Choice: yes
We are factory, we can provide OEM service, if you need product with your logo, please contact us!
Rated Voltage: AC80-300V(Single Phase) ; Frequency: 50Hz/60Hz

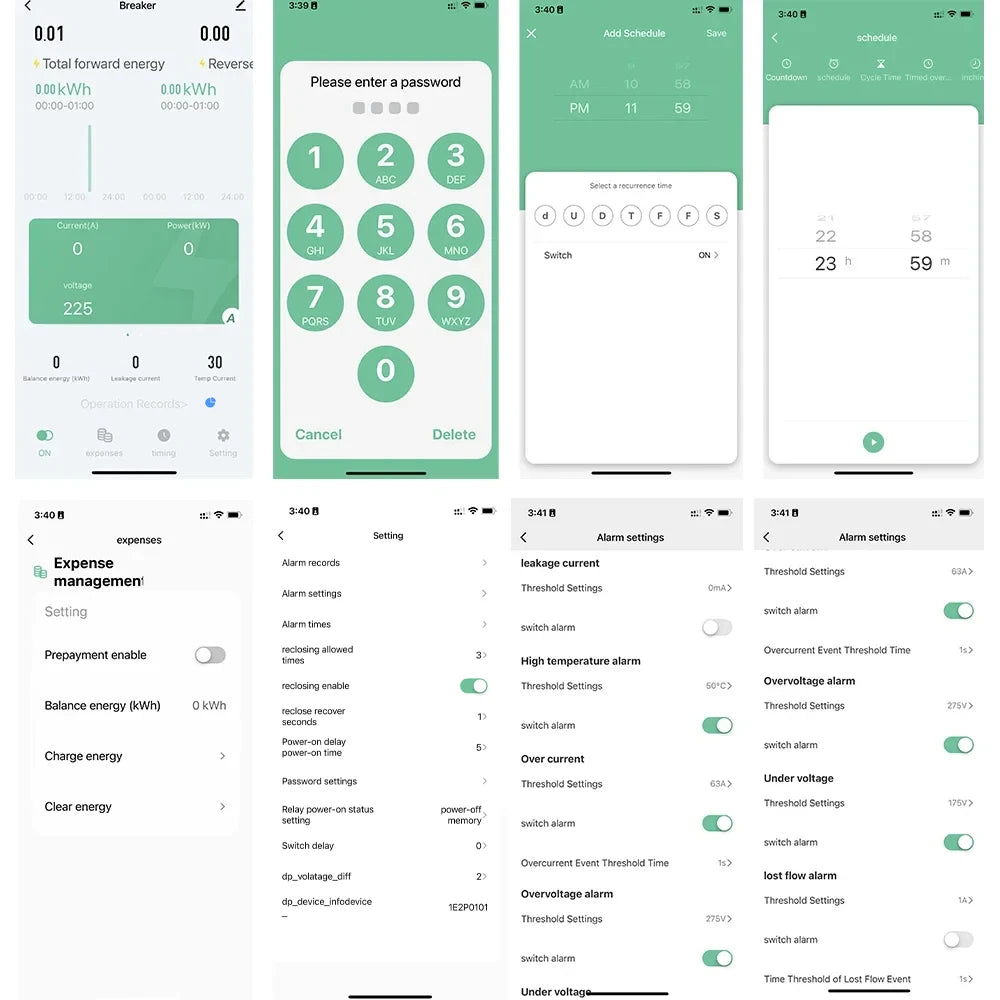

Function:
1. Voltage Meter
2. Ammeter
3. Energy Meter
4. Timer Switch
5. Remote Control ON/OFF
6. Power Failure Memory

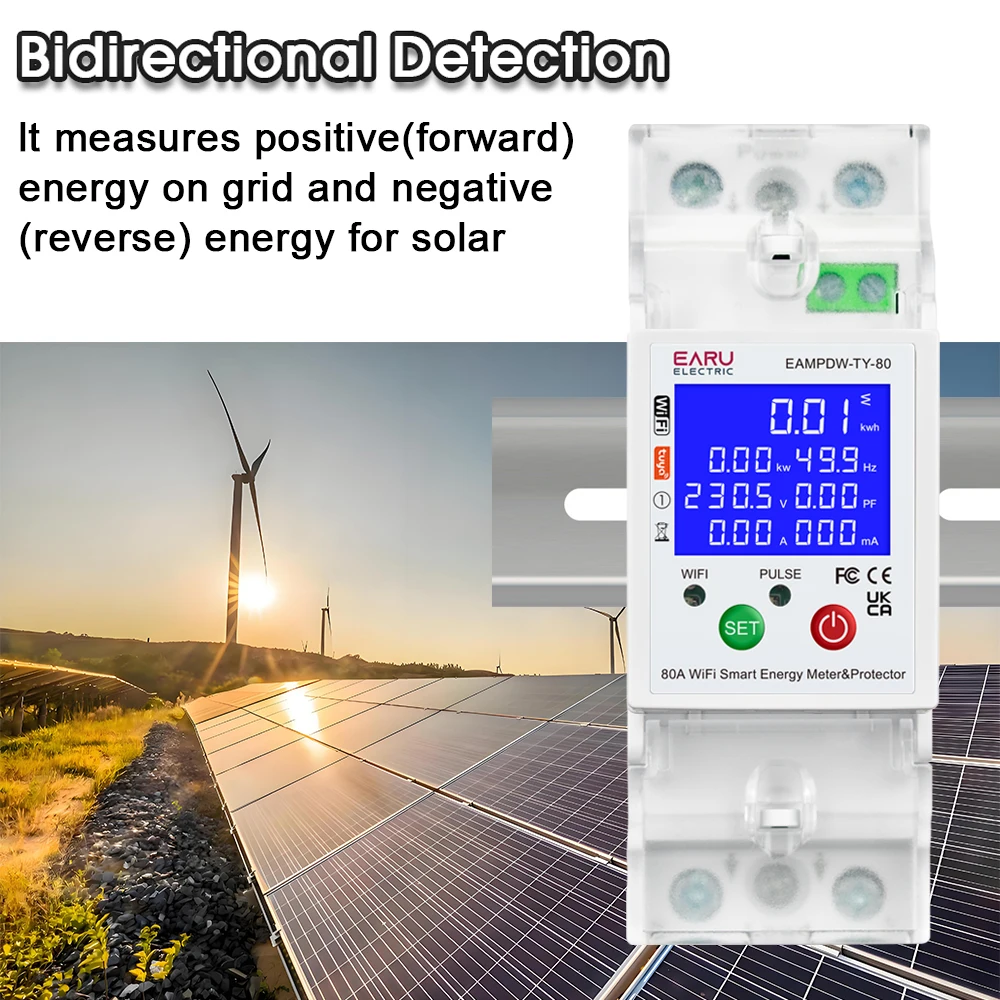

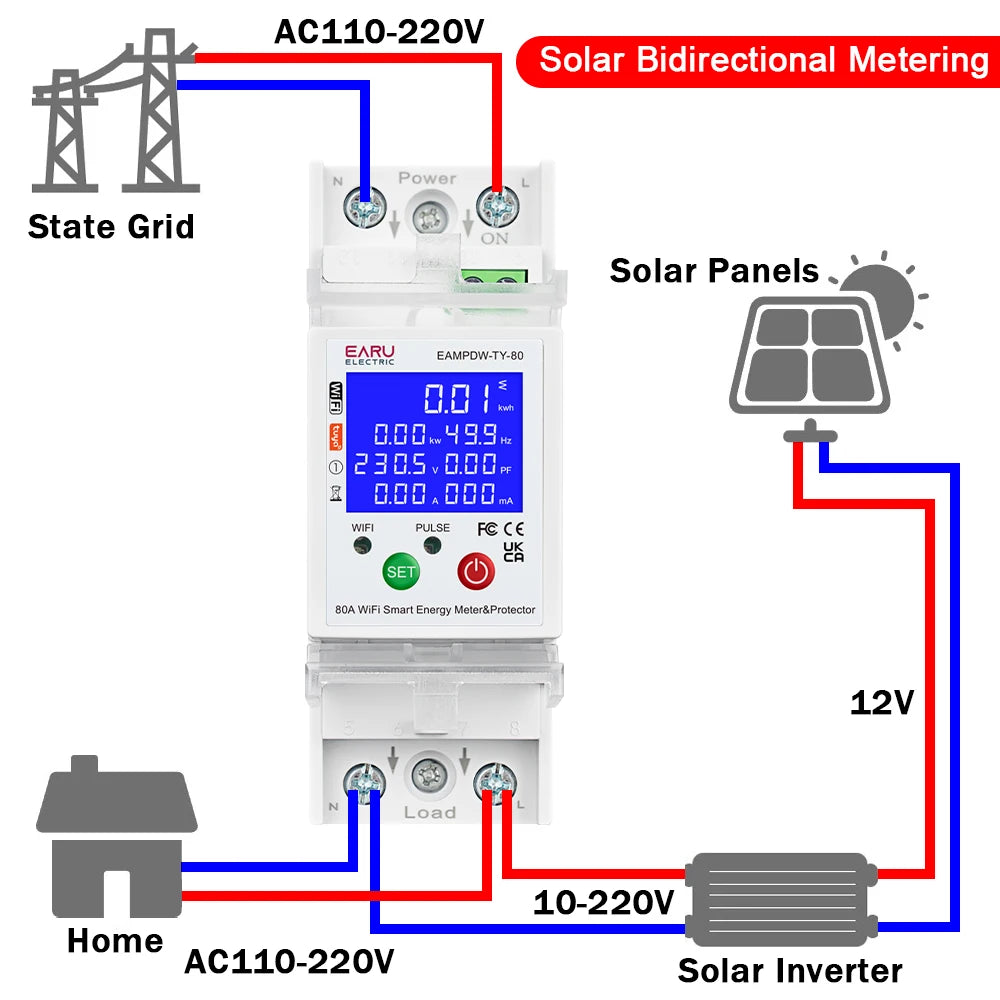

7. Bidirectional Detection

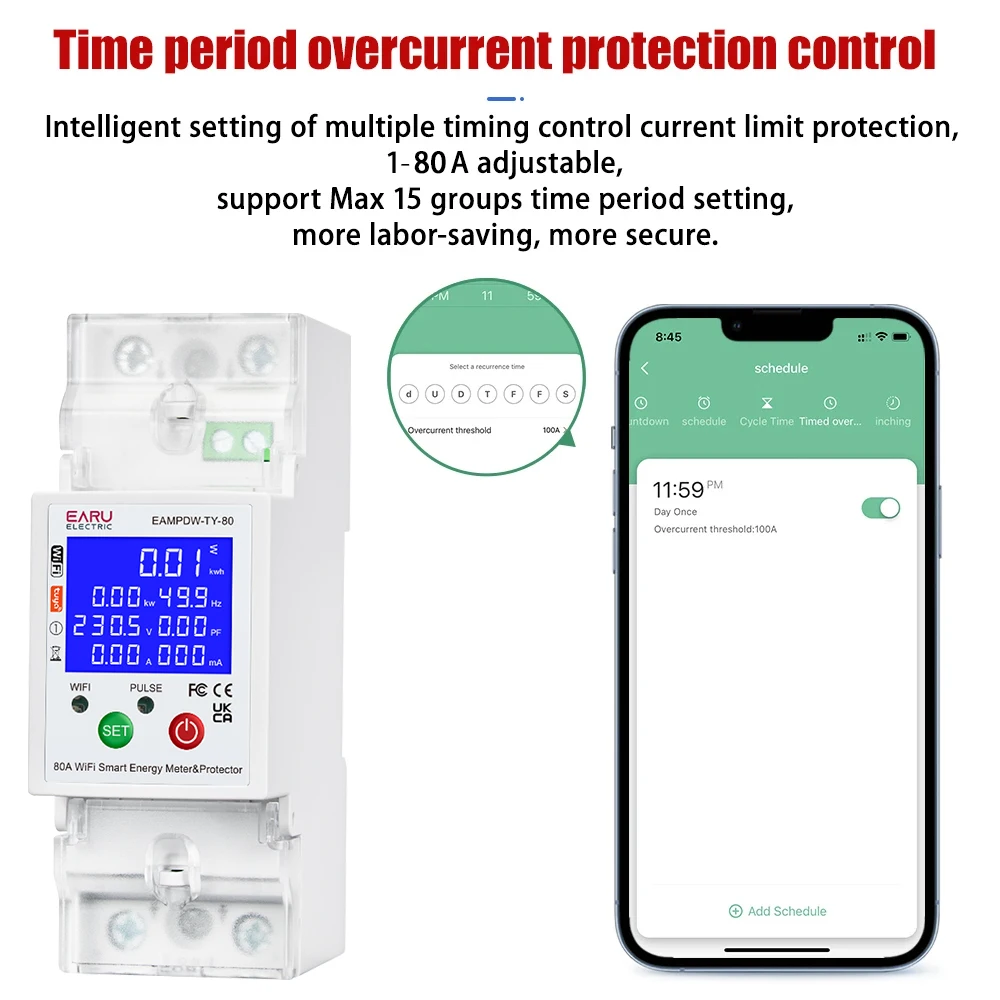

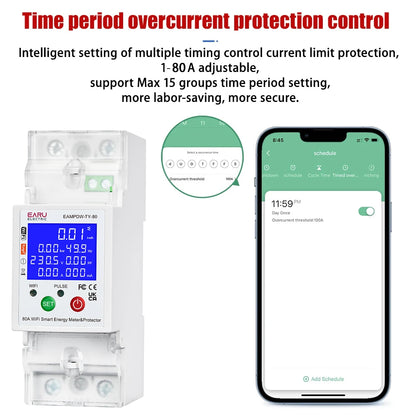

9. Time Period Overcurrent Protection Control (1A-100A Aadjustable)
10. Under-Voltage Protection (76V-240V Adjustable)
11. Over-Voltage Proteciton (120V-300V Adjustable)
12. Current Leakage Protection (10mA-99mA Adjustable)
13. Temperature Protection (10°C-85°C Adjustable)
14. Over Current and Leakage Reconnect Times (1-30 Adjustable)
15. Reconnect Time (Delay on time) (10s-90s Adjustable)
16. Reset/restore power consumption data to factory

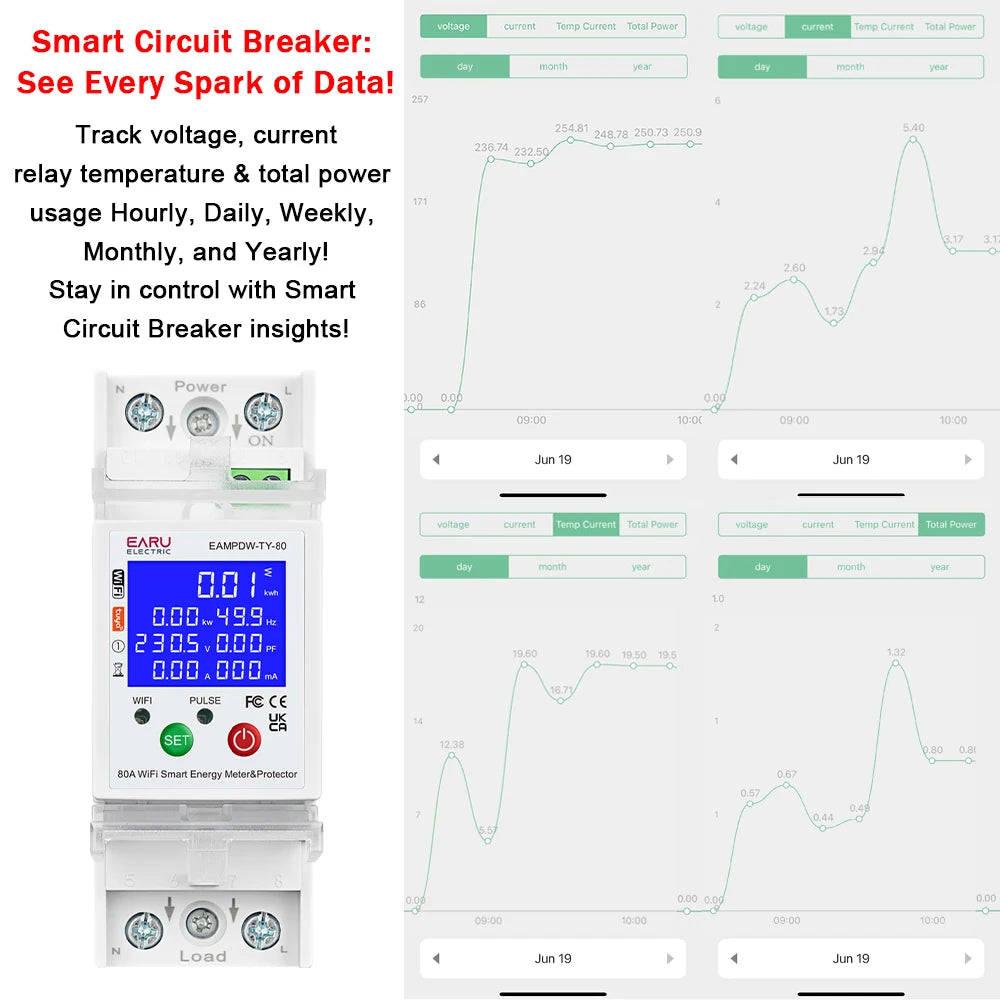

17.Voltage/Current/Temperature/Power fluctuation curve recording
