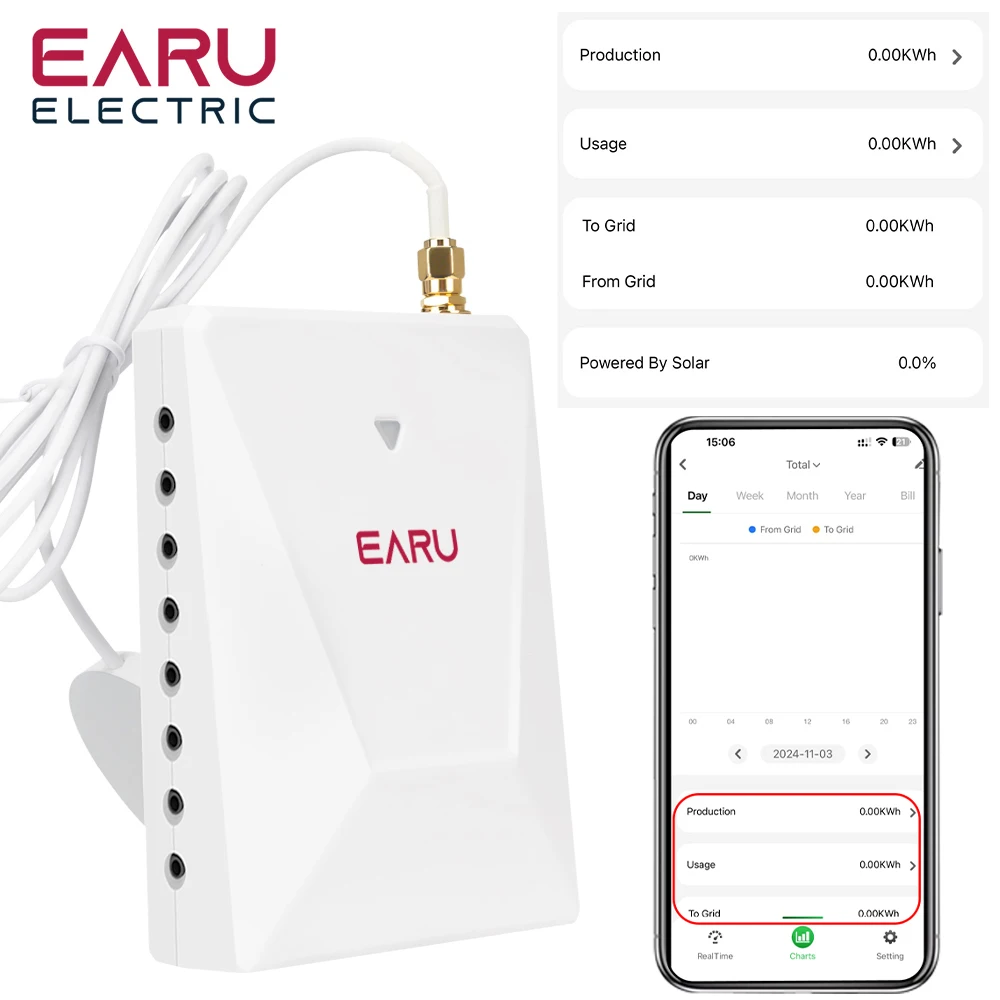

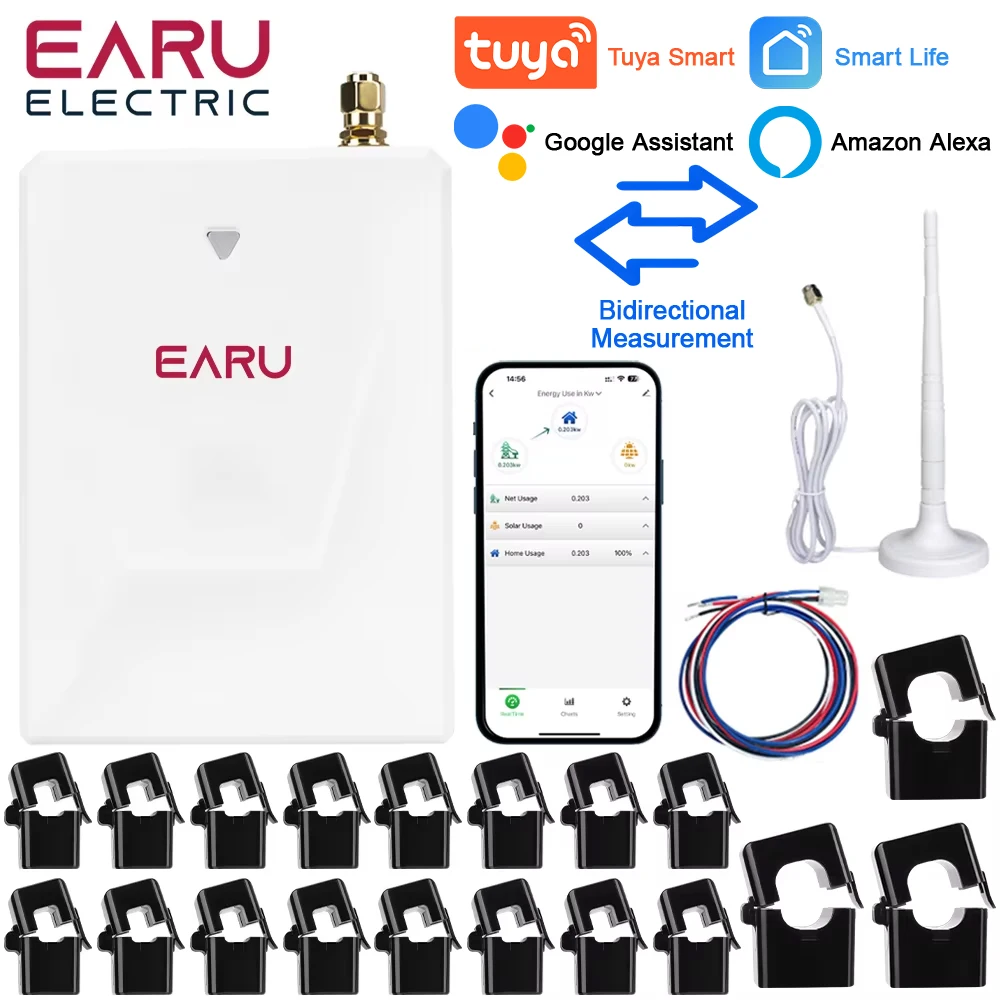

Tuya Smart WiFi Multi-Circuit 19 Channels Bi-Directional Power Energy kWh Meter Monitor AC90-480V 200A 300A with 19PCS CT Clamps
Tuya Smart WiFi Multi-Circuit 19 Channels Bi-Directional Power Energy kWh Meter Monitor AC90-480V 200A 300A with 19PCS CT Clamps
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Accuracy Class: ±2%
Battery Included: No
Brand Name: EARU
Certification: CE,FCC
Choice: yes
DIY Supplies: Electrical

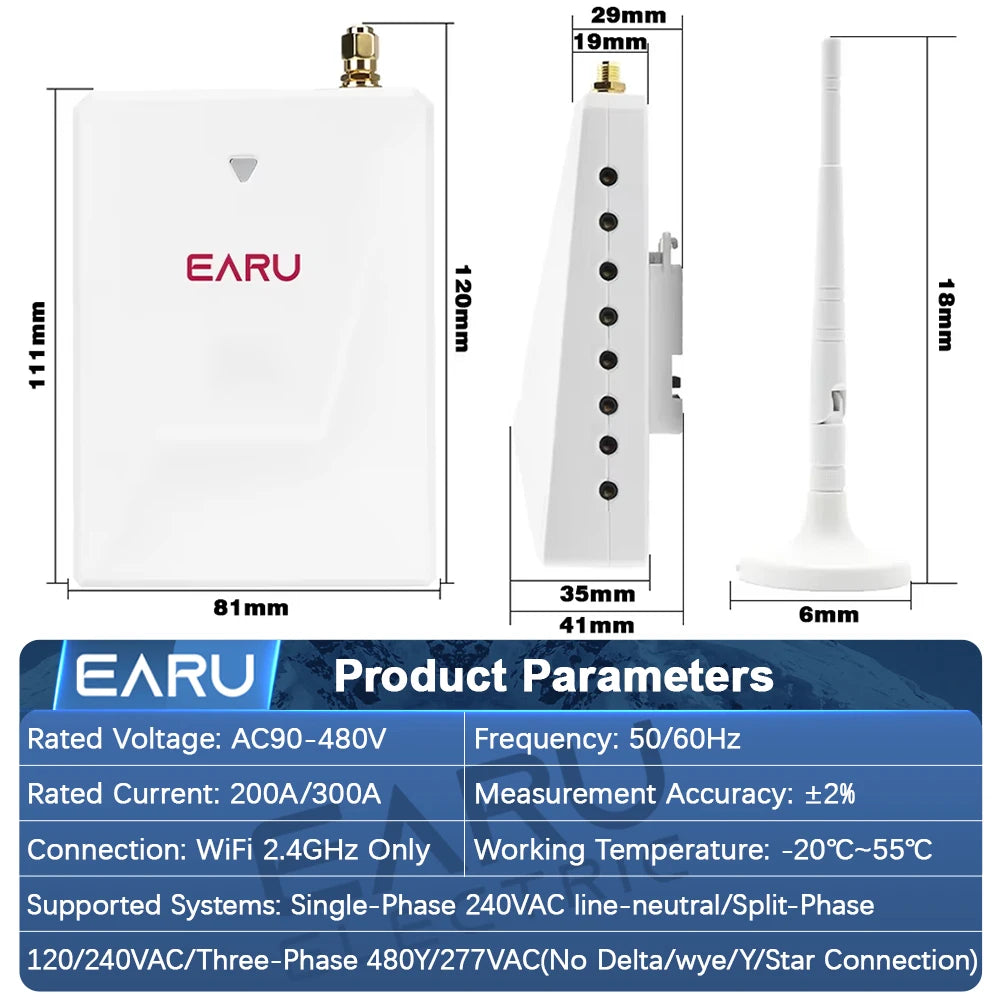

Dimension: 111.3(L) x 81.2(W) x 41.4(H) mm
Dimensions: 6.5*28*20.5cm
High-concerned chemical: None
Humidity: ≤ 90% non-condensing
Max Operating Current: 150A & Above
Model Number: EASEM-D-TY
Operating Temperature: -20℃~+55℃
Operating Voltage: 90~480 Vac 50/60 Hz
Operating frequency: 2.4GHz
Origin: Mainland China
Phase: Three Phase
Power Supply: AC

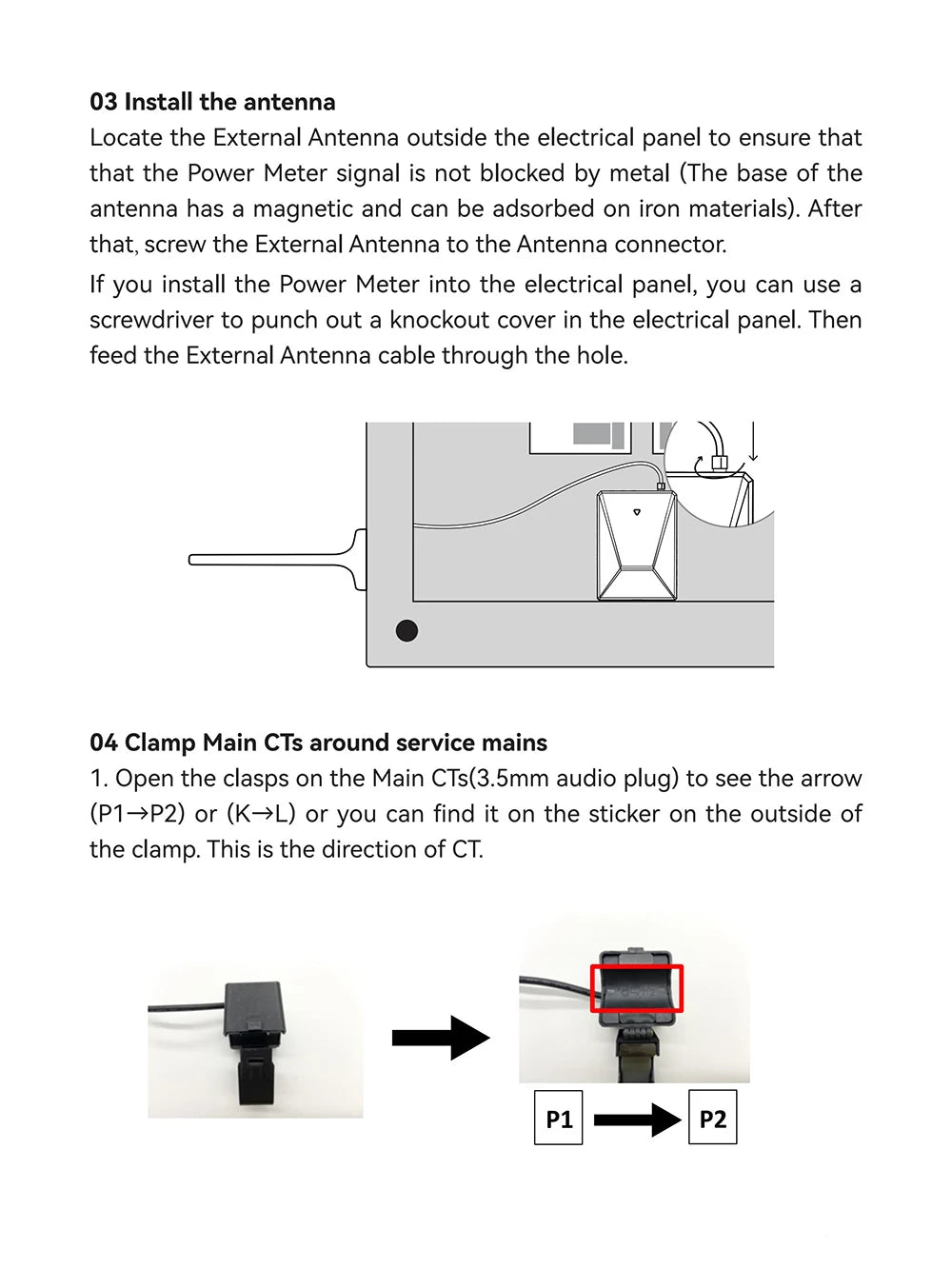

RF Characteristics: External magnetic antenna
Reporting Cycle: Every 15 seconds

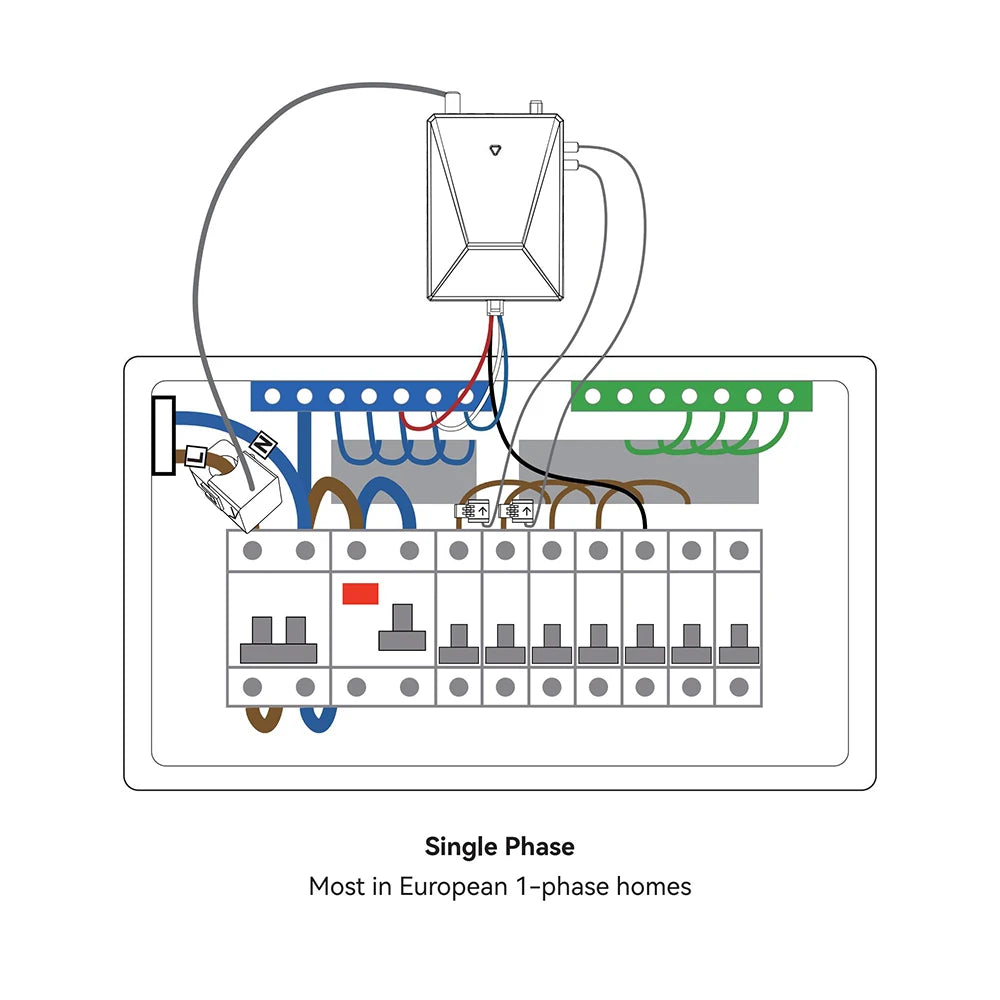

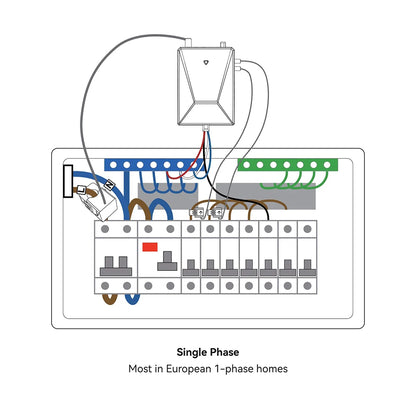

Supported Systems 1: Single-Phase up to 277VAC line- neutral

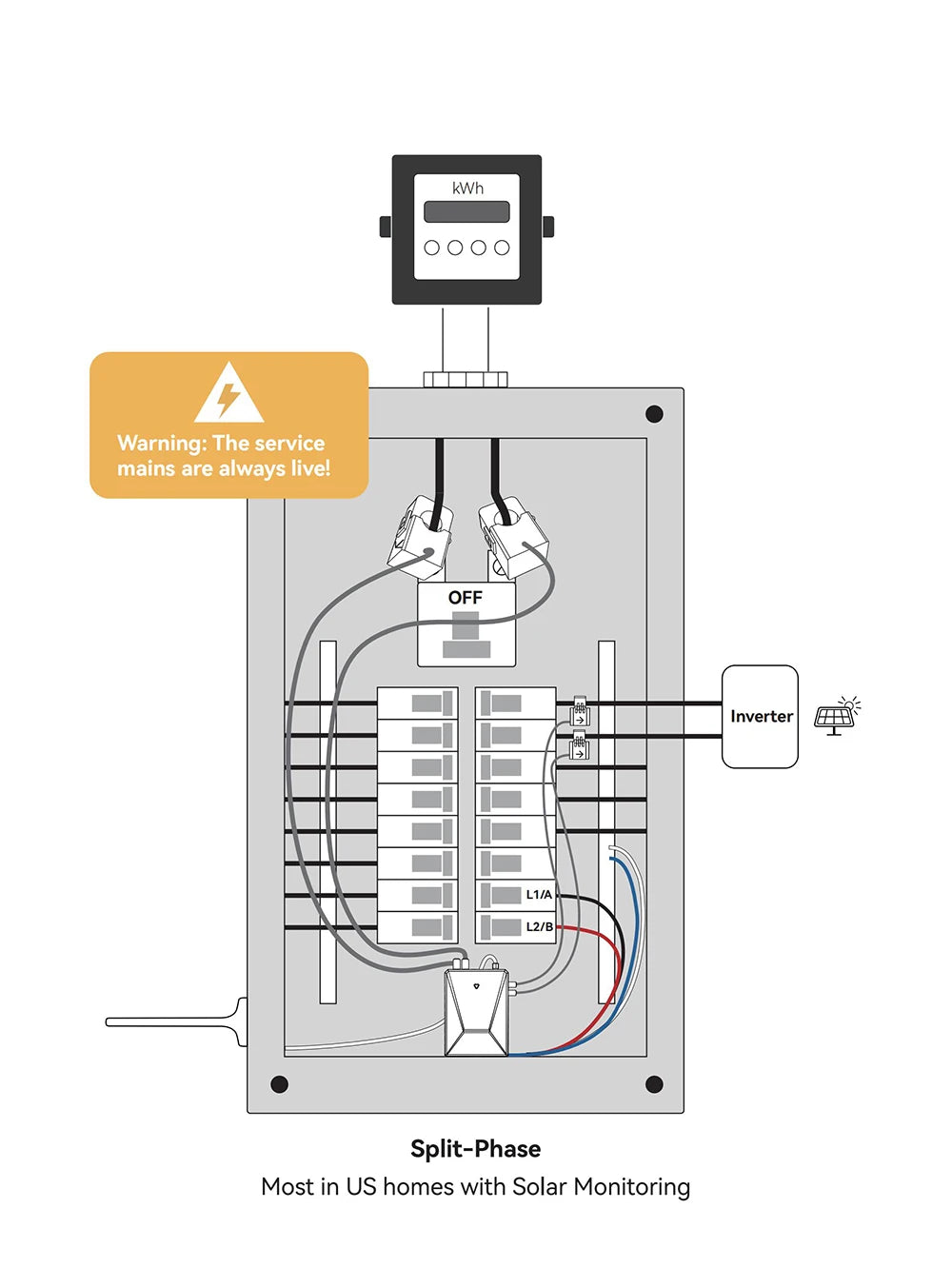

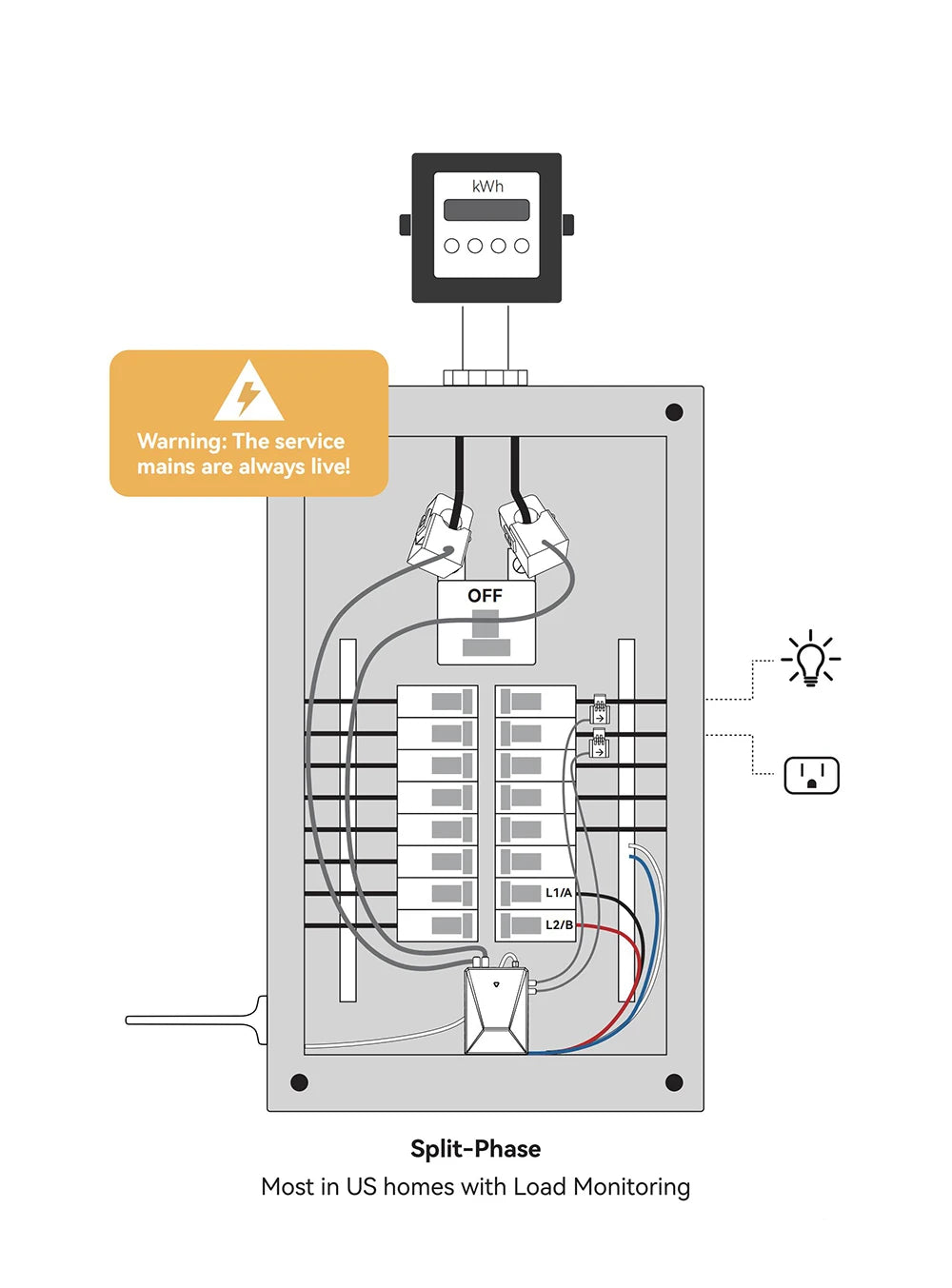

Supported Systems 2: Split-Phase 120/240VAC

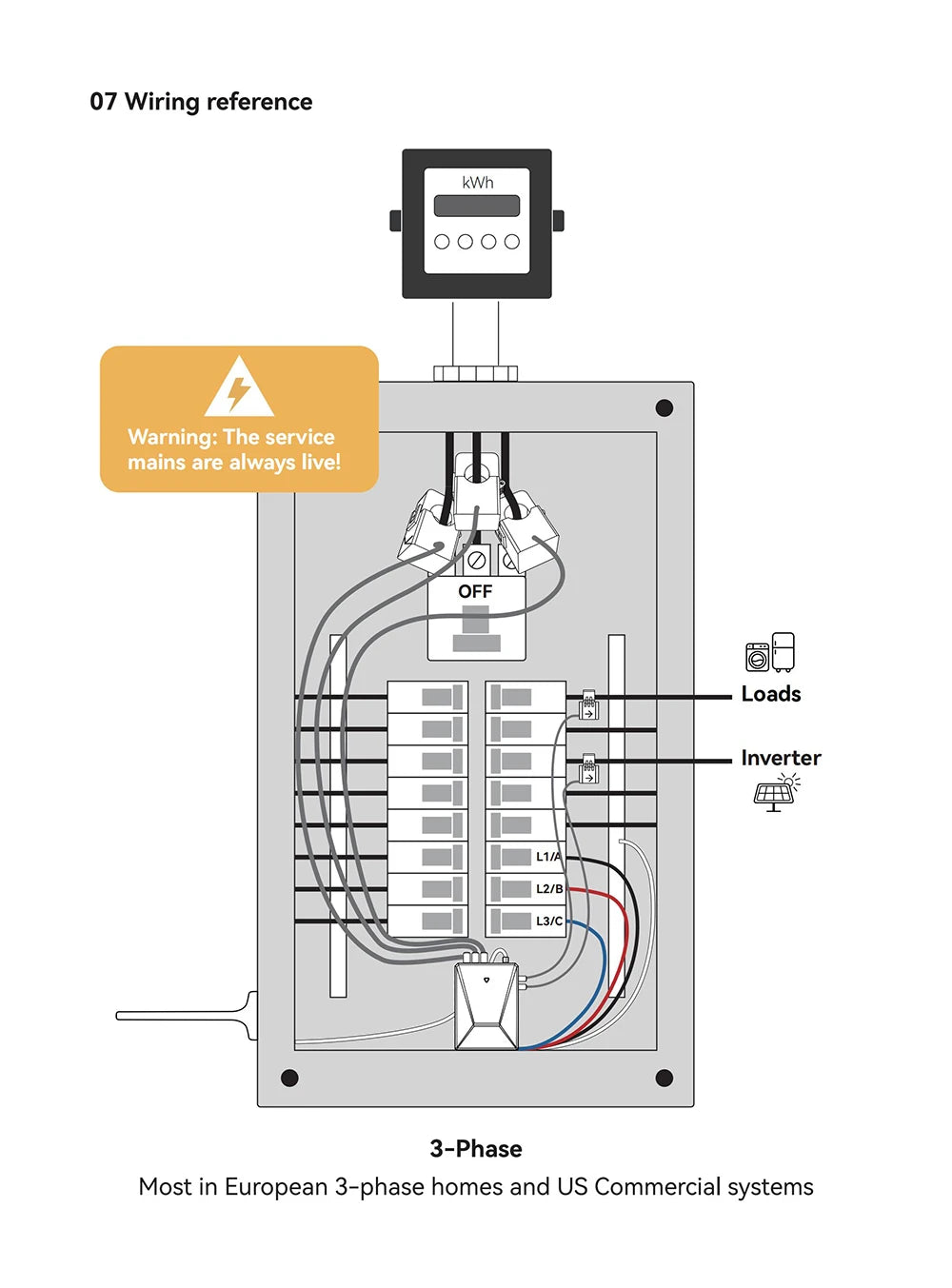

Supported Systems 3: Three-Phase up to 480Y/277VAC (No Delta/wye/Y/Star Connection)
Wi-Fi: 802.11 b/g/n @2.4GHz
semi_Choice: yes

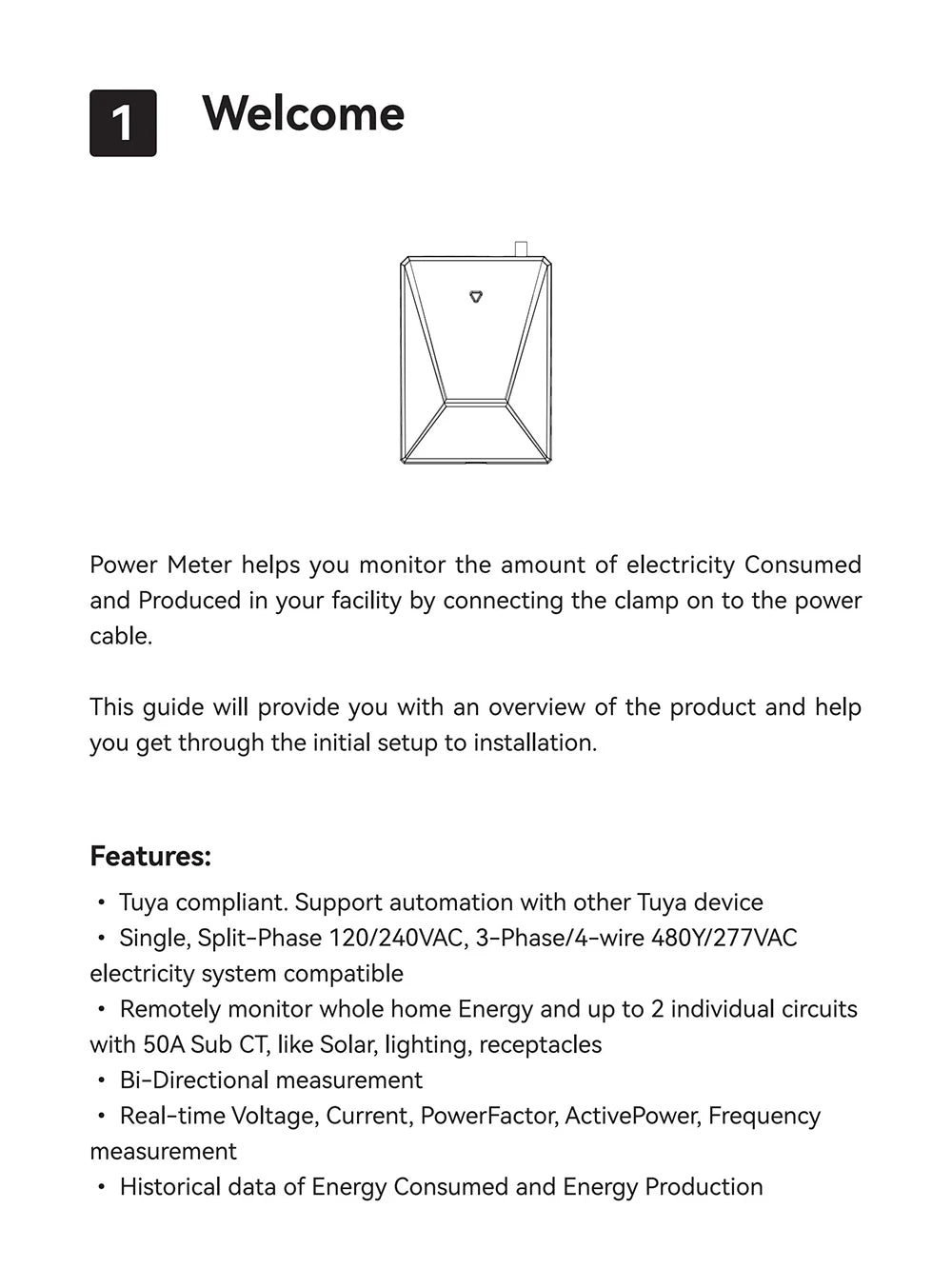

Features:
·Tuya compliant. Support automation with other Tuya device
·Single, Split-Phase120/240VAC,3-Phase/4-wire 480Y/277VAC
electricity system compatible

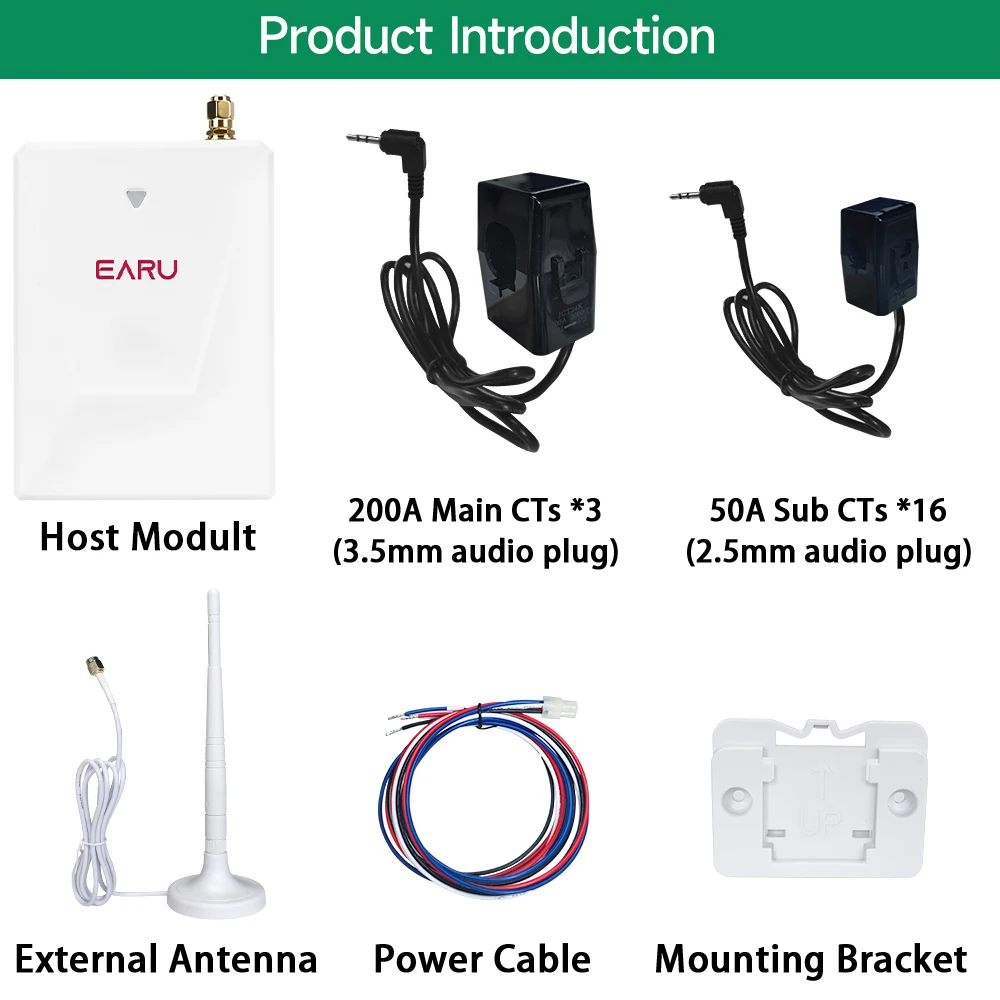

·Remotely monitor whole home Energy and up to 16 individual circuits
with 50A Sub CT, like Solar, lighting, receptacles
· Bi-Directional measurement
·Real-time Voltage, Current, PowerFactor, ActivePower, Frequency
measurement

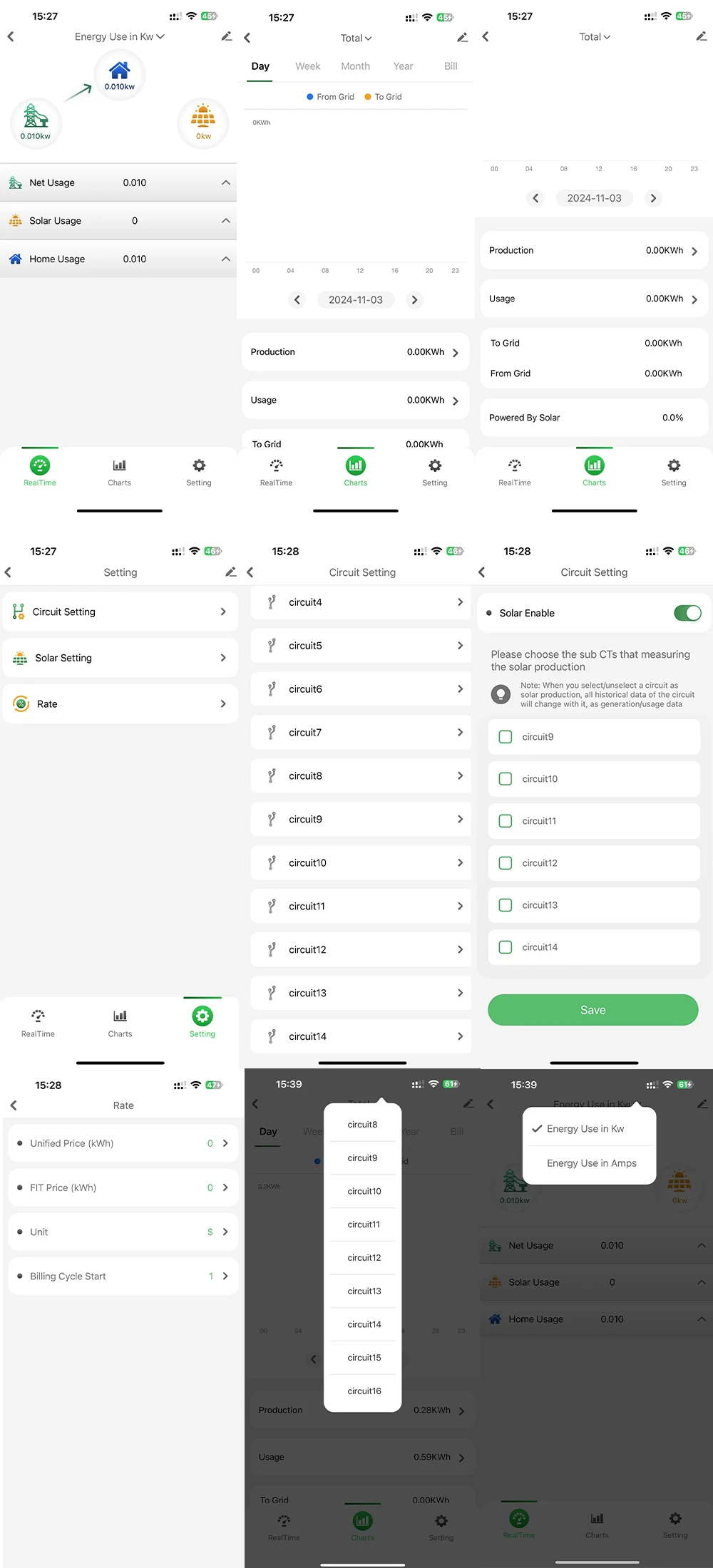

·Historical data of Energy Consumed and Energy Production
