Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Current
Tuya WiFi Smart Bidirectional Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Timer Relay Switch Current
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Accuracy Class: 1%
Battery Included: No
Brand Name: EARU
Certification: CE,FCC,RoHS,KC
Choice: yes
DIY Supplies: Electrical

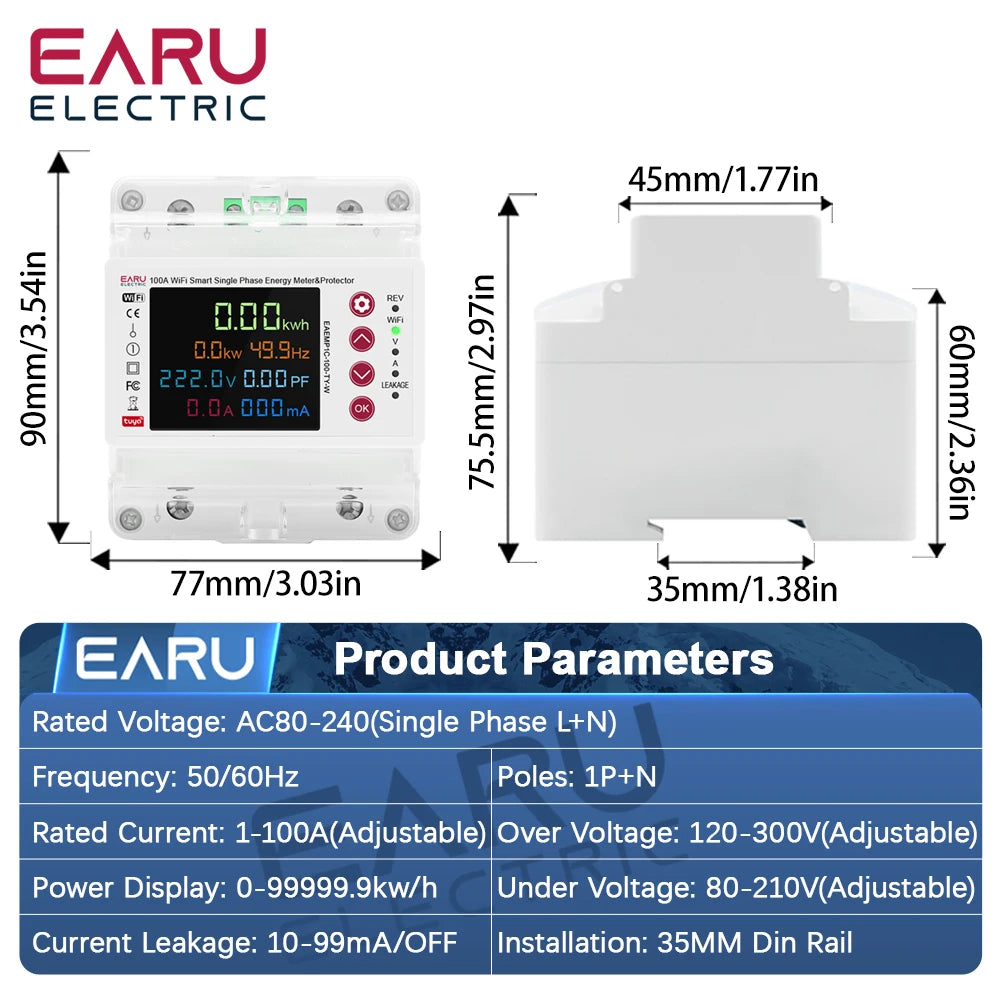

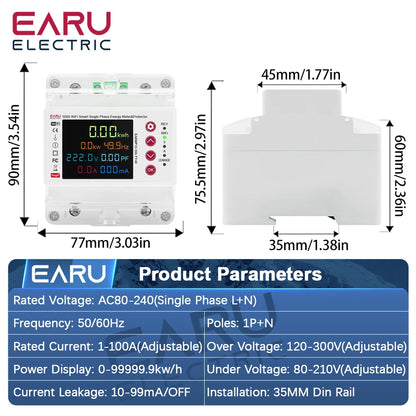

Dimensions: 90*77*75.5mm

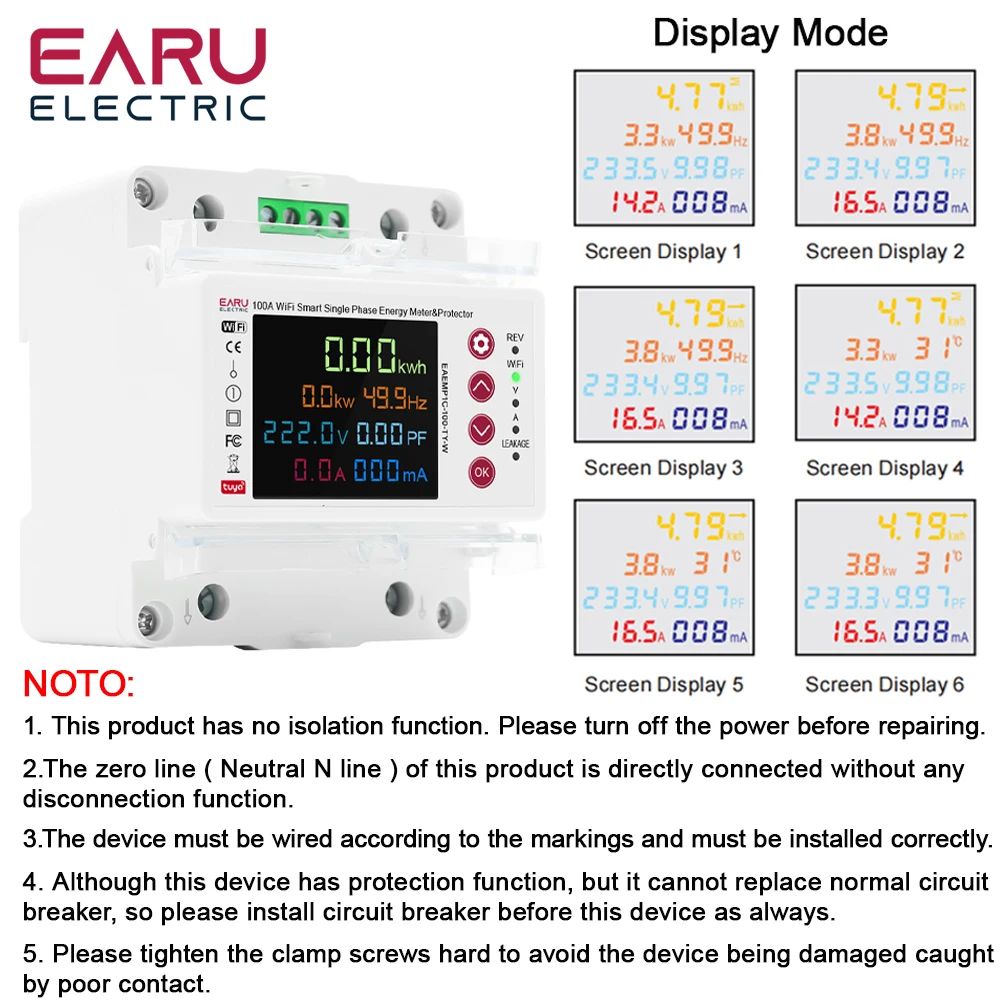

Display Type: LCD
High Temperature Alarm: 10℃-85℃ (Adjustable) (Default:85℃)
High-concerned chemical: None
Leakage Current Limit: 10-99A (Adjustable)(Default:30mA)
Lost Current Recovery Delay Time: 1-9999s (Adjustable)(Default:20s)
Max Operating Current: 80A - 99A
Measuring Energy Range: 0-9999999.99kWh
Model Number: EAEMP1C-100-TY-W
Operating Temperature: -30℃~70℃
Operation Voltage: AC80V-300V(Single Phase)
Origin: Mainland China
Over & Under Current Protection Delay: 0000-9999s (Adjustable) (Default:5s)
Over & Under Current Protection Recovery Time: 0000-9999s (Adjustable)(Default:20s)
Over & Under Voltage Protection Recovery Time: 1-9999s (Adjustable) (Default:20s)
Over Current Limit: 1-100A (Adjustable)(Default:80A)
Over Voltage Limit: 120-300V (Adjustable) (Default:275V)
Phase: single phase
Power Supply: AC
Rated Voltage: 220V
Time Threshold of Lost Flow Event: 1-999s (Adjustable) (Default:10s)
Under & Over Voltage Protection Delay: 1-9999s (Adjustable) (Default:3s)
Under Current Limit: 1-100A (Adjustable) (Default:10A)
Under Voltage Limit: 80-210V (Adjustable) (Default:175V)
semi_Choice: yes
Our factory can provide OEM service to manufacture this device with your brand, logo, if you get any need, feel free to contact the buyer!
Product Specification
Rated Voltage: AC220V; Frequency: 50Hz/60Hz

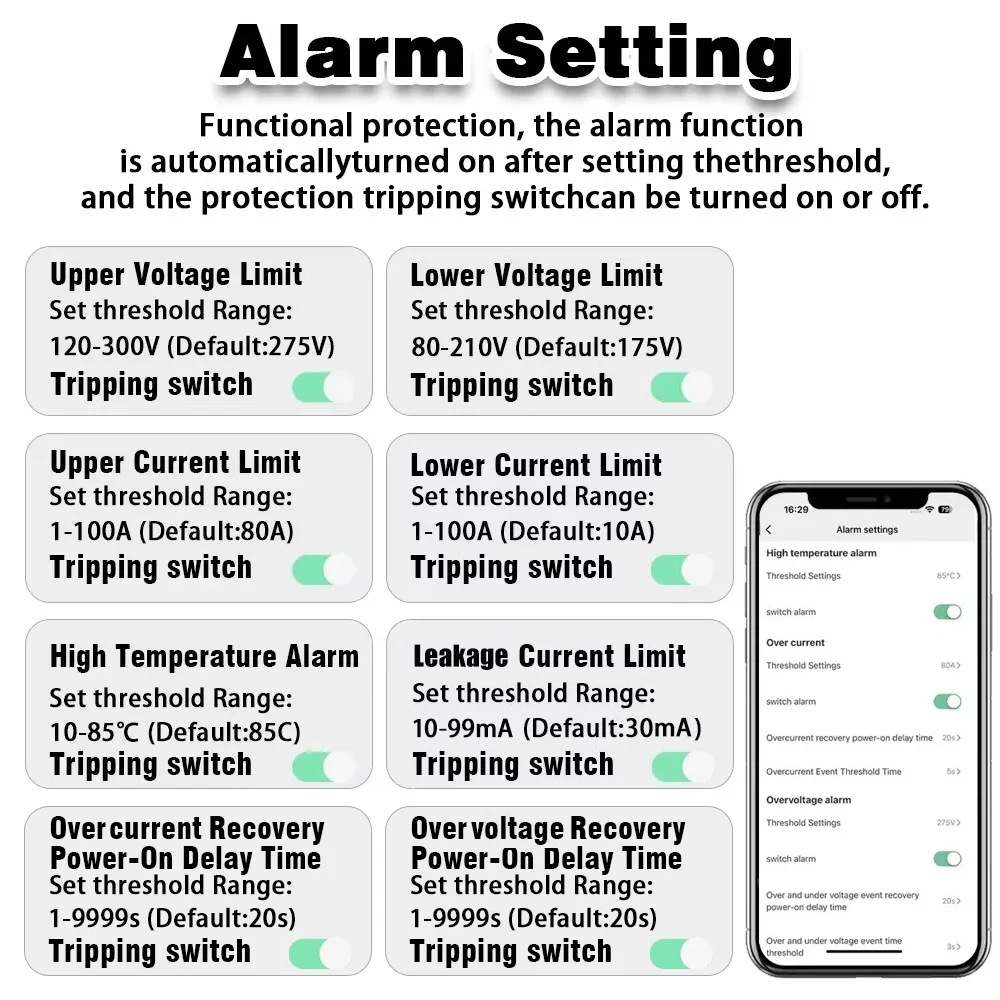

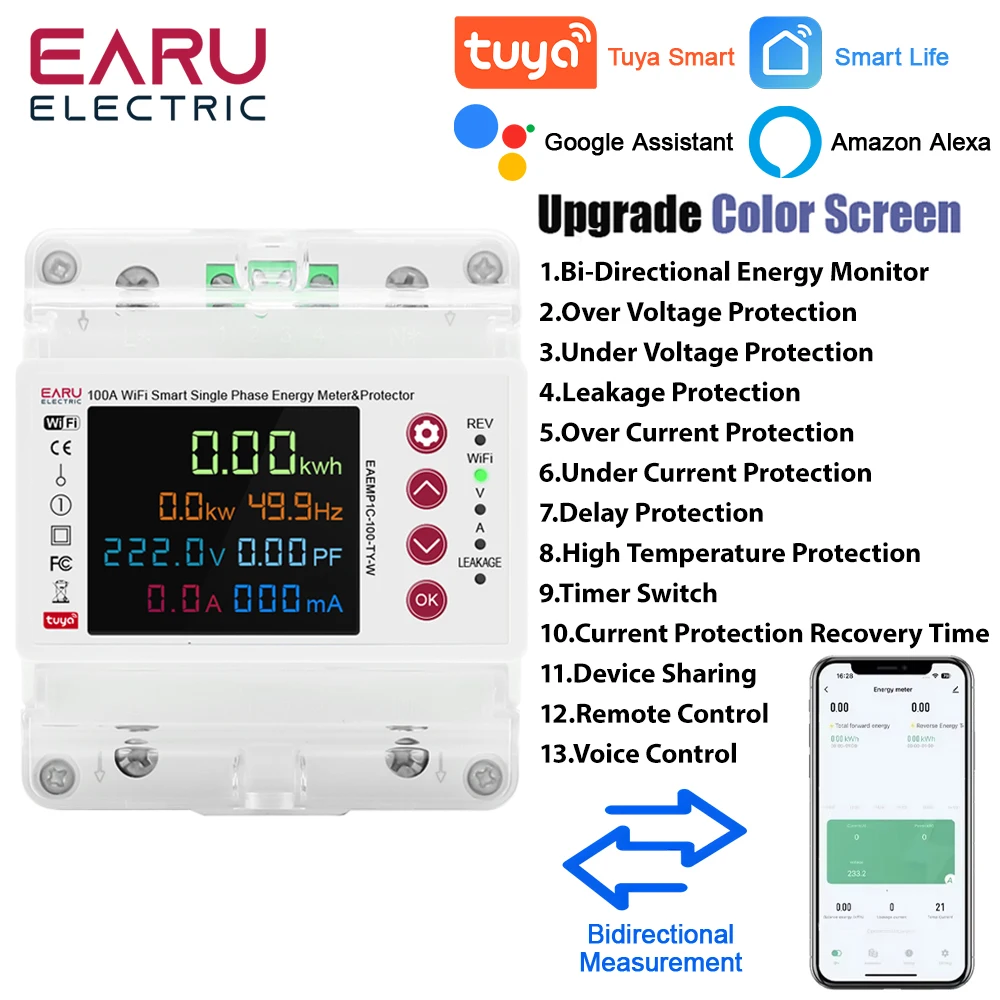

Function:
1.Over Voltage Limit:120-300V (Adjustable)(Default:275V)
2.Under Voltage Limit:80-210V(Adjustable)(Default:175V)
3.Over Current Limit:1-100A (Adjustable) (Default:80A)
4.Under Current Limit:1-100A (Adjustable)(Default:10A)
5.Leakage Current Limit:10-99A (Adjustable) (Default30mA)
6.High Temperature Alarm:10-85℃ (Adjustable) (Default:85℃)
7.Over & Under Voltage Protection Recovery Time:1-9999s (Adjustable)(Default:20s)
8.Over & Under Current Protection Delay:0000-9999s (Adjustable) (Default:5s)
9.Over & Under Current Protection Recovery Time:0000-9999s (Adjustable) (Default:20s)
10.Under & Over VoltageProtection Delay:1-9999s (Adjustable)(Default:3s)
11.Lost Current Recovery Delay Time:1-9999s (Adjustable) (Default:20s)
12.Time Threshold of Lost Flow Event:1-999s (Adjustable)(Default:10s)
13.Energy Consumption Zero Clearing:Default OFF
14.Factory Settings Reset:Default OFF

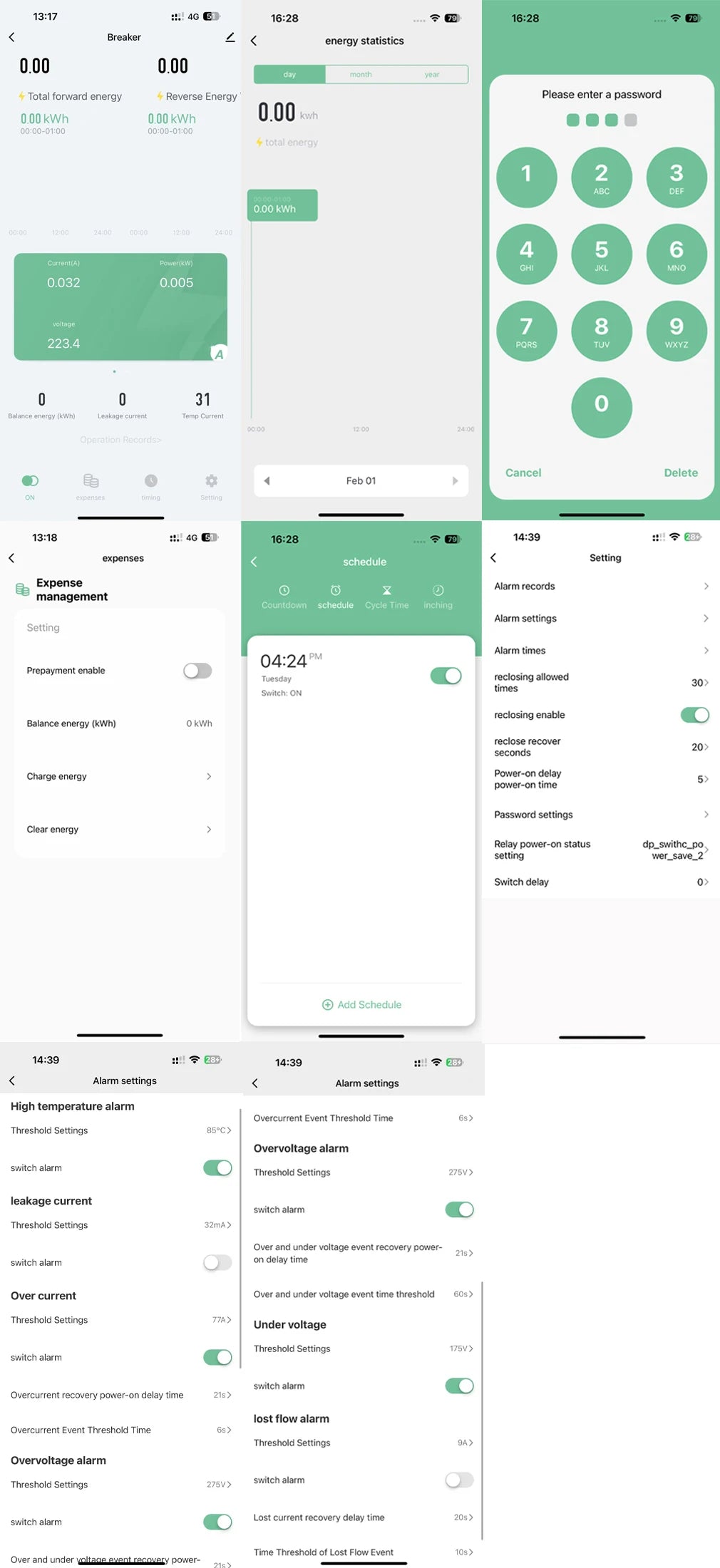

15.Device Sharing

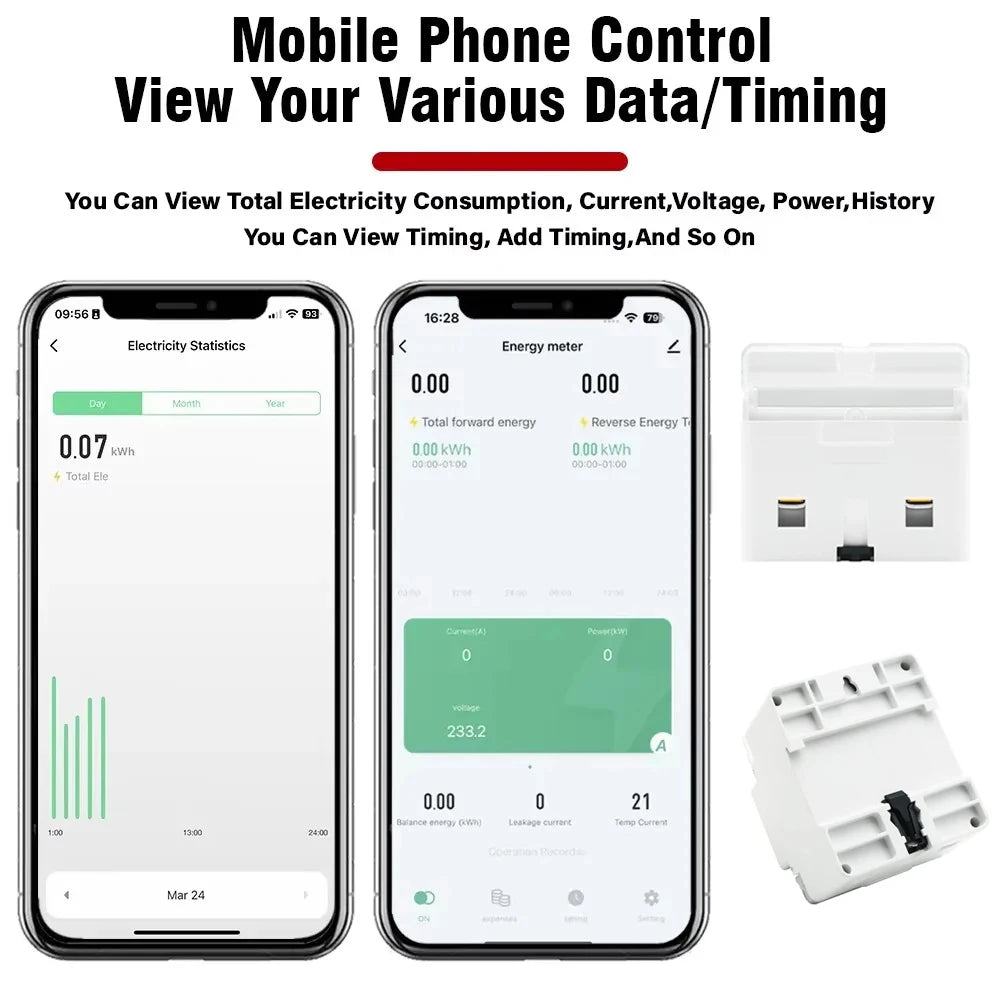

16.Remote Control
17.Voice Control
