18MM RCBO Type AC Residual Automatic Circuit Breaker 6KA 1P+N 2P 16A 20A 230V With Over Current Leakage Protection 30mA EKL9-40

18MM RCBO Type AC Residual Automatic Circuit Breaker 6KA 1P+N 2P 16A 20A 230V With Over Current Leakage Protection 30mA EKL9-40

Prix habituel $10.26 USD
Prix habituel $0.00 USD Prix promotionnel $10.26 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Rated Current

This 18MM RCBO Type AC Residual Automatic Circuit Breaker is designed to provide 6KA of protection against over current and leakage at 230V, with options for 1P+N and 2P configurations and amperage choices of 16A and 20A. This ensures safe and reliable electrical performance in a compact 18mm size.

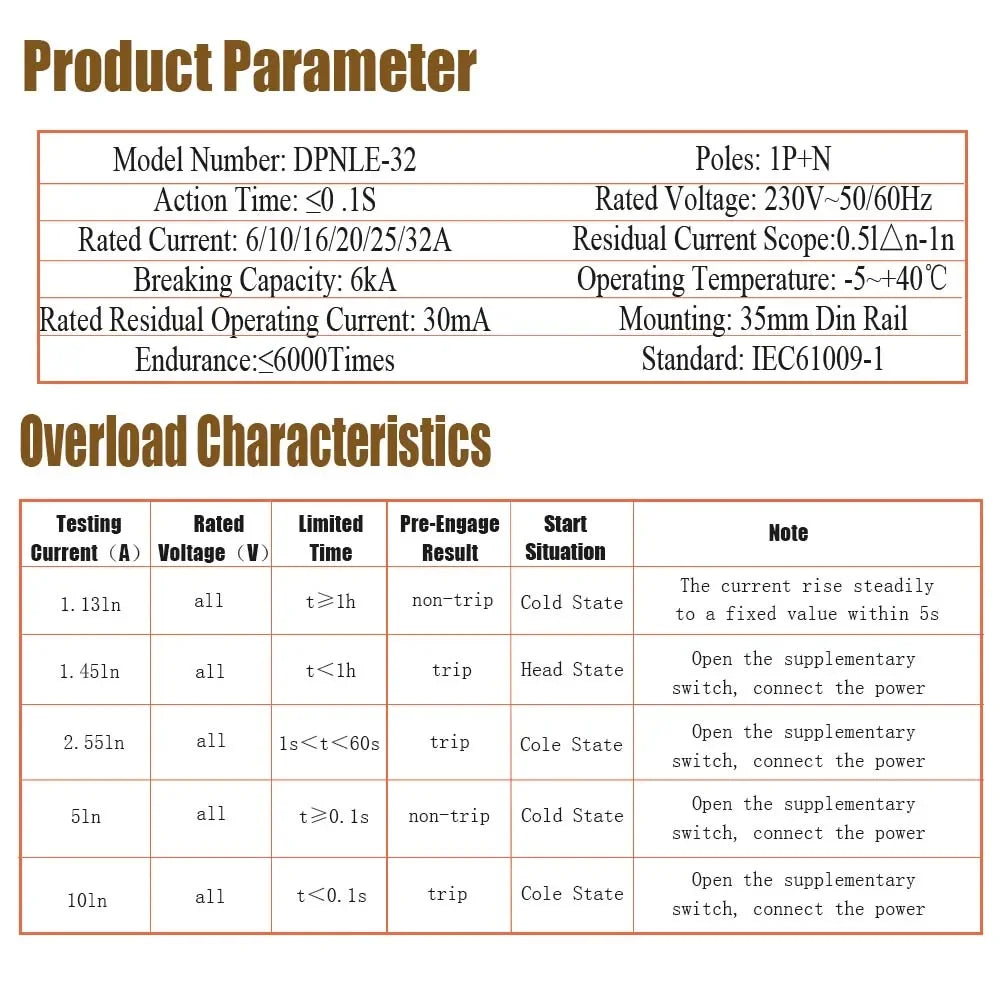

SPECIFICATIONS

  • Function1: Residual Current
  • Function2: Electronic
  • Function3: Earth Current Leakage Protection
  • Function4: Overload Protection
  • Rated Voltage: 230V~50/60Hz
  • Rated current: 6/10/16/20/25/32A
  • Breaking Capacity: 6kA
  • Mounting: 35mm Din Rail
  • Operating temperature: -5~+40℃
  • Poles: 1P+N
  • Rated residual operating current: 30mA
  • Action time: ≤0.1S
  • Standard: IEC61009-1
  • Model Number 1: DPN
  • Model Number 2: DPNL
  • Model Number 3: DZ47
  • Model Number 4: RCCB
  • Model Number 5: MCB
  • Brand Name: EARUELETRIC
  • Model Number: DPNLE-32
  • Type: Residual Current
  • Rated Voltage: 220V
  • Type: Circuit breaker

Features

  • Leakage Protection
  • Overload protection
  • Short circuit protection
  • Parameter:
  • Rated voltage: 230V~50/60Hz
  • Rated current: 6/10/16/20/25/32A
  • Poles: 1P+N
  • Segmentation capacity: 6kA
  • Rated residual operating current: 30mA
  • Action time: ≤0.1S
  • Operating temperature:-5~+40℃
  • Standard:IEC61009
