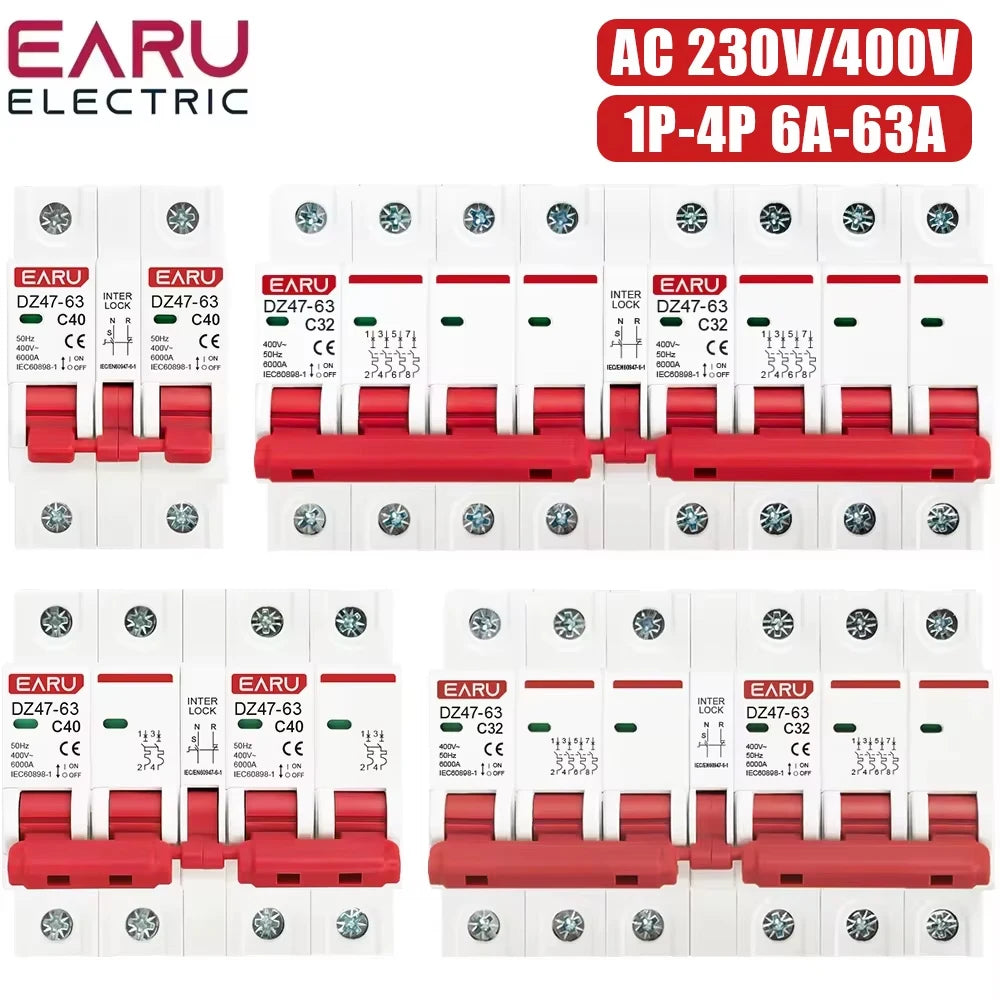

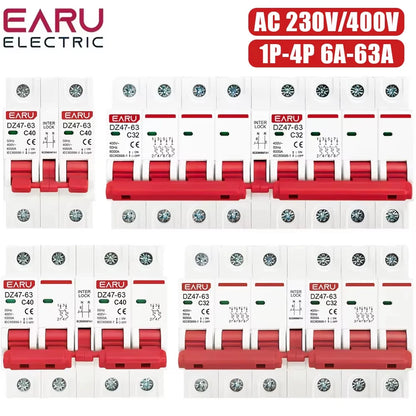

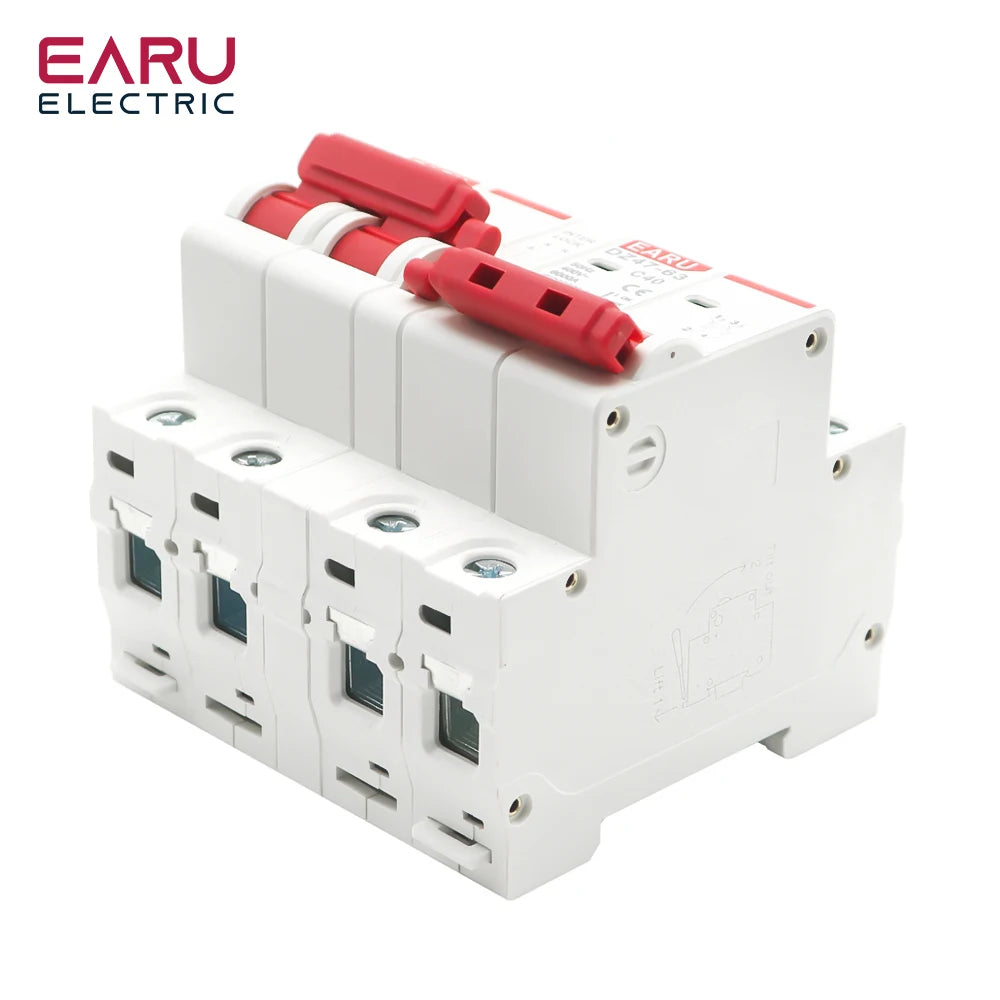

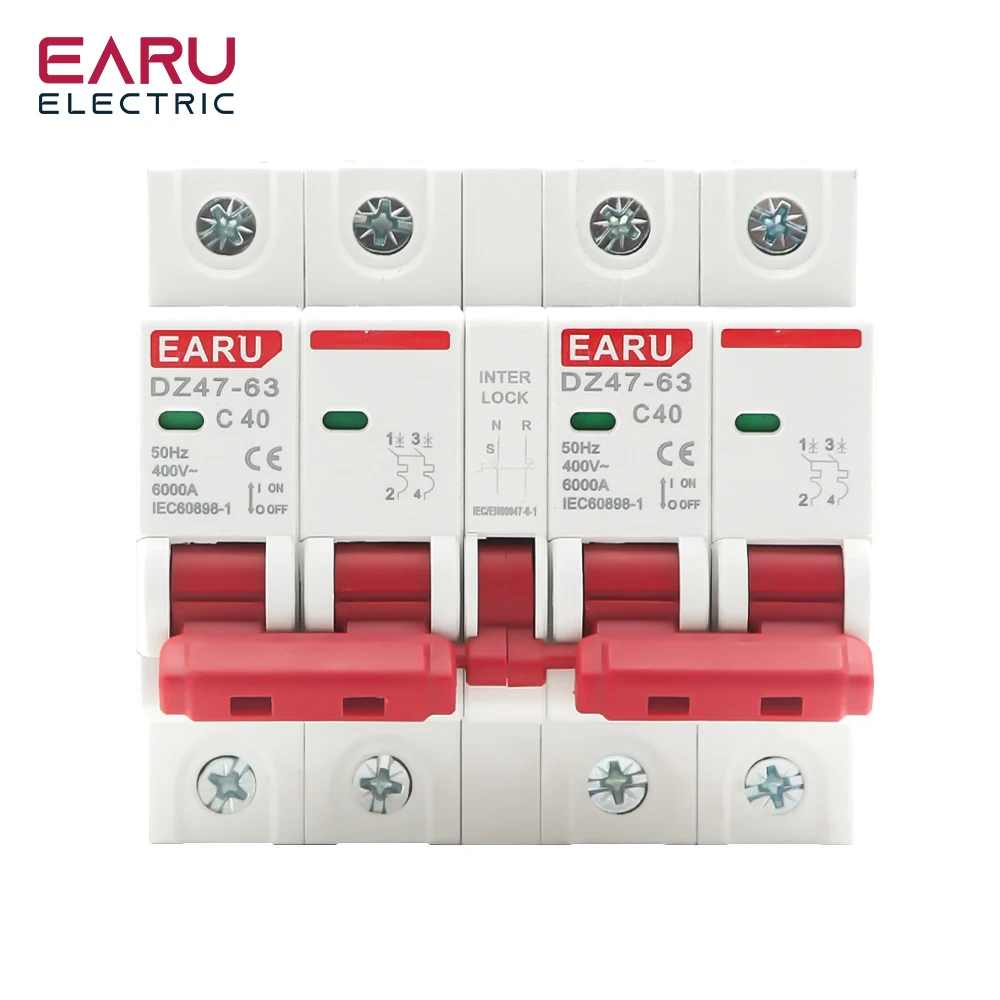

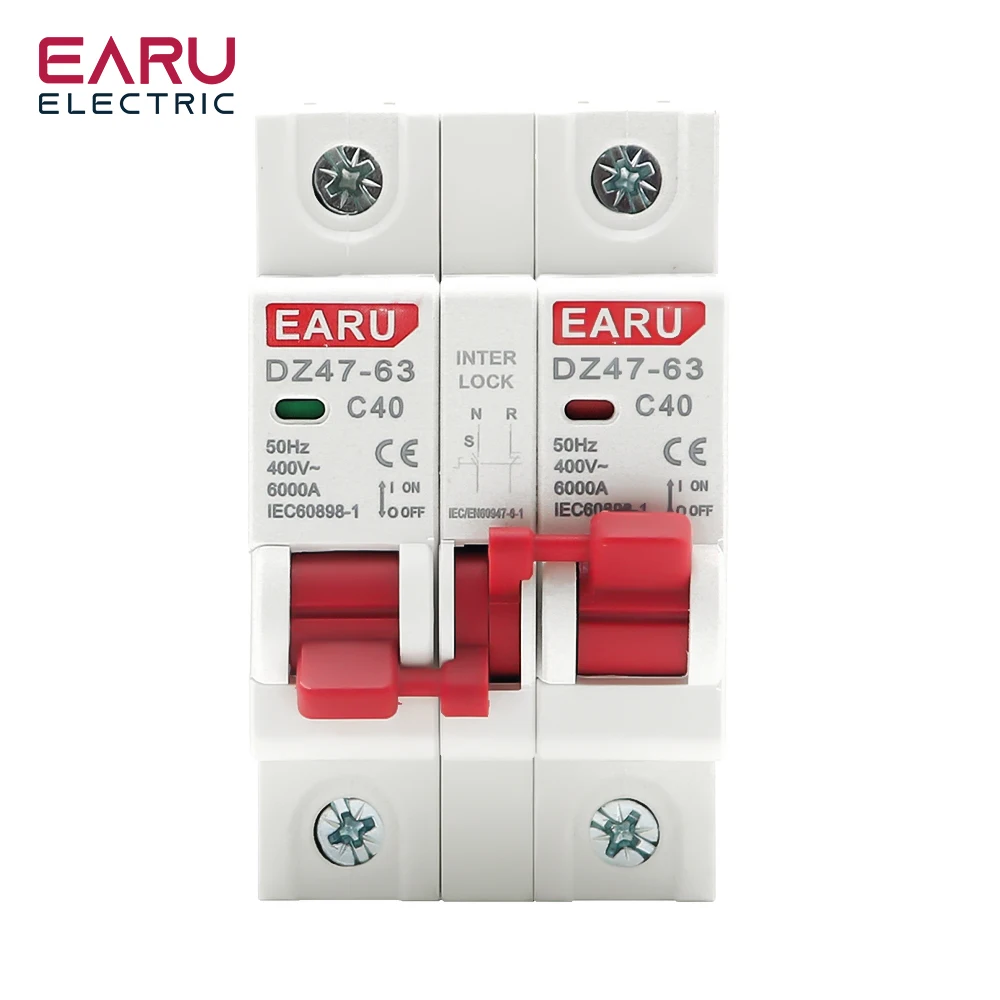

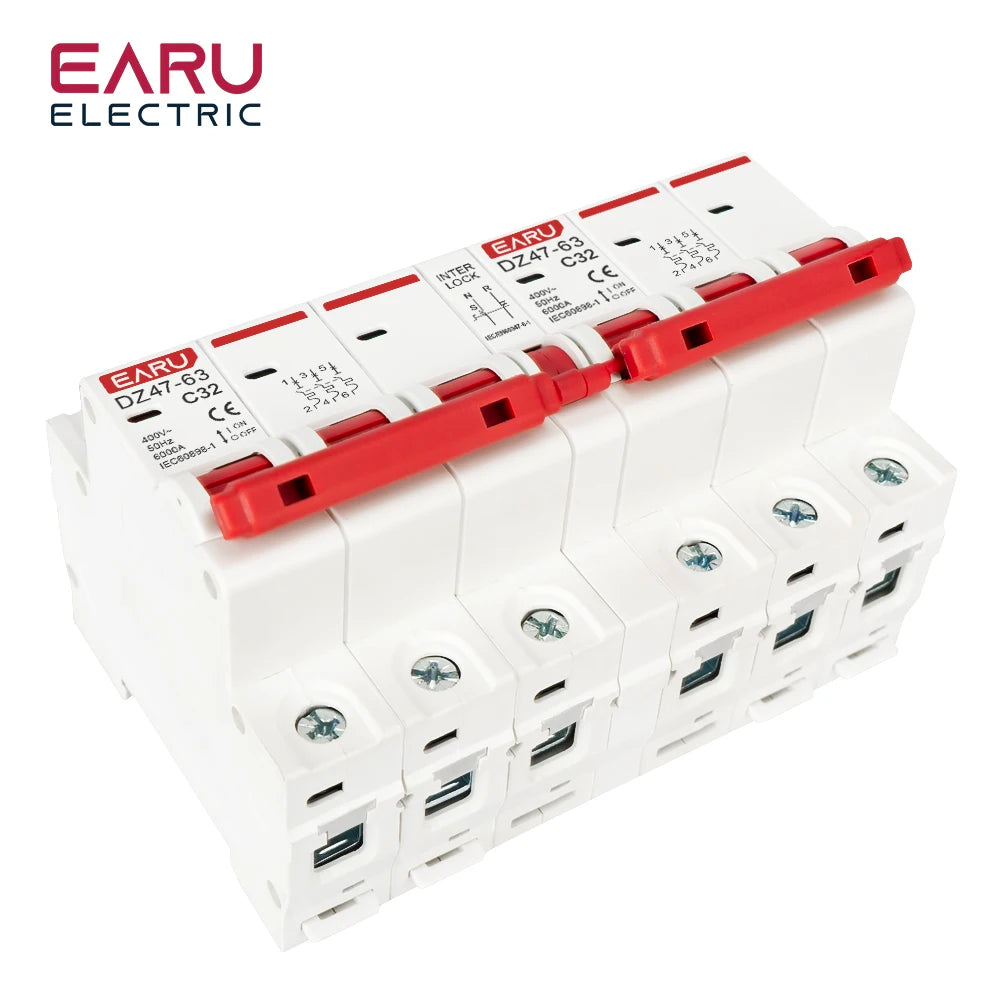

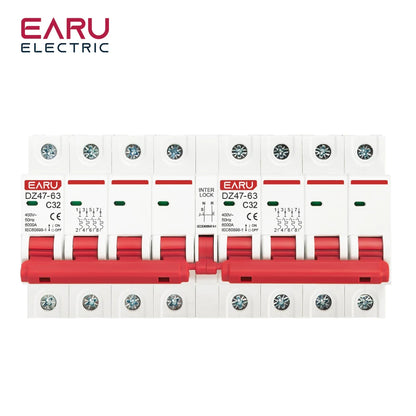

1P+1P 2P+2P 3P+3P 4P+4P MTS AC Dual Power Manual Transfer Interlock Circuit Breaker Din Rail Isolating Discounnecting Switch MCB
1P+1P 2P+2P 3P+3P 4P+4P MTS AC Dual Power Manual Transfer Interlock Circuit Breaker Din Rail Isolating Discounnecting Switch MCB
Impossible de charger la disponibilité du service de retrait

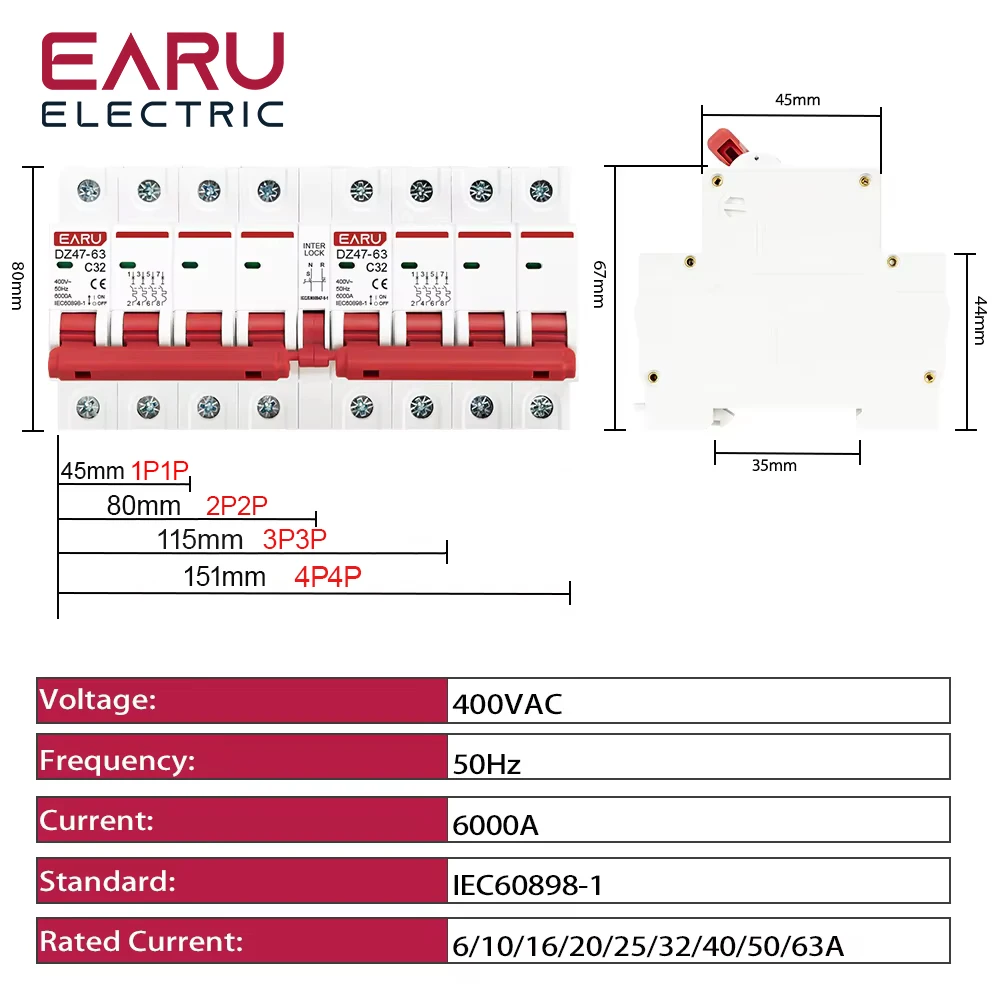

SPECIFICATIONS
Brand Name: EARU
Certification: CE
High-concerned chemical: None
Is Smart Device: No
Model Number: DZ47-2P+2P
Origin: Mainland China
Pole number: 1P+1P 2P+2P 3P+3P 4P+4P
Product Features: Overload/short circuit protection
Rated Voltage: 400V
Rated current(A): 1-63A
Type: Mini,Circuit breaker
is_customized: Yes

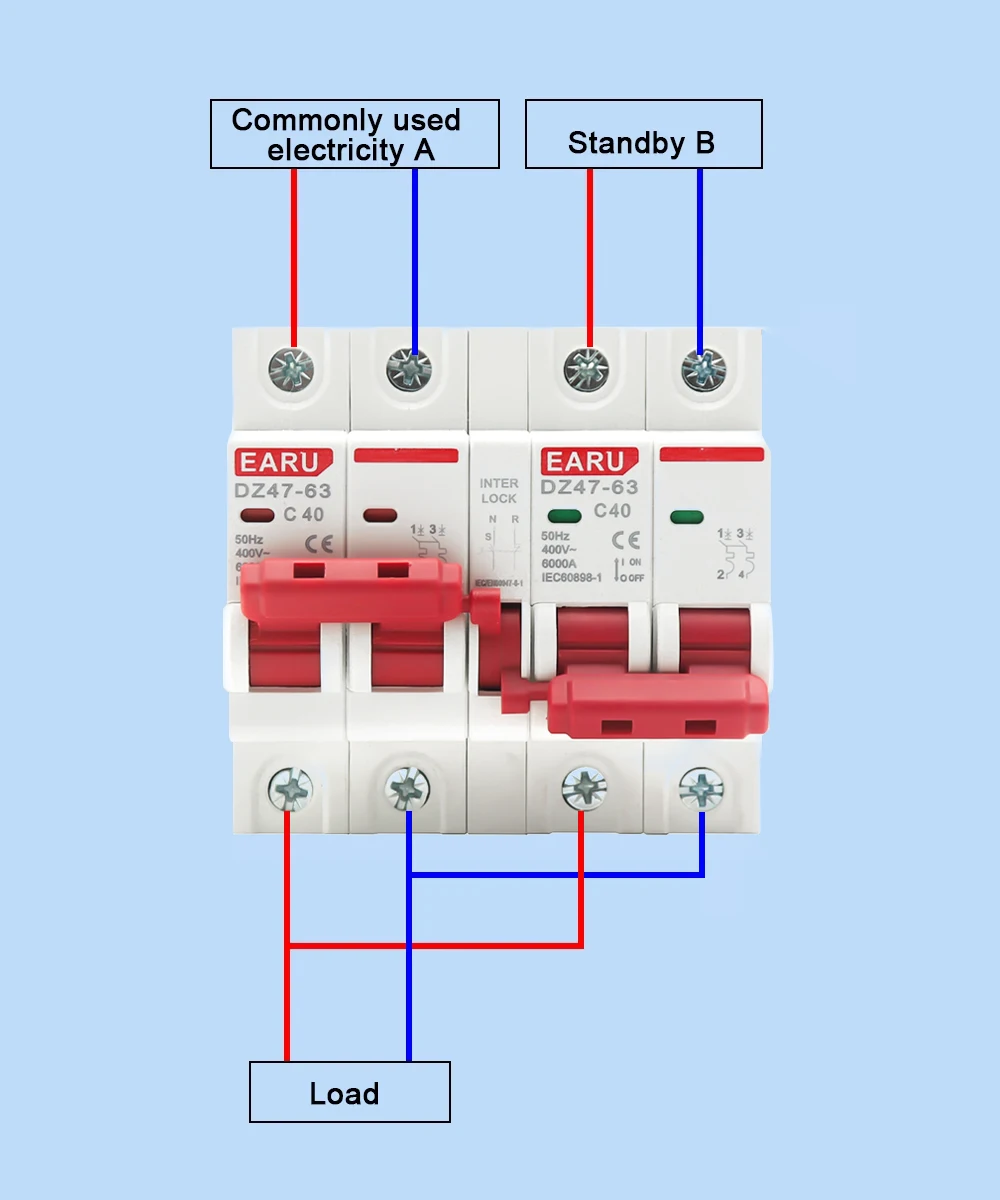

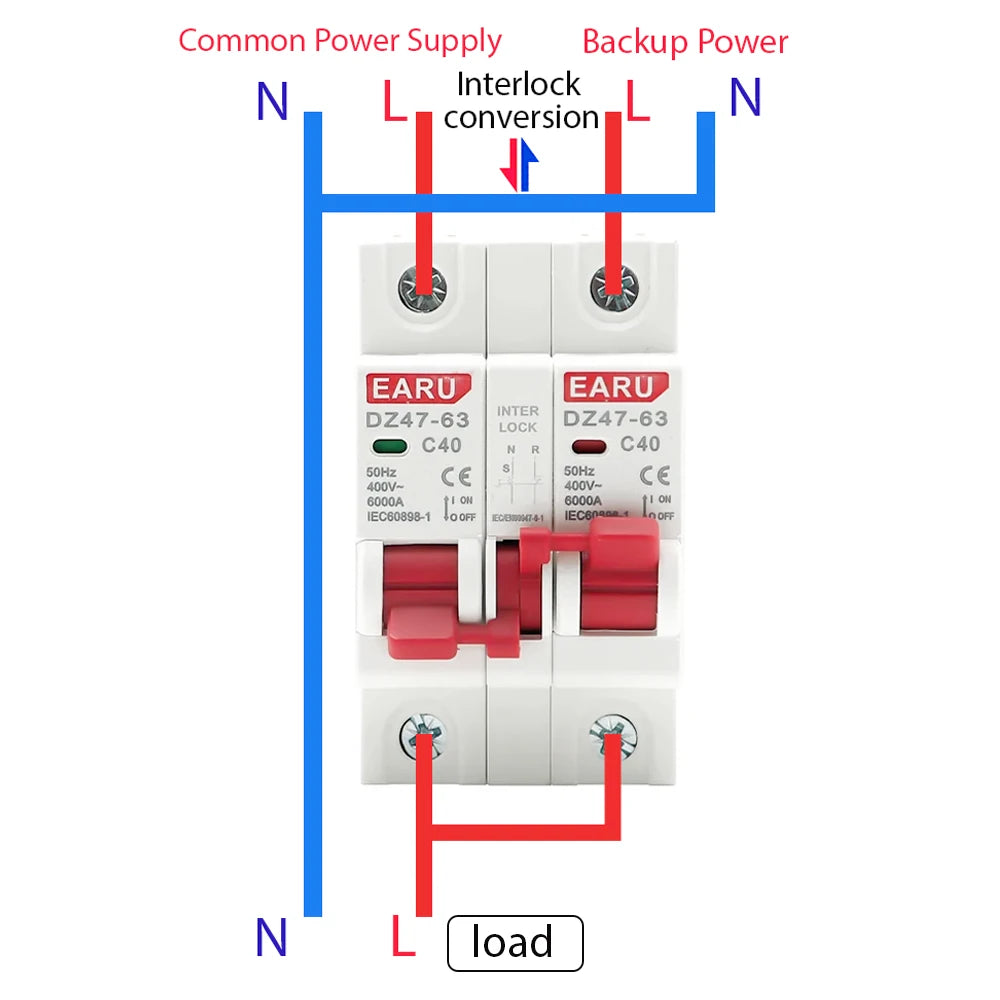

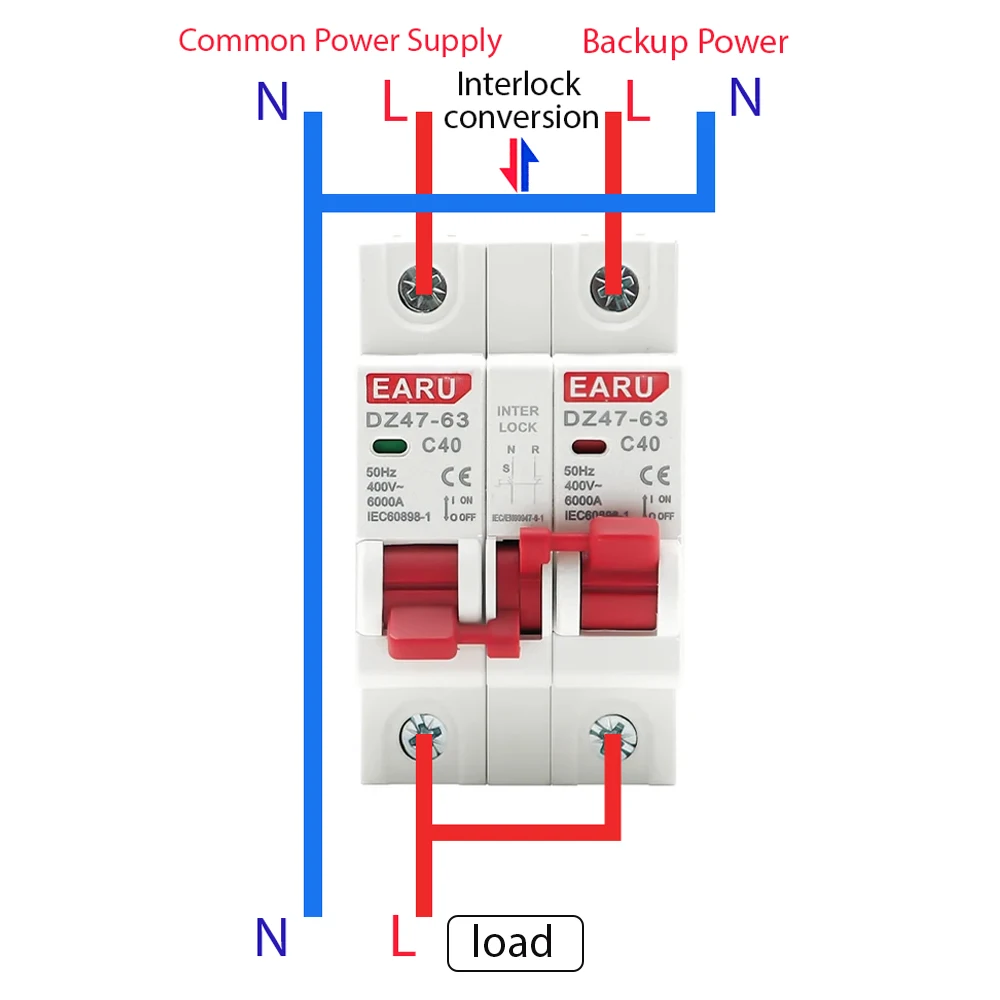

DZ47-63 MTS manual transfer switch is suitable for two-path power supply system with AC 50 HZ/60HZ, rated working voltage 240V~400V, rated current from 6A ~ 125A. It can manually transfer power supply to reserve power or generator when common power occurring fault so as to guarantee the reliability and safe of supply power. DZ47-63 MTS has the protective function of overload, under-voltage, short circuit and lack phase which is especially suitable for using in the place where does not allow power supply failure, such as fire fighting, hospital, marketplace, military project, high-rise building, bank, TV station and so on.

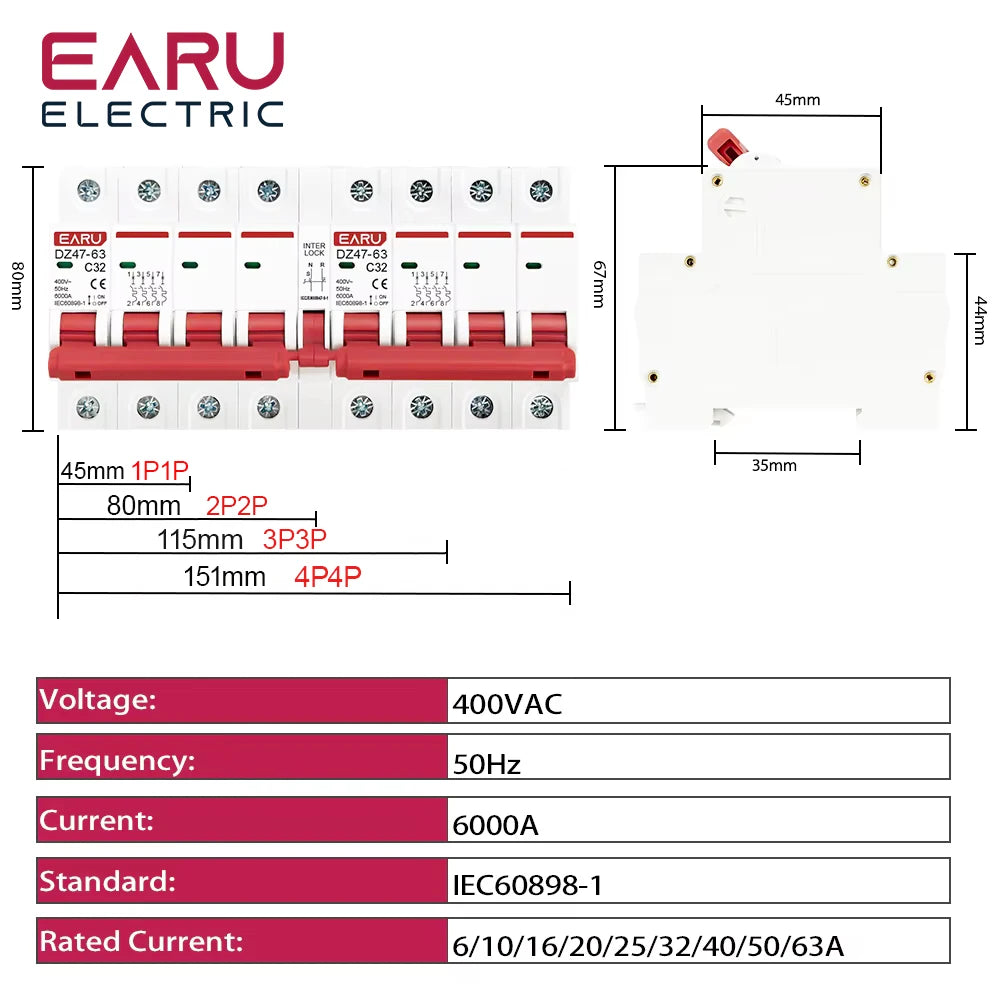

Rated voltage: 230V 50/60Hz
Breaking capacity: 6Ka
Rated current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
