1 Pair DC Solar Connectors With Spanner PV Plug Cable Connectors

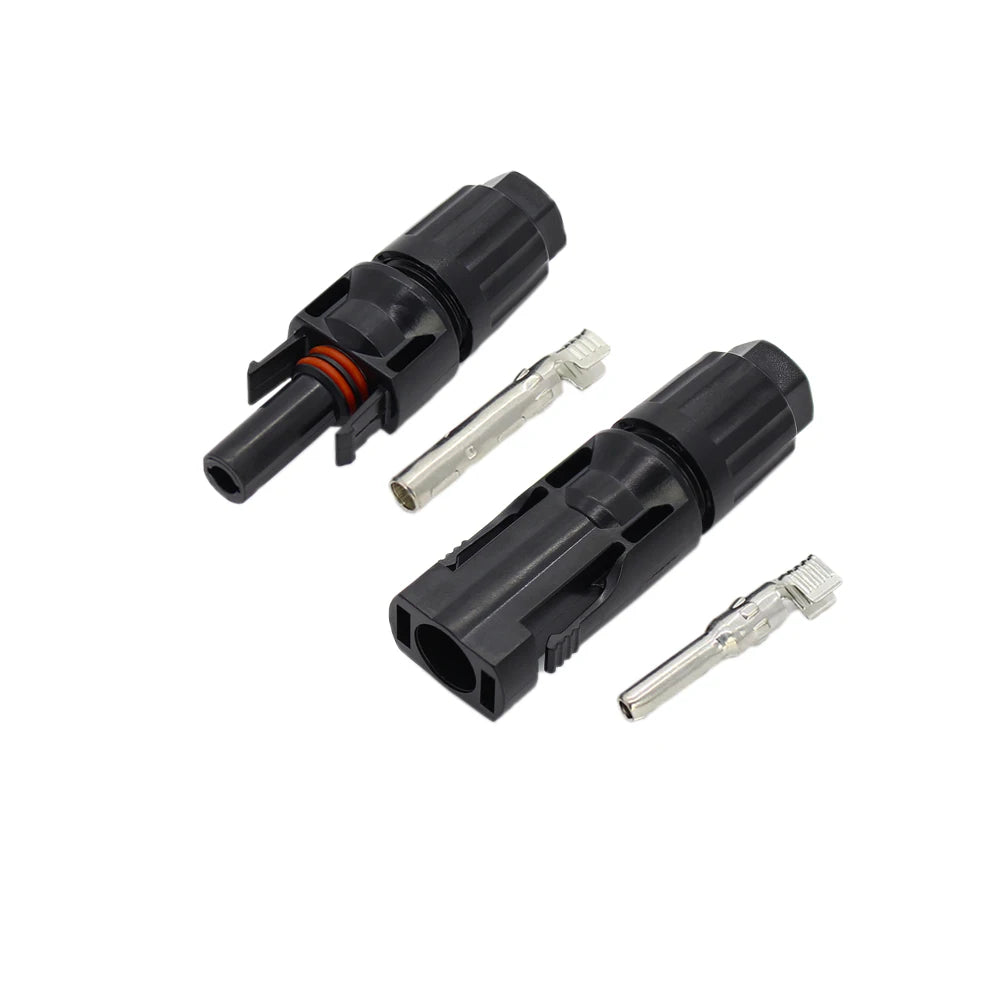

1pair DC Solar Connector + Solar Spanner PV Plug Cable Connectors (Male and Female) for Solar Panels Photovoltaic

Enhance your solar panel setup with our 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors (male and female) for Solar Panels Photovoltaic. Designed for maximum efficiency, these connectors ensure a reliable connection, essential for optimizing your photovoltaic systems.

Key Features:

• High Voltage & Current Rating: Rated voltage of 1000V and current of 30A, making it suitable for robust solar applications.
• Waterproof & Corrosion Resistant: With an IP67 rating, these connectors withstand harsh weather conditions.
• Durability: Constructed from PPO+PA materials that provide excellent aging resistance and UV protection.
• Easy to Install: Comes with a free assembly tool for hassle-free connection.
• Compatibility: Ideal for cables of sizes 2.5mm², 4mm², and 6mm² (AWG14, AWG12, AWG10).

Equipped with a double sealing ring, the 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors offer superior reliability under extreme weather conditions, ensuring your solar energy production remains uninterrupted.

Technical Specifications:

• Rated Current: 30A
• Rated Voltage: 1000V DC
• Waterproof Degree: IP67
• Flame Class: UL94-VO
• Temperature Range: -40 °C to +90 °C
• Contact Resistance: ≤0.2mΩ

Installation is straightforward: insert the male connector into the female connector until you hear a “pop” indicating a secure fit. To separate, simply use the included spanner or your fingers.

Equip your solar panels with the best connectors on the market. The 1pair DC Solar Connector + solar spanner PV Plug Cable Connectors are here to enhance your solar power efficiency!
