20A 100A AC 80-260V DC 6.5-100V Digital LED Display Voltmeter Ammeter Wattmeter Power Energy Meter 12V 24V 110V 220V Volt Tester
20A 100A AC 80-260V DC 6.5-100V Digital LED Display Voltmeter Ammeter Wattmeter Power Energy Meter 12V 24V 110V 220V Volt Tester
Impossible de charger la disponibilité du service de retrait
⚡ 20A 100A AC 80-260V DC 6.5-100V Digital LED Display Voltmeter Ammeter Wattmeter Power Energy Meter 12V 24V 110V 220V Volt Tester
Upgrade your system with our high-performance 20A 100A AC 80-260V DC 6.5-100V Digital LED Display Voltmeter Ammeter Wattmeter Power Energy Meter 12V 24V 110V 220V Volt Tester. Built for reliability, efficiency and seamless integration with modern setups.
📌 Key Benefits
- ✅ High-efficiency design for superior performance
- ✅ Optimized heat dissipation and durability
- ✅ Plug-and-play compatibility for easy integration
- ✅ Ideal for industrial and residential use
📄 Technical Specifications
Efficiently measure and monitor your electricity usage with our versatile 20A/100A Digital LED Display Voltmeter Ammeter. Compatible with both AC and DC current, our advanced meter displays accurate readings for voltage, current, power, and energy consumption. Perfect for 12V, 24V, 110V, and 220V systems, it's a must-have tool for any energy-conscious individual or professional.
SPECIFICATIONS
- working voltage: 80-260VAC 6.5-100VDC
- Measurement Function: Voltage, Current, Power, Energy
- Brand Name: EARUELETRIC
- Power Supply: AC
- Display Type: Digital Only
- Accuracy Class: ±1
- Dimensions: 89.6*49.6*24.4mm
- Measuring Energy Range: 0~9999kWh
- DIY Supplies: ELECTRICAL
Function
- Electrical parameter measurement function (voltage, current, active power, energy)
- Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).
- Power alarm threshold preset function (can set power alarm threshold)
- The reset function of energy key.
- Store data when power off.
- Large-screen LCD (display voltage, current, active power, energy at the same time)
- Backlight function.

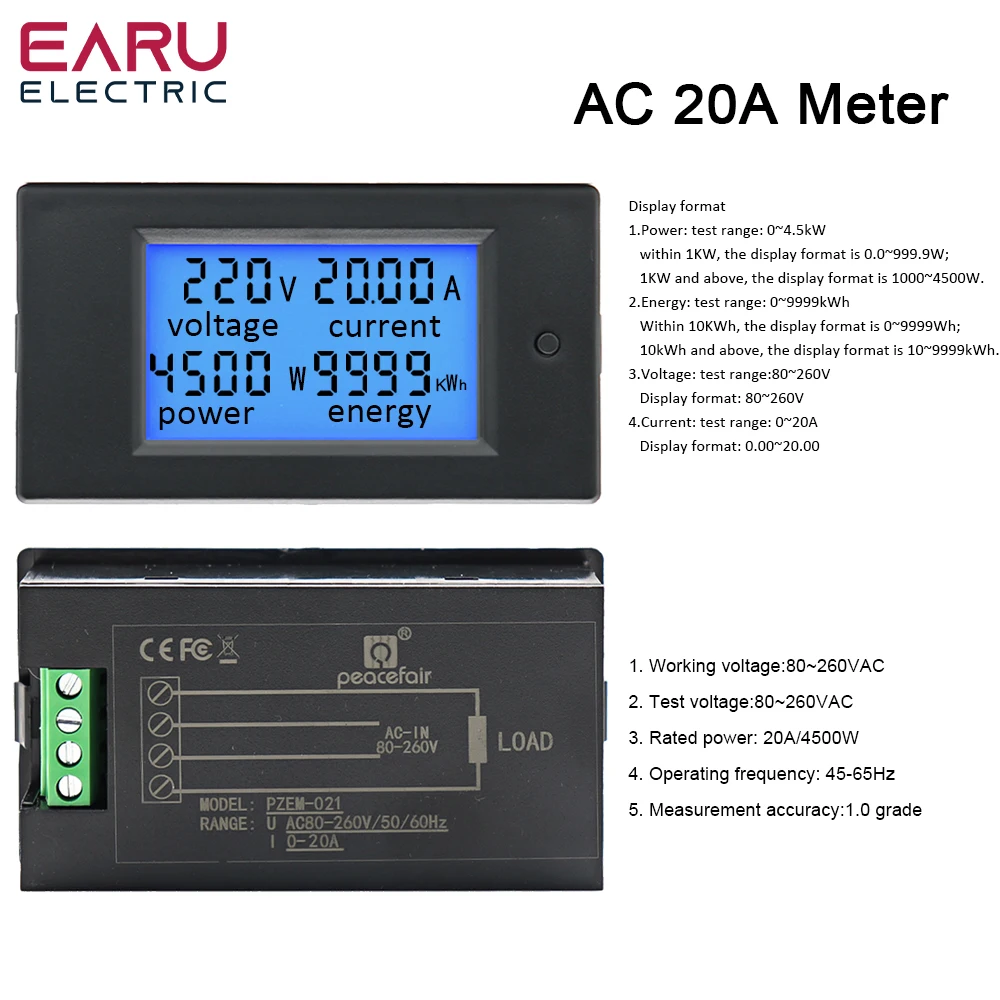

Appearance and Key function
Display Interface
Display interface is large-screen LCD, it can display voltage, current, power, energy parameters at the same time.
Key
- Backlight control Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.
Reset energy
-
Step1: Long press the key for 5 seconds until the number in energy display window flash, thenrelease the key.
- Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state.If you don't want to clear, then long press the key for 5 seconds until the number doesn't flash, it means the energy value is not cleared and will exit the reset state.
Set power alarm threshold
- Step1: Long press the key until the LCD screen display "SET CLr", then release the key to enter the setting state
- Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operating over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.
- Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~4.5kw
Precautions
- This module is suitable for indoor, please do not use outdoor.
- Applied load should not exceed the rated power.
- Wiring order can't be wrong
