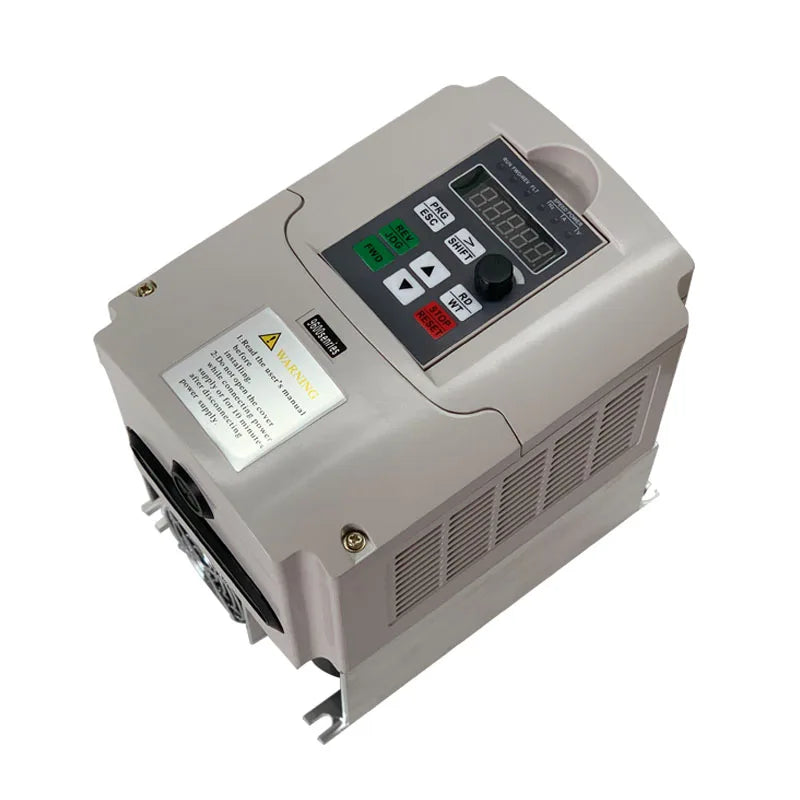

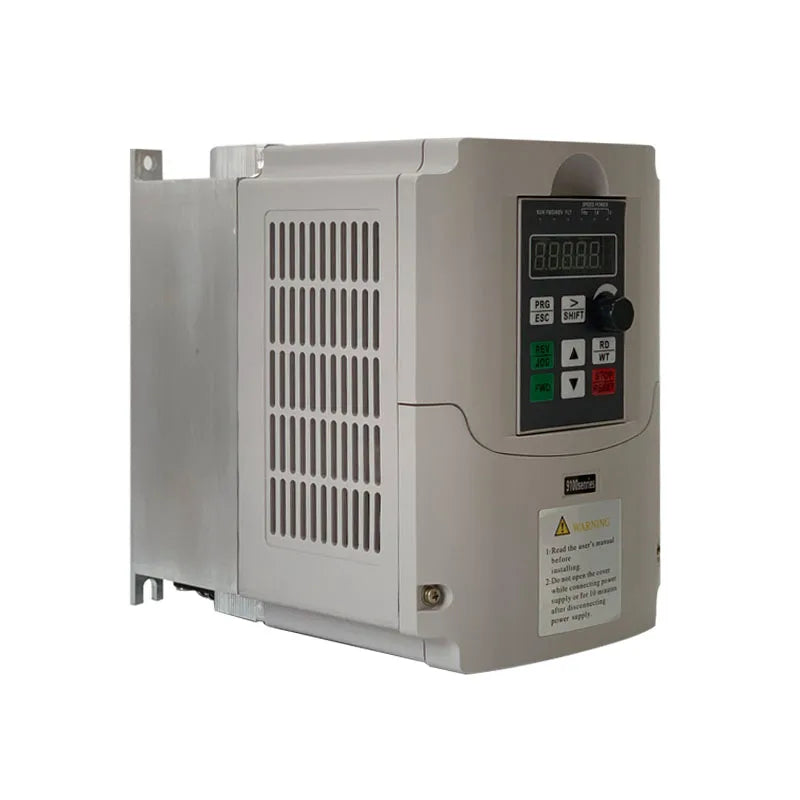

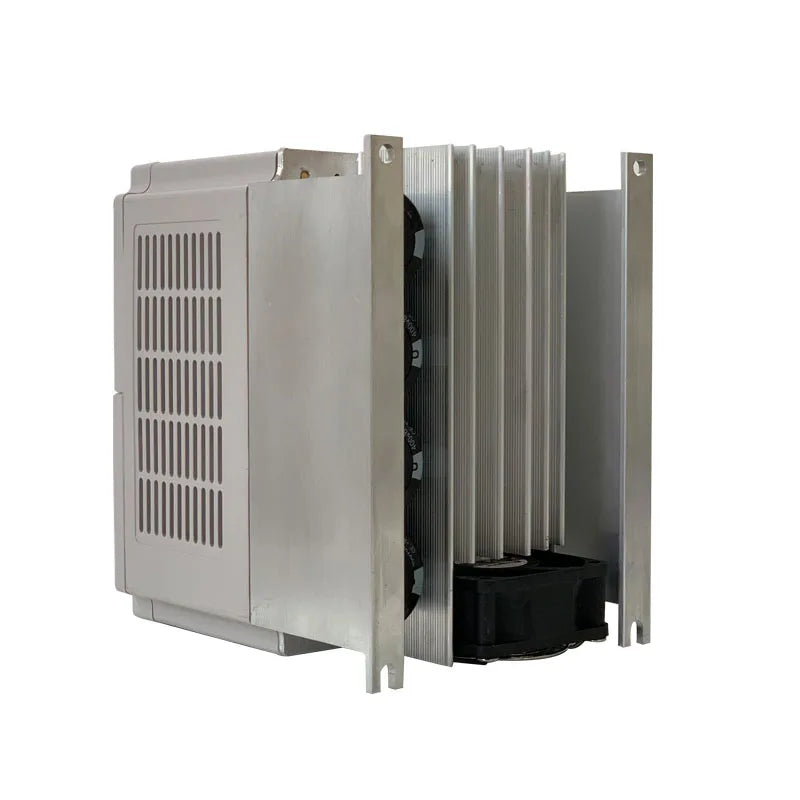

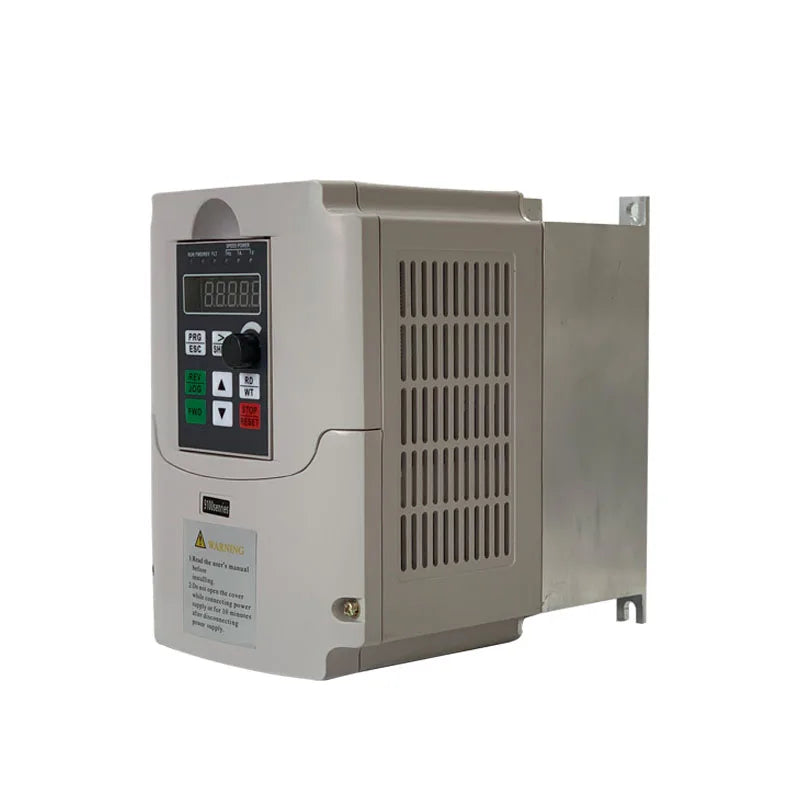

220v 5.5kw VFD Variable Frequency Drive Inverter / VFD1HP or 3HP Input 3HP Output Motor CNC spindle Driver spindle speed control

220v 5.5kw VFD Variable Frequency Drive Inverter / VFD1HP or 3HP Input 3HP Output Motor CNC spindle Driver spindle speed control

$394.20 USD
$0.00 USD $394.20 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

Improve the performance of your CNC machine with the 220v 5.5kw VFD Variable Frequency Drive Inverter. Experience precise and efficient motor control with VFD1HP or 3HP input and 3HP output. This spindle driver allows for precise spindle speed control, resulting in increased productivity and accuracy. Upgrade your CNC machine today.

Specifications

  • Brand Name: NFLIXIN
  • Type: DC/AC Inverters
  • Size: 85mm*125mm*150mm
  • Output Frequency: 0-400HZ
  • Output Type: triple
  • Weight: 1.3KG
  • Output Current: 20A
  • Input Voltage: single phase 220V
  • output Voltage: 3 phase 220V
  • Level of portection: Ip20
  • Applications: Universal
  • Control method: V/F
  • Power: 5.5KW

1.Output Power:5.5kw 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~400Hz 4.Input Voltage Range:single phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 220V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Main function: Control and adjust the speed of the ac motor 8.Size: 85mm*125mm*150mm

Type

0.75kw 220v VFD

1.5kw 220v VFD

2.2kw 220v VFD

4kw 220v VFD

5.5kw 220v VFD

Input  Voltage

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

220V(+/-15%)

Output Voltage

220VAC

220VAC

220VAC

220VAC

220VAC

Input  Frequency

50/60Hz

50/60Hz

50/60Hz

50/60Hz

50/60Hz

Output Frequency

0~400Hz

0~400Hz

0~400Hz

0~400Hz

0~400Hz

Rated  current

4A

7A

10A

16A

20A

Input  Phase

1 phase

1 phase

1 phase

1 phase

1 phase

Output Phase

3 phase

3 phase

3 phase

3 phase

3 phase







Afficher tous les détails
