2P+2P MTS AC 400V Dual Power Manual Transfer Interlock Circuit Breaker Din Rail Isolating Discounnecting Switch MCB 16A 40A 63A
2P+2P MTS AC 400V Dual Power Manual Transfer Interlock Circuit Breaker Din Rail Isolating Discounnecting Switch MCB 16A 40A 63A
Impossible de charger la disponibilité du service de retrait

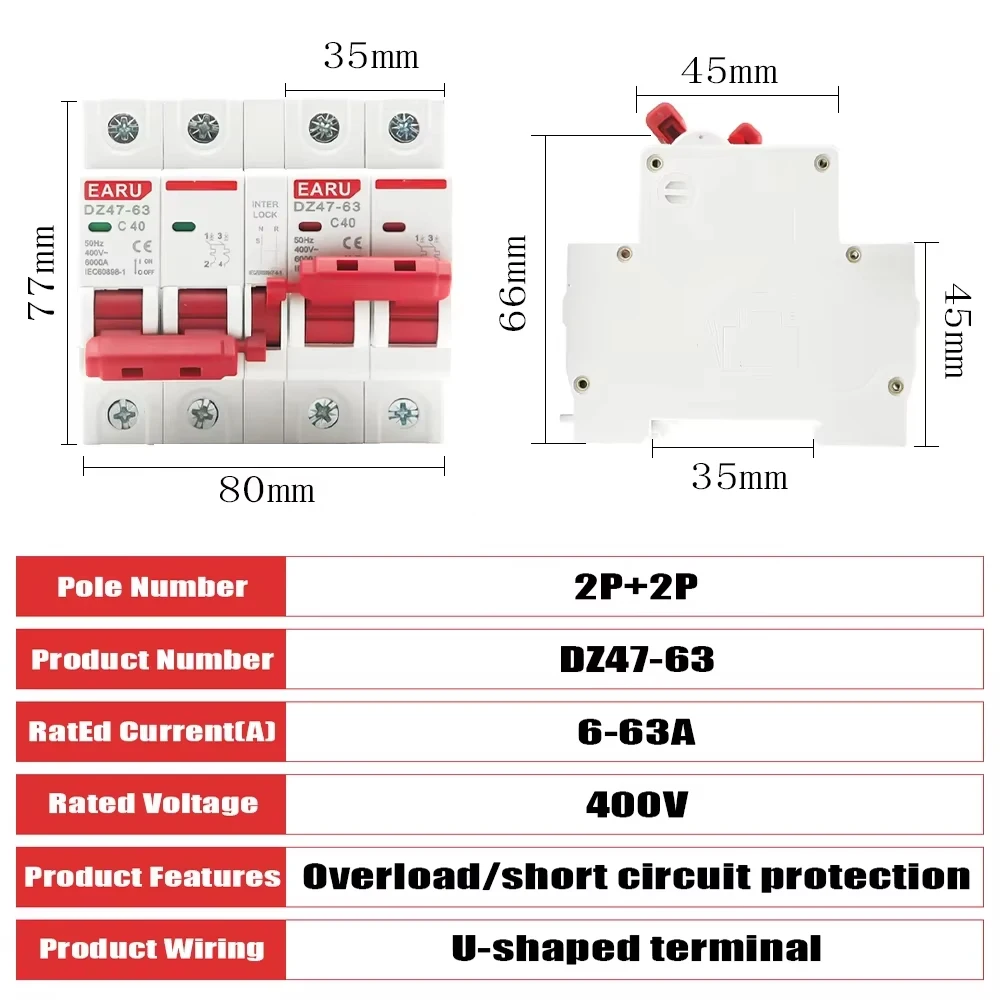

SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
High-concerned chemical: None
Is Smart Device: No
Model Number: DZ47-63
Origin: Mainland China
Pole number: 2P+2P
Product Features: Overload/short circuit protection
Rated Voltage: 220V,400V
Rated current(A): 1-63A
Type: Mini,Circuit breaker
is_customized: Yes
semi_Choice: yes

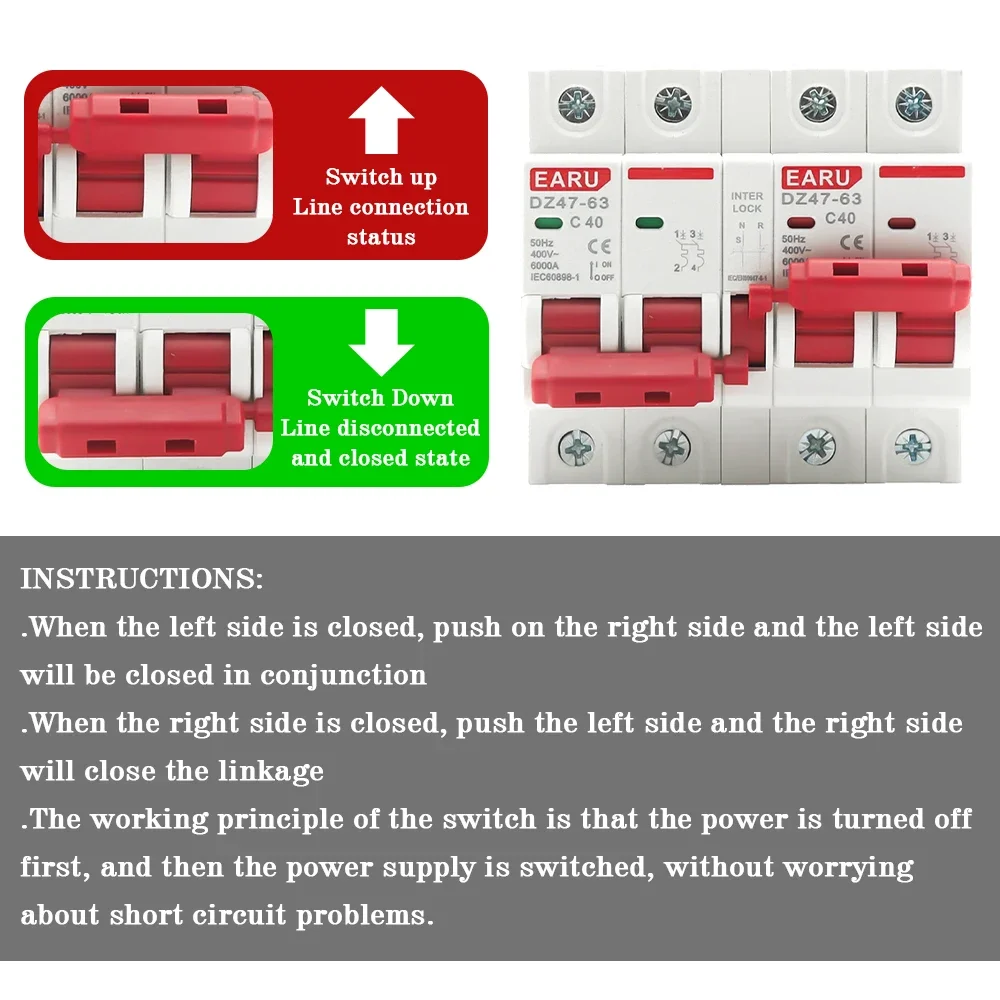

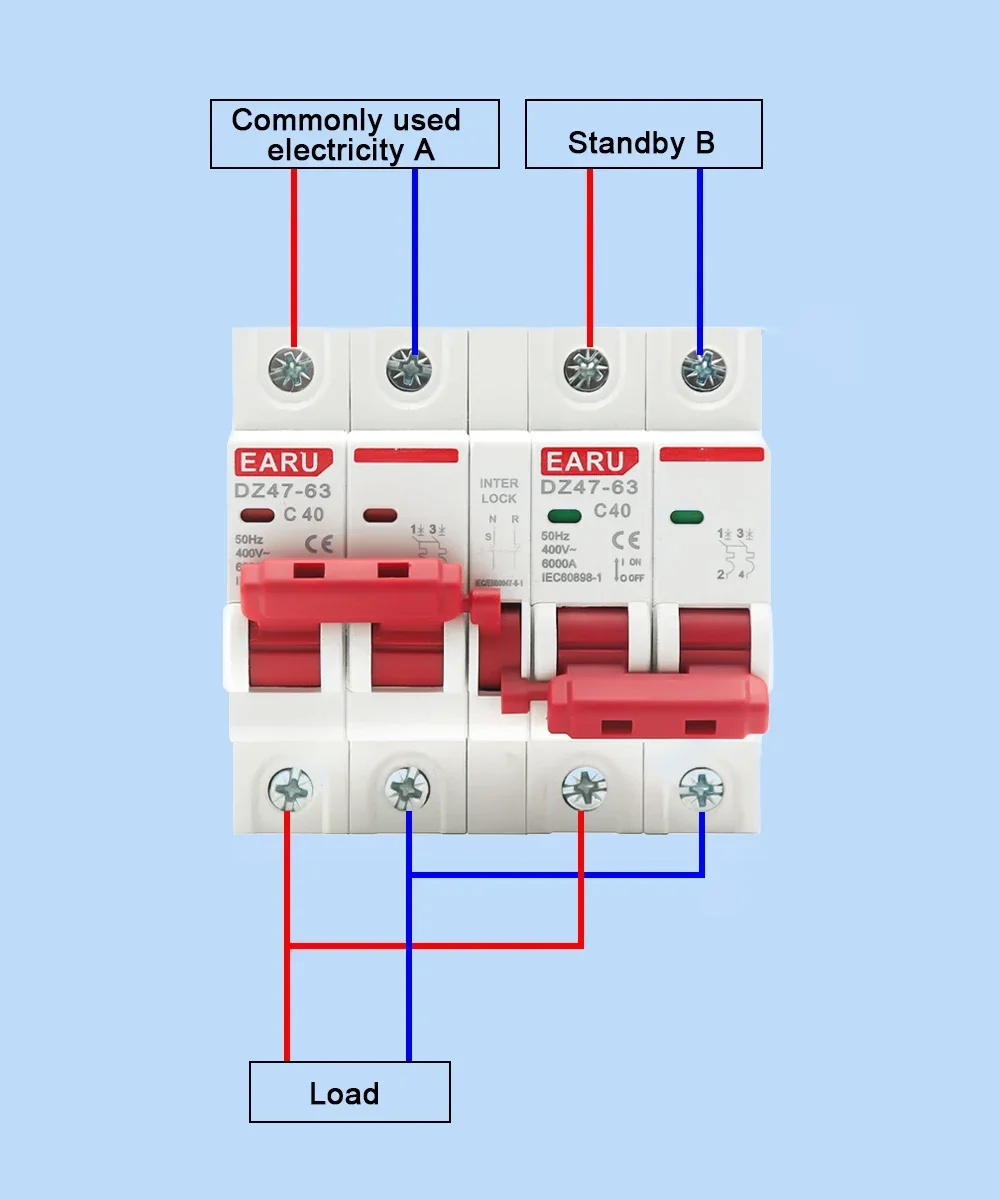

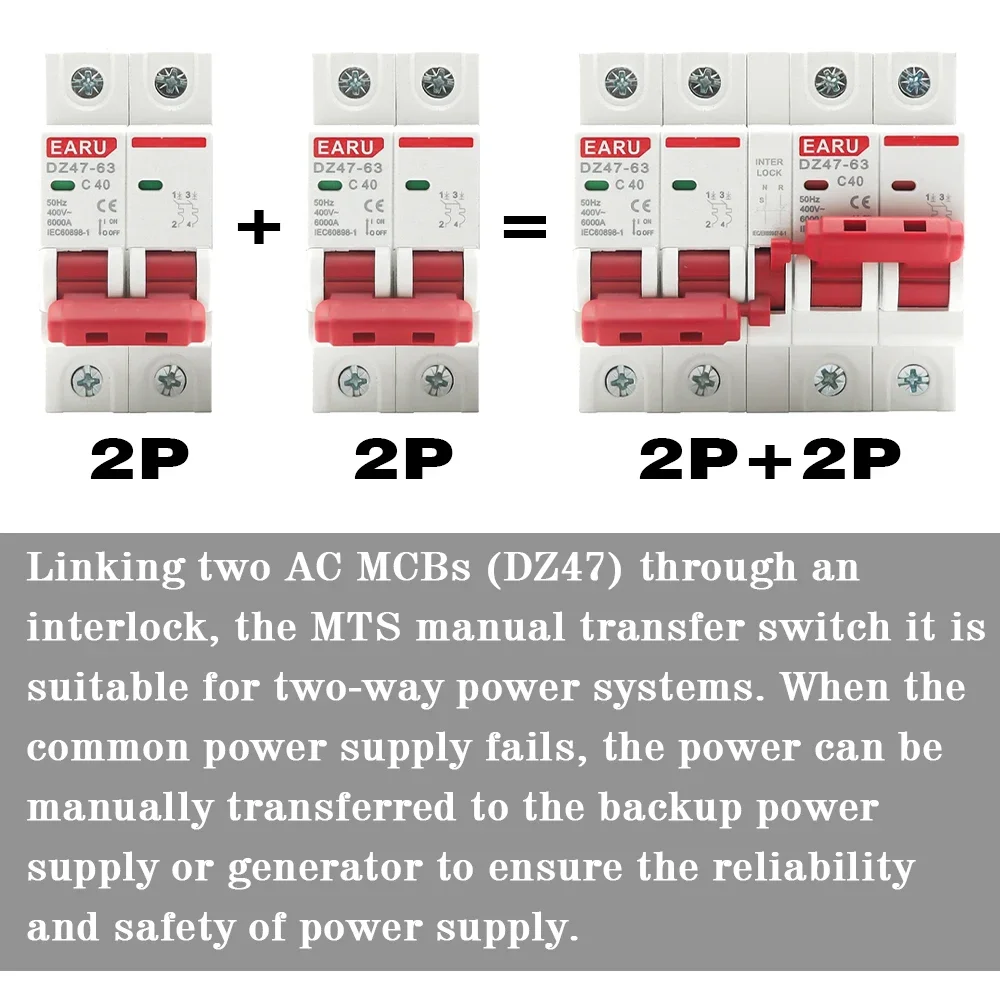

DZ47-63 MTS manual transfer switch is suitable for two-path power supply system with AC 50 HZ/60HZ, rated working voltage 240V~400V, rated current from 6A ~ 125A. It can manually transfer power supply to reserve power or generator when common power occurring fault so as to guarantee the reliability and safe of supply power. DZ47-63 MTS has the protective function of overload, under-voltage, short circuit and lack phase which is especially suitable for using in the place where does not allow power supply failure, such as fire fighting, hospital, marketplace, military project, high-rise building, bank, TV station and so on.
Rated Voltage: 400V 50/60Hz
Breaking Capacity: 6Ka
Rated Current: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A,63A
