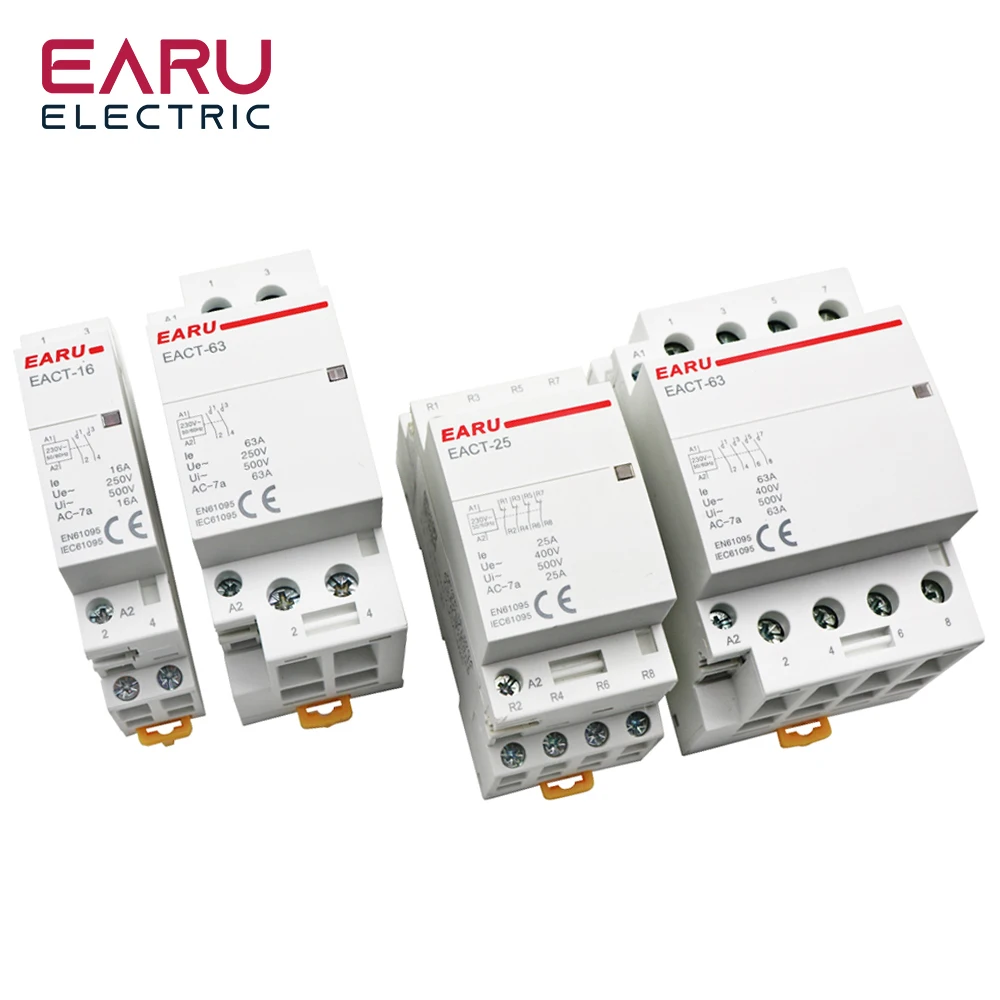

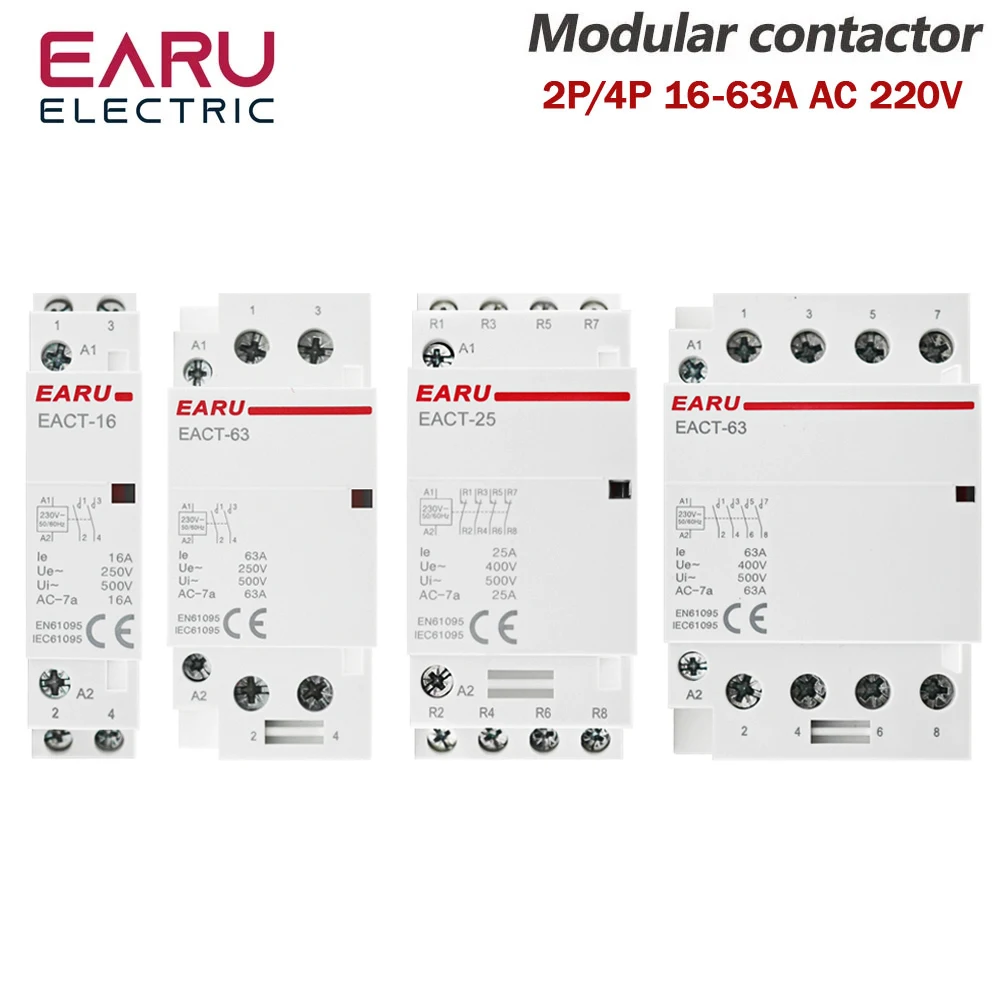

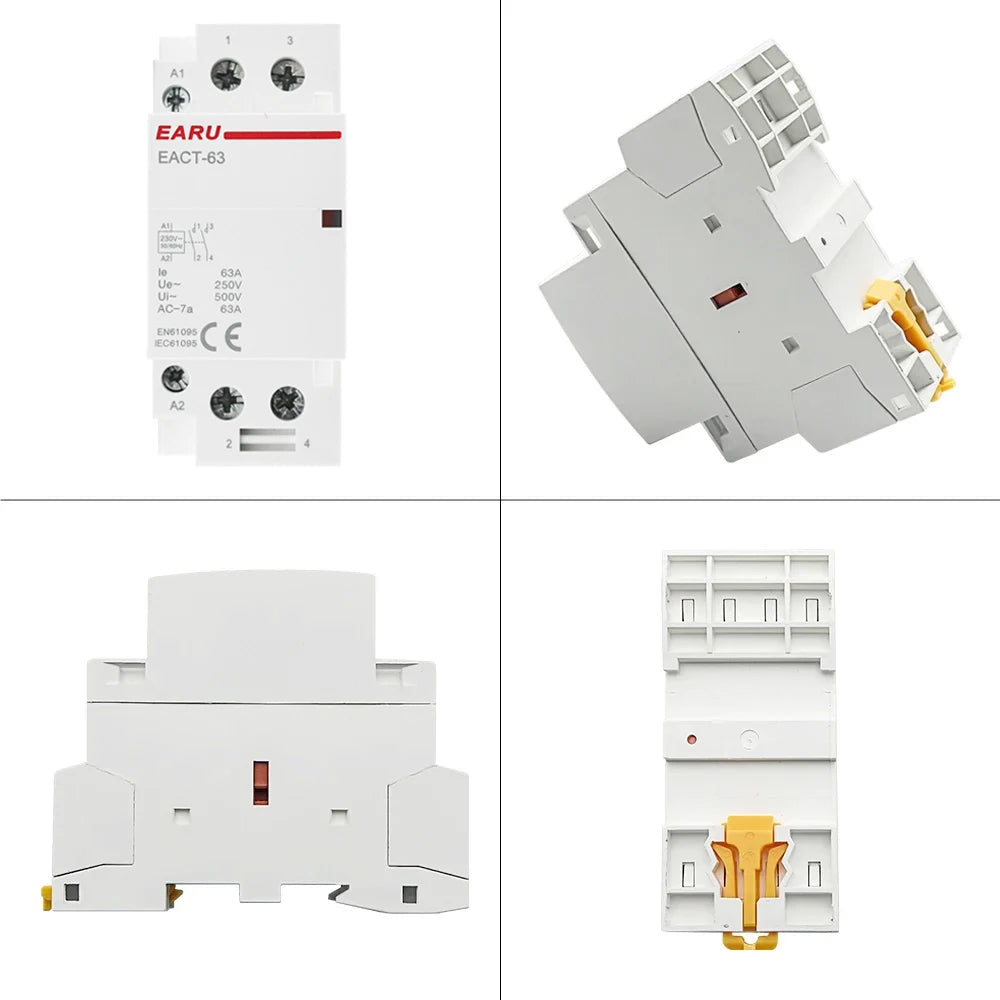

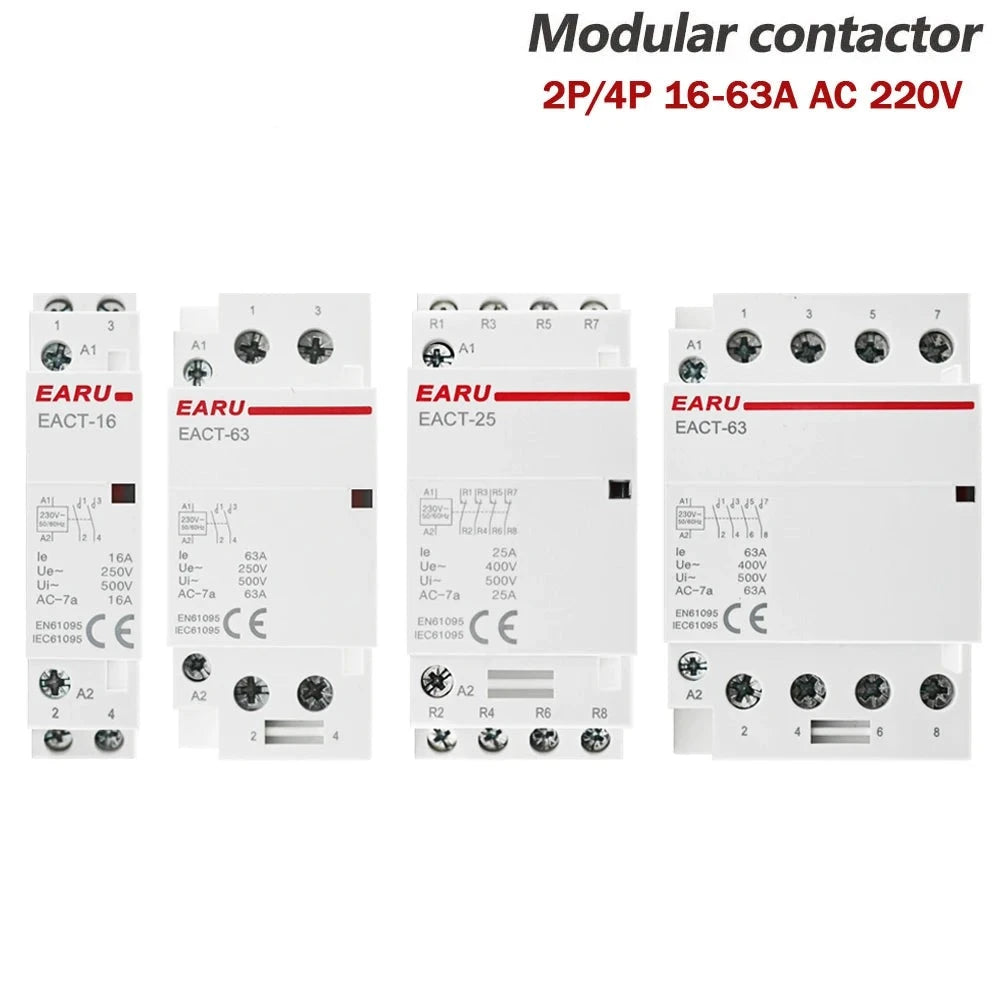

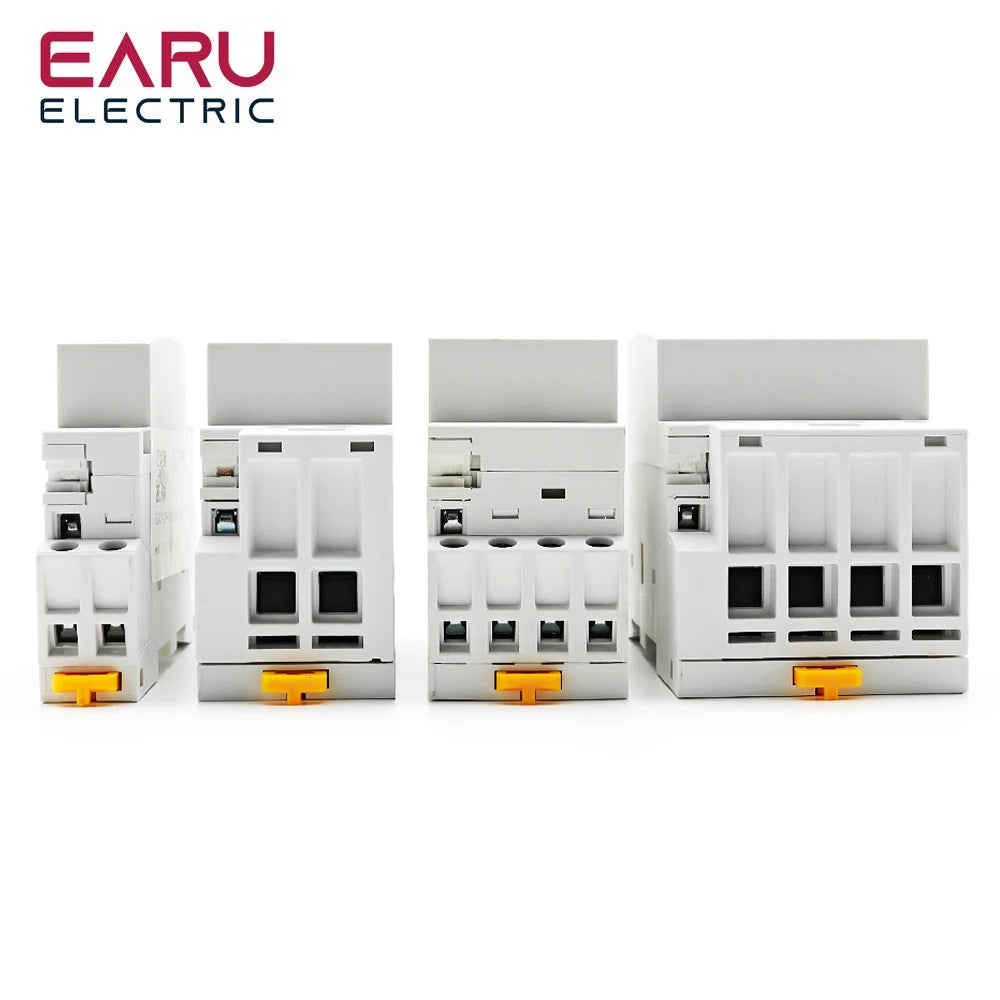

2P 4P 16A 20A 25A 32A 50A 40A 63A AC 220V 50 60Hz Din Rail Household Modular AC Contactor Switch Controller DIY Smart Home Hotel

2P 4P 16A 20A 25A 32A 50A 40A 63A AC 220V 50 60Hz Din Rail Household Modular AC Contactor Switch Controller DIY Smart Home Hotel

Prix habituel $30.34 USD
Prix habituel $0.00 USD Prix promotionnel $30.34 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color
Size
Standard

This AC contactor switch controller is designed for use in household and hotel settings. With 2P, 4P and multiple amperage options, it is versatile and can efficiently handle various electrical loads. Easy to install and compatible with smart home systems, it offers convenience and control.

SPECIFICATIONS

  • Electricity Type: AC
  • Model Number 1: EACT-2P-16A/20A/25A/32A/40A/63A
  • Model Number 2: EACT-4P-16A/20A/25A/32A/40A/63A
  • Phase: 1/2
  • Number of Pole: 2P/4P
  • Main Circuit Rating Current: 16A-63A
  • Voltage 1: AC220V/230V
  • Brand Name: EARUELETRIC
  • Item Type: SWITCHES
  • Model Number: EACT-2P-25A
  • Material: ALLOY
  • Current: 16-63A

EACT 2P 16A/20A/25A/32A/40A/63A    AC220V/230V

EACT 4P 16A/20A/25A/32A/40A/63A   AC220V/230V

House hold AC contactor is mainly designed for AC 50Hz or 60Hz circuits with 230V .Rated operating voltage in AC7a usage ,rated operating voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC7b usage , rated current to 10A.  Using in breaking capacity below 6kA circuit. For distance connect or break the circuit.

Application :for home, apartment, hotel, automatic cut off or connect the power.

Normal working and installation conditions

  •  Ambient temperature:-5°C to +40°C,the average temperature no more than +35°C in 24 hours.
  • Altitude:no more than 2000m.
  • Atmospheric conditions: the relative humidity of the installation place should be no more than 50% when the maximum temperature is +40°C:if under a lower temperature,a higher relative humidity is allowed. The monthly average minimum temperature in the wettest month should not exceed +25°C and the monthly average maximum relative humidity of this month no more than 90%.Besides,the dew on the surface of products caused by temperature change should be taken into consideration.
  •  Class of pollution: class 2.
  • Installation condition: class II.

Application instruction

  • Check whether the contactor agrees with the scope of application and the working condition before installation.

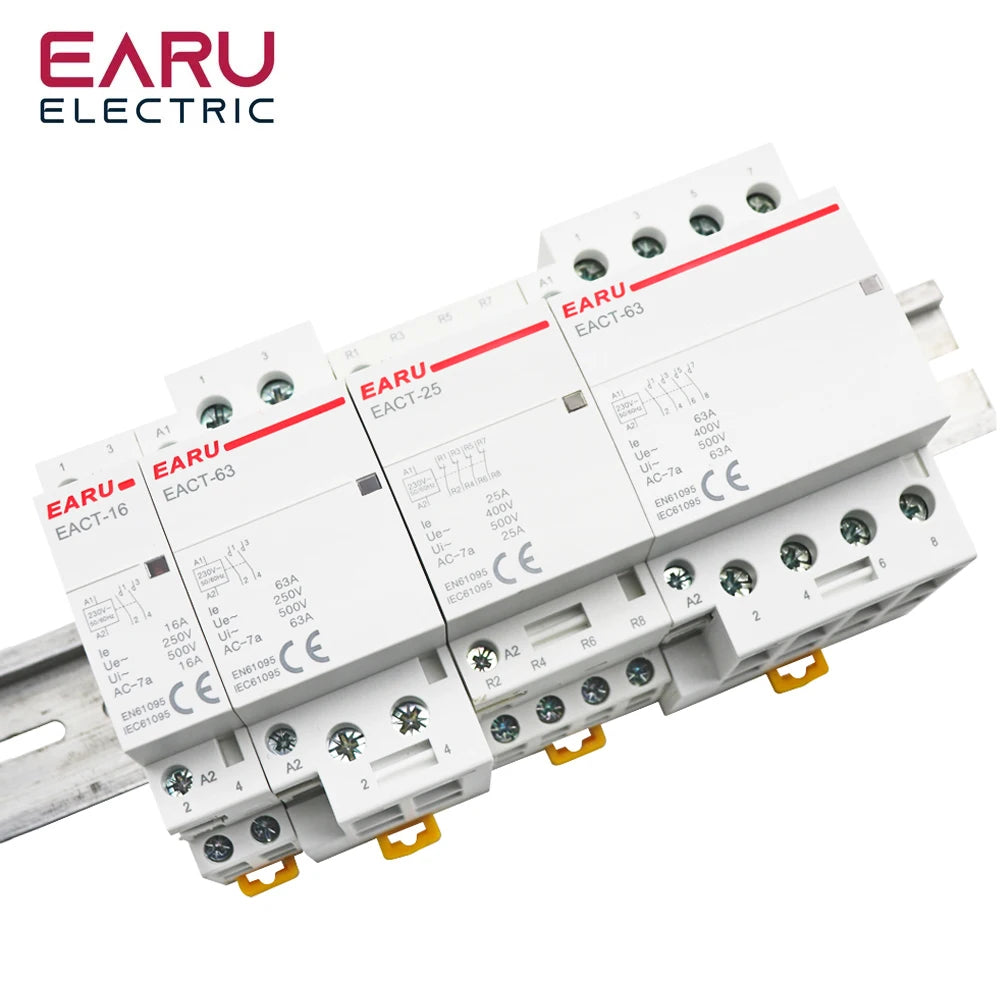

  • During the process of installing pull down the motion stopping component and put the contactor on the safe orbit then push up the motion,stopping component to fix the contactor on the safe orbit avoid loosening and dropping pull down the motion,stopping component if you want to remove the contactor.

Caution

  • Make sure the correct mode of connection
  • Screw down the binding screw during the connection
