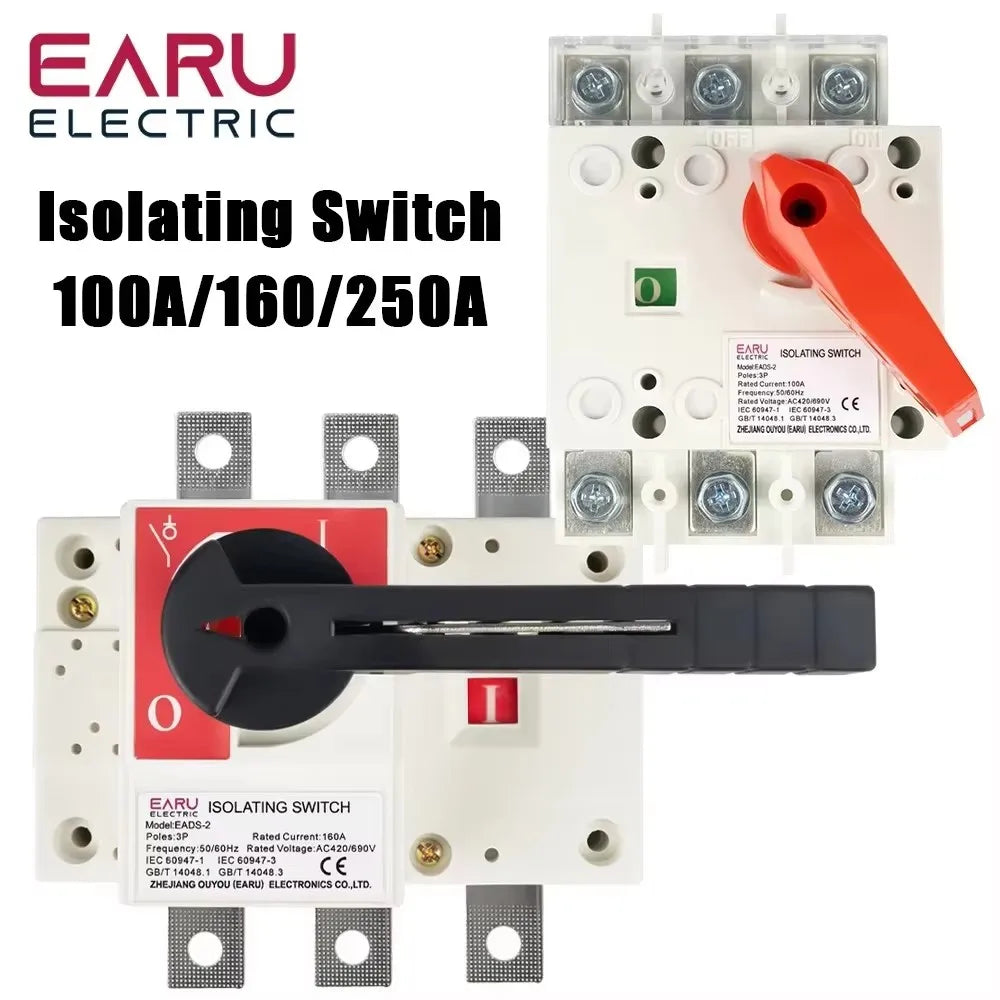

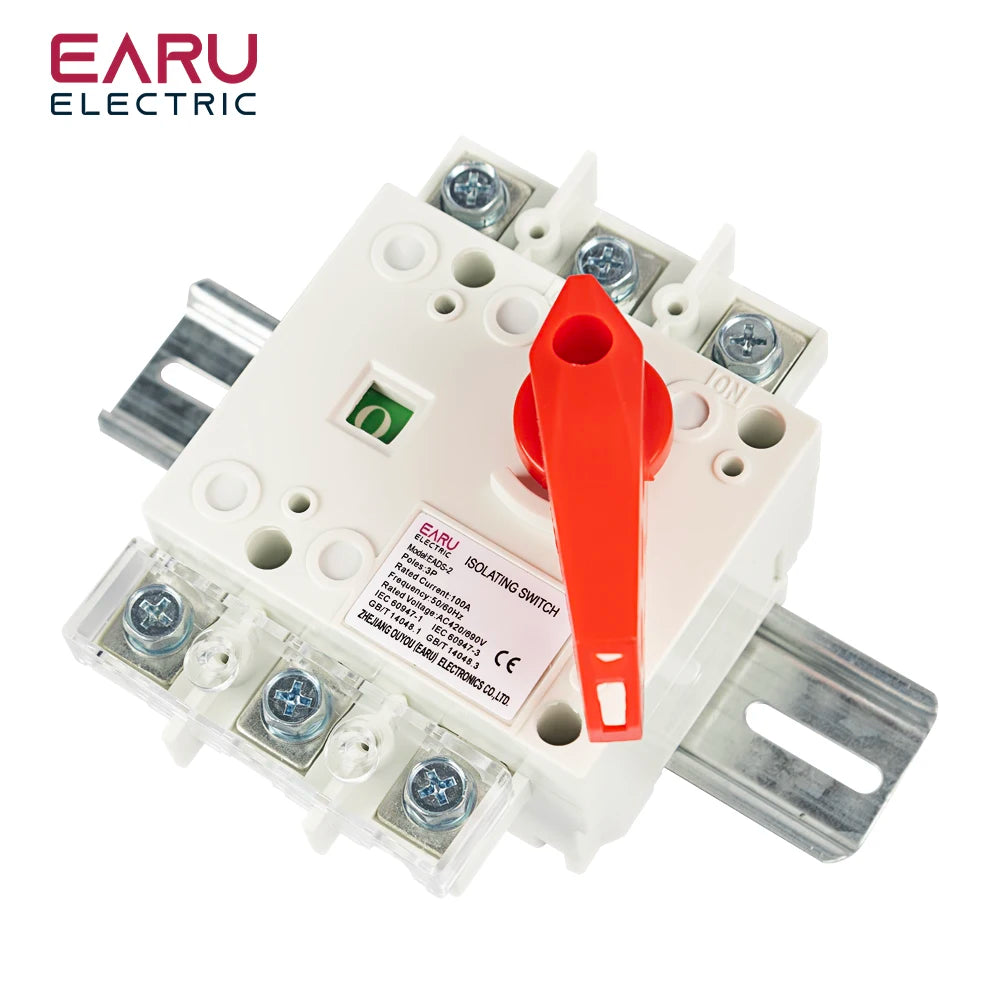

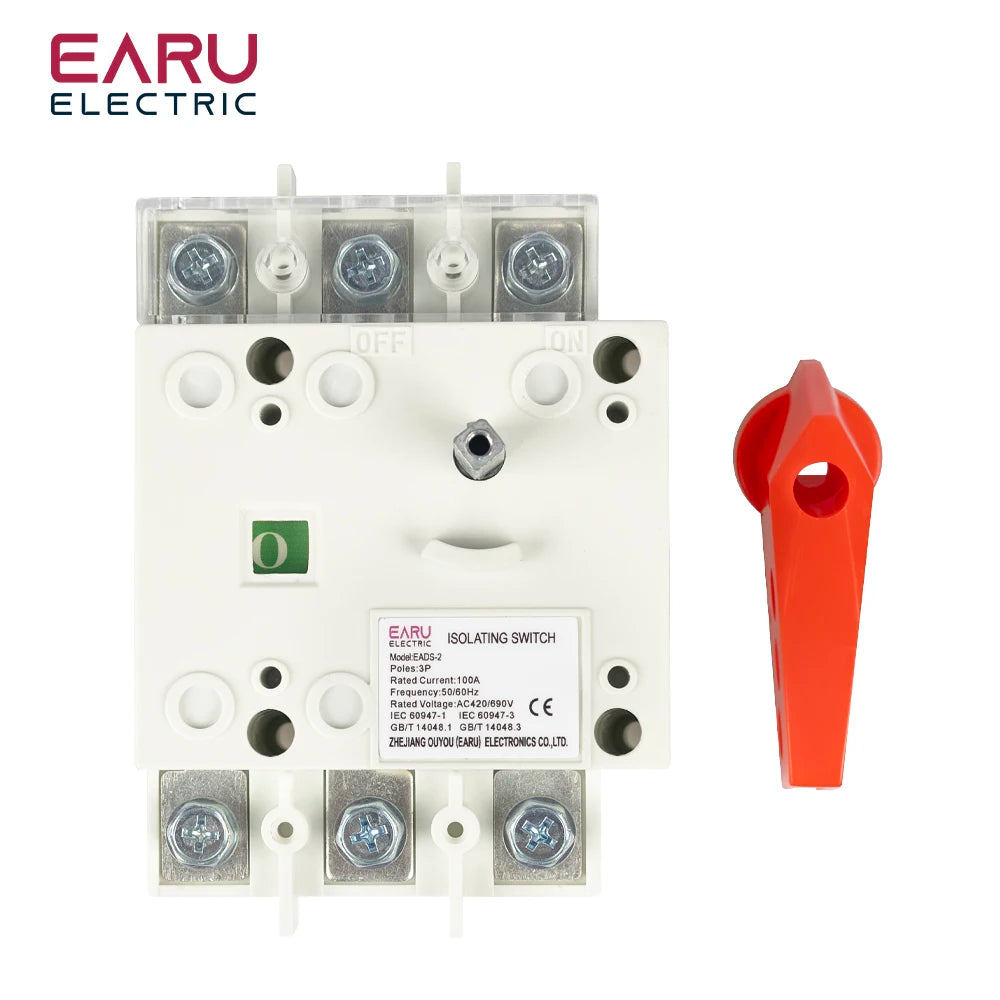

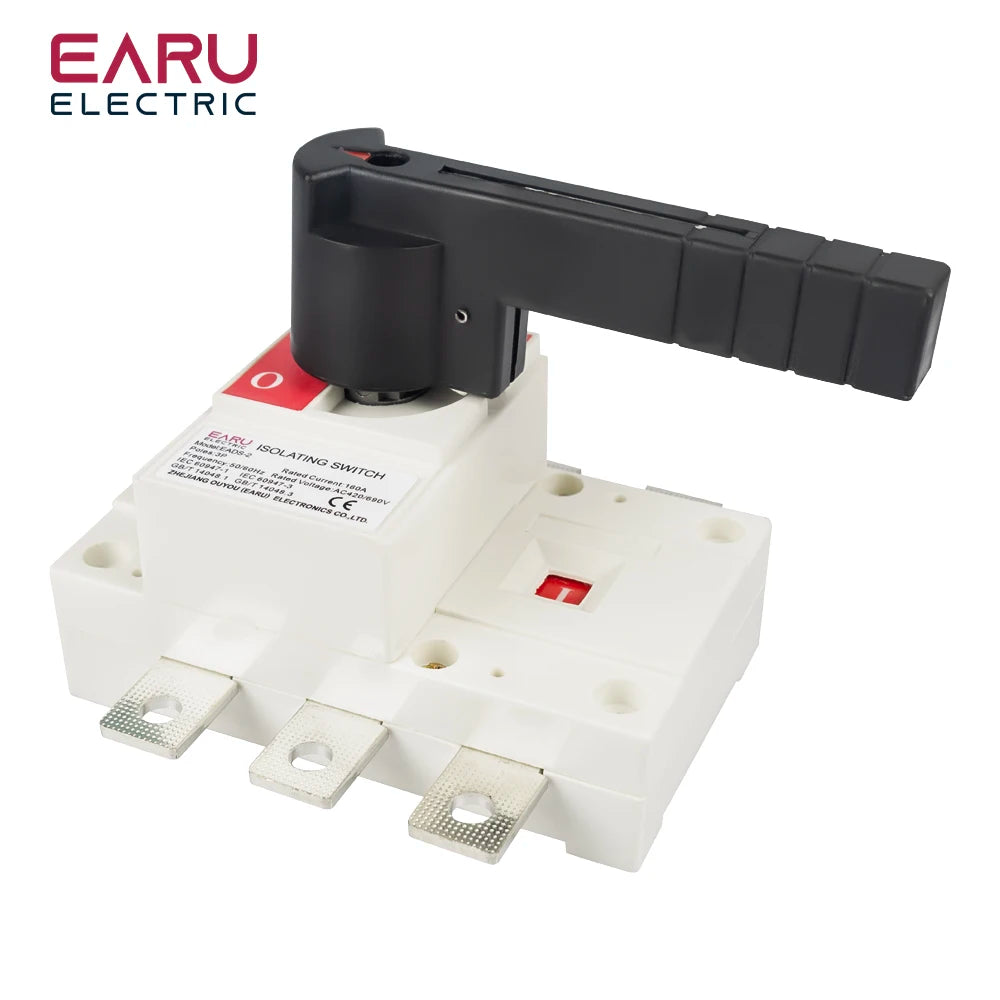

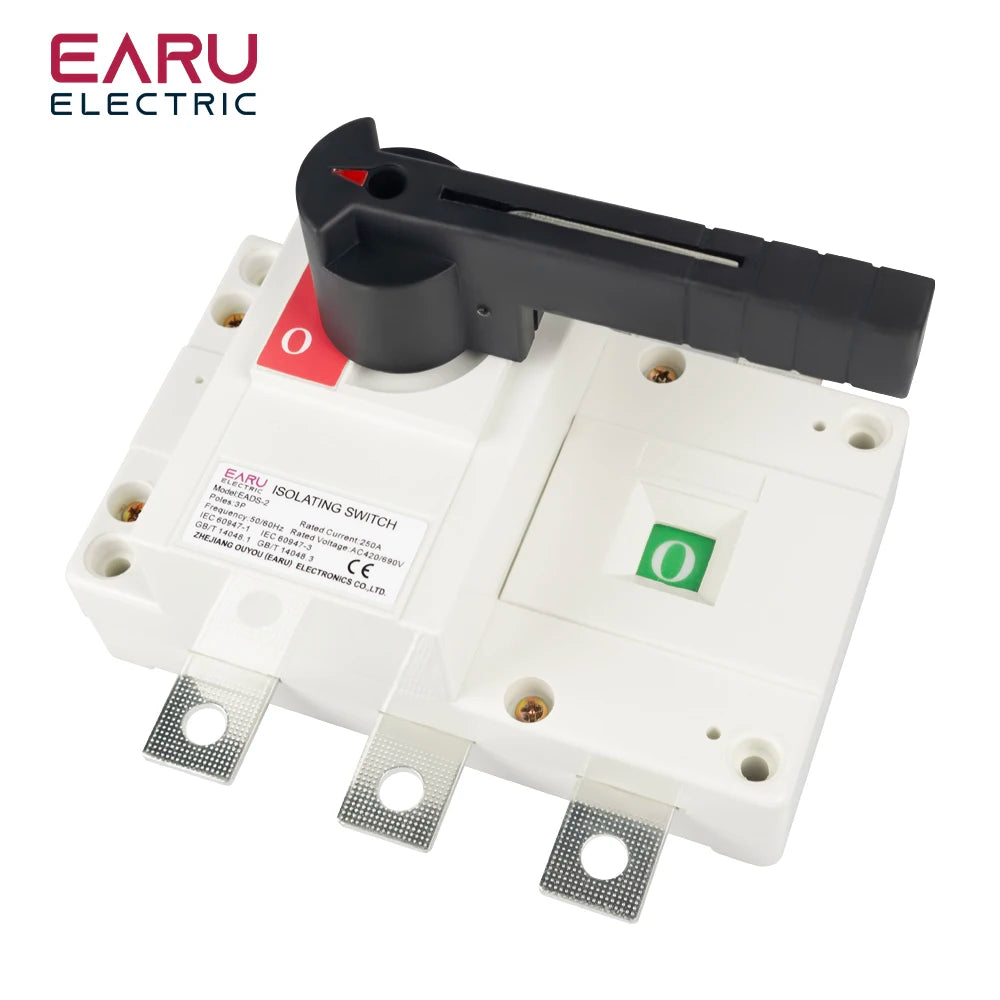

3P AC420/690V 100A 160A 250A Load Isolation Switch Knife Switch Three-Phase Circuit Breaker In-cabinet Transfer Operation Switch
3P AC420/690V 100A 160A 250A Load Isolation Switch Knife Switch Three-Phase Circuit Breaker In-cabinet Transfer Operation Switch
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Brand Name: EARU
Certification: CE
Choice: yes
Frequency: 50Hz/60Hz
High-concerned chemical: None
Is Smart Device: No
Model Number: EADS-2
Origin: Mainland China
Pole: 3P
Rated Current: 100A/160A/250A
Rated Voltage: AC420/690V
Type: Mini,Circuit breaker,Load Isolation Switch
is_customized: Yes
semi_Choice: yes
We can offer OEM service to print your logo on the circuit breaker,
if you get any need, feel free to contact the seller!

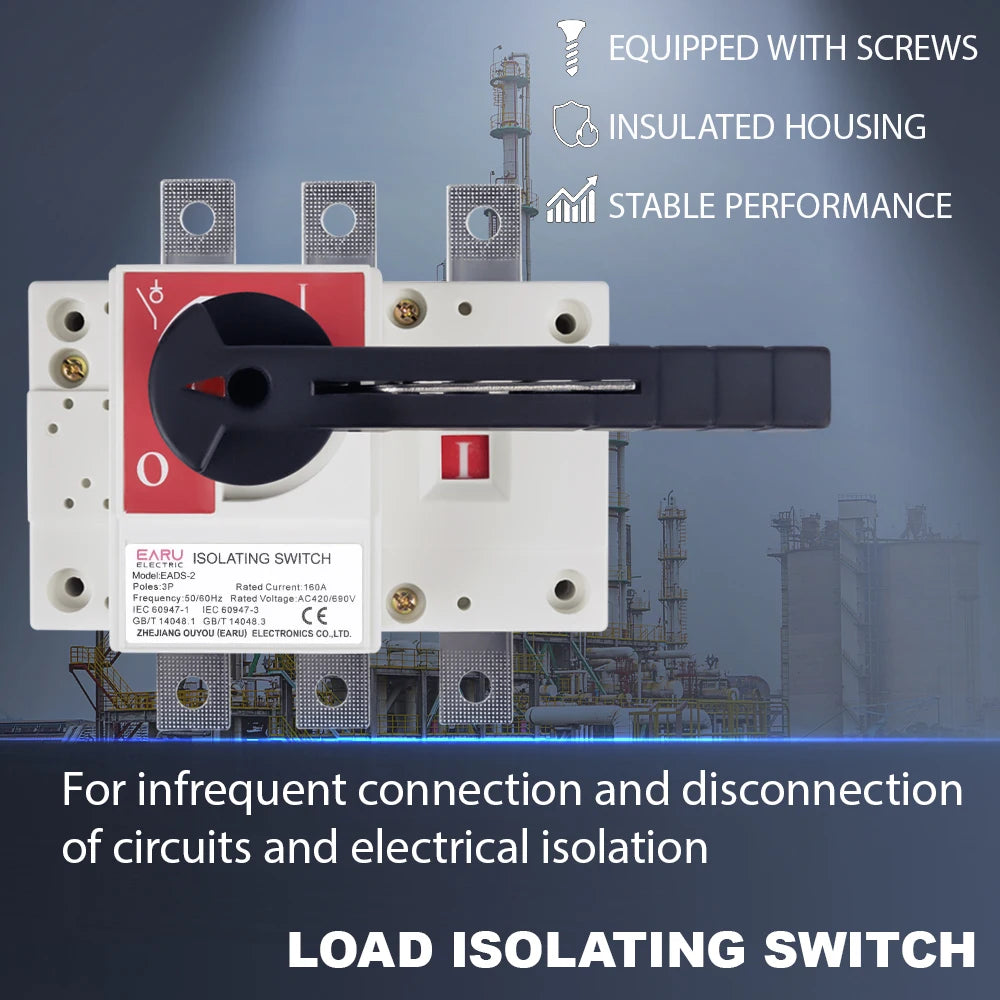

EADS-2 series load isolating switches are suitable for AC 50Hz/60Hz, AC rated voltage 690V and below, DC rated voltage 440V and below, and rated current up to 3150A. In power distribution equipment of factories and enterprises, they can be used for manual infrequent connection and disconnection of circuits and isolation of power supply. Among them, 125A~630A can be used for frequent connection and disconnection.

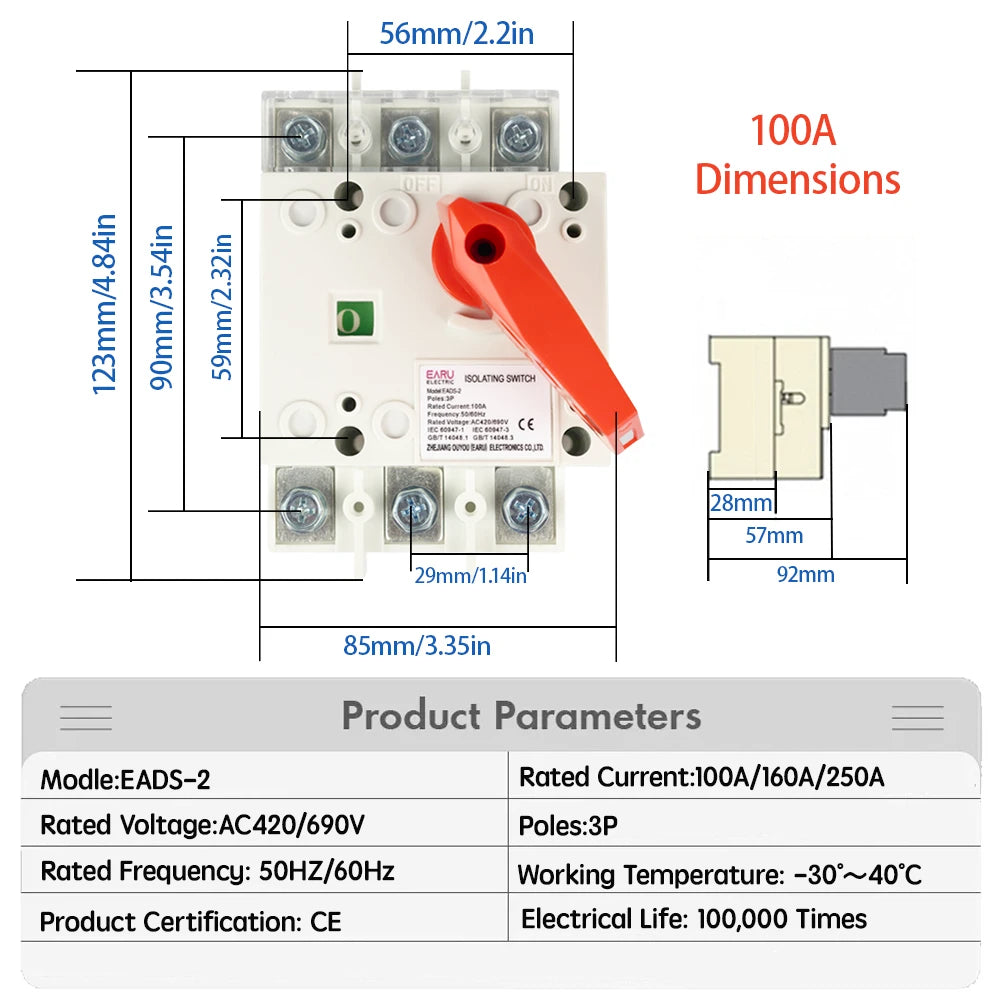

Parameter:
Rated voltage: AC420/690V
Rated current: 100A 160A 250A
Operating temperature:-30~40℃
Standard:IEC 60947-1 IEC 60947-3 GB/T 14048.1 GB/T 14048.3
Other specifications: 100A/160A/250A/400A/630A/1000A/1250A/1600A/2000A/2500A/3150A,
Pole specification: 3P/4P
If you need other specifications besides the link option, please contact customer service for customization
