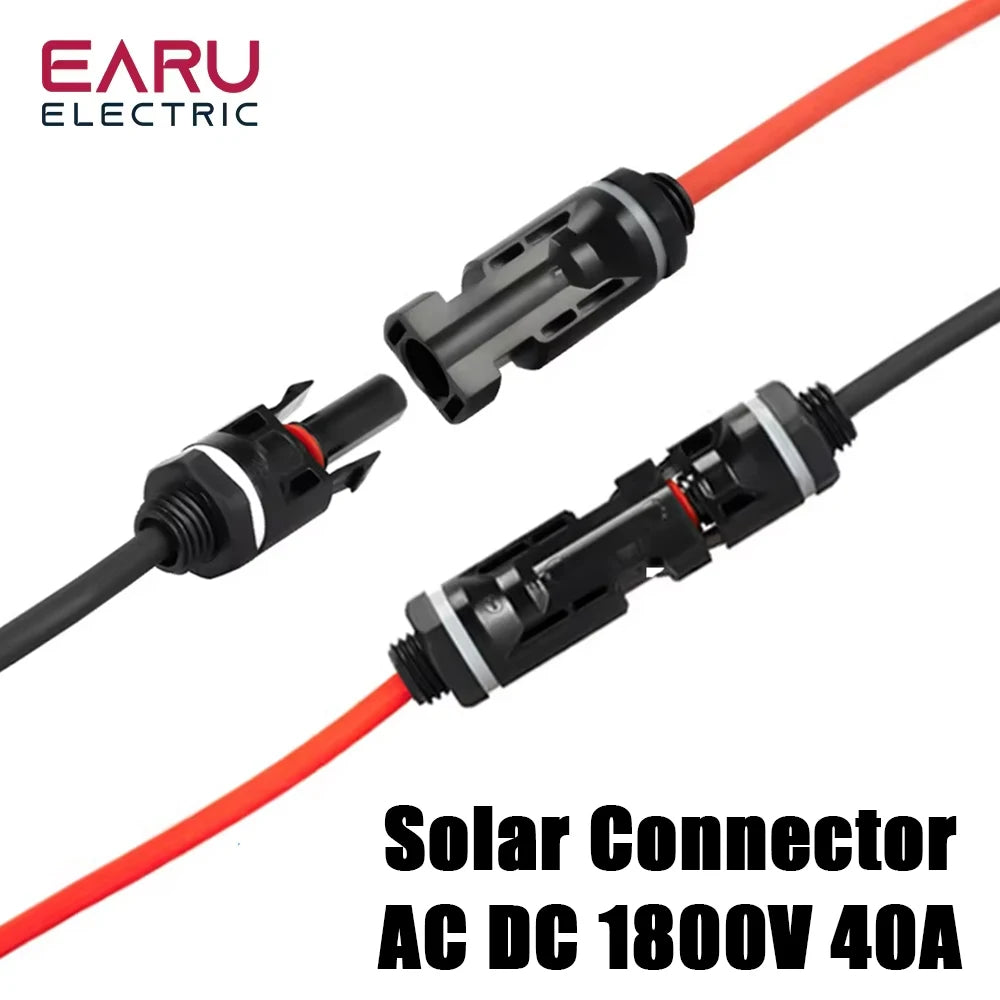

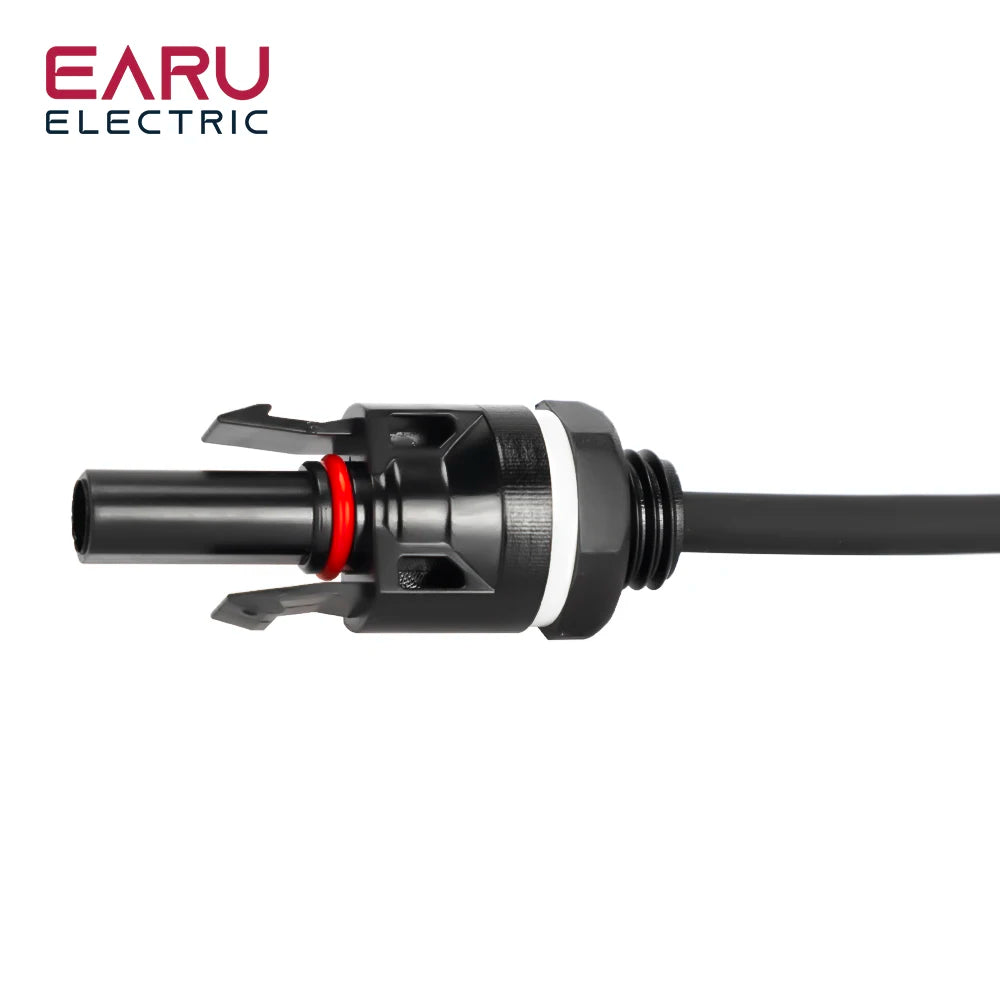

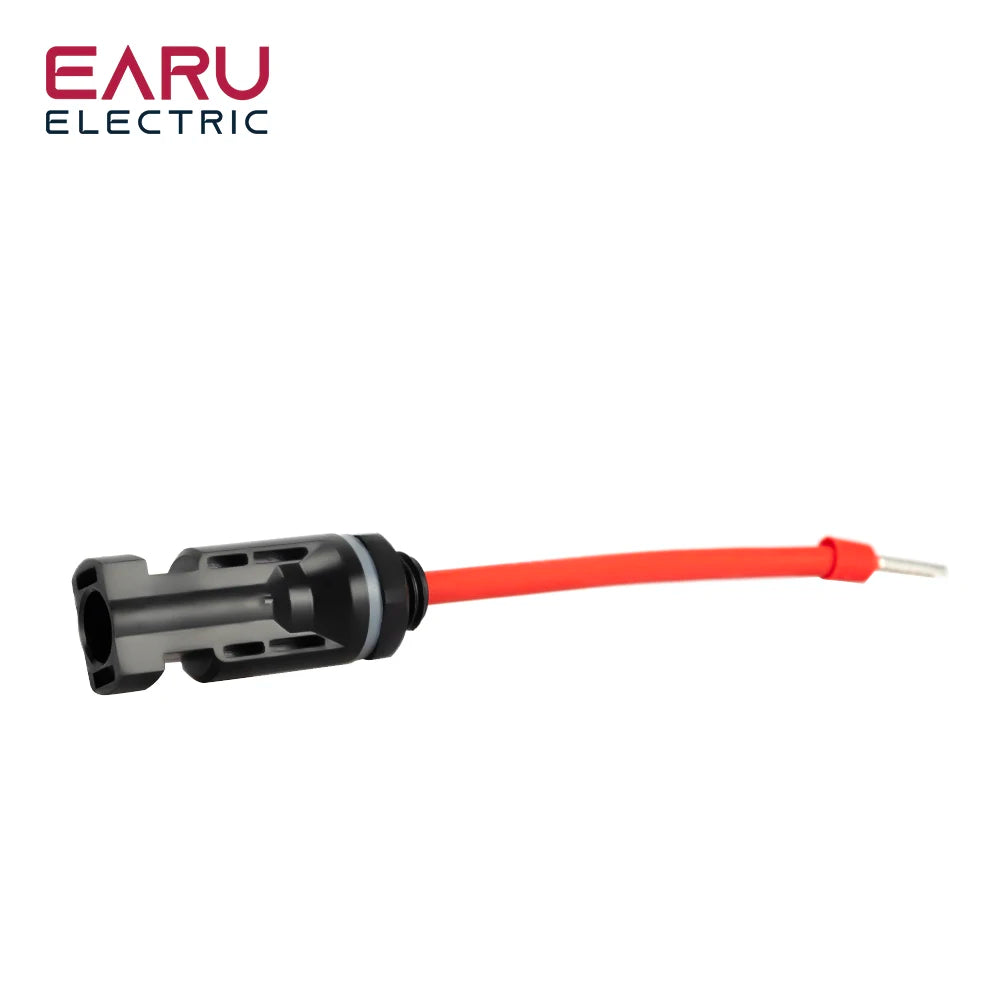

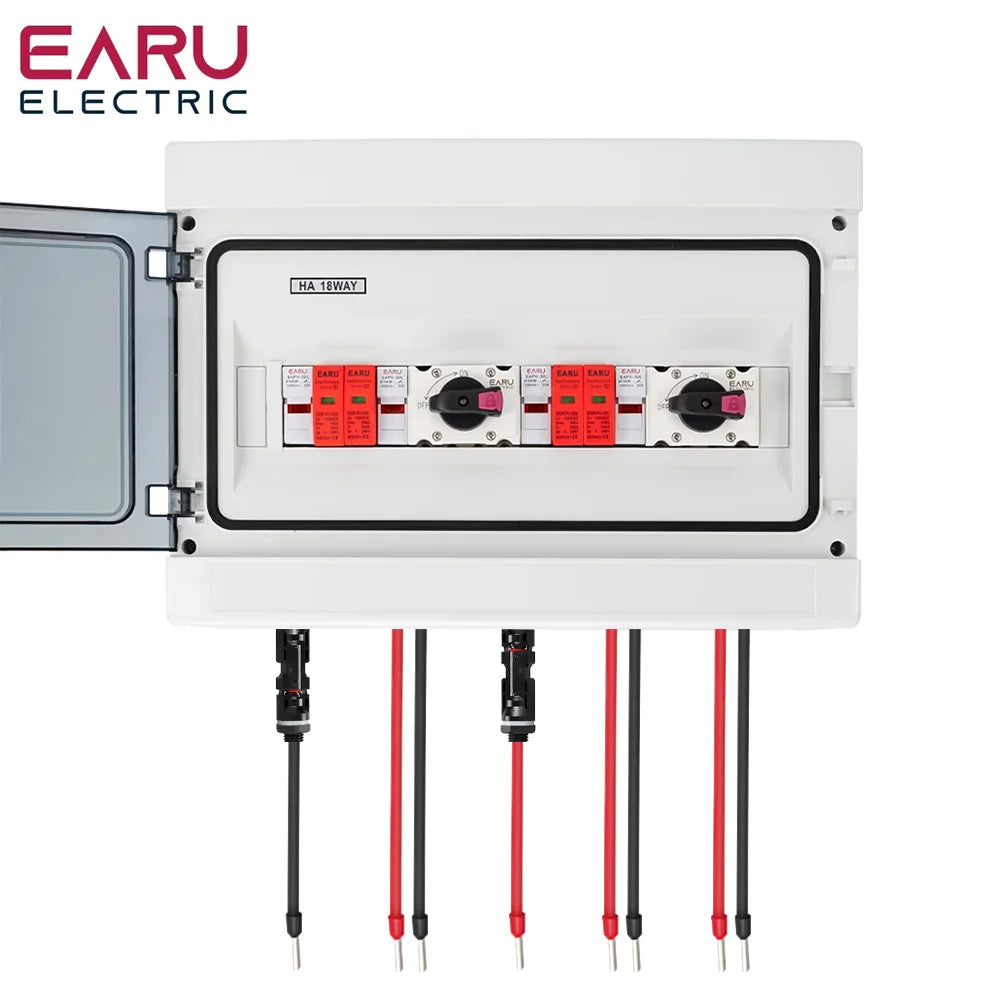

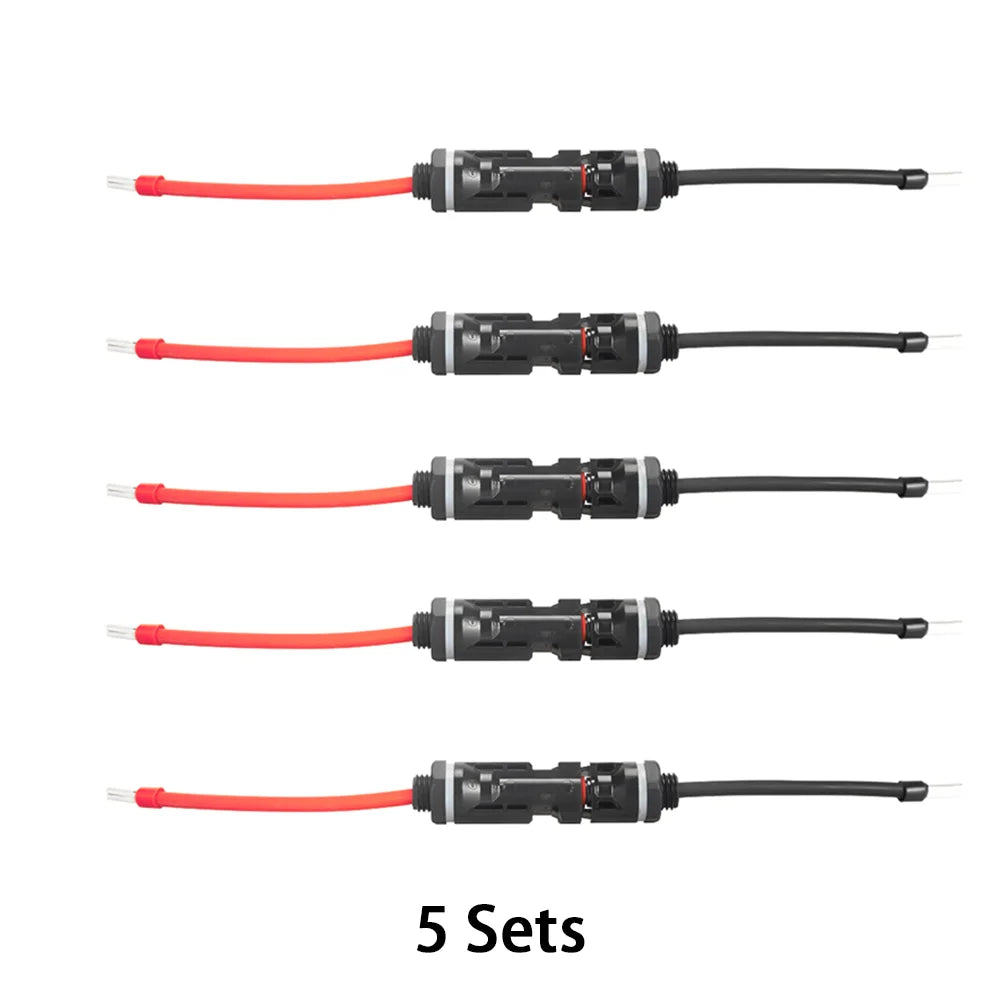

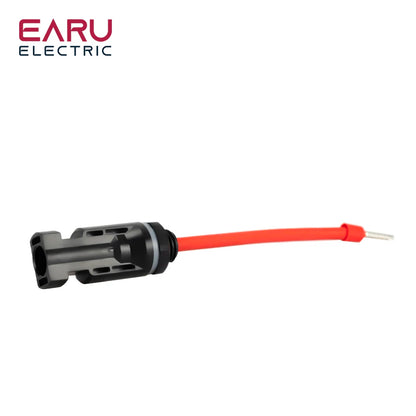

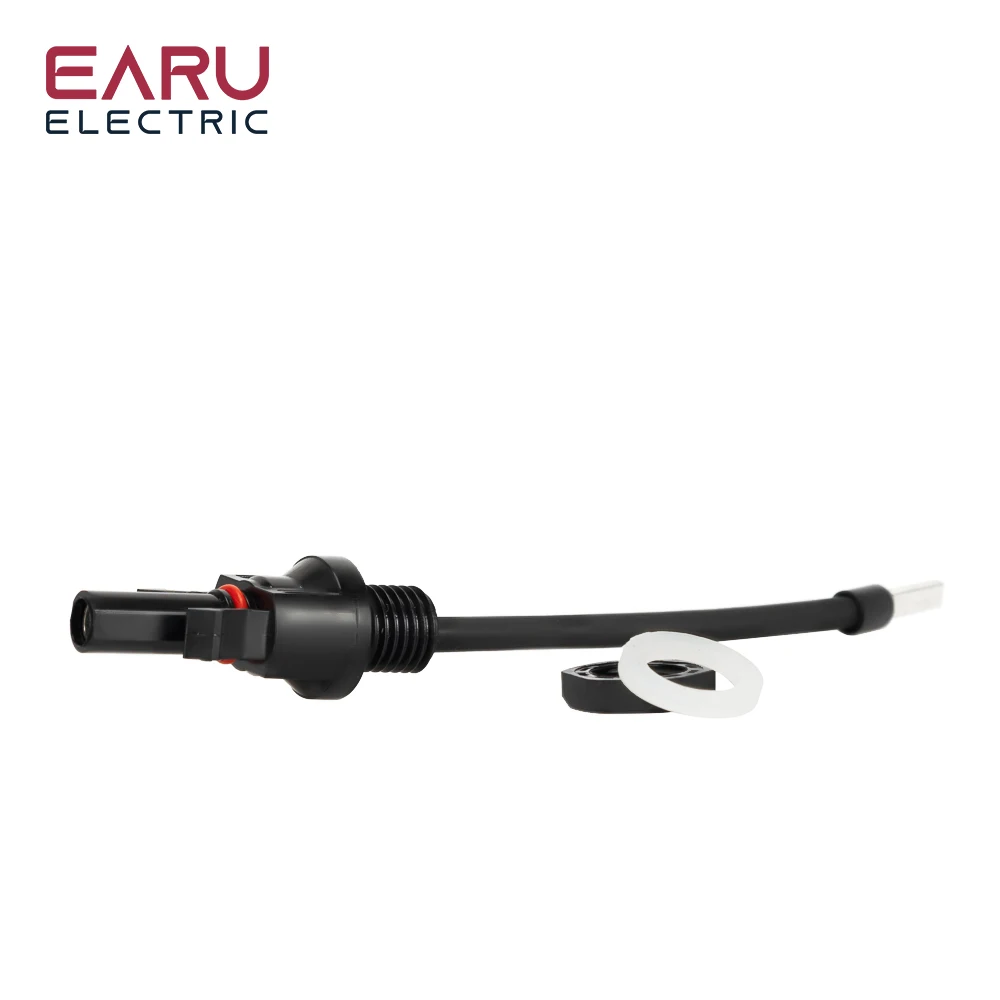

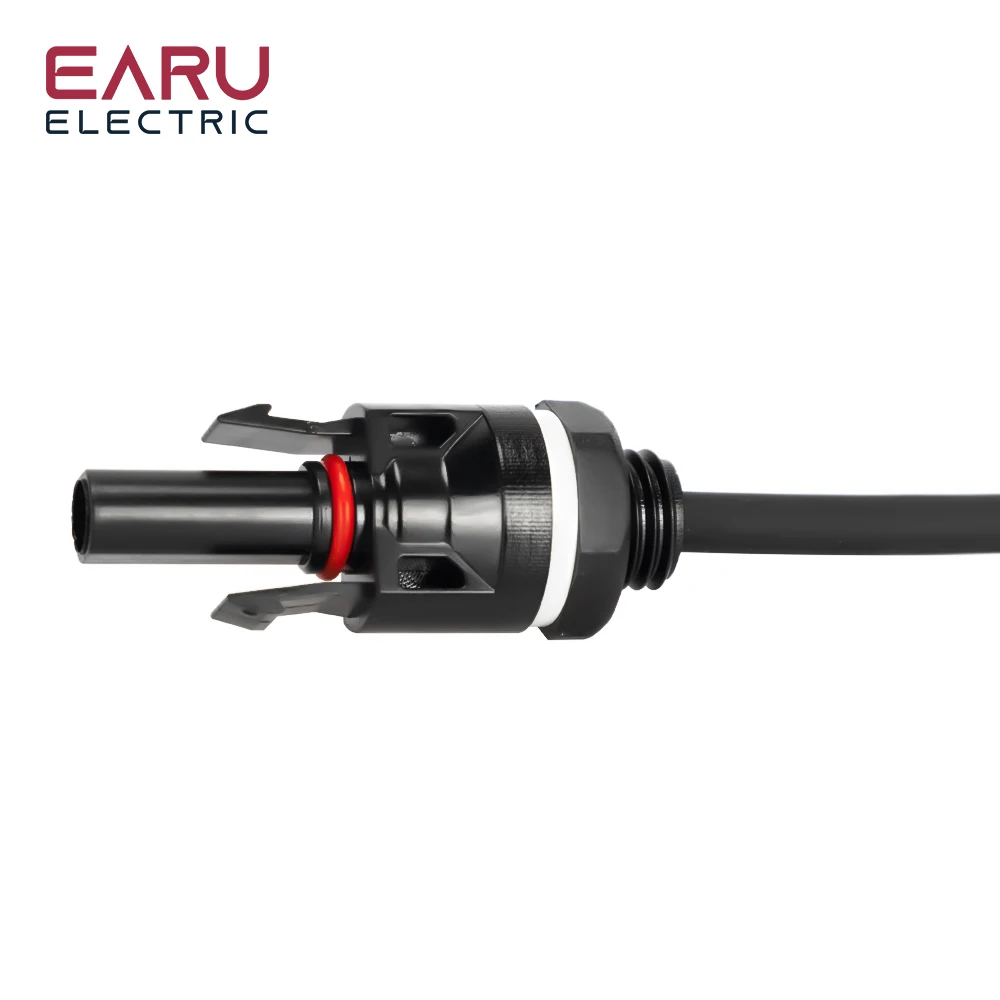

5 SETS Waterproof IP67 PV Photovoltaic Solar Connectors Male Female with 2.5mm² 14AWG Cable Wire E6012 Terminal for Combiner Box
5 SETS Waterproof IP67 PV Photovoltaic Solar Connectors Male Female with 2.5mm² 14AWG Cable Wire E6012 Terminal for Combiner Box
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Ambient Temperature Range: -40℃ ~+ 125°C(EC)
Brand Name: EARU
Cable Size: 2.5m㎡ 14AWG
Certification: CE,UL
Choice: yes
Conductor material: stranded tin-plated ~ 99.95% oxygen-free copper
Connection Segment: E6012
Contact Resistance Ofthe Plug Connector: 0.5mΩ
High-concerned chemical: None
Lock The Connection Mode OfThe System: Embedded
Model Number: E6012
Origin: Mainland China
Protection Level: IP67 Protection Rating ,lP2X Protection Rating
Rated Current: 40A
Voltage: 1000 V
semi_Choice: yes

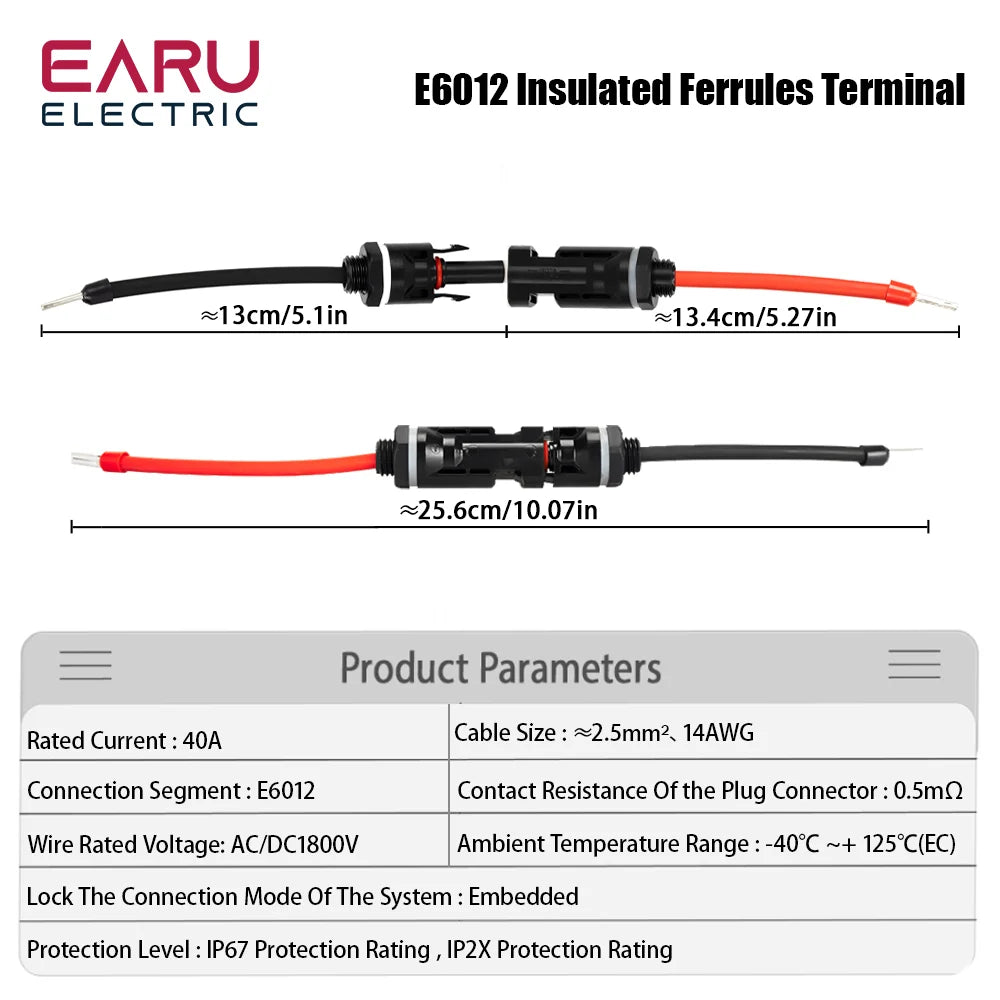

Technical Specification
Color: Black and red
Rated Current : 40A
Rated Voltage: AC/DC1800V
Contact Resistance Of the Plug Connector : 0.5mΩ
Cable Size : ≈2.5m㎡、14AWG
Cable Length: 7~8CM(Manual measurement, error about 10%)
Retardant Rating : UL94-HB/UL94-VO
Ambient Temperature Range : -40℃ ~+ 125℃(EC)
Lock The Connection Mode Of The System : Embedded
Protection Level : IP67 Protection Rating , IP2X Protection Rating

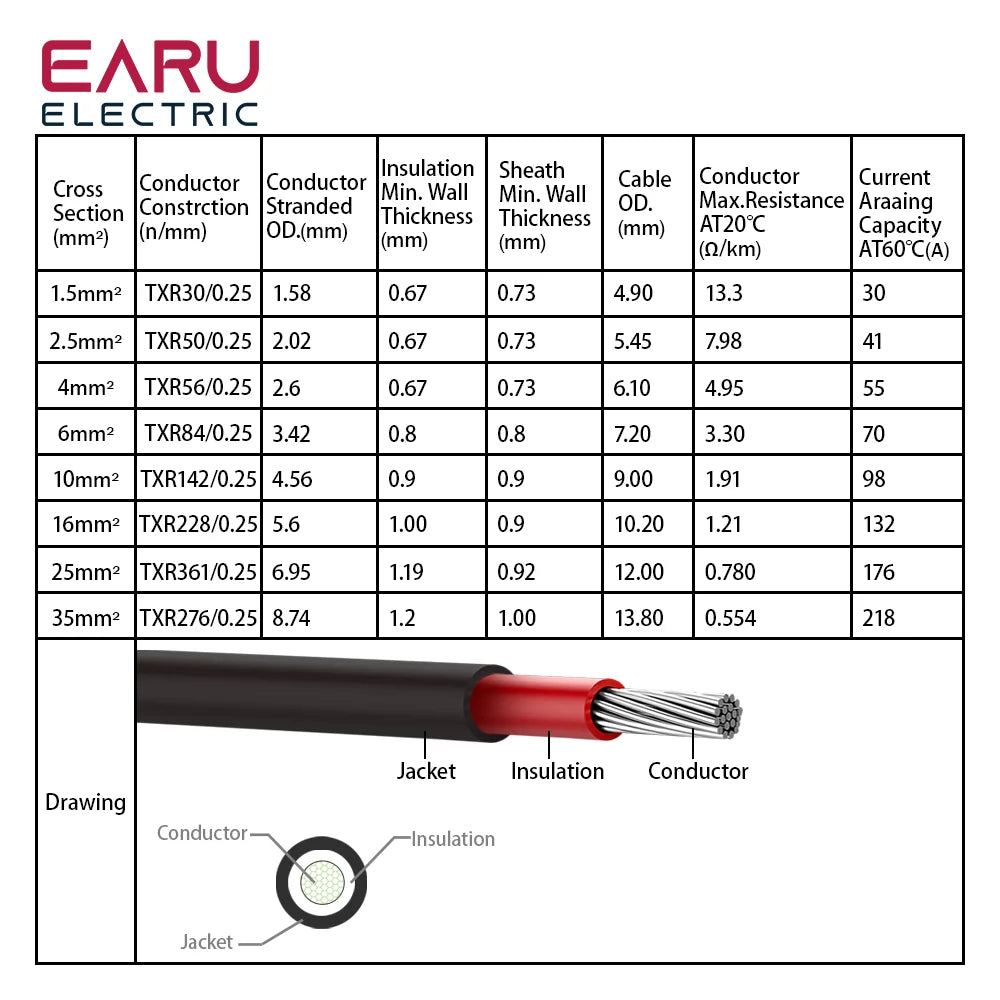

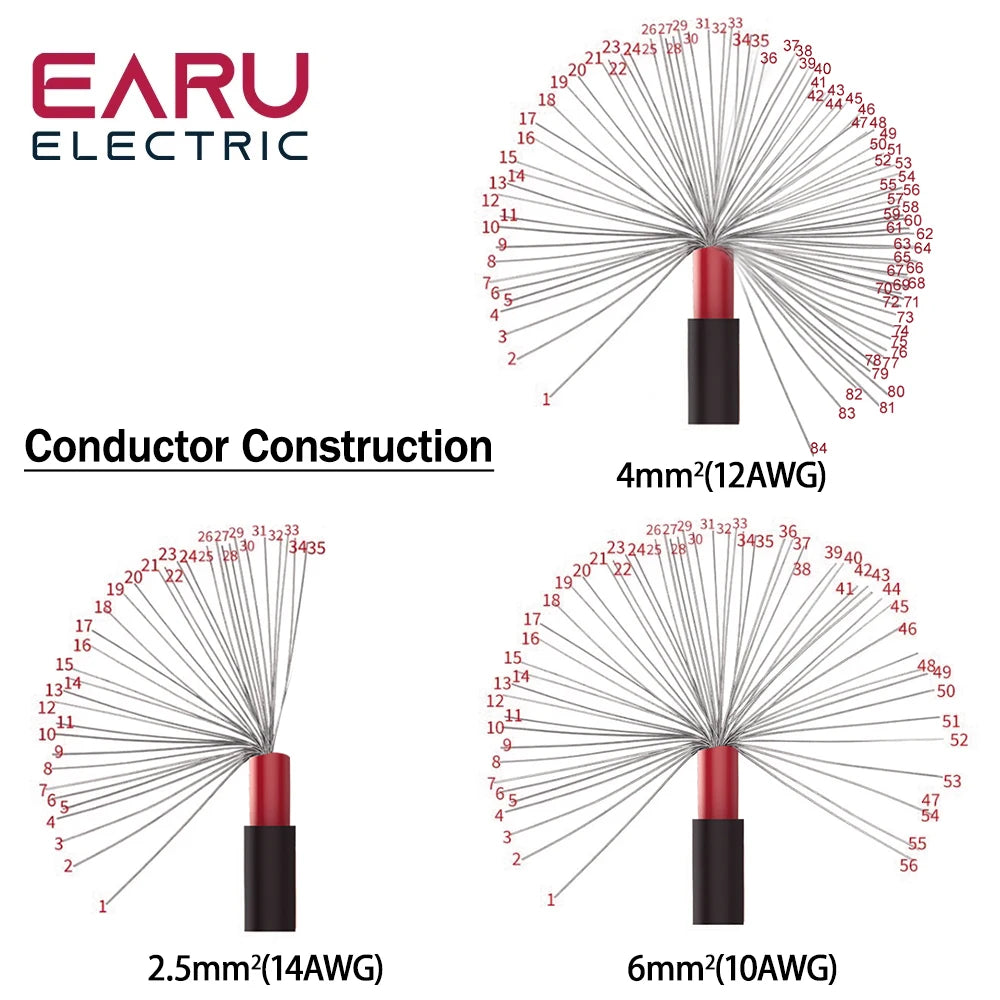

Conductor Material:Stranded tin-plated ~ 99.95% oxygen-free copper
Inner insulation: XLPE
Insulating Material: PVC.Nylon
Material Dissemination
Fire performance: IEC 60332-1
Smoke emission: IEC 61034, EN 50268-2
Low fire load: DIN 51900
Certification: TUV and UL

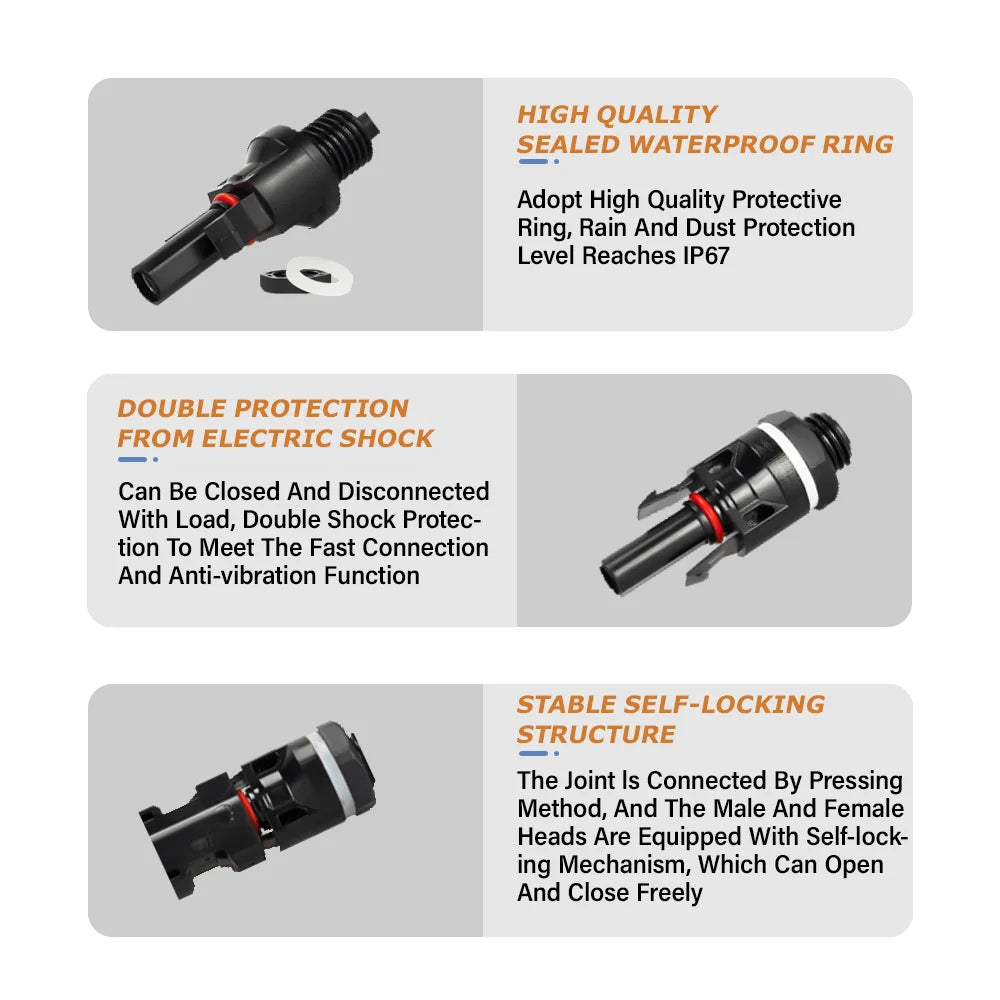

Advantages
Electron beam cross coupling head
UV, ozone and hydrolysis resistance
High temperature resistance, the material will not melt or flow
Good low temperature flexibility
The service life at 90 °C is longer than 25 years
Compatible with all common connectors
