63A AC 230V Tuya WiFi Smart Energy Meter Power kWh Meter Earth Leakage Over Under Voltage Protector Relay Device Switch Breaker

4.8 ( 10 reviews )

$34.66 USD

~~$0.00 USD~~ $34.66 USD

Promotion Épuisé

Frais d'expédition calculés à l'étape de paiement.

Rated Current 1-63A(Adjustable)

Quantité

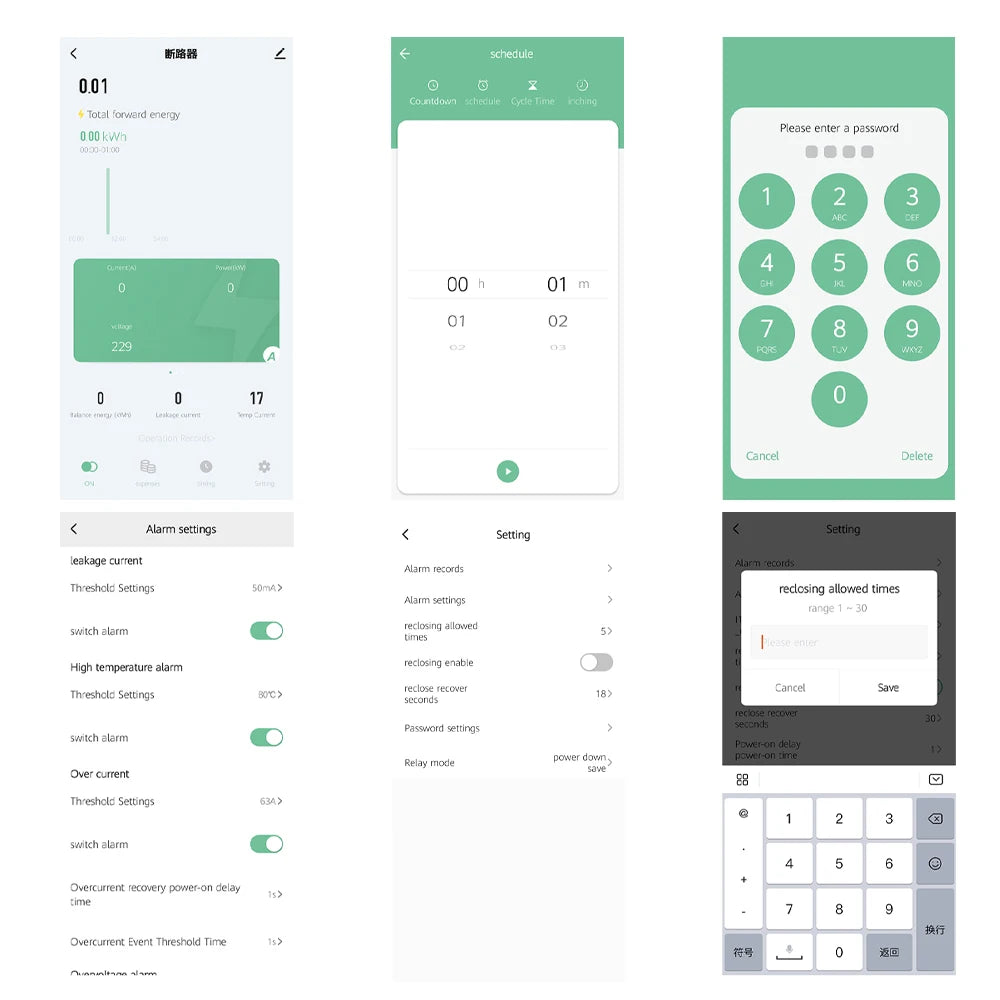

Track and control your energy usage with the 63A AC 230V Tuya WiFi Smart Energy Meter. This power kWh meter features earth leakage, over/under voltage protection, and a relay switch breaker, all accessible through the Tuya app. Stay informed and save on your energy bill with this innovative device.

SPECIFICATIONS

Rated Current: 1-63A(Adjustable)
Rated Frequency: 50/60Hz
Operation Voltage Range: AC80V-400V(Single Phase)
Rated Voltage: AC110/230V
Power Display Range: 0-99999.9kw/h
Working Temperature: -30℃ to 70°C
Installation: 35MM Din Rail
Protection Degree: IP20
Output Contact: 1NO
Measurement Accuracy: ±1%
Phase: 2P
Model 1: RCCB
Model 2: RCBO
Model 3: RCD
Brand Name: EARUELETRIC
Model Number: EAMPDW-TY-63C
Type: Mini
Rated Voltage: 220V
Type: Circuit breaker

We can offer OEM service to print your logo on the circuit breaker, if you get any need, feel free to contact the seller!

Function:

Under voltage protection 80V-210V (adjustable) (default: 175V)
Over voltage proteciton 120V-300V (adjustable) (default: 275)
Over current protection 1A-63A (adjustable) (default: 63A)
Reconnect time (delay on time): 10s-90s (default: 30s)
Current Leakage protection:10-99mA （This function can be turned off）
Over Current and Leakage Reconnect Times 1-30/Off(adjustable)(default:5) This function can be turned off
Temperature Protection 10-85°C(adjustable) (this parameter only set on App)
Power display range：0-99999.9kWh
Energy Consumption Record Range:10-500kWh（default: 30kWh)
Voltage meter
Ammeter
Energy meter
Delay time of APP setting program and device: max 20s (It depends on the network speed)
