This hybrid controller supports 8000W of wind and solar energy boost charging for 12V, 24V, and 48V battery systems. With MPPT technology, it allows for maximum power extraction, prolonging the lifespan of lithium, Lifepo4, lead acid, and GEL batteries. Includes a free dump load for excess energy.
Specifications
- Maximum Current: 58A
- Application: Charger Controller
- Application: Voltage Controller
- Application: Wind Controller
- Application: Solar System Controller
This kind of wind solar hybrid streetlight controller is special design for small off-grid wind solar hybrid generation system. Appearance is elegant, operations are easy. It also makes the course of which wind generator and solar panels charge to batteries safely and efficiently.
Ø Wind generator MPPT boost charging function.
Ø PWM dump load of wind, external dump-load resistance, intelligent disconnection of Solar charging.
Ø Dual power supply function: Battery + solar power supply.

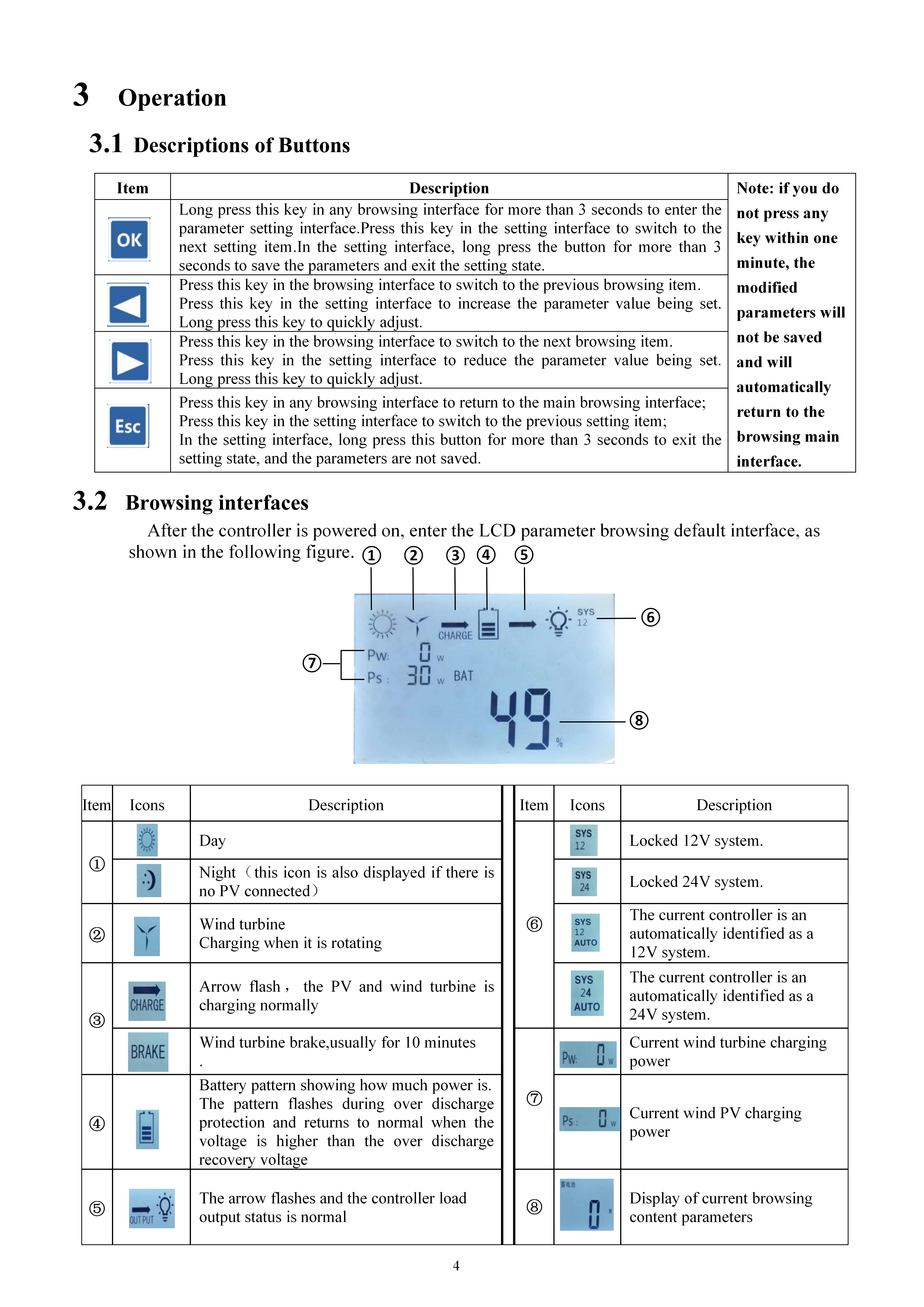

Ø LCD displays parameters such as voltage and current of wind, solar and load .Some parameters can be set by users.
Ø DC output with 3 output modes.
Ø The inner circuit board of the controller is sprayed with conformal coating to prevent dust, moisture and static electricity.
Kindly remind for all buyer:If you use 24v system, your solar panel voltage is not more than 55V. If your system is 48V, please make sure is less than 95V, if too high solar panel voltage, controller's MOS will be damaged.
About MPPT Start Voltage:
12V battery System, the wind generator votlage need reach to 8V
24V battery System, the wind generator voltage need reach to 16V
48v battery System, the wind generator voltage need reach to 32V
