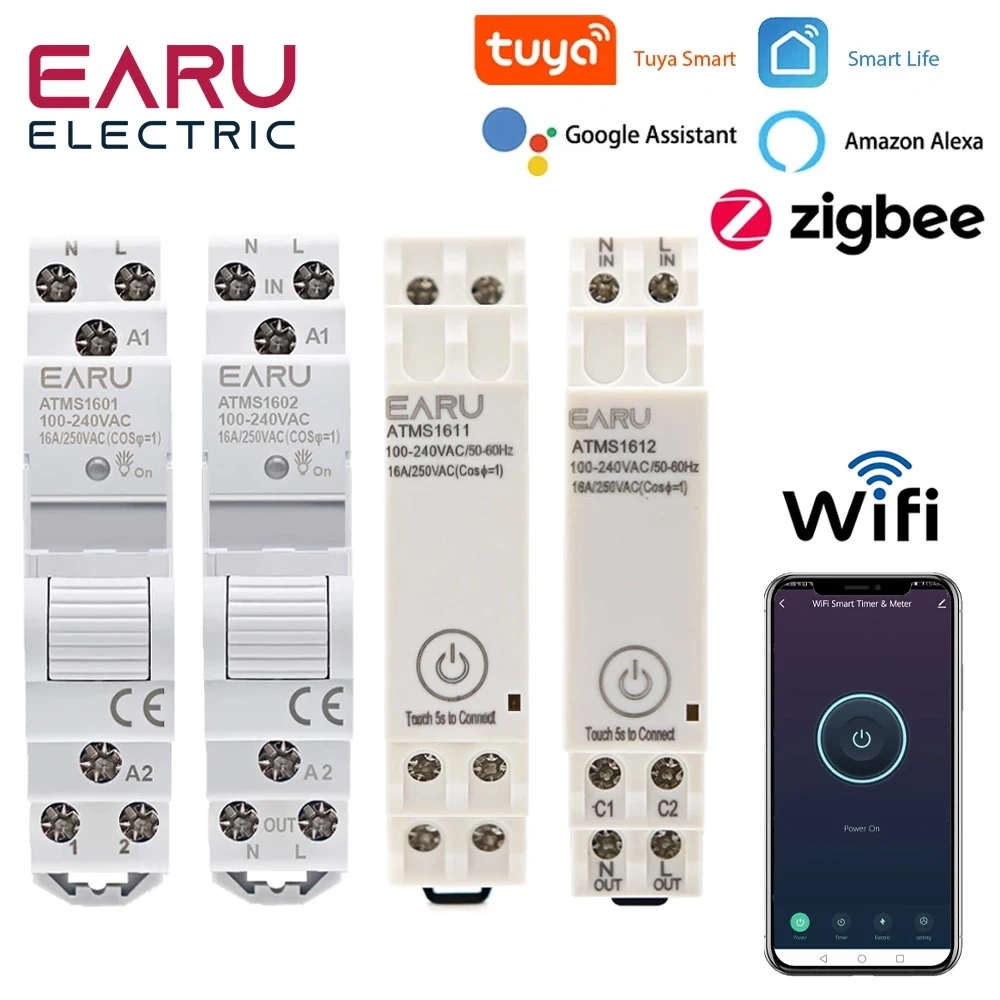

AC 110V 220V 16A Din Rail WIFI Zigbee Smart Timer Relay Switch Circuit Breaker Remote Control by Tuya APP KWH Energy Power Meter

Effortlessly control your home's energy usage with the AC 110V 220V 16A Smart Timer Relay Switch. With its Din Rail design, easily install and connect to your existing system. Use the Tuya APP to remotely control your devices and monitor energy consumption with the built-in KWH Energy Power Meter. Get real-time insights and save on energy costs.

SPECIFICATIONS

• Brand Name: EARUELETRIC
• Type: Mini
• Rated Voltage: 220V
• Type: Circuit breaker
• Model Number: ATMS1602
• Is Smart Device: YES
• feature: Remote control at anytime from anywhere
• connect: WIFI
• feedback: real time status feedback
• Share: Share with all family mebmer
• set: Scene Set/go out home / arrive home
• APP: Tuya/ Smart Life
• function: smart switch
• Working Voltage: AC 100-240V
• Working Current: 16A(max. 20A)
• Frequency: 50/60Hz
• Ambient temperature range: -10℃-+60℃
• Function 1: Smart Energy Meter WiFi
• Function 2: Coundown Time Control
• Function 3: WiFi Smart Timer Control
• Support: WiFi 2.4GHz
• Programs: max. 100 on/off each day
• Max Operating Current: 19A & Under
• Measuring Energy Range: 99999.99
• Timing Switch: Schedule ON/OFF
• Phase: single phase
• Accuracy Class: 1
• Countdown time: from 1 Min to 23 Hours 59 Mins
• Mounting: Din Rail 35mm
• Protocol: WIFI/Zigbee
• Function 4: KWh
• Function 5: Current Ele(mA)
• Function 6: Current Power(W)
• Function 7: Current Voltage(V)
• Function 8: Total Ele(KWh)

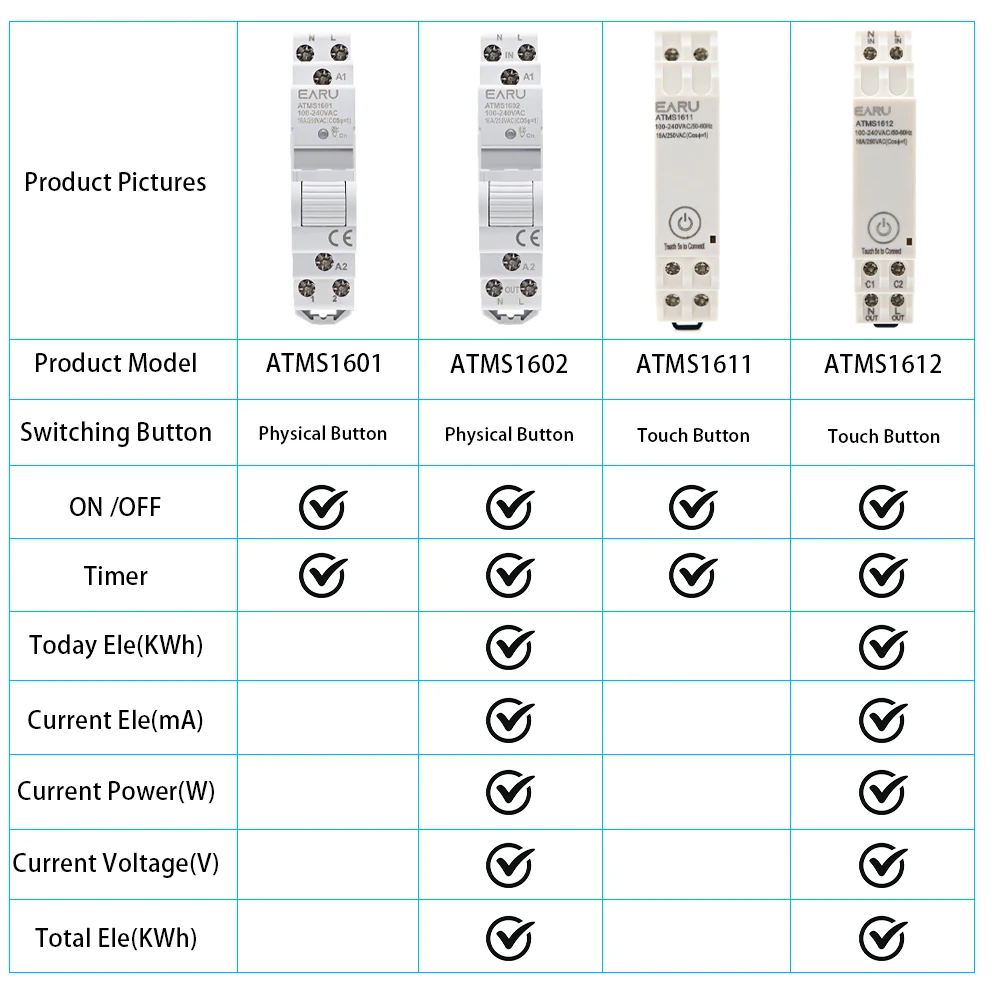

• Model 1: ATMS 1601
• Model 2: ATMS 1611
• Model 3: ATMS 1612

We can offer OEM service to manufacture the circuit breaker with your logo,if you need,feel free to contact the seller!

Product Descriptions :

• Remote Control ON/OFF by Tuya APP or Smart Life APP at anytime from anywhere

• In the mobile APP can display: Today Energy KWh,Total Energy KWh,Voltage,Current,Power

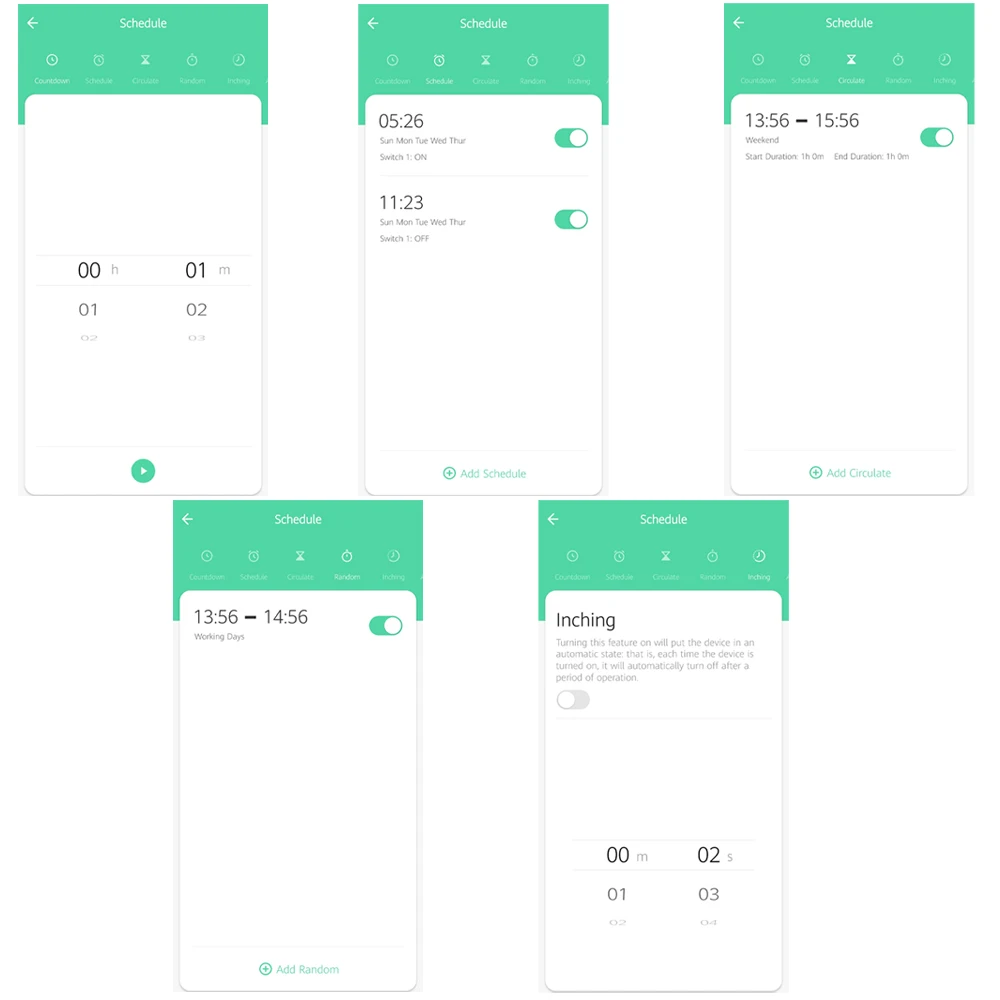

• Schedule Time / Timer, 30 kinds of timer models

• Related Voltage: 100-240V AC 50/60Hz

• Rated Current: 16A

• Mounting: Din Rail 35mm

• Contact configuration: 1NO (SPST-NO)

• Wifi Frequency: 2.4GHz

• Ambient temperature range: -10℃-+60℃
• Can set 100 On/Off programs one day or per week.

• Countdown time, from 1 Min to 23 Hours 59 Mins.

• 12. If the product is disconnected from the network, the timer retains all programs set up by Mobile App and works according to the set programs.

• With Memory function, when the product contact is in the closed state, after the power failure,and then power resumed,the product contacts still keep the closed state.

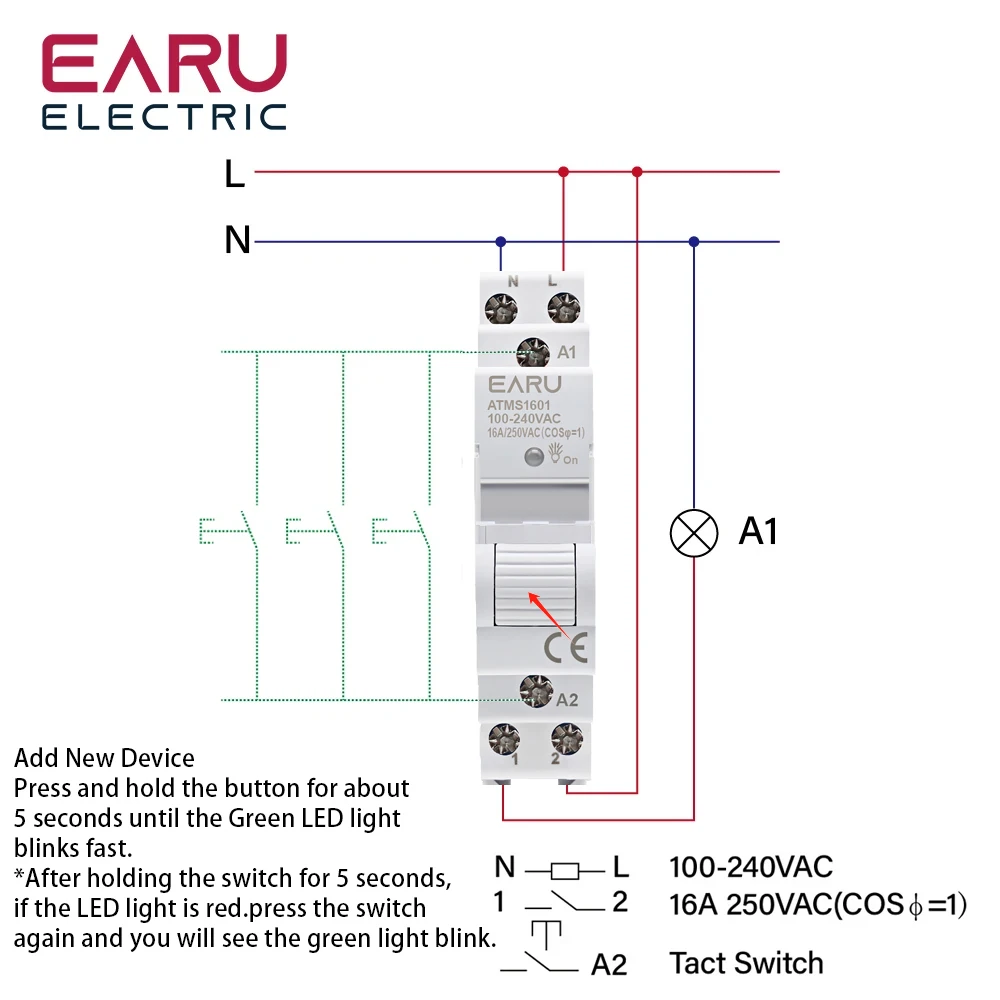

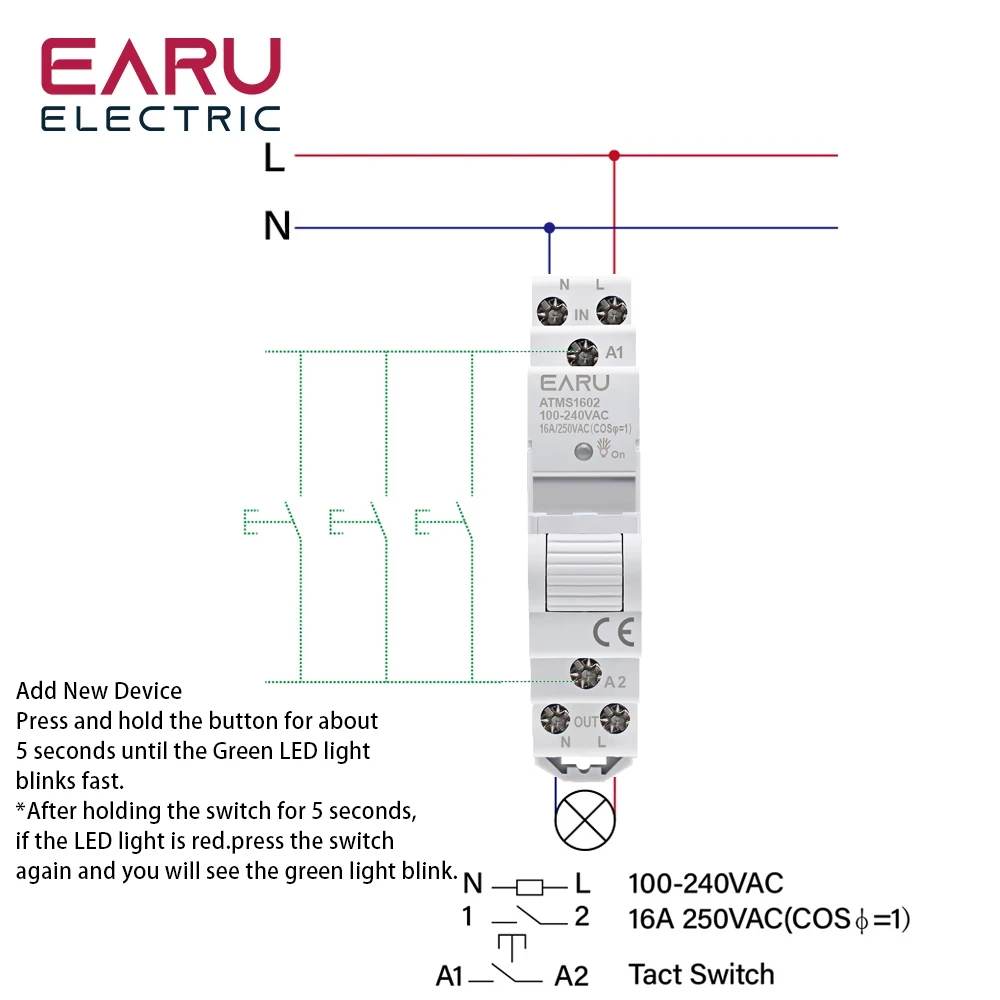

• Also can controlled by Tact Switch from terminals A1 and A2 .

• Can be shared with 100 peoples by Mobile App.

• Limit current 16A, if load exceeds 20A, the product will automatically disconnect load circuit.

Note: This meter have no short circuit ,overload protection Only supports 2.4G Wireless Network,  NOT for 5G

1.Download APP

Search"TuyaSmart”or "Smart Life"in APPstore and download APP,register an accountand create family.

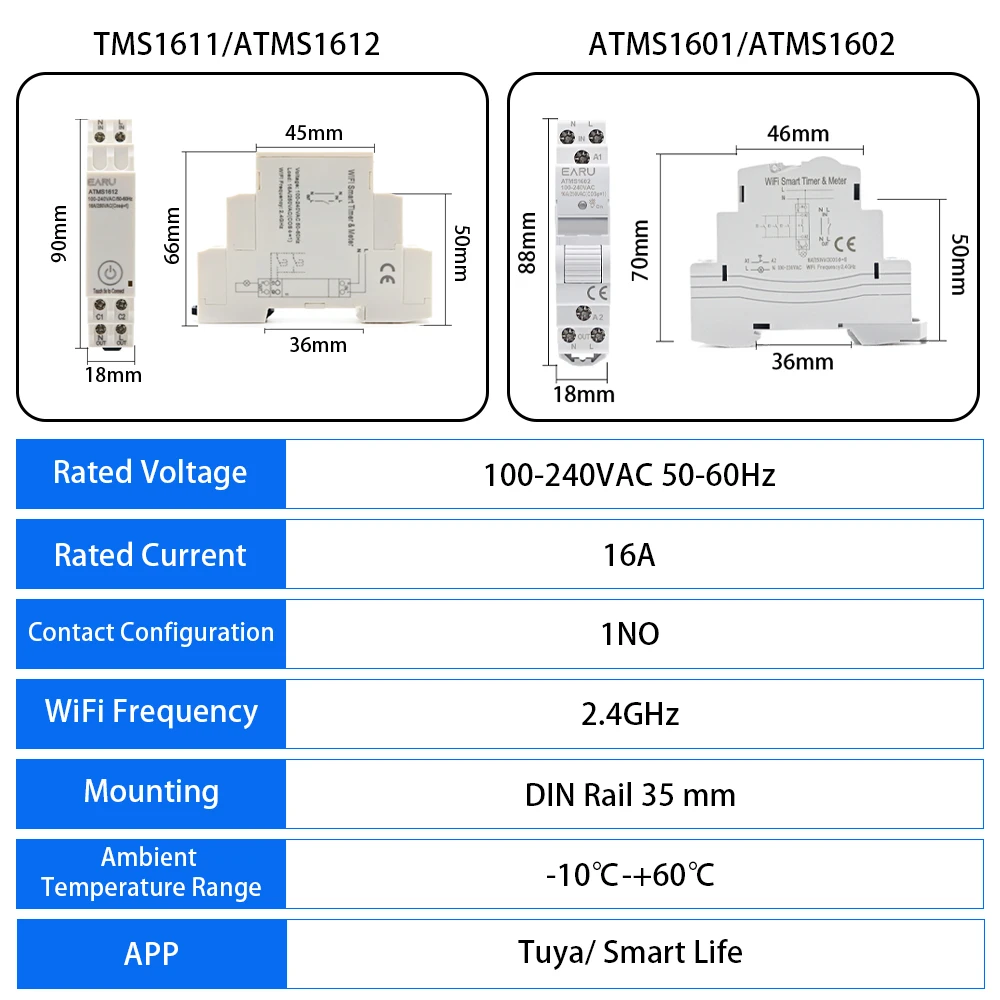

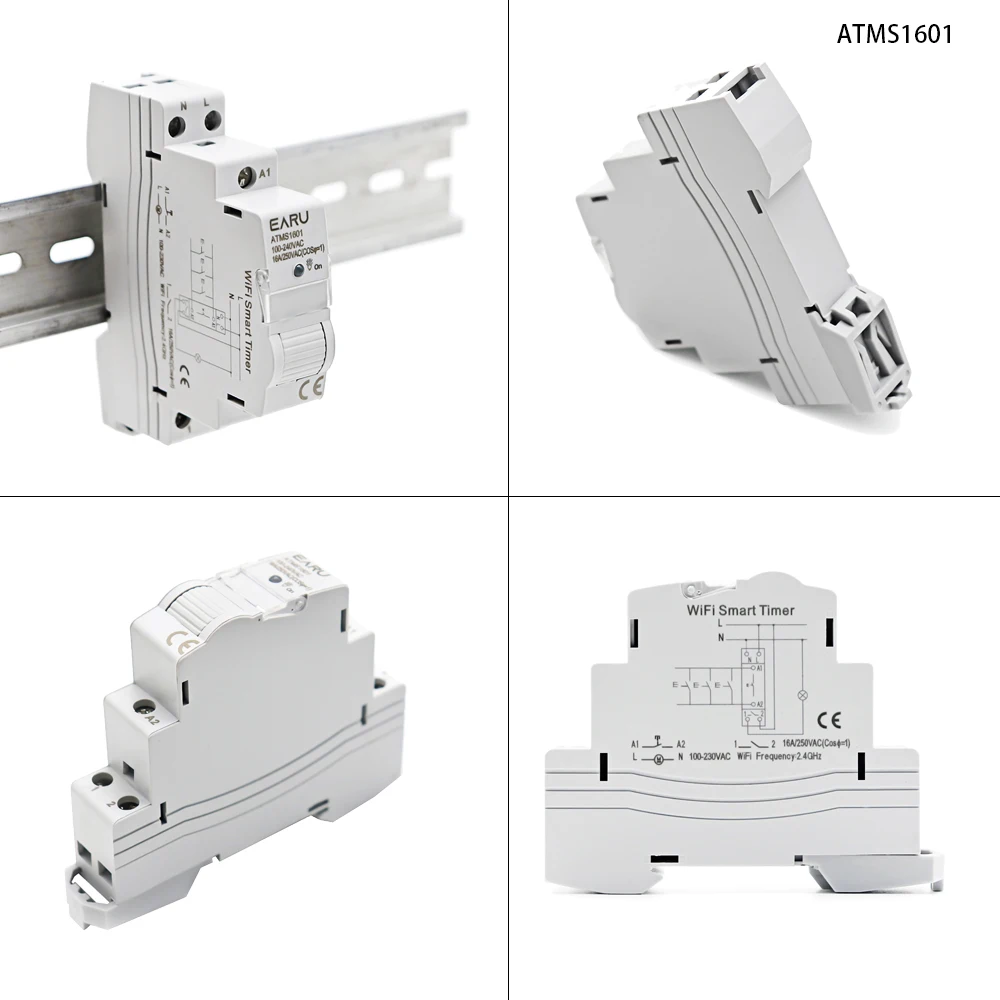

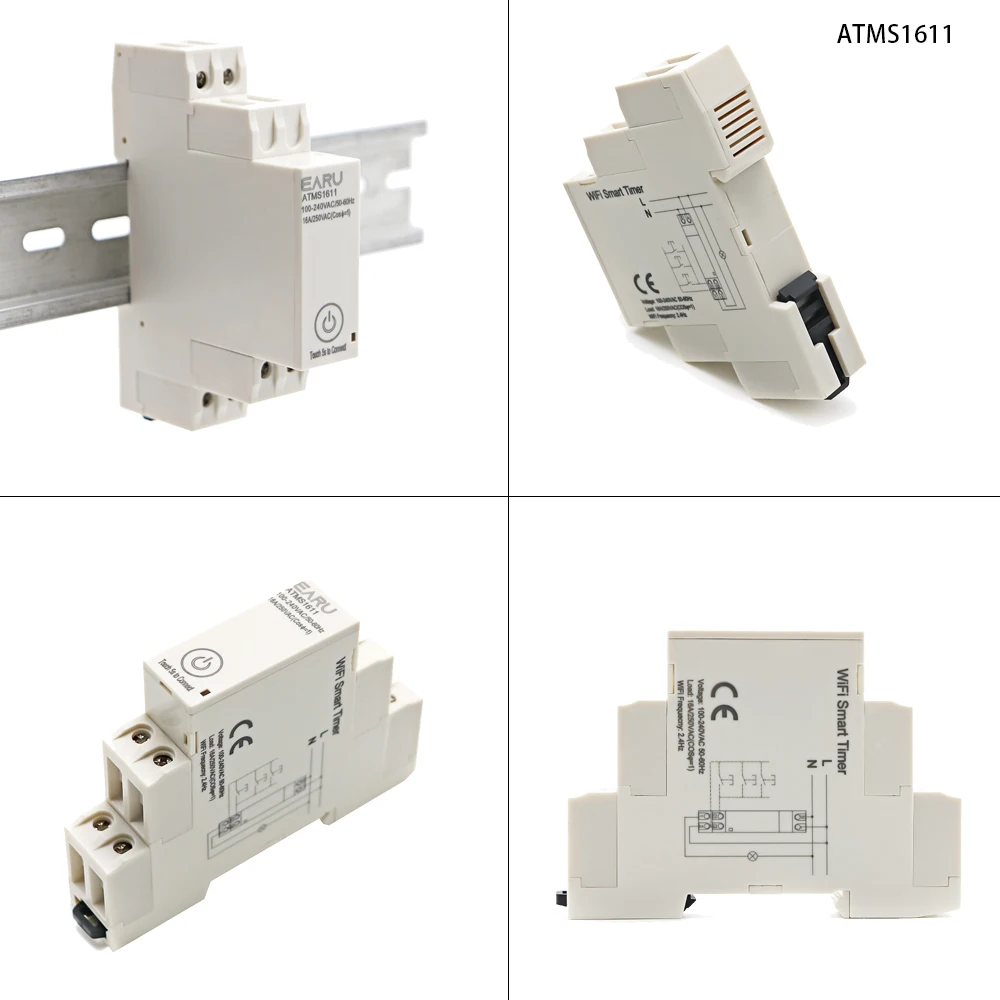

ATMS1601/ATMS1611

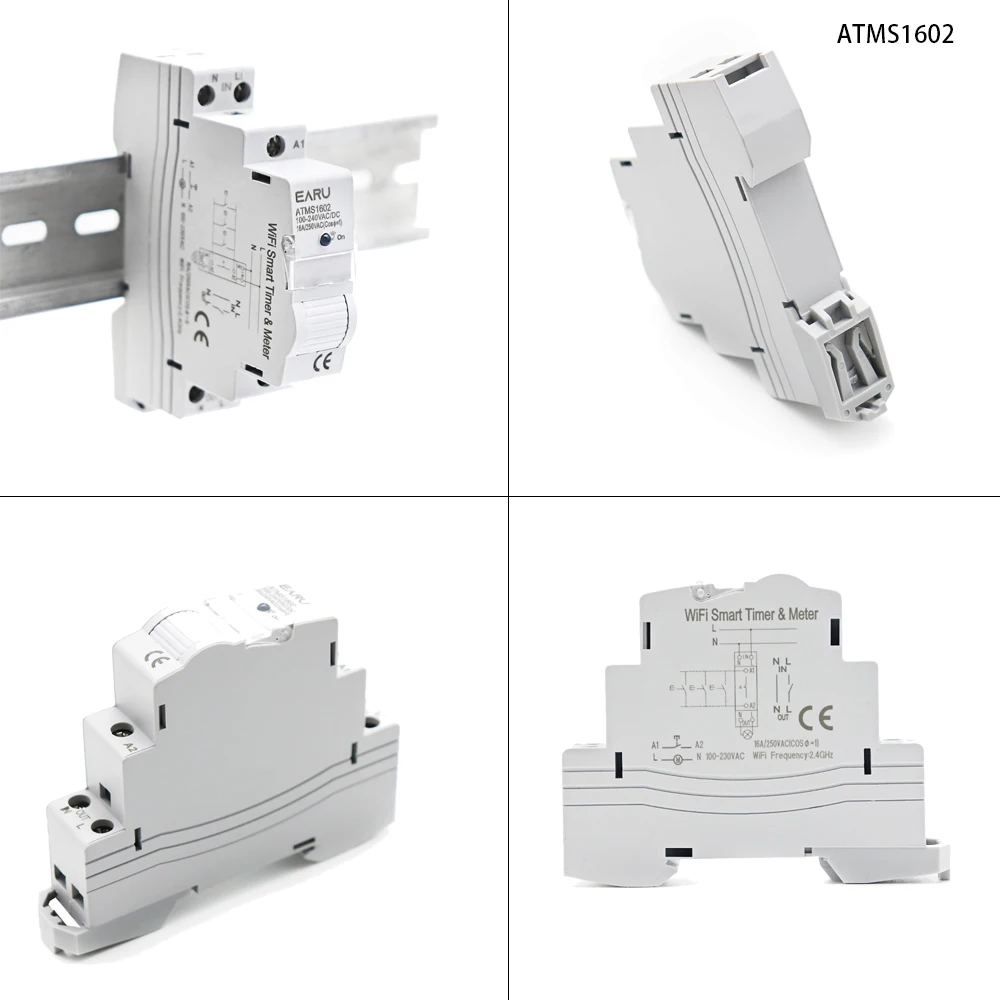

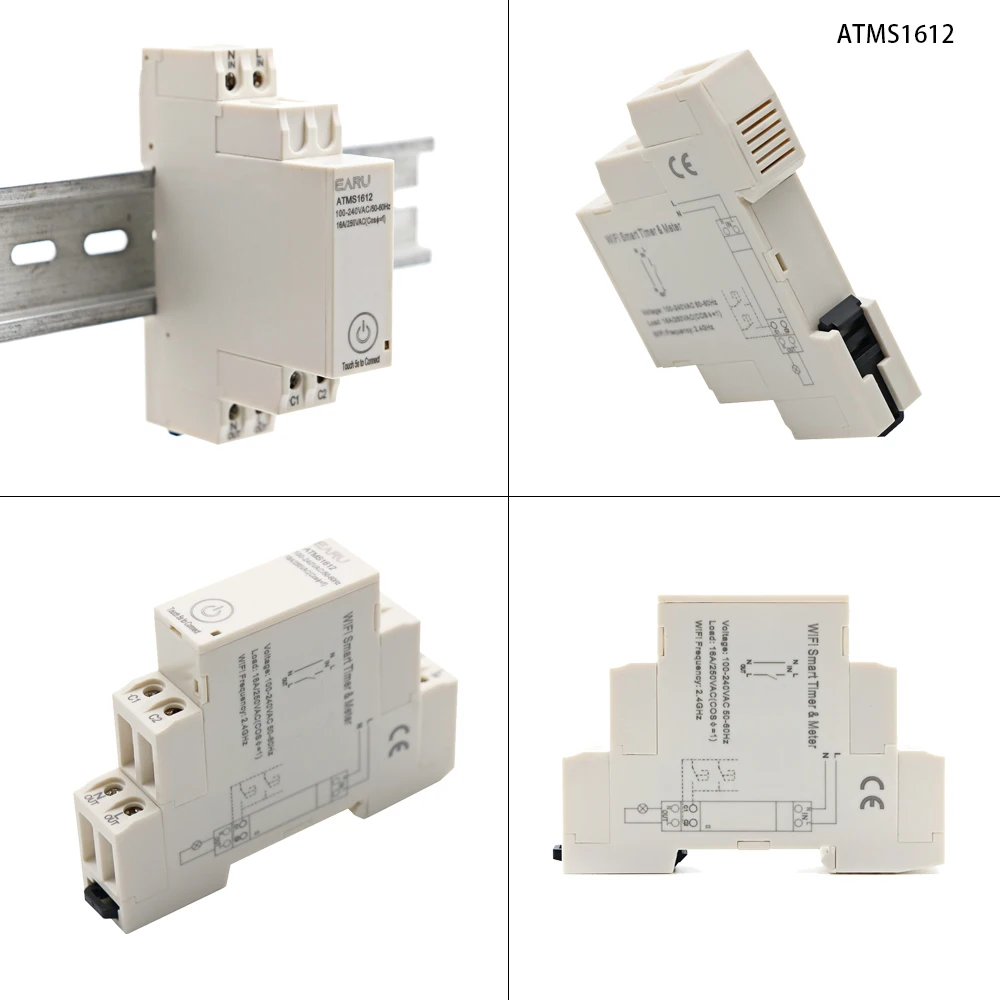

ATMS1602/ATMS1612
