AT2PW 100A Tuya WIFI Din Rail Energy Meter Smart Switch Remote Control AC 220V 110V Digital Volt Amp Kwh Frequency Factor Meter

AT2PW 100A Tuya WIFI Din Rail Energy Meter Smart Switch Remote Control AC 220V 110V Digital Volt Amp Kwh Frequency Factor Meter

Prix habituel $53.06 USD
Prix habituel $0.00 USD Prix promotionnel $53.06 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.
Default Title

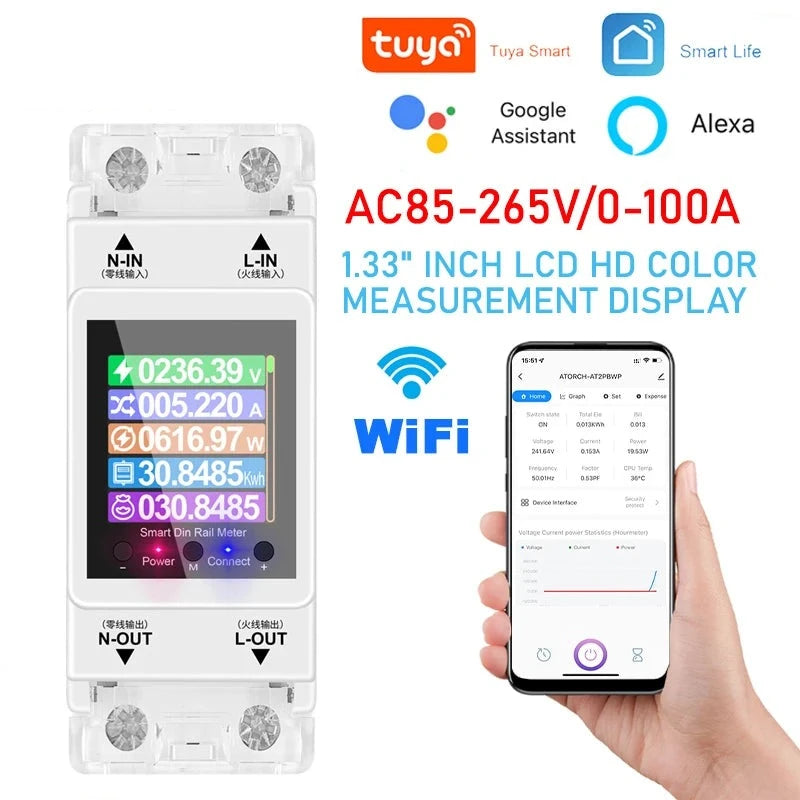

The AT2PW 100A Tuya WIFI Din Rail Energy Meter offers remote control of your energy usage with Tuya technology. You can easily monitor and manage your electricity consumption in real-time, with an accurate digital display of volts, amps, and kilowatt-hours. Optimize your energy usage with this smart switch and save on your bills.

SPECIFICATIONS

  • Installation: 35mm Din rail
  • Power range: Max 26.5KW
  • Wireless Type: 2.4GHz 802.11b/g/n
  • Brand Name: EARUELETRIC
  • Power Supply: AC
  • Model Number: AT2PW
  • Display Type: LCD
  • Accuracy Class: 1%
  • Dimensions: 90.80*69.80*36.00mm
  • Rated Voltage: 220V
  • Operating Temperature: -10°C~+60°C
  • EARUELETRIC Model: AT2pw
  • Measuring Energy Range: 0-99999kWh
  • Phase: single phase
  • Max Operating Current: 80A - 99A
  • Output Voltage: AC85-265V
  • DIY Supplies: ELECTRICAL

PRODUCT INFORMATION

This tuya wifi electricity meter has 3 electric tariff modes, support single rate mode, ladder mode, and peak/valley/step-mode to meet different needs. Freely set peaks and valley tariffs and ladder tariffs, realize the division of electricity consumption in multiple time periods, calculate different tariffs for each time period, can set 4 levels of ladder tariffs, each level can freely set interval tariffs. Mobilephone remote meter reading, statistics of electricity consumption, support view electricity consumption reports (electricity consumption/daily/monthly/yearly reports) in APP, real-time management of efficient electricity consumption, statistics of daily, monthly, and yearly electricity consumption, and know the daily electricity expenditure.

Features

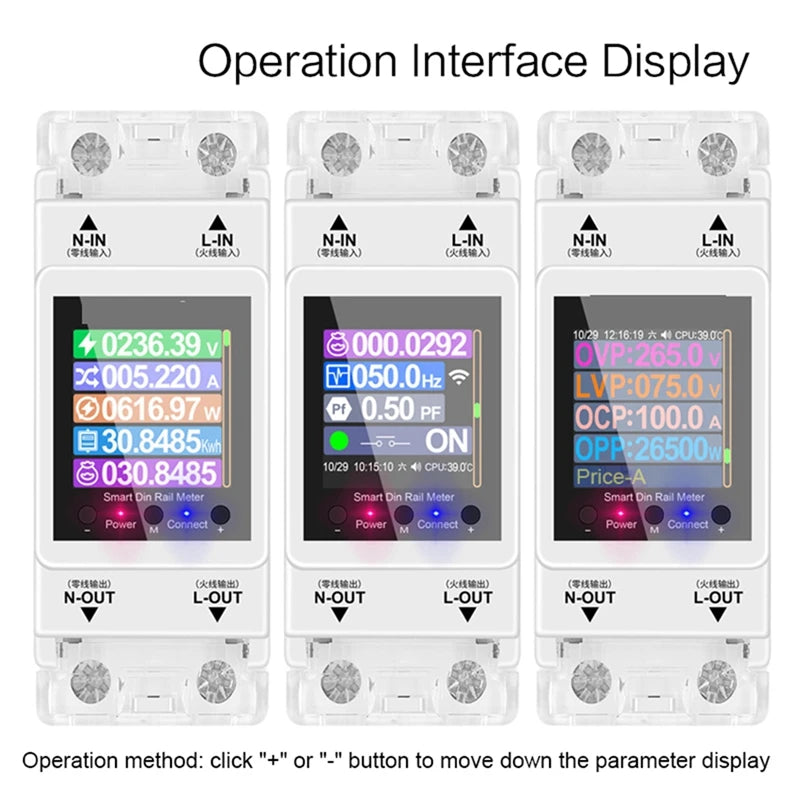

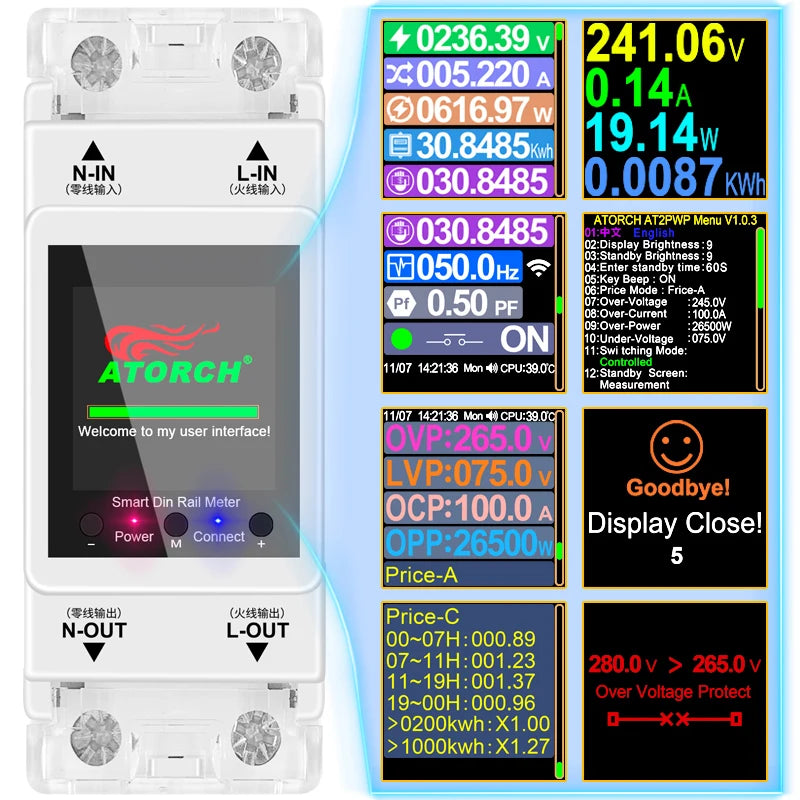

  • 262K Digital Color Display: Full-view IPS full-color display with 240*RGB*240 resolution, bringing a different color visual experience, designed with a variety of functional interface content.
  • 3 Electric Tariff Modes: Support single rate mode, ladder mode, and peak/valley/step-mode to meet different needs.
    Humanized
  • Tariff Setting: Freely set peaks and valley tariffs and ladder tariffs, realize the division of electricity consumption in multiple time periods, calculate different tariffs for each time period, can set 4 levels of ladder tariffs, each level can freely set interval tariffs.
  • Powerful APP Control: Mobilephone APP network remotes control, rich functions, remote full coverage of virtually all host functions to mobilephone APP, support function control, data monitoring, charging and discharging curve statistics, etc. There is no distance limit, and devices can be controlled whenever and wherever there is a communication signal.
  • Enhanced Power Management: Mobilephone remote meter reading, statistics of electricity consumption, support view electricity consumption reports (electricity consumption/daily/monthly/yearly reports) in APP, real-time management of efficient electricity consumption, statistics of daily, monthly, and yearly electricity consumption, and know the daily electricity expenditure.
  • Timing Function: Support for adding multiple sets of timing data, support for setting the power on time, and automatically disconnecting the power when the power on time is over, also can be directly on the mobilephone remote switch meter, to achieve remote power off or turn on the power.
  • Quadruple Protections & Multiple Alarms: Overvoltage, undervoltage, overcurrent, overpower, fully automatic power-off protections, with buzzer and interface display dual alarms, safer electricity usage.
  • Pre-payment Function: Support first pay, then use electricity, and after recharging, it will automatically cut off the power when the repaid power bill is insufficient.
  • Power Data Clearing Function: Support for meter cumulative data clearing and mobilephone APP remote operation to clear power data.
  • Multi-device & Sharing Function: Support for one mobilephone to control multiple devices at the same time, and also support for multiple mobilephones to control one device.
  • WiFi Network Remote Upgrade: Our engineers will keep updating the product firmware according to user requirements for better optimization and more functions, the upgrade is free to the user once purchased.
  • Rail Slot Installation: The 35mm standard rail is used for universal installation, no screws are required and the rail is fastened with a clip for easy installation.
  • Wide Applications: Suitable for a variety of occasions, such as homes, rental houses, shopping malls, schools, factories, etc.

Specifications:

  • Name: Tuya Wifi Electricity Meter
  • Material: plastics
  • Power: 0-26500W
  • Voltage: AC85-265V
  • Current: 0-100A
  • Measurement acccuracy: ±1%
  • Panel size: 45 * 35mm / 1.77 * 1.38in

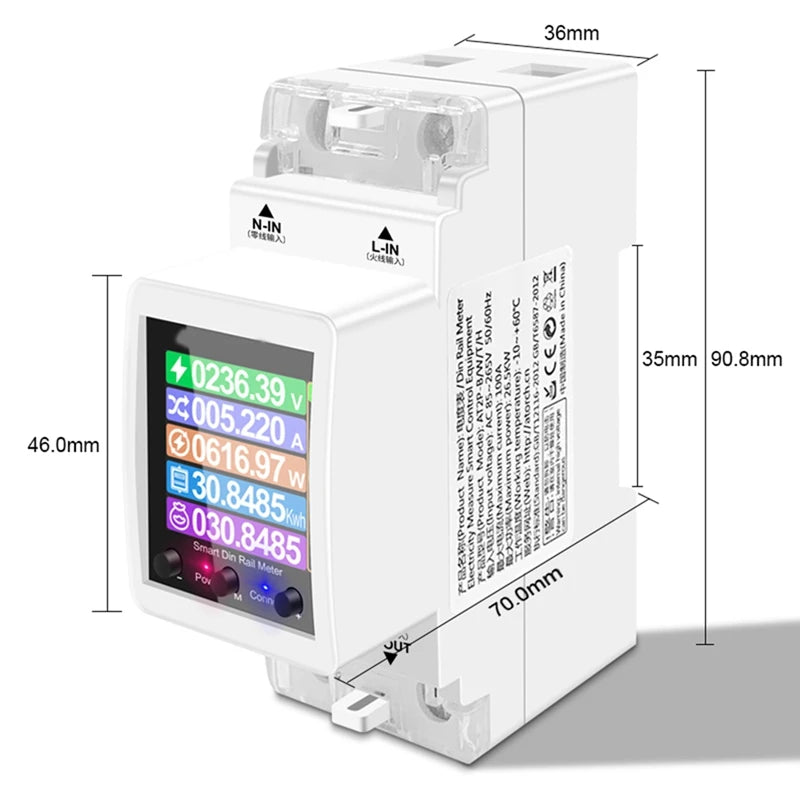

  • Item size: 91 * 36 * 70mm / 3.58 * 1.42 * 2.76in
  • Package size: 100 * 80 * 40mm / 3.94 * 3.15 * 1.57in
  • Package weight: 200g / 7.05ounce

About alarm event notification settings
