D69-2049 Digital Multimeter 100A AC 40-300V Electric Power Energy Voltmeter Ammeter Analyser Watt Volt kWh 220V LCD

D69-2049 Digital Multimeter 100A AC 40-300V Electric Power Energy Voltmeter Ammeter Analyser Watt Volt kWh 220V LCD

Prix habituel $25.12 USD
Prix habituel $0.00 USD Prix promotionnel $25.12 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Measuring Range

The D69-2049 Digital Multimeter is a powerful tool for measuring electric power and energy consumption. With a range of 100A AC and 40-300V, it provides accurate readings of wattage, voltage, and kilowatt-hours. The LCD display allows for easy reading and analysis, making it a valuable device for energy and power experts.

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Model Number: D69-2049
  • Display Type: Digital Only
  • Accuracy Class: 1%±2 words
  • Dimensions: 79*43*48
  • Power Supply: AC
  • DIY Supplies: ELECTRICAL

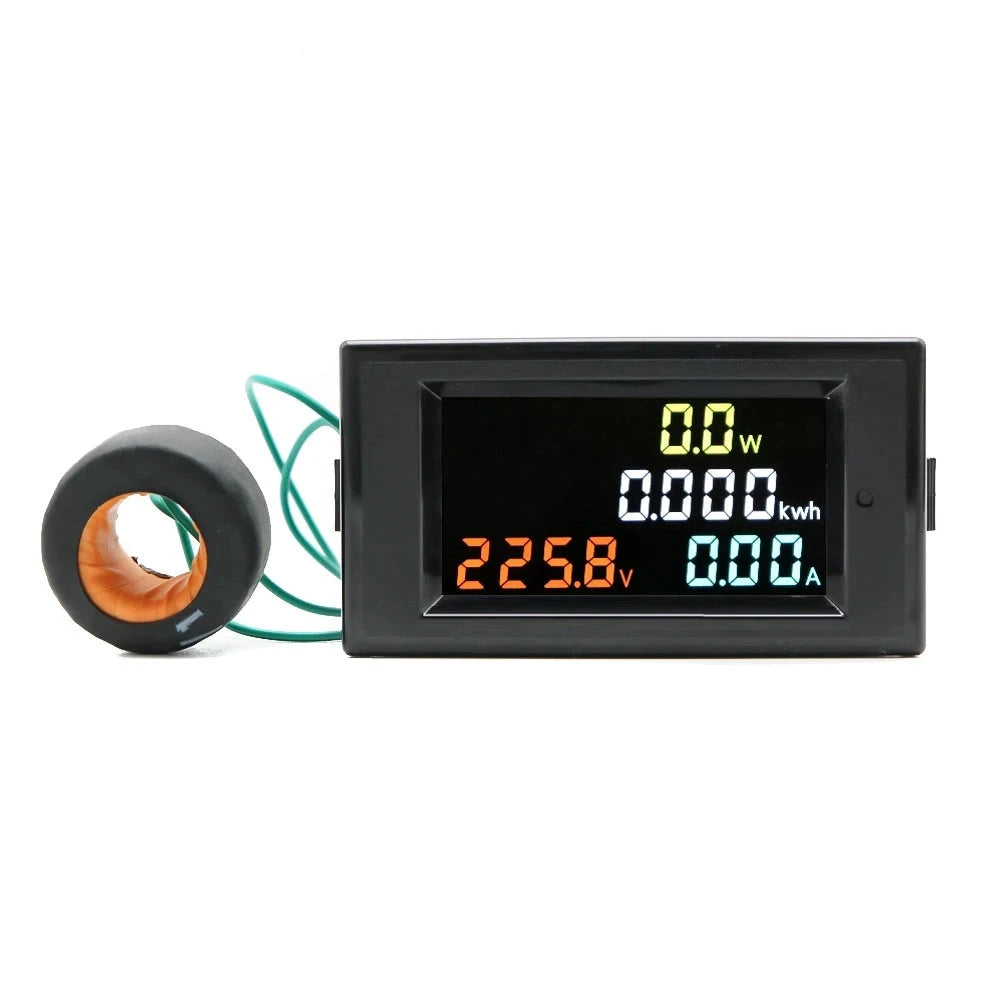

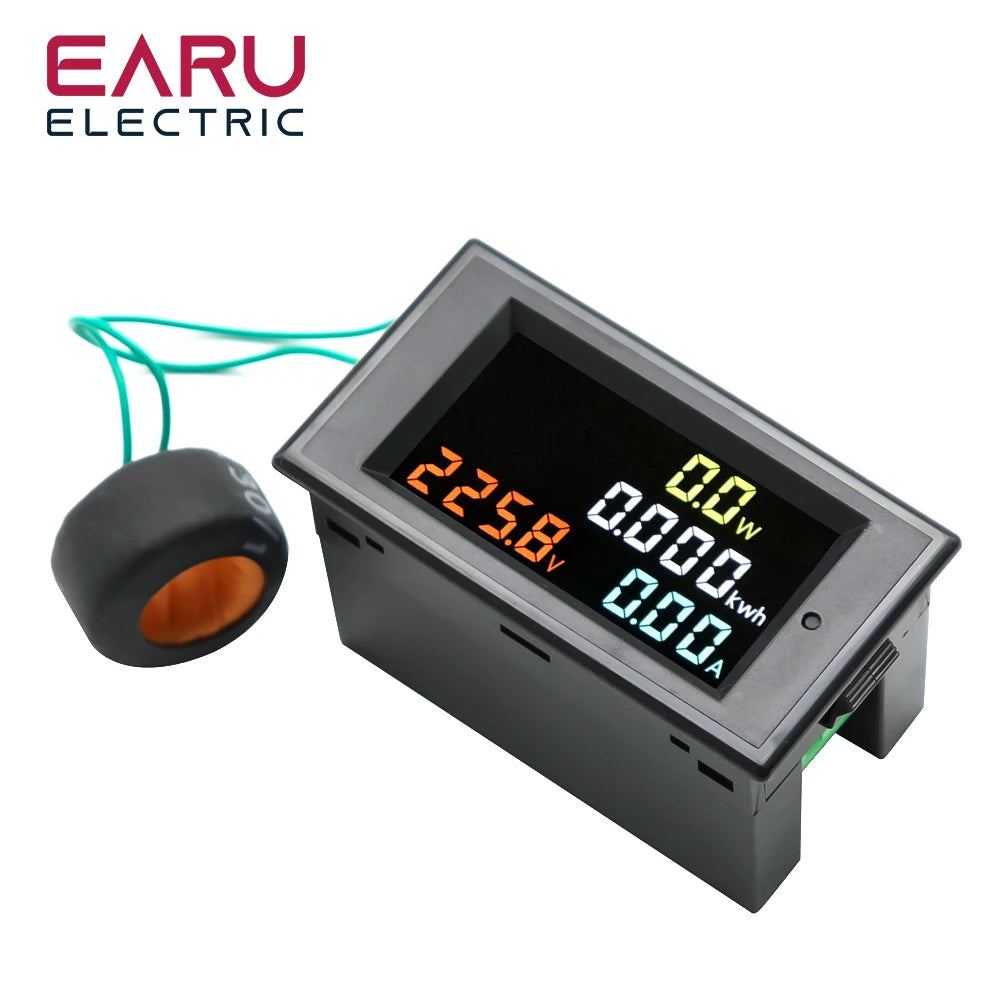

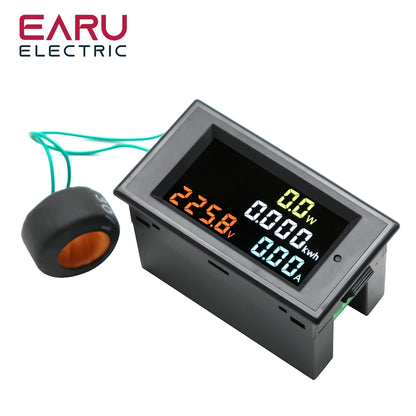

D69-2049 multi-function digital meter can measure and display AC voltage. AC currentectovs power and clectric energy at the same time. The display part of melcr use high-definition color LCD screen.

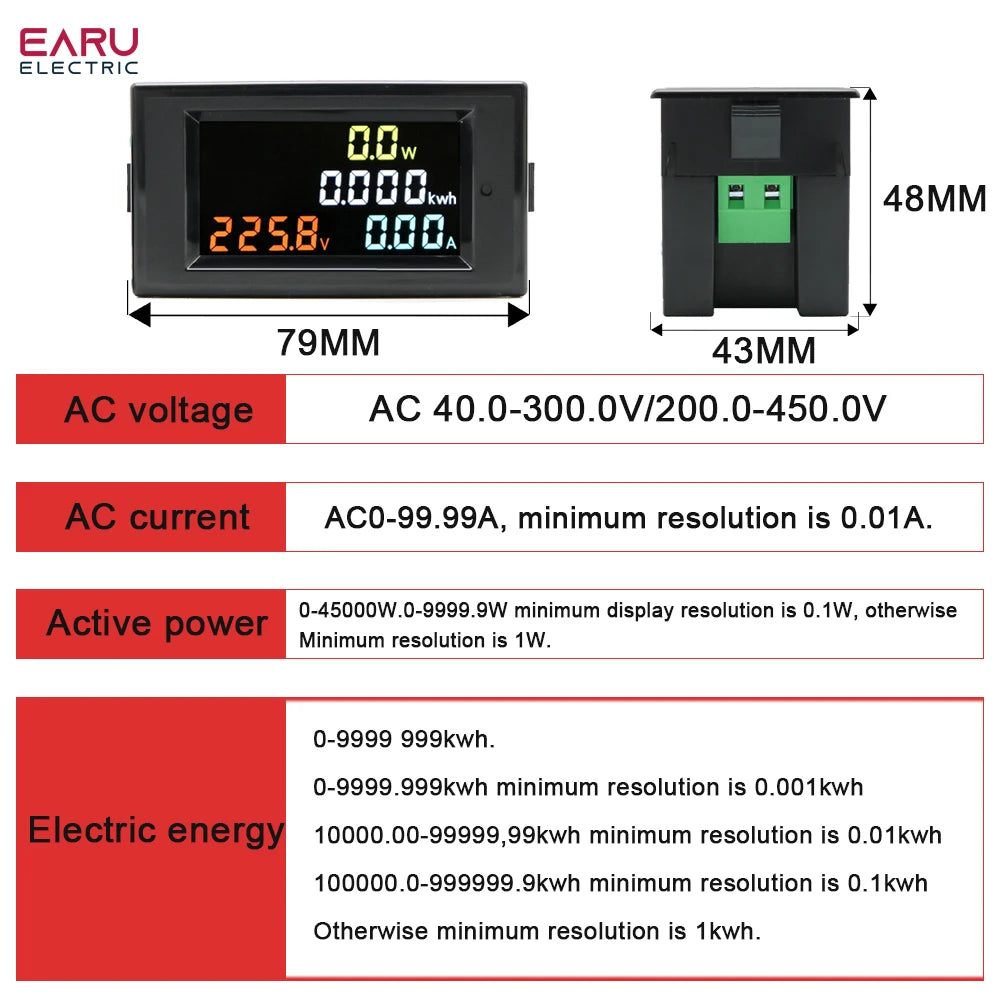

Technical Indicators

  • Accuracy:1%±2 words
  • Range: AC voltage: AC 40.0-300.0V/200.0-450.0V(You should select the suitable type of meter when your making order)
  • AC current:  AC0-99.99A, minimum resolution is 0.01A.
  • Active power;0-45000w.0-9999.9W minimum display resolution is 0.1W, otherwise
  • Minimum resolution is 1W.
  • Electric energy:0-9999 999kwh.
  • 0-9999.999kwh minimum resolution is 0.001kwh
  • 10000.00-99999,99kwh minimum resolution is 0.01kwh
  • 100000.0-999999.9kwh minimum resolution is 0.1kwh
  • Otherwise minimum resolution is 1kwh.
  • Speed: 2 times per second
  • Size:79*43*48
  • Installation Size:76*39
  • Auto-saving: when power off, the electric energy will be saved. The saved electric energy will Be accumulated continue when the meter power-on next time.

Application Method

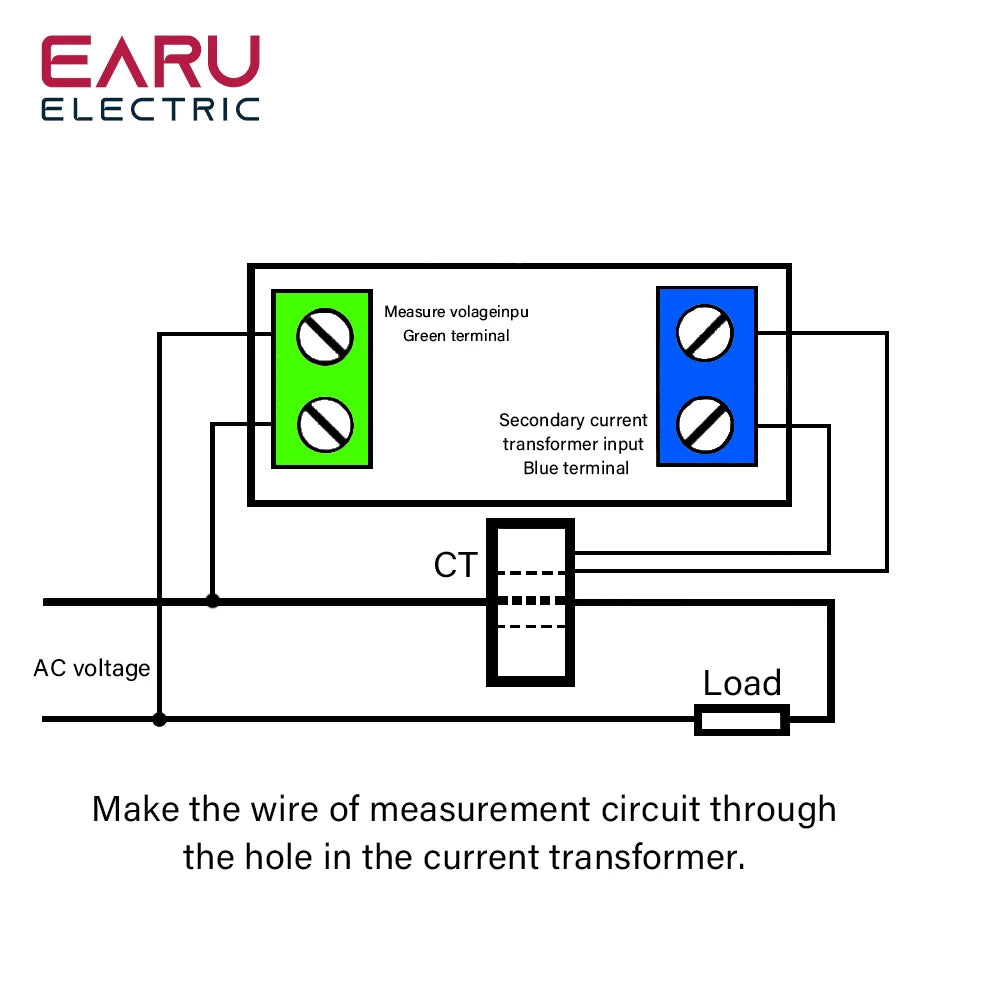

  • According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.
  • Supply power and start to measure and display the result.
  • Press down the button last for 5 second, the electric energy wil! to be zero.

Attention

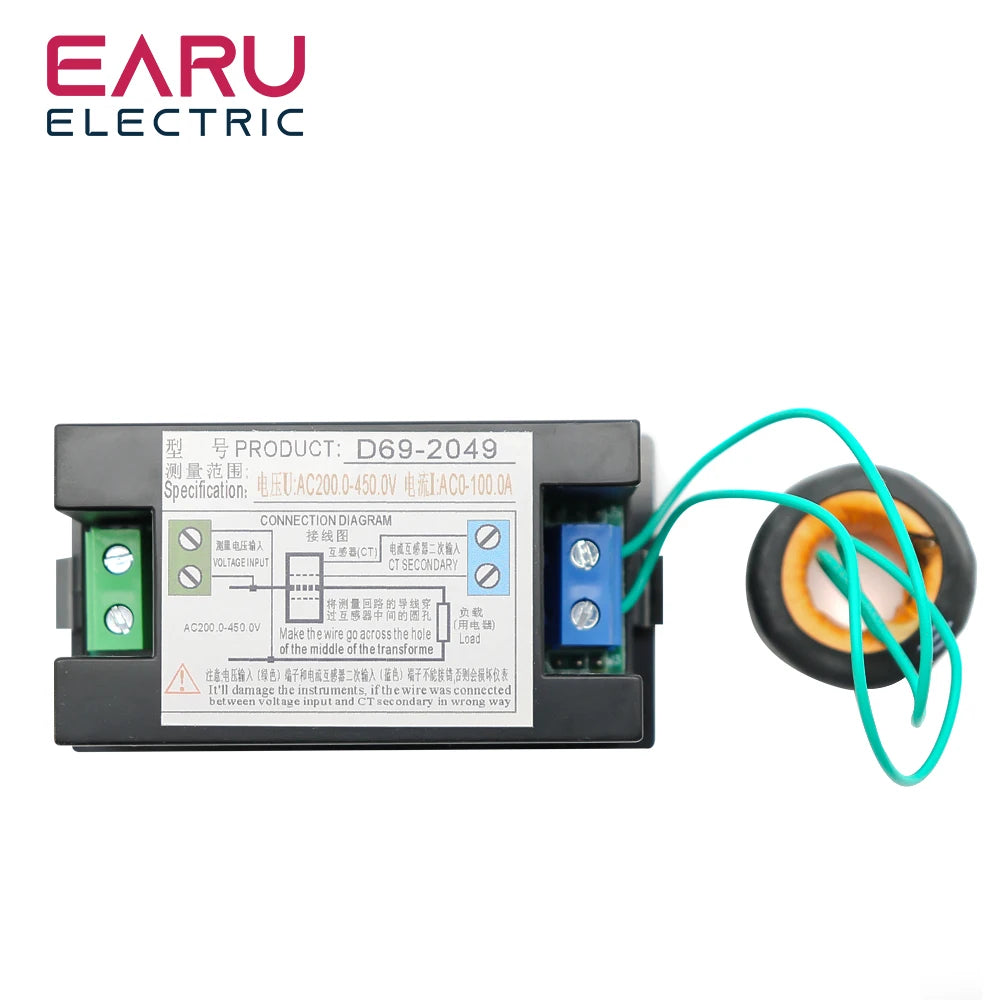

  • The meter will be destroyed when you make wrong connection method with voltage input(green terminal) and secondary current transformer(blue terminal).
  • 2The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to measure square wave, output of inverter and correction sine wave.
