D69-2058 AC Power LCD Digital Voltage Current Power Voltmeter Ammeter KWH Panel Meter Electric Energy Consumption Monitors 100A
D69-2058 AC Power LCD Digital Voltage Current Power Voltmeter Ammeter KWH Panel Meter Electric Energy Consumption Monitors 100A
Prix habituel
$27.84 USD
Prix habituel
$0.00 USD
Prix promotionnel
$27.84 USD
Prix unitaire
/
par

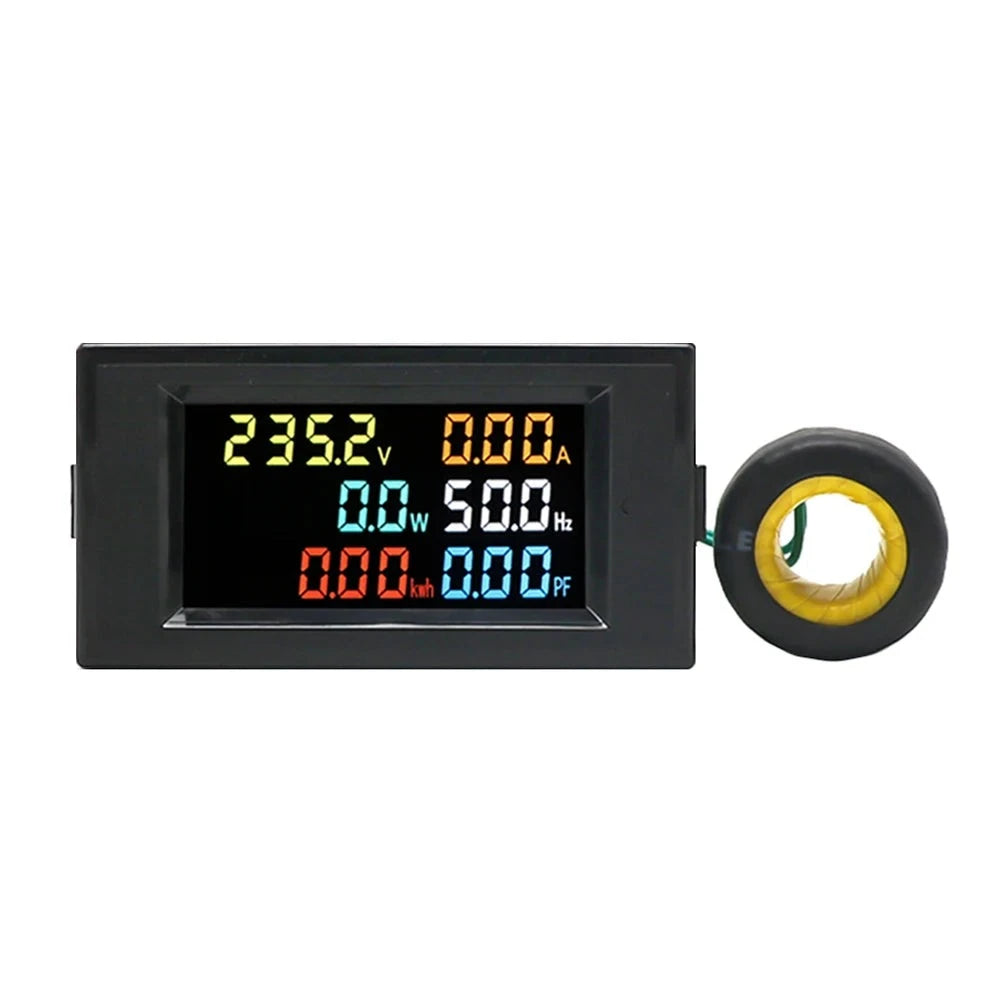

Monitor your energy consumption with the D69-2058 AC Power LCD Digital Meter. Its LCD display shows precise voltage, current, power, and energy consumption data. With a maximum capacity of 100A, stay informed and in control of your electricity usage.
SPECIFICATIONS
- Installation Size: 76*39 mm
- Measuring Range: 80V-300V or 300V-450V AC
- Current: 0-99.99 A
- Active power: 0-45000 W
- Electric energy: 0.000-999999 kwh
- Power factor: 0.00-1.00 PF
- Frequency: 45-65 Hz
- Dispaly 1: KWH
- Dispaly 2: Active Power
- Dispaly 3: Voltage
- Dispaly 4: Current Ampere
- Dispaly 5: Power Factor
- Dispaly 6: Frequency
- Function 1: Voltmeter Ammeter
- Function 2: Voltage Panel Meter
- Function 3: KWH Meter
- Function 4: Digital Electric Panel Meter
- Brand Name: EARUELETRIC
- Power Supply: AC
- Model Number: D69-2058
- Display Type: Digital Only
- Accuracy Class: 1% +/-2 words
- Dimensions: 79*48*43mm
- Operating Temperature: -20 to 55 °C
- EARUELETRIC Model: D69-2058
- DIY Supplies: ELECTRICAL
D69-2058 multi-function Digital meter can measure AC voltage, AC current, active power, power factor, powerfrequency and electric energy. HD LCD has adopt for display module
Technical Indicators
- Accuracy: 1%±2 words
- Range:AC voltage: AC 40.0-300.0V/200.0-450.0v (You should select the suitable type ofmeter when your making order) AC current: AC 0-99.99A, minimum resolution is 0.01 Power Frequency: 45.0Hz-65.0Hz Power Factor:0.00-1.00PF Active Power:0-45000W when the active power between 0 and 9999.9W,the display accuracy is 0.1 W Electric Energy: 0-9 99999kwh,when the clectric power between 0 and 999.99kwh, thedisplay accuracy is 0.01kwh, when between 10000.0-9999.9kwh, the display accuracy is 0.1kwh, when between 10000.0 and 999999kwh, the display accuray is Ikwh.
- Speed: 2 times per second

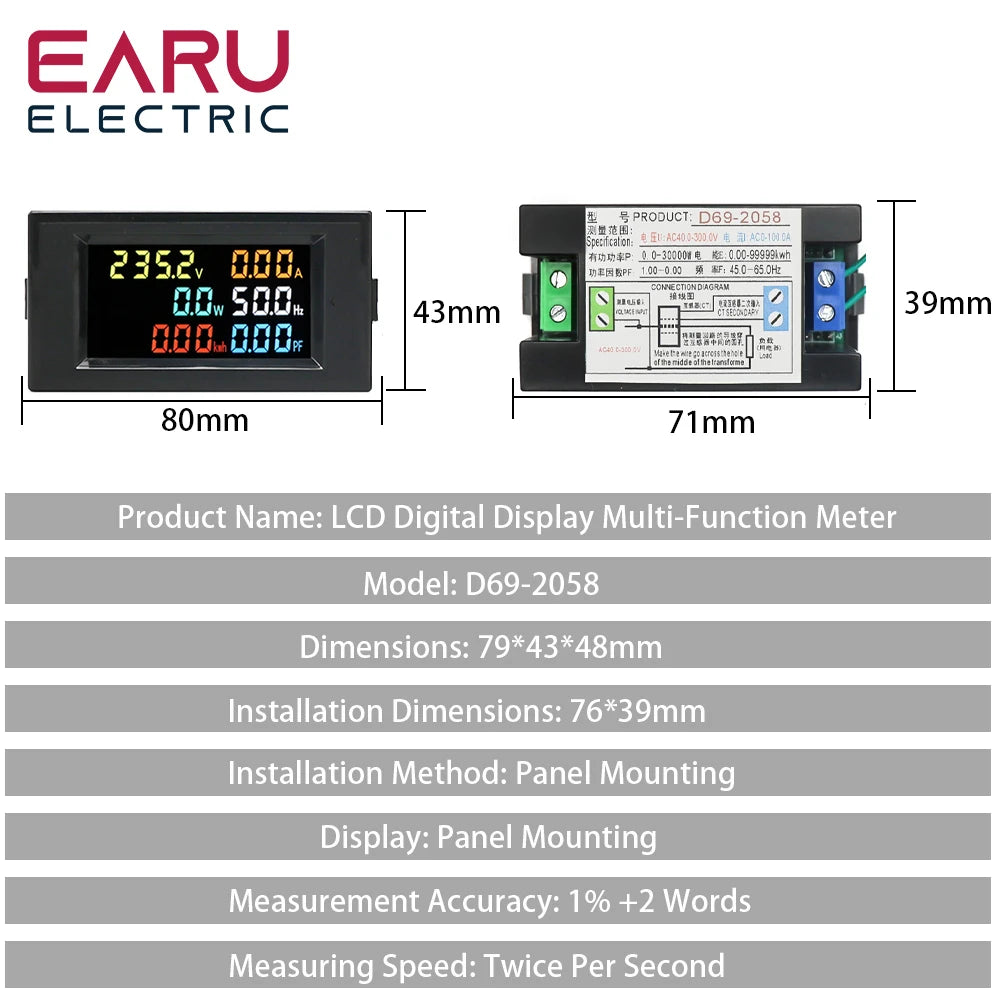

- Size:79*43*48
- Installation Size: 76*39
- Auto-saving: when power off, the electric energy will be saved. The saved electric energy will Be accumulated continue when the meter power-on next time.
Application Method

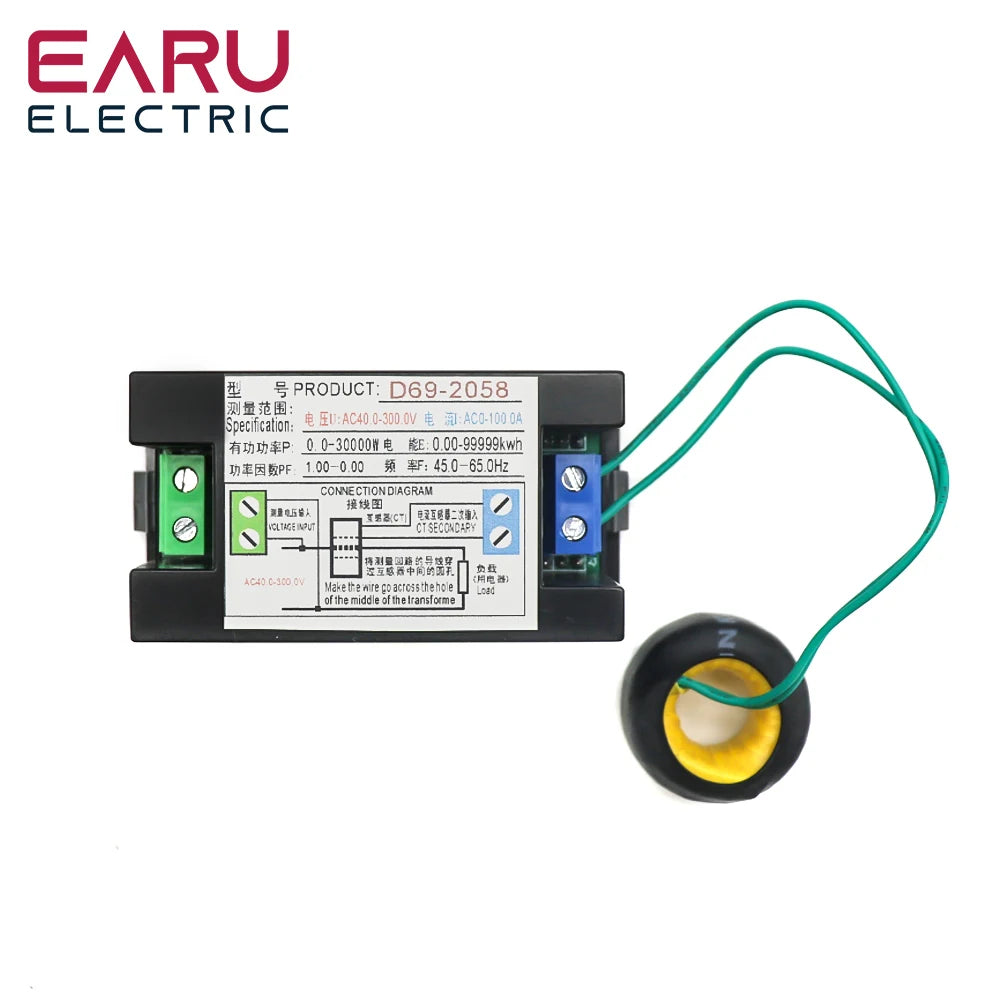

- According to connection graph, connect the green wire of secondary current transformer to the blue terminal of meter and make the wire of measurement circuit through the hole in the current transformer.2.Supply power and start to measure and display the result.
- Supply power and start to measure and display the result
- Press down the button last for 5 second, the electric energy will to be zero.
Attention
- The meter will be destroyed when you make wrong connection method with voltage
- The meter can only use to measure 50Hz AC city electricity, it will be destroyed when use to input(green terminal) and secondary current transformer(blue terminal) measure square wave, output of inverter and correction sine wave.
