DC 1000V 1P 2P 3P 4P Solar Mini Circuit Breaker Overload Protection Switch 6A~63A/80A 100A 125A MCB for Photovoltaic PV System

DC 1000V 1P 2P 3P 4P Solar Mini Circuit Breaker Overload Protection Switch 6A~63A/80A 100A 125A MCB for Photovoltaic PV System

Prix habituel $14.54 USD
Prix habituel $0.00 USD Prix promotionnel $14.54 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Rated Current
Poles Number

Protect your photovoltaic PV system with the DC 1000V 1P 2P 3P 4P Solar Mini Circuit Breaker. This MCB offers overload protection with a range of 6A~63A/80A, 100A, or 125A. Expertly designed for solar systems, it ensures safety and reliable performance up to 1000V.

SPECIFICATIONS

  • Pole number: 1/2/3/4P
  • Breaking current: 4500
  • Brand Name: EARUELETRIC
  • Model Number: EACBDC
  • Type: Mini
  • Type: Circuit breaker

DC 1000V Solar Mini Circuit Breaker Overload Protection Switch 1/2/3/4P DC1000V Photovoltaic MCB PV

Our factory can offer OEM/ODM Service, if you need to circuit breaker with your logo,  feel free to contact the seller!

Application

EACBDC-63/125 Series DC Miniature Circuit Breaker, apply to rating current 63A/125A or less, Direct current rating voltage is 250Vfor 1/2/3/4Pole. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment andelectric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. In present China, our products in the case grade rating voltage is highest compared to the same products. Products according IEC60898, GB10963standard.

DC circuit breaker Features:

  • Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
  • Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
  • The original air flow, can effectively reduce the temperature between adjacent circuit breaker
  • Safety handle, classic original design, ergonomic

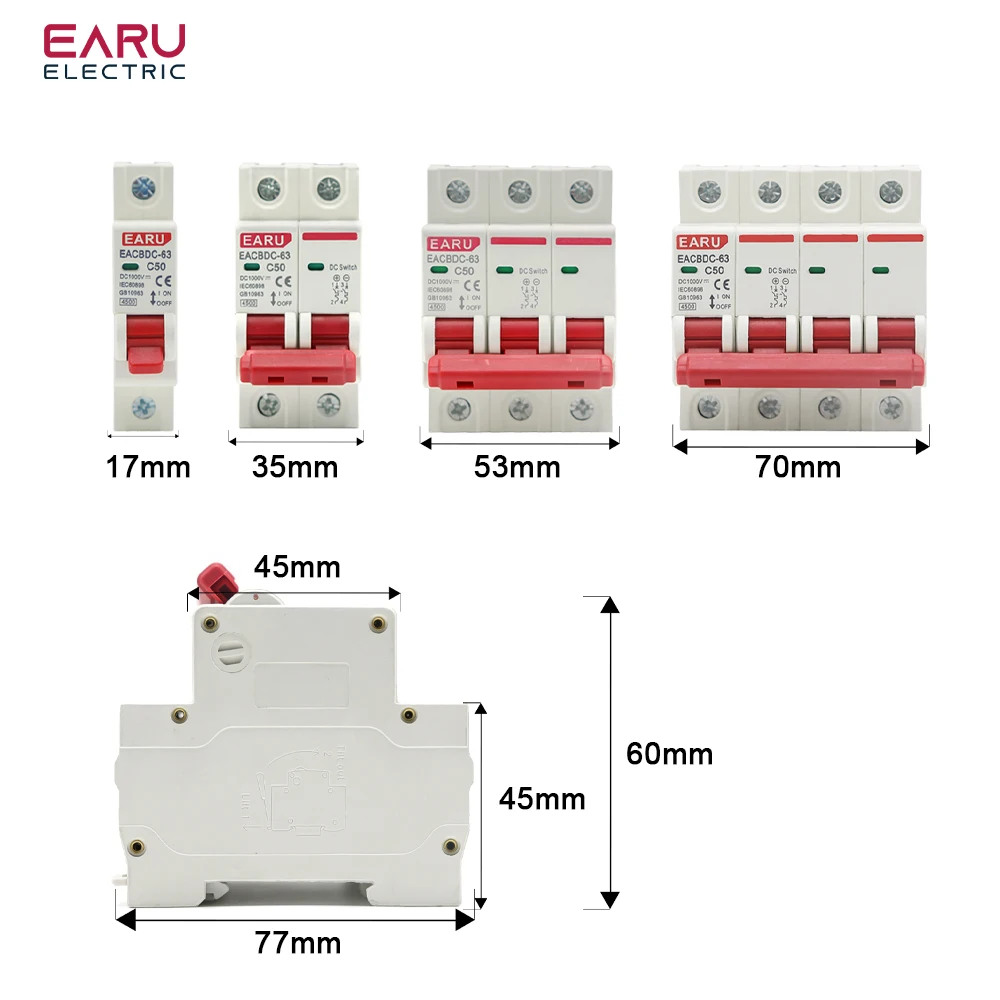

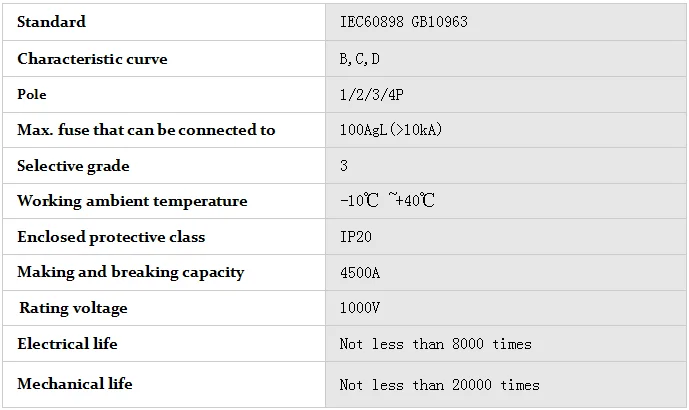

Structure and parameters :
