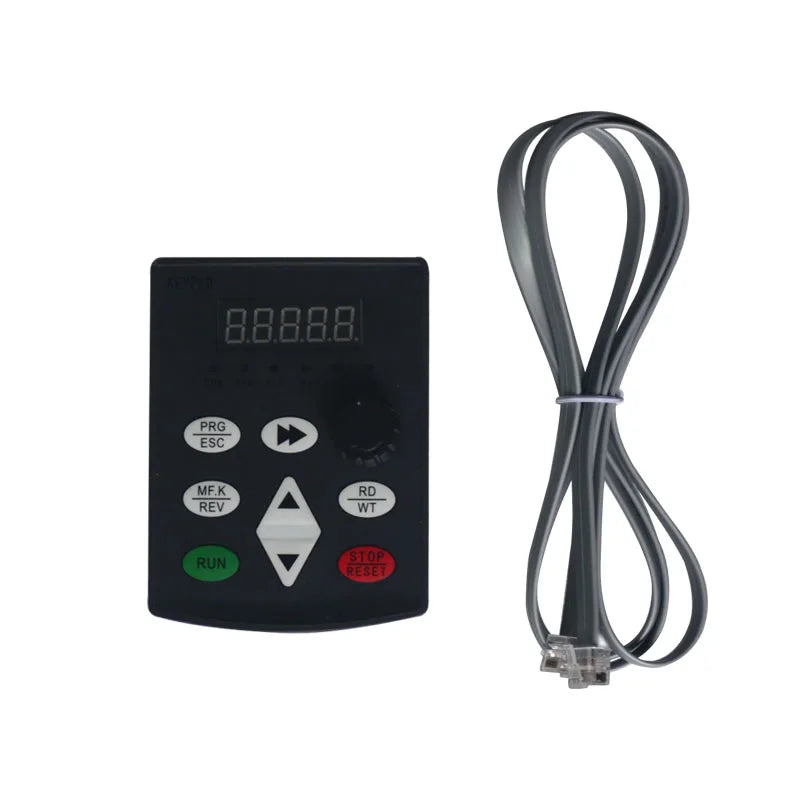

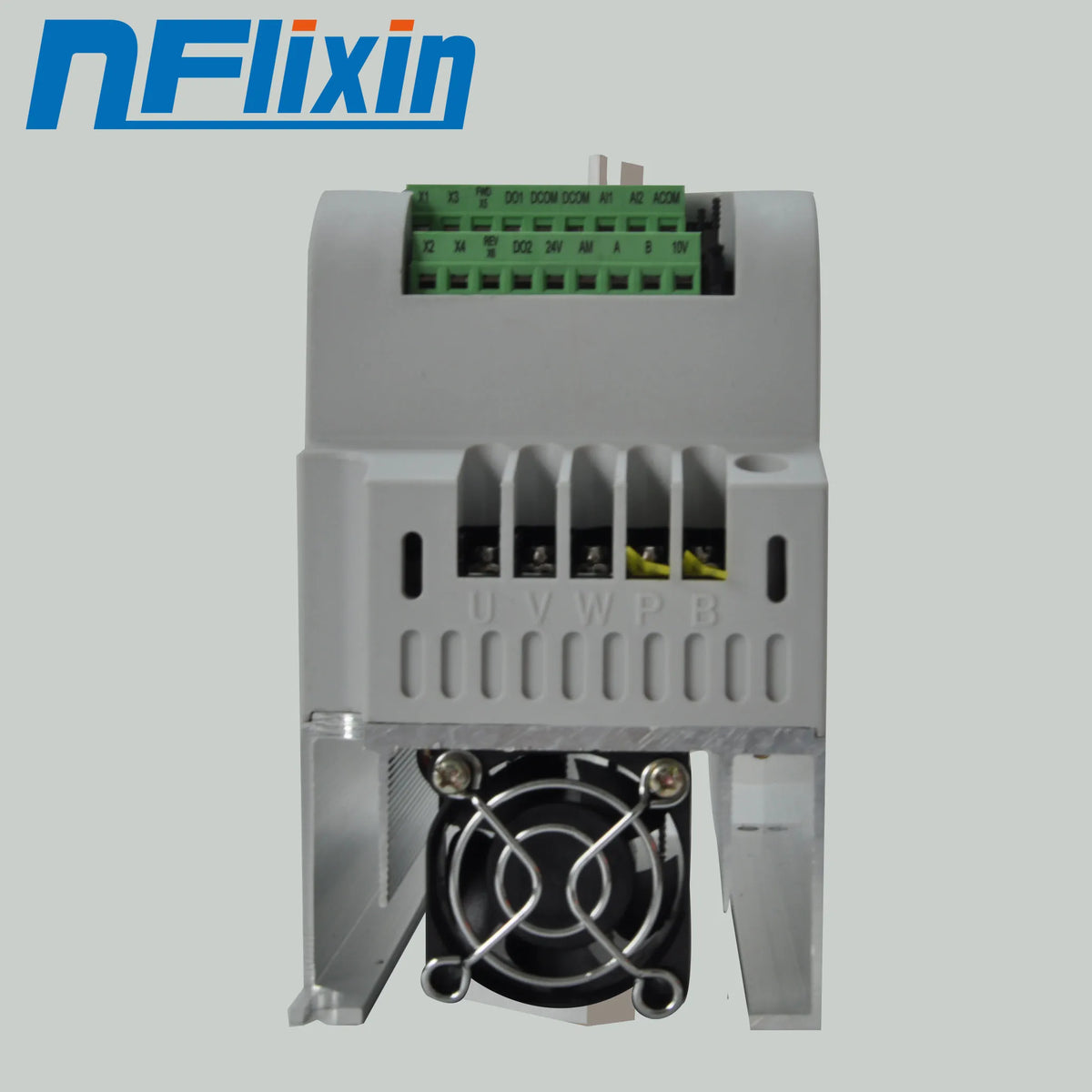

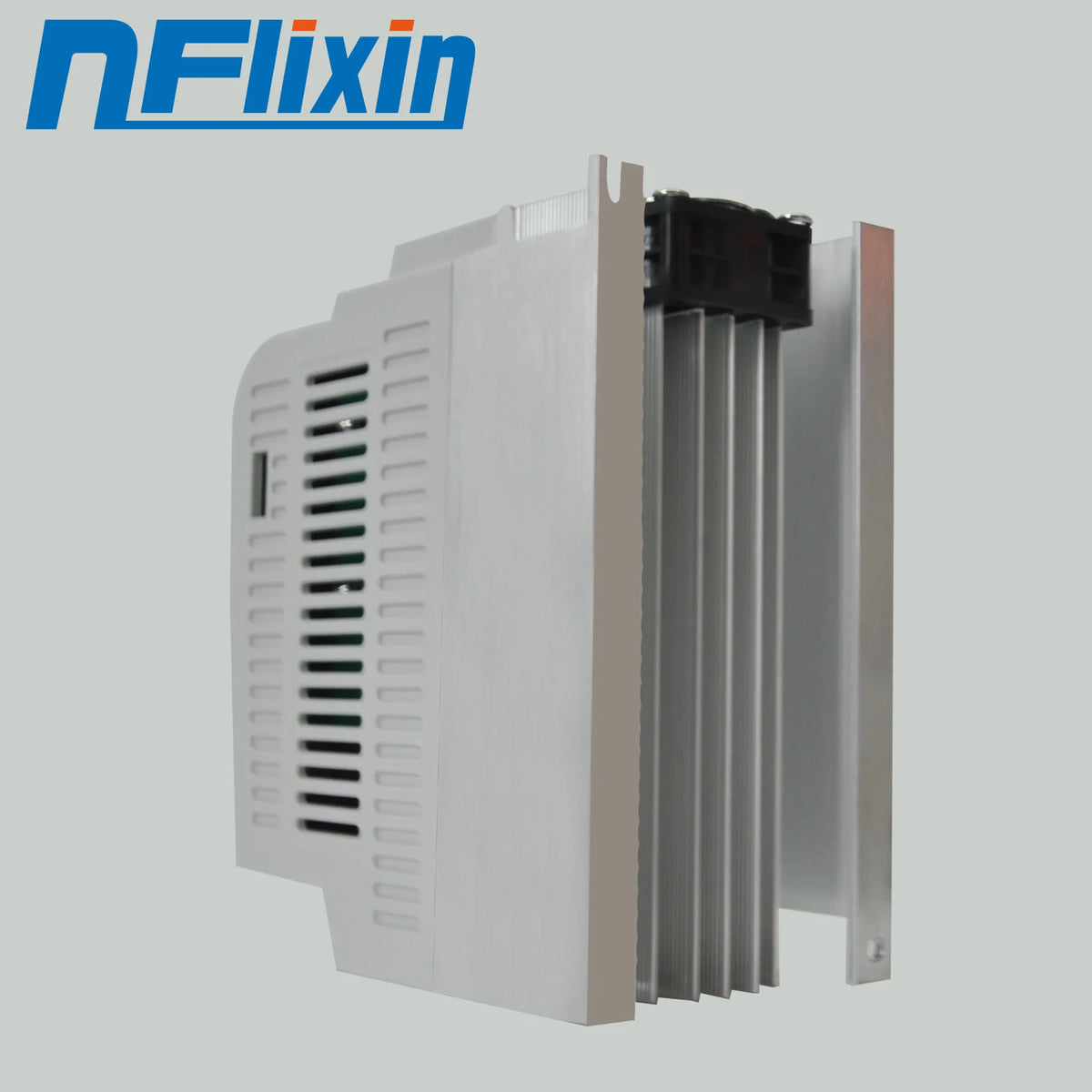

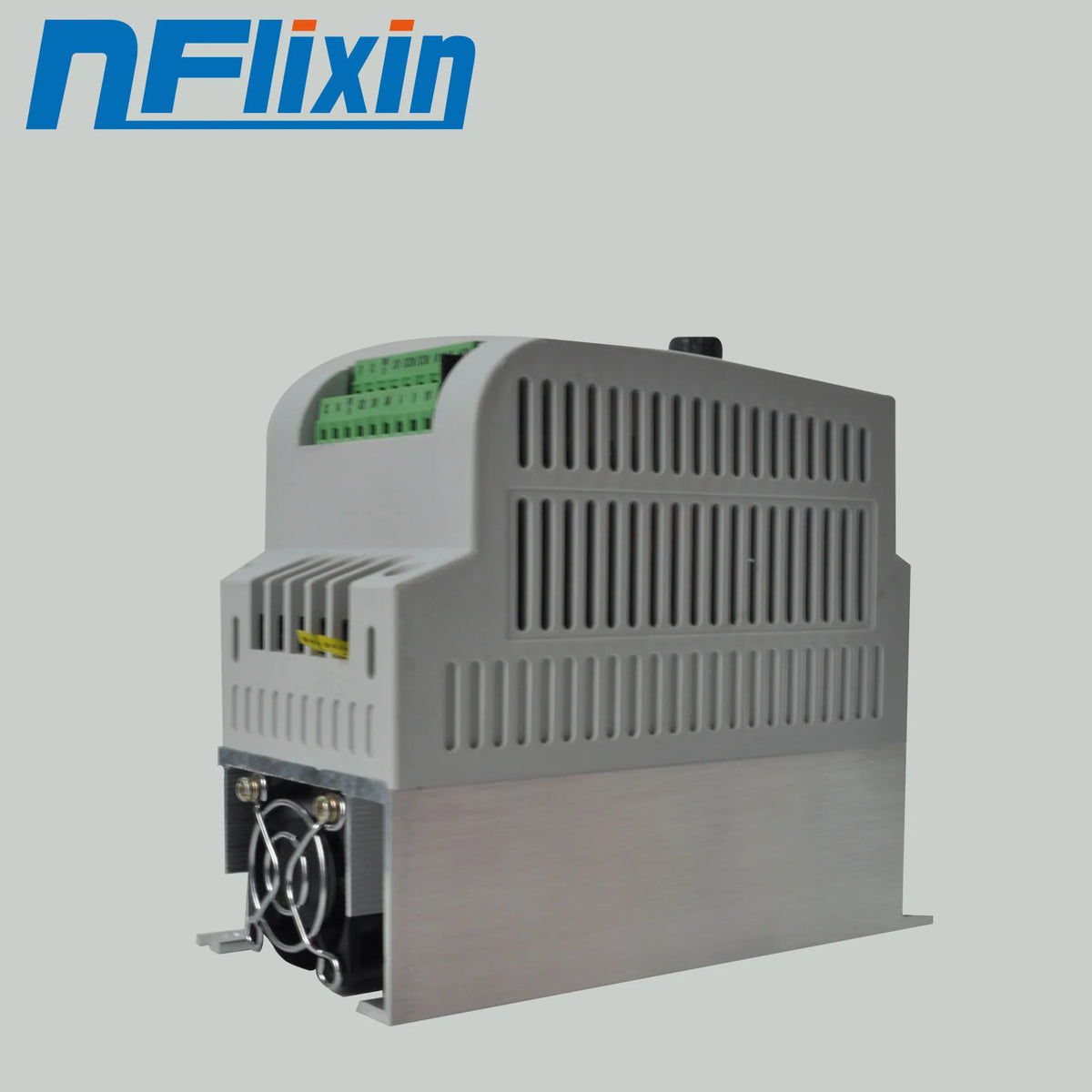

EG 1500W VFD Spindle inverter plus free 2 meter extension cable 220V 1.5kw Frequency Drive Inverter Machine Inverter
EG 1500W VFD Spindle inverter plus free 2 meter extension cable 220V 1.5kw Frequency Drive Inverter Machine Inverter
Impossible de charger la disponibilité du service de retrait
As an industry expert, rely on the EG 1500W VFD Spindle inverter. With a free 2 meter extension cable and 220V power, the 1.5kw Frequency Drive Inverter Machine enhances machine performance. Experience the impact of 1.5kw power in a compact size, without additional costs.
Specifications
- Brand Name: NFLIXIN
- Type: DC/AC Inverters
- Size: 85mm*125mm*150mm
- Output Frequency: 0-400HZ
- Output Type: triple
- Weight: 1.3kg
- Output Current: 1.5kw 7A/2.2kw 10A
- Input Voltage: single phase 220V (Range 15% Abo
- output Voltage: 3 phase 220V (Range 15% Above or Less)
- Applications: Universal
- Level of portection: Ip20
- Control method: V/F
- Power: 1.5kw/2.2kw/4kw/5.5kw/7.5kw 220V inerter
1.Output Power:0.75kw/1.5kw/2.2kw/4kw 2.Rated Frequency :50hz/60hz 3.Output Frequency Range:0~400Hz 4.Input Voltage Range:single phase (1 phase) 220V±15% 5.Output Voltage Range:3 phase 220V±15% 6.Control way: Open loop vector control(SVC) V/F control 7.Main function: Control and adjust the speed of the ac motor 8.Size: 85mm*125mm*150mm
Type |
0.75kw 220v VFD |
1.5kw 220v VFD |
2.2kw 220v VFD |
4kw 220v VFD |
5.5kw 220v VFD |
Input Voltage |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
Output Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
Input Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
Output Frequency |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
Rated current |
4A |
7A |
10A |
16A |
20A |
Input Phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
Output Phase |
3 phase |
3 phase |
3 phase |
3 phase |
3 phase |
