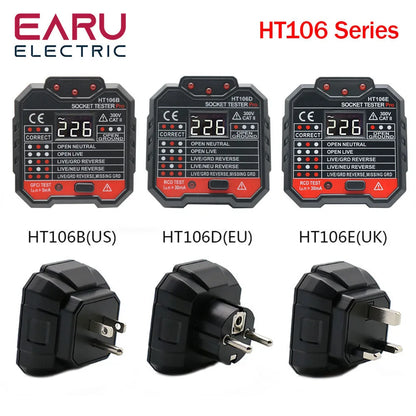

EU UK US HT106B HT106D HT106E Socket Tester Voltage Test Socket Detector EU UK Plug Ground Zero Line Plug Polarity Phase Check

EU UK US HT106B HT106D HT106E Socket Tester Voltage Test Socket Detector EU UK Plug Ground Zero Line Plug Polarity Phase Check

Prix habituel $13.88 USD
Prix habituel $0.00 USD Prix promotionnel $13.88 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

Ensure the safety of your electrical sockets with the EU UK US HT106B HT106D HT106E Socket Tester. This voltage test socket detector works for EU, UK, and US plugs, detecting ground zero lines, polarity, and phase checks. Professional-grade accuracy for peace of mind.

SPECIFICATIONS

  • Measuring Range: 90~250V
  • Weight: 56g
  • Display: LCD & LED
  • GFCI test: > 5mA (HT106B Only)
  • RCD test: > 30mA
  • Brand Name: EARUELETRIC
  • Model Number: H106B/H106D/H106E
  • Display Type: Analog and Digital
  • Accuracy Class: CATII 300
  • Dimensions: 65 x 62 x 56mm
  • Operating Temperature: 0-40℃
  • DIY Supplies: ELECTRICAL

Package Lis

  • 1 * Socket Tester
  • 1 * User Manual (English)

Specifications

  • Color: Black
  • Material: Flame Retardant ABS
  • Plug Type: EU / US / UK (Optional)
  • Voltage: 48V-250V 45-65Hz
  • RCD Test: >30mA (EU/UK Plug)
  • RCD Working Voltage: 220V±20V
  • GFCI Test: >5mA (US Plug)
  • GFCI Working Voltage: 110V±20V
  • Voltage Measurement: 48V~250V / 45~65Hz
  • Accuracy: ±(2.0%+2)
  • Working Environment: 0℃ ~ 40℃, 20% ~75%RH
  • Storage Environment: -10℃ ~ 50℃, 20% ~80%RH
  • Safety Rating: EN61010-1,-2-030, EN61326-1,CAT II 300V
  • Item Size: 62 * 65 * 55mm / 2.4 * 2.6 * 2.2in
  • Item Weight: UK 64g/2.3oz, EU 59g/2.1oz, US 53g / 1.9oz
  • Package Size: 7.5 * 7.4 * 7.3cm / 3.0 * 2.9 * 2.9in
  • Package Weight: UK 90g/3.2oz, EU 86g/3.0oz, US 79g / 2.8oz

Features

  • Electric Socket Tester - Advanced socket tester for rapidly detecting whether the socket's wire connection is correct or not.
  • Design with RCD/GFCI Test Button - Power outlet socket for correct wiring and RCD/GFCI trip function. It can test the protection system to ensure the household electrical safety. Perfect for protect your security against the risk of electric shock.
  • Easy to Use - Detect whether neutral, live and earth wire is connected correctly and to indicate which wire is missing with clear light patterns.
  • Bright LED Light & 3 Test Indicators - The light patterns are well labeled on the surface of the socket tester. The tester adopts a built-in light so it can also be used in the dark. Easy and fast to read the test result.
  • 7 LED Light Patterns - With 7 easy to read indicators to indicate the state of the socket, easy to judge: Correct, Open Ground, Open Neutral, Live/Neutral Reverse, Live/Ground Reverse, Open Live & Live Neutral Reverse.
  • Wide Application - Widely used for electric maintenance testing, office sockets testing, power strips testing and wall sockets testing in school, laboratory, factory and other social field. It saves you lots of time in testing problems with sockets.
  • Portable Design - Compact size, light weight and convenient to use. With voltage backlight LCD display for testing voltage.
