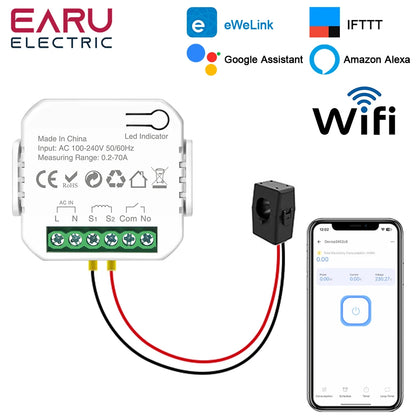

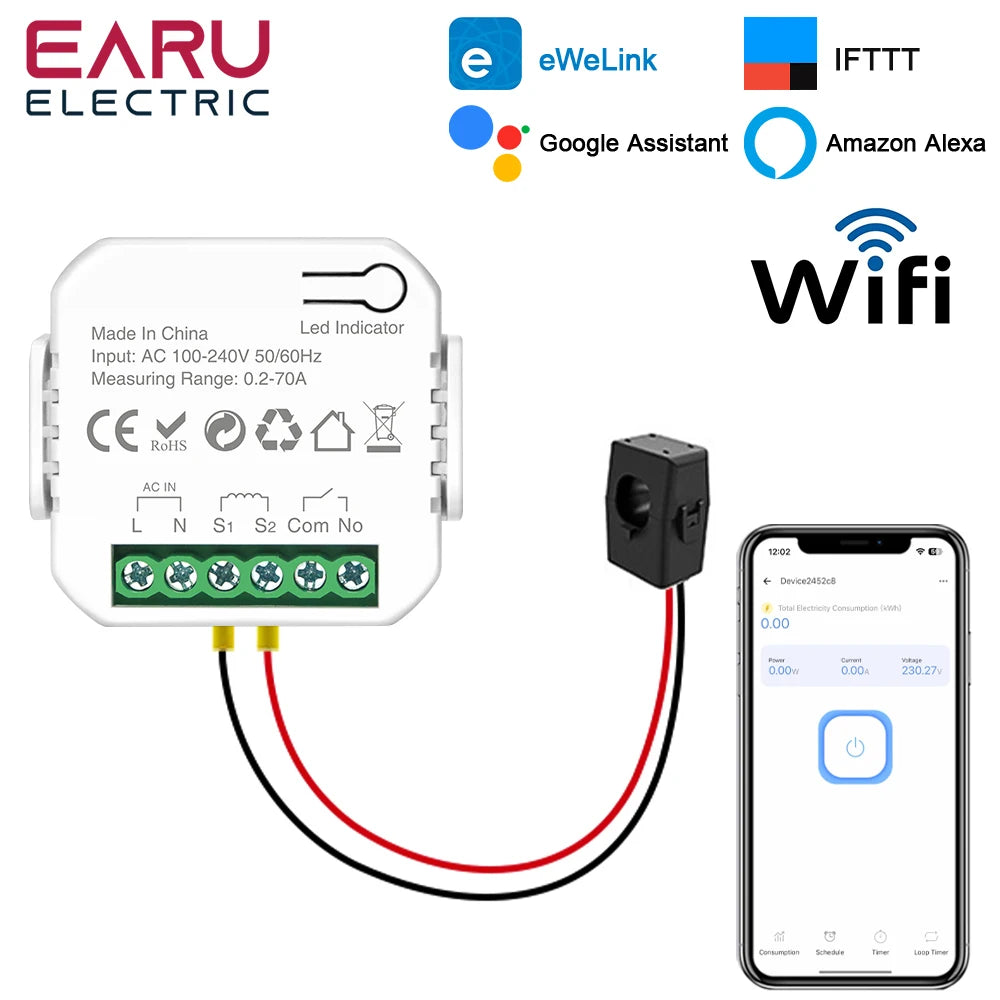

eWeLink Smart WiFi Power Energy Meter with CT Clamp AC 110V 220V Timer Relay Switch kWh Voltage Current Protector Remote Control
eWeLink Smart WiFi Power Energy Meter with CT Clamp AC 110V 220V Timer Relay Switch kWh Voltage Current Protector Remote Control
Impossible de charger la disponibilité du service de retrait
SPECIFICATIONS
Accuracy Class: ±2%
App: eWeLink
Battery Included: No
Brand Name: EARU
Certification: CE
Choice: yes
DIY Supplies: Electrical

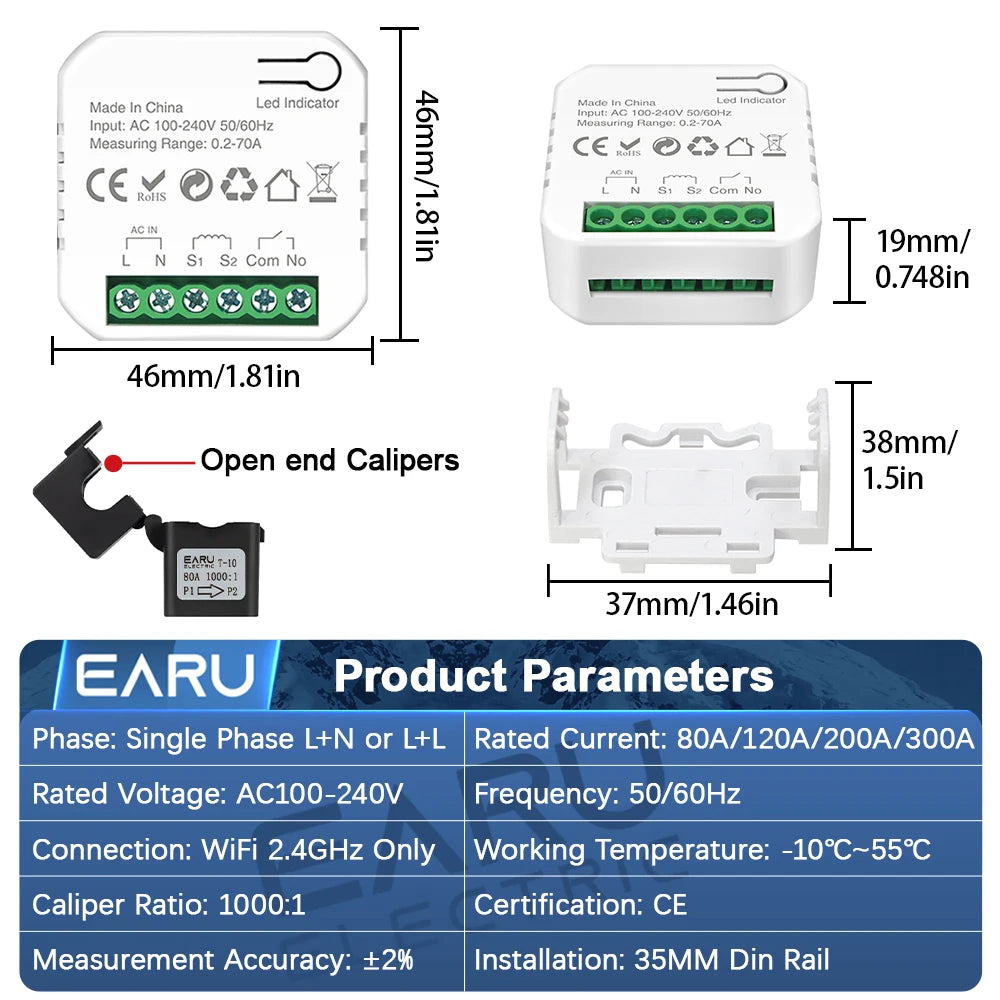

Dimensions: 46*46*19MM
Display Type: Digital Only
Frequency: 50/60Hz
Fuction 1: On/Off Switch
Fuction 2: Timer Relay Switch
Fuction 3: Voltmeter
Fuction 4: Ammeter
Fuction 5: Power Meter
Fuction 6: Current Limit
Fuction 7: Share
Fuction 8: Voice Control
Fuction 9: Power Failure Memory
High-concerned chemical: None
Installation: 35MM Din Rail
Max Operating Current: 150A & Above
Max.Current: 0.1A-70A
Max.Power: 1W-15000W
Max.Voltage: 1V-240V
Measuring Energy Range: 999999.99kWh
Min.Power: 0.1W-15000W
Min.Voltage: 0.1V-240V
Model Number: EASEM-F-EWE
Operating Temperature: -10~55℃
Origin: Mainland China
Output Voltage: AC100-240V
Phase: single phase
Power Supply: AC
Protocol: WiFi 2.4GHz Only
Rated Current: 80A/120A/200A/300A
Rated Voltage: 240V
Working Voltage: AC100-240V
semi_Choice: yes
1.Current Litmit(0.1A-70A Adjustable)
2.Min.Power(0.1W-15000W Adjustable)
3.Max.Power(1W-15000W Adjustable)
4.Min.Voltage(0.1V-240V Adjustable)
5.Max.Voltage(1V-240V Adjustable)

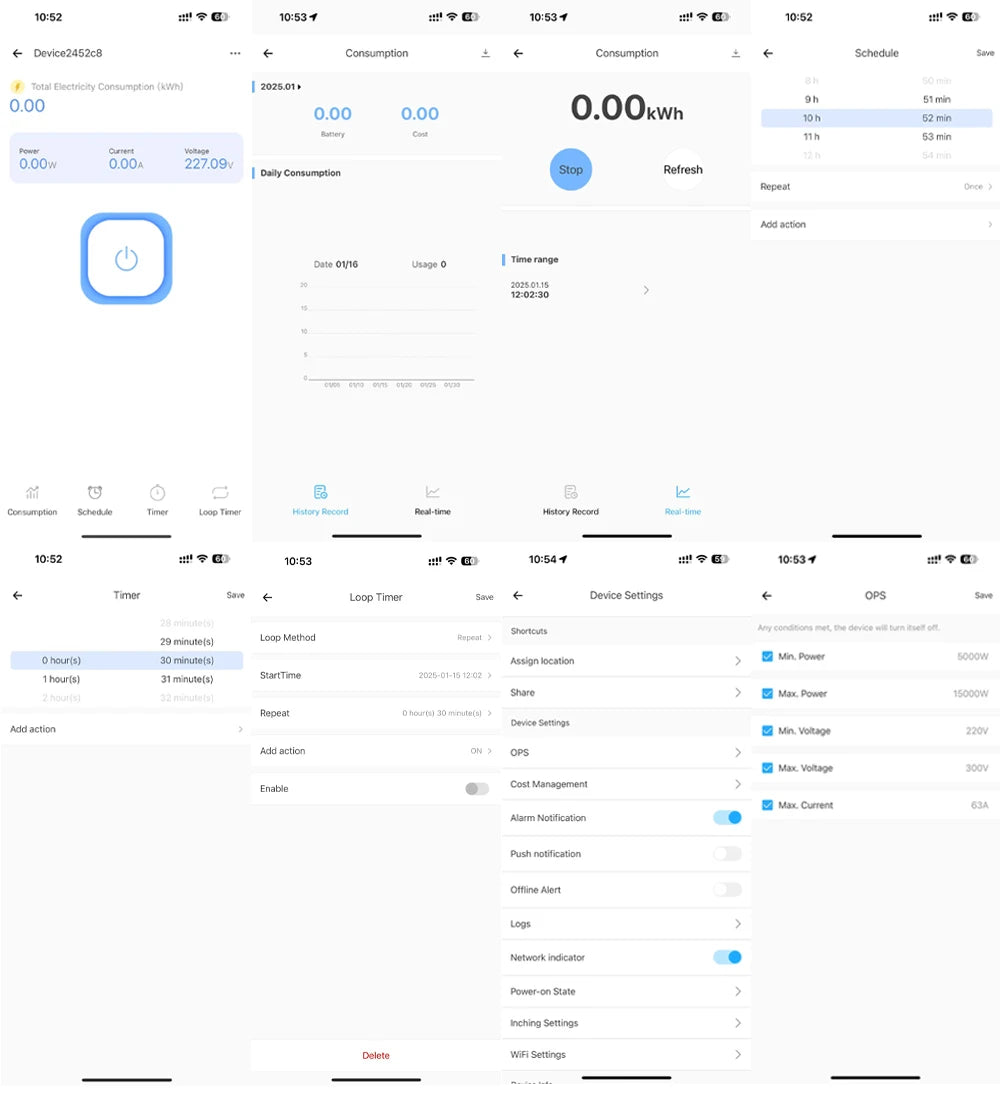

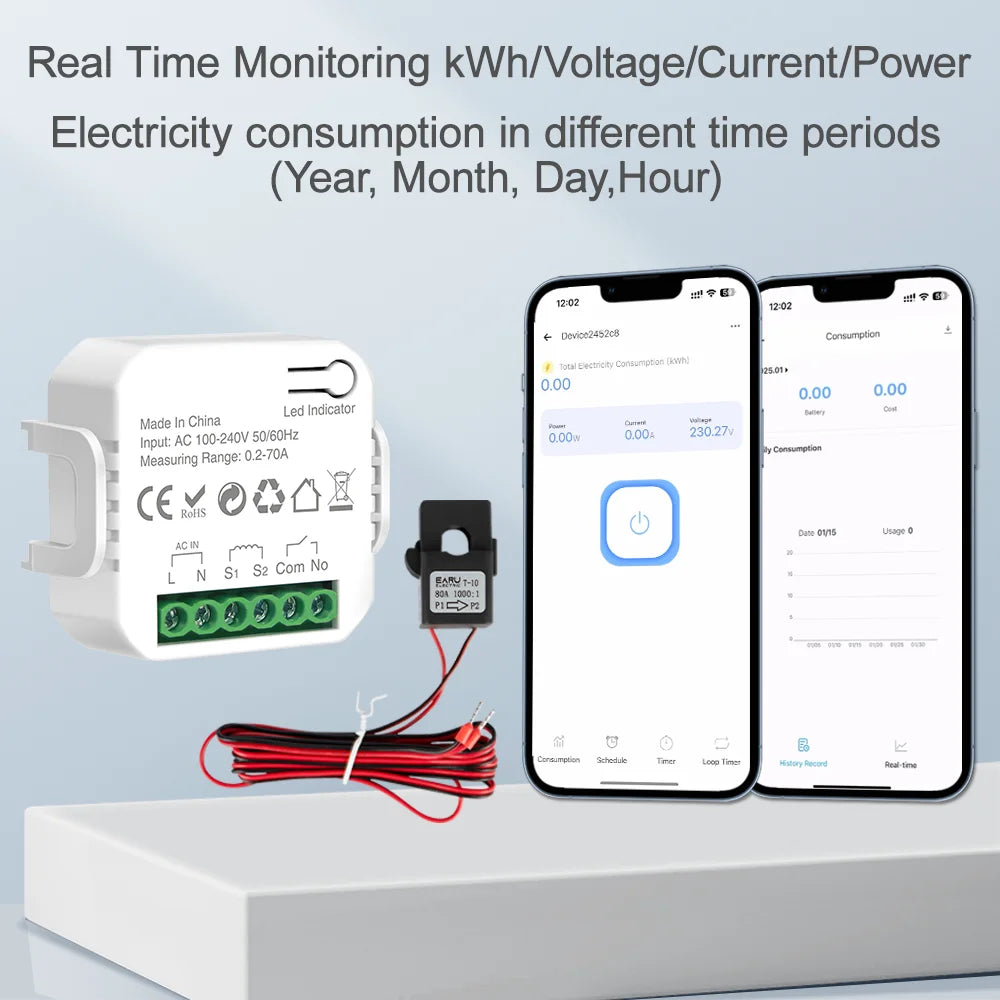

6.Energy Monitor
7.Timer Switch
8.Remote Control ON/OFF

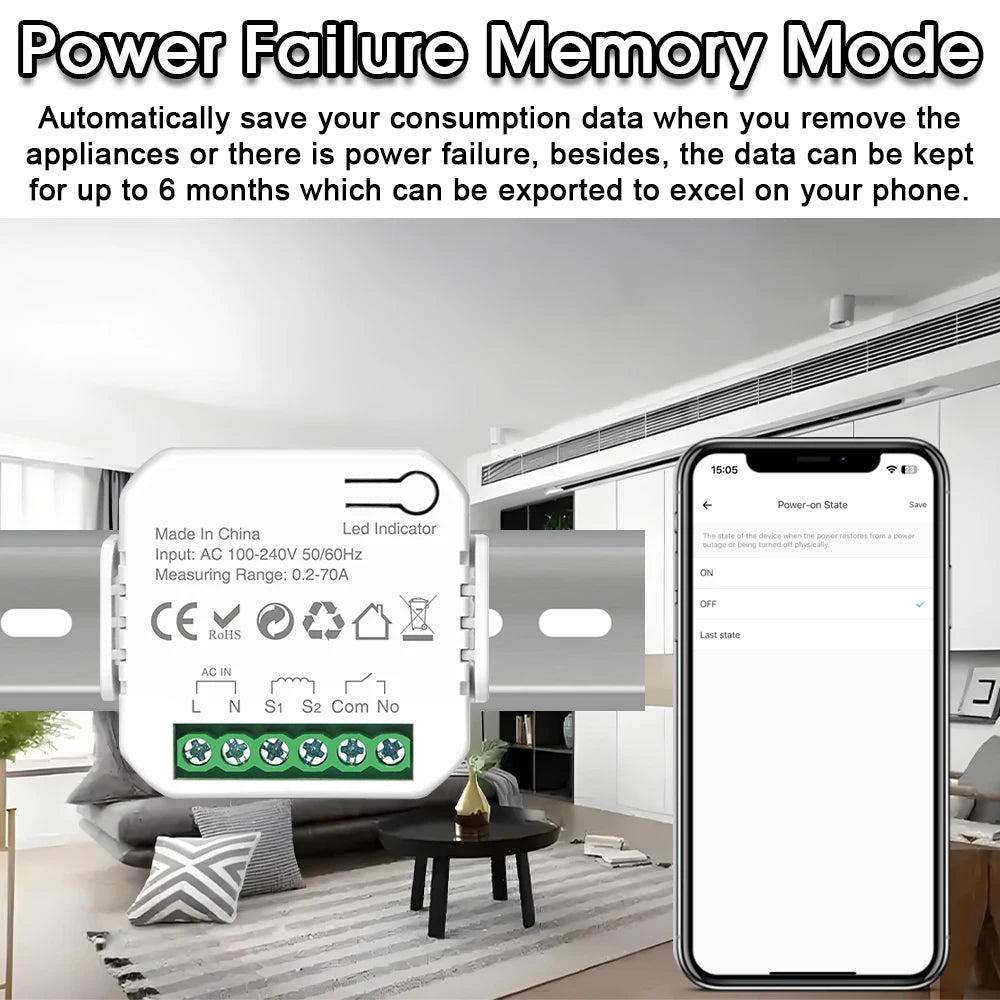

9.Power Failure Memory
10.On-Off Function
Note:

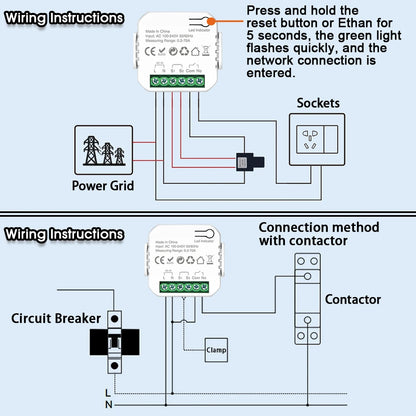

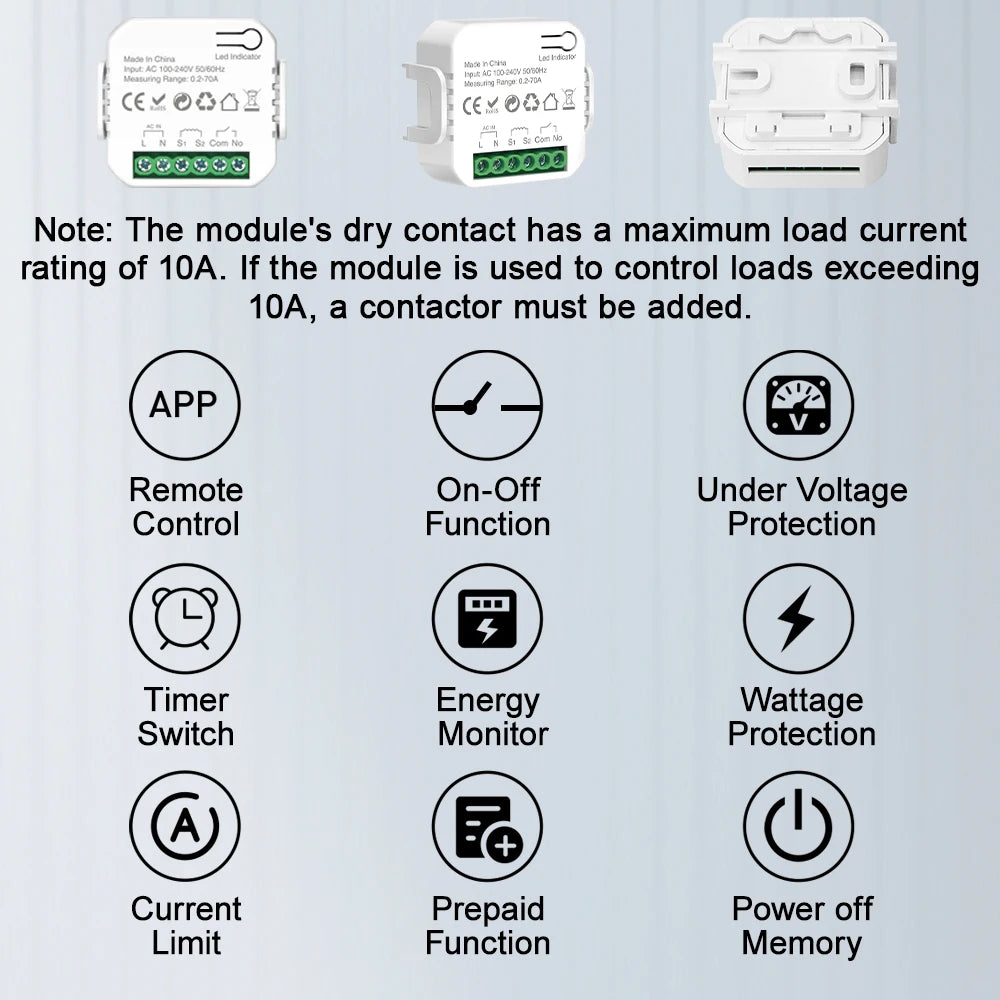

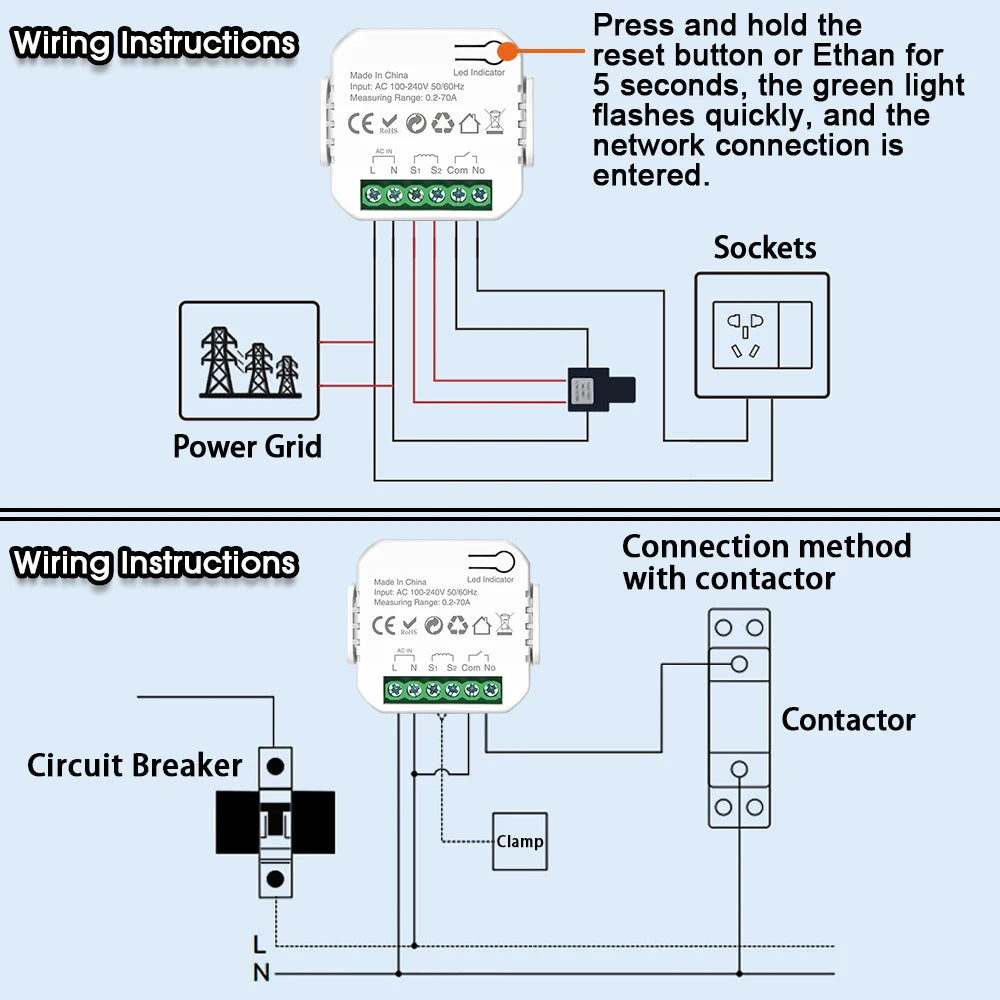

1.The module's dry contact has a maximum load current rating of 10A. If the module is used to control loads exceeding 10A, a contactor must be added.

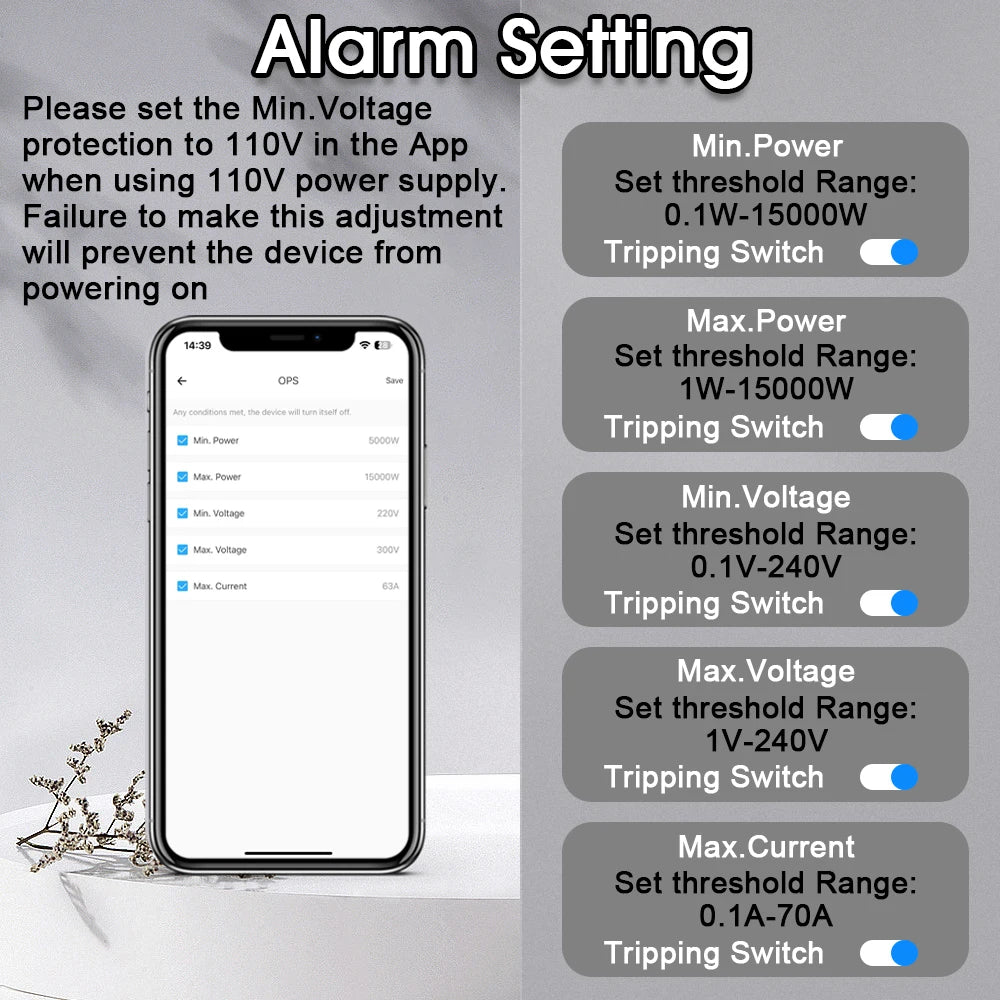

2.Please set the Under-Voltage protection to 110V in the App when using 110V power supply. Failure to make this adjustment will prevent the device from powering on

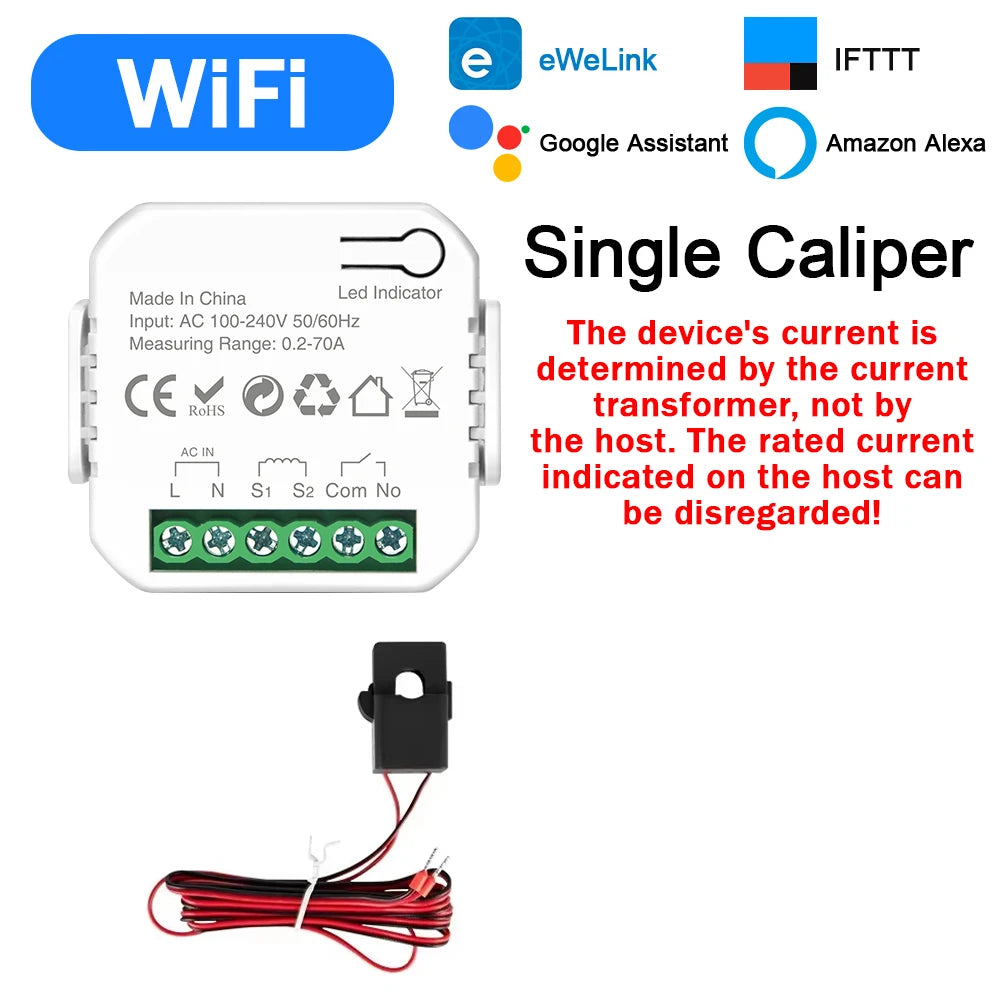

3.The device's current is determined by the current transformer, not by the host. The rated current indicated on the host can be disregarded for reference!
Specificaions:
Working Voltage: AC100V-240V, 50/60Hz
Rated Current: 80A/120A/200A/300A
Wireless Type: Wi-Fi 2.4GHz Only，5GHz Not Support
Support System: Android/IOS

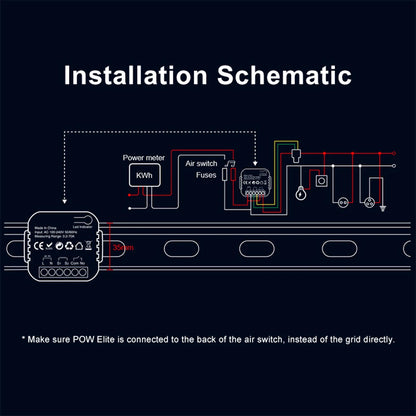

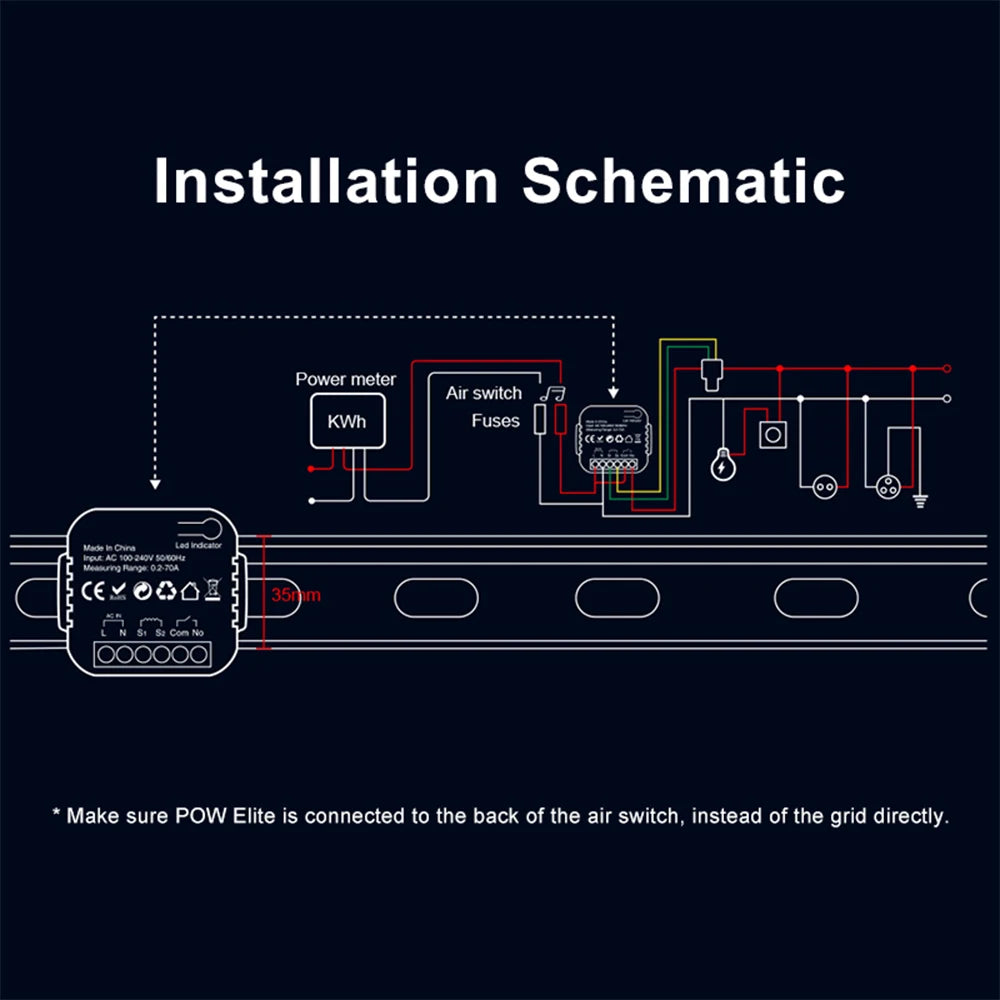

Installation: 35MM Din Rail
Remote control at anytime from anywhere your mobile phone can get Internet signal by eWeLink App, no distance limit
Voice Control by Amazon Alexa Echo/Google Assistant
