For Europe: 220v 1-phase Input, 3-phase Output Frequency Converter, Powers 1.5kw/2.2kw/4kw, VSD/VFD/50HZ Inverter
For Europe: 220v 1-phase Input, 3-phase Output Frequency Converter, Powers 1.5kw/2.2kw/4kw, VSD/VFD/50HZ Inverter
Impossible de charger la disponibilité du service de retrait
Transform your European power supply with our high-performance Frequency Converter. Designed for 220v 1-phase input and 3-phase output, it powers up to 4kw and is compatible with VSD and VFD. Say goodbye to 50HZ limitations and streamline your machines with precision and efficiency.
Specifications
- Brand Name: NFLIXIN
- Type: DC/AC Inverters
- Output Frequency: 0-400Hz
- Output Type: triple
- Output Power: 1 - 200KW
- Weight: 1kg/1.7kg/3kg
- Model Number: 9600D
Dear buyer, please contact me if you need instructions.1.Output Power:0.75kw/1.5kw/2.2kw/4kw/5.5kw/7.5kw2.Rated Frequency :50hz/60hz3.Output Frequency Range:0~400Hz4.Input Voltage Range:1 phase 220V±15%5.Output Voltage Range:3 hase 220V±15%6.Control way: Open loop vector control(SVC) V/F control7.Main function: Control and adjust the speed of the ac motor
|
Type |
0.75kw 220v VFD |
1.5kw 220v VFD |
2.2kw 220v VFD |
4kw 220v VFD |
5.5kw 220v VFD |
7.5kw 220v VFD |
|
Input Voltage |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
220V(+/-15%) |
|
Output Voltage |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
220VAC |
|
Input Frequency |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
50/60Hz |
|
Output Frequency |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
0~400Hz |
|
Rated current |
4A |
7A |
10A |
16A |
20A |
30A |
|
Input Phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
1 phase |
|
Output Phase |
3 phase |
3 phase |
3 phase |
3 phase |
3 phase |
3 phase |
NFLIXIN Variable Frequency Drive 1 Phase 220VAC Input 3-Phase 220VAC Output 0.75KW/1.5KW/2.2KW/4KW/5.5KW/7.5KW Frequency Converter Motor Drive VFD
Specification:
- IteItem Type: Variable Frequency Drive
- Brand: NFLIXIN
- Model: 9600D-1T-00075G / 9600D-1T-00150G / 9600D-1T-00220G / 9600-1T-00400G / 9600-1T-00550G / 9600-1T-00750G
- Input Voltage: AC 1PH 220V ± 15% 50Hz-60Hz
- Output Voltage: AC 3PH 0V-220V 0Hz-650Hz
- Matching Motor Power: 0.75KW / 1.5KW / 2.2KW / 4KW / 5.5KW / 7.5KW
- Rated Current: 4A / 7A / 10A / 16A / 20A / 30A
- Voltage Type: AC220V to AC220V
- Output Voltage Adjustment Mode: PWM control
- Control Method: Current vector
- Filter: Built-in filter
- Protection Level: IP20
- Machine Size: Approx. 155mm*82mm*135mm / 172mm*125mm*165mm / 220mm*152mm*179mm
Product Function:
- Low frequency and large torsion
- Sensorless vector control
- Standard V / F control
- Multi-speed adjustable
- Built-in RS485 communication
- Application: Crusher, grinder, water pump, textile machine, wood cutter, exhaust fan and blower
Feature:
- Humanized keyboard design, convenient operation and clear display
- The motherboard is intelligent and efficient, with full-featured three-proof paint treatment, dust-proof, stable and durable
- Double-layer board design, reasonable structure and safety, greatly reducing the failure rate
- Adopt high-quality industrial flame-retardant ABS plastic shell, heat-resistant, flame-retardant, impact-resistant and good safety
- Good heat dissipation, super large all-aluminum base fan hot plate combined with imported powerful fan, super strong wind and super fast heat dissipation
- Provide up to 25 kinds of fault protection: over-current, over voltage, under voltage, over temperature, phase loss, overload and other protection.

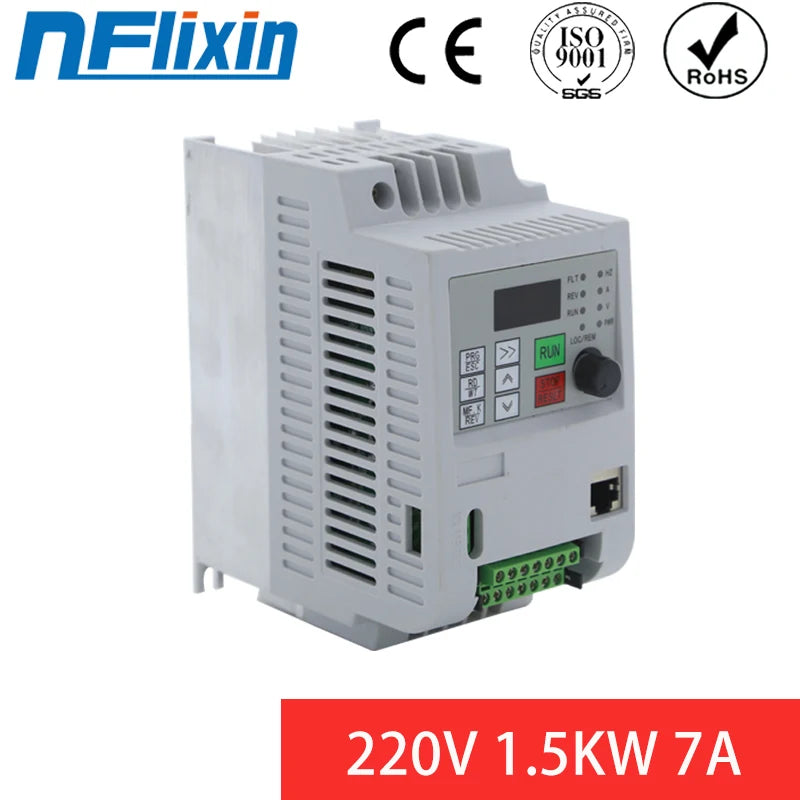

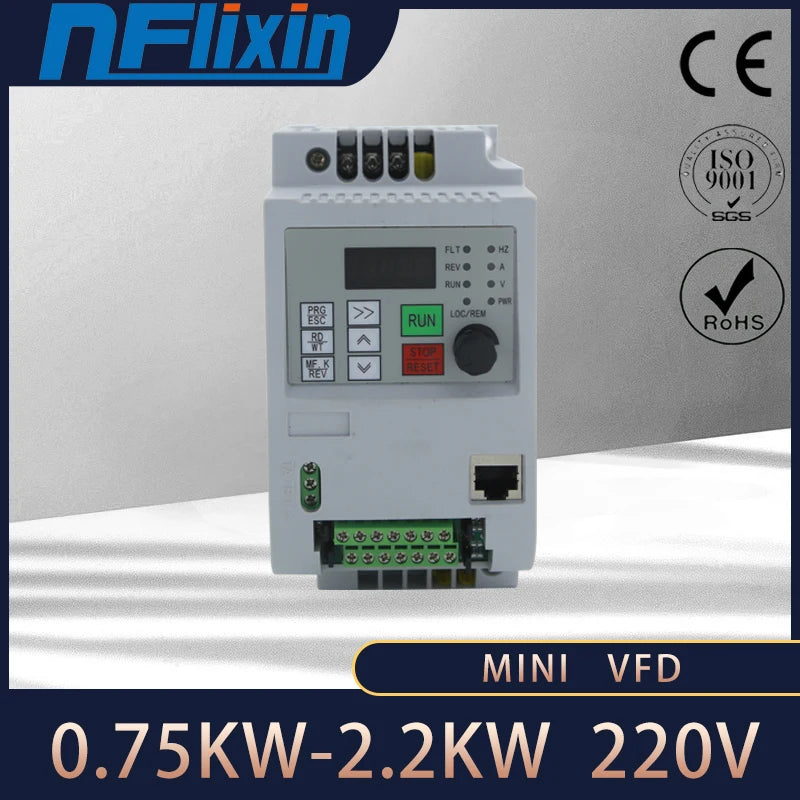

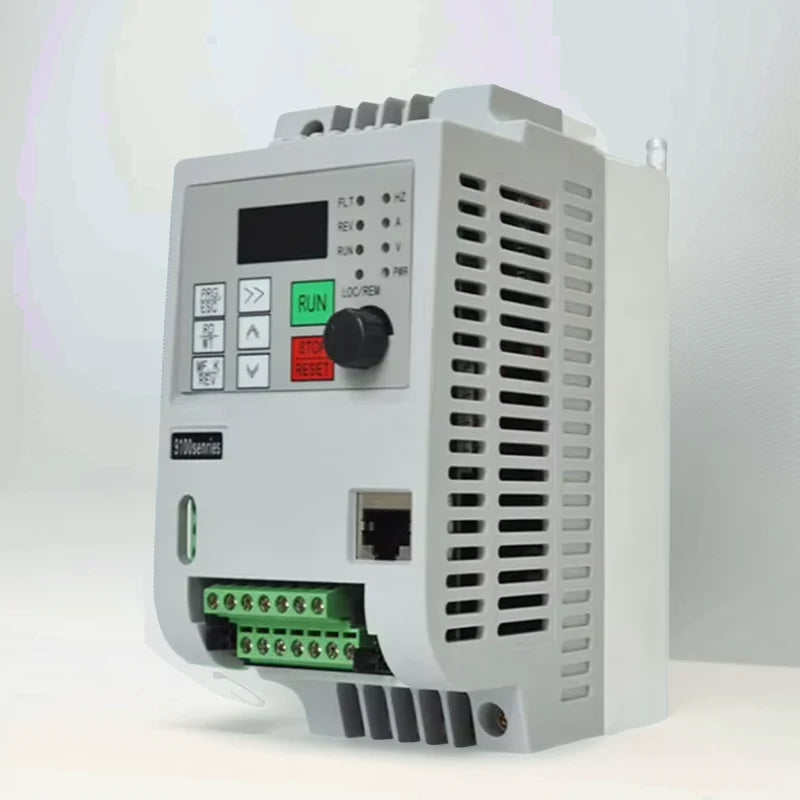

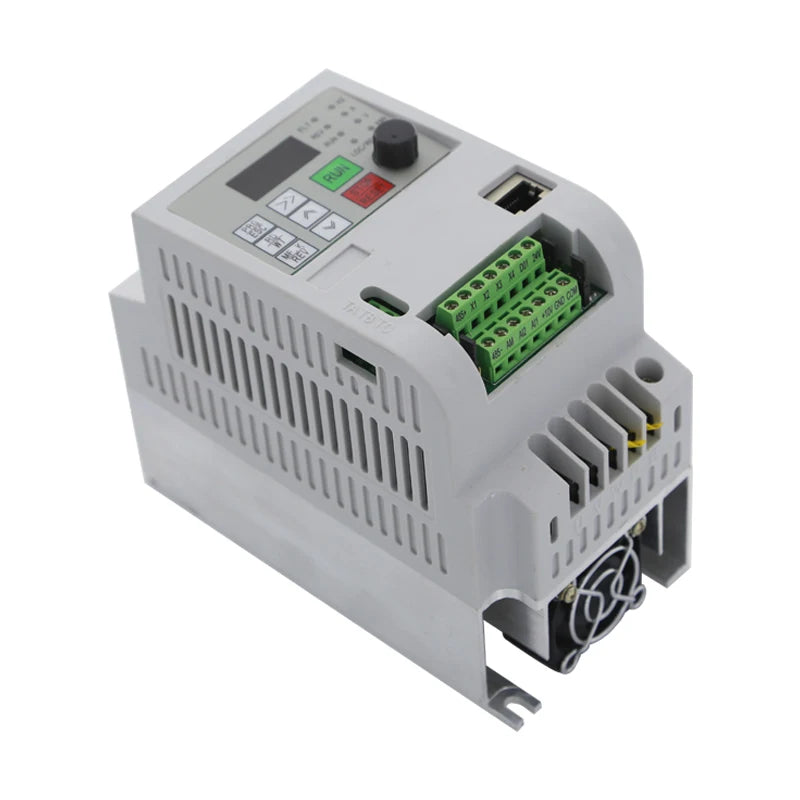

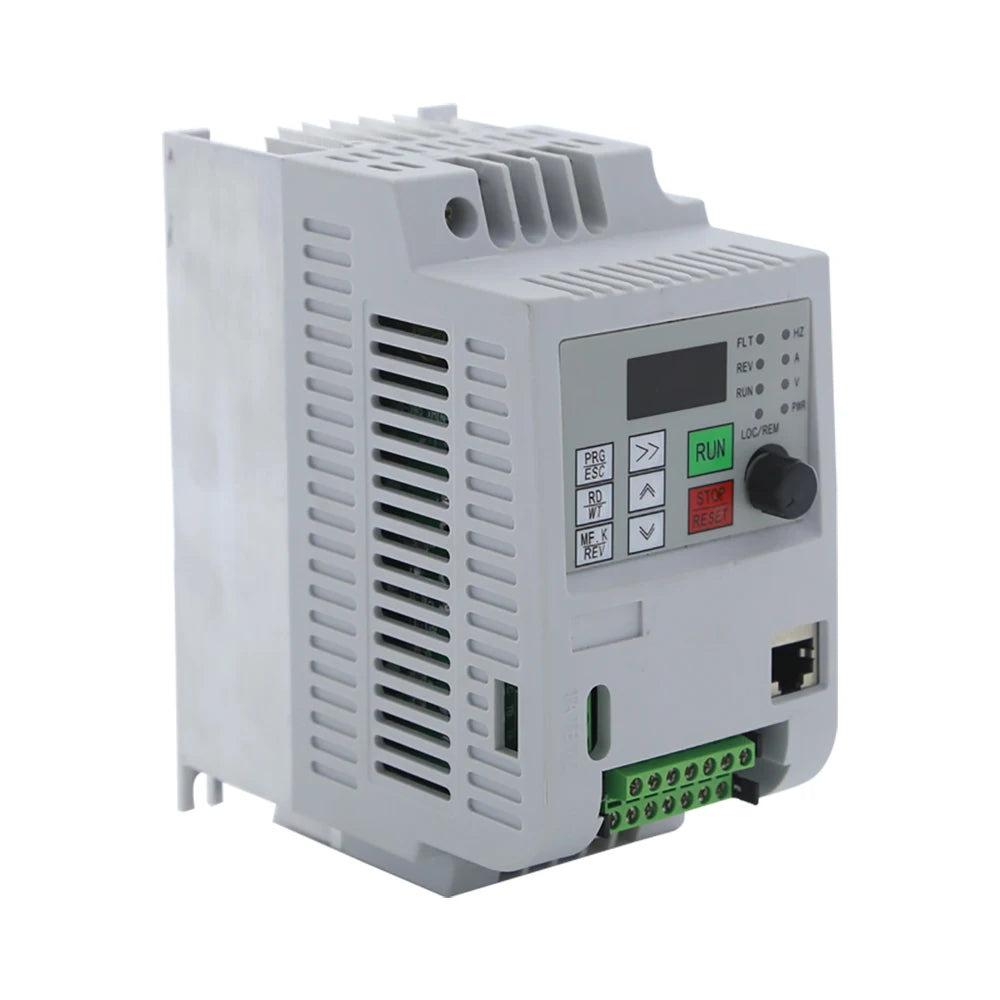

220V 0.75KW / 1.5KW / 2.2KW Frequency inverter
Size: 85mm*125mm*150mm

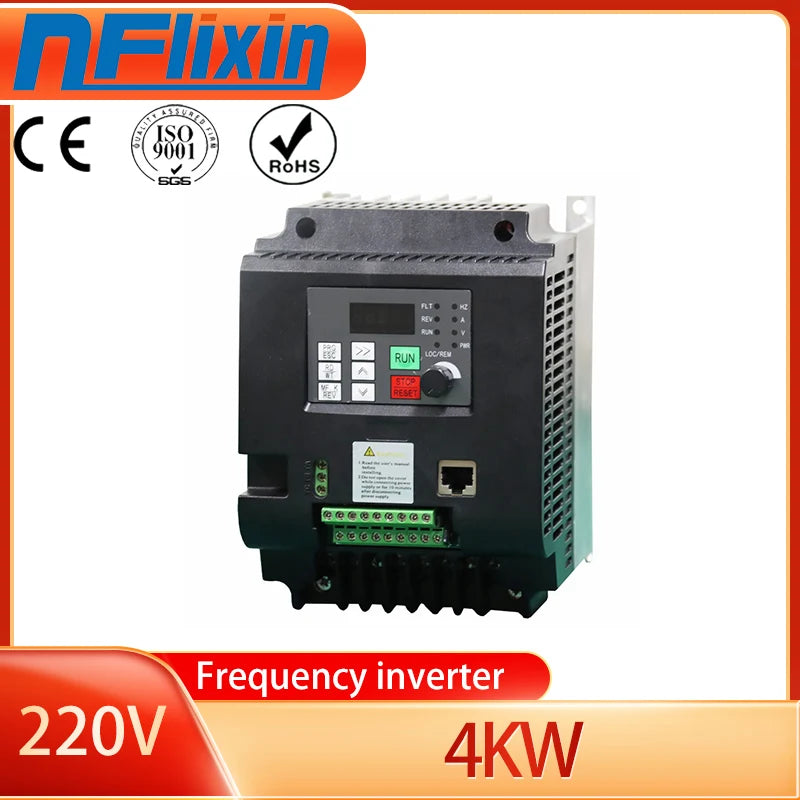

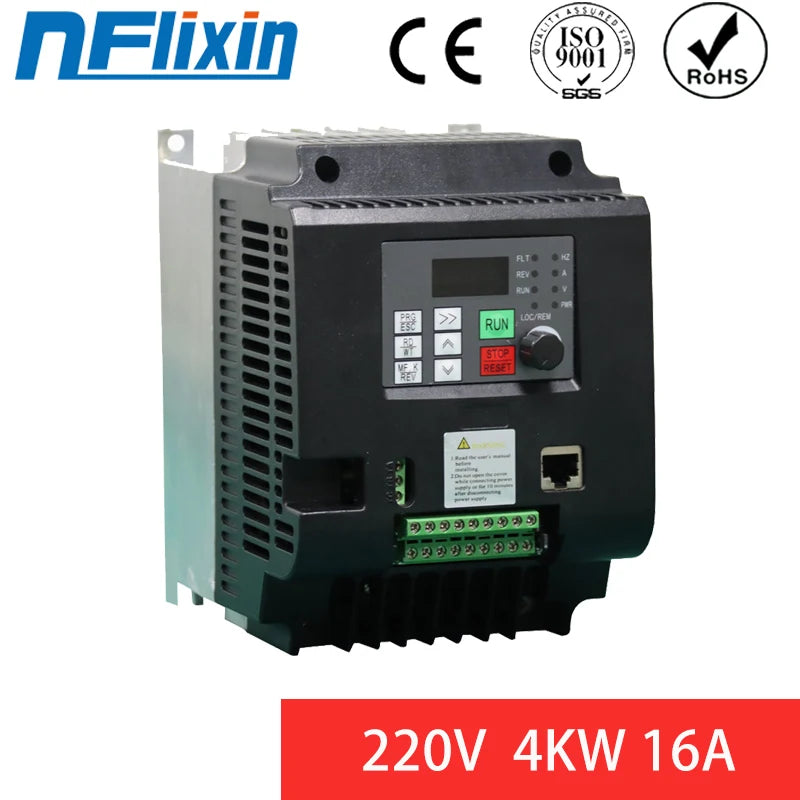

220V 4KW Frequency inverter
Size: 172mm*125mm*165mm

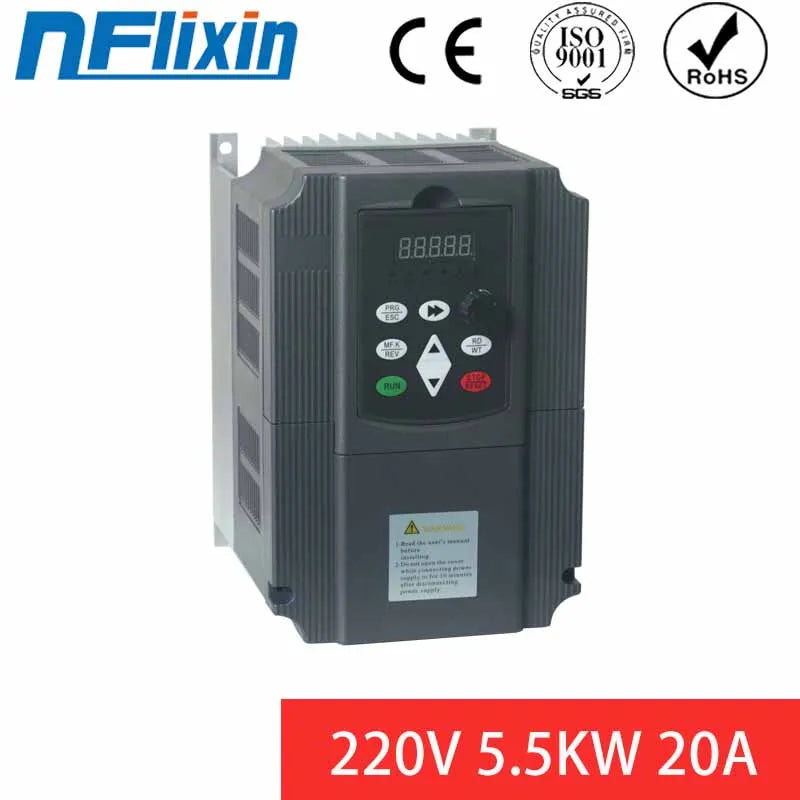

220V 5.5KW / 7.5kw Frequency inverter
Size: 220mm*152mm*179mm
We have sophisticated engineers, scientific producing workmanship and management team with rigorous quality control systems , frequency inverter are equipped with advanced features as below:
01 V/F control, vector control and output torque control;
02 Built-in RS-485 communication interface
03 Compact size, easy to install;
04 With a speed potentiometer and external panel;
05 Built-in synchronous control and proportional synchronization control;
06 16 speed control modest,Can run automatically;
07 Can choice multiple running commands or frequency channel;
08 Can be achieve Part or all of the keys locked(Analog potentiometer unlock);
09 Relay normally open or closed and two high configuration output have 100 kinds of ways optional;
10 6 digital opto-isolated inputs, 100 kinds of ways optional;
11 3 analog input, 1 analog output channel;
12 Having textile pendulum frequency function, It can be widely applications for many kinds of textile
equipment;
13 Built-in user timer / counter;
14 Built-in PID regulation function to facilitate the realization of closed loop control of the temperature,
pressure and tension.
15 At zero speed time,can be achieve output 0-100% of Adjustable torque,With zero speed brake
function,instead foreign inverter application on freight elevator and crane.
