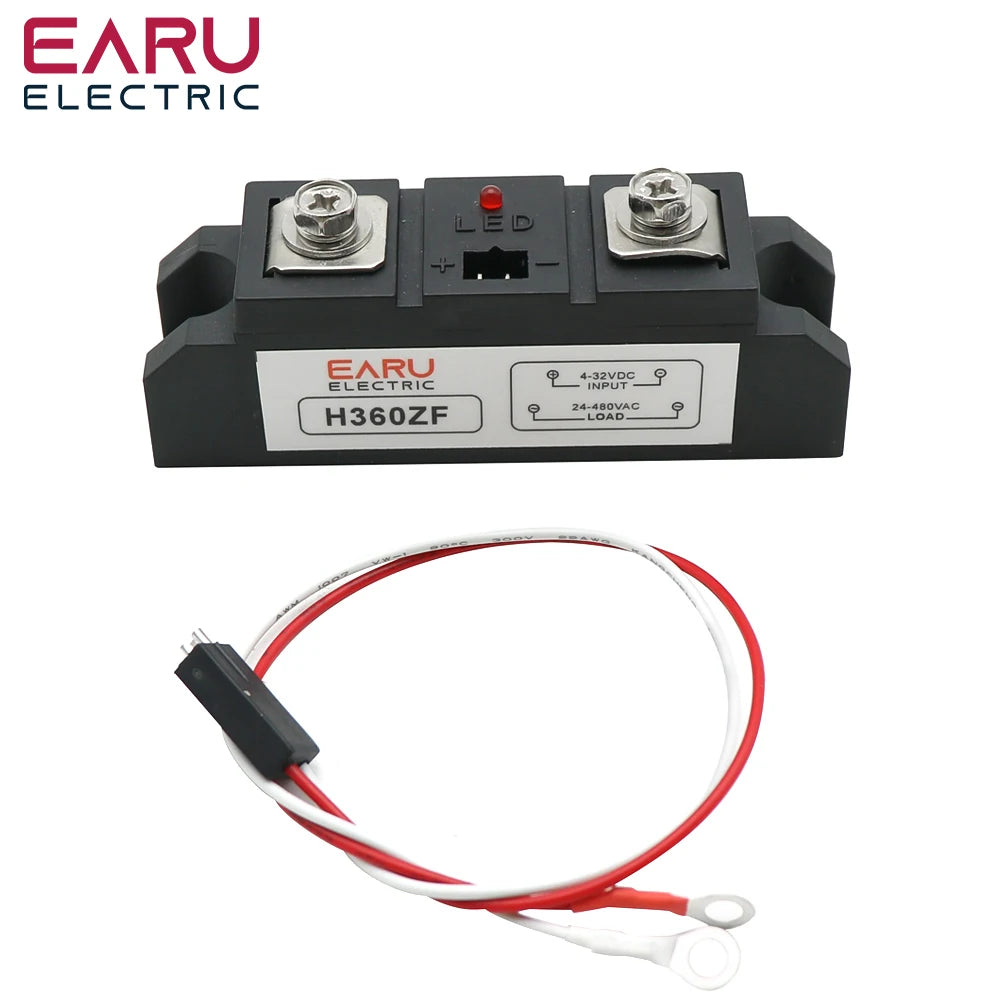

Industrial Solid State Relay SSR Module Single Phase Input 3-32VDC Output 24-480VAC Industrial 60A 80A 100A 120A 150A 200A 300A

Industrial Solid State Relay SSR Module Single Phase Input 3-32VDC Output 24-480VAC Industrial 60A 80A 100A 120A 150A 200A 300A

Prix habituel $36.38 USD
Prix habituel $0.00 USD Prix promotionnel $36.38 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Size

This industrial solid state relay module has a single phase input, ideal for a variety of industrial applications. With a low input voltage requirement of 3-32VDC and a versatile output range of 24-480VAC, this module can handle heavy loads up to 300A. Trust this reliable and efficient solution for all your industrial needs.

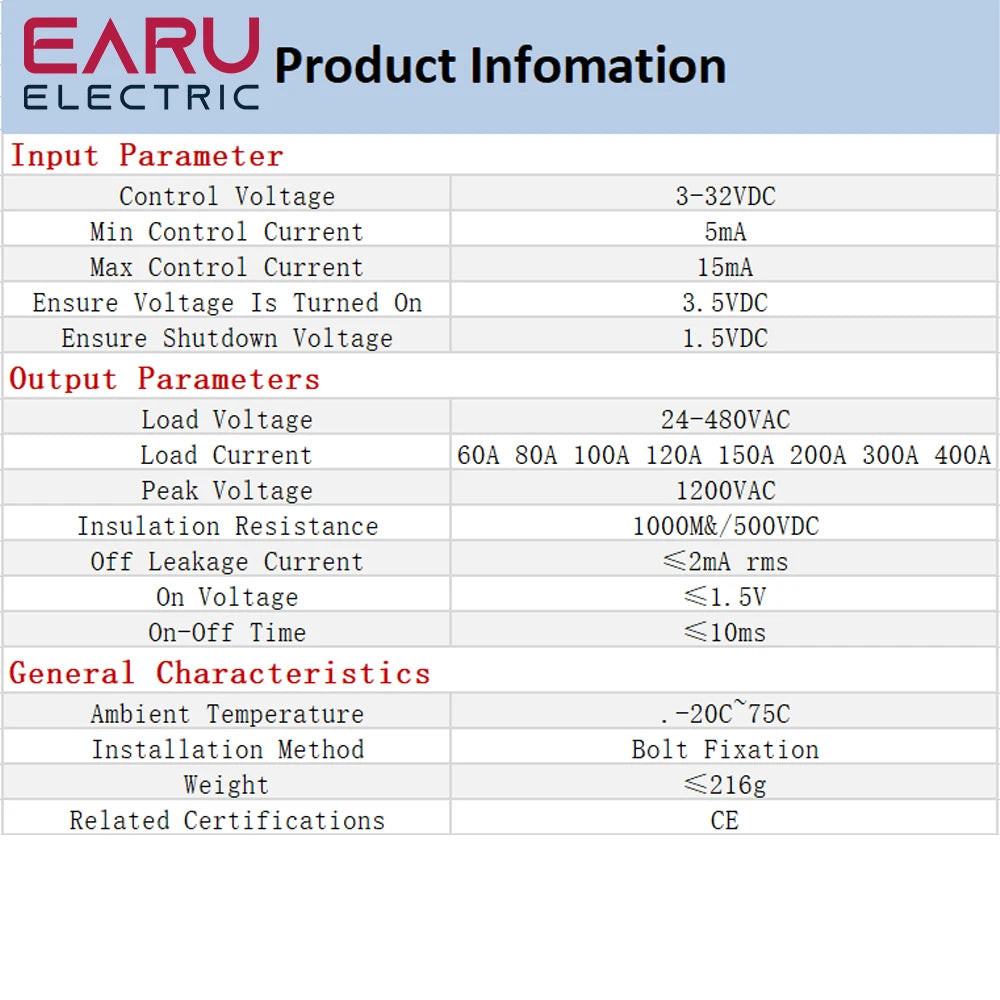

SPECIFICATIONS

  • Brand Name: EARUELETRIC
  • Usage: General Purpose
  • Theory: Solid State Relay
  • Voltage: 1200VAC

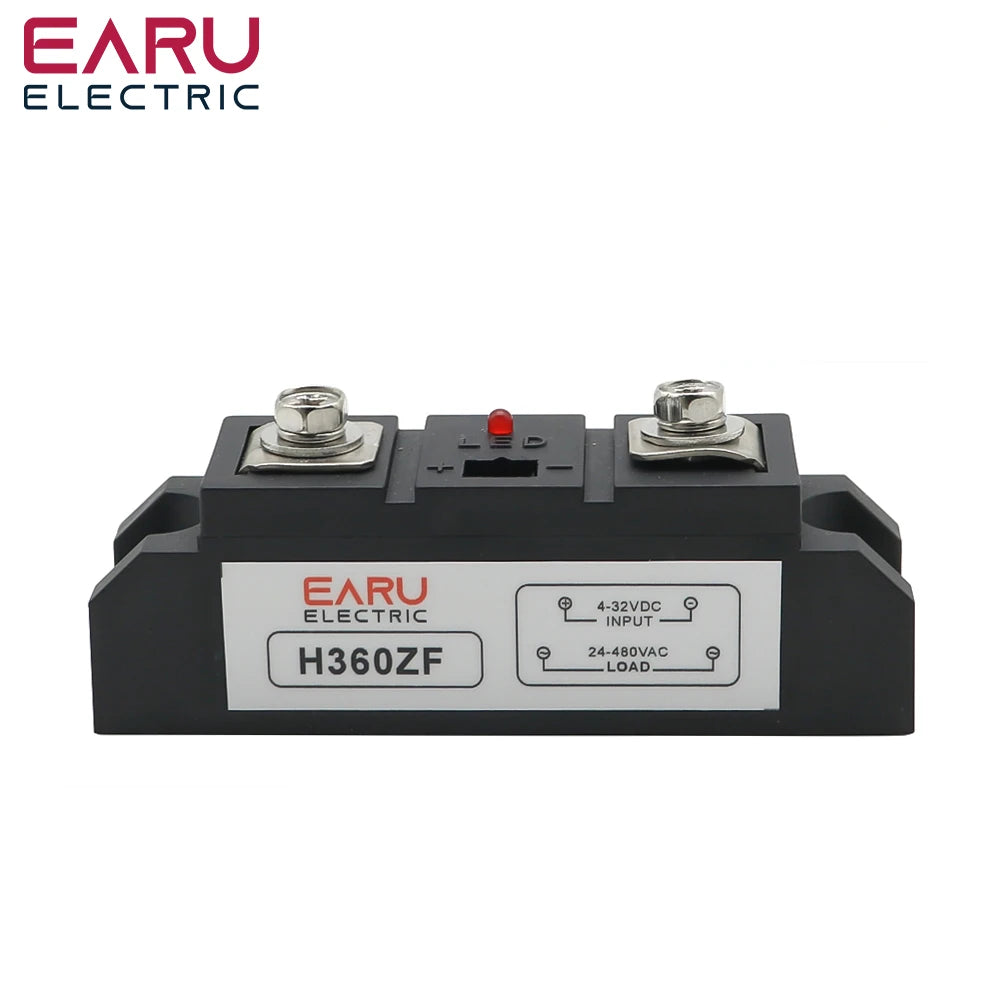

  • Model Number: Ry-H360ZF
  • Protect Feature: Epoxy
  • Control Voltage: 3-32VDC
  • Min Control Current: 5mA
  • Load Voltage: 24-480VAC
  • Load Current: 60A 80A 100A 120A 150A 200A 300A 400A
  • Off Leakage Current: ≤2mA rms
  • On Voltage: ≤1.5V
  • On-off Time: ≤10ms
  • Ambient Temperature: -20C~75C
  • Installation Method: Bolt fixation

Industrial Solid State Relay 60A 80A 100A 120A 150A 200A 300A 400A DC Control AC High Power DA If you need 500A or 1000A, you can contact us for customization
