LED Digital Thermometer With EGT Temperature Sensor Weld Bund Combo Kit In Fahrenheit Celsius Adjustable Universal Use PT100 K

LED Digital Thermometer With EGT Temperature Sensor Weld Bund Combo Kit In Fahrenheit Celsius Adjustable Universal Use PT100 K

Prix habituel $12.76 USD
Prix habituel $0.00 USD Prix promotionnel $12.76 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.
Color

This LED Digital Thermometer is the ultimate temperature measuring tool for all your welding needs. With an EGT temperature sensor, you can accurately measure both Fahrenheit and Celsius temperatures. The adjustable design allows for universal use, making it a versatile choice for any project.

SPECIFICATIONS

  • POWER: DC12V
  • RANGE: -200~1300°C
  • Brand Name: EARUELETRIC
  • Max Measuring Temperature: 120°C & Above
  • Style: Standing and Wall Hanging
  • Model Number: T100G T100B T100R
  • Theory: Thermocouple Thermometer
  • Type: K
  • Display Type: DIGITAL
  • Measure Type: K
  • Cable Length: 2m
  • Display Size: 2.0 - 3.9 Inches

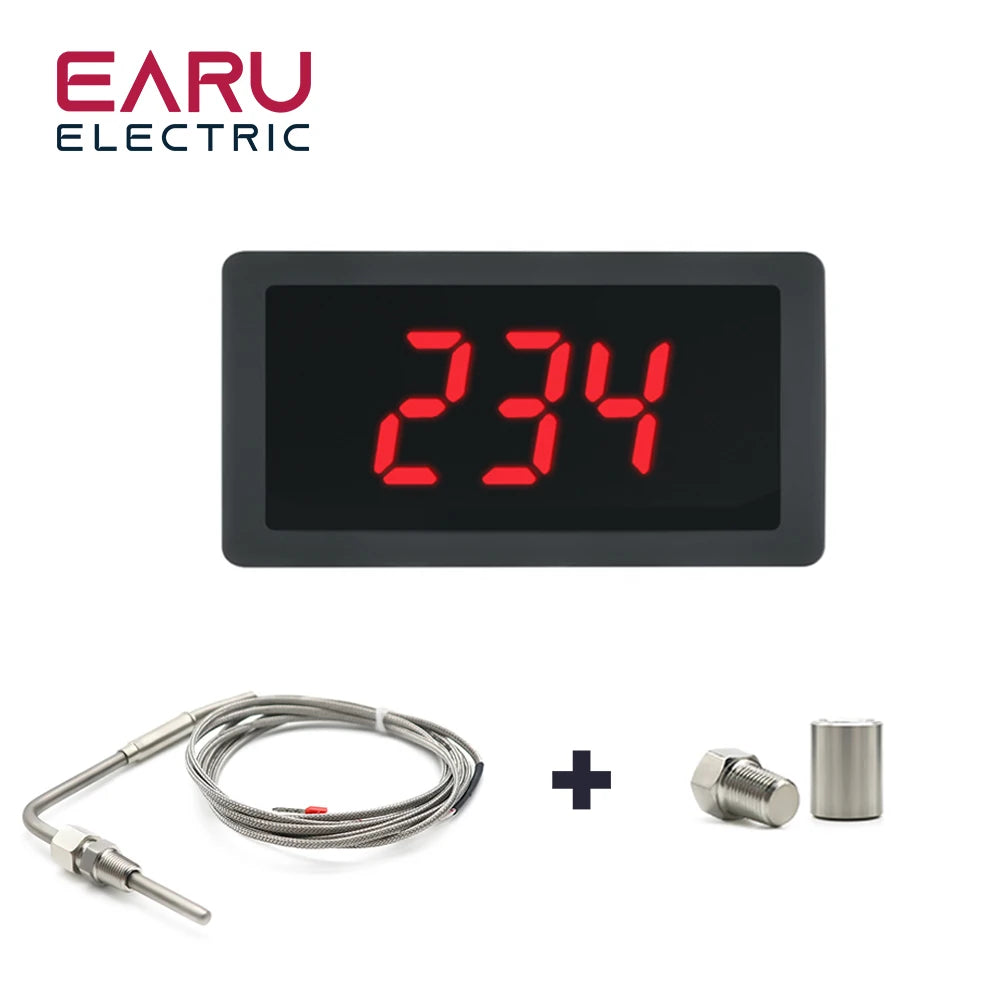

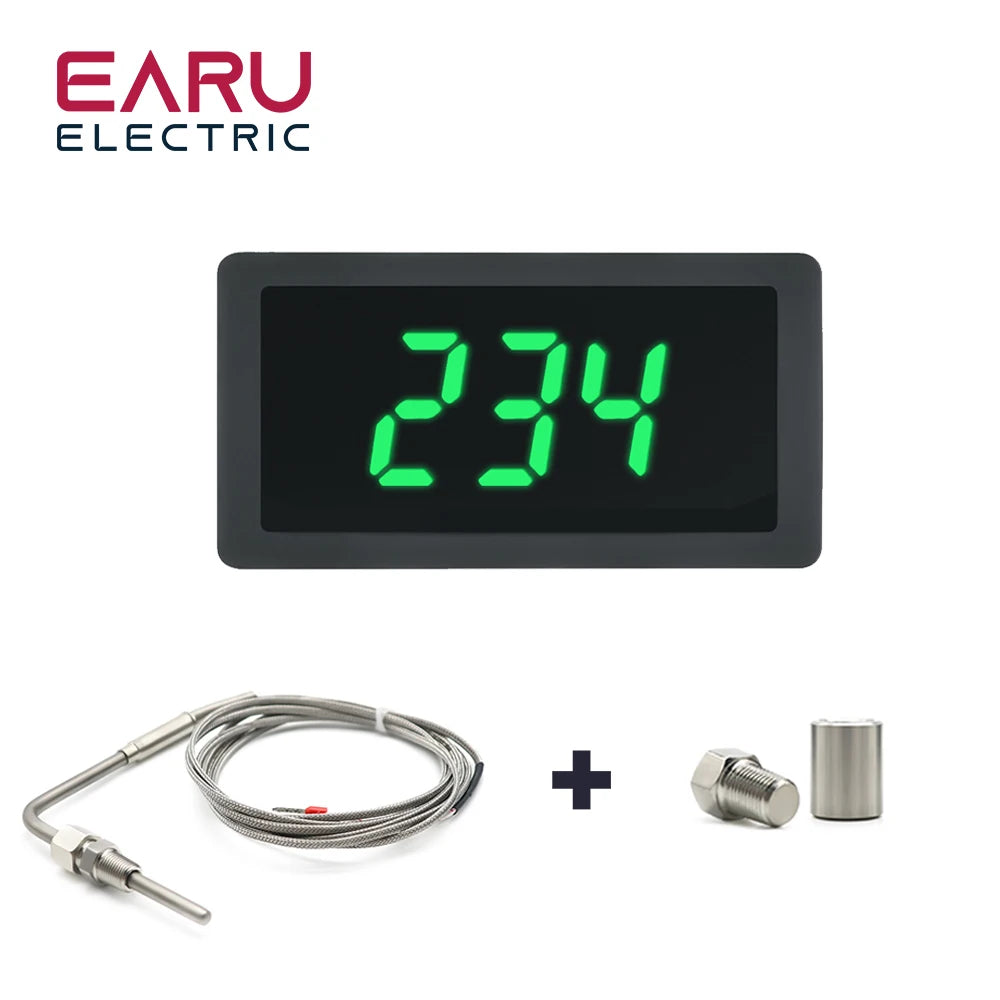

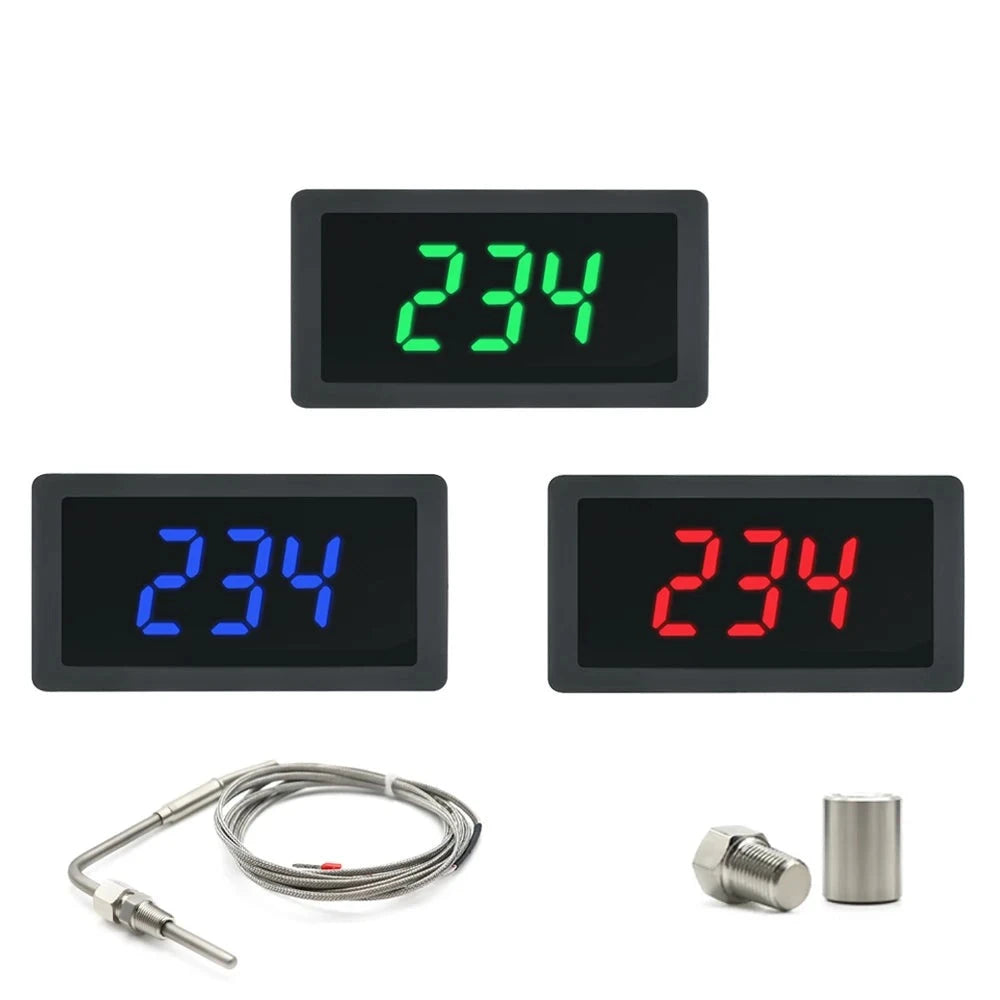

LED Digital Thermometer With EGT Temperature Sensor Weld Bund Combo Kit In Fahrenheit Celsius Adjustable Universal
  • 100% Brand New item
  • High quality stainless steel EGT probe against rust
  • Stylish two-color (blue, green, red) EGT watch
  • Stainless steel weld bund with matching plug

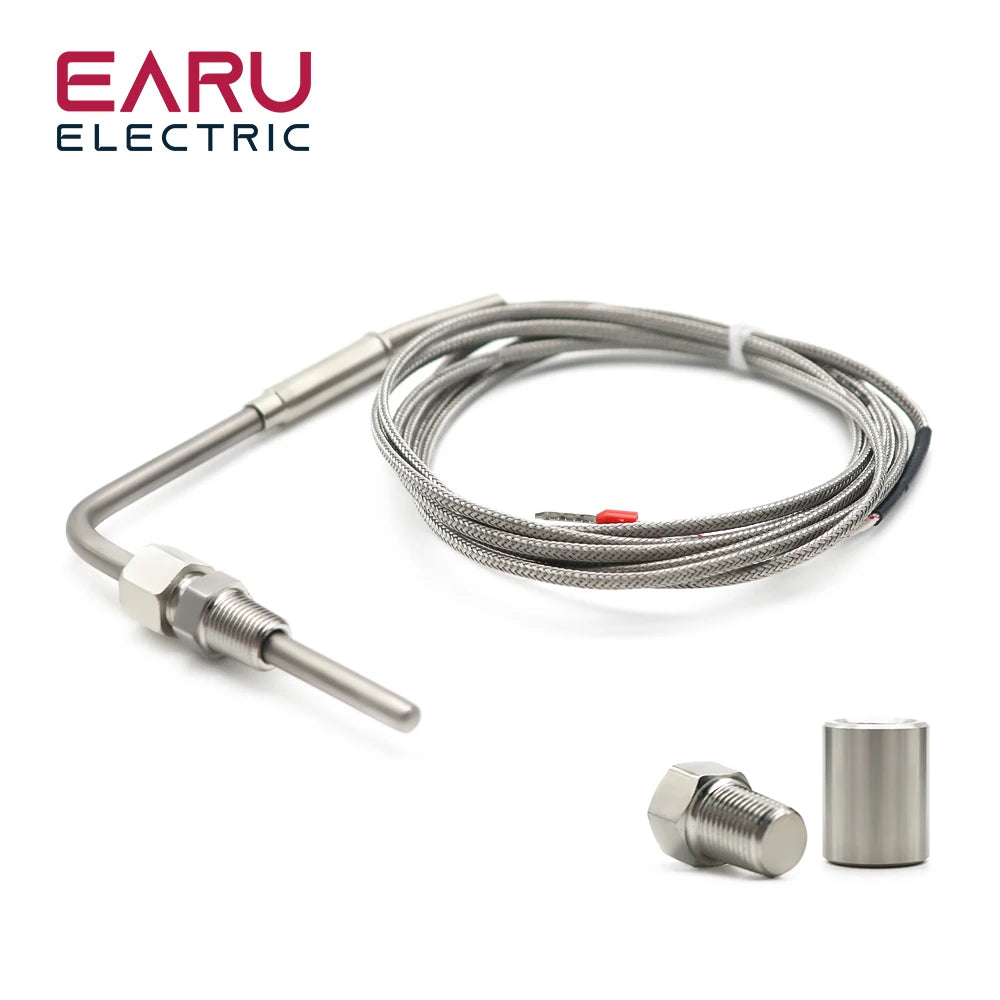

EGT Probe :

  • Probe Material : Stainless Steel 304
  • Probe Diameter : 5mm (0.2”)
  • Probe Length : L1 80mm (3.15”) L2 30mm (1.18”)
  • Threads : 1/8” NPT Adjustable Compression Fittings
  • Cable Length : 2m (6.6')
  • Cable Insulation : Fiberglass braiding with stainless steel overbraiding
  • Type : Ungrounded
  • Connector : Spade connector
  • Temperature Range : -100 ~ 1250 degree Celcius (-150 ~ 2300 F)

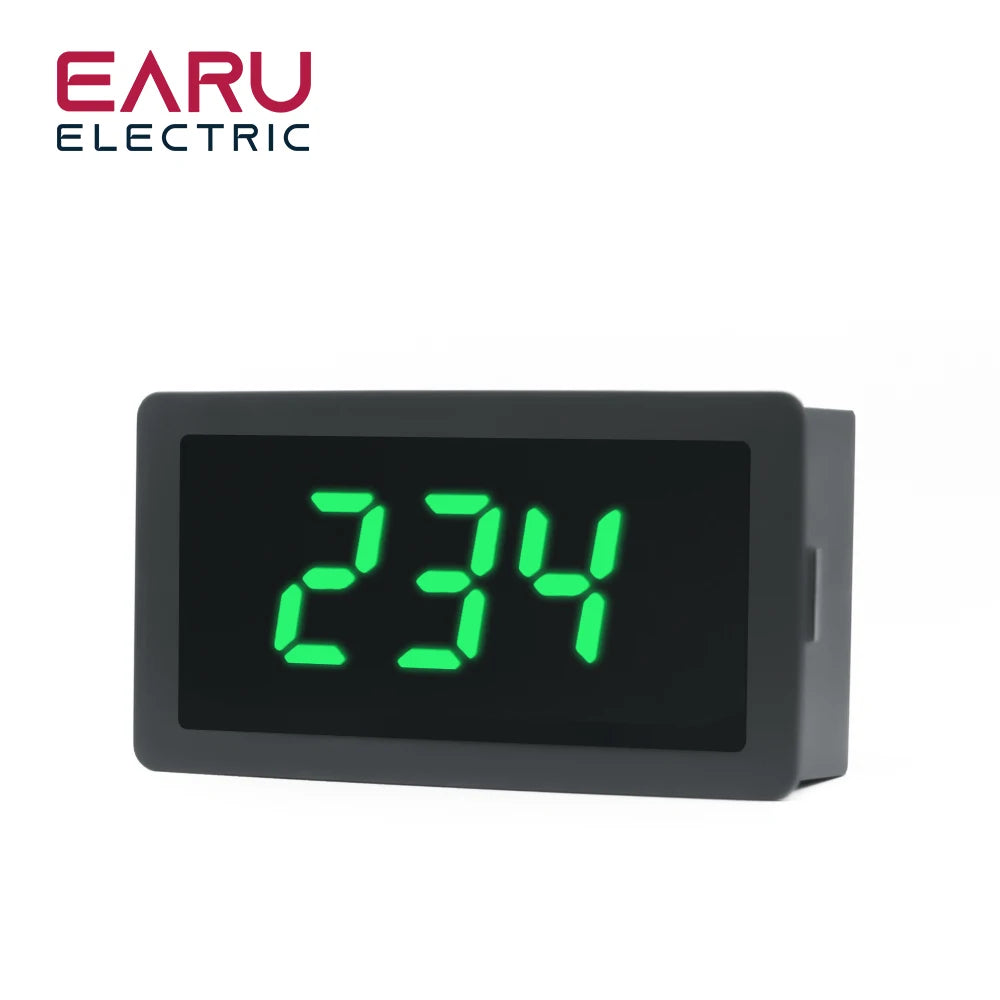

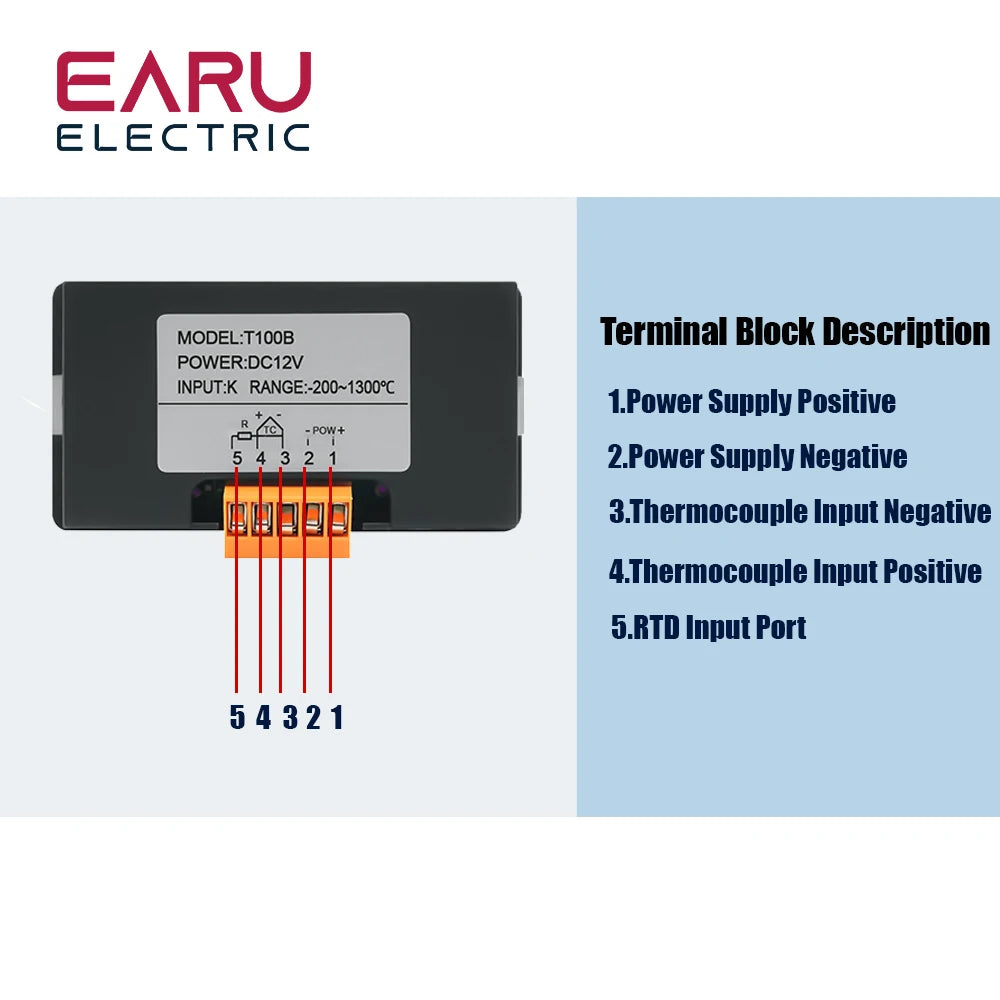

EGT Gauge :

  • Power supply:DC5~12V
  • Measurement accuracy: ≤0.2%FS ≤1 word
  • Power consumption::≤30mA
  • Signal range: 10 kinds of thermocouples, 2 kinds of RTDs
  • Sampling rate: 5 times / sec.
  • Display range:-1999~9999

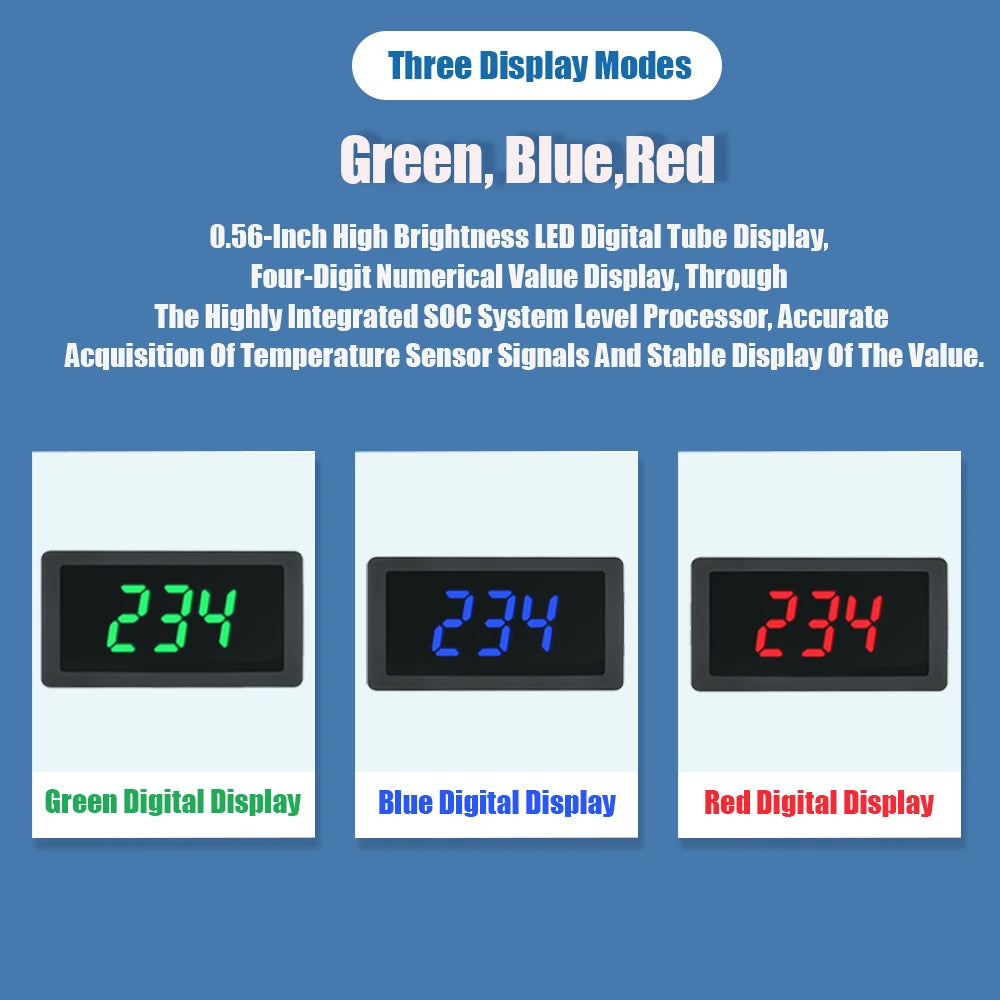

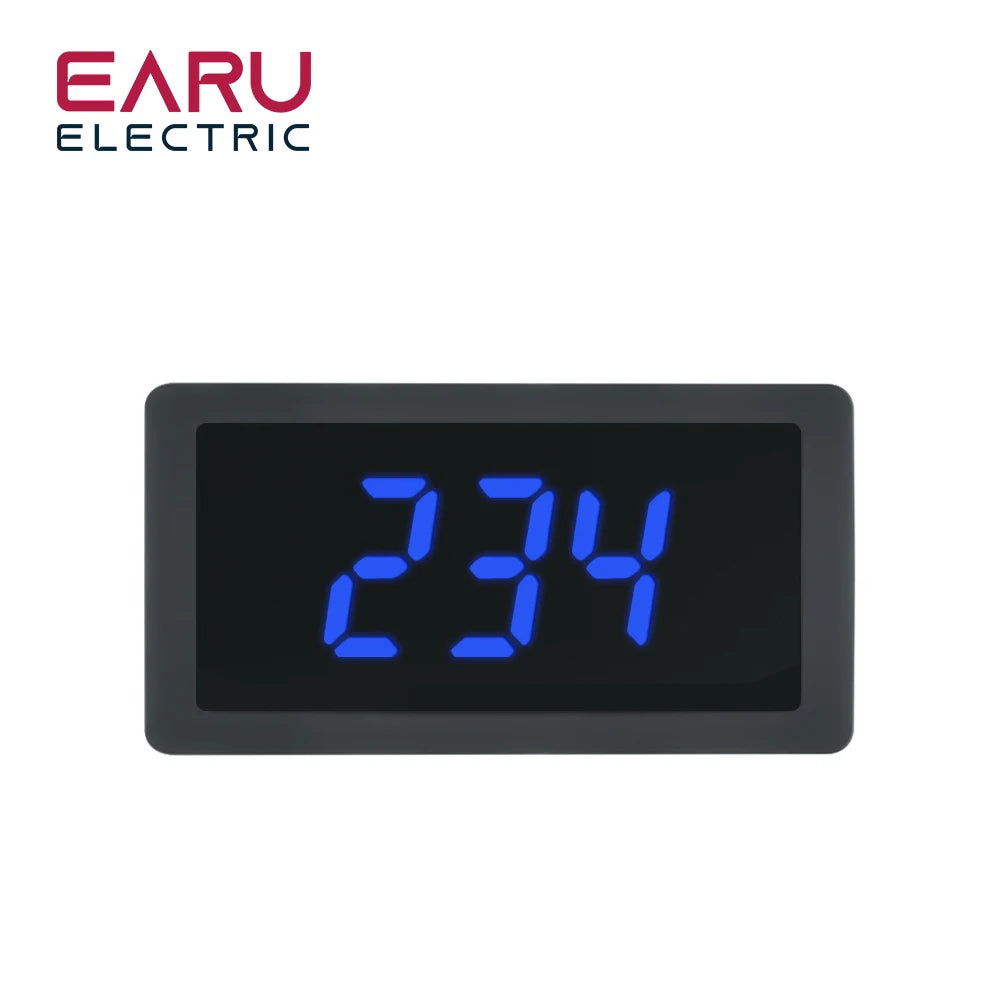

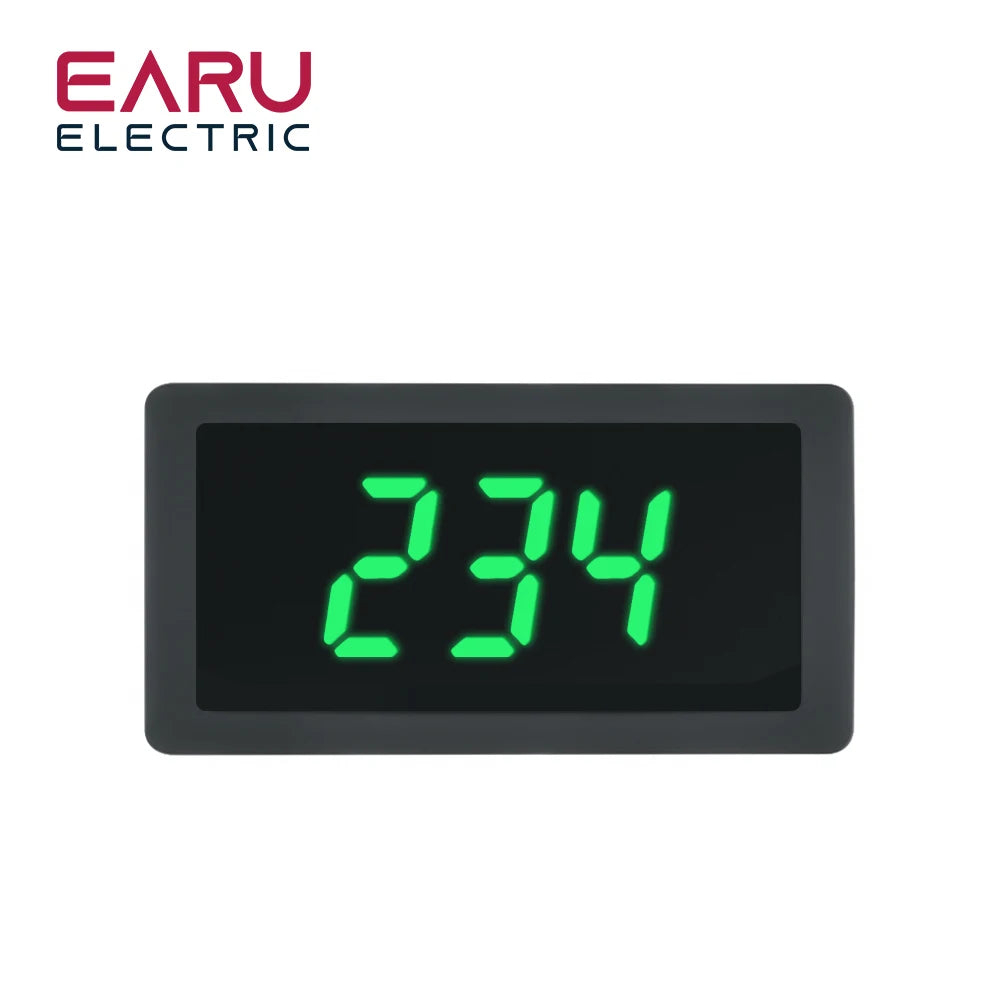

  • Display mode: 0.56 inch LED display, red, blue, green three-colour optional
  • Temperature drift:60PPm/°C
  • Operating temperature:-10~50°C
  • Relative humidity:≤85%RH, no strong corrosive gas

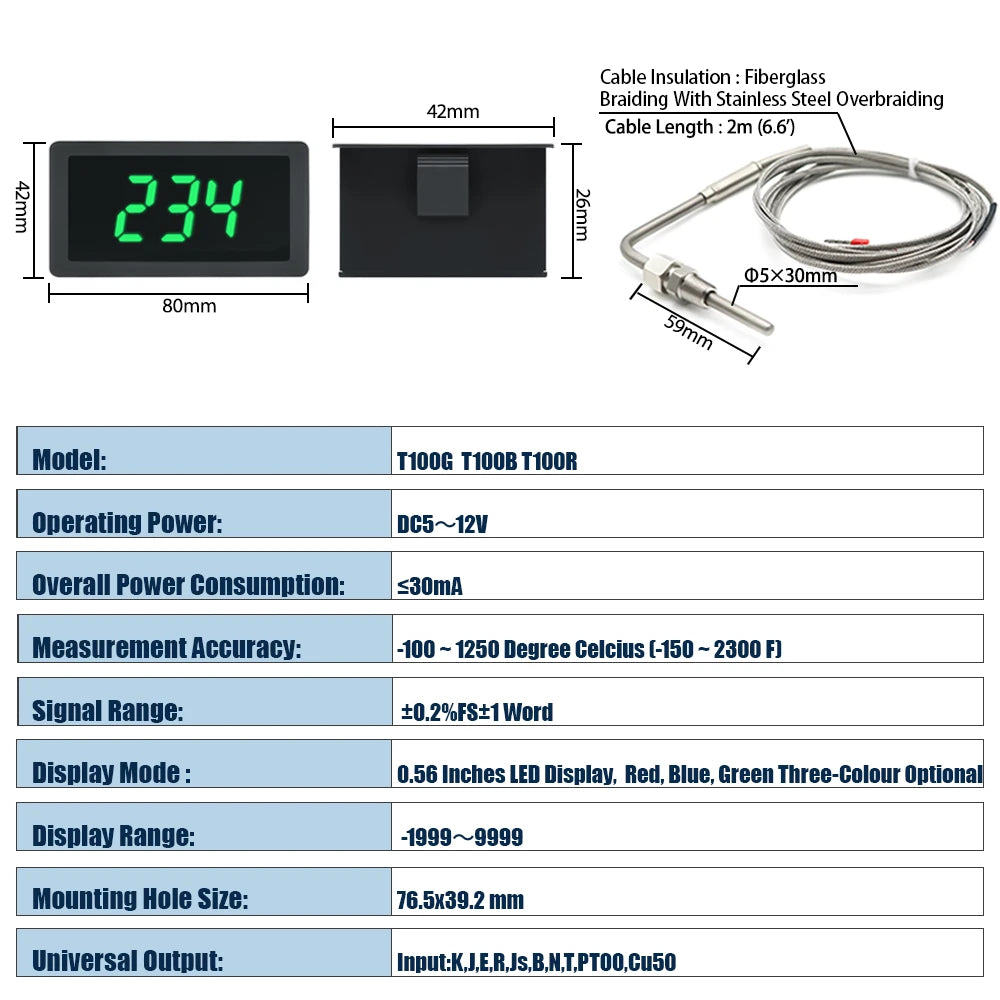

  • Mounting hole size:76.5x39.2 mm

Weld Bund with Plug :

  • Material : Stainless Steel
  • Threads : 1/8” NPT
  • Outer Diameter : 0.5" (12mm)
  • Length : 0.6" (15mm)
